Kubernetes环境下部署Open-LDAP和Go-admin-ldap

光头熊
1,035 阅读3分钟

OpenLDAP部署

准备配置

  • 定义配置文件openldap-config.txt
LDAP_ORGANISATION=
LDAP_DOMAIN=
LDAP_ADMIN_PASSWORD=
LDAP_CONFIG_PASSWORD=
LDAP_BACKEND=mdb
  • 准备init.ldif
dn: ou=people,dc=quicktable,dc=cn
ou: people
description: 用户根目录
objectClass: organizationalUnit
dn: ou=dingtalkroot,dc=quicktable,dc=cn
ou: dingtalkroot
description: 钉钉根部门
objectClass: top
objectClass: organizationalUnit
dn: ou=wecomroot,dc=quicktable,dc=cn
ou: wecomroot
description: 企业微信根部门
objectClass: top
objectClass: organizationalUnit
dn: ou=feishuroot,dc=quicktable,dc=cn
ou: feishu
description: 飞书根部门
objectClass: top
objectClass: organizationalUnit
  • 生成configmap
kubectl create configmap openldap-init --from-file=./init.ldif -n open-ldap

部署openldap

  • 准备openldap-deployment.yaml

使用aliyun oss当存储时，由于不支持目录权限的修改会导致openldap在启动时初始化失败，本部署选择一个Node节点直接用hostPath挂载本地路径。

kind: Deployment
apiVersion: apps/v1
metadata:
  name: openldap
  namespace: open-ldap
  labels:
    app: openldap
  annotations:
    app.kubernetes.io/alias-name: LDAP
    app.kubernetes.io/description: 认证中心
spec:
  replicas: 1
  selector:
    matchLabels:
      app: openldap
  template:
    metadata:
      labels:
        app: openldap
    spec:
      nodeName: <node-name> #Node节点
      volumes:
        - name: ldap-data
          hostPath:
            path: /opt/openldap/data/
        - name: ldap-config
          hostPath:
            path: /opt/openldap/config/
        - name: openldap-init
          configMap:
            name: openldap-init
      containers:
        - name: openldap
          args:
           - --copy-service
          image: "docker.mirrors.sjtug.sjtu.edu.cn/osixia/openldap:1.4.0"
          envFrom:
          - secretRef:
              name: openldap-config
          ports:
            - name: tcp-389
              containerPort: 389
              protocol: TCP
            - name: tcp-636
              containerPort: 636
              protocol: TCP
          resources:
            limits:
              cpu: 500m
              memory: 500Mi
            requests:
              cpu: 100m
              memory: 100Mi
          volumeMounts:
            - name: ldap-config
              mountPath: "/etc/ldap/slapd.d"
            - name: ldap-data
              mountPath: "/var/lib/ldap"
            - name: openldap-init
              mountPath: /container/service/slapd/assets/config/bootstrap/ldif/custom/init.ldif
              subPath: init.ldif
---
apiVersion: v1
kind: Service
metadata:
  name: openldap-svc
  namespace: open-ldap
  labels:
    app: openldap-svc
spec:
  ports:
  - name: tcp-389
    port: 389
    protocol: TCP
    targetPort: 389
  - name: tcp-636
    port: 636
    protocol: TCP
    targetPort: 636
  selector:
    app: openldap
  • 部署ldap
kubectl apply -f openldap-deployment.yaml
kubectl -n open-ldap get svc
kubectl -n open-ldap get pods

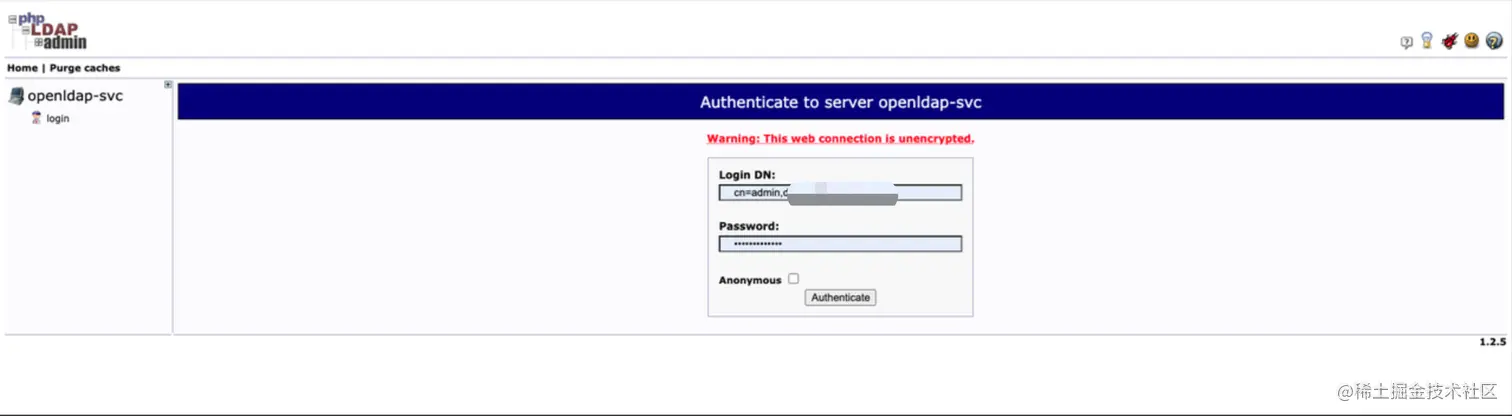

  • 部署phpldapadmin

为了方便验证ldap，phpldapadmin通过NodePort对外提供服务。

kind: Deployment
apiVersion: apps/v1
metadata:
  name: ldap-phpldapadmin
  namespace: open-ldap
  labels:
    app: ldap-phpldapadmin
  annotations:
    app.kubernetes.io/alias-name: LDAP
    app.kubernetes.io/description: LDAP后台页面
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ldap-phpldapadmin
  template:
    metadata:
      labels:
        app: ldap-phpldapadmin
    spec:
      nodeName: osixia/phpldapadmin:stable
      containers:
        - name: phpldapadmin
          image: "osixia/phpldapadmin:stable"
          ports:
            - name: tcp-80
              containerPort: 80
              protocol: TCP
          env:
            - name: PHPLDAPADMIN_HTTPS
              value: 'false'
            - name: PHPLDAPADMIN_LDAP_HOSTS
              value: openldap-svc
          resources:
            limits:
              cpu: 500m
              memory: 500Mi
            requests:
              cpu: 10m
              memory: 10Mi
---
apiVersion: v1
kind: Service
metadata:
  name: ldap-phpldapadmin-svc
  namespace: open-ldap
  labels:
    app: ldap-phpldapadmin-svc
spec:
  type: NodePort
  ports:
  - name: tcp-80
    port: 80
    protocol: TCP
    targetPort: 80
    nodePort: 30080
  selector:
    app: ldap-phpldapadmin

kubectl apply -f openldap-phpadmin-deployment.yaml
kubectl -n open-ldap get svc
kubectl -n open-ldap get pods


映射389端口

如果ldap需要被集群外其它服务调用，那么需要将ldap 389端口对外映射，本文以LoadBalancer为例。

  • 准备configmap
apiVersion: v1
kind: ConfigMap
metadata:
  name: tcp-services
  namespace: kube-system
data:
  3089: "open-ldap/openldap-svc:389"

#3089：可自定义端口

kubectl apply -f tcp-service.yaml
kubectl -n kube-system get cm tcp-services -o yaml
  • 修改ingress controller配置
kubectl -n kube-system edit svc nginx-ingress-lb
  ...
  ports:
  - name: http
    nodePort: 30118
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    nodePort: 32419
    port: 443
    protocol: TCP
    targetPort: 443
  ...

添加如下内容：
  - name: ldap
    nodePort: 32189
    port: 3089
    protocol: TCP
    targetPort: 3089

Go-Ldap-Admin的部署

基于Go+Vue实现的openLDAP后台管理项目，可实现钉钉、飞书、企业微信帐号的同步。

需提前准备mysql、email（用来发重置密码的邮箱）

  • 准备config.yml
# delelopment
system:
  # 设定模式(debug/release/test,正式版改为release)
  mode: debug
  # url前缀
  url-path-prefix: api
  # 程序监听端口
  port: 8888
  # 是否初始化数据(没有初始数据时使用, 已发布正式版改为false)
  init-data: true
  # rsa公钥文件路径(config.yml相对路径, 也可以填绝对路径)
  rsa-public-key: go-ldap-admin-pub.pem
  # rsa私钥文件路径(config.yml相对路径, 也可以填绝对路径)
  rsa-private-key: go-ldap-admin-priv.pem
logs:
  # 日志等级(-1:Debug, 0:Info, 1:Warn, 2:Error, 3:DPanic, 4:Panic, 5:Fatal, -1<=level<=5, 参照zap.level源码)
  level: -1
  # 日志路径
  path: logs
  # 文件最大大小, M
  max-size: 50
  # 备份数
  max-backups: 100
  # 存放时间, 天
  max-age: 30
  # 是否压缩
  compress: false
mysql:
  # 用户名
  username:
  # 密码
  password:
  # 数据库名
  database: go_ldap_admin
  # 主机地址
  host:
  # 端口
  port: 3306
  # 连接字符串参数
  query: parseTime=True&loc=Local&timeout=10000ms
  # 是否打印日志
  log-mode: true
  # 数据库表前缀(无需再末尾添加下划线, 程序内部自动处理)
  table-prefix: tb
  # 编码方式
  charset: utf8mb4
  # 字符集(utf8mb4_general_ci速度比utf8mb4_unicode_ci快些)
  collation: utf8mb4_general_ci
# casbin配置
casbin:
  # 模型配置文件, config.yml相对路径
  model-path: 'rbac_model.conf'
# jwt配置
jwt:
  # jwt标识
  realm: test jwt
  # 服务端密钥
  key: secret key
  # token过期时间, 小时
  timeout: 12000
  # 刷新token最大过期时间, 小时
  max-refresh: 12000
# 令牌桶限流配置
rate-limit:
  # 填充一个令牌需要的时间间隔,毫秒
  fill-interval: 50
  # 桶容量
  capacity: 200
# email configuration
email:
  port: '465'
  user: 'xxxx'
  from: 'ldap-admin后台'
  host: 'smtp.xxxx'
  is-ssl: true
  pass: 'xxxx'
# # ldap 配置
ldap:
  # ldap服务器地址
  url: ldap://openldap-svc.open-ldap:389
  # ladp最大连接数设置
  max-conn: 10
  # ldap服务器基础DN
  base-dn: "dc=xxxx,dc=xxxx"
  # ldap管理员DN
  admin-dn: "cn=admin,dc=xxxx,dc=xxxx"
  # ldap管理员密码
  admin-pass: ""
  # ldap用户OU
  user-dn: "ou=people,dc=xxxx,dc=xxxx"
  # ldap用户初始默认密码
  user-init-password: "xxxx"
  # 是否允许更改分组DN
  group-name-modify: false
  # 是否允许更改用户DN
  user-name-modify: false
# 📢 即便用不到如下三段配置信息，也不要删除，否则会有一些奇怪的错误出现
dingtalk:
  # 配置获取详细文档参考： http://ldapdoc.eryajf.net/pages/94f43a/
  flag: "dingtalk" # 作为钉钉在平台的标识
  app-key: "xxxxxxxxxxxxxxx" # 应用的key
  app-secret: "xxxxxxxxxxxxxxxxxxxxxxxxxxxx" # 应用的secret
  agent-id: "12121212" # 目前agent-id未使用到，可忽略
  enable-sync: false  # 是否开启定时同步钉钉的任务
wecom:
  # 配置获取详细文档参考：http://ldapdoc.eryajf.net/pages/cf1698/
  flag: "wecom" # 作为微信在平台的标识
  corp-id: "xxxx" # 企业微信企业ID
  agent-id: 1000003 # 企业微信中创建的应用ID
  corp-secret: "xxxxx" # 企业微信中创建的应用secret
  enable-sync: false # 是否开启定时同步企业微信的任务
feishu:
  # 配置获取详细文档参考：http://ldapdoc.eryajf.net/pages/83c90b/
  flag: "feishu" # 作为飞书在平台的标识
  app-id: "xxxx" # 飞书的app-id
  app-secret: "xxxx" # 飞书的app-secret
  enable-sync: false  # 是否开启定时同步飞书的任务
  • 生成configmap
kubectl create configmap config --from-file=./config.yml -n open-ldap
  • 准备go-ldap-admin.yaml
kind: Deployment
apiVersion: apps/v1
metadata:
  name: go-ldap-admin
  namespace: open-ldap
  labels:
    app: go-ldap-admin
  annotations:
    app.kubernetes.io/alias-name: go-ldap-admin
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-ldap-admin
  template:
    metadata:
      labels:
        app: go-ldap-admin
    spec:
      volumes:
        - name: config
          configMap:
            name: config
      containers:
        - name: go-ldap-admin-server
          image: eryajf/go-ldap-admin-server
          volumeMounts:
            - name: config
              mountPath: /app/config.yml
              subPath: config.yml
          ports:
            - name: tcp-8888
              containerPort: 8888
              protocol: TCP
          resources:
            limits:
              cpu: 500m
              memory: 500Mi
            requests:
              cpu: 10m
              memory: 10Mi
---
apiVersion: v1
kind: Service
metadata:
  name: go-ldap-admin-server
  namespace: open-ldap
  labels:
    app: go-ldap-admin-server
spec:
  ports:
  - name: tcp-8888
    port: 8888
    protocol: TCP
    targetPort: 8888
  selector:
    app: go-ldap-admin
  • 准备go-ldap-admin-ui.yaml
kind: Deployment
apiVersion: apps/v1
metadata:
  name: go-ldap-admin-ui
  namespace: open-ldap
  labels:
    app: go-ldap-admin-ui
  annotations:
    app.kubernetes.io/alias-name: go-ldap-admin-ui
spec:
  replicas: 1
  selector:
    matchLabels:
      app: go-ldap-admin-ui
  template:
    metadata:
      labels:
        app: go-ldap-admin-ui
    spec:
      containers:
        - name: go-ldap-admin-ui-server
          image: eryajf/go-ldap-admin-ui
          ports:
            - name: tcp-80
              containerPort: 80
              protocol: TCP
          resources:
            limits:
              cpu: 500m
              memory: 500Mi
            requests:
              cpu: 10m
              memory: 10Mi
---
apiVersion: v1
kind: Service
metadata:
  name: go-ldap-admin-ui-svc
  namespace: open-ldap
  labels:
    app: go-ldap-admin-ui-svc
spec:
  type: ClusterIP
  ports:
  - name: tcp-80
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: go-ldap-admin-ui
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/service-weight: ""
  name: openldap-ingress
  namespace: open-ldap
spec:
  ingressClassName: nginx
  rules:
  - host: openldap.xxxx.xxxx
    http:
      paths:
      - backend:
          service:
            name: go-ldap-admin-ui-svc
            port:
              number: 80
        path: /
        pathType: Prefix
  • 执行部署
kubectl apply -f go-ldap-admin.yaml
kubectl apply -f go-ldap-admin-ui.yaml

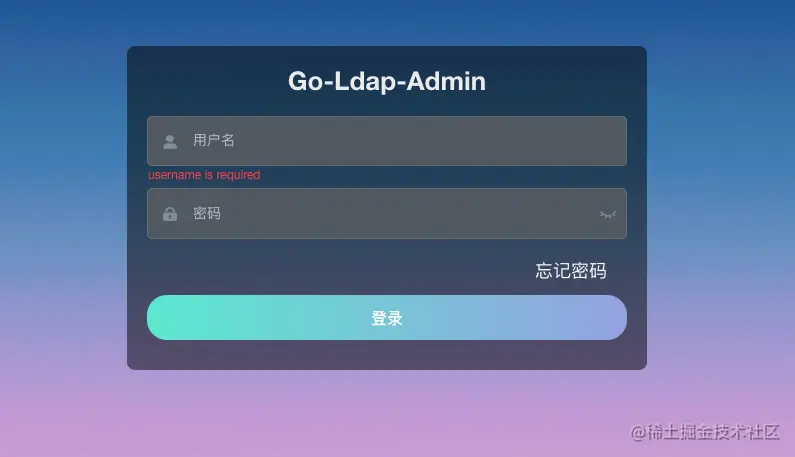

  • 登录 admin/<LDAP_ADMIN_PASSWORD>
