前言

平时想和朋友一起看看动画电影，国内有版权的还好，B站有一起看的功能。但是没版权或者一些小众的想一起看就太麻烦了，只能大家先下载在本地，再连麦同步进度看。太麻烦了，要是有一个“直播间”能看这些电影就好了，于是就搞了这么个项目。

一、框架与环境

技术框架选用的是Nginx、nginx-http-flv-module 、ffmpeg、flv.js。后面两个安装很简单，主要讲Nginx和nginx-http-flv-module的源码安装和配置以及使用。 配置是腾讯云轻量服务器1核2G的Ubuntu 20.04 LTS。注意：配置文件中出现过的端口都记得在防火墙中开放。

二、安装Nginx和nginx-http-flv-module

  1. 卸载原来的Nginx
  2. 安装nginx源码安装所需的依赖

g++

sudo apt-get install build-essential

PCRE库

sudo apt-get install libpcre3 libpcre3-dev

zlib库

sudo apt-get install zlib1g-dev

OpenSSL

sudo apt-get install openssl libssl-dev

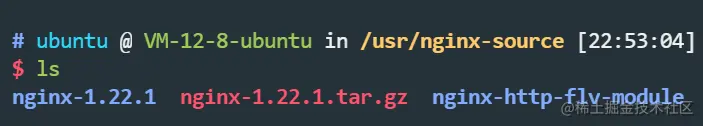

  1. 下载源码到同一个目录并且解压
sudo wget http://nginx.org/download/nginx-1.22.1.tar.gz
sudo git clone https://github.com/winshining/nginx-http-flv-module
sudo tar -zxvf nginx-1.22.1.tar.gz


  1. 切换root用户进入nginx的根目录
su root
cd nginx-1.22.1


  1. 依次配置、编译、安装
./configure --add-module=../nginx-http-flv-module
make
make install

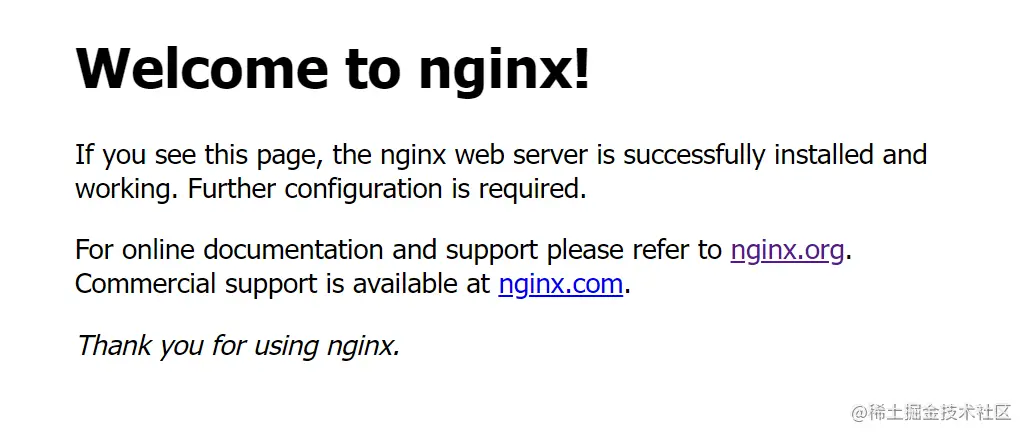

6、安装好之后退出root再进入/usr/local/nginx/sbin启动ng，输入服务器ip能看到下面图片就成功了

nginx


三、配置nginx.conf

cd  /usr/local/nginx/conf
# 修改配置文件前记得留个备份
sudo cp nginx.conf nginx.conf.backup
sudo vim nginx.conf

2.完整配置文件

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    server {
        listen       80;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm;
        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

        location /live {
            flv_live on; #打开 HTTP 播放 FLV 直播流功能
            chunked_transfer_encoding on; #支持 'Transfer-Encoding: chunked' 方式回复

            add_header 'Access-Control-Allow-Origin' '*'; #添加额外的 HTTP 头
            add_header 'Access-Control-Allow-Credentials' 'true'; #添加额外的 HTTP 头
        }

        location /hls {
            types {
                application/vnd.apple.mpegurl m3u8;
                video/mp2t ts;
            }

            root /tmp;
            add_header 'Cache-Control' 'no-cache';
        }

        location /dash {
            root /tmp;
            add_header 'Cache-Control' 'no-cache';
        }

        location /stat {
            #推流播放和录制统计数据的配置
            rtmp_stat all;
            rtmp_stat_stylesheet stat.xsl;
        }

        location /stat.xsl {
            root /var/www/rtmp; #指定 stat.xsl 的位置
        }

          location /control {
            rtmp_control all; #rtmp 控制模块的配置
        }

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

}

rtmp_auto_push on;
rtmp_auto_push_reconnect 1s;
rtmp_socket_dir /tmp;

rtmp {
    out_queue           4096;
    out_cork            8;
    max_streams         128;
    timeout             15s;
    drop_idle_publisher 15s;

    log_interval 5s; #log 模块在 access.log 中记录日志的间隔时间，对调试非常有用
    log_size     1m; #log 模块用来记录日志的缓冲区大小

    server {
        listen 1935;
        server_name localhost; #用于虚拟主机名后缀通配

        application myliveapp {
            live on;
            gop_cache on; #打开 GOP 缓存，减少首屏等待时间
        }

        application hls {
            live on;
            hls on;
            hls_path /tmp/hls;
        }

        application dash {
            live on;
            dash on;
            dash_path /tmp/dash;
        }
    }
}

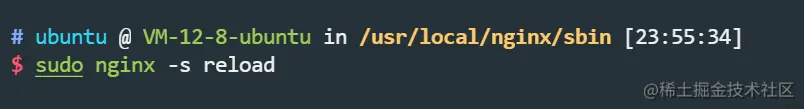

  1. 进入/usr/local/nginx/sbin目录重启nginx
sudo nginx -s reload


四、ffmpeg推流

  1. 安装ffmpeg
sudo apt update
sudo apt install ffmpeg

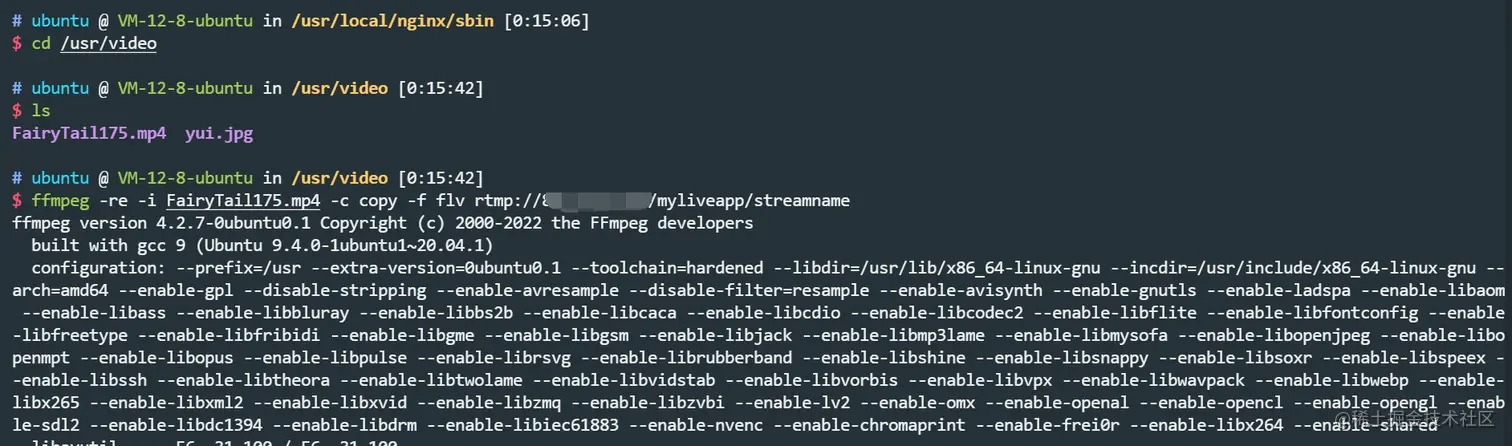

  1. 推流,看到下图就可以了
cd /usr/video
ffmpeg -re -i FairyTail175.mp4 -c copy -f flv rtmp://ip/myliveapp/streamname


五、拉流

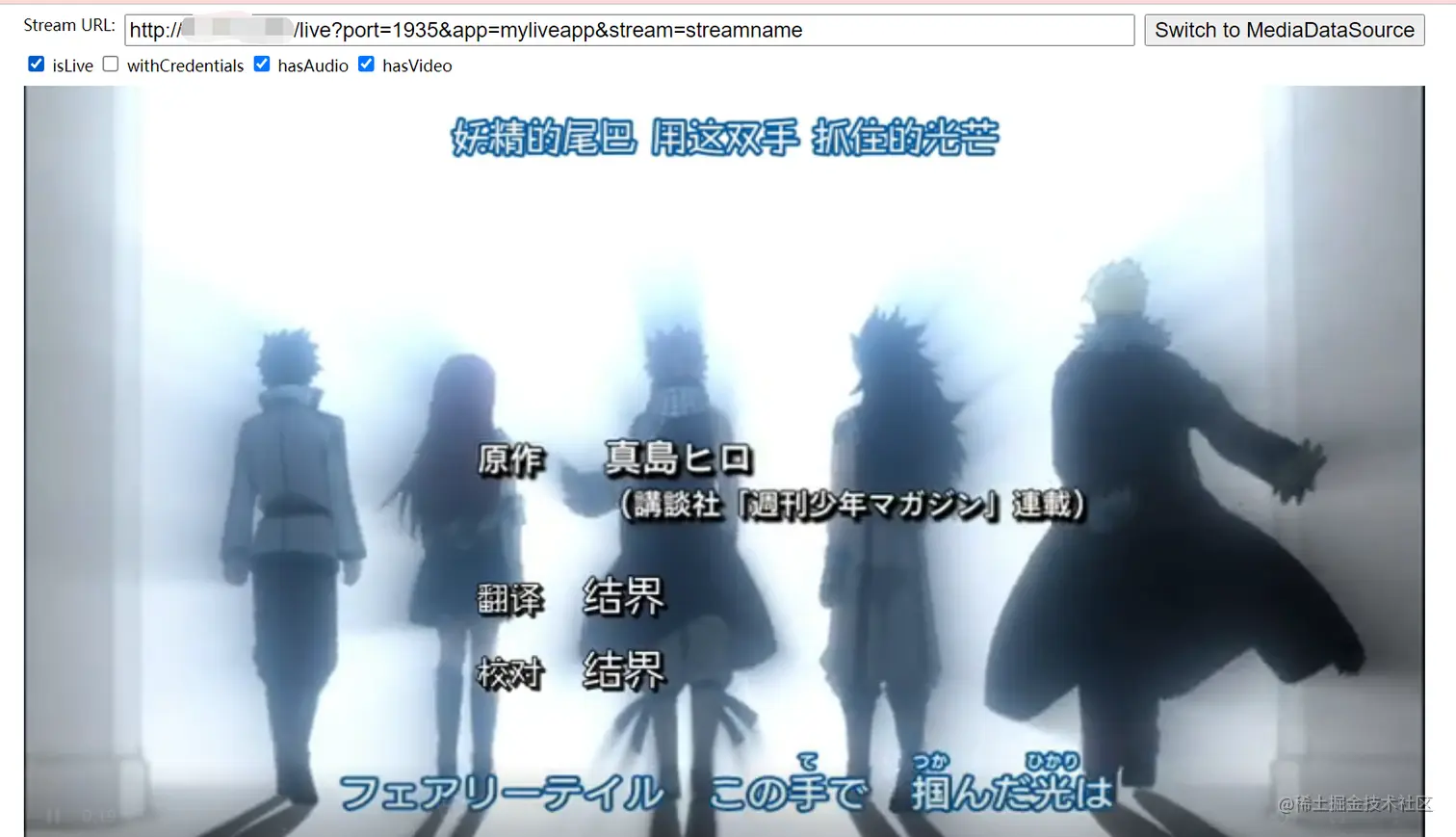

直接用b站的demo网站测试就行了
拉流地址：http://ip/live?port=1935&app=myliveapp&stream=streamname


写在最后

由于不熟悉源码编译和ng，这些配置还是弄了挺久的，把每一次项目都当成一次学习吧。现在能做到的就是基本播放，实际使用还有很多问题，追帧、断流重连、实时更新等问题，先挖着坑。
