1.何为延迟队列

顾名思义，延迟队列就是进入该队列的消息会被延迟消费的队列。而一般的队列，消息一旦入队了之后就会被消费者马上消费。延迟队列多用于需要延迟工作的场景。最常见的是以下两种场景：

1. 延迟消费

用户生成订单之后，需要过一段时间校验订单的支付状态，如果订单仍未支付则需要及时地关闭订单。用户注册成功之后，需要过一段时间比如一周后校验用户的使用情况，如果发现用户活跃度较低，则发送邮件或者短信来提醒用户使用。

1.2 延迟重试

比如消费者从队列里消费消息时失败了，但是想要延迟一段时间后自动重试。如果不使用延迟队列，那么我们只能通过一个轮询扫描程序去完成。这种方案既不优雅，也不方便做成统一的服务便于开发人员使用。但是使用延迟队列的话，我们就可以轻而易举地完成。

2 RocketMq 对延迟队列的支持

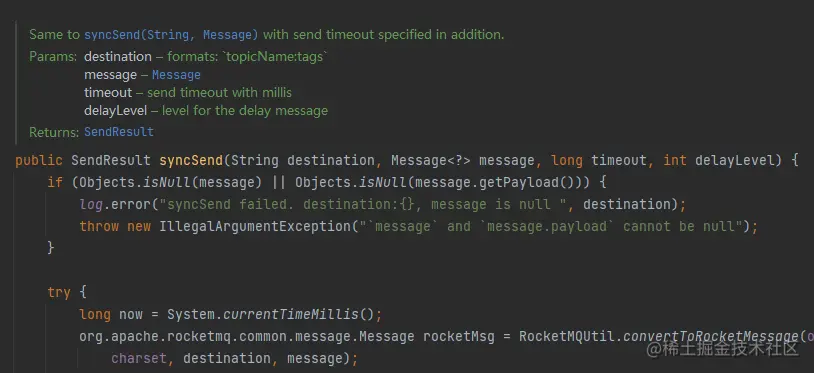

其实rocketMq是支持延迟消息队列的。我们后端一般会使用到Springboot 来集成RocketMq 来处理数据。其中官方会有RocketMQTemplate , 其中的sysend 的方法有一个入参 dealyLevel 是代表延时级别的。

这里我们先不对他进行讨论，他这个是基于生产者发送方来延时的。现在我们要做的是类似于 @RocketMQMessageListener，做为消费方，接收方来做的。

3 设计思想和架构

1，要实现自定义注解，里面包含rocketMq 的地址，分组信息， topic 信息等。这些信息有的默认使用的是配置文件的信息。

2，在使用SpringBean 的后置处理器，对自定义注解进行拦截封装成消息发送生产者对象。在监听器里面使用哪个thread.sleep() 来获取注解里面的延迟时长。在调用methon.invoke 的方法。直接返回结果。

3，消息发送对象，要实现 InitializingBean , DisposableBean 来重新启动和销毁的方法。

4，在使用springboot 的spi 把自定义的后置处理器的配置类写入spring.factories 里面。

4，具体的代码

4.1 自定义注解

package com.ducheng.rocket.annotation;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;


@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
public @interface DelayRocketMQListener {
    /**
     * RocketMQ topic
     * @return
     */
    String topic();

    /**
     * Tag
     * @return
     */
    String tag() default "*";

    /**
     * 延迟的时长
     * @return
     */
    int delayTime() default 0;

    /**
     * nameServer, 支持两种模式，模式是从配置文件获取。
     * @return
     */
    String nameServer() default "${rocketmq.name-server}";

    /**
     * 消费者组信息, 支持两种模式， m默认是从配置文件获取。
     * @return
     */
    String consumerGroup() default "${rocketmq.producer.group}" ;
}
复制代码

4.2 构建消费者对象

package com.ducheng.rocket.delay;

import com.ducheng.rocket.annotation.DelayRocketMQListener;
import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.*;
import org.apache.rocketmq.common.message.MessageExt;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.springframework.beans.factory.DisposableBean;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.core.env.Environment;
import org.springframework.util.StringUtils;

import java.lang.reflect.Method;
import java.nio.charset.Charset;
import java.util.List;
import java.util.Objects;


@Slf4j
public class DelayConsumerContainer implements InitializingBean , DisposableBean {

    private final DelayRocketMQListener delayBasedRocketMQ;


    private final   Environment environment;

    private    Method method;

    private    Object bean;

    private static final String charset = "UTF-8";

    private final   Class  aClass;


    public DelayConsumerContainer(DelayRocketMQListener delayBasedRocketMQ, Environment environment, Method method, Object bean, Class aClass) {
        this.delayBasedRocketMQ = delayBasedRocketMQ;
        this.environment = environment;
        this.method = method;
        this.bean = bean;
        this.aClass = aClass;
    }

    protected DefaultMQPushConsumer createConsumer() throws Exception {
        // 构建 DefaultMQPushConsumer
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer();

        String consumerGroup = resolve(this.delayBasedRocketMQ.consumerGroup());
        String nameServerAddress = resolve(this.delayBasedRocketMQ.nameServer());

        consumer.setConsumerGroup(consumerGroup);
        consumer.setNamesrvAddr(nameServerAddress);

        // 订阅 topic
        //String topic = resolve(this.delayBasedRocketMQ.topic());
        String topic = this.delayBasedRocketMQ.topic();
        //String tag = resolve(this.delayBasedRocketMQ.tag());
        String tag = this.delayBasedRocketMQ.tag();
        consumer.subscribe(topic, tag);

        // 增加监听器
        consumer.setMessageListener(new DefaultMessageListener(delayBasedRocketMQ.delayTime()));

        //consumer.setMessageModel();
        log.info("success to subscribe  {}, topic {}, tag {}, group {}", nameServerAddress, topic, tag, consumerGroup);
        return consumer;
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        DefaultMQPushConsumer consumer = createConsumer();
        consumer.start();
    }

    @Override
    public void destroy() throws Exception {
        createConsumer().shutdown();
    }


    private class DefaultMessageListener implements MessageListenerConcurrently {

        private Integer delayTime;

        public Integer getDelayTime() {
            return delayTime;
        }

        public void setDelayTime(Integer delayTime) {
            this.delayTime = delayTime;
        }

        public DefaultMessageListener(Integer delayTime) {
            this.delayTime = delayTime;
        }

        @SuppressWarnings("unchecked")
        @Override
        public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
            for (MessageExt messageExt : msgs) {
                log.debug("received msg: {}", messageExt);
                try {
                    long now = System.currentTimeMillis();

                    Thread.sleep(delayTime);

                    Object doConvertMessage = doConvertMessage(messageExt);

                    method.invoke(bean,doConvertMessage);


                    long costTime = System.currentTimeMillis() - now;
                    log.debug("consume {} cost: {} ms", messageExt.getMsgId(), costTime);
                } catch (Exception e) {
                    log.warn("consume message failed. messageExt:{}", messageExt, e);
                    //context.setDelayLevelWhenNextConsume(delayLevelWhenNextConsume);
                    return ConsumeConcurrentlyStatus.RECONSUME_LATER;
                }
            }

            return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        }
    }


    @SuppressWarnings("unchecked")
    private Object doConvertMessage(MessageExt messageExt) {
        if (Objects.equals(this.aClass, MessageExt.class)) {
            return messageExt;
        } else {
            String str = new String(messageExt.getBody(), Charset.forName(charset));
            if (Objects.equals(this.aClass, String.class)) {
                return str;
            } else {
                // If msgType not string, use objectMapper change it.
                try {
                    ObjectMapper objectMapper  = new ObjectMapper();
                    return objectMapper.readValue(str, this.aClass);
                } catch (Exception e) {
                    log.info("convert failed. str:{}, msgType:{}", str, this.aClass);
                    throw new RuntimeException("cannot convert message to " + this.aClass, e);
                }
            }
        }
    }


    protected String resolve(String value) {
        if (StringUtils.hasText(value)) {
            return this.environment.resolvePlaceholders(value);
        }
        return value;
    }
}
复制代码

4.3 自定义注册器

package com.ducheng.rocket.delay;

import com.ducheng.rocket.annotation.DelayRocketMQListener;
import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.reflect.MethodUtils;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.springframework.aop.support.AopUtils;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.core.annotation.AnnotatedElementUtils;
import org.springframework.core.env.Environment;

import java.lang.reflect.Method;
import java.util.List;

@Slf4j
public class DelayConsumerContainerRegistry implements BeanPostProcessor {

    private final Environment environment;

    public DelayConsumerContainerRegistry(Environment environment) {
        this.environment = environment;
    }

    @SneakyThrows
    @Override
    public Object postProcessAfterInitialization(Object proxy, String beanName) throws BeansException {
        // 1. 获取 @DelayRocketMQListener 注解方法
        Class targetCls = AopUtils.getTargetClass(proxy);
        List<Method> methodsListWithAnnotation = MethodUtils.getMethodsListWithAnnotation(targetCls, DelayRocketMQListener.class);
        // 2. 为每个 @DelayRocketMQListener 注解方法 注册 DelayConsumerContainer
        for(Method method : methodsListWithAnnotation){
            DelayRocketMQListener annotation = AnnotatedElementUtils.findMergedAnnotation(method, DelayRocketMQListener.class);
            //获取真实的代理对象
            //Object bean = AopProxyUtils.getSingletonTarget(proxy);

            Class<?> parameterType = method.getParameterTypes()[0];
            DelayConsumerContainer delayConsumerContainer =
                    new DelayConsumerContainer(
                            annotation,
                            environment,
                            method,
                            proxy,
                            parameterType);
            delayConsumerContainer.afterPropertiesSet();
        }
        return proxy;
    }

}
复制代码

4.4 自定义配置类

@Configuration
// 这里一定要记住，一定要在RocketMq 自动装配完成之后
@AutoConfigureAfter(RocketMQAutoConfiguration.class)
public class DelayBasedRocketMQAutoConfiguration {

    @Autowired
    private Environment environment;

    @Bean
    public DelayConsumerContainerRegistry delayConsumerContainerRegistry(){
        return new DelayConsumerContainerRegistry(environment);
    }
}
复制代码

4.5 使用spi

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.ducheng.rocket.config.DelayBasedRocketMQAutoConfiguration
复制代码

5. 编写测试代码

5.1 生产者

@Autowired
private RocketMQTemplate rocketMQTemplate;

@GetMapping("/index")
public String index() {
    rocketMQTemplate.convertAndSend("test","测试");
    log.info("开始发送信息：{}",new Date().toString());
    return "ok";
}
复制代码

5.2 消费者


@Component
@Slf4j
public class TestDemo {

    @DelayRocketMQListener(topic = "test",delayTime = 5000)
    //@RocketMQMessageListener()
    public String message(String message) {
     log.info("返回的参数:{}",message);
     return message;
    }
}
复制代码

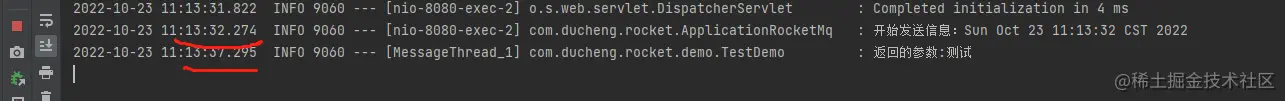

6.测试结果

37 秒-32 秒五秒钟，完美。

RocketMq 自定义注解实现延迟队列
