1. Servlet是如何生效的
1.1 pipline-valve机制
上篇文章我们讲到，org.apache.catalina.connector.CoyoteAdapter是通过调用顶层容器组件Engine的Pipline的invoke方法，实现将请求提交给容器处理，这里我们再来介绍一下Tomcat的Pipeline-valve机制。
Pipeline-Valve是责任链模式，责任链模式是指在一个请求处理的过程中有很多处理者依次对请求进行处理，每个处理者负责做自己相应的处理,处理完之后将再调用下一个处理者继续处理。Valve 表示一个处理点，比如权限认证和记录日志。

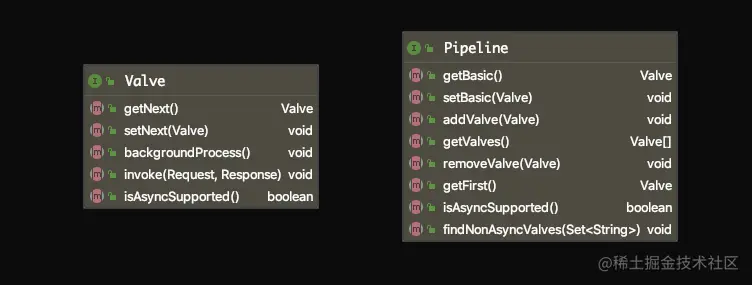

Valve是一个处理点，invoke方法是来处理请求的。Valve中有getNext和setNext 方法，我们大概可以猜到有一个链表将Valve链起来了。
Pipeline中有addValve方法，Pipeline中维护了Valve链表，Valve可以插入Pipeline中，对请求做某些处理。同时我们发现Pipeline中没有invoke方法，因为整个调用链的触发是Valve来完成的，Valve完成自己的处理后，调用 getNext.invoke()来触发下一个Valve调用。
每一个容器都有一个Pipeline对象，只要触发这个Pipeline的第一个Valve，这个容器里Pipeline中的Valve就都会被调用到。不同容器的Pipeline是怎么链式触发的呢？比如Engine中 Pipeline需要调用下层容器Host中的Pipeline。
Pipeline中还有个getBasic方法。这个BasicValve处于Valve链表的末端，它是 Pipeline中必不可少的一个Valve，负责调用下层容器的Pipeline里的第一个Valve。
搞清楚什么是Pipeline-valve机制后，我们来看另一个问题。这些容器组建的Pipline是何时初始化的，Pipeline的Valve又是何时添加进去的。
首先我们知道Pipline是跟各个容器组件绑定在一起的（一个容器组件对应一个Pipeline），可以说每个容器组件有一个org.apache.catalina.Pipeline类型的成员变量，该成员变量是定义在ContainerBase的，并且赋了初始值。
/**
* The Pipeline object with which this Container is associated.
*/
protected final Pipeline pipeline = new StandardPipeline(this);
那么也就是说只要容器组件构造函数调用，该成员变量就会初始化了。比如我们来看一下StandardEngine的构造函数：
/**
* Create a new StandardEngine component with the default basic Valve.
*/
public StandardEngine() {
super();
pipeline.setBasic(new StandardEngineValve());
/* Set the jmvRoute using the system property jvmRoute */
try {
setJvmRoute(System.getProperty("jvmRoute"));
} catch(Exception ex) {
log.warn(sm.getString("standardEngine.jvmRouteFail"));
}
// By default, the engine will hold the reloading thread
backgroundProcessorDelay = 10;
}
调用了父类无参构造函数，实现pipeline成员变量的初始化。其次调用pipeline的setBasic方法，将StandardEngineValve设置为pipeline的Basic Valve。其它容器的pipeline以及Basic Valve的初始化跟StandardEngine类似。
除了BasicValve，那么Pipline中普通的valve是如何添加到Pipline中的？这里主要有两部分来源，一是容器内部指定valve，如下：
protected synchronized void startInternal() throws LifecycleException {
// Set error report valve
String errorValve = getErrorReportValveClass();
if ((errorValve != null) && (!errorValve.equals(""))) {
try {
boolean found = false;
Valve[] valves = getPipeline().getValves();
for (Valve valve : valves) {
if (errorValve.equals(valve.getClass().getName())) {
found = true;
break;
}
}
if(!found) {
Valve valve =
(Valve) Class.forName(errorValve).getConstructor().newInstance();
getPipeline().addValve(valve);
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
log.error(sm.getString(
"standardHost.invalidErrorReportValveClass",
errorValve), t);
}
}
super.startInternal();
}
这是StandardHost的startInternal方法，我们可以看到该方法内部初始化了一个Valve，并添加到Host容器的Pipeline中。
另一个来源是我们在配置文件中配置的Valve，比如我们可以为Context配置valve，在Context构建过程中会解析我们配置的valve：
digester.addObjectCreate(prefix + "Context/Valve",
null, // MUST be specified in the element
"className");
digester.addSetProperties(prefix + "Context/Valve");
digester.addSetNext(prefix + "Context/Valve",
"addValve",
"org.apache.catalina.Valve");
上述解析规则在org.apache.catalina.startup.ContextRuleSet中。同样HostRuleSet中也有类似的解析规则，比如：
digester.addObjectCreate(prefix + "Host/Valve",
null, // MUST be specified in the element
"className");
digester.addSetProperties(prefix + "Host/Valve");
digester.addSetNext(prefix + "Host/Valve",
"addValve",
"org.apache.catalina.Valve");
1.2 请求是如何到达Servlet的
上面我们介绍到Adapter通过调用如下代码，将请求提交给容器处理：
connector.getService().getContainer().getPipeline().getFirst().invoke(
request, response);

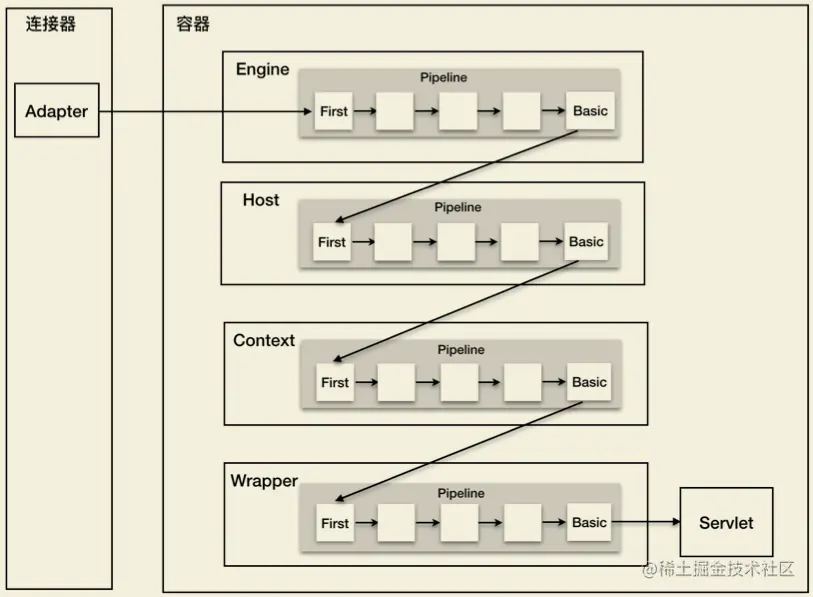

调用了Engine容器的Pipeline中第一个Valve的invoke方法，按照上面对Pipeline-valve机制的介绍，我们知道，肯定会依次调用到各个容器组件Pipline的valve。这里我们只关心各级容器Pipline中的BasicValve，其它的Valve这里就不详细介绍了。Engine、Host、Context和Wrapper容器的Pipeline对应的BasicValve分别为StandardEngineValve、StandardHostValve、StandardContextValve和StandardWrapperValve。下面我们就来分别看一下这几个Valve的invoke方法，来看看请求是如何传递的。
-
StandardEngineValve
@Override public final void invoke(Request request, Response response) throws IOException, ServletException {
// Select the Host to be used for this Request Host host = request.getHost(); if (host == null) { // HTTP 0.9 or HTTP 1.0 request without a host when no default host // is defined. This is handled by the CoyoteAdapter. return; } if (request.isAsyncSupported()) { request.setAsyncSupported(host.getPipeline().isAsyncSupported()); } // Ask this Host to process this request host.getPipeline().getFirst().invoke(request, response);}
首先从request中获取本次请求关联的host容器，既然request中存储了容器信息，那肯定存在一个步骤，将这些关联的容器信息塞进request中，猜测跟文章开始时介绍的Mapper组件有关，request如何关联容器对象，我们下面再介绍。
其次就是调用host的Pipeline的第一个Valve的invoke方法，不用多说，最终会调用到StandardHostValve的invoke方法。
-
StandardHostValve
@Override public final void invoke(Request request, Response response) throws IOException, ServletException {
// Select the Context to be used for this Request Context context = request.getContext(); if (context == null) { return; } if (request.isAsyncSupported()) { request.setAsyncSupported(context.getPipeline().isAsyncSupported()); } boolean asyncAtStart = request.isAsync(); try { context.bind(Globals.IS_SECURITY_ENABLED, MY_CLASSLOADER); if (!asyncAtStart && !context.fireRequestInitEvent(request.getRequest())) { // Don't fire listeners during async processing (the listener // fired for the request that called startAsync()). // If a request init listener throws an exception, the request // is aborted. return; } // Ask this Context to process this request. Requests that are // already in error must have been routed here to check for // application defined error pages so DO NOT forward them to the the // application for processing. try { if (!response.isErrorReportRequired()) { context.getPipeline().getFirst().invoke(request, response); } } catch (Throwable t) { ExceptionUtils.handleThrowable(t); container.getLogger().error("Exception Processing " + request.getRequestURI(), t); // If a new error occurred while trying to report a previous // error allow the original error to be reported. if (!response.isErrorReportRequired()) { request.setAttribute(RequestDispatcher.ERROR_EXCEPTION, t); throwable(request, response, t); } } // Now that the request/response pair is back under container // control lift the suspension so that the error handling can // complete and/or the container can flush any remaining data response.setSuspended(false); Throwable t = (Throwable) request.getAttribute(RequestDispatcher.ERROR_EXCEPTION); // Protect against NPEs if the context was destroyed during a // long running request. if (!context.getState().isAvailable()) { return; } // Look for (and render if found) an application level error page if (response.isErrorReportRequired()) { // If an error has occurred that prevents further I/O, don't waste time // producing an error report that will never be read AtomicBoolean result = new AtomicBoolean(false); response.getCoyoteResponse().action(ActionCode.IS_IO_ALLOWED, result); if (result.get()) { if (t != null) { throwable(request, response, t); } else { status(request, response); } } } if (!request.isAsync() && !asyncAtStart) { context.fireRequestDestroyEvent(request.getRequest()); } } finally { // Access a session (if present) to update last accessed time, based // on a strict interpretation of the specification if (ACCESS_SESSION) { request.getSession(false); } context.unbind(Globals.IS_SECURITY_ENABLED, MY_CLASSLOADER); }}
获取Context容器的Pipeline，并调用第一个Valve的invoke方法。
-
StandardContextValve
@Override public final void invoke(Request request, Response response) throws IOException, ServletException {
// Disallow any direct access to resources under WEB-INF or META-INF MessageBytes requestPathMB = request.getRequestPathMB(); if ((requestPathMB.startsWithIgnoreCase("/META-INF/", 0)) || (requestPathMB.equalsIgnoreCase("/META-INF")) || (requestPathMB.startsWithIgnoreCase("/WEB-INF/", 0)) || (requestPathMB.equalsIgnoreCase("/WEB-INF"))) { response.sendError(HttpServletResponse.SC_NOT_FOUND); return; } // Select the Wrapper to be used for this Request Wrapper wrapper = request.getWrapper(); if (wrapper == null || wrapper.isUnavailable()) { response.sendError(HttpServletResponse.SC_NOT_FOUND); return; } // Acknowledge the request try { response.sendAcknowledgement(); } catch (IOException ioe) { container.getLogger().error(sm.getString( "standardContextValve.acknowledgeException"), ioe); request.setAttribute(RequestDispatcher.ERROR_EXCEPTION, ioe); response.sendError(HttpServletResponse.SC_INTERNAL_SERVER_ERROR); return; } if (request.isAsyncSupported()) { request.setAsyncSupported(wrapper.getPipeline().isAsyncSupported()); } wrapper.getPipeline().getFirst().invoke(request, response);}
获取Wrapper的Pipeline，并调用第一个Valve的invoke方法。
-
StandardWrapperValve
@Override public final void invoke(Request request, Response response) throws IOException, ServletException {
// Initialize local variables we may need boolean unavailable = false; Throwable throwable = null; // This should be a Request attribute... long t1=System.currentTimeMillis(); requestCount.incrementAndGet(); StandardWrapper wrapper = (StandardWrapper) getContainer(); Servlet servlet = null; Context context = (Context) wrapper.getParent(); // Check for the application being marked unavailable if (!context.getState().isAvailable()) { response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE, sm.getString("standardContext.isUnavailable")); unavailable = true; } // Check for the servlet being marked unavailable if (!unavailable && wrapper.isUnavailable()) { container.getLogger().info(sm.getString("standardWrapper.isUnavailable", wrapper.getName())); long available = wrapper.getAvailable(); if ((available > 0L) && (available < Long.MAX_VALUE)) { response.setDateHeader("Retry-After", available); response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE, sm.getString("standardWrapper.isUnavailable", wrapper.getName())); } else if (available == Long.MAX_VALUE) { response.sendError(HttpServletResponse.SC_NOT_FOUND, sm.getString("standardWrapper.notFound", wrapper.getName())); } unavailable = true; } // Allocate a servlet instance to process this request try { if (!unavailable) { servlet = wrapper.allocate(); } } catch (UnavailableException e) { container.getLogger().error( sm.getString("standardWrapper.allocateException", wrapper.getName()), e); long available = wrapper.getAvailable(); if ((available > 0L) && (available < Long.MAX_VALUE)) { response.setDateHeader("Retry-After", available); response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE, sm.getString("standardWrapper.isUnavailable", wrapper.getName())); } else if (available == Long.MAX_VALUE) { response.sendError(HttpServletResponse.SC_NOT_FOUND, sm.getString("standardWrapper.notFound", wrapper.getName())); } } catch (ServletException e) { container.getLogger().error(sm.getString("standardWrapper.allocateException", wrapper.getName()), StandardWrapper.getRootCause(e)); throwable = e; exception(request, response, e); } catch (Throwable e) { ExceptionUtils.handleThrowable(e); container.getLogger().error(sm.getString("standardWrapper.allocateException", wrapper.getName()), e); throwable = e; exception(request, response, e); servlet = null; } MessageBytes requestPathMB = request.getRequestPathMB(); DispatcherType dispatcherType = DispatcherType.REQUEST; if (request.getDispatcherType()==DispatcherType.ASYNC) dispatcherType = DispatcherType.ASYNC; request.setAttribute(Globals.DISPATCHER_TYPE_ATTR,dispatcherType); request.setAttribute(Globals.DISPATCHER_REQUEST_PATH_ATTR, requestPathMB); // Create the filter chain for this request ApplicationFilterChain filterChain = ApplicationFilterFactory.createFilterChain(request, wrapper, servlet); // Call the filter chain for this request // NOTE: This also calls the servlet's service() method Container container = this.container; try { if ((servlet != null) && (filterChain != null)) { // Swallow output if needed if (context.getSwallowOutput()) { try { SystemLogHandler.startCapture(); if (request.isAsyncDispatching()) { request.getAsyncContextInternal().doInternalDispatch(); } else { filterChain.doFilter(request.getRequest(), response.getResponse()); } } finally { String log = SystemLogHandler.stopCapture(); if (log != null && log.length() > 0) { context.getLogger().info(log); } } } else { if (request.isAsyncDispatching()) { request.getAsyncContextInternal().doInternalDispatch(); } else { filterChain.doFilter (request.getRequest(), response.getResponse()); } } } } catch (ClientAbortException | CloseNowException e) { if (container.getLogger().isDebugEnabled()) { container.getLogger().debug(sm.getString( "standardWrapper.serviceException", wrapper.getName(), context.getName()), e); } throwable = e; exception(request, response, e); } catch (IOException e) { container.getLogger().error(sm.getString( "standardWrapper.serviceException", wrapper.getName(), context.getName()), e); throwable = e; exception(request, response, e); } catch (UnavailableException e) { container.getLogger().error(sm.getString( "standardWrapper.serviceException", wrapper.getName(), context.getName()), e); // throwable = e; // exception(request, response, e); wrapper.unavailable(e); long available = wrapper.getAvailable(); if ((available > 0L) && (available < Long.MAX_VALUE)) { response.setDateHeader("Retry-After", available); response.sendError(HttpServletResponse.SC_SERVICE_UNAVAILABLE, sm.getString("standardWrapper.isUnavailable", wrapper.getName())); } else if (available == Long.MAX_VALUE) { response.sendError(HttpServletResponse.SC_NOT_FOUND, sm.getString("standardWrapper.notFound", wrapper.getName())); } // Do not save exception in 'throwable', because we // do not want to do exception(request, response, e) processing } catch (ServletException e) { Throwable rootCause = StandardWrapper.getRootCause(e); if (!(rootCause instanceof ClientAbortException)) { container.getLogger().error(sm.getString( "standardWrapper.serviceExceptionRoot", wrapper.getName(), context.getName(), e.getMessage()), rootCause); } throwable = e; exception(request, response, e); } catch (Throwable e) { ExceptionUtils.handleThrowable(e); container.getLogger().error(sm.getString( "standardWrapper.serviceException", wrapper.getName(), context.getName()), e); throwable = e; exception(request, response, e); } finally { // Release the filter chain (if any) for this request if (filterChain != null) { filterChain.release(); } // Deallocate the allocated servlet instance try { if (servlet != null) { wrapper.deallocate(servlet); } } catch (Throwable e) { ExceptionUtils.handleThrowable(e); container.getLogger().error(sm.getString("standardWrapper.deallocateException", wrapper.getName()), e); if (throwable == null) { throwable = e; exception(request, response, e); } } // If this servlet has been marked permanently unavailable, // unload it and release this instance try { if ((servlet != null) && (wrapper.getAvailable() == Long.MAX_VALUE)) { wrapper.unload(); } } catch (Throwable e) { ExceptionUtils.handleThrowable(e); container.getLogger().error(sm.getString("standardWrapper.unloadException", wrapper.getName()), e); if (throwable == null) { exception(request, response, e); } } long t2=System.currentTimeMillis(); long time=t2-t1; processingTime += time; if( time > maxTime) maxTime=time; if( time < minTime) minTime=time; }}
StandardWrapperValve的invoke，这里看着很复杂，但其实核心也就完成两件事：
-
通过wrapper.allocate()方法，初始化servlet
-
创建ApplicationFilterChain，调用FilterChain的doFilter方法，在最后一个Filter方法执行结束后，会调用Servlet的Service方法，从而实现对Servlet的调用
public Servlet allocate() throws ServletException {
// If we are currently unloading this servlet, throw an exception if (unloading) { throw new ServletException(sm.getString("standardWrapper.unloading", getName())); } boolean newInstance = false; // If not SingleThreadedModel, return the same instance every time if (!singleThreadModel) { // Load and initialize our instance if necessary if (instance == null || !instanceInitialized) { synchronized (this) { if (instance == null) { try { if (log.isDebugEnabled()) { log.debug("Allocating non-STM instance"); } // Note: We don't know if the Servlet implements // SingleThreadModel until we have loaded it. instance = loadServlet(); newInstance = true; if (!singleThreadModel) { // For non-STM, increment here to prevent a race // condition with unload. Bug 43683, test case // #3 countAllocated.incrementAndGet(); } } catch (ServletException e) { throw e; } catch (Throwable e) { ExceptionUtils.handleThrowable(e); throw new ServletException(sm.getString("standardWrapper.allocate"), e); } } if (!instanceInitialized) { initServlet(instance); } } } if (singleThreadModel) { if (newInstance) { // Have to do this outside of the sync above to prevent a // possible deadlock synchronized (instancePool) { instancePool.push(instance); nInstances++; } } } else { if (log.isTraceEnabled()) { log.trace(" Returning non-STM instance"); } // For new instances, count will have been incremented at the // time of creation if (!newInstance) { countAllocated.incrementAndGet(); } return instance; } } synchronized (instancePool) { while (countAllocated.get() >= nInstances) { // Allocate a new instance if possible, or else wait if (nInstances < maxInstances) { try { instancePool.push(loadServlet()); nInstances++; } catch (ServletException e) { throw e; } catch (Throwable e) { ExceptionUtils.handleThrowable(e); throw new ServletException(sm.getString("standardWrapper.allocate"), e); } } else { try { instancePool.wait(); } catch (InterruptedException e) { // Ignore } } } if (log.isTraceEnabled()) { log.trace(" Returning allocated STM instance"); } countAllocated.incrementAndGet(); return instancePool.pop(); }}
allocate方法也比较简单，核心就在loadServlet和initServlet方法，这里印证了我们之前讲的，wrapper容器在Tomcat启动过程中就构建了，但是内部的Servlet，是在使用时才创建的。Tomcat源码解读『基础类介绍』。
关于FilterChain，之前的文章Java Web三大组件中已经详细介绍过，这里不多介绍了，总之通过Pipeline-valve机制，最终将请求提交给具体的Servlet处理。
1.3 Request中的容器信息如何注入的
最后我们来看一下上面遗留的一个问题，org.apache.catalina.connector.Request中的容器信息是如何注入的。
org.apache.catalina.connector.Request中获取容器组件相关的方法如下：
public Host getHost() {
return mappingData.host;
}
public Context getContext() {
return mappingData.context;
}
public Wrapper getWrapper() {
return mappingData.wrapper;
}
可以看到，请求相关联的容器组件都是从mappingData中获取的。那么mappingData又是什么时候初始化的呢？答案是我们上面介绍CoyoteAdapter的postParseRequest方法。在该方法中有一段调用，会完成mappingData的初始化：
connector.getService().getMapper().map(serverName, decodedURI,
version, request.getMappingData());
这里的getMapper获取到的就是我们最开始介绍的Mapper组件，会在Tomcat启动过程中初始化，类型为org.apache.catalina.mapper.Mapper。下面我们来看一下map方法：
/**
* Map the specified host name and URI, mutating the given mapping data.
*
* @param host Virtual host name
* @param uri URI
* @param version The version, if any, included in the request to be mapped
* @param mappingData This structure will contain the result of the mapping
* operation
* @throws IOException if the buffers are too small to hold the results of
* the mapping.
*/
public void map(MessageBytes host, MessageBytes uri, String version,
MappingData mappingData) throws IOException {
if (host.isNull()) {
host.getCharChunk().append(defaultHostName);
}
host.toChars();
uri.toChars();
internalMap(host.getCharChunk(), uri.getCharChunk(), version,
mappingData);
}
从注释中可以看到，该方法的作用是映射hostName和Uri，并修改mappingData。
private final void internalMap(CharChunk host, CharChunk uri,
String version, MappingData mappingData) throws IOException {
if (mappingData.host != null) {
// The legacy code (dating down at least to Tomcat 4.1) just
// skipped all mapping work in this case. That behaviour has a risk
// of returning an inconsistent result.
// I do not see a valid use case for it.
throw new AssertionError();
}
uri.setLimit(-1);
// Virtual host mapping
MappedHost[] hosts = this.hosts;
MappedHost mappedHost = exactFindIgnoreCase(hosts, host);
if (mappedHost == null) {
// Note: Internally, the Mapper does not use the leading * on a
// wildcard host. This is to allow this shortcut.
int firstDot = host.indexOf('.');
if (firstDot > -1) {
int offset = host.getOffset();
try {
host.setOffset(firstDot + offset);
mappedHost = exactFindIgnoreCase(hosts, host);
} finally {
// Make absolutely sure this gets reset
host.setOffset(offset);
}
}
if (mappedHost == null) {
mappedHost = defaultHost;
if (mappedHost == null) {
return;
}
}
}
mappingData.host = mappedHost.object;
// Context mapping
ContextList contextList = mappedHost.contextList;
MappedContext[] contexts = contextList.contexts;
int pos = find(contexts, uri);
if (pos == -1) {
return;
}
int lastSlash = -1;
int uriEnd = uri.getEnd();
int length = -1;
boolean found = false;
MappedContext context = null;
while (pos >= 0) {
context = contexts[pos];
if (uri.startsWith(context.name)) {
length = context.name.length();
if (uri.getLength() == length) {
found = true;
break;
} else if (uri.startsWithIgnoreCase("/", length)) {
found = true;
break;
}
}
if (lastSlash == -1) {
lastSlash = nthSlash(uri, contextList.nesting + 1);
} else {
lastSlash = lastSlash(uri);
}
uri.setEnd(lastSlash);
pos = find(contexts, uri);
}
uri.setEnd(uriEnd);
if (!found) {
if (contexts[0].name.equals("")) {
context = contexts[0];
} else {
context = null;
}
}
if (context == null) {
return;
}
mappingData.contextPath.setString(context.name);
ContextVersion contextVersion = null;
ContextVersion[] contextVersions = context.versions;
final int versionCount = contextVersions.length;
if (versionCount > 1) {
Context[] contextObjects = new Context[contextVersions.length];
for (int i = 0; i < contextObjects.length; i++) {
contextObjects[i] = contextVersions[i].object;
}
mappingData.contexts = contextObjects;
if (version != null) {
contextVersion = exactFind(contextVersions, version);
}
}
if (contextVersion == null) {
// Return the latest version
// The versions array is known to contain at least one element
contextVersion = contextVersions[versionCount - 1];
}
mappingData.context = contextVersion.object;
mappingData.contextSlashCount = contextVersion.slashCount;
// Wrapper mapping
if (!contextVersion.isPaused()) {
internalMapWrapper(contextVersion, uri, mappingData);
}
}
在internalMap方法中可以看到mappingData.host，mappingData.context及mappingData.wrapper等的赋值逻辑。
2 响应时如何回写到客户端浏览器的

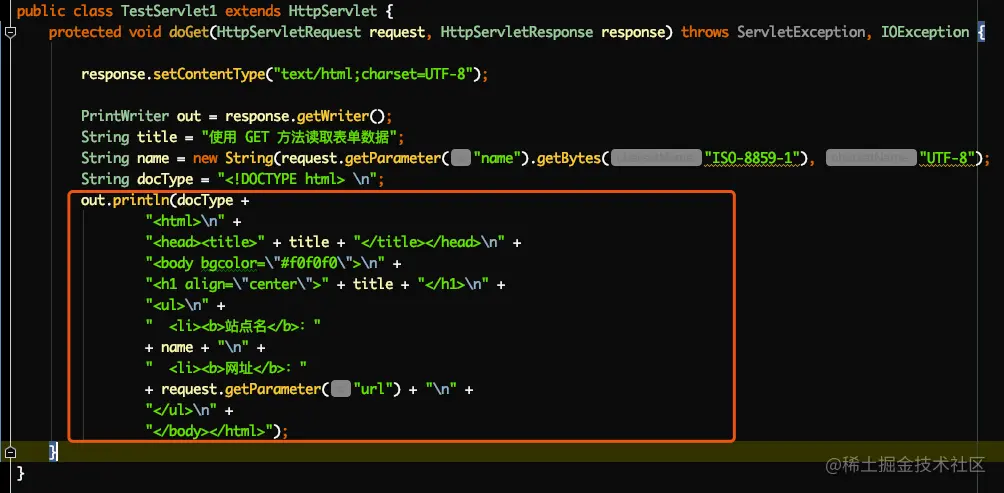

做过Java web开发的我们都知道，我们自定义的Servlet一般会在最后输出Html语句，如下：
我们会从HttpServletResponse中获取Writer，然后调用println方法输出内容。
/**
* @return the writer associated with this Response.
*
* @exception IllegalStateException if <code>getOutputStream</code> has
* already been called for this response
* @exception IOException if an input/output error occurs
*/
@Override
public PrintWriter getWriter()
throws IOException {
if (usingOutputStream) {
throw new IllegalStateException
(sm.getString("coyoteResponse.getWriter.ise"));
}
if (ENFORCE_ENCODING_IN_GET_WRITER) {
/*
* If the response's character encoding has not been specified as
* described in <code>getCharacterEncoding</code> (i.e., the method
* just returns the default value <code>ISO-8859-1</code>),
* <code>getWriter</code> updates it to <code>ISO-8859-1</code>
* (with the effect that a subsequent call to getContentType() will
* include a charset=ISO-8859-1 component which will also be
* reflected in the Content-Type response header, thereby satisfying
* the Servlet spec requirement that containers must communicate the
* character encoding used for the servlet response's writer to the
* client).
*/
setCharacterEncoding(getCharacterEncoding());
}
usingWriter = true;
outputBuffer.checkConverter();
if (writer == null) {
writer = new CoyoteWriter(outputBuffer);
}
return writer;
}

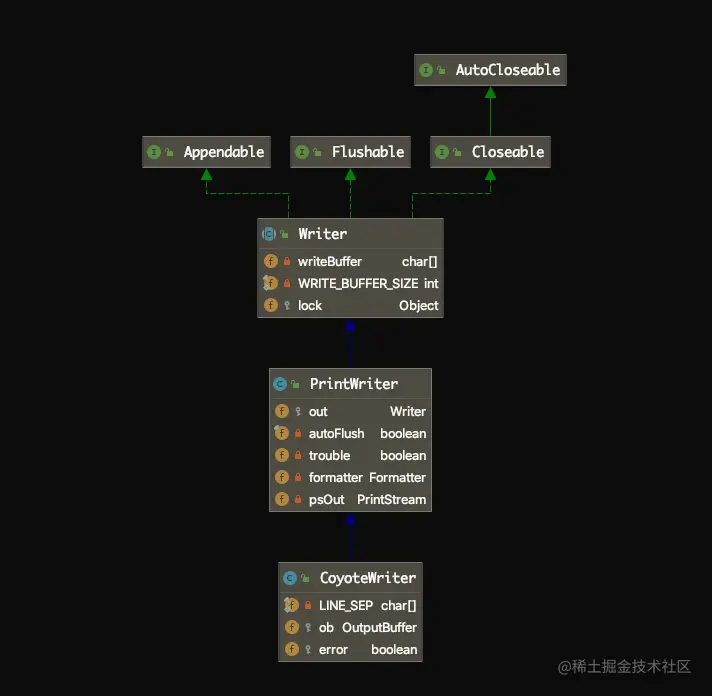

Writer类型为CoyoteWriter，构造函数中传入的OutPutBuffer类型为org.apache.catalina.connector.OutputBuffer，CoyoteWriter继承关系如下：
CoyoteWriter的println方法如下：
public void println(String s) {
print(s);
println();
}
public void println(String s) {
print(s);
println();
}
public void print(String s) {
if (s == null) {
s = "null";
}
write(s);
}
public void write(String s) {
write(s, 0, s.length());
}
public void write(String s, int off, int len) {
if (error) {
return;
}
try {
ob.write(s, off, len);
} catch (IOException e) {
error = true;
}
}
所以调用CoyoteWriter的println方法，作用其实是向Response的成员变量outputBuffer中写内容。

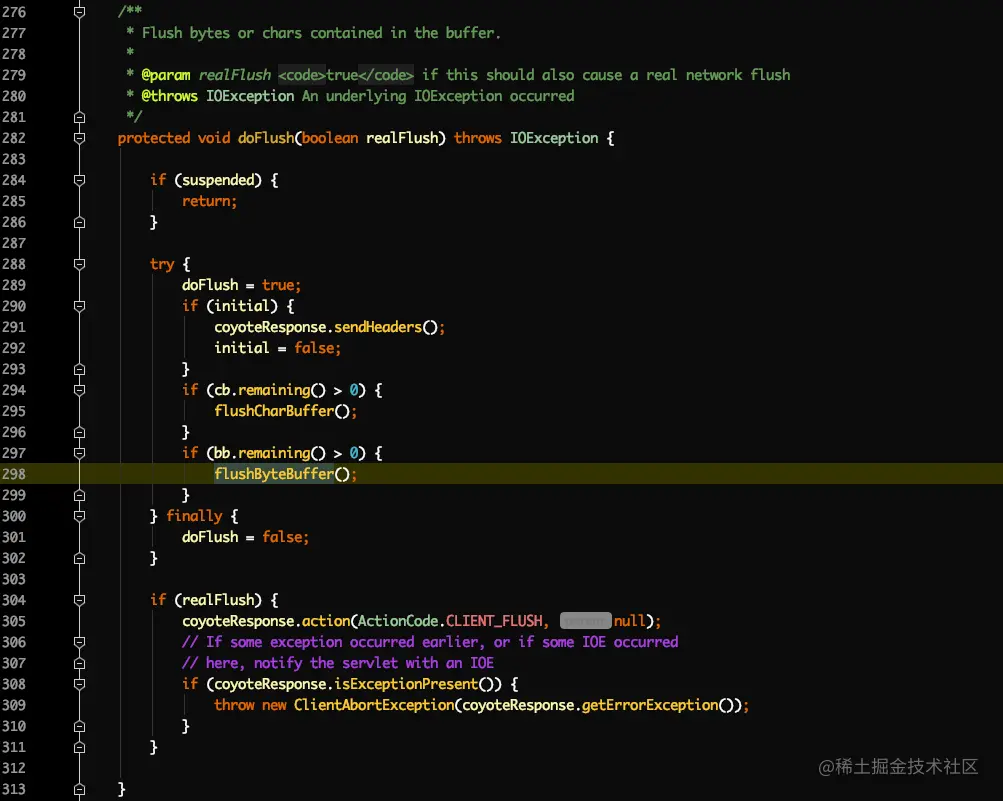

那么回写客户端的操作其实就是Response的成员变量outputBuffer调用flush操作，如下：
/**
* Flush bytes or chars contained in the buffer.
*
* @throws IOException An underlying IOException occurred
*/
@Override
public void flush() throws IOException {
doFlush(true);
}
/**
* Flush bytes or chars contained in the buffer.
*
* @param realFlush <code>true</code> if this should also cause a real network flush
* @throws IOException An underlying IOException occurred
*/
protected void doFlush(boolean realFlush) throws IOException {
if (suspended) {
return;
}
try {
doFlush = true;
if (initial) {
coyoteResponse.sendHeaders();
initial = false;
}
if (cb.remaining() > 0) {
flushCharBuffer();
}

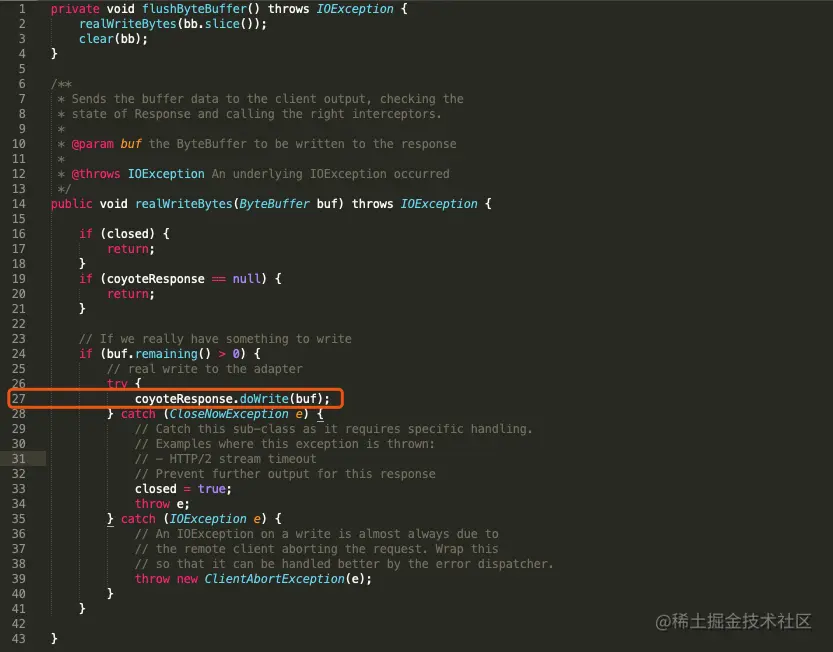

if (bb.remaining() > 0) {
flushByteBuffer();
}
} finally {
doFlush = false;
}
if (realFlush) {
coyoteResponse.action(ActionCode.CLIENT_FLUSH, null);
// If some exception occurred earlier, or if some IOE occurred
// here, notify the servlet with an IOE
if (coyoteResponse.isExceptionPresent()) {
throw new ClientAbortException(coyoteResponse.getErrorException());
}
}
}
而上述flush方法的调用，则是通过org.apache.catalina.connector.Response#finishResponse方法，该方法中调用了org.apache.catalina.connector.OutputBuffer#close方法，如下：
/**
* Close the output buffer. This tries to calculate the response size if
* the response has not been committed yet.
*
* @throws IOException An underlying IOException occurred
*/
@Override
public void close() throws IOException {
if (closed) {
return;
}
if (suspended) {
return;
}
// If there are chars, flush all of them to the byte buffer now as bytes are used to
// calculate the content-length (if everything fits into the byte buffer, of course).
if (cb.remaining() > 0) {
flushCharBuffer();
}
if ((!coyoteResponse.isCommitted()) && (coyoteResponse.getContentLengthLong() == -1)
&& !coyoteResponse.getRequest().method().equals("HEAD")) {
// If this didn't cause a commit of the response, the final content
// length can be calculated. Only do this if this is not a HEAD
// request since in that case no body should have been written and
// setting a value of zero here will result in an explicit content
// length of zero being set on the response.
if (!coyoteResponse.isCommitted()) {
coyoteResponse.setContentLength(bb.remaining());
}
}
if (coyoteResponse.getStatus() == HttpServletResponse.SC_SWITCHING_PROTOCOLS) {
doFlush(true);
} else {
doFlush(false);
}
closed = true;
// The request should have been completely read by the time the response
// is closed. Further reads of the input a) are pointless and b) really
// confuse AJP (bug 50189) so close the input buffer to prevent them.
Request req = (Request) coyoteResponse.getRequest().getNote(CoyoteAdapter.ADAPTER_NOTES);
req.inputBuffer.close();
coyoteResponse.action(ActionCode.CLOSE, null);
}
flushCharBuffer()方法的作用是将org.apache.catalina.connector.OutputBuffer成员变量CharBuffer转化为ByteBuffer（这两个成员变量名称分别为cb、bb）。真正的向客户端回写内容其实是调用doFlush完成的，这里会调用doFlush(true)。
上图doFlush方法中，291行其实是在发送响应行和响应头，298行发送响应体。关于响应行和响应头的发送，我们不继续看了，这里重点关注一下响应体的发送，即flushByteBuffer方法，如下：
不难发现核心在27行，coyoteResponse.doWrite(buf)。coyoteResponse类型为org.apache.coyote.Response，也就是我们之前文章介绍的通过Http11Processor生成的Tomcat内部的Response。接下来我们继续来跟进org.apache.coyote.Response的doWrite方法，如下：
/**
* Write a chunk of bytes.
*
* @param chunk The ByteBuffer to write
*
* @throws IOException If an I/O error occurs during the write
*/
public void doWrite(ByteBuffer chunk) throws IOException {
int len = chunk.remaining();
outputBuffer.doWrite(chunk);
contentWritten += len - chunk.remaining();
}

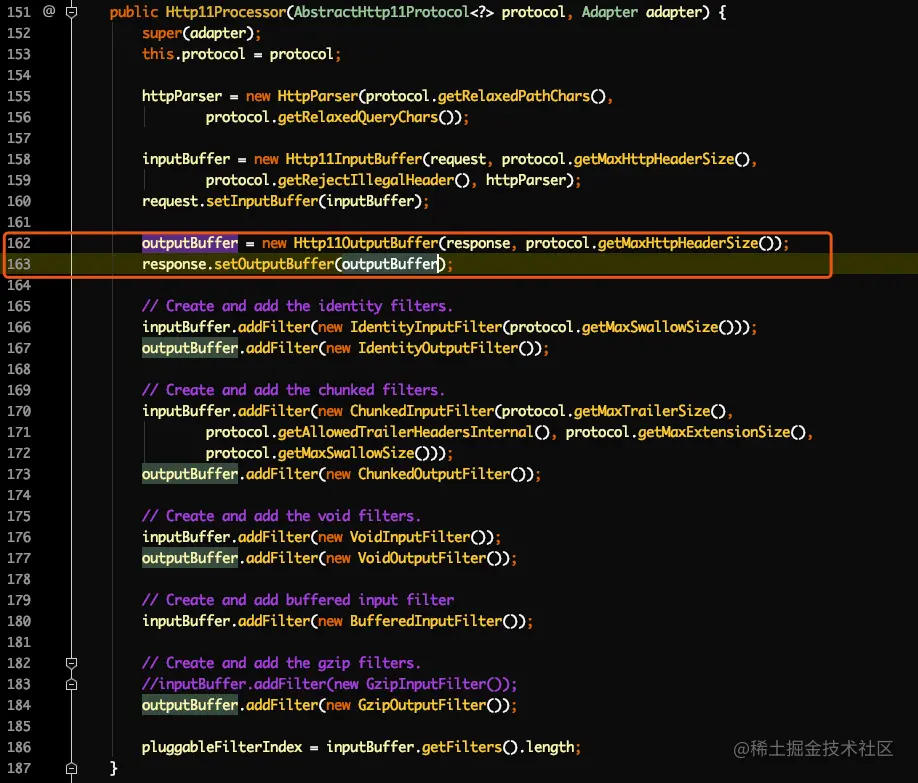

可以看到ByteBuffer通过org.apache.coyote.Response内部的outputBuffer的doWrite方法，继续完成回写动作。需要注意的是这里的outputBuffer跟上面介绍的org.apache.catalina.connector.OutputBuffer是两个不同的类型，这里org.apache.coyote.Response成员变量outputBuffer的类型是org.apache.coyote.OutputBuffer。org.apache.coyote.Response成员变量outputBuffer是在Http11Processor构造函数中初始化的，如下：
所以outputBuffer类型为org.apache.coyote.http11.Http11OutputBuffer。继续看Http11OutputBuffer的doWrite方法，如下：
@Override
public int doWrite(ByteBuffer chunk) throws IOException {
if (!response.isCommitted()) {
// Send the connector a request for commit. The connector should
// then validate the headers, send them (using sendHeaders) and
// set the filters accordingly.
response.action(ActionCode.COMMIT, null);
}
if (lastActiveFilter == -1) {
return outputStreamOutputBuffer.doWrite(chunk);
} else {
return activeFilters[lastActiveFilter].doWrite(chunk);
}
}

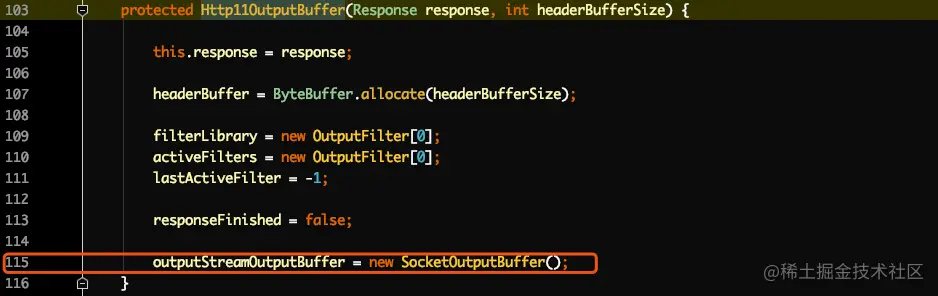

这里又继续调用outputStreamOutputBuffer的doWrite方法。outputStreamOutputBuffer是Http11OutputBuffer的成员变量，在Http11OutputBuffer构造函数中初始化，如下：
所以outputStreamOutputBuffer.doWrite，其实是调用SocketOutputBuffer的doWrite方法，如下：
public int doWrite(ByteBuffer chunk) throws IOException {
try {
int len = chunk.remaining();
SocketWrapperBase<?> socketWrapper = Http11OutputBuffer.this.socketWrapper;
if (socketWrapper != null) {
socketWrapper.write(isBlocking(), chunk);
} else {
throw new CloseNowException(sm.getString("iob.failedwrite"));
}
len -= chunk.remaining();
byteCount += len;
return len;
} catch (IOException ioe) {
response.action(ActionCode.CLOSE_NOW, ioe);
// Re-throw
throw ioe;
}
}
这里我们看到回写操作已经提交给SocketWrapper，之后一路跟下来会调用到org.apache.tomcat.util.net.NioEndpoint.NioSocketWrapper#doWrite方法，如下：
protected void doWrite(boolean block, ByteBuffer from) throws IOException {
long writeTimeout = getWriteTimeout();
Selector selector = null;
try {
selector = pool.get();
} catch (IOException x) {
// Ignore
}
try {
pool.write(from, getSocket(), selector, writeTimeout, block);
if (block) {
// Make sure we are flushed
do {
if (getSocket().flush(true, selector, writeTimeout)) {
break;
}
} while (true);
}
updateLastWrite();
} finally {
if (selector != null) {
pool.put(selector);
}
}
// If there is data left in the buffer the socket will be registered for
// write further up the stack. This is to ensure the socket is only
// registered for write once as both container and user code can trigger
// write registration.
}
这里可以看到，会调用pool.write(from, getSocket(), selector, writeTimeout, block)。其实就是org.apache.tomcat.util.net.NioSelectorPool的write方法，到这其实就是真正的socket回写相关操作了。
