kubernetes集群基于EFK实现日志收集平台

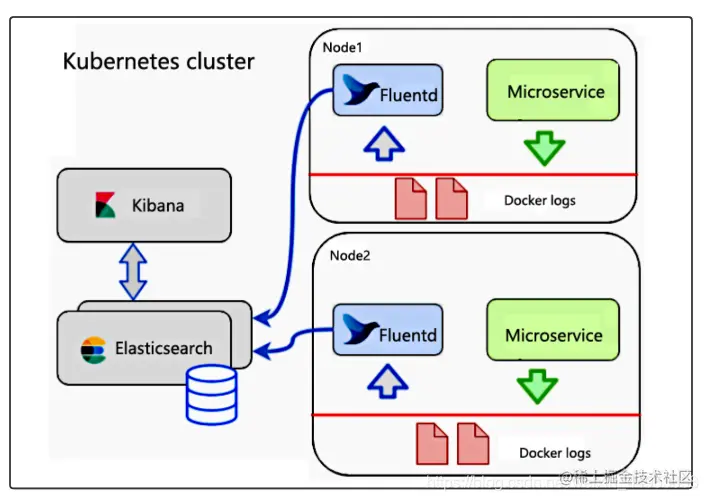

1.EFK工作原理

EFK其实和ELK差不多，只不过EFK是k8s专门的日志收集平台，其中的F是fluentd

首先通过fluentd收集程序的日志，然后将日志存储到elasticsearch集群，最后在kibana上关联elasticsearch，实现日志的查询。

Elasticsearch
- 一个开源的分布式、Restful 风格的搜索和数据分析引擎，它的底层是开源库Apache Lucene。
- 一个分布式的实时文档存储，每个字段可以被索引与搜索；
- 一个分布式实时分析搜索引擎；
- 能胜任上百个服务节点的扩展，并支持 PB 级别的结构化或者非结构化数据。
Fluentd
- 一个针对日志的收集、处理、转发系统。通过丰富的插件系统，可以收集来自于各种系统或应用的日志，转化为用户指定的格式后，转发到用户所指定的日志存储系统之中。
- Fluentd通过一组给定的数据源抓取日志数据，处理后，将它们转发给其他服务，比如elasticsearch、对象存储、kafka等

在这里插入图片描述

Kibana

分析、可视化平台，设计用于和Elasticsearch一起工作。可以通过Kibana来搜索，查看，并和存储在Elasticsearch索引中的数据进行交互。也可以轻松地执行高级数据分析，并且以各种图标、表格和地图的形式可视化数据。

使用docker运行fluentd模拟日志收集

使用docker运行fluentd，然后创建一个日志文件，输入内容，观察fluentd的变化

fluentd配置文件内容：

<source>                               #定义日志的源
 @type tail                        #类型为tail，追踪日志的输出
 @id nginx_access                   #定义一个id号
 @label @nginx_access               #定义一个标签，用于区分不同程序的日志
 path /fluentd/access.log             #日志所在路径
 exclude_path ["/fluentd/nginx/*.gz","/fluentd/nginx/*.zip"]             #排除的文件名
 pos_file /fluentd/nginx_access.posg                                   #当fluentd中断后，日志保存的路径
 tag nginx_access                                   #定义一个tag标签，可以通过tag标签来决定日志存储在哪个es索引库
 format none
 @log_level trace
</source>
<label @nginx_access>                          #针对nginx_access标签的日志做一些处理规则
 <filter nginx_access>                        #转发规则
     @type parser
     key_name message
     format /(?<serverIp>\d+.\d+.\d+.\d+) (?<timestamp>\S+) (?<respondTime>\d+.\d+) (?<httpcode>\d{2,3}|0) (?<eventTime>\[\d{2}\S*\s\S*) (?<clientIp>\d+.\d+.\d+.\d+) (?<clientPort>\d+) (?<method>\b\w+\b) (?<protocol>http|https) (?<channel>.*|-) (?<url>\S+)(?<httpversion>(HTTP|HTTPS)\/S+) (?<bodyBytes>\d+) (?<destIp>\S+|-) \"(?<status>[^\"]*)\" \"(?<referer>[^\"]*)\" \"(?<ua>[^\"]*)\" \"(?<fileType>[^\"]*)\" \"(?<from>[^\"]*)\"/              #将输入的日志通过正则的方式进行解析
 </filter>
 <filter nginx_access>                #可以定义多个转发规则
     @type record_transformer                #记录转换
     <record>                                #增加两个字段到日志中，这样一来就可以做路由匹配，分别存储在不同的索引中
         host_name "#{Socket.gethostname}"
         my_key "my_val"
     </record>
 </filter>
 <match nginx_access>                        #输出到哪里
     @type file                           #输出到文件
     path /fluentd/data               #文件的路径
</match>
</label>

1.运行fluentd
[root@k8s-master1 EFK]# docker run -u root -it --name fluentd fluent/fluentd:v1.6.2-1.0 sh

2.编写fluentd配置文件
/ # cat fluentd/etc/fluent.conf
<source>
    @type tail
    @id nginx_access
    @label @nginx_access
    path /fluentd/access.log
    exclude_path ["/fluentd/nginx/*.gz","/fluentd/nginx/*.zip"]
    pos_file /fluentd/nginx_access.posg
    tag nginx_access
    format none
    @log_level trace
</source>
<label @nginx_access>
    <filter nginx_access>
        @type parser
        key_name message
        format /(?<serverIp>\d+.\d+.\d+.\d+) (?<timestamp>\S+) (?<respondTime>\d+.\d+) (?<httpcode>\d{2,3}|0) (?<eventTime>\[\d{2}\S*\s\S*) (?<clientIp>\d+.\d+.\d+.\d+) (?<clientPort>\d+) (?<method>\b\w+\b) (?<protocol>http|https) (?<channel>.*|-) (?<url>\S+)(?<httpversion>(HTTP|HTTPS)\/S+) (?<bodyBytes>\d+) (?<destIp>\S+|-) \"(?<status>[^\"]*)\" \"(?<referer>[^\"]*)\" \"(?<ua>[^\"]*)\" \"(?<fileType>[^\"]*)\" \"(?<from>[^\"]*)\"/
    </filter>
    <filter nginx_access>
        @type record_transformer
        <record>
            host_name "#{Socket.gethostname}"
            my_key "my_val"
        </record>
    </filter>
    <match nginx_access>
        @type file
        path /fluentd/data
   </match>
</label>

3.启动fluentd
/ # fluentd -c fluentd/etc/fluent.conf

4.写入日志文件
/fluentd # touch access.log
/fluentd # echo '10.10.1.1 1561620585.973 0.005 502 [27/Jun/2020:15:29:45 +0800] 178.73.215.171 33337 GE
T https microsoft.test2.cn https://microsoft.test2.cn/ HTTP/1.0 247 58.49.156.139:8080 "MISS from 58.49.
156.139" "_" "_" "_" "_" - - 0.005 502 0f547fb6de9odc9778c48e35b9a8acb7' >>/fluentd/access.log

在这里插入图片描述

2.部署EFK平台

部署elasticsearch、kibana、fluentd，对elasticsearch、kibana创建pv、pvc持久化数据

部署nfs，存储容器的数据

将所有组件的镜像都推送至harbor镜像仓库

2.1.部署nfs

在master2上部署nfs存储k8s集群数据

[root@k8s-master2 ~]# yum -y install nfs

[root@k8s-master2 ~]# vim /etc/exports
/data2/k8s  192.168.16.0/24(rw,sync,no_root_squash)

[root@k8s-master2 ~]# mkdir -p /data2/k8s/

[root@k8s-master2 ~]# systemctl restart nfs

[root@k8s-master2 ~]# showmount -e
Export list for k8s-master2:
/data2/k8s 192.168.16.0/24

2.2.部署elasticsearch

我们采用单节点的es，集群的es只需要准备三个statfulset资源即可

采用PV、PVC将数据库持久化存储

es默认使用elasticsearch用户启动进程，es的数据目录是通过挂载nfs的路径，因此目录权限被nfs的目录权限覆盖，所以可以利用初始化容器在es进程启动之前把目录的权限修改掉，注意初始化容器要用特权模式启动。

2.2.1.创建es的pv及pvc资源

1.在nfs创建存储路径

[root@k8s-master2 ~]# mkdir -p /data2/k8s/es-data

2.编写pv、pvc的yaml文件

[root@k8s-master1 EFK]# cat es-pv-pvc.yaml
apiVersion: v1
kind:  PersistentVolume
metadata:
  name: es-pv
  labels:
    pv: es-pv
spec:
  capacity:
    storage: 10Gi
  accessModes:
  - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /data2/k8s/es-data
    server: 192.168.16.105

---

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: es-pvc
  namespace: efk
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
  selector:
    matchLabels:
      pv: es-pv

3.创建资源并查看资源的状态

1.创建资源
[root@k8s-master1 EFK]# kubectl create -f es-pv-pvc.yaml
persistentvolume/es-pv created
persistentvolumeclaim/es-pvc created

2.查看资源的状态
[root@k8s-master1 EFK]# kubectl get pv,pvc -n efk
NAME                     CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM        STORAGECLASS   REASON   AGE
persistentvolume/es-pv   10Gi       RWX            Retain           Bound    efk/es-pvc                           2m10s

NAME                           STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/es-pvc   Bound    es-pv    10Gi       RWX                           2m10s

2.2.2.准备elasticsearch镜像并推送至harbor

1.拉取镜像
[root@k8s-master1 EFK]# docker pull elasticsearch:7.4.2
7.4.2: Pulling from library/elasticsearch
d8d02d457314: Pull complete
f26fec8fc1eb: Pull complete
8177ad1fe56d: Pull complete
d8fdf75b73c1: Pull complete
47ac89c1da81: Pull complete
fc8e09b48887: Pull complete
367b97f47d5c: Pull complete
Digest: sha256:543bf7a3d61781bad337d31e6cc5895f16b55aed4da48f40c346352420927f74
Status: Downloaded newer image for elasticsearch:7.4.2
docker.io/library/elasticsearch:7.4.2

2.添加harbor仓库
#所有节点都按如下操作
1）增加harbor仓库地址
vim /etc/docker/daemon.json
{
  "registry-mirrors": ["https://7lhvut0q.mirror.aliyuncs.com"],
  "insecure-registries": [
    "harbor.jiangxl.com"
  ]
}


2)添加hosts解析
vim /etc/hosts
192.168.16.106 harbor.jiangxl.com

3)重启docker
systemctl restart docker

4)登陆Harbor
docker login harbor.jiangxl.com
Username: admin
Password: admin

3.推送镜像到harbor
[root@k8s-master1 EFK]# docker tag elasticsearch:7.4.2 harbor.jiangxl.com/efk/elasticsearch:7.4.2
[root@k8s-master1 EFK]# docker push elasticsearch:7.4.2

在harbor上新建项目在这里插入图片描述

进入项目，将项目设置为公开，如果不设置为公开，拉取镜像会失败

在这里插入图片描述

3.给镜像打标签
[root@k8s-master1 EFK]# docker tag elasticsearch:7.4.2 harbor.jiangxl.com/efk/elasticsearch:7.4.2
[root@k8s-master1 EFK]# docker tag alpine:3.6 harbor.jiangxl.com/efk/alpine:3.6

4.推送至harbor
[root@k8s-master1 EFK]# docker push harbor.jiangxl.com/efk/elasticsearch:7.4.2
[root@k8s-master1 EFK]# docker push harbor.jiangxl.com/efk/alpine:3.6

在这里插入图片描述

2.2.3.编写elasticsearch yaml文件

1.编写yaml文件
[root@k8s-master1 EFK]# cat elasticsearch.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    k8s-app: elasticsearch
    version: v7.4.2
  name: elasticsearch
  namespace: efk
spec:
  replicas: 1							#副本数为1表示是1个es节点
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: elasticsearch
      version: v7.4.2
  serviceName: elasticsearch
  template:
    metadata:
      labels:
        k8s-app: elasticsearch
        version: v7.4.2
    spec:
      containers:
      - env:
        - name: NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        - name: cluster.initial_master_nodes
          value: elasticsearch-0
        - name: ES_JAVA_OPTS
          value: "-Xms512m -Xmx512m"
        image: harbor.jiangxl.com/efk/elasticsearch:7.4.2
        name: elasticsearch
        ports:
        - containerPort: 9200
          name: db
          protocol: TCP
        - containerPort: 9300
          name: transport
          protocol: TCP
        volumeMounts:										#将pvc挂载到/usr/share/elasticsearch/data路径
        - mountPath: /usr/share/elasticsearch/data
          name: elasticsearch
      dnsConfig:
        options:
        - name: single-request-reopen
      initContainers:
      - command:
        - /sbin/sysctl
        - -w
        - vm.max_map_count=262144
        image: harbor.jiangxl.com/efk/alpine:3.6
        imagePullPolicy: IfNotPresent
        name: elasticsearch-init
        resources: {}
        securityContext:
          privileged: true
      - name: fix-permissions							#定义初始化容器，将pvc挂载进去并在es主容器启动之前将目录权限进行修改
        image: harbor.jiangxl.com/efk/alpine:3.6
        command: ["sh", "-c", "chown -R 1000:1000 /usr/share/elasticsearch/data"]
        securityContext:
          privileged: true
        volumeMounts:
        - name: elasticsearch
          mountPath: /usr/share/elasticsearch/data
      volumes:								#定义我们刚刚创建的pvc
      - name: elasticsearch
        persistentVolumeClaim:
          claimName: es-pvc
          readOnly: false
---
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: elasticsearch
  name: elasticsearch
  namespace: efk
spec:
  ports:
  - port: 9200
    protocol: TCP
    targetPort: 9200
  selector:
    k8s-app: elasticsearch
  type: ClusterIP

2.2.4.创建lasticsearch资源并查看状态

1.创建资源
[root@k8s-master1 EFK]# kubectl apply -f elasticsearch.yaml
statefulset.apps/elasticsearch created
service/elasticsearch created

2.查看资源的状态
[root@k8s-master1 harbor]# kubectl get all -n efk -o wide
NAME                  READY   STATUS    RESTARTS   AGE   IP                NODE        NOMINATED NODE   READINESS GATES
pod/elasticsearch-0   1/1     Running   0          18s   100.111.156.122   k8s-node1   <none>           <none>

NAME                    TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE   SELECTOR
service/elasticsearch   ClusterIP   10.110.161.181   <none>        9200/TCP   33m   k8s-app=elasticsearch

NAME                             READY   AGE   CONTAINERS      IMAGES
statefulset.apps/elasticsearch   1/1     33m   elasticsearch   harbor.jiangxl.com/efk/elasticsearch:7.4.2

3.访问elasticsearch
#svcip+svc端口
[root@k8s-master1 harbor]# curl 10.110.161.181:9200
{
  "name" : "elasticsearch-0",
  "cluster_name" : "docker-cluster",
  "cluster_uuid" : "od39aNdaRUi8hZTbbvfjdA",
  "version" : {
    "number" : "7.4.2",
    "build_flavor" : "default",
    "build_type" : "docker",
    "build_hash" : "2f90bbf7b93631e52bafb59b3b049cb44ec25e96",
    "build_date" : "2019-10-28T20:40:44.881551Z",
    "build_snapshot" : false,
    "lucene_version" : "8.2.0",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

2.3.部署kibana

kibana需要在web页面使用，因此使用ingress配置域名来实现对kibana的访问

kibana为无状态应用，直接使用Deployment来启动

kibana的数据目录采用pvc进行持久化存储，kibana默认使用kibana用户启动进程，kibana的数据目录是通过挂载nfs的路径，因此目录权限被nfs的目录权限覆盖，所以可以利用初始化容器在kibana进程启动之前把目录的权限修改掉，注意初始化容器要用特权模式启动。

kibana需要访问es，直接利用k8s coredns服务发现访问此地址：http://elasticsearch:9200即可

2.3.1.准备kibana的pv及pvc资源

1.准备nfs存储路径

[root@k8s-master2 ~]# mkdir /data2/k8s/kibana-data

2.编写pv及pvc的yaml文件

[root@k8s-master1 EFK]# vim kibana-pv-pvc.yaml
apiVersion: v1
kind:  PersistentVolume
metadata:
  name: kibana-pv
  labels:
    pv: kibana-pv
spec:
  capacity:
    storage: 10Gi
  accessModes:
  - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /data2/k8s/kibana-data
    server: 192.168.16.105

---

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: kibana-pvc
  namespace: efk
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
  selector:
    matchLabels:
      pv: kibana-pv

3.创建资源并查看资源的状态

1.创建资源
[root@k8s-master1 EFK]# kubectl create -f kibana-pv-pvc.yaml
persistentvolume/kibana-pv created
persistentvolumeclaim/kibana-pvc created

2.查看资源的状态
[root@k8s-master1 EFK]# kubectl get pv,pvc -n efk
NAME                         CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM            STORAGECLASS   REASON   AGE
persistentvolume/kibana-pv   10Gi       RWX            Retain           Bound    efk/kibana-pvc                           167m

NAME                               STATUS   VOLUME      CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/kibana-pvc   Bound    kibana-pv   10Gi       RWX                           167m

2.3.2.准备kibana镜像并推送至harbor仓库

1.拉取镜像
[root@k8s-master1 harbor]# docker pull kibana:7.4.2
7.4.2: Pulling from library/kibana
d8d02d457314: Already exists
bc64069ca967: Pull complete
c7aae8f7d300: Pull complete
8da0971e3b41: Pull complete
58ea4bb2901c: Pull complete
b1e21d4c2a7e: Pull complete
3953eac632cb: Pull complete
5f4406500758: Pull complete
340d85e0d1c7: Pull complete
1768564d16fb: Pull complete
Digest: sha256:355f9c979dc9cdac3ff9a75a817b8b7660575e492bf7dbe796e705168f167efc
Status: Downloaded newer image for kibana:7.4.2
docker.io/library/kibana:7.4.2

2.给镜像打标签
[root@k8s-master1 harbor]# docker tag kibana:7.4.2 harbor.jiangxl.com/efk/kibana:7.4.2

3.推送至Harbor
[root@k8s-master1 harbor]# docker push harbor.jiangxl.com/efk/kibana:7.4.2
The push refers to repository [harbor.jiangxl.com/efk/kibana]
ccde9566aa40: Pushed
3234e7f24c9c: Pushed
cb5328c9d961: Pushed
b34d7a00ef38: Pushed
0b8e2117240b: Pushed
90cabfea98a8: Pushed
80642e52e3f7: Pushed
9cfbbc5ed16e: Pushed
01fc07851996: Pushed
877b494a9f30: Mounted from efk/elasticsearch
7.4.2: digest: sha256:d10acb82cc2872b4eb1319eff2d693c47be62d1bb22520f28000a596a637f727 size: 2409

2.3.3.编写kibana yaml文件

使用pvc作为数据持久化，通过ingress将kibana进行暴露

[root@k8s-master1 EFK]# vim kibana.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kibana
  namespace: efk
  labels:
    app: kibana
spec:
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      containers:
      - name: kibana
        image: harbor.jiangxl.com/efk/kibana:7.4.2
        env:
          - name: ELASTICSEARCH_URL
            value: http://elasticsearch:9200
        ports:
        - containerPort: 5601
        volumeMounts:							#将pvc挂载到数据目录，实现持久化
        - name: kibana
          mountPath: /usr/share/kibana/data
      initContainers:									#定义一个初始化容器，将pvc进行挂载，然后修改目录权限，当主容器kibana启动时就有权限写入数据了
      - name: kibana-permissions
        image: harbor.jiangxl.com/efk/alpine:3.6
        command: ["sh", "-c", "chown -R 1000:1000 /usr/share/kibana"]
        securityContext:
          privileged: true
        volumeMounts:
        - name: kibana
          mountPath: /usr/share/kibana/data
      volumes:							#定义pvc
      - name: kibana
        persistentVolumeClaim:
          claimName: kibana-pvc
          readOnly: false
---
apiVersion: v1
kind: Service
metadata:
  name: kibana
  namespace: efk
  labels:
    app: kibana
spec:
  ports:
  - port: 5601
    protocol: TCP
    targetPort: 5601
  type: ClusterIP
  selector:
    app: kibana
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: kibana
  namespace: efk
spec:
  rules:
  - host: kibana.jiangxl.com					#这个域名要写到Windows的hosts中
    http:
      paths:
      - path: /
        backend:
          serviceName: kibana
          servicePort: 5601

2.3.4.创建kibana资源并查看状态

1.创建资源
[root@k8s-master1 EFK]# kubectl create -f kibana.yaml
deployment.apps/kibana created
service/kibana created
ingress.extensions/kibana created

2.查看资源
[root@k8s-master1 EFK]# kubectl get pod,svc,ingress -n efk
NAME                          READY   STATUS    RESTARTS   AGE
pod/elasticsearch-0           1/1     Running   0          18s
pod/kibana-58cfc9fdc5-qqljb   1/1     Running   0          26m

NAME                    TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/elasticsearch   ClusterIP   10.110.161.181   <none>        9200/TCP   4h8m
service/kibana          ClusterIP   10.109.237.120   <none>        5601/TCP   26m

NAME                        CLASS    HOSTS                ADDRESS   PORTS   AGE
ingress.extensions/kibana   <none>   kibana.jiangxl.com             80      26m

2.3.5.访问kibana

我们的ingress 80端口映射在node节点的80端口，443端口映射在node节点的443端口

直接在Windows上绑上node节点地址和kibana域名即可访问kibana

kibana.jiangxl.com

在这里插入图片描述

2.4.部署fluentd

fluentd是日志采集服务，kubernetes集群的每个node节点都有日志产生，因此需要使用daemonset的模式进行部署，收集node节点产生的组件日志

日志采集，需要采集哪些目录下的日志，采集后发送到es端，因此需要配置的内容比较多，我们选择使用configmap的方式把配置文件整个挂载出来

2.4.1.创建fluentd配置文件的configmap资源

编辑主配置文件，增加一个include，引入其他目录的配置文件

1.编写yaml
[root@k8s-master1 EFK]# vim fluentd-es-main.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
  name: fluentd-es-config-main
  namespace: efk
data:
  fluent.conf: |-
    <match fluent.**>
    @type null
    </match>

    @include /fluentd/etc/config.d/*.conf

2.创建资源
[root@k8s-master1 EFK]# kubectl create -f fluentd-es-main.yaml
configmap/fluentd-es-config-main created

2.4.2.创建fluentd日志收集的configmap

1.编写yaml文件
[root@k8s-master1 EFK]# vi fluentd-config.yaml
kind: ConfigMap
apiVersion: v1
metadata:
  name: fluentd-config
  namespace: efk
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
data:
  containers.input.conf: |-              #定义日志源
    <source>                                            #日志来源
      @id fluentd-containers.log
      @type tail                    #类型为tail，追踪日志的输出
      path /var/log/containers/*.log                       #日志所在路径
      pos_file /var/log/es-containers.log.pos
      time_format %Y-%m-%dT%H:%M:%S.%NZ
      localtime
      tag raw.kubernetes.*
      format json
      read_from_head true
    </source>
    # Detect exceptions in the log output and forward them as one log entry.
    <match raw.kubernetes.**>             #定义异常日志处理方式，即多行报错收集在一起
      @id raw.kubernetes
      @type detect_exceptions
      remove_tag_prefix raw
      message log
      stream stream
      multiline_flush_interval 5
      max_bytes 500000
      max_lines 1000
    </match>
  forward.input.conf: |-
    # Takes the messages sent over TCP
    <source>
      @type forward
    </source>
  output.conf: |-						#这个文件用于定义将日志输出给谁，可以是es、kafka
    # Enriches records with Kubernetes metadata
    <filter kubernetes.**>
      @type kubernetes_metadata
    </filter>
    <match **>                       #定义日志存储在哪
      @id elasticsearch
      @type elasticsearch            #类型为elasticsearch，表示存储在es中
      @log_level info
      include_tag_key true
      host elasticsearch           #es的地址
      port 9200
      logstash_format true
      request_timeout    30s
      <buffer>                       #定义缓存区，避免es挂掉后，数据丢失，es挂掉之后，数据写入到缓区
        @type file           #缓存区类型为文件，表示将数据缓存到文件
        path /var/log/fluentd-buffers/kubernetes.system.buffer        #缓存文件路径
        flush_mode interval                     #推送模式为时间，根据时间的长久刷新数据到es
        retry_type exponential_backoff
        flush_thread_count 2
        flush_interval 5s      #5秒同步一次
        retry_forever
        retry_max_interval 30
        chunk_limit_size 2M            #缓冲期块大小，当超过这个大小时就写入es
        queue_limit_length 8           #块的个数为8，即16M
        overflow_action block
      </buffer>
    </match>

2.创建资源
[root@k8s-master1 EFK]# kubectl create -f fluentd-config.yaml
configmap/fluentd-config created

2.4.3.创建fluentd daemonset资源

需要配置rbac规则，因为需要访问k8s api去根据日志查询元数据

需要将/var/log/containers/目录挂载到容器中

需要将fluentd的configmap中的配置文件挂载到容器内

由于pod日志都是存储在node节点的/var/log/containers目录中，为了收集所有节点的pod日志，因此需要采用daemonset采用部署fluentd

1.准备fluentd镜像并推送至harbor
[root@k8s-master1 EFK]# docker tag fluent/fluentd:v1.6.2-1.0 harbor.jiangxl.com/efk/fluentd:v1.6.2-1.0
[root@k8s-master1 EFK]# docker push harbor.jiangxl.com/efk/fluentd:v1.6.2-1.0

2.编写fluentd yaml文件
[root@k8s-master1 EFK]# vim fluentd-daemonset.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: fluentd-es
  namespace: efk
  labels:
    k8s-app: fluentd-es
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: fluentd-es
  labels:
    k8s-app: fluentd-es
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups:
  - ""
  resources:
  - "namespaces"
  - "pods"
  verbs:
  - "get"
  - "watch"
  - "list"
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: fluentd-es
  labels:
    k8s-app: fluentd-es
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
subjects:
- kind: ServiceAccount
  name: fluentd-es
  namespace: efk
  apiGroup: ""
roleRef:
  kind: ClusterRole
  name: fluentd-es
  apiGroup: ""
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    k8s-app: fluentd-es
  name: fluentd-es
  namespace: efk
spec:
  selector:
    matchLabels:
      k8s-app: fluentd-es
  template:
    metadata:
      labels:
        k8s-app: fluentd-es
    spec:
      containers:
      - env:
        - name: FLUENTD_ARGS
          value: --no-supervisor -q
        image: harbor.jiangxl.com/efk/fluentd-es-root:v1.6.2-1.0
        imagePullPolicy: IfNotPresent
        name: fluentd-es
        resources:
          limits:
            memory: 500Mi
          requests:
            cpu: 100m
            memory: 200Mi
        volumeMounts:
        - mountPath: /var/log
          name: varlog
        - mountPath: /var/lib/docker/containers
          name: varlibdockercontainers
          readOnly: true
        - mountPath: /home/docker/containers
          name: varlibdockercontainershome
          readOnly: true
        - mountPath: /fluentd/etc/config.d
          name: config-volume
        - mountPath: /fluentd/etc/fluent.conf
          name: config-volume-main
          subPath: fluent.conf
      #nodeName: k8s-node2
      securityContext: {}
      serviceAccount: fluentd-es
      serviceAccountName: fluentd-es
      volumes:
      - hostPath:
          path: /var/log
          type: ""
        name: varlog
      - hostPath:
          path: /var/lib/docker/containers
          type: ""
        name: varlibdockercontainers
      - hostPath:
          path: /home/docker/containers
          type: ""
        name: varlibdockercontainershome
      - configMap:
          defaultMode: 420
          name: fluentd-config
        name: config-volume
      - configMap:
          defaultMode: 420
          items:
          - key: fluent.conf
            path: fluent.conf
          name: fluentd-es-config-main
        name: config-volume-main

3.创建资源
[root@k8s-master1 EFK]# kubectl create -f fluentd-daemonset.yaml
serviceaccount/fluentd-es created
clusterrole.rbac.authorization.k8s.io/fluentd-es created
clusterrolebinding.rbac.authorization.k8s.io/fluentd-es created
daemonset.apps/fluentd-es created

2.5.查看efk所有组件资源状态

[root@k8s-master1 EFK]# kubectl get all -n efk
NAME                          READY   STATUS    RESTARTS   AGE
pod/elasticsearch-0           1/1     Running   0          27h
pod/fluentd-es-nfgbj          1/1     Running   0          8m32s
pod/fluentd-es-r2mhj          1/1     Running   0          8m32s
pod/kibana-58cfc9fdc5-qqljb   1/1     Running   0          27h
pod/test-efk                  1/1     Running   0          18m

NAME                    TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)          AGE
service/elasticsearch   NodePort    10.110.161.181   <none>        9200:39200/TCP   31h
service/kibana          ClusterIP   10.109.237.120   <none>        5601/TCP         27h

NAME                        DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/fluentd-es   2         2         2       2            2           <none>          8m32s

NAME                     READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kibana   1/1     1            1           27h

NAME                                DESIRED   CURRENT   READY   AGE
replicaset.apps/kibana-58cfc9fdc5   1         1         1       27h

NAME                             READY   AGE
statefulset.apps/elasticsearch   1/1     31h

在这里插入图片描述

2.6.将es配置一个nodeport用于查看索引

[root@k8s-master1 EFK]# vim elasticsearch.yaml
·······
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: elasticsearch
  name: elasticsearch
  namespace: efk
spec:
  ports:
  - port: 9200
    protocol: TCP
    targetPort: 9200
    nodePort: 39200
  selector:
    k8s-app: elasticsearch
  type: NodePort

[root@k8s-master1 EFK]# kubectl apply -f elasticsearch.yaml
statefulset.apps/elasticsearch configured
service/elasticsearch configured

3.验证EFK集群可用性

3.1.运行一个pod持续产生日志

1.编写yaml文件
[root@k8s-master1 EFK]# vim test-efk.yaml
apiVersion: v1
kind: Pod
metadata:
  name: test-efk
  namespace: efk
spec:
  containers:
  - name: test-efk
    image: harbor.jiangxl.com/efk/alpine:3.6
    args: [/bin/sh, -c,
            'i=0; while true; do echo "$i: $(date)"; i=$((i+1)); sleep 1; done']			#每秒输出一个当前时间
  nodeName: k8s-node2

2.创建资源
[root@k8s-master1 EFK]# kubectl create -f test-efk.yaml
pod/counter created

3.2.观察fluentd日志输出

1.查看test-efk运行在哪个node节点
[root@k8s-master1 EFK]# kubectl get pod -n efk -o wide
NAME                      READY   STATUS    RESTARTS   AGE    IP               NODE        NOMINATED NODE   READINESS GATES
elasticsearch-0           1/1     Running   0          27h    100.64.169.189   k8s-node2   <none>           <none>
fluentd-es-nfgbj          1/1     Running   0          9m3s   100.64.169.149   k8s-node2   <none>           <none>
fluentd-es-r2mhj          1/1     Running   0          9m3s   100.111.156.91   k8s-node1   <none>           <none>
kibana-58cfc9fdc5-qqljb   1/1     Running   0          27h    100.111.156.75   k8s-node1   <none>           <none>
test-efk                  1/1     Running   0          18m    100.64.169.147   k8s-node2   <none>           <none>

2.追踪与test-efk pod运行在同一node节点的fluentd容器的日志
[root@k8s-master1 EFK]# kubectl -n efk logs -f fluentd-es-nfgbj

已经收集到test-efk pod的日志了在这里插入图片描述

3.3.观察es上的索引变化

由于2.6中已经将es的9200做了一个nodeport暴露，可以通过es-head插件查看es索引库

可以看到在es上已经有索引产生了

3.4.在kibana上关联es索引库

1）点击设置--->index patterns--->create index pattern

在这里插入图片描述

*2）索引名称填写logstash-即可匹配所有logstash的索引库

在这里插入图片描述

3）匹配所有字段，点击创建索引 在这里插入图片描述

4）可以看到收集过来很多日志字段 在这里插入图片描述

3.5.查看日志收集的统计图

1）查看全部日志

在这里插入图片描述

2）过滤test-efk pod的日志

在这里插入图片描述

实现基于EFK日志平台收集Kubernetes集群日志信息

kubernetes集群基于EFK实现日志收集平台

1.EFK工作原理

2.部署EFK平台

2.1.部署nfs

2.2.部署elasticsearch

2.2.1.创建es的pv及pvc资源

2.2.2.准备elasticsearch镜像并推送至harbor

2.2.3.编写elasticsearch yaml文件

2.2.4.创建lasticsearch资源并查看状态

2.3.部署kibana

2.3.1.准备kibana的pv及pvc资源

2.3.2.准备kibana镜像并推送至harbor仓库

2.3.3.编写kibana yaml文件

2.3.4.创建kibana资源并查看状态

2.3.5.访问kibana

2.4.部署fluentd

2.4.1.创建fluentd配置文件的configmap资源

2.4.2.创建fluentd日志收集的configmap

2.4.3.创建fluentd daemonset资源

2.5.查看efk所有组件资源状态

2.6.将es配置一个nodeport用于查看索引

3.验证EFK集群可用性

3.1.运行一个pod持续产生日志

3.2.观察fluentd日志输出

3.3.观察es上的索引变化

3.4.在kibana上关联es索引库

3.5.查看日志收集的统计图
