一对一通话原理，对于WebRTC应用开发而言，主要关注RTCPeerConnection类，主要包括信令设计，媒体协商，加入Stream/Track，网络协商

要做实时音视频，先通过几个例子了解音视频流的几个应用场景

注意以下例子，在chrome中运行都要用localhost访问

本文主要包括这几方面：

  • 本地音视频例子

  • 截屏例子

  • 录音录像例子

  • 共享屏幕例子

  • 视频流捕获

  • canvas流捕获

  • coturn服务搭建

  • socket.io起服务演示

本地音视频

原理：

  • navigator.mediaDevices.getUserMedia({ audio: true, video: true}) 打开音视频获得stream流
  • 把上述stream对象赋值给video的srcObject属性

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>本地音视频</title>
    <style>
    video{
      background: #000;
    }
    </style>
  </head>
  <body>
    <video id="local-video" autoplay playsinline></video>
    <button id="start-btn">start</button>
    <script src="./main.js"></script>
  </body>
</html>

js

document.getElementById("start-btn").addEventListener("click", function (e) {
  navigator.mediaDevices
    .getUserMedia({ audio: true, video: { height: 360, width: 640 } })
    .then(
      (stream) => {
        console.log(`Using video device: `, stream.getTracks());
        document.getElementById("local-video").srcObject = stream;
      },
      (error) => {
        console.log(error);
      }
    );
});

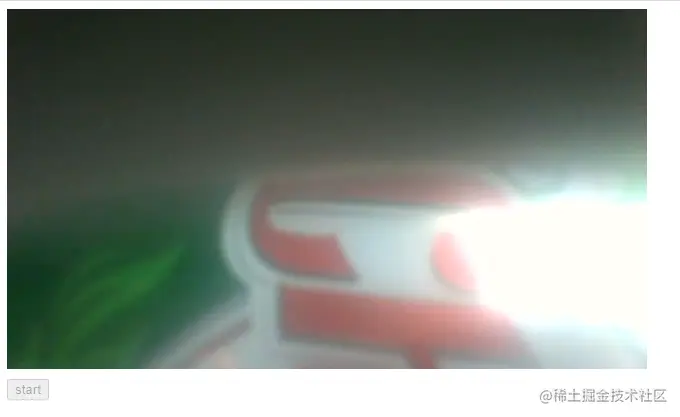

效果


实现截屏

原理：

  • canvas.getContext("2d").drawImage第一个参数传video就行

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>实现截屏</title>
    <style>
    video,canvas {
      background: #000;
    }
    </style>
  </head>
  <body>
    <video id="local-video" autoplay playsinline></video>
    <canvas id="local-canvas"></canvas>
    <button id="start-btn">start</button>
    <button id="snapshot-btn">take snapshot</button>
    <script src="./main.js"></script>
  </body>
</html>

js

document.getElementById("start-btn").addEventListener("click", function (e) {
  navigator.mediaDevices
    .getUserMedia({ audio: true, video: { height: 360, width: 640 } })
    .then(
      (stream) => {
        console.log(`Using video device: `, stream.getTracks());
        document.getElementById("local-video").srcObject = stream;
      },
      (error) => {
        console.log(error);
      }
    );
});

document.getElementById("snapshot-btn").addEventListener(
  "click",
  debounce(function (e) {
    const canvas = document.getElementById("local-canvas");
    const video = document.getElementById("local-video");
    canvas.height = video.videoHeight;
    canvas.width = video.videoWidth;
    canvas.getContext("2d").drawImage(video, 0, 0, canvas.width, canvas.height);
  })
);

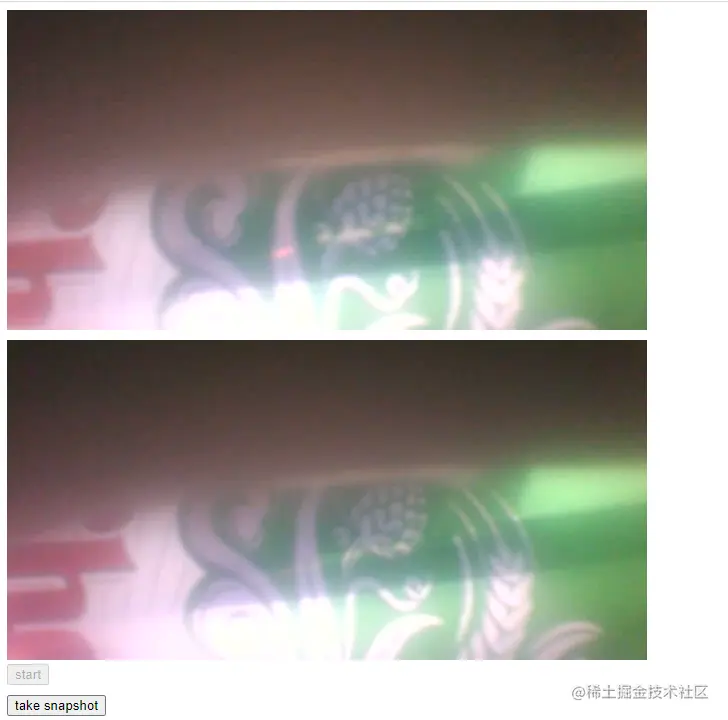

效果


实现录音录像

原理：

  • 使用MediaRecorder类型建立录音录像对象
  • mediaRecorder.ondataavailable回调中收集音视频数据
  • 停止录像后，播放和下载录像通过new Blob(recordedBlobs, { type: "video/webm" })制作二进制数据
  • window.URL.createObjectURL(blob)获得地址后给video标签或a标签即可

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Document</title>
    <link href="./style.css" rel="stylesheet" />
  </head>
  <body>
    <video id="local-video" autoplay playsinline></video>
    <video id="record-video" autoplay playsinline></video>
    <button id="start-btn">start</button>
    <button id="start-record-btn">start record</button>
    <button id="stop-record-btn">stop record</button>
    <button id="play-record-btn">play record</button>
    <button id="download-record-btn">download record</button>
    <script src="./main.js"></script>
  </body>
</html>

js

let localStream = null;
// 本地视频
document.getElementById("start-btn").addEventListener("click", function (e) {
  navigator.mediaDevices
    .getUserMedia({ audio: true, video: { width: 640, height: 320 } })
    .then(
      (stream) => {
        console.log(`Using video device: `, stream.getTracks());
        document.getElementById("local-video").srcObject = stream;
        localStream = stream;
      },
      (error) => {
        console.log(error);
      }
    );
});

let mediaRecorder = null;
let recordedBlobs = [];
// 开始记录
document
  .getElementById("start-record-btn")
  .addEventListener("click", function () {
    recordedBlobs = [];
    mediaRecorder = new MediaRecorder(localStream);
    mediaRecorder.ondataavailable = (event) => {
      if (event.data && event.data.size > 0) {
        recordedBlobs.push(event.data);
      }
    };
    mediaRecorder.start();
  });
// 停止记录
document
  .getElementById("stop-record-btn")
  .addEventListener("click", function () {
    mediaRecorder.stop();
  });
// 播放记录
document
  .getElementById("play-record-btn")
  .addEventListener("click", function () {
    const blob = new Blob(recordedBlobs, { type: "video/webm" });
    const url = window.URL.createObjectURL(blob);
    const recordedVideo = document.getElementById("record-video");
    recordedVideo.src = url;
    recordedVideo.controls = true;
    recordedVideo.play();
  });
// 下载记录
document
  .getElementById("download-record-btn")
  .addEventListener("click", function () {
    const blob = new Blob(recordedBlobs, { type: "video/webm" });
    const url = window.URL.createObjectURL(blob);
    const a = document.createElement("a");
    a.style.display = "none";
    a.href = url;
    a.download = "test.webm";
    document.body.appendChild(a);
    a.click();
    setTimeout(() => {
      document.body.removeChild(a);
      window.URL.revokeObjectURL(url);
    }, 100);
  });

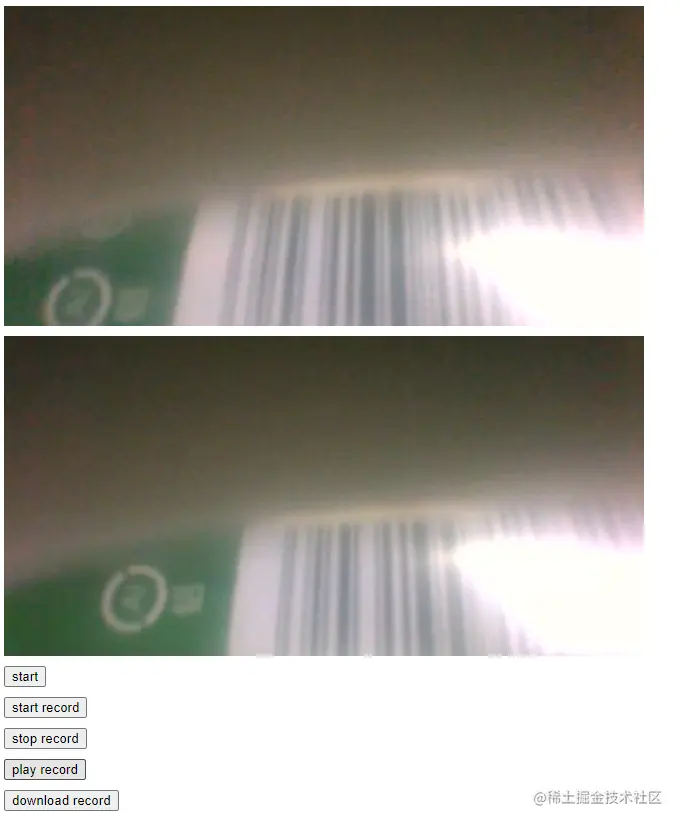

效果


共享屏幕

原理：

  • 区别与打开音视频getUserMedia,改为使用getDisplayMedia方法
  • navigator.mediaDevices.getDisplayMedia({ audio: true, video: true}) 打开共享屏幕获得stream流
  • 把上述stream对象赋值给video的srcObject属性

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>共享屏幕</title>
    <style>
    video{
      background: #000;
    }
    </style>
  </head>
  <body>
    <video id="local-video" autoplay playsinline></video>
    <button id="start-btn">start</button>
    <script src="./main.js"></script>
  </body>
</html>

js

document.getElementById("start-btn").addEventListener("click", function (e) {
  navigator.mediaDevices
    .getDisplayMedia({ audio: true, video: { height: 360, width: 640 } })
    .then(
      (stream) => {
        console.log(`Using video device: `, stream.getTracks());
        document.getElementById("local-video").srcObject = stream;
      },
      (error) => {
        console.log(error);
      }
    );
});

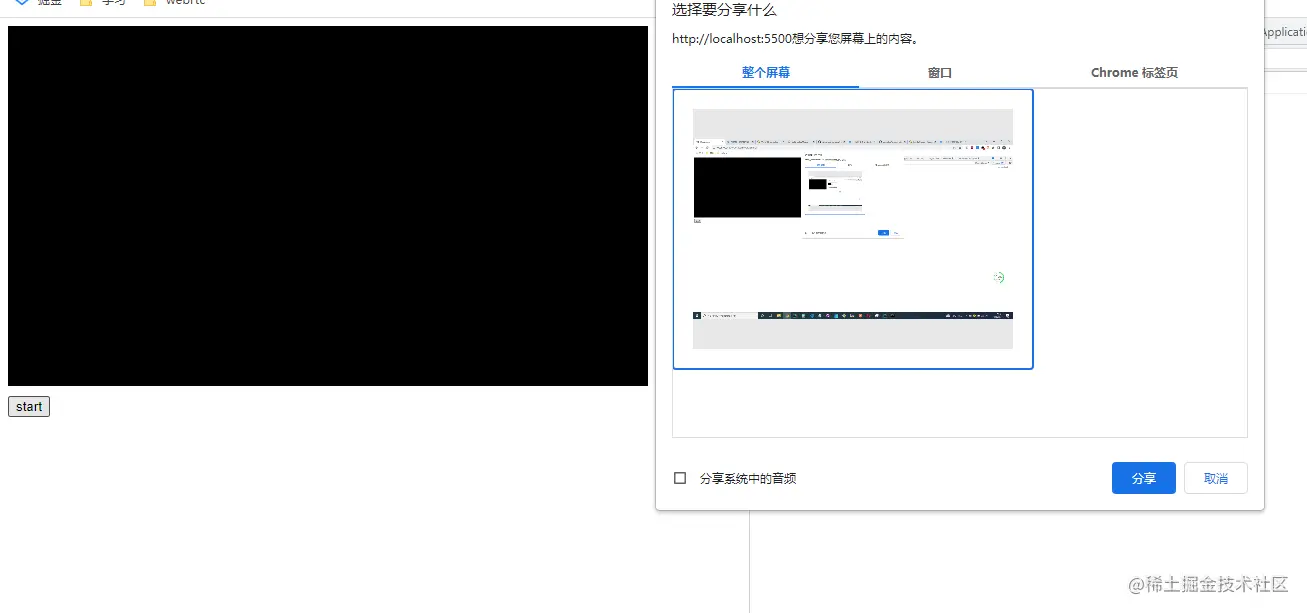

效果


视频流捕获

原理：

  • 读取video的captureStream对象

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>视频流视频</title>
  </head>
  <body>
    <video id="local-video" controls>
      <source src="./chrome.webm" type="video/webm" />
    </video>
    <video id="remote-video" playsinline autoplay muted></video>
    <script src="./main.js"></script>
  </body>
</html>

js

const leftVideo = document.getElementById("local-video");
const rightVideo = document.getElementById("remote-video");

leftVideo.addEventListener("canplay", () => {
  let stream;
  const fps = 0;
  if (leftVideo.captureStream) {
    stream = leftVideo.captureStream(fps);
  } else if (leftVideo.mozCaptureStream) {
    stream = leftVideo.mozCaptureStream(fps);
  } else {
    console.error("Stream capture is not supported");
    stream = null;
  }
  rightVideo.srcObject = stream;
});

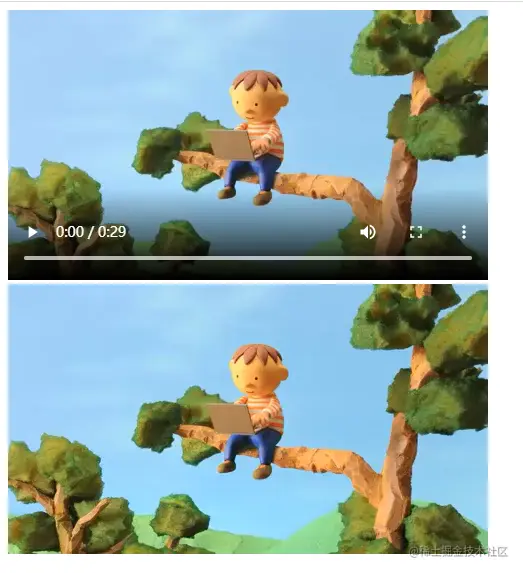

效果


cavas流捕获

原理：

  • 使用cavans的captureStream
  • 注意例子图片别用跨域的

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>canvas流视频</title>
  </head>
  <body>
    <canvas id="local-canvas"></canvas>
    <video id="local-video" autoplay muted></video>
    <script src="./main.js"></script>
  </body>
</html>

js

const canvas = document.getElementById("local-canvas");
const video = document.getElementById("local-video");
const stream = canvas.captureStream();
video.srcObject = stream;

const ctx = canvas.getContext("2d");
const img = new Image();
img.onload = (e) => {
  ctx.drawImage(img, 0, 0, img.width, img.height);
};
img.src = "./boy.png";

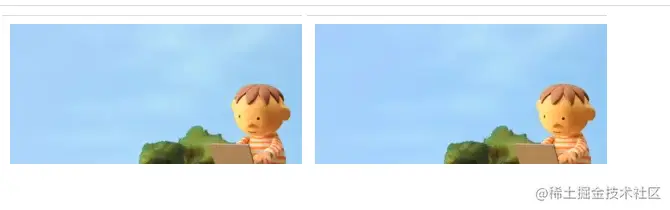

效果


搭建coturn服务器

docker方式安装coturn

使用官方镜像

docker run -d --network=host coturn/coturn

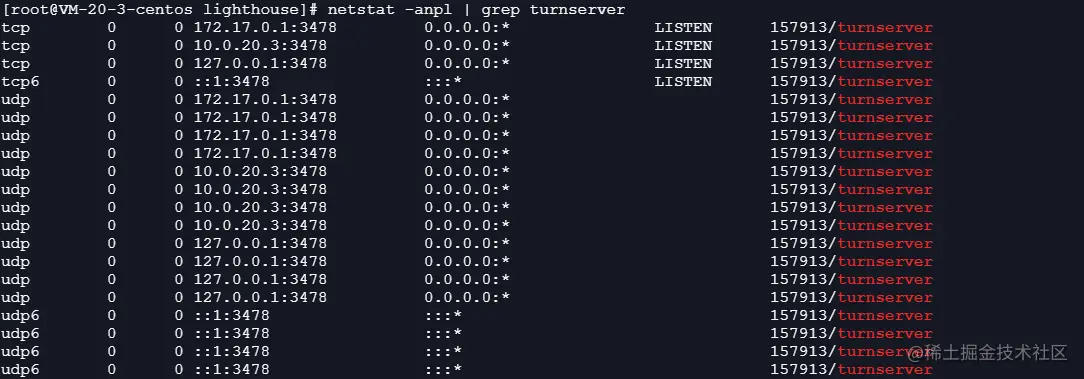

查看端口

netstat -anpl | grep turnserver
或者
lsof -i:3478


关闭防火墙

systemctl stop firewalld && systemctl disable firewalld

Trickle ICE 测试

打开地址 webrtc.github.io/samples/src…

分别测试 stun 和 turn

1、测试stun

STUN or TURN URI处写 stun:公网IP:3478，默认3478端口，不需要账号密码，Add Server后，点下面 Gather candidates，立即就会返回Done，表示成功，如果等待很久返回Done是失败，注意看是否防火墙没关闭或者云服务器端口没打开(UDP 3478)

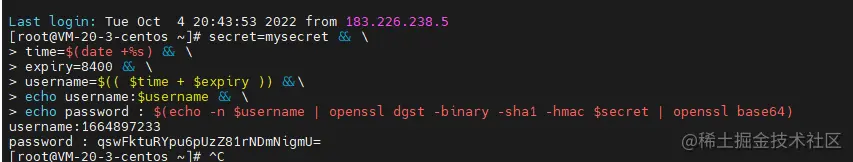

2、测试turn，先生成用户名密码

拷贝下面直接执行得到用户名和密码

secret=mysecret && \
time=$(date +%s) && \
expiry=8400 && \
username=$(( $time + $expiry )) &&\
echo username:$username && \
echo password:$(echo -n $username | openssl dgst -binary -sha1 -hmac $secret | openssl base64)


STUN or TURN URI处写 turn:公网IP:3478，账号密码分别用上面生成的，Add Server, 点下面 Gather candidates，立即就会返回Done


信令服务器正常聊天

html页面引入 socket.io.js

<body>
    <script src="./node_modules/socket.io/client-dist/socket.io.min.js"></script>
    <div id="console"></div>
    <script src="./client.js"></script>
 </body>

客户端 client.js

连接服务器失败会自动重连

const socket = io.connect("http://192.168.1.11:3000");
let myUser = null;
// 收到普通聊天
socket.on("message", (proto) => {
  log(`${proto.form}说：` + proto.msg);
});
// 收到服务器自动生成的账号
socket.on("register", (user) => {
  myUser = user;
  log("【我的账号】" + myUser.username);
});
//socket 连接信息
socket.on("connect", () => {
  log("【client】ws connect.");
});
socket.on("connect_error", () => {
  log("【client】ws connect_error.");
});
socket.on("error", () => {
  log("【client】ws error.");
});

服务端开启socket服务

const http = require("http");
const server = http.createServer();
server.listen(3000, function () {
  console.log("开始监听3000");
});
const socket = require("socket.io")(server, { cors: true });
let connectionList = [];
socket.on("connection", (connection) => {
  connectionList.push(connection);
  connection.user = {
    username: "user" + new Date().getTime().toString().substring(8),
  };
  // 自动注册账号给客户端
  connection.emit("register", connection.user);
  sendToAll(connection.user.username, "我进来了");
  // 普通聊天消息直接群发
  connection.on("message", function (msg) {
    sendToAll(connection.user.username, msg);
  });
  // 客户端断开链接
  connection.on("disconnect", function () {
    connectionList = connectionList.filter(
      (it) => it.user.username != connection.user.username
    );
    sendToAll(connection.user.username, "离开了");
  });
  // 群发消息函数
  function sendToAll(from, msg) {
    connectionList.forEach((targetConnection) => {
      targetConnection.emit("message", {
        form: from,
        to: targetConnection.user.username,
        msg,
      });
    });
  }
});
function log(msg) {
  console.log(
    "<br/> 【client】" + (typeof msg == "object" ? JSON.stringify(msg) : msg)
  );
}
