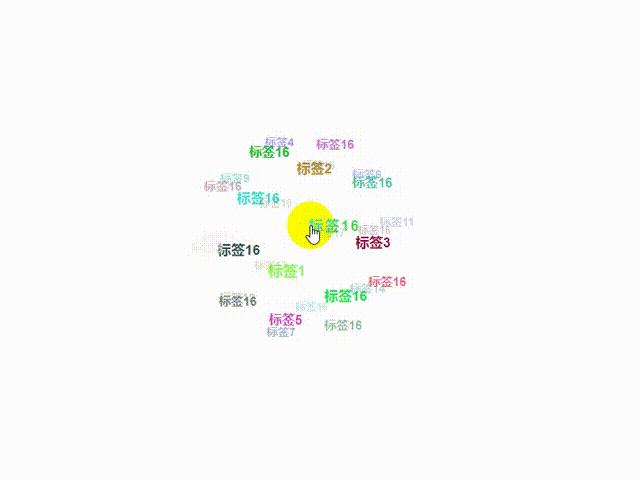

效果图
完整代码
<template>
<div class="cloud_wrap">
<div class="tagcloud-all">
<a
v-for="(item, i) in info.tagList"
:key="i"
:href="item.url"
rel="external nofollow"
:style="'color:' + item.color + ';top: 0;left: 0;filter:none;'"
>{{ item.name }}</a>
</div>
</div>
</template>
<script lang="ts" setup>
import { nextTick, onMounted, reactive } from 'vue';
interface Info<T> {
tagList: T[],
config: T
}
const info: Info<any> = reactive({
tagList: [],
config: {
radius: 120,
dtr: Math.PI / 180,
d: 300,
mcList: [],
active: false,
lasta: 1,
lastb: 1,
distr: true,
tspeed: 5, // 控制旋转速度
size: 250,
mouseX: 0,
mouseY: 0,
howElliptical: 1,
oList: null,
oA: null,
sa: 0,
ca: 0,
sb: 0,
cb: 0,
sc: 0,
cc: 0
}
});
// 生成随机数
function getRandomNum() {
return Math.floor(Math.random() * (255 + 1));
};
// 三角函数角度计算
function sineCosine (a: number, b: number, c: number) {
info.config.sa = Math.sin(a * info.config.dtr);
info.config.ca = Math.cos(a * info.config.dtr);
info.config.sb = Math.sin(b * info.config.dtr);
info.config.cb = Math.cos(b * info.config.dtr);
info.config.sc = Math.sin(c * info.config.dtr);
info.config.cc = Math.cos(c * info.config.dtr);
}
// 设置初始定位
function positionAll () {
nextTick(() => {
let phi = 0;
let theta = 0;
let max = info.config.mcList.length;
let aTmp = [];
let oFragment = document.createDocumentFragment();
// 随机排序
for (let i = 0; i < info.tagList.length; i++) {
aTmp.push(info.config.oA[i]);
}
aTmp.sort(() => {
return Math.random() < 0.5 ? 1 : -1;
});
for (let i = 0; i < aTmp.length; i++) {
oFragment.appendChild(aTmp[i]);
}
info.config.oList.appendChild(oFragment);
for (let i = 1; i < max + 1; i++) {
if (info.config.distr) {
phi = Math.acos(-1 + (2 * i - 1) / max);
theta = Math.sqrt(max * Math.PI) * phi;
} else {
phi = Math.random() * (Math.PI);
theta = Math.random() * (2 * Math.PI);
}
// 坐标变换
info.config.mcList[i - 1].cx = info.config.radius * Math.cos(theta) * Math.sin(phi);
info.config.mcList[i - 1].cy = info.config.radius * Math.sin(theta) * Math.sin(phi);
info.config.mcList[i - 1].cz = info.config.radius * Math.cos(phi);
info.config.oA[i - 1].style.left = info.config.mcList[i - 1].cx + info.config.oList.offsetWidth / 2 - info.config.mcList[i - 1].offsetWidth / 2 + 'px';
info.config.oA[i - 1].style.top = info.config.mcList[i - 1].cy + info.config.oList.offsetHeight / 2 - info.config.mcList[i - 1].offsetHeight / 2 + 'px';
}
})
}
// 坐标更新 让标签动起来
function update () {
nextTick(() => {
let a;
let b;
if (info.config.active) {
a = (-Math.min(Math.max(-info.config.mouseY, -info.config.size), info.config.size) / info.config.radius) * info.config.tspeed;
b = (Math.min(Math.max(-info.config.mouseX, -info.config.size), info.config.size) / info.config.radius) * info.config.tspeed;
} else {
a = info.config.lasta * 0.98;
b = info.config.lastb * 0.98;
}
info.config.lasta = a;
info.config.lastb = b;
if (Math.abs(a) <= 0.01 && Math.abs(b) <= 0.01) {
return
}
let c = 0;
sineCosine(a, b, c);
for (let j = 0; j < info.config.mcList.length; j++) {
let rx1 = info.config.mcList[j].cx;
let ry1 = info.config.mcList[j].cy * info.config.ca + info.config.mcList[j].cz * (-info.config.sa);
let rz1 = info.config.mcList[j].cy * info.config.sa + info.config.mcList[j].cz * info.config.ca;
let rx2 = rx1 * info.config.cb + rz1 * info.config.sb;
let ry2 = ry1;
let rz2 = rx1 * (-info.config.sb) + rz1 * info.config.cb;
let rx3 = rx2 * info.config.cc + ry2 * (-info.config.sc);
let ry3 = rx2 * info.config.sc + ry2 * info.config.cc;
let rz3 = rz2;
info.config.mcList[j].cx = rx3;
info.config.mcList[j].cy = ry3;
info.config.mcList[j].cz = rz3;
let per = info.config.d / (info.config.d + rz3);
info.config.mcList[j].x = (info.config.howElliptical * rx3 * per) - (info.config.howElliptical * 2);
info.config.mcList[j].y = ry3 * per;
info.config.mcList[j].scale = per;
info.config.mcList[j].alpha = per;
info.config.mcList[j].alpha = (info.config.mcList[j].alpha - 0.6) * (10 / 6);
}
doPosition();
depthSort();
})
}
function doPosition() {
nextTick(() => {
let l = info.config.oList.offsetWidth / 2;
let t = info.config.oList.offsetHeight / 2;
for (let i = 0; i < info.config.mcList.length; i++) {
info.config.oA[i].style.left = info.config.mcList[i].cx + l - info.config.mcList[i].offsetWidth / 2 + 'px';
info.config.oA[i].style.top = info.config.mcList[i].cy + t - info.config.mcList[i].offsetHeight / 2 + 'px';
info.config.oA[i].style.fontSize = Math.ceil(12 * info.config.mcList[i].scale / 2) + 8 + 'px';
// info.config.oA[i].style.filter = "alpha(opacity=" + 100 * info.config.mcList[i].alpha + ")";
info.config.oA[i].style.opacity = info.config.mcList[i].alpha;
}
})
}
function depthSort() {
nextTick(() => {
const aTmp = [];
for (let i = 0; i < info.config.oA.length; i++) {
aTmp.push(info.config.oA[i]);
}
aTmp.sort(function (vItem1, vItem2) {
if (vItem1.cz > vItem2.cz) {
return -1;
} else if (vItem1.cz < vItem2.cz) {
return 1;
} else {
return 0;
}
});
for (let i = 0; i < aTmp.length; i++) {
aTmp[i].style.zIndex = i;
}
})
}
// 生成随机颜色
function query(tagListOrg: any[]) {
if (!Array.isArray(tagListOrg)) {
return;
}
// 给tagList添加随机颜色
tagListOrg.forEach((item: any) => {
item.color = "rgb(" + getRandomNum() + "," + getRandomNum() + "," + getRandomNum() + ")";
})
info.tagList = tagListOrg;
onReady();
}
// 生成标签云
function onReady() {
nextTick(() => {
info.config.oList = document.querySelector('.tagcloud-all');
info.config.oA = info.config.oList.getElementsByTagName('a')
var oTag = null;
for (var i = 0; i < info.config.oA.length; i++) {
const oTag: any = {};
oTag.offsetWidth = info.config.oA[i].offsetWidth;
oTag.offsetHeight = info.config.oA[i].offsetHeight;
info.config.mcList.push(oTag);
}
sineCosine(0, 0, 0);
positionAll();
info.config.oList.onmouseover = () => {
info.config.active = true;
}
info.config.oList.onmouseout = () => {
info.config.active = false;
}
info.config.oList.onmousemove = (event: any) => {
const oEvent: any = window.event || event;
info.config.mouseX = oEvent.clientX - (info.config.oList.offsetLeft + info.config.oList.offsetWidth / 2);
info.config.mouseY = oEvent.clientY - (info.config.oList.offsetTop + info.config.oList.offsetHeight / 2);
info.config.mouseX /= 5;
info.config.mouseY /= 5;
}
setInterval(() => {
update()
}, 30);
})
}
onMounted(() => {
nextTick(() => {
const tagListOrg = [
{ name: '标签1', url: 'www.baidu.com' },
{ name: '标签2', url: 'www.baidu.com' },
{ name: '标签3', url: 'www.baidu.com' },
{ name: '标签4', url: 'www.baidu.com' },
{ name: '标签5', url: 'www.baidu.com' },
{ name: '标签6', url: 'www.baidu.com' },
{ name: '标签7', url: 'www.baidu.com' },
{ name: '标签8', url: 'www.baidu.com' },
{ name: '标签9', url: 'www.baidu.com' },
{ name: '标签10', url: 'www.baidu.com' },
{ name: '标签11', url: 'www.baidu.com' },
{ name: '标签12', url: 'www.baidu.com' },
{ name: '标签13', url: 'www.baidu.com' },
{ name: '标签14', url: 'www.baidu.com' },
{ name: '标签15', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签16', url: 'www.baidu.com' },
{ name: '标签17', url: 'www.baidu.com' }
];
query(tagListOrg)
})
})
</script>
<style lang="scss" scoped>
.cloud_wrap {
width: 100%;
height: 100%;
// 标签云
.tagcloud-all {
height: 100%;
position: relative;
a {
position: absolute;
top: 0px;
left: 0px;
color: #fff;
font-weight: bold;
text-decoration: none;
padding: 3px 6px;
&:hover {
color: #FF0000;
letter-spacing: 2px;
}
}
}
}
</style>
