实际上在我之前的文章：
我已经详述了如和使用一些工具来生产相应的最基本的 ingest pipeline 的处理器。在今天的文章中，我进一步来通过一个例子来进行展示。在今天的展示中，我将使用最新的 Elastic Stack 8.4.0 来进行展示。我们将设计一个叫做 sample 的处理器。它可以把文档中的一个字段的首字母进行提取，转换为小写字母，并置于一个用户自己设定的字段中：
安装
如果你还没有安装好自己的 Elastic Stack，请参考如下的文章来安装 Elasticsearch 及 Kibana：
- 如何在 Linux，MacOS 及 Windows 上进行安装 Elasticsearch
- Elastic：使用 Docker 安装 Elastic Stack 8.0 并开始使用
- Kibana：如何在 Linux，MacOS 及 Windows上安装 Elastic 栈中的 Kibana
创建插件模板
就像在之前的文章 “Elasticsearch：创建一个 Elasticsearch Ingest 插件” 所描述的那样，我们可以使用 elasticsearch-plugin-archtype 插件来生产。我们使用如下的命令来创建一个最为基本的插件模板：
1. mvn archetype:generate \
2. -DarchetypeGroupId=org.codelibs \
3. -DarchetypeArtifactId=elasticsearch-plugin-archetype \
4. -DarchetypeVersion=6.6.0 \
5. -DgroupId=com.liuxg \
6. -DartifactId=elasticsearch-plugin \
7. -Dversion=1.0-SNAPSHOT \
8. -DpluginName=ingest
上面已经帮我们创建了一个最为基本的插件模板。它在当前的目录下创建了一个叫做 elasticsearch-plugin 的目录。我们首先进入到该目录中：
`
1. $ pwd
2. /Users/liuxg/java/plugins/elasticsearch-plugin
3. $ tree -L 8
4. .
5. ├── pom.xml
6. └── src
7. └── main
8. ├── assemblies
9. │ └── plugin.xml
10. ├── java
11. │ └── com
12. │ └── liuxg
13. │ ├── ingestPlugin.java
14. │ └── rest
15. │ └── RestingestAction.java
16. └── plugin-metadata
17. └── plugin-descriptor.properties
`
上面的命令为我们生成了一个最为基本的 REST handler 的插件架构。它不是我们所需要的，我们需要对文件进行重新命名，并对文件的目录进行调整。调整后的文件架构如下：
`
1. $ pwd
2. /Users/liuxg/java/plugins/elasticsearch-plugin
3. $ tree -L 8
4. .
5. ├── pom.xml
6. └── src
7. └── main
8. ├── assemblies
9. │ └── plugin.xml
10. ├── java
11. │ └── com
12. │ └── liuxg
13. │ ├── ingest
14. │ │ └── SampleProcessor.java
15. │ └── plugin
16. │ └── ingest
17. │ └── ingestPlugin.java
18. └── plugin-metadata
19. └── plugin-descriptor.properties
`
我们接下来修改 pom.xml：
pom.xml
`
1. <?xml version="1.0" encoding="UTF-8"?>
2. <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
3. xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
4. <name>elasticsearch-plugin</name>
5. <modelVersion>4.0.0</modelVersion>
6. <groupId>com.liuxg</groupId>
7. <artifactId>elasticsearch-plugin</artifactId>
8. <version>1.0-SNAPSHOT</version>
9. <packaging>jar</packaging>
10. <description>elasticsearch ingest plugin</description>
11. <inceptionYear>2019</inceptionYear>
12. <licenses>
13. <license>
14. <name>The Apache Software License, Version 2.0</name>
15. <url>http://www.apache.org/licenses/LICENSE-2.0.txt</url>
16. <distribution>repo</distribution>
17. </license>
18. </licenses>
19. <properties>
20. <elasticsearch.version>8.4.0</elasticsearch.version>
21. <elasticsearch.plugin.classname>com.liuxg.plugin.ingest.ingestPlugin</elasticsearch.plugin.classname>
22. <log4j.version>2.11.1</log4j.version>
23. <maven.compiler.source>1.8</maven.compiler.source>
24. <maven.compiler.target>1.8</maven.compiler.target>
25. </properties>
26. <build>
27. <plugins>
28. <plugin>
29. <artifactId>maven-compiler-plugin</artifactId>
30. <version>3.8.0</version>
31. <configuration>
32. <source>${maven.compiler.source}</source>
33. <target>${maven.compiler.target}</target>
34. <encoding>UTF-8</encoding>
35. </configuration>
36. </plugin>
37. <plugin>
38. <artifactId>maven-surefire-plugin</artifactId>
39. <version>2.22.1</version>
40. <configuration>
41. <includes>
42. <include>**/*Tests.java</include>
43. </includes>
44. </configuration>
45. </plugin>
46. <plugin>
47. <artifactId>maven-source-plugin</artifactId>
48. <version>3.0.1</version>
49. <executions>
50. <execution>
51. <id>attach-sources</id>
52. <goals>
53. <goal>jar</goal>
54. </goals>
55. </execution>
56. </executions>
57. </plugin>
58. <plugin>
59. <artifactId>maven-assembly-plugin</artifactId>
60. <version>3.1.0</version>
61. <configuration>
62. <appendAssemblyId>false</appendAssemblyId>
63. <outputDirectory>${project.build.directory}/releases/</outputDirectory>
64. <descriptors>
65. <descriptor>${basedir}/src/main/assemblies/plugin.xml</descriptor>
66. </descriptors>
67. </configuration>
68. <executions>
69. <execution>
70. <phase>package</phase>
71. <goals>
72. <goal>single</goal>
73. </goals>
74. </execution>
75. </executions>
76. </plugin>
77. </plugins>
78. </build>
79. <dependencies>
80. <dependency>
81. <groupId>org.elasticsearch</groupId>
82. <artifactId>elasticsearch</artifactId>
83. <version>${elasticsearch.version}</version>
84. <scope>provided</scope>
85. </dependency>
86. <dependency>
87. <groupId>org.apache.logging.log4j</groupId>
88. <artifactId>log4j-api</artifactId>
89. <version>${log4j.version}</version>
90. <scope>provided</scope>
91. </dependency>
92. </dependencies>
93. </project>
`
在上面，我们对如下的两行做了修改：
1. <elasticsearch.version>8.4.0</elasticsearch.version>
2. <elasticsearch.plugin.classname>com.liuxg.plugin.ingest.ingestPlugin</elasticsearch.plugin.classname>
我们需要把 elasticsearch.version 设置为和 Elastic Stack 一样的版本才可以得到安装。另外，我们也必须修改 elasticsearch.plugin.classname，这是因为我们的文件路径发生变化了。
紧接着，我们来修改 ingestPlugin.java 文件：
ingestPlugin.java
`
1. package com.liuxg.plugin.ingest;
3. import org.elasticsearch.ingest.Processor;
4. import org.elasticsearch.plugins.IngestPlugin;
5. import org.elasticsearch.plugins.Plugin;
6. import com.liuxg.ingest.SampleProcessor;
8. import java.util.Collections;
9. import java.util.Map;
11. public class ingestPlugin extends Plugin implements IngestPlugin {
12. @Override
13. public Map<String, Processor.Factory> getProcessors(Processor.Parameters parameters) {
14. return Collections.singletonMap(SampleProcessor.TYPE, new SampleProcessor.Factory());
15. }
16. }
`
上面的代码是用来这次这个 ingest pipeline 的插件的。
再接着下来，我们修改 SampleProcessor.java 文件：
SampleProcessor.java
`
1. package com.liuxg.ingest;
3. import org.elasticsearch.ingest.AbstractProcessor;
4. import org.elasticsearch.ingest.ConfigurationUtils;
5. import org.elasticsearch.ingest.IngestDocument;
6. import org.elasticsearch.ingest.Processor;
8. import java.util.Locale;
9. import java.util.Map;
11. public final class SampleProcessor extends AbstractProcessor {
13. public static final String TYPE = "sample";
15. private final String field;
16. private final String targetField;
17. private final String defaultValue;
18. private final boolean ignoreMissing;
20. public SampleProcessor(String tag, String description, String field, String targetField, boolean ignoreMissing, String defaultValue) {
21. super(tag, description);
22. this.field = field;
23. this.targetField = targetField;
24. this.ignoreMissing = ignoreMissing;
25. this.defaultValue = defaultValue;
26. }
28. String getField() {
29. return field;
30. }
32. String getTargetField() {
33. return targetField;
34. }
36. String getDefaultField() {
37. return defaultValue;
38. }
40. boolean isIgnoreMissing() {
41. return ignoreMissing;
42. }
44. @Override
45. public IngestDocument execute(IngestDocument document) {
46. if (!document.hasField(field, true)) {
47. if (ignoreMissing) {
48. return document;
49. } else {
50. throw new IllegalArgumentException("field [" + field + "] not present as part of path [" + field + "]");
51. }
52. }
53. // We fail here if the target field point to an array slot that is out of range.
54. // If we didn't do this then we would fail if we set the value in the target_field
55. // and then on failure processors would not see that value we tried to rename as we already
56. // removed it.
57. if (document.hasField(targetField, true)) {
58. throw new IllegalArgumentException("field [" + targetField + "] already exists");
59. }
61. Object value = document.getFieldValue(field, Object.class);
62. if( value!=null && value instanceof String ) {
63. String myValue=value.toString().trim();
64. if(myValue.length()>1){
65. try {
66. document.setFieldValue(targetField, myValue.substring(0,1).toLowerCase(Locale.getDefault()));
67. } catch (Exception e) {
68. // setting the value back to the original field shouldn't as we just fetched it from that field:
69. document.setFieldValue(field, value);
70. throw e;
71. }
72. }
73. }
74. return document;
75. }
77. @Override
78. public String getType() {
79. return TYPE;
80. }
82. public static final class Factory implements Processor.Factory {
83. @Override
84. public Processor create(Map<String, Processor.Factory> processorFactories, String tag, String description, Map<String, Object> config) throws Exception {
85. String field = ConfigurationUtils.readStringProperty(TYPE, tag, config, "field");
86. String targetField = ConfigurationUtils.readStringProperty(TYPE, tag,
87. config, "target_field");
88. String defaultValue = ConfigurationUtils.readOptionalStringProperty(TYPE, tag,
89. config, "defaultValue");
90. boolean ignoreMissing = ConfigurationUtils.readBooleanProperty(TYPE, tag,
91. config, "ignore_missing", false);
92. return new SampleProcessor(tag, description, field, targetField, ignoreMissing, defaultValue);
93. }
94. }
95. }
`

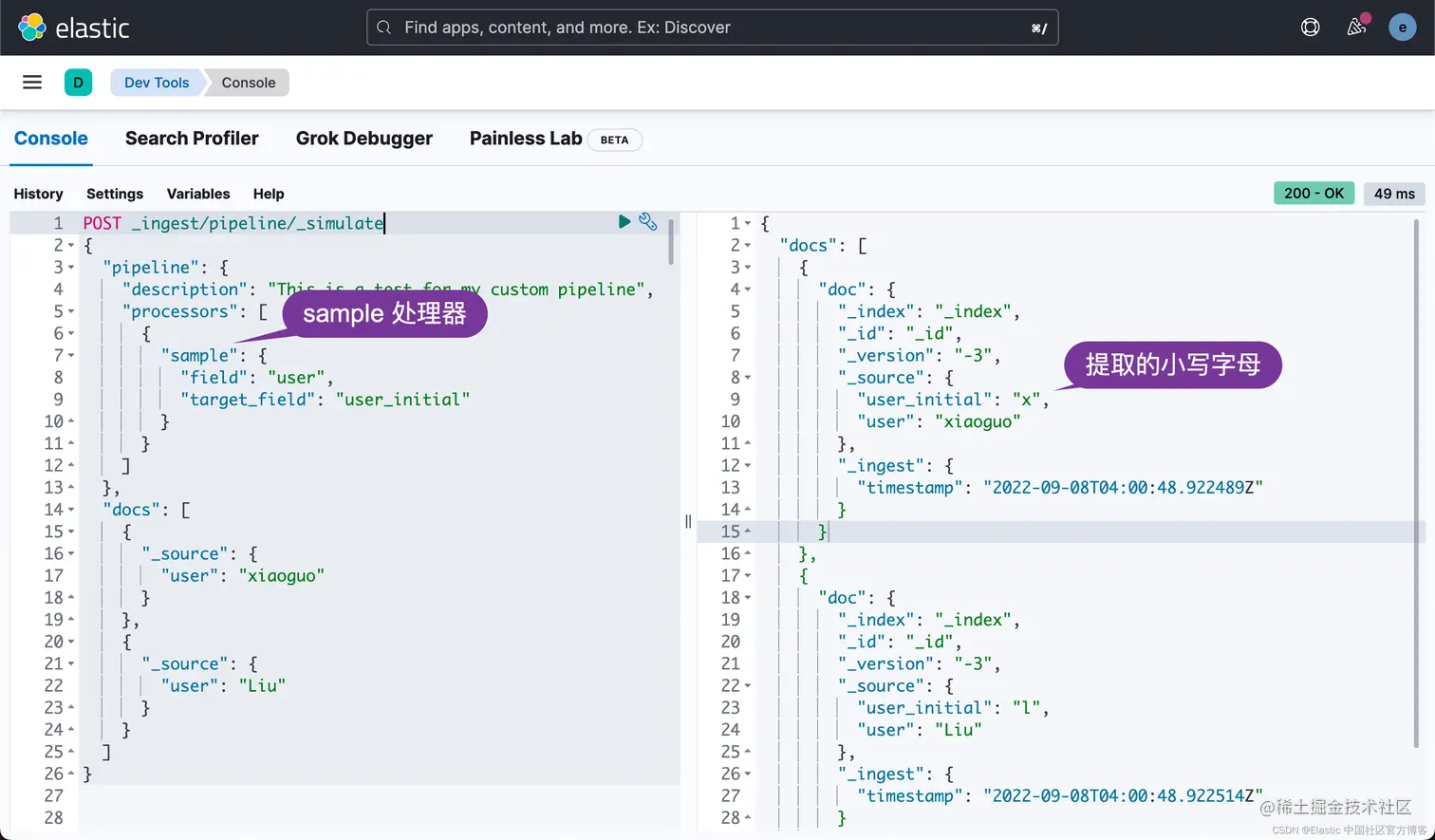

在上面，我们定义了该处理器的名字为 sample。我们将在下面的测试中进行使用。上面的实现使得我们提取一个字段的首字母，并放置于一个自定义的字段中去。我们将在下面的测试中进行展示。
编译
我们在项目的根目录下使人如下的命令来进行编译：
mvn clean install
`
1. $ pwd
2. /Users/liuxg/java/plugins/elasticsearch-plugin
3. $ mvn clean install
4. [INFO] Scanning for projects...
5. [INFO]
6. [INFO] -------------------< com.liuxg:elasticsearch-plugin >-------------------
7. [INFO] Building elasticsearch-plugin 1.0-SNAPSHOT
8. [INFO] --------------------------------[ jar ]---------------------------------
9. [INFO]
10. [INFO] --- maven-clean-plugin:2.5:clean (default-clean) @ elasticsearch-plugin ---
11. [INFO]
12. [INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ elasticsearch-plugin ---
13. [WARNING] Using platform encoding (UTF-8 actually) to copy filtered resources, i.e. build is platform dependent!
14. [INFO] skip non existing resourceDirectory /Users/liuxg/java/plugins/elasticsearch-plugin/src/main/resources
15. [INFO]
16. [INFO] --- maven-compiler-plugin:3.8.0:compile (default-compile) @ elasticsearch-plugin ---
17. [INFO] Changes detected - recompiling the module!
18. [INFO] Compiling 2 source files to /Users/liuxg/java/plugins/elasticsearch-plugin/target/classes
19. [INFO]
20. [INFO] --- maven-resources-plugin:2.6:testResources (default-testResources) @ elasticsearch-plugin ---
21. [WARNING] Using platform encoding (UTF-8 actually) to copy filtered resources, i.e. build is platform dependent!
22. [INFO] skip non existing resourceDirectory /Users/liuxg/java/plugins/elasticsearch-plugin/src/test/resources
23. [INFO]
24. [INFO] --- maven-compiler-plugin:3.8.0:testCompile (default-testCompile) @ elasticsearch-plugin ---
25. [INFO] No sources to compile
26. [INFO]
27. [INFO] --- maven-surefire-plugin:2.22.1:test (default-test) @ elasticsearch-plugin ---
28. [INFO] No tests to run.
29. [INFO]
30. [INFO] --- maven-jar-plugin:2.4:jar (default-jar) @ elasticsearch-plugin ---
31. [INFO] Building jar: /Users/liuxg/java/plugins/elasticsearch-plugin/target/elasticsearch-plugin-1.0-SNAPSHOT.jar
32. [INFO]
33. [INFO] >>> maven-source-plugin:3.0.1:jar (attach-sources) > generate-sources @ elasticsearch-plugin >>>
34. [INFO]
35. [INFO] <<< maven-source-plugin:3.0.1:jar (attach-sources) < generate-sources @ elasticsearch-plugin <<<
36. [INFO]
37. [INFO]
38. [INFO] --- maven-source-plugin:3.0.1:jar (attach-sources) @ elasticsearch-plugin ---
39. [INFO] Building jar: /Users/liuxg/java/plugins/elasticsearch-plugin/target/elasticsearch-plugin-1.0-SNAPSHOT-sources.jar
40. [INFO]
41. [INFO] --- maven-assembly-plugin:3.1.0:single (default) @ elasticsearch-plugin ---
42. [INFO] Reading assembly descriptor: /Users/liuxg/java/plugins/elasticsearch-plugin/src/main/assemblies/plugin.xml
43. [WARNING] The following patterns were never triggered in this artifact exclusion filter:
44. o 'org.elasticsearch:elasticsearch'
46. [INFO] Building zip: /Users/liuxg/java/plugins/elasticsearch-plugin/target/releases/elasticsearch-plugin-1.0-SNAPSHOT.zip
47. [INFO]
48. [INFO] --- maven-install-plugin:2.4:install (default-install) @ elasticsearch-plugin ---
49. [INFO] Installing /Users/liuxg/java/plugins/elasticsearch-plugin/target/elasticsearch-plugin-1.0-SNAPSHOT.jar to /Users/liuxg/.m2/repository/com/liuxg/elasticsearch-plugin/1.0-SNAPSHOT/elasticsearch-plugin-1.0-SNAPSHOT.jar
50. [INFO] Installing /Users/liuxg/java/plugins/elasticsearch-plugin/pom.xml to /Users/liuxg/.m2/repository/com/liuxg/elasticsearch-plugin/1.0-SNAPSHOT/elasticsearch-plugin-1.0-SNAPSHOT.pom
51. [INFO] Installing /Users/liuxg/java/plugins/elasticsearch-plugin/target/elasticsearch-plugin-1.0-SNAPSHOT-sources.jar to /Users/liuxg/.m2/repository/com/liuxg/elasticsearch-plugin/1.0-SNAPSHOT/elasticsearch-plugin-1.0-SNAPSHOT-sources.jar
52. [INFO] Installing /Users/liuxg/java/plugins/elasticsearch-plugin/target/releases/elasticsearch-plugin-1.0-SNAPSHOT.zip to /Users/liuxg/.m2/repository/com/liuxg/elasticsearch-plugin/1.0-SNAPSHOT/elasticsearch-plugin-1.0-SNAPSHOT.zip
53. [INFO] ------------------------------------------------------------------------
54. [INFO] BUILD SUCCESS
55. [INFO] ------------------------------------------------------------------------
56. [INFO] Total time: 5.213 s
57. [INFO] Finished at: 2022-09-08T11:50:02+08:00
58. [INFO] ------------------------------------------------------------------------
`
编译成功后，我们可以在 target 目录先看到如下的安装文件：
1. $ pwd
2. /Users/liuxg/java/plugins/elasticsearch-plugin
3. $ ls target/releases/
4. elasticsearch-plugin-1.0-SNAPSHOT.zip
上面显示的 elasticsearch-plugin-1.0-SNAPSHOT.zip 就是我们可以安装的插件文件。
安装插件并测试插件
我们接下来换到 Elasticsearch 的安装目录下，并打入如下的命令：
1. $ pwd
2. /Users/liuxg/elastic0/elasticsearch-8.4.0
3. $ bin/elasticsearch-plugin install file:Users/liuxg/java/plugins/elasticsearch-plugin/target/releases/elasticsearch-plugin-1.0-SNAPSHOT.zip
4. -> Installing file:Users/liuxg/java/plugins/elasticsearch-plugin/target/releases/elasticsearch-plugin-1.0-SNAPSHOT.zip
5. -> Downloading file:Users/liuxg/java/plugins/elasticsearch-plugin/target/releases/elasticsearch-plugin-1.0-SNAPSHOT.zip
6. [=================================================] 100%
7. -> Installed ingest
8. -> Please restart Elasticsearch to activate any plugins installed
9. $ ./bin/elasticsearch-plugin list
10. ingest
从上面的显示中，我们可以看出来 ingest 插件已经被成功地安装。我们接下来需要重新启动 Elasticsearch。这个非常重要！
等 Elasticsearch 重新启动后，我们打开 Kibana，并使用如下的命令来进行测试：
`
1. POST _ingest/pipeline/_simulate
2. {
3. "pipeline": {
4. "description": "This is a test for my custom pipeline",
5. "processors": [
6. {
7. "sample": {
8. "field": "user",
9. "target_field": "user_initial"
10. }
11. }
12. ]
13. },
14. "docs": [
15. {
16. "_source": {
17. "user": "xiaoguo"
18. }
19. },
20. {
21. "_source": {
22. "user": "liu"
23. }
24. }
25. ]
26. }
`
在上面的测试中，我们的字段 user 的值分别为 xiaoguo 及 Liu。经过我们的 sample 处理器后， 结果如下：
`
1. {
2. "docs": [3. {4. "doc": {5. "_index": "_index",6. "_id": "_id",7. "_version": "-3",8. "_source": {9. "user_initial": "x",10. "user": "xiaoguo"11. },12. "_ingest": {13. "timestamp": "2022-09-08T04:00:48.922489Z"14. }15. }16. },17. {18. "doc": {19. "_index": "_index",20. "_id": "_id",21. "_version": "-3",22. "_source": {23. "user_initial": "l",24. "user": "Liu"25. },26. "_ingest": {27. "timestamp": "2022-09-08T04:00:48.922514Z"28. }29. }30. }31. ]
32. }
`
显然第一个字母被成功提取，并且把它转换为小写字母。最终把这个字母置于我们设定的 user_initial 字段中去。
为了方便大家的学习，我把最终的代码置于仓库：github.com/liu-xiao-gu…
