springbatch学习

一、sql建表语句

• 最近在学习spring_batch框架，寻找sql建表语句花了比较多的时间，下面我提供一下。运行时可能会报错，根据报错处理就行了。
• 官方网站：github.com/spring-proj…

CREATE TABLE BATCH_JOB_INSTANCE  (
	JOB_INSTANCE_ID BIGINT  NOT NULL PRIMARY KEY ,
	VERSION BIGINT ,
	JOB_NAME VARCHAR(100) NOT NULL,
	JOB_KEY VARCHAR(32) NOT NULL,
	constraint JOB_INST_UN unique (JOB_NAME, JOB_KEY)
) ENGINE=InnoDB;

CREATE TABLE BATCH_JOB_EXECUTION  (
	JOB_EXECUTION_ID BIGINT  NOT NULL PRIMARY KEY ,
	VERSION BIGINT  ,
	JOB_INSTANCE_ID BIGINT NOT NULL,
	CREATE_TIME DATETIME(6) NOT NULL,
	START_TIME DATETIME(6) DEFAULT NULL ,
	END_TIME DATETIME(6) DEFAULT NULL ,
	STATUS VARCHAR(10) ,
	EXIT_CODE VARCHAR(2500) ,
	EXIT_MESSAGE VARCHAR(2500) ,
	LAST_UPDATED DATETIME(6),
	constraint JOB_INST_EXEC_FK foreign key (JOB_INSTANCE_ID)
	references BATCH_JOB_INSTANCE(JOB_INSTANCE_ID)
) ENGINE=InnoDB;

CREATE TABLE BATCH_JOB_EXECUTION_PARAMS  (
	JOB_EXECUTION_ID BIGINT NOT NULL ,
	TYPE_CD VARCHAR(6) NOT NULL ,
	KEY_NAME VARCHAR(100) NOT NULL ,
	STRING_VAL VARCHAR(250) ,
	DATE_VAL DATETIME(6) DEFAULT NULL ,
	LONG_VAL BIGINT ,
	DOUBLE_VAL DOUBLE PRECISION ,
	IDENTIFYING CHAR(1) NOT NULL ,
	constraint JOB_EXEC_PARAMS_FK foreign key (JOB_EXECUTION_ID)
	references BATCH_JOB_EXECUTION(JOB_EXECUTION_ID)
) ENGINE=InnoDB;

CREATE TABLE BATCH_STEP_EXECUTION  (
	STEP_EXECUTION_ID BIGINT  NOT NULL PRIMARY KEY ,
	VERSION BIGINT NOT NULL,
	STEP_NAME VARCHAR(100) NOT NULL,
	JOB_EXECUTION_ID BIGINT NOT NULL,
	CREATE_TIME DATETIME(6) NOT NULL,
	START_TIME DATETIME(6) DEFAULT NULL ,
	END_TIME DATETIME(6) DEFAULT NULL ,
	STATUS VARCHAR(10) ,
	COMMIT_COUNT BIGINT ,
	READ_COUNT BIGINT ,
	FILTER_COUNT BIGINT ,
	WRITE_COUNT BIGINT ,
	READ_SKIP_COUNT BIGINT ,
	WRITE_SKIP_COUNT BIGINT ,
	PROCESS_SKIP_COUNT BIGINT ,
	ROLLBACK_COUNT BIGINT ,
	EXIT_CODE VARCHAR(2500) ,
	EXIT_MESSAGE VARCHAR(2500) ,
	LAST_UPDATED DATETIME(6),
	constraint JOB_EXEC_STEP_FK foreign key (JOB_EXECUTION_ID)
	references BATCH_JOB_EXECUTION(JOB_EXECUTION_ID)
) ENGINE=InnoDB;

CREATE TABLE BATCH_STEP_EXECUTION_CONTEXT  (
	STEP_EXECUTION_ID BIGINT NOT NULL PRIMARY KEY,
	SHORT_CONTEXT VARCHAR(2500) NOT NULL,
	SERIALIZED_CONTEXT TEXT ,
	constraint STEP_EXEC_CTX_FK foreign key (STEP_EXECUTION_ID)
	references BATCH_STEP_EXECUTION(STEP_EXECUTION_ID)
) ENGINE=InnoDB;

CREATE TABLE BATCH_JOB_EXECUTION_CONTEXT  (
	JOB_EXECUTION_ID BIGINT NOT NULL PRIMARY KEY,
	SHORT_CONTEXT VARCHAR(2500) NOT NULL,
	SERIALIZED_CONTEXT TEXT ,
	constraint JOB_EXEC_CTX_FK foreign key (JOB_EXECUTION_ID)
	references BATCH_JOB_EXECUTION(JOB_EXECUTION_ID)
) ENGINE=InnoDB;

CREATE TABLE BATCH_STEP_EXECUTION_SEQ (
	ID BIGINT NOT NULL,
	UNIQUE_KEY CHAR(1) NOT NULL,
	constraint UNIQUE_KEY_UN unique (UNIQUE_KEY)
) ENGINE=InnoDB;

INSERT INTO BATCH_STEP_EXECUTION_SEQ (ID, UNIQUE_KEY) select * from (select 0 as ID, '0' as UNIQUE_KEY) as tmp where not exists(select * from BATCH_STEP_EXECUTION_SEQ);

CREATE TABLE BATCH_JOB_EXECUTION_SEQ (
	ID BIGINT NOT NULL,
	UNIQUE_KEY CHAR(1) NOT NULL,
	constraint UNIQUE_KEY_UN unique (UNIQUE_KEY)
) ENGINE=InnoDB;

INSERT INTO BATCH_JOB_EXECUTION_SEQ (ID, UNIQUE_KEY) select * from (select 0 as ID, '0' as UNIQUE_KEY) as tmp where not exists(select * from BATCH_JOB_EXECUTION_SEQ);

CREATE TABLE BATCH_JOB_SEQ (
	ID BIGINT NOT NULL,
	UNIQUE_KEY CHAR(1) NOT NULL,
	constraint UNIQUE_KEY_UN unique (UNIQUE_KEY)
) ENGINE=InnoDB;

INSERT INTO BATCH_JOB_SEQ (ID, UNIQUE_KEY) select * from (select 0 as ID, '0' as UNIQUE_KEY) as tmp where not exists(select * from BATCH_JOB_SEQ);

二、基本概念

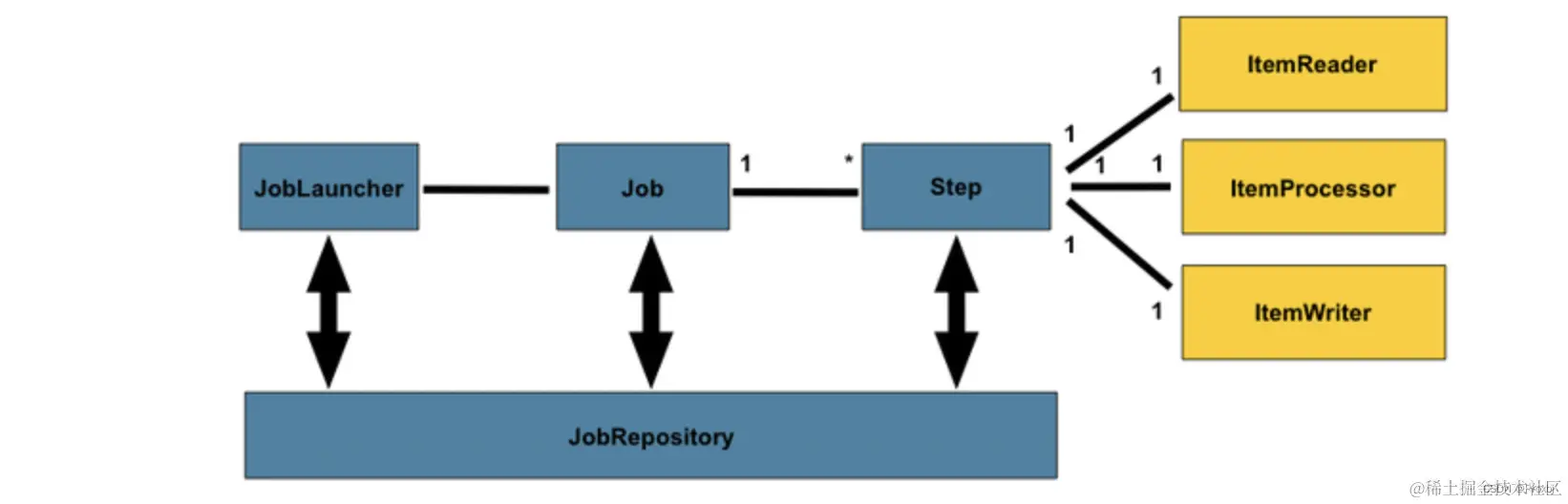

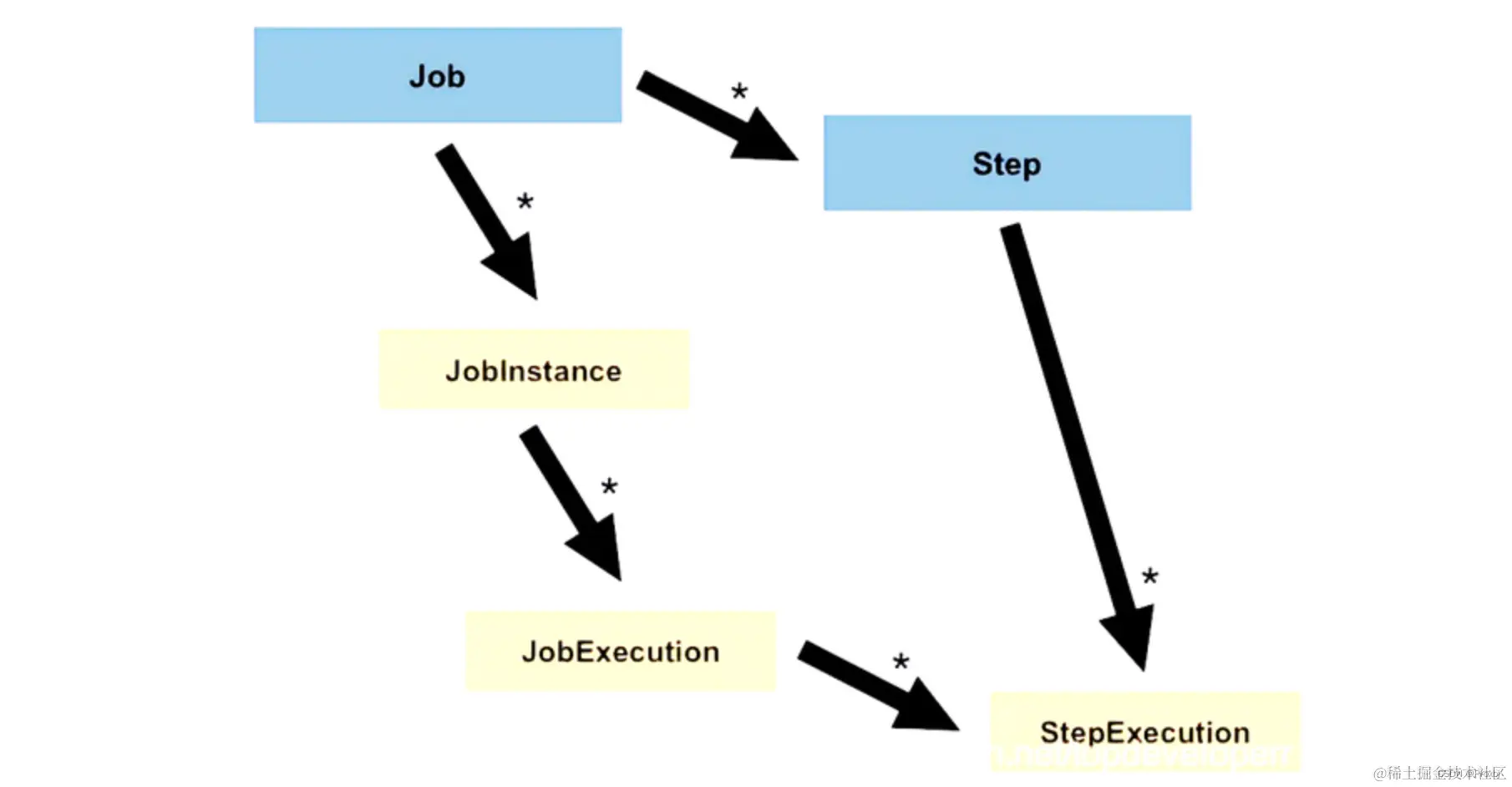

• 架构图


三、入门demo

1. demo里面包含以下步骤

• Job，创建Job实例。包括创建父任务、子任务
• Step，创建Step（Job的实现步骤）
• Flow，多个Step的组合，可以在其他job中共用
• Split，多线程处理job
• Decider，决策器，代表不同步骤执行完之后，需要收到什么信息才能继续往下面执行
• ChunkListener，Step的监听器
• JobListener，Job的监听器
• StepListener,也是Step的监听器
