RocketMQ源码分析14:消息过滤

·  阅读 341


基于rocketmq-4.9.0 版本分析rocketmq

先看下官方文档提供的消息过滤的样例。

RocketMQ提供了2种消息过滤的方式

  1. TAG 过滤
  2. SQL92 过滤

SQL过滤默认是没有打开的,如果想要支持,必须在broker的配置文件中设置:enablePropertyFilter = true

1.代码演示

1.1 producer 代码

public class Producer {

    public static void main(String[] args) throws Exception {

        // 实例化消息生产者Producer
        DefaultMQProducer producer = new DefaultMQProducer("tag_p_g");
        // 设置NameServer的地址
        producer.setNamesrvAddr("127.0.0.1:9876");

        producer.start();

        String[] tags = {"TAG_A", "TAG_B", "TAG_C"};

        for (int i = 0; i < 10 ; i++) {

            byte[] body = ("Hi filter message," + i).getBytes();
            String tag = tags[i % tags.length];

            //同一个topic下,会发送多种tag消息
            Message msg = new Message("MY_topic", tag, body);

            //设置一些属性,消费者SQL过滤时可以使用
            msg.putUserProperty("age", String.valueOf(i));
            msg.putUserProperty("name", "name" + (i + 1));
            msg.putUserProperty("isGender", String.valueOf(new Random().nextBoolean()));

            SendResult sendResult = producer.send(msg);

            System.out.println("sendResult = " + sendResult);
        }


        producer.shutdown();
    }
}
复制代码

1.2 consumer 代码

1.2.1 TAG 过滤

public class Consumer {

    public static void main(String[] args) throws Exception {

        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("c_tag_group");

        consumer.setNamesrvAddr("127.0.0.1:9876");

        /**
         * 订阅消息过滤
         * 只订阅 topic = MY_topic 下
         * tag = TAG_A 或者 tag = TAG_C 的消息,不要 tag = TAG_B 的消息
         * 订阅多个tag使用 || 分开
         */
        consumer.subscribe("MY_topic", "TAG_A || TAG_C");

        consumer.registerMessageListener(new MessageListenerConcurrently() {
            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {

                for (MessageExt msg : msgs) {
                    System.out.println(msg);
                }

                //消费成功时返回
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });

        consumer.start();

        System.out.println("Filter Tag Consumer Started");
    }
}
复制代码

1.2.2 SQL过滤

public class Consumer {

    public static void main(String[] args) throws Exception {

        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("cg");

        consumer.setNamesrvAddr(MQConstant.NAME_SERVER_ADDR);

        /**
         * 订阅消息过滤: 根据消息生产者指定的用户属性进行过滤
         * 支持的常量类型:
         *   数值:比如:123,3.1415
         *   字符:必须用单引号包裹起来,比如:'abc'
         *   布尔:TRUE 或 FALSE
         *   NULL:特殊的常量,表示空
         *
         * 支持的运算符有:
         *   数值比较:>,>=,<,<=,BETWEEN,=
         *   字符比较:=,<>,IN
         *   逻辑运算 :AND,OR,NOT
         *   NULL判断:IS NULL 或者 IS NOT NULL
         *
         *   // (age between 6 and 9) AND (name IS NOT NULL) AND (isGender = TRUE)
         */
        consumer.subscribe(MQConstant.FILTER_SQL_TOPIC, MessageSelector.bySql("(age between 6 and 9) AND (name IS NOT NULL) AND (isGender = TRUE)"));

        consumer.registerMessageListener(new MessageListenerConcurrently() {
            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {

                for (MessageExt msg : msgs) {
                    System.out.println(msg);
                }

                //消费成功时返回
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });

        consumer.start();

        System.out.println("Filter SQL Consumer Started");
    }
}
复制代码

2.说明

消费者去broker拉取消息时,先经过broker过滤一次,在经过消费者过滤一次

  1. 如果是TAG过滤。broker要先根据tag hashcode过滤一次,消费者在根据tag值过滤一次。
  2. 如果是SQL过滤。则全部由broker过滤。

3.消费者启动注册订阅信息到broker

consumer订阅信息会保存到SubscriptionData中,当consumer启动后,会通过心跳先将订阅信息发送到broker。broker主要是构建2部分:

  1. 保存consumer发送的订阅信息SubscriptionData对象。
  2. 构建SQL过滤的ConsumerFilterData对象。

那么我们看下consumer构建订阅数据以及发送到broker的过程:

  1. 创建订阅数据:
public void subscribe(final String topic, final MessageSelector messageSelector) throws MQClientException {
    try {
        if (messageSelector == null) {
            subscribe(topic, SubscriptionData.SUB_ALL);
            return;
        }

        //TODO:核心就是创建SubscriptionData
        SubscriptionData subscriptionData = FilterAPI.build(topic,
            messageSelector.getExpression(), messageSelector.getExpressionType());

        this.rebalanceImpl.getSubscriptionInner().put(topic, subscriptionData);
        if (this.mQClientFactory != null) {
            this.mQClientFactory.sendHeartbeatToAllBrokerWithLock();
        }
    } catch (Exception e) {
        throw new MQClientException("subscription exception", e);
    }
}
复制代码


继续看FilterAPI.build(...)方法:

public static SubscriptionData build(final String topic, final String subString,
        final String type) throws Exception {
        //TODO:如果是TAG过滤,则执行这里
        if (ExpressionType.TAG.equals(type) || type == null) {
            return buildSubscriptionData(topic, subString);
        }

        if (subString == null || subString.length() < 1) {
            throw new IllegalArgumentException("Expression can't be null! " + type);
        }

        //TODO:如果是SQL过滤,则执行这里,相对简单,直接原样发送给broker
        SubscriptionData subscriptionData = new SubscriptionData();
        subscriptionData.setTopic(topic);
        subscriptionData.setSubString(subString);
        subscriptionData.setExpressionType(type);

        return subscriptionData;
    }
}
复制代码


如果是TAG过滤,consumer会做些额外的处理:

public static SubscriptionData buildSubscriptionData(String topic, String subString) throws Exception {
    SubscriptionData subscriptionData = new SubscriptionData();
    subscriptionData.setTopic(topic);
    subscriptionData.setSubString(subString);

    if (null == subString || subString.equals(SubscriptionData.SUB_ALL) || subString.length() == 0) {
        //TODO:订阅 *
        subscriptionData.setSubString(SubscriptionData.SUB_ALL);
    } else {
        //TODO:如果订阅的不是*,则通过 || 分割
        String[] tags = subString.split("\|\|");
        if (tags.length > 0) {
            for (String tag : tags) {
                if (tag.length() > 0) {
                    String trimString = tag.trim();
                    if (trimString.length() > 0) {
                        //TODO:保存tag 值
                        subscriptionData.getTagsSet().add(trimString);
                        //TODO:保存tag 的hashcode
                        subscriptionData.getCodeSet().add(trimString.hashCode());
                    }
                }
            }
        } else {
            throw new Exception("subString split error");
        }
    }

    return subscriptionData;
}
复制代码
  1. 这样consumer的订阅信息就准备好了,然后consumer启动,发送心跳数据:
this.mQClientFactory.sendHeartbeatToAllBrokerWithLock();
复制代码
  1. 我们再看下broker是如何处理心跳数据的
public class Client<ManageProcessor extends AsyncNettyRequestProcessor implements NettyRequestProcessor {

    //TODO:...略.....

    @Override
    public RemotingCommand processRequest(ChannelHandlerContext ctx, RemotingCommand request)
        throws RemotingCommandException {
        switch (request.getCode()) {
            //TODO:接收客户端心跳指令,保存客户端信息
            case RequestCode.HEART_BEAT:
                return this.heartBeat(ctx, request);
            case RequestCode.UNREGISTER_CLIENT:
                return this.unregisterClient(ctx, request);
            case RequestCode.CHECK_CLIENT_CONFIG:
                return this.checkClientConfig(ctx, request);
            default:
                break;
        }
        return null;
    }

    //TODO:....略.....
 }
复制代码

前面我们分析过这个心跳过程,这里就不赘述了,只看和消息过滤相关的内容

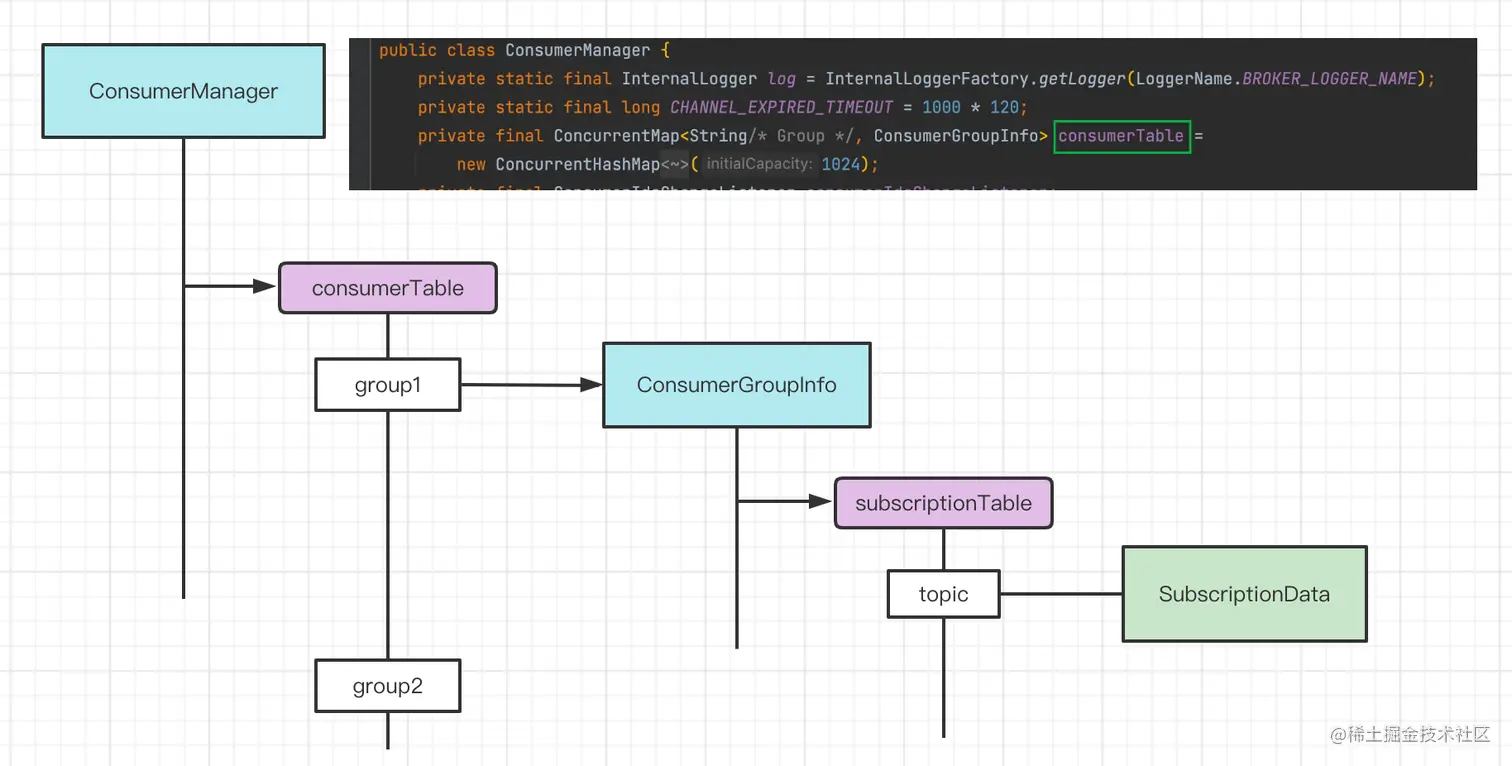

3.1. 将consuemr发送的订阅数据SubscriptionData保存到Map中 image.png

3.2. 如果是SQL过滤,则根据订阅信息创建 ConsumerFilterData

this.consumerIdsChangeListener.handle(ConsumerGroupEvent.REGISTER, group, subList);
复制代码

继续往里走:

public boolean register(final String topic, final String consumerGroup, final String expression,
    final String type, final long clientVersion) {
    //TODO:如果是TAG 过滤,则退出
    if (ExpressionType.isTagType(type)) {
        return false;
    }

    //TODO:如果是SQL过滤,但没有指定过滤规则,则退出
    if (expression == null || expression.length() == 0) {
        return false;
    }

    FilterDataMapByTopic filterDataMapByTopic = this.filterDataByTopic.get(topic);

    if (filterDataMapByTopic == null) {
        FilterDataMapByTopic temp = new FilterDataMapByTopic(topic);
        FilterDataMapByTopic prev = this.filterDataByTopic.putIfAbsent(topic, temp);
        filterDataMapByTopic = prev != null ? prev : temp;
    }

    BloomFilterData bloomFilterData = bloomFilter.generate(consumerGroup + "#" + topic);

    //TODO:构建SQL过滤的ConsumerFilterData
    return filterDataMapByTopic.register(consumerGroup, expression, type, bloomFilterData, clientVersion);
}
复制代码

注册方法内部主要就是构建ConsumerFilterData对象:

public static ConsumerFilterData build(final String topic, final String consumerGroup,
    final String expression, final String type,
    final long clientVersion) {
    if (ExpressionType.isTagType(type)) {
        return null;
    }

    ConsumerFilterData consumerFilterData = new ConsumerFilterData();
    consumerFilterData.setTopic(topic);
    consumerFilterData.setConsumerGroup(consumerGroup);
    consumerFilterData.setBornTime(System.currentTimeMillis());
    consumerFilterData.setDeadTime(0);
    consumerFilterData.setExpression(expression);
    consumerFilterData.setExpressionType(type);
    consumerFilterData.setClientVersion(clientVersion);
    try {
        consumerFilterData.setCompiledExpression(
            FilterFactory.INSTANCE.get(type).compile(expression)
        );
    } catch (Throwable e) {
        log.error("parse error: expr={}, topic={}, group={}, error={}", expression, topic, consumerGroup, e.getMessage());
        return null;
    }

    return consumerFilterData;
}
复制代码

最终工作的就是:

public class SqlFilter implements FilterSpi {

    @Override
    public Expression compile(final String expr) throws MQFilterException {
        return SelectorParser.parse(expr);
    }

    @Override
    public String ofType() {
        return ExpressionType.SQL92;
    }
}
复制代码

好了,到这里就铺垫好了,接下来我们继续看消息过滤的过程,这个过程中,上面的2个对象将会工作。

4.拉取消息

broker处理拉取请求的处理器:PullMessageProcessor 方法内容比较多,还是关注和过滤相关的部分

//TODO: 处理消费请求
private RemotingCommand processRequest(final Channel channel, RemotingCommand request, boolean brokerAllowSuspend)
    throws RemotingCommandException {
    RemotingCommand response = RemotingCommand.createResponseCommand(PullMessageResponseHeader.class);
    final PullMessageResponseHeader responseHeader = (PullMessageResponseHeader) response.readCustomHeader();
    final PullMessageRequestHeader requestHeader =
        (PullMessageRequestHeader) request.decodeCommandCustomHeader(PullMessageRequestHeader.class);


    //TODO:.......省略诸多代码........

    SubscriptionData subscriptionData = null;
    ConsumerFilterData consumerFilterData = null;
    //TODO:这里是false, consumer启动时已经将订阅信息发送到了broker,拿来即用即可
    if (hasSubscriptionFlag) {
        try {
            subscriptionData = FilterAPI.build(
                requestHeader.getTopic(), requestHeader.getSubscription(), requestHeader.getExpressionType()
            );
            if (!ExpressionType.isTagType(subscriptionData.getExpressionType())) {
                consumerFilterData = ConsumerFilterManager.build(
                    requestHeader.getTopic(), requestHeader.getConsumerGroup(), requestHeader.getSubscription(),
                    requestHeader.getExpressionType(), requestHeader.getSubVersion()
                );
                assert consumerFilterData != null;
            }
        } catch (Exception e) {
            log.warn("Parse the consumer's subscription[{}] failed, group: {}", requestHeader.getSubscription(),
                requestHeader.getConsumerGroup());
            response.setCode(ResponseCode.SUBSCRIPTION_PARSE_FAILED);
            response.setRemark("parse the consumer's subscription failed");
            return response;
        }
    } else {
        ConsumerGroupInfo consumerGroupInfo =
            this.brokerController.getConsumerManager().getConsumerGroupInfo(requestHeader.getConsumerGroup());

        //TODO:....省略判断.......

        //TODO:获取订阅数据,这个就是consumer启动时发送给broker的
        subscriptionData = consumerGroupInfo.findSubscriptionData(requestHeader.getTopic());

        //TODO:.....省略判断.......

        //TODO:SQL过滤
        if (!ExpressionType.isTagType(subscriptionData.getExpressionType())) {
            //TODO:前面分析consumer心跳时看到了它,SQL过滤时会创建
            consumerFilterData = this.brokerController.getConsumerFilterManager().get(requestHeader.getTopic(),
                requestHeader.getConsumerGroup());

            //TODO:....省略判断......
        }
    }

    //TODO:.....省略判断.......

    MessageFilter messageFilter;
    if (this.brokerController.getBrokerConfig().isFilterSupportRetry()) {
        messageFilter = new ExpressionForRetryMessageFilter(subscriptionData, consumerFilterData,
            this.brokerController.getConsumerFilterManager());
    } else {
        //TODO:创建MessageFilter
        messageFilter = new ExpressionMessageFilter(subscriptionData, consumerFilterData,
            this.brokerController.getConsumerFilterManager());
    }


    //TODO: 从broker 拉取消息
    final GetMessageResult getMessageResult =
        this.brokerController.getMessageStore().getMessage(requestHeader.getConsumerGroup(), requestHeader.getTopic(),
            requestHeader.getQueueId(), requestHeader.getQueueOffset(), requestHeader.getMaxMsgNums(), messageFilter);


   //TODO:....省略大量代码.....和过滤无关
}
复制代码

接下来我们就看下从commitlog读取消息并过滤的过程

public GetMessageResult getMessage(final String group, final String topic, final int queueId, final long offset,
    final int maxMsgNums,
    final MessageFilter messageFilter) {

       //TODO:.....省略大篇幅代码.......

            //TODO: 在去commitlog读取消息之前,进行 tag hashcode 过滤
            if (messageFilter != null
                && !messageFilter.isMatchedByConsumeQueue(isTagsCodeLegal ? tagsCode : null, extRet ? cqExtUnit : null)) {
                if (getResult.getBufferTotalSize() == 0) {
                    status = GetMessageStatus.NO_MATCHED_MESSAGE;
                }

                continue;
            }

            //TODO: 从commitlog 读取消息
            SelectMappedBufferResult selectResult = this.commitLog.getMessage(offsetPy, sizePy);
            if (null == selectResult) {
                if (getResult.getBufferTotalSize() == 0) {
                    status = GetMessageStatus.MESSAGE_WAS_REMOVING;
                }

                nextPhyFileStartOffset = this.commitLog.rollNextFile(offsetPy);
                continue;
            }

            //TODO:在从commitlog读取消息之后,进行 SQL 过滤
            if (messageFilter != null
                && !messageFilter.isMatchedByCommitLog(selectResult.getByteBuffer().slice(), null)) {
                if (getResult.getBufferTotalSize() == 0) {
                    status = GetMessageStatus.NO_MATCHED_MESSAGE;
                }
                // release...
                selectResult.release();
                continue;
            }


}
复制代码

主要就是做3件事:

  1. 在去commitlog读取消息之前,先根据 TAG hashcode 过滤一次。tag hashcode 保存在索引单元中。

broker先完成tag hashcode 过滤,consumer进一步完成tag 值过滤。

  1. 去commitlog读取消息
  2. 从commitlog读取出消息之后,如果是SQL过滤,则在broker完成过滤。

4.1 Broker完成 TAG HashCode 过滤

TAG 过滤就是ExpressionMessageFilter#isMatchedByConsumeQueue(..)方法

@Override
public boolean isMatchedByConsumeQueue(Long tagsCode, ConsumeQueueExt.CqExtUnit cqExtUnit) {
    if (null == subscriptionData) {
        return true;
    }

    if (subscriptionData.isClassFilterMode()) {
        return true;
    }

    // by tags code.
    if (ExpressionType.isTagType(subscriptionData.getExpressionType())) {

        if (tagsCode == null) {
            return true;
        }

        if (subscriptionData.getSubString().equals(SubscriptionData.SUB_ALL)) {
            return true;
        }

        //TODO:率先根据tag hashcode 过滤
        return subscriptionData.getCodeSet().contains(tagsCode.intValue());
    } else {

       //TODO:....省略else.....
    }

    return true;
}
复制代码

这个方法内部会完成TAG 的hashcode 过滤,不过这里只是TAG的初步过滤,因为两个不同TAG也可能有相同的hashcode,所以这里过滤并不完善,真正的TAG过滤是交给消费者来完成的。

4.2 Broker完成 SQL 过滤

SQL的过滤是在ExpressionMessageFilter#isMatchedByCommitLog(..)方法中:

@Override
public boolean isMatchedByCommitLog(ByteBuffer msgBuffer, Map<String, String> properties) {
    if (subscriptionData == null) {
        return true;
    }

    if (subscriptionData.isClassFilterMode()) {
        return true;
    }

    //TODO:如果是TAG过滤,则直接退出
    if (ExpressionType.isTagType(subscriptionData.getExpressionType())) {
        return true;
    }

    //TODO:SQL过滤的数据(sql表达式等等)
    ConsumerFilterData realFilterData = this.consumerFilterData;
    Map<String, String> tempProperties = properties;

    //TODO:.....校验code.....

    Object ret = null;
    try {
        MessageEvaluationContext context = new MessageEvaluationContext(tempProperties);

        ret = realFilterData.getCompiledExpression().evaluate(context);
    } catch (Throwable e) {
        log.error("Message Filter error, " + realFilterData + ", " + tempProperties, e);
    }

    log.debug("Pull eval result: {}, {}, {}", ret, realFilterData, tempProperties);

    if (ret == null || !(ret instanceof Boolean)) {
        return false;
    }

    return (Boolean) ret;
}
复制代码

这里会根据SQL进行过滤,如果该条消息是消费者想要的,则将其放入容器中,返回给消费者,如果不是消费者想要的,则直接丢弃,继续查询下一条消息。

这里的丢弃只是不返回给消费者,在清除commitlog文件之前,这条消息都是在的。

5.消费消息

前面说了,如果是TAG 过滤,则Broker会率先完成一次TAG Hashcode过滤,但是这样过滤并不完全,因为不同TAG可能有相同Hashcode,所以消费者要根据TAG 值完成最后的过滤。

如果是SQL过滤,只能由Broker完成,消费者不做其他任何操作。

那么我们还是看消费者消费消息时的过滤逻辑:

PullMessageService#pullMessage(final PullRequest pullRequest)

public void pullMessage(final PullRequest pullRequest) {

    //TODO......

    PullCallback pullCallback = new PullCallback() {
        @Override
        public void onSuccess(PullResult pullResult) {
            if (pullResult != null) {
                //TODO:处理拉取结果,这里将会完成TAG的值过滤
                pullResult = DefaultMQPushConsumerImpl.this.pullAPIWrapper.processPullResult(pullRequest.getMessageQueue(), pullResult,
                    subscriptionData);
            }

        //TODO:.......
    }

    //TODO:.......
复制代码

那么我们继续看下它的内部实现:

public PullResult processPullResult(final MessageQueue mq, final PullResult pullResult,
    final SubscriptionData subscriptionData) {
    PullResultExt pullResultExt = (PullResultExt) pullResult;

    this.updatePullFromWhichNode(mq, pullResultExt.getSuggestWhichBrokerId());
    if (PullStatus.FOUND == pullResult.getPullStatus()) {
        ByteBuffer byteBuffer = ByteBuffer.wrap(pullResultExt.getMessageBinary());
        List<MessageExt> msgList = MessageDecoder.decodes(byteBuffer);

        List<MessageExt> msgListFilterAgain = msgList;
        //TODO:根据TAG 值过滤
        if (!subscriptionData.getTagsSet().isEmpty() && !subscriptionData.isClassFilterMode()) {
            msgListFilterAgain = new ArrayList<MessageExt>(msgList.size());
            for (MessageExt msg : msgList) {
                if (msg.getTags() != null) {
                    if (subscriptionData.getTagsSet().contains(msg.getTags())) {
                        msgListFilterAgain.add(msg);
                    }
                }
            }
        }

        //TODO:将过滤后的消息给消费者消费
        pullResultExt.setMsgFoundList(msgListFilterAgain);

        //TODO:........
    }

    return pullResult;
}
复制代码

至此,消息的过滤就完成了。

6.总结

  1. RocketMQ支持两种方式的消息过滤:TAG/SQL
  2. 要想使用SQL过滤,必须要在broker中配置:enablePropertyFilter = true
  3. TAG 过滤分两个阶段完成:

3.1: broker率先根据tag的hashcode完成过滤
3.2: consumer根据tag值完成最后的过滤

  1. SQL过滤只能在Broker中完成

限于作者个人水平,文中难免有错误之处,欢迎指正!勿喷,感谢!

分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
