1.1Kaggle平台
- kaggle是一个机器学习领域一个非常流行的比赛平台
- 同时kaggle上还有许多公开的数据集
- 并且kaggle上还提供计算资源,可以使用GPU
- 还可以和世界各地的小伙伴们一起讨论
1.2Keras generator读取数据
- 1.2.1在kaggle 10 monekys数据集上新建一个notebook,kaggle会提供一段代码
# This Python 3 environment comes with many helpful analytics libraries installed
# It is defined by the kaggle/python Docker image: https://github.com/kaggle/docker-python
# For example, here's several helpful packages to load
import numpy as np # linear algebra
import pandas as pd # data processing, CSV file I/O (e.g. pd.read_csv)
# Input data files are available in the read-only "../input/" directory
# For example, running this (by clicking run or pressing Shift+Enter) will list all files under the input directory
import os
for dirname, _, filenames in os.walk('/kaggle/input'):
for filename in filenames:
print(os.path.join(dirname, filename))
# You can write up to 20GB to the current directory (/kaggle/working/) that gets preserved as output when you create a version using "Save & Run All"
# You can also write temporary files to /kaggle/temp/, but they won't be saved outside of the current session
- 1.2.2首先在编写代码的时候,需要将需要的库导入进来:
%matplotlib inline
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import os
import pandas as pd
import sklearn
import sys
import tensorflow as tf
import time
from tensorflow import keras
print(tf.__version__)
print(sys.version_info)
for module in mpl, np, pd, sklearn, tf, keras:
print(module.__name__, module.__version__)
运行结果:
2.6.4
sys.version_info(major=3, minor=7, micro=12, releaselevel='final', serial=0)
matplotlib 3.5.2
numpy 1.21.6
pandas 1.3.5
sklearn 1.0.2
tensorflow 2.6.4
keras.api._v2.keras 2.6.0
-
可以发现,在keras中使用的tensorflow的版本时2.6.4
-
1.2.3然后,可以定义训练集,验证集的路径了
- 使用os.path.exists判断路径是否存在
- 使用os.listdir查看路径下的文件目录
train_dir = "/kaggle/input/10-monkey-species/training/training"
valid_dir = "/kaggle/input/10-monkey-species/validation/validation"
label_file = "/kaggle/input/10-monkey-species/monkey_labels.txt"
print(os.path.exists(train_dir))
print(os.path.exists(valid_dir))
print(os.path.exists(label_file))
print(os.listdir(train_dir))
print(os.listdir(valid_dir))
运算结果:
True
True
True
['n8', 'n6', 'n7', 'n1', 'n0', 'n2', 'n5', 'n4', 'n9', 'n3']
['n8', 'n6', 'n7', 'n1', 'n0', 'n2', 'n5', 'n4', 'n9', 'n3']
- 1.2.4使用pd.read_csv来读取数据
labels = pd.read_csv(label_file, header=0)
print(labels)
运行结果:
Label Latin Name Common Name \
0 n0 alouatta_palliata\t mantled_howler
1 n1 erythrocebus_patas\t patas_monkey
2 n2 cacajao_calvus\t bald_uakari
3 n3 macaca_fuscata\t japanese_macaque
4 n4 cebuella_pygmea\t pygmy_marmoset
5 n5 cebus_capucinus\t white_headed_capuchin
6 n6 mico_argentatus\t silvery_marmoset
7 n7 saimiri_sciureus\t common_squirrel_monkey
8 n8 aotus_nigriceps\t black_headed_night_monkey
9 n9 trachypithecus_johnii nilgiri_langur
Train Images Validation Images
0 131 26
1 139 28
2 137 27
3 152 30
4 131 26
5 141 28
6 132 26
7 142 28
8 133 27
9 132 26
-
label是子文件名字到真正的类别名字的一个映射,如果需要搭建一个inference的代码,需要把类别名字转成真正的名字,在本次的模型搭建中,需要用到labels name。
-
1.2.5接下来,读取图片
- height,width是图片读取出来之后缩放的大小,因为不同的图片大小是不一样的,卷积神经网络是没有办法去处理不同图片的大小的
- keras.preprocessing.image.ImageDataGenerator是keras封装的一种高级的读取图片的方法
- rescale = 1./255:也就是说图片中的每个点都x1/255,因为图片中的每个像素点是0-255之间,那么x这个数的话就会得到0-1之间的数
- rotation_range:是图片增强的一种方法,把图片随机旋转一个角度,我设置的是40,意思就是图片旋转-40~40之间的值
- width_shift_range:水平方向的位移,我设置的是0.2,那么模型就可以处理原始图片和位移之后的图片
- height_shift_range: 垂直方向的位移,如果height_shift_range和width_shift_range的值是在0-1之间的,就是位移的比例,如果值大于1,就是位移像素值
- shear_range: 剪切强度
- zoom_range: 缩放强度
- horizontal_flip:是否做水平翻转
- fill_mode: 是否填充像素,填充像素的方法,nearest: 使用周围真是的像素点填充像素
- 调用flow_from_directory方法来从文件中读取图片
- train_dir:文件路径
- target_size:图片大小
- batch_size:生成的图片多少张为一组
- seed:随机数
- shuffle:是否需要混排
- class_mode:控制label的格式,categorical:使用one-hot编码之后的label
- 在验证集上不需要做训练集上的方法,因为验证集只是用来评估它的效果,但是rescale是必须要做的,不然训练集和验证集的值的分布就不一样了
- 使用samples查看训练集和验证集有多少图片
height = 128
width = 128
channels = 3
batch_size = 64
num_classes = 10
train_datagen = keras.preprocessing.image.ImageDataGenerator(
rescale = 1./255,
rotation_range = 40,
width_shift_range = 0.2,
height_shift_range = 0.2,
shear_range = 0.2,
zoom_range = 0.2,
horizontal_flip = True,
fill_mode = 'nearest',
)
train_generator = train_datagen.flow_from_directory(train_dir,
target_size = (height, width),
batch_size = batch_size,
seed = 7,
shuffle = True,
class_mode = "categorical")
valid_datagen = keras.preprocessing.image.ImageDataGenerator(rescale = 1./255)
valid_generator = valid_datagen.flow_from_directory(valid_dir,
target_size = (height, width),
batch_size = batch_size,
seed = 7,
shuffle = False,
class_mode = "categorical")
train_num = train_generator.samples
valid_num = valid_generator.samples
print(train_num, valid_num)
运行结果:
Found 1098 images belonging to 10 classes.
Found 272 images belonging to 10 classes.
1098 272
- 1.2.6在训练集中取数据
for i in range(2):
x, y = train_generator.next()
print(x.shape, y.shape)
print(y)
运行结果:
(64, 128, 128, 3) (64, 10)
[[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]]
(64, 128, 128, 3) (64, 10)
[[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 1. 0. 0.]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 1. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]
[0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0.]
[0. 0. 0. 0. 0. 0. 0. 0. 1. 0.]
[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]]
1.3基础模型搭建与训练
- 使用两个卷积加一个pooling的三个组合,再加两个全连接层来定义模型
model = keras.models.Sequential([
keras.layers.Conv2D(filters=32, kernel_size=3, padding='same',
activation='relu', input_shape=[width, height, channels]),
keras.layers.Conv2D(filters=32, kernel_size=3, padding='same',
activation='relu'),
keras.layers.MaxPool2D(pool_size=2),
keras.layers.Conv2D(filters=64, kernel_size=3, padding='same',
activation='relu'),
keras.layers.Conv2D(filters=64, kernel_size=3, padding='same',
activation='relu'),
keras.layers.MaxPool2D(pool_size=2),
keras.layers.Conv2D(filters=128, kernel_size=3, padding='same',
activation='relu'),
keras.layers.Conv2D(filters=128, kernel_size=3, padding='same',
activation='relu'),
keras.layers.MaxPool2D(pool_size=2),
keras.layers.Flatten(),
keras.layers.Dense(128, activation='relu'),
keras.layers.Dense(num_classes, activation='softmax'),
])
model.compile(loss="categorical_crossentropy",
optimizer="adam", metrics=['accuracy'])
model.summary()
查看模型的结构:
Model: "sequential"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
conv2d (Conv2D) (None, 128, 128, 32) 896
_________________________________________________________________
conv2d_1 (Conv2D) (None, 128, 128, 32) 9248
_________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 64, 64, 32) 0
_________________________________________________________________
conv2d_2 (Conv2D) (None, 64, 64, 64) 18496
_________________________________________________________________
conv2d_3 (Conv2D) (None, 64, 64, 64) 36928
_________________________________________________________________
max_pooling2d_1 (MaxPooling2 (None, 32, 32, 64) 0
_________________________________________________________________
conv2d_4 (Conv2D) (None, 32, 32, 128) 73856
_________________________________________________________________
conv2d_5 (Conv2D) (None, 32, 32, 128) 147584
_________________________________________________________________
max_pooling2d_2 (MaxPooling2 (None, 16, 16, 128) 0
_________________________________________________________________
flatten (Flatten) (None, 32768) 0
_________________________________________________________________
dense (Dense) (None, 128) 4194432
_________________________________________________________________
dense_1 (Dense) (None, 10) 1290
=================================================================
Total params: 4,482,730
Trainable params: 4,482,730
Non-trainable params: 0
_________________________________________________________________
- 使用fit_generator来训练模型
epochs = 300
history = model.fit_generator(train_generator,
steps_per_epoch = train_num // batch_size,
epochs = epochs,
validation_data = valid_generator,
validation_steps = valid_num // batch_size)
- 打印学习曲线
def plot_learning_curves(history, label, epcohs, min_value, max_value):
data = {}
data[label] = history.history[label]
data['val_'+label] = history.history['val_'+label]
pd.DataFrame(data).plot(figsize=(8, 5))
plt.grid(True)
plt.axis([0, epochs, min_value, max_value])
plt.show()

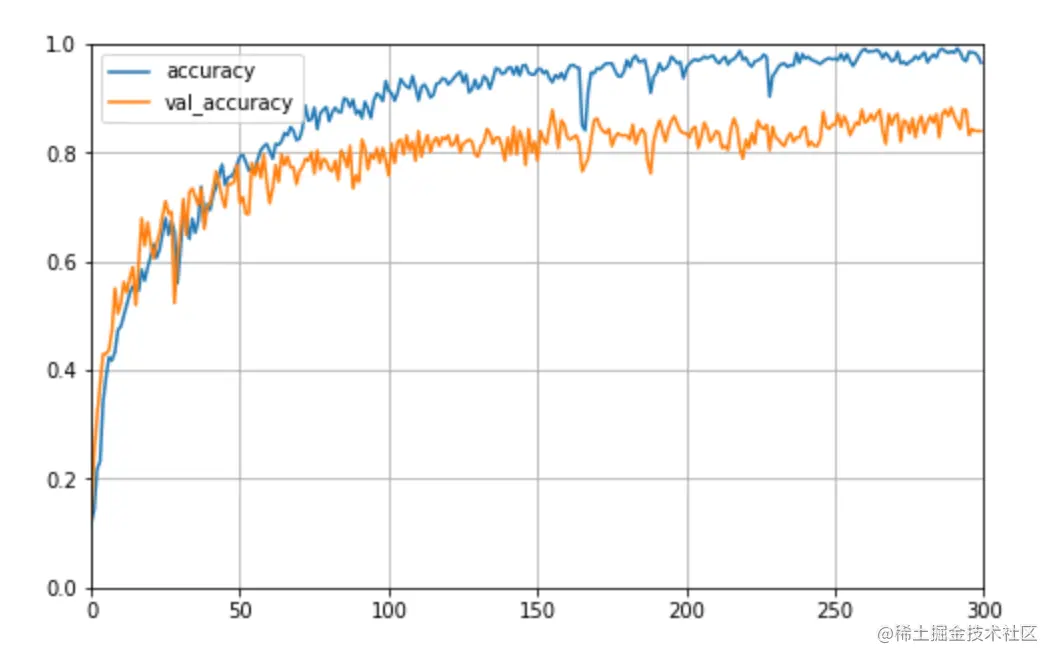

plot_learning_curves(history, 'accuracy', epochs, 0, 1)

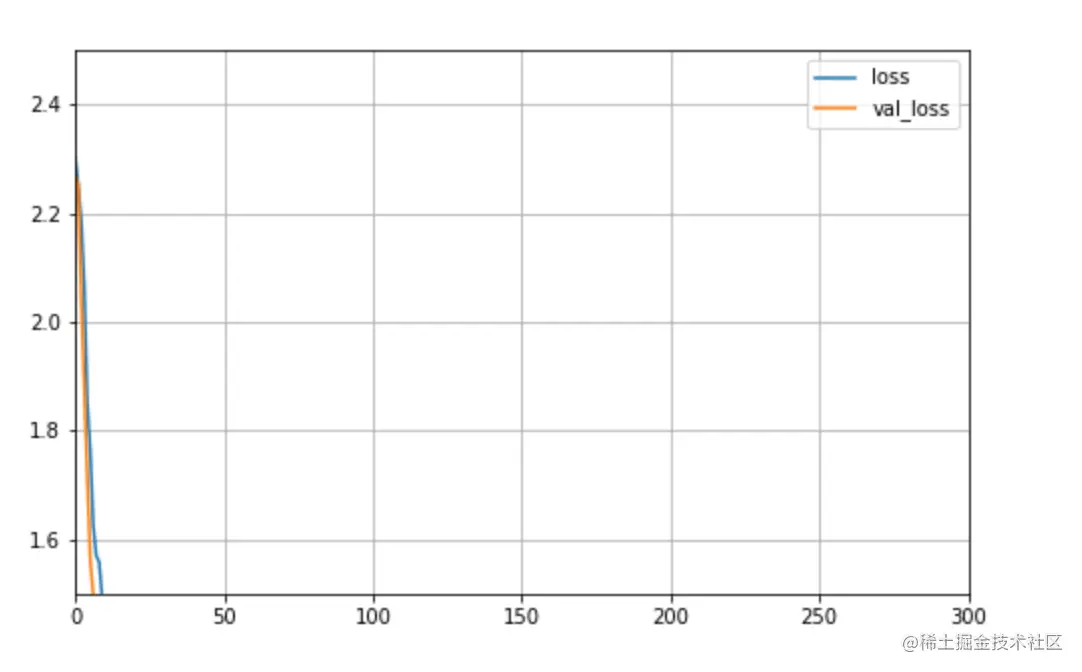

plot_learning_curves(history, 'loss', epochs, 1.5, 2.5)
运行结果:
