1.kickstart文件制作过程

范例：使用system-config-kickstart 一边来看看生成的kickstart 配置文件，我们一页一页观察

[root@centos7 isolinux]# system-config-kickstart
-bash: system-config-kickstart: command not found
[root@centos7 isolinux]# yum -y install system-config-kickstart

[root@centos7 isolinux]# system-config-kickstart
Could not open display because no X server is running.
Try running 'system-config-kickstart --help' for a list of options.

linux运行图形工具需要安装Xmanager

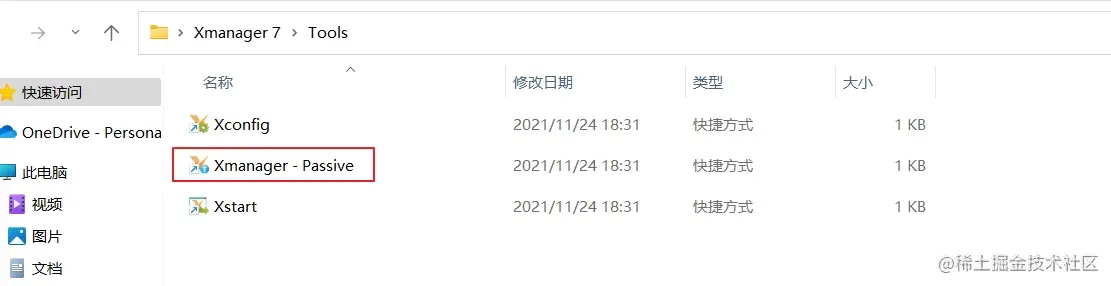

安装了Xmanager ,打开桌面的Xmanager 文件夹，进入tools目录，打开Xmanager - Passive文件

右下角任务栏，点上Xmanager - Passive的图标，会出现Server:0.0

[root@centos7 ~]# who am i
root     pts/0        2021-11-30 14:51 (172.31.0.1) #查看windows连接xshell的ip是172.31.0.1

[root@centos7 isolinux]# export DISPLAY=172.31.0.1:0.0 #这里172.31.0.1，是windows连接xshell的IP

[root@centos7 ~]# system-config-kickstart
/usr/share/system-config-kickstart/kickstartGui.py:104: GtkWarning: GtkSpinButton: setting an adjustment with non-zero page size is deprecated
  xml = gtk.glade.XML ("/usr/share/system-config-kickstart/system-config-kickstart.glade", domain="system-config-kickstart")
Loaded plugins: fastestmirror

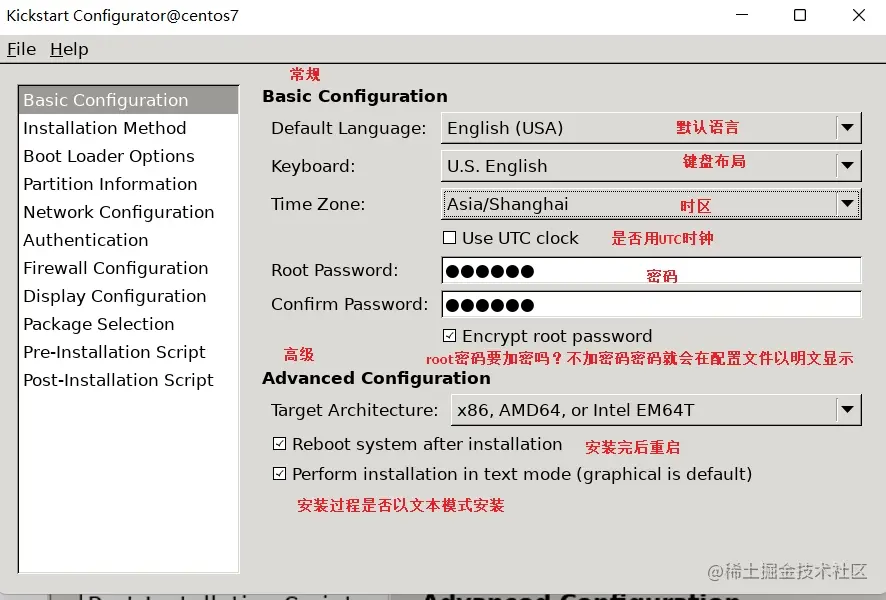

1.1 Basic Configuration 基本配置

配置文件如下

┌────────────────────────────────────────────────────────┐
│#Basic Configuration
│========================================================
│#platform=x86, AMD64, or Intel EM64T
│#Default Language默认语言
│lang en_US
│# Keyboard 键盘
│keyboard 'us'
│# timezone 时区(勾选了"Use UTC clock" 会追加[--isUtc])
│timezone Asia/Shanghai
│# Root password
│rootpw --iscrypted $1$DBk7xfJp$Agxd303XUAfRKIf7gB8DG/
└──────────────────────────────────────────────────────────┘

┌────────────────────────────────────────────────────────┐
│#Advanced Configuration
│勾选就有，不勾没有
│========================================================
│# Reboot after installation
│reboot
│# Use text mode install
│text
└────────────────────────────────────────────────────────┘

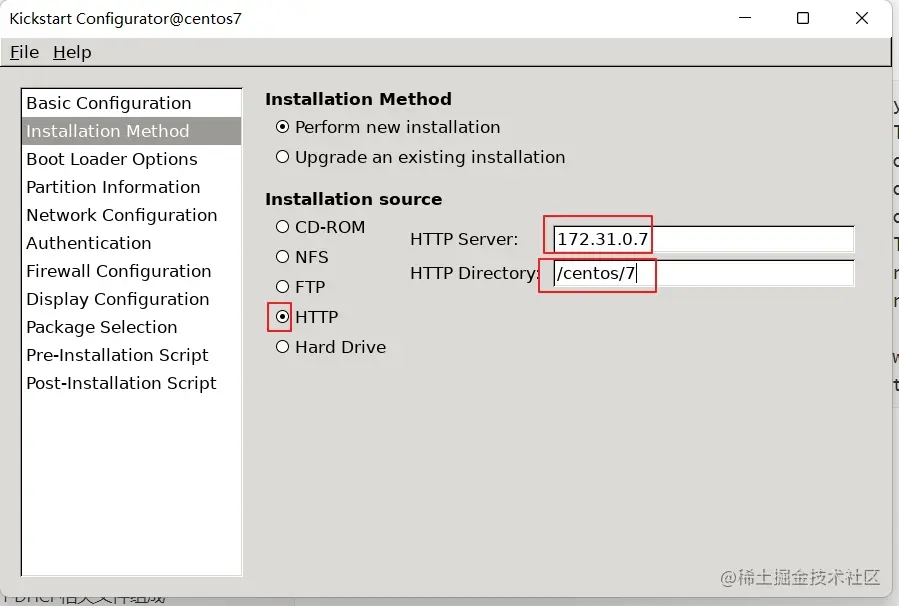

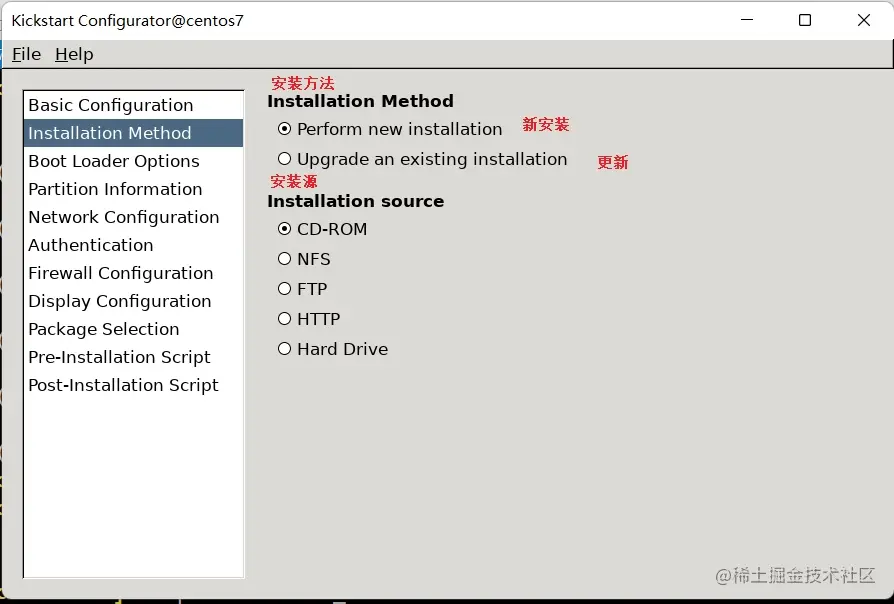

1.2 Installation Method 安装方法

[root@centos7 ~]# yum -y install httpd;systemctl enable --now httpd
[root@centos7 ~]# mkdir -pv /var/www/html/centos/{6,7}
mkdir: created directory ‘/var/www/html/centos’
mkdir: created directory ‘/var/www/html/centos/6’
mkdir: created directory ‘/var/www/html/centos/7’
[root@centos7 ~]# mkdir -pv /var/www/html/rocky/8
mkdir: created directory ‘/var/www/html/rocky’
mkdir: created directory ‘/var/www/html/rocky/8’

[root@centos7 ~]# mount /dev/sr0 /var/www/html/centos/7
mount: /dev/sr0 is write-protected, mounting read-only

http://172.31.0.7/centos/7/

配置文件如下

┌────────────────────────────────────────────────────────┐
│#Installation Method
│========================================================
│# Install OS instead of upgrade
│install
│# Upgrade existing installation
│upgrade
└────────────────────────────────────────────────────────┘

┌────────────────────────────────────────────────────────┐
│#Installation source
│选了哪项就写哪项
│========================================================
│# Use CDROM installation media
│cdrom
│# Use NFS installation media
│nfs --server=服务器 --dir=目录
│# Use network installation
│url --url="ftp://用户名:密码@服务器/目录"
│# Use network installation
│url --url="http://服务器/目录"
│# Use hard drive installation media
│harddrive --dir=目录 --partition=分区
└────────────────────────────────────────────────────────┘

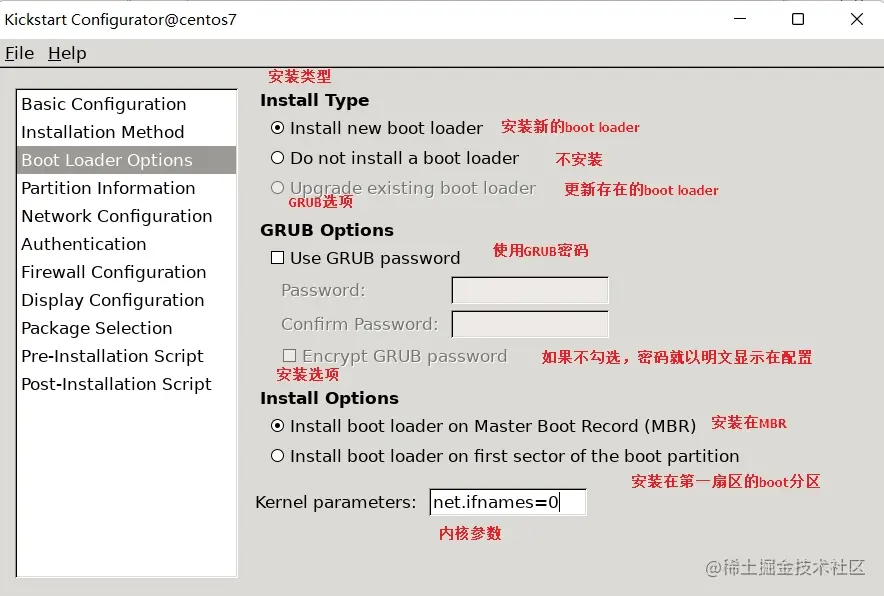

1.3 Boot Loader Options 引导加载程序选项

#net.ifnames=0，系统安装后网卡是eth0、eth1网卡名

配置文件如下

┌────────────────────────────────────────────────────────────────┐
│#Installation Method&GRUB options&Install Options
│=================================================================
│ ┌────────────────────────────────────┐
│ │ 选择了Do not install a boot loader │
│ └────────────────────────────────────┘
│ # System bootloader configuration
│ bootloader --location=none
│
│ ┌────────────────────────────────────┐
│ │ 选择了install new boot loader │
│ └────────────────────────────────────┘
│ bootloader --append="ker" --location=mbr --password="123"
│#append是内核参数，location是bootloader安装位置，password是GRUB密码
└────────────────────────────────────────────────────────────────┘

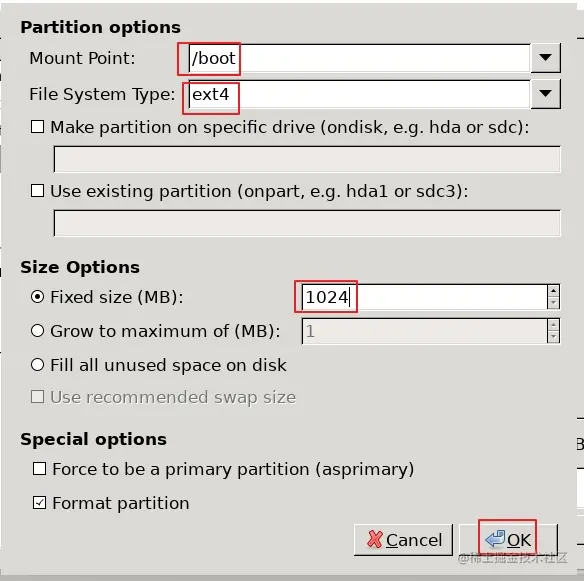

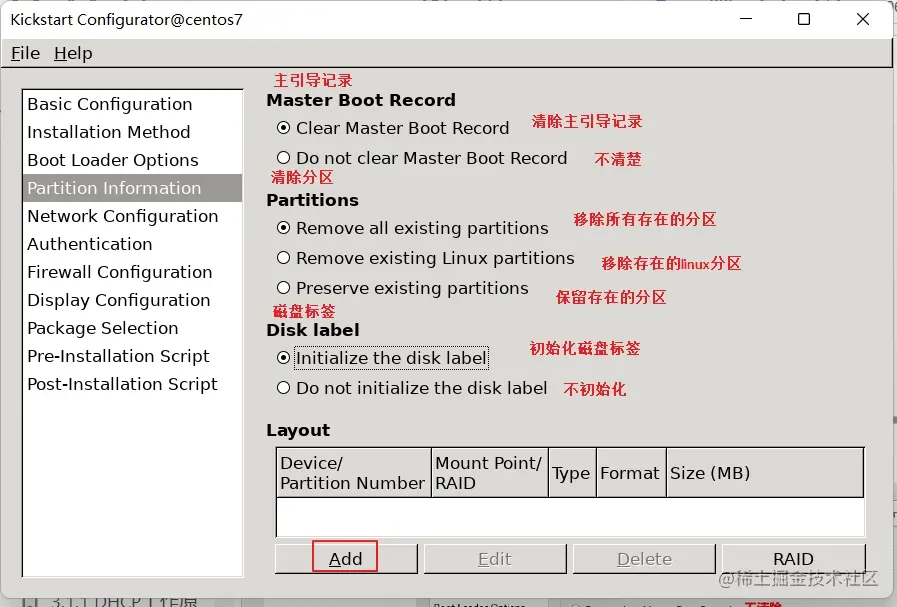

1.4 Partition Information 分区信息

配置文件如下

┌─────────────────────────────────────────────────────┐
│# Master Boot Record
│#Master Boot Record选择了clear... 否则就没有
│======================================================
│# Clear the Master Boot Record
│zerombr
└─────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────┐
│# Partitions&Disk Label
│======================================================
│# Partition clearing information
│clearpart --linux --initlabel
└─────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────┐

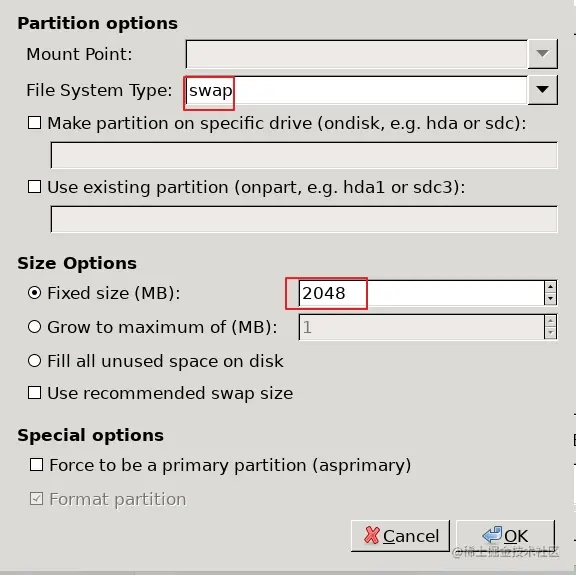

│# Layout 分区
│part 挂载点 --fstype=文件系统 --size=大小(单位M)
│======================================================
│# Disk partitioning information
│part / --fstype="xfs" --size=10240
│part /boot --fstype="ext4" --size=1024
│part swap --fstype="swap" --size=2048
└─────────────────────────────────────────────────────┘

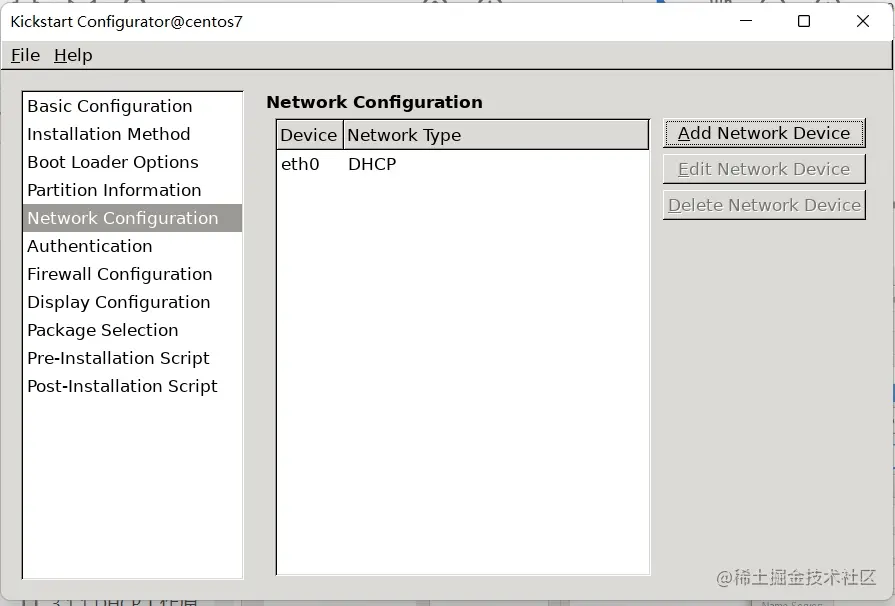

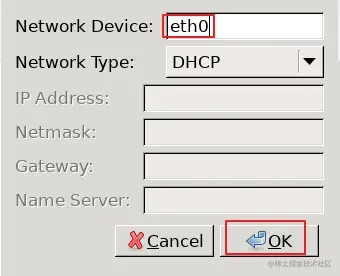

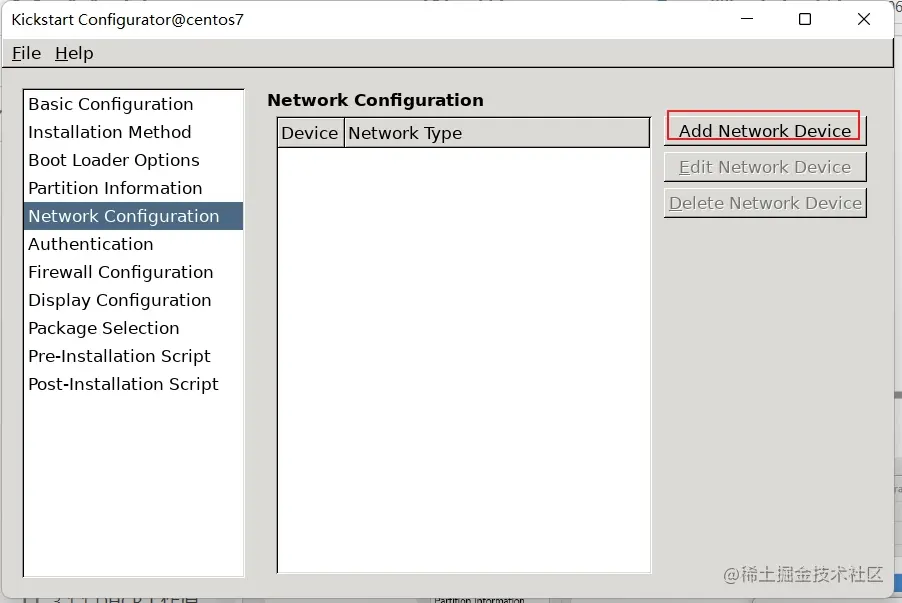

1.5 Network Configuration 网络配置

配置文件如下

┌─────────────────────────────────────────────────────┐
│# Network Configuration
│Centos7如果要写eth0,要加内核参数net.ifnames=0
│======================================================
│# Network information
│network --bootproto=dhcp --device=eth0
└─────────────────────────────────────────────────────┘

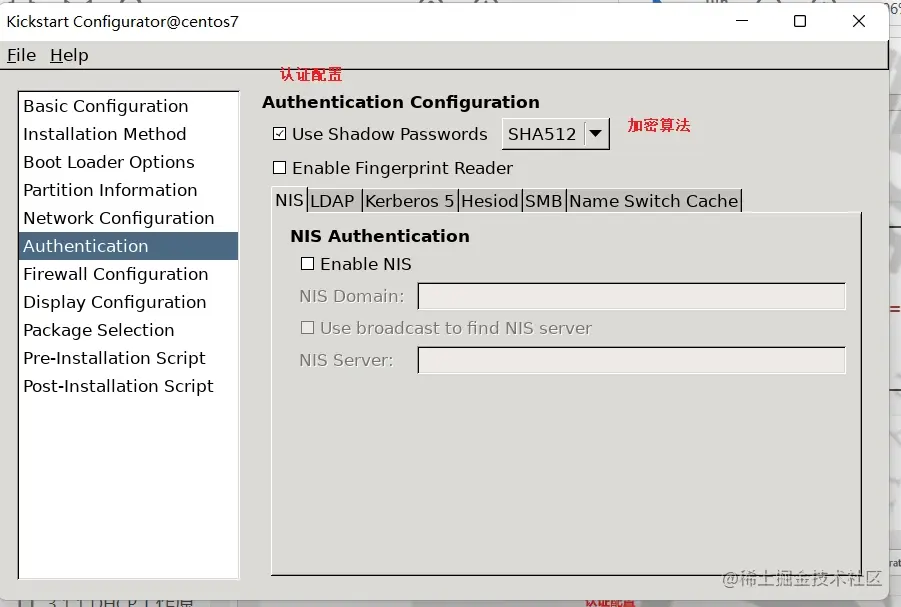

1.6 Authentication 身份验证

配置文件如下

┌───────────────────────────────────────────────────────────────┐
│# Authentication
│如果勾选Enable Fingerprint reader则追加参数 --enablefingerprint
│===============================================================
│# System authorization information
│auth --useshadow --passalgo=md5
└───────────────────────────────────────────────────────────────┘

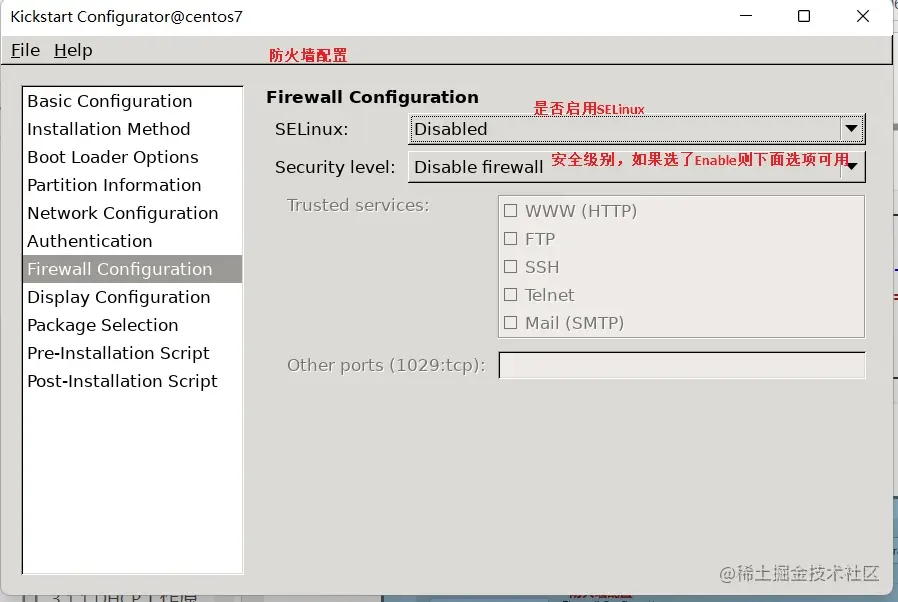

1.7 Firewall Configuration 防火墙配置

配置文件如下

┌───────────────────────────────────────────────────────────────┐
│# Firewall Configuration
│===============================================================
│# SELinux configuration
│selinux --disabled或permissive或enforcing
│
│# Firewall configuration
│firewall --disabled或enabled
│#如果是enable,可以在追加：--http --ftp --telnet --smtp --ssh
│#还可以追加端口：--port=555:tcp,444:udp
└───────────────────────────────────────────────────────────────┘

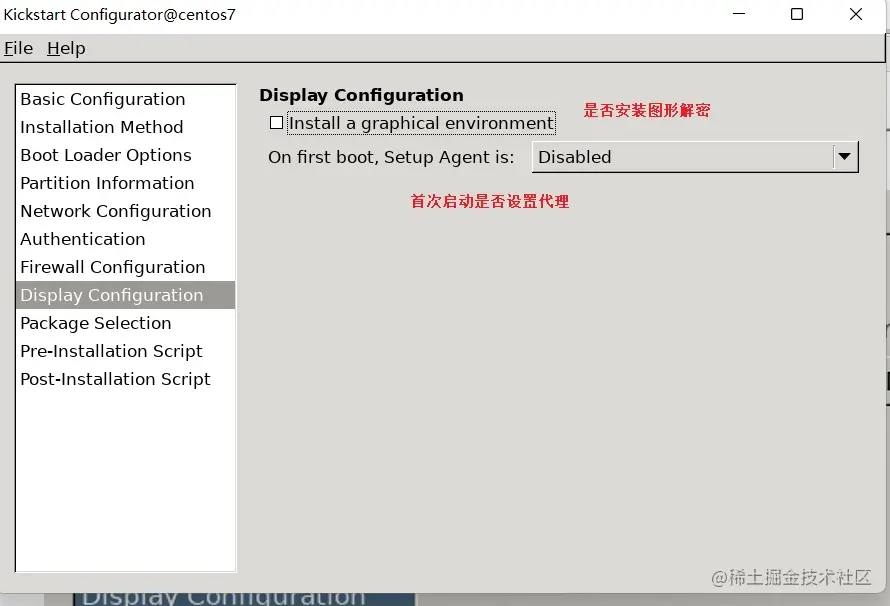

1.8 Display Configuration 显示配置

配置文件如下

┌───────────────────────────────────────────────────────────────┐
│# Display Configuration
│===============================================================
│如果选了安装图形界面，就没有下面这句话
│# Do not configure the X Window System
│skipx
│# Run the Setup Agent on first boot
│firstboot --enable或disable
└───────────────────────────────────────────────────────────────┘

1.9 Package Selection 包选择

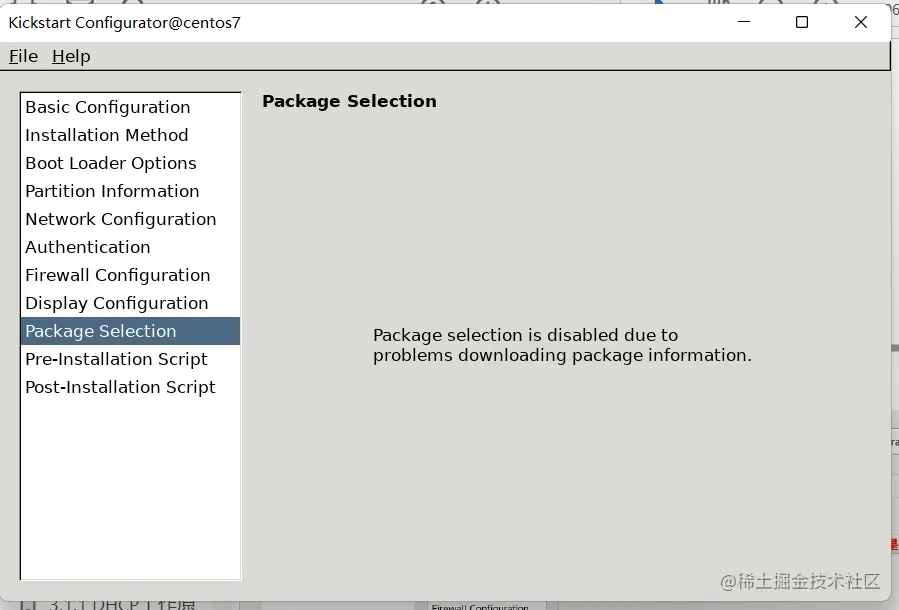

如果你的界面是什么都没有，那么需要把你现使用的yum仓库配置文件改一下

[root@centos7 ~]# vim /etc/yum.repos.d/base.repo
#把[base]改成[development]
[development]

[root@centos7 ~]# system-config-kickstart
/usr/share/system-config-kickstart/kickstartGui.py:104: GtkWarning: GtkSpinButton: setting an adjustment with non-zero page size is deprecated
  xml = gtk.glade.XML ("/usr/share/system-config-kickstart/system-config-kickstart.glade", domain="system-config-kickstart")
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile

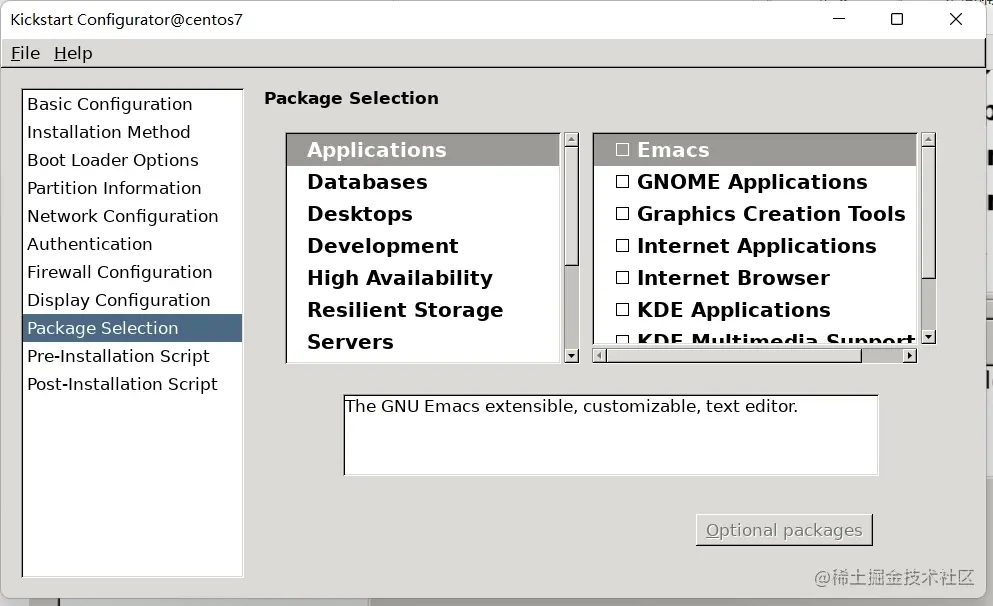

现在就可以选择软件包了

配置文件如下

%packages
@development
-byacc
-cscope
-ctags
-diffstat
-doxygen
-elfutils
-gcc-gfortran
-git
-indent
-intltool
-patchutils
-rcs
-subversion
-swig
-systemtap
%end

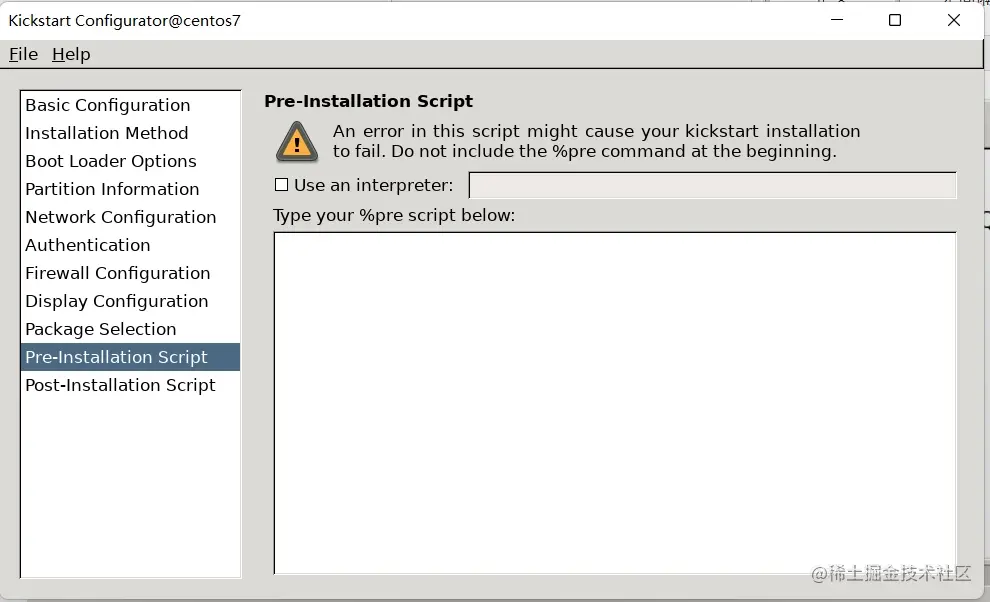

1.10 Pre-Installation Script 安装前脚本

配置文件如下

%pre
i am pre
%end

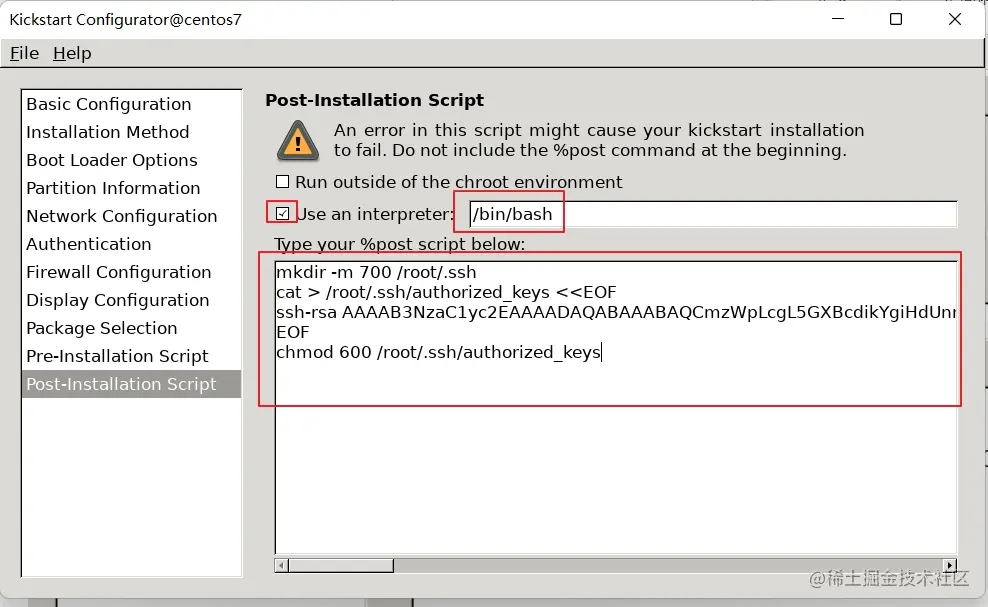

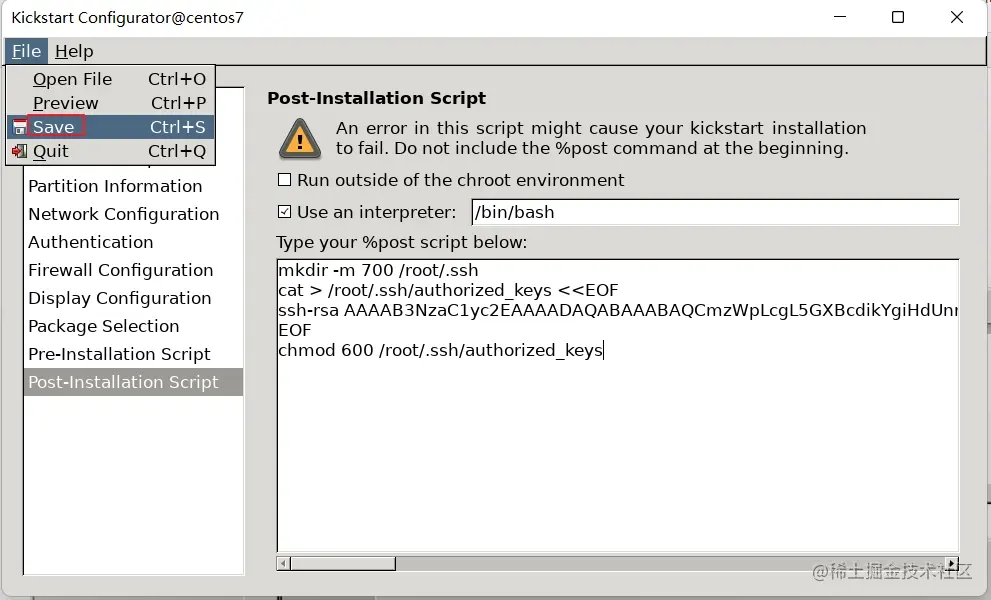

1.11 Post-Installation Script 安装后脚本

[root@centos7 ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:bv537rQA+rerONNjC479HKkVcy18Xz259TRkdO3fuks root@centos7
The key's randomart image is:
+---[RSA 2048]----+
|               .o|
|              . o|
|               + |
|           . .o +|
|        S + + o+B|
|       . . * o oX|
|        =.+ . Eoo|
|       *oB+.o+o. |
|      . **B*o**o |
+----[SHA256]-----+
[root@centos7 ~]# ls .ssh/
id_rsa  id_rsa.pub
[root@centos7 ~]# ssh-copy-id 127.0.0.1
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
The authenticity of host '127.0.0.1 (127.0.0.1)' can't be established.
ECDSA key fingerprint is SHA256:zb/8mo/ptS0h8eHVY1FDRuvh6aQj1opzpsD7khnYjSo.
ECDSA key fingerprint is MD5:f1:ee:83:81:26:e8:ed:a5:39:d5:fd:41:bc:a8:23:38.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@127.0.0.1's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh '127.0.0.1'"
and check to make sure that only the key(s) you wanted were added.

[root@centos7 ~]# ls .ssh/
authorized_keys  id_rsa  id_rsa.pub  known_hosts
[root@centos7 ~]# cat .ssh/authorized_keys
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCmzWpLcgL5GXBcdikYgiHdUnnxUkKPPy1HCR1bGyR+pnKAjirE5aKgn5+wPrNVPAMHTz+v09rigKKX/RHQSSXF76UdaRwl9RCkgL5c7lePvdG+zUXhXO+lGDI7T+vgTWlIHeO3y/MSPNtbG4FcMcpegSi1G2DyzVZcL31izDnm3gK7QDLlOyL/781GVQM1MHzTTtnz6M1GyNdbhuJfguDcQRmHN+xflMZQYchOHLK6GTDGQIydbYVcQjFGmLPqvLNOsm1SKz3Jdw0+Gb0rGgq5mwAeAxMH1PDg7+/iuZV5w2sVZHf7s1hbOUd/9nTifCD7aH/AcFeJg9s1erCgoy0p root@centos7

mkdir -m 700 /root/.ssh
cat > /root/.ssh/authorized_keys <<EOF
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCmzWpLcgL5GXBcdikYgiHdUnnxUkKPPy1HCR1bGyR+pnKAjirE5aKgn5+wPrNVPAMHTz+v09rigKKX/RHQSSXF76UdaRwl9RCkgL5c7lePvdG+zUXhXO+lGDI7T+vgTWlIHeO3y/MSPNtbG4FcMcpegSi1G2DyzVZcL31izDnm3gK7QDLlOyL/781GVQM1MHzTTtnz6M1GyNdbhuJfguDcQRmHN+xflMZQYchOHLK6GTDGQIydbYVcQjFGmLPqvLNOsm1SKz3Jdw0+Gb0rGgq5mwAeAxMH1PDg7+/iuZV5w2sVZHf7s1hbOUd/9nTifCD7aH/AcFeJg9s1erCgoy0p root@centos7
EOF
chmod 600 /root/.ssh/authorized_keys

配置文件如下

%post --nochroot
i am post
%end

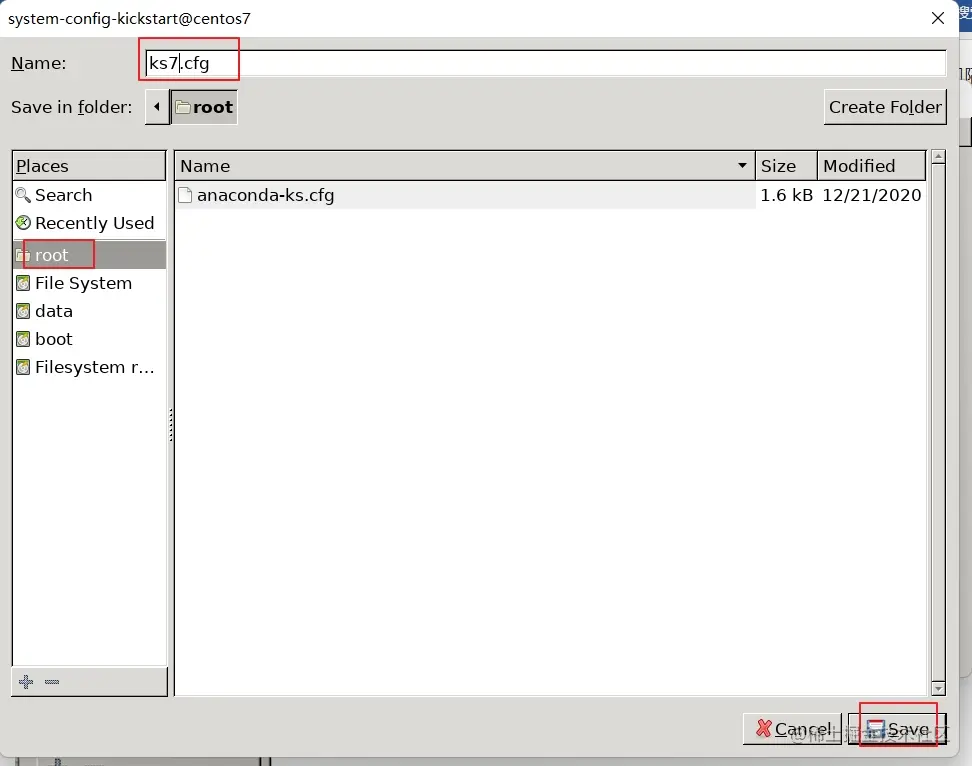

1.12 以上system-config-kickstart 执行后最终生成的kickstart文件如下

[root@centos7 ~]# ksvalidator ks7.cfg #检查语法格式

[root@centos7 ~]# cd /var/www/html/
[root@centos7 html]# ls
centos  rocky
[root@centos7 html]# mkdir ks
[root@centos7 html]# cp /root/ks7.cfg ks/centos7.cfg
[root@centos7 html]# ls ks/
centos7.cfg

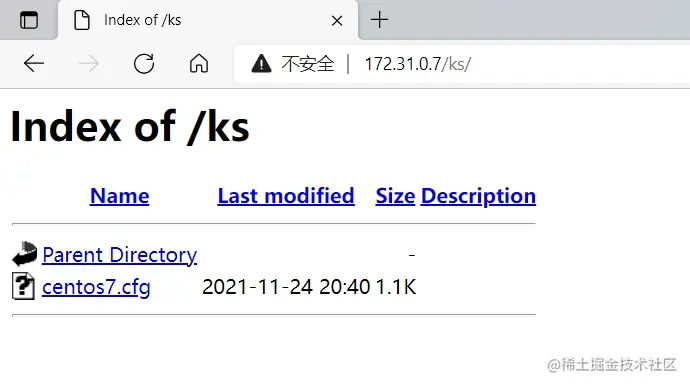

http://172.31.0.7/ks/

[root@centos7 ~]# vim /var/www/html/ks/yum7.sh
#!/bin/bash
#
#**********************************************************************************************
#Author:        Raymond
#QQ:            88563128
#Date:          2021-11-30
#FileName:      yum7.sh
#URL:           raymond.blog.csdn.net
#Description:   The test script
#Copyright (C): 2021 All rights reserved
#*********************************************************************************************
mkdir /etc/yum.repos.d/backup
mv /etc/yum.repos.d/*.repo /etc/yum.repos.d/backup
cat > /etc/yum.repos.d/base.repo <<EOF
[base]
name=base
baseurl=https://mirrors.cloud.tencent.com/centos/$releasever/os/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-$releasever

[extras]
name=extras
baseurl=https://mirrors.cloud.tencent.com/centos/$releasever/extras/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-$releasever

[updates]
name=updates
baseurl=https://mirrors.cloud.tencent.com/centos/$releasever/updates/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-$releasever

[centosplus]
name=centosplus
baseurl=https://mirrors.cloud.tencent.com/centos/$releasever/centosplus/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-$releasever
EOF
cat > /etc/yum.repos.d/epel.repo <<EOF
[epel]
name=epel
baseurl=https://mirrors.cloud.tencent.com/epel/$releasever/$basearch/
gpgcheck=1
gpgkey=https://mirrors.cloud.tencent.com/epel/RPM-GPG-KEY-EPEL-$releasever
EOF

[root@centos7 ~]# cat /var/www/html/ks/centos7.cfg
#platform=x86, AMD64, or Intel EM64T
#version=DEVEL
# Install OS instead of upgrade
install
# Keyboard layouts
keyboard 'us'
# Root password
rootpw --iscrypted $1$r6bueld4$D66DkBZeburidFINHY6Pf1
# System language
lang en_US
# System authorization information
auth  --useshadow  --passalgo=sha512
# Use text mode install
text
firstboot --disable
# SELinux configuration
selinux --disabled
# Do not configure the X Window System
skipx


# Firewall configuration
firewall --disabled
# Network information
network  --bootproto=dhcp --device=eth0
# Reboot after installation
reboot
# System timezone
timezone Asia/Shanghai
# Use network installation
url --url="http://172.31.0.7/centos/7"
# System bootloader configuration
bootloader --append="net.ifnames=0" --location=mbr
# Clear the Master Boot Record
zerombr
# Partition clearing information
clearpart --all --initlabel
# Disk partitioning information
part /boot --fstype="ext4" --size=1024
part swap --fstype="swap" --size=2048
part / --fstype="ext4" --grow --size=1

%post --interpreter=/bin/bash
curl http://172.31.0.7/ks/yum7.sh |bash
mkdir -m 700 /root/.ssh
cat > /root/.ssh/authorized_keys <<EOF
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCmzWpLcgL5GXBcdikYgiHdUnnxUkKPPy1HCR1bGyR+pnKAjirE5aKgn5+wPrNVPAMHTz+v09rigKKX/RHQSSXF76UdaRwl9RCkgL5c7lePvdG+zUXhXO+lGDI7T+vgTWlIHeO3y/MSPNtbG4FcMcpegSi1G2DyzVZcL31izDnm3gK7QDLlOyL/781GVQM1MHzTTtnz6M1GyNdbhuJfguDcQRmHN+xflMZQYchOHLK6GTDGQIydbYVcQjFGmLPqvLNOsm1SKz3Jdw0+Gb0rGgq5mwAeAxMH1PDg7+/iuZV5w2sVZHf7s1hbOUd/9nTifCD7aH/AcFeJg9s1erCgoy0p root@centos7
EOF
chmod 600 /root/.ssh/authorized_keys
%end

新建一个虚拟机

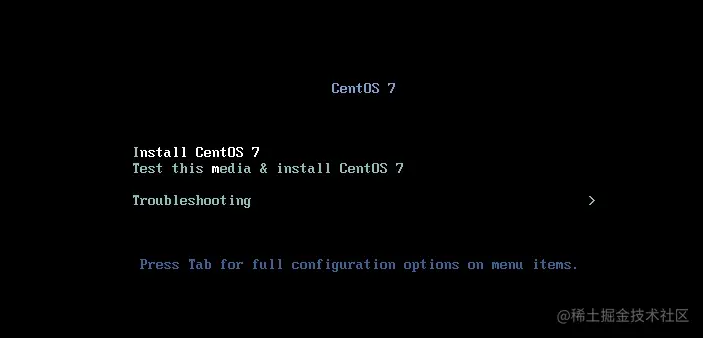

光盘启动

在这里按ESC

输入 linux ks=http://172.31.0.7/ks/centos7.cfg

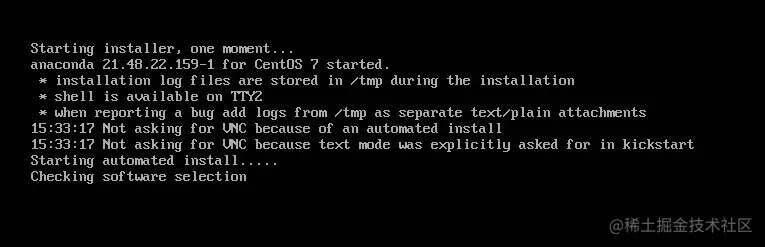

正在开始安装

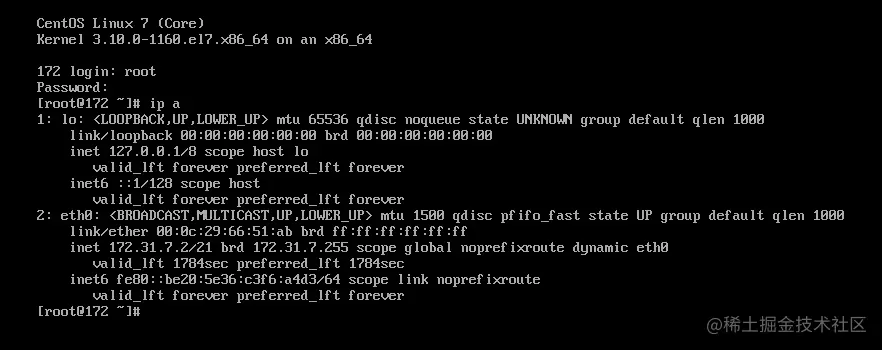

[root@centos7 ~]# ssh root@172.31.7.2
The authenticity of host '172.31.7.2 (172.31.7.2)' can't be established.
ECDSA key fingerprint is SHA256:7TnP0IvpkgAGUXH0rfUEYJhZ1neeB5XJ+Q/VWGsTUgQ.
ECDSA key fingerprint is MD5:24:de:20:16:4f:b0:cc:10:8d:18:e4:a8:f6:d3:e4:89.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '172.31.7.2' (ECDSA) to the list of known hosts.
Last login: Wed Nov 24 21:07:11 2021
[root@172 ~]# ls
anaconda-ks.cfg  original-ks.cfg
[root@172 ~]# cat anaconda-ks.cfg
#platform=86, AMD64, or Intel EM64T

#version=DEVEL
# System authorization information
auth --useshadow  --passalgo=sha512
# Install OS instead of upgrade
install
# Use text mode install
text
# Firewall configuration
firewall --disabled
firstboot --disable
ignoredisk --only-use=sda
# Keyboard layouts
# old format: keyboard us
# new format:
keyboard --vckeymap=us --xlayouts=''
# System language
lang en_US.UTF-8

# Network information
network  --bootproto=dhcp --device=eth0 --activate
network  --hostname=localhost.localdomain
# Reboot after installation
reboot
# Use network installation
url --url="http://172.31.0.7/centos/7"
# Root password
rootpw --iscrypted $1$r6bueld4$D66DkBZeburidFINHY6Pf1
# SELinux configuration
selinux --disabled
# System services
services --enabled="chronyd"
# Do not configure the X Window System
skipx
# System timezone
timezone Asia/Shanghai
# System bootloader configuration
bootloader --append="net.ifnames=0 crashkernel=auto" --location=mbr --boot-drive=sda
# Clear the Master Boot Record
zerombr
# Partition clearing information
clearpart --all --initlabel
# Disk partitioning information
part / --fstype="ext4" --size=48127
part swap --fstype="swap" --size=2048
part /boot --fstype="ext4" --size=1024

%post --interpreter=/bin/bash
mkdir -m 700 /root/.ssh
cat > /root/.ssh/authorized_keys <<EOF
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCmzWpLcgL5GXBcdikYgiHdUnnxUkKPPy1HCR1bGyR+pnKAjirE5aKgn5+wPrNVPAMHTz+v09rigKKX/RHQSSXF76UdaRwl9RCkgL5c7lePvdG+zUXhXO+lGDI7T+vgTWlIHeO3y/MSPNtbG4FcMcpegSi1G2DyzVZcL31izDnm3gK7QDLlOyL/781GVQM1MHzTTtnz6M1GyNdbhuJfguDcQRmHN+xflMZQYchOHLK6GTDGQIydbYVcQjFGmLPqvLNOsm1SKz3Jdw0+Gb0rGgq5mwAeAxMH1PDg7+/iuZV5w2sVZHf7s1hbOUd/9nTifCD7aH/AcFeJg9s1erCgoy0p root@centos7
EOF
chmod 600 /root/.ssh/authorized_keys
%end

%packages
@core
chrony
kexec-tools

%end

%addon com_redhat_kdump --enable --reserve-mb='auto'

%end
[root@172 ~]# df
Filesystem     1K-blocks    Used Available Use% Mounted on
devtmpfs          487312       0    487312   0% /dev
tmpfs             497836       0    497836   0% /dev/shm
tmpfs             497836    7816    490020   2% /run
tmpfs             497836       0    497836   0% /sys/fs/cgroup
/dev/sda3       48377556 1304932  44592140   3% /
/dev/sda1         999320  103500    827008  12% /boot
tmpfs              99568       0     99568   0% /run/user/0
[root@172 ~]# lsblk
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda      8:0    0   50G  0 disk
├─sda1   8:1    0    1G  0 part /boot
├─sda2   8:2    0    2G  0 part [SWAP]
└─sda3   8:3    0   47G  0 part /
sr0     11:0    1  9.5G  0 rom
[root@172 ~]# exit
logout
Connection to 172.31.7.2 closed.

s14.运维自动化之系统部署 -- 实战案例：kickstart文件制作过程

1.kickstart文件制作过程

1.1 Basic Configuration 基本配置

1.2 Installation Method 安装方法

1.3 Boot Loader Options 引导加载程序选项

1.4 Partition Information 分区信息

1.5 Network Configuration 网络配置

1.6 Authentication 身份验证

1.7 Firewall Configuration 防火墙配置

1.8 Display Configuration 显示配置

1.9 Package Selection 包选择

1.10 Pre-Installation Script 安装前脚本

1.11 Post-Installation Script 安装后脚本

1.12 以上system-config-kickstart 执行后最终生成的kickstart文件如下
