部署过程
下载nexus
地址:www.sonatype.com/nexus-repos…
历史版本:help.sonatype.com/repomanager…
部署JAVA环境
# mkdir /usr/java
# tar -zxvf jdk-8u172-linux-x64.tar.gz -C /usr/java
# vim /etc/profile
export JAVA_HOME=/usr/java/jdk1.8.0_172
export CLASSES_PATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar:$JAVA_HOME/jre/lib/rt.jar
export PATH=$PATH:$JAVA_HOME/bin# source /etc/profile
# source /etc/profile
# java -version
配置nexus
# mkdir /users/nexus -p
# useradd -M -d /users/nexus/ nexus
# cp /etc/skel/.bash* /users/nexus/
# tar -zxvf nexus-3.16.1-02-unix.tar.gz
# mv nexus-3.16.1-02 sonatype-work/ /users/nexus/
# chown -R nexus:nexus /users/nexus/
# su - nexus
$ vim nexus-3.16.1-02/bin/nexus.rc
run_as_user="nexus"

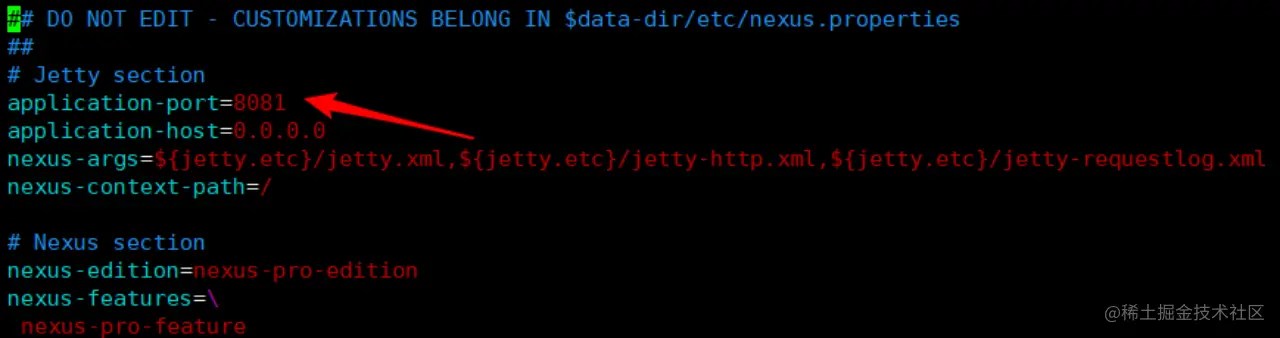

设置服务端口,默认8081:
$ vim nexus-3.16.1-02/etc/nexus-default.properties

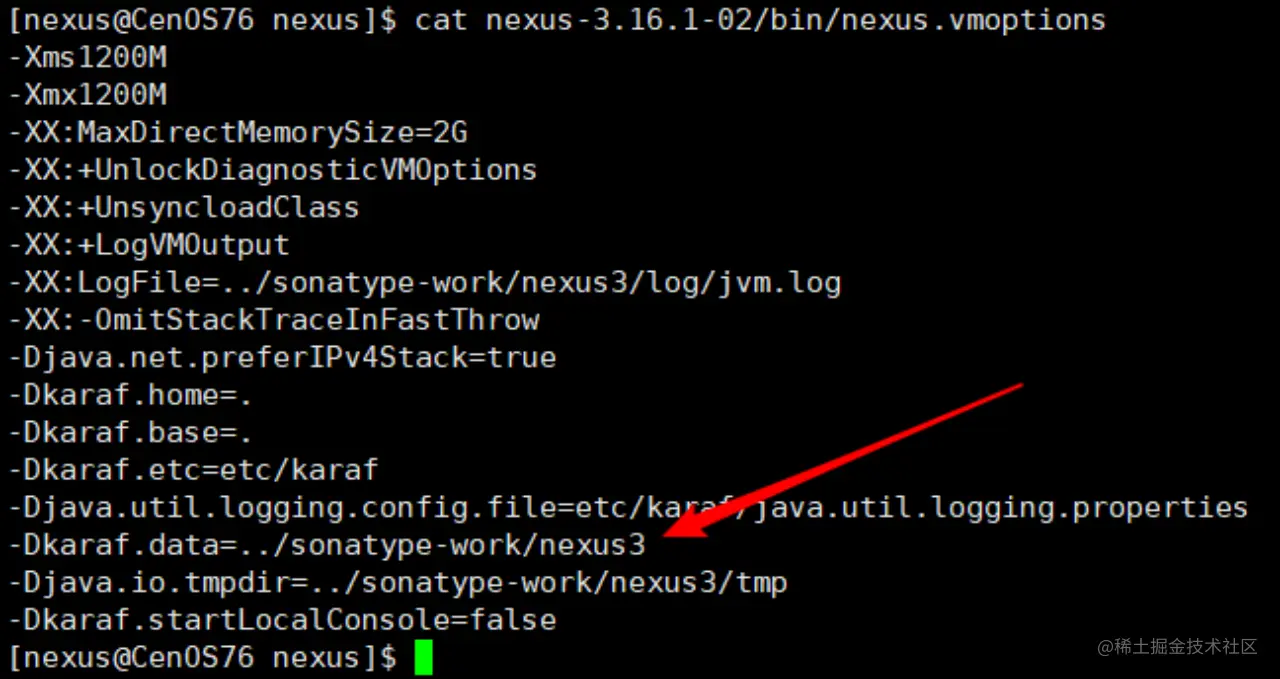

设置数据存储目录:
$ vim nexus-3.16.1-02/bin/nexus.vmoptions
设置环境变量:
# vim /etc/profile
export NEXUS_HOME=/users/nexus/nexus-3.16.1-02
export PATH=$PATH:$NEXUS_HOME/bin
# souce /etc/profile
服务启动
# su - nexus
$ nexus start
$ ps -ef | grep java
$ netstat -tnlp | grep 8081 (启动后需要等待大约一分钟)
停止:
$ nexus stop

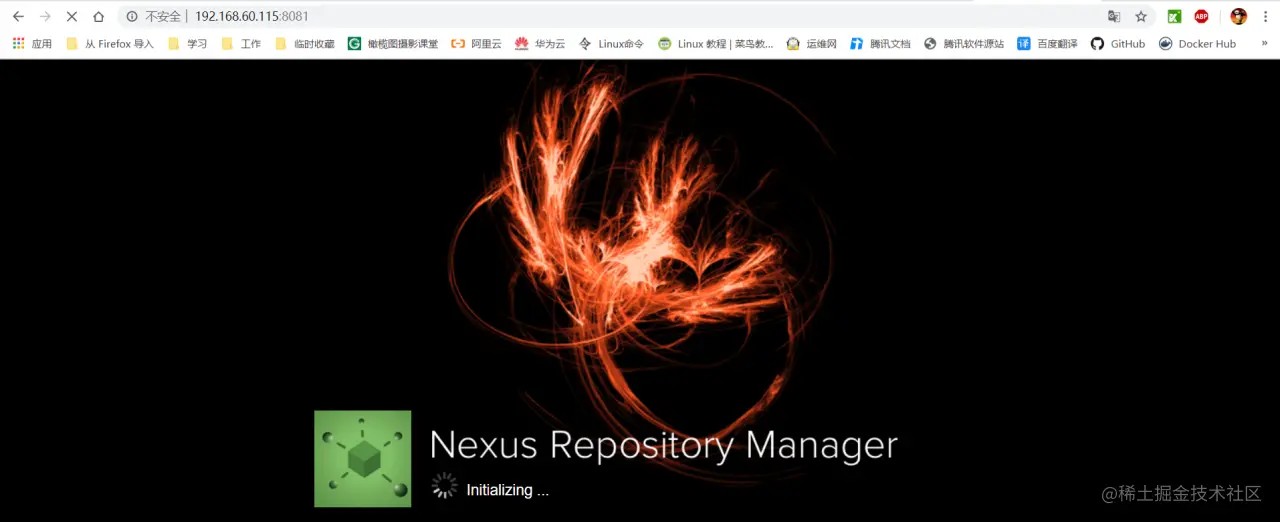

访问

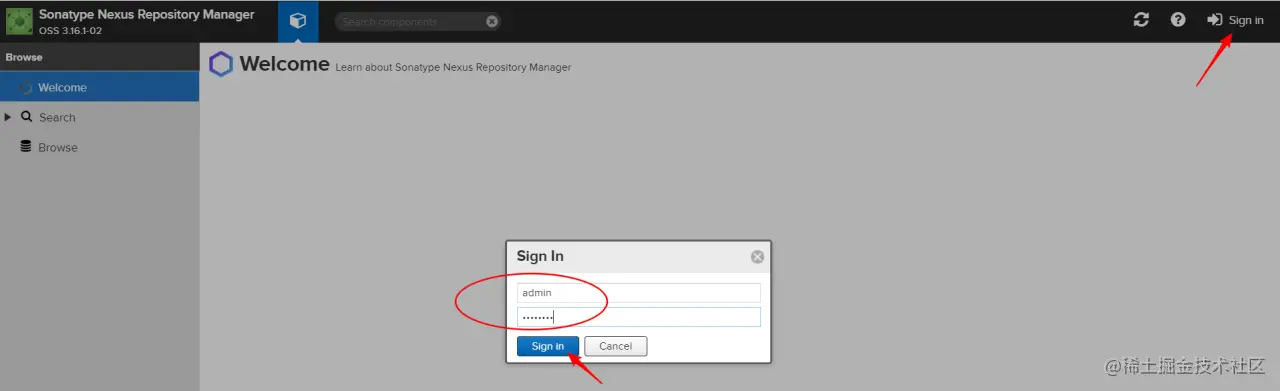

http://IP:8081 默认用户/密码:admin/admin123
使用

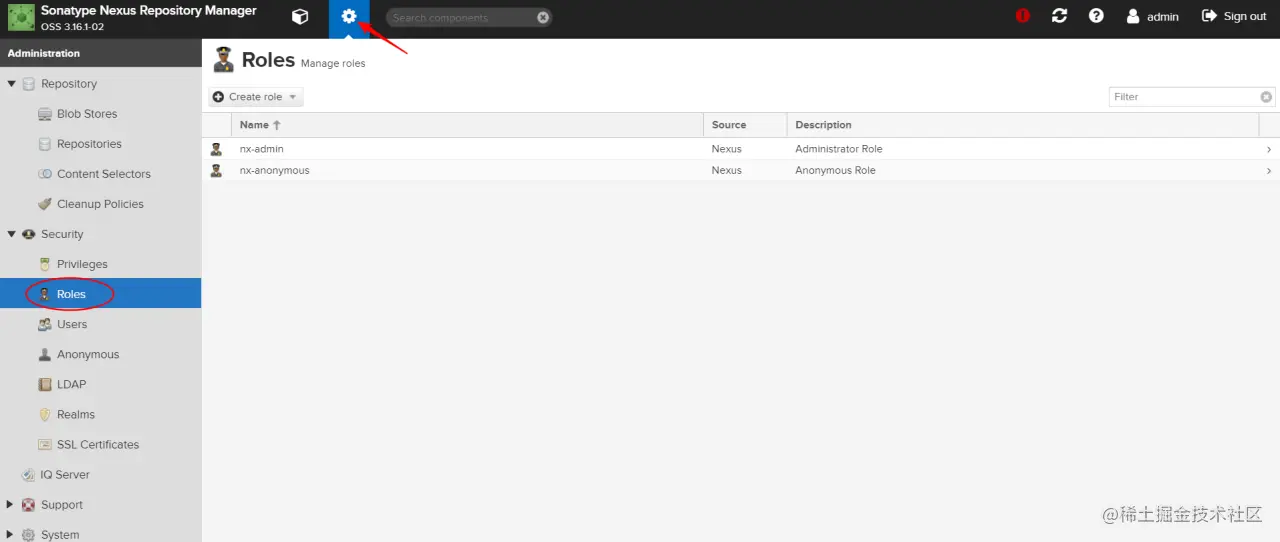

角色管理

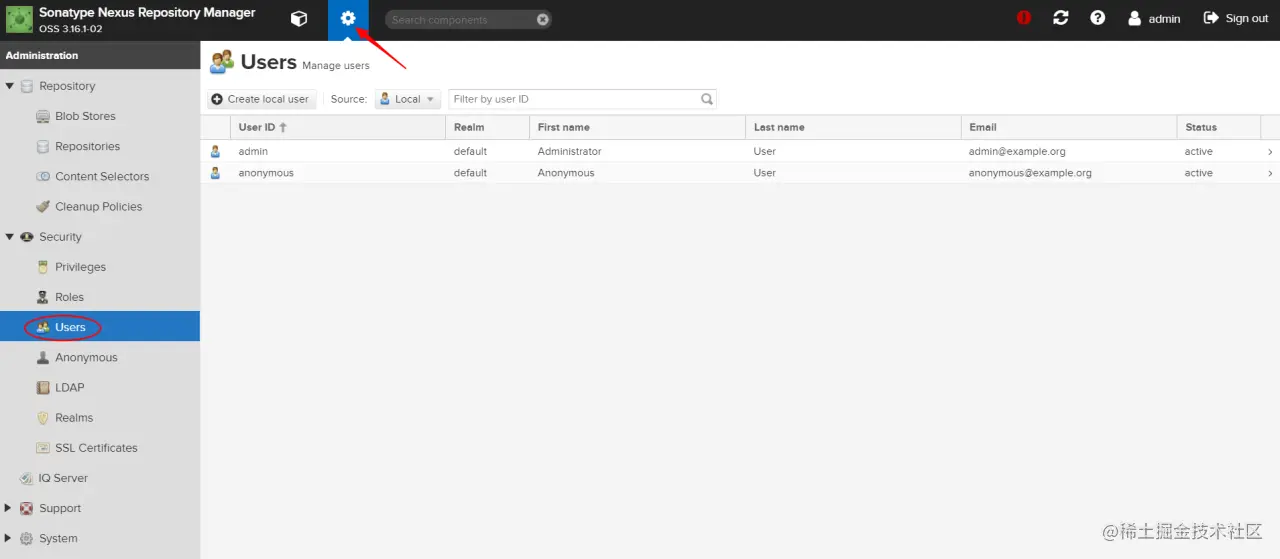

用户管理

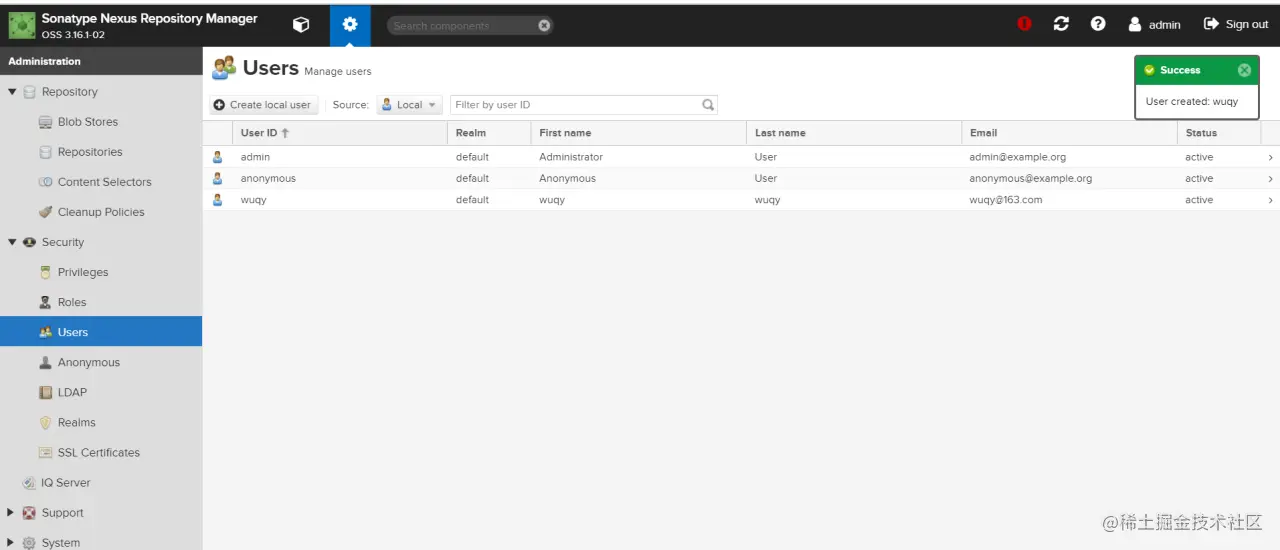

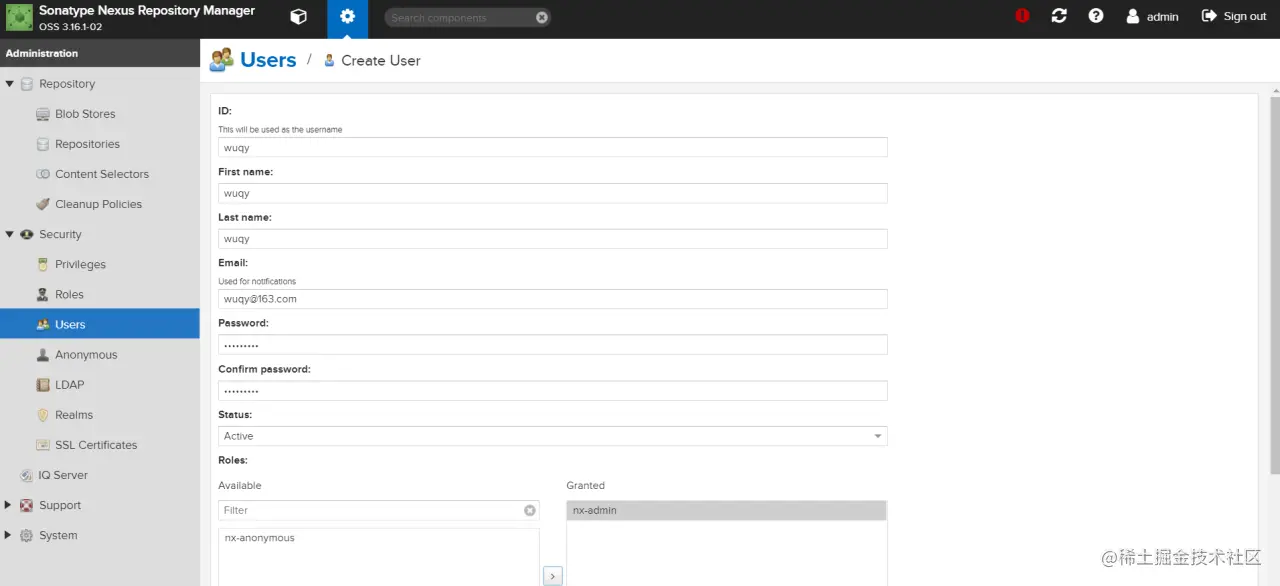

增加用户:

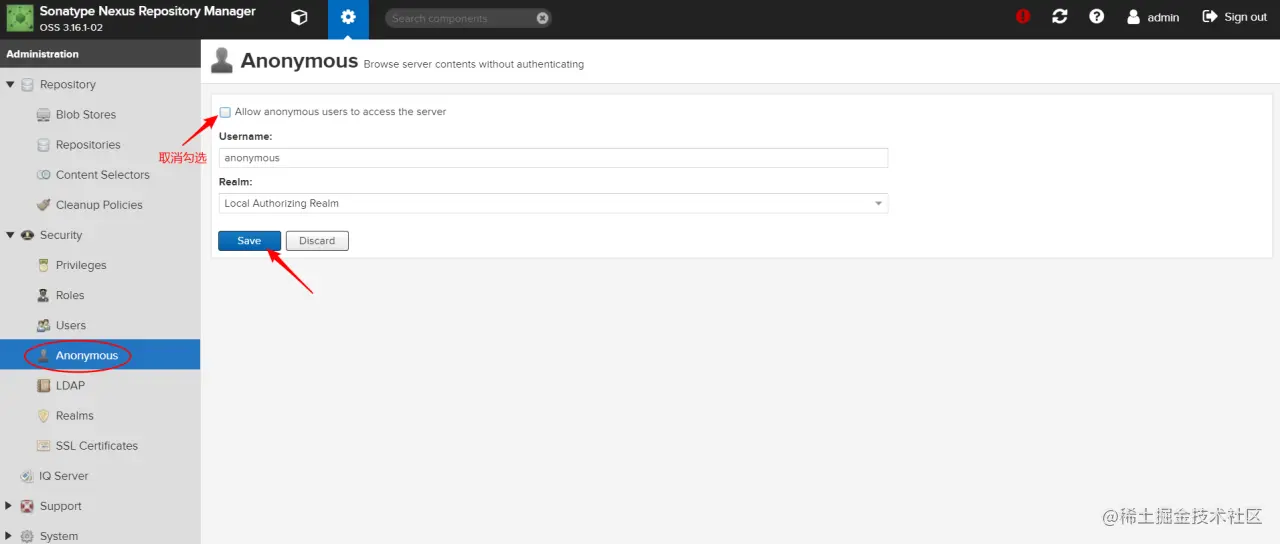

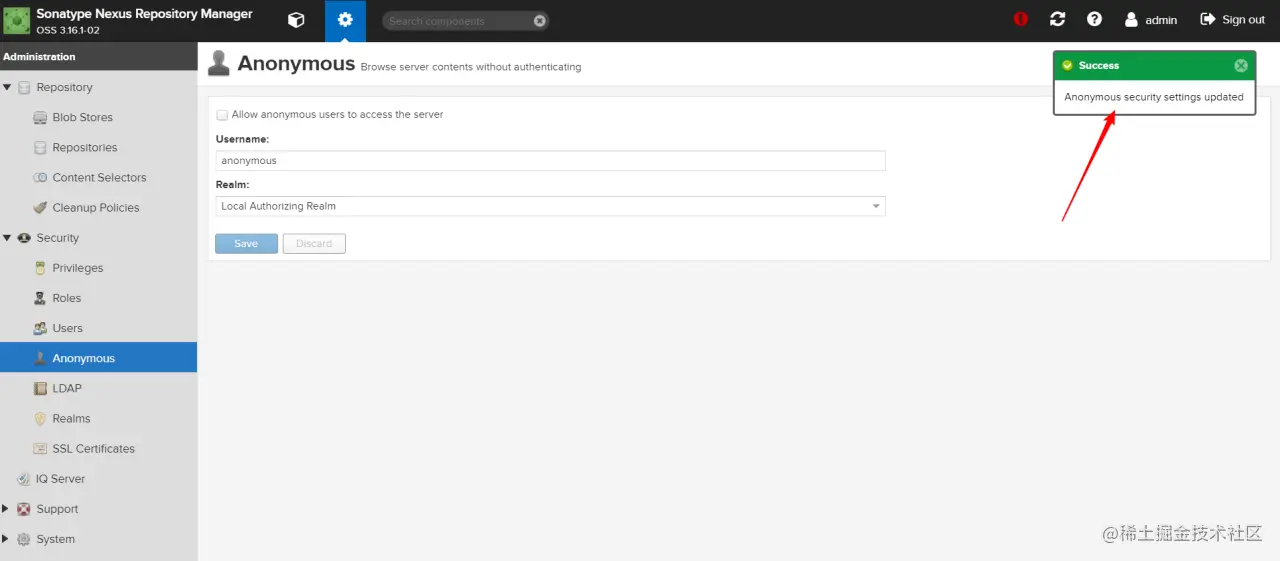

禁用匿名用户:

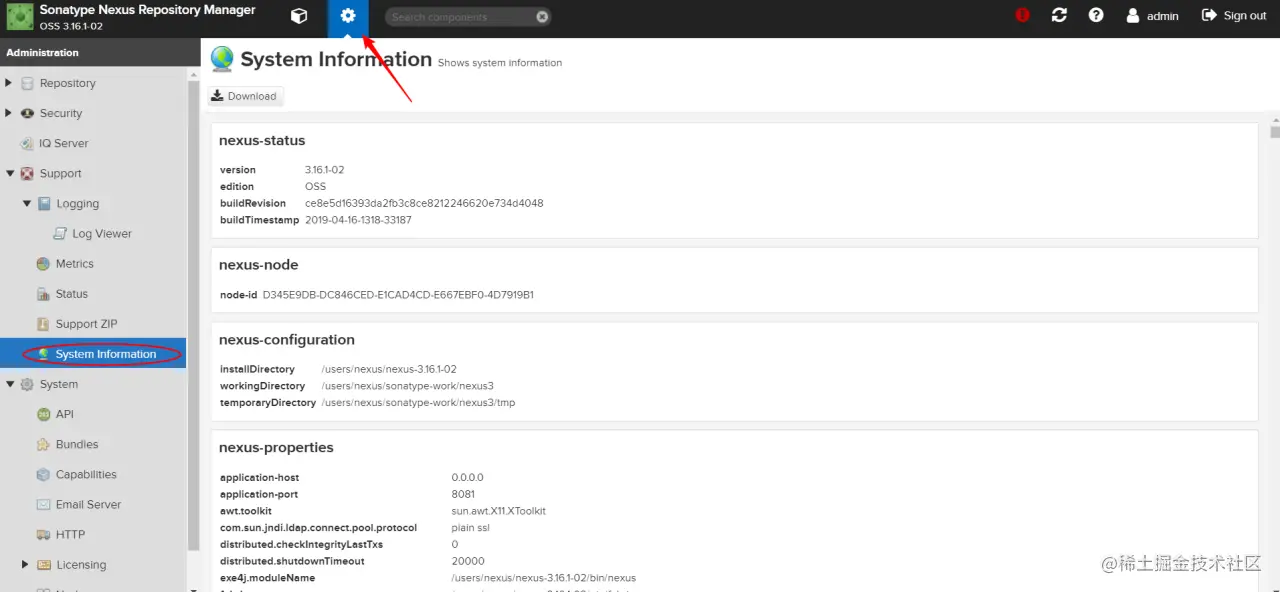

查看系统信息

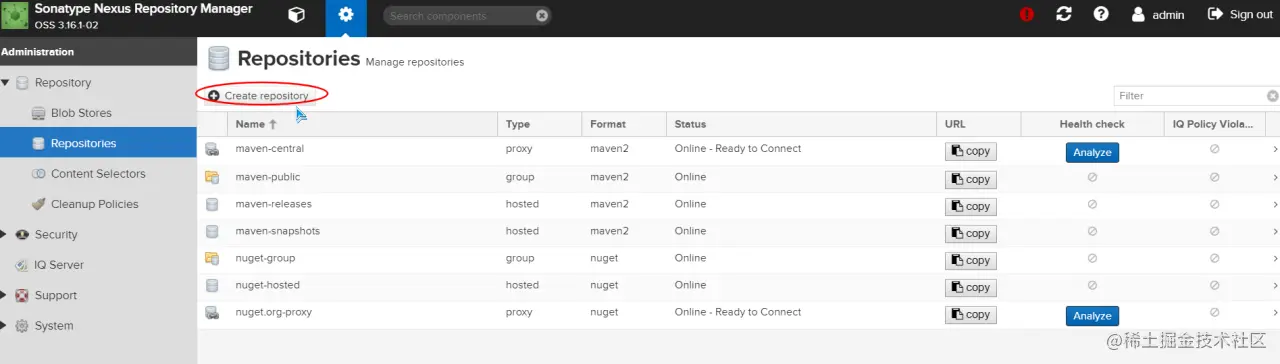

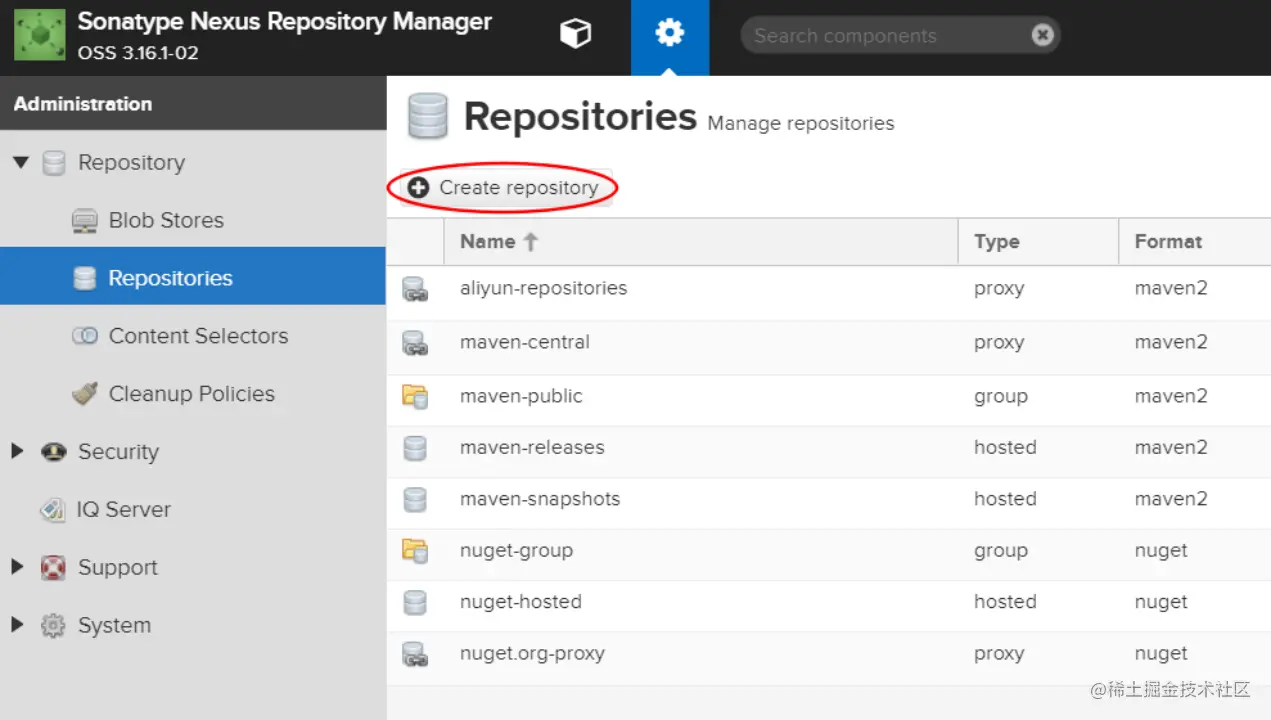

Repository

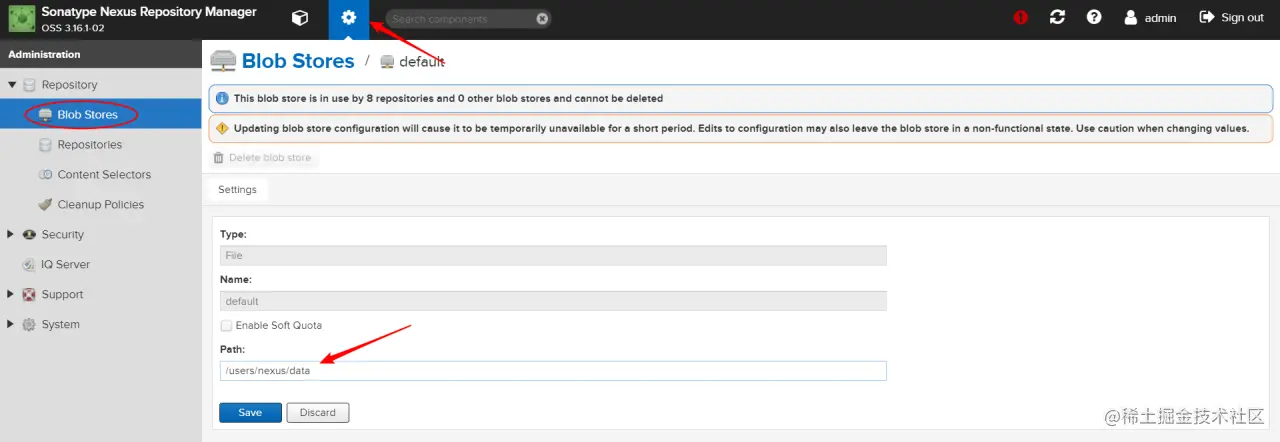

Blob Stores
文件存储的地方,创建一个目录的话,对应文件系统的一个目录

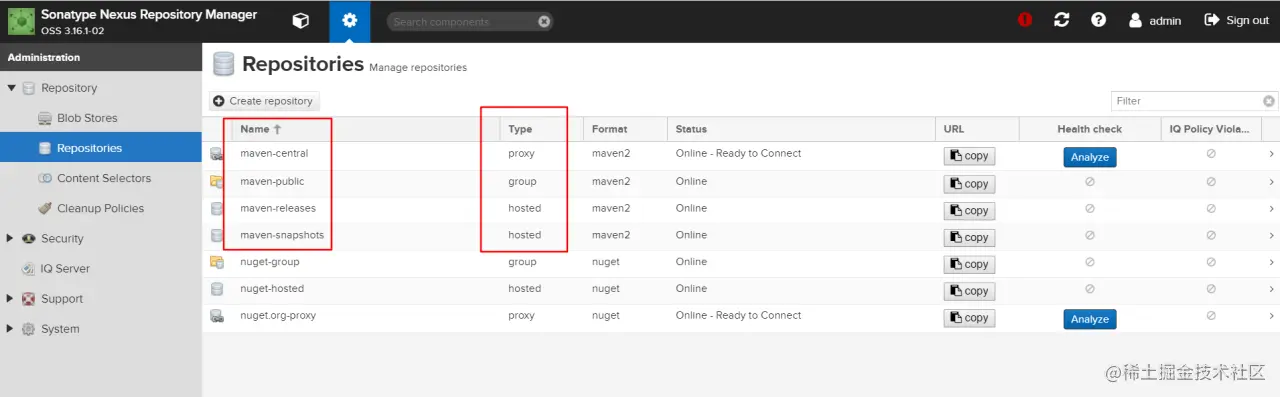

相关概念
name说明:
1)maven-central:maven中央库,默认从repo1.maven.org/maven2/拉取ja…
2)maven-releases:私库发行版jar
3)maven-snapshots:私库快照(调试版本)jar
4)maven-public:仓库分组,把上面三个仓库组合在一起对外提供服务,在本地maven基础配置settings.xml中使用。
Nexus的仓库类型:
1)group(仓库组类型):又叫组仓库,用于方便开发人员自己设定的仓库;
2)hosted(宿主类型):内部项目的发布仓库(内部开发人员,发布上去存放的仓库);
3)proxy(代理类型):从远程中央仓库中寻找数据的仓库(可以点击对应的仓库的Configuration页签下Remote Storage Location属性的值即被代理的远程仓库的路径;

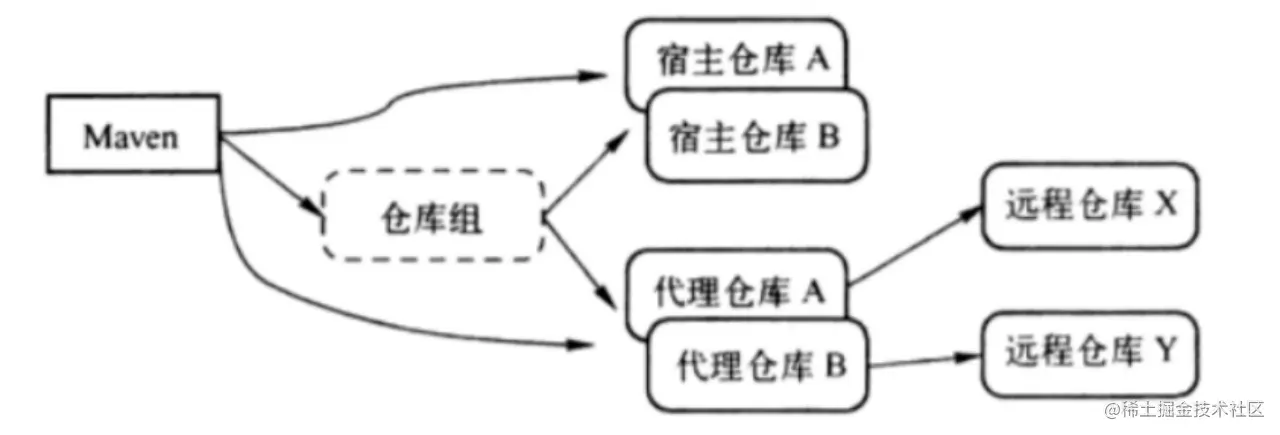

它们的关系图如下:
- Maven可直接从宿主仓库下载构件,也可以从代理仓库下载构件,而代理仓库间接的从远程仓库(比如熟悉的aliyun)下载并缓存构件
- 为了方便,Maven还可以从仓库组下载构件,它会转向包含宿主仓库或者代理仓库获得实际构件的内容
Public Repositories下的仓库
1)3rd party: 无法从公共仓库获得的第三方发布版本的构件仓库,即第三方依赖的仓库,这个数据通常是由内部人员自行下载之后发布上去;
2)Apache Snapshots: 用了代理ApacheMaven仓库快照版本的构件仓库
3)Central: 用来代理maven中央仓库中发布版本构件的仓库
4)Central M1 shadow: 用于提供中央仓库中M1格式的发布版本的构件镜像仓库
5)Codehaus Snapshots: 用来代理CodehausMaven 仓库的快照版本构件的仓库
6)Releases: 内部的模块中release模块的发布仓库,用来部署管理内部的发布版本构件的宿主类型仓库;release是发布版本;
7)Snapshots:发布内部的SNAPSHOT模块的仓库,用来部署管理内部的快照版本构件的宿主类型仓库;snapshots是快照版本,也就是不稳定版本
所以自定义构建的仓库组代理仓库的顺序为:Releases,Snapshots,3rd party,Central。

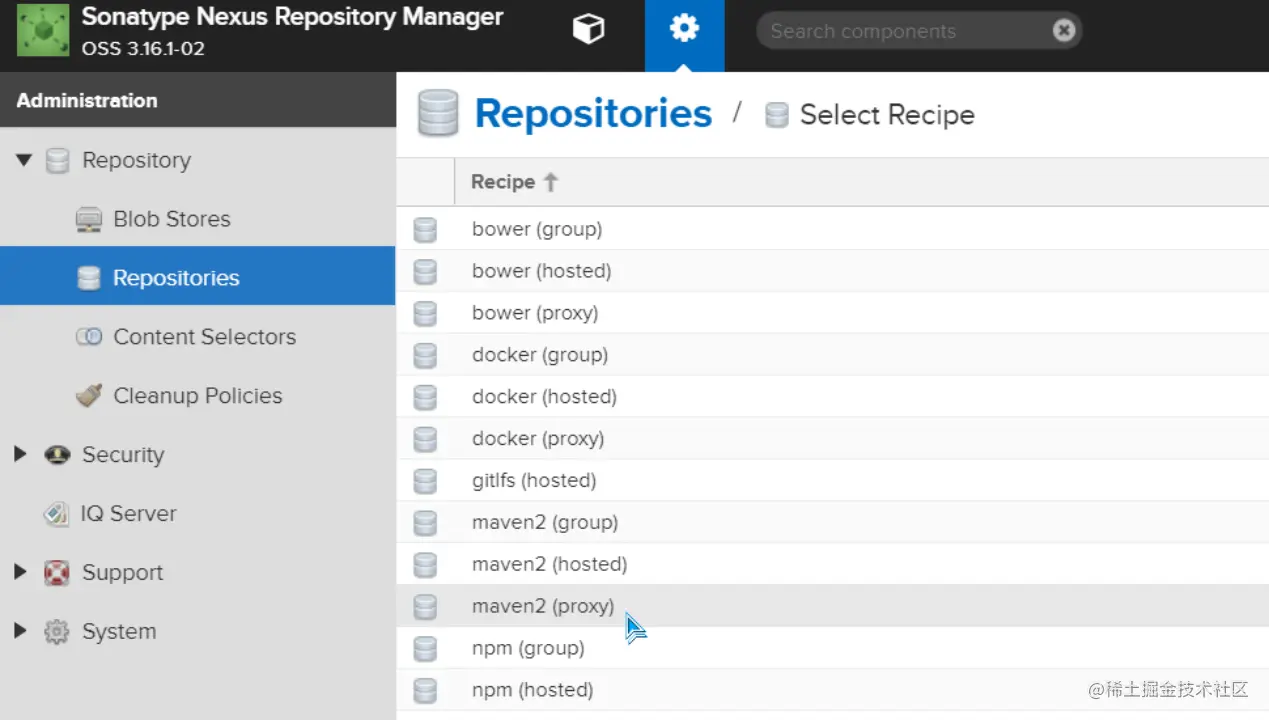

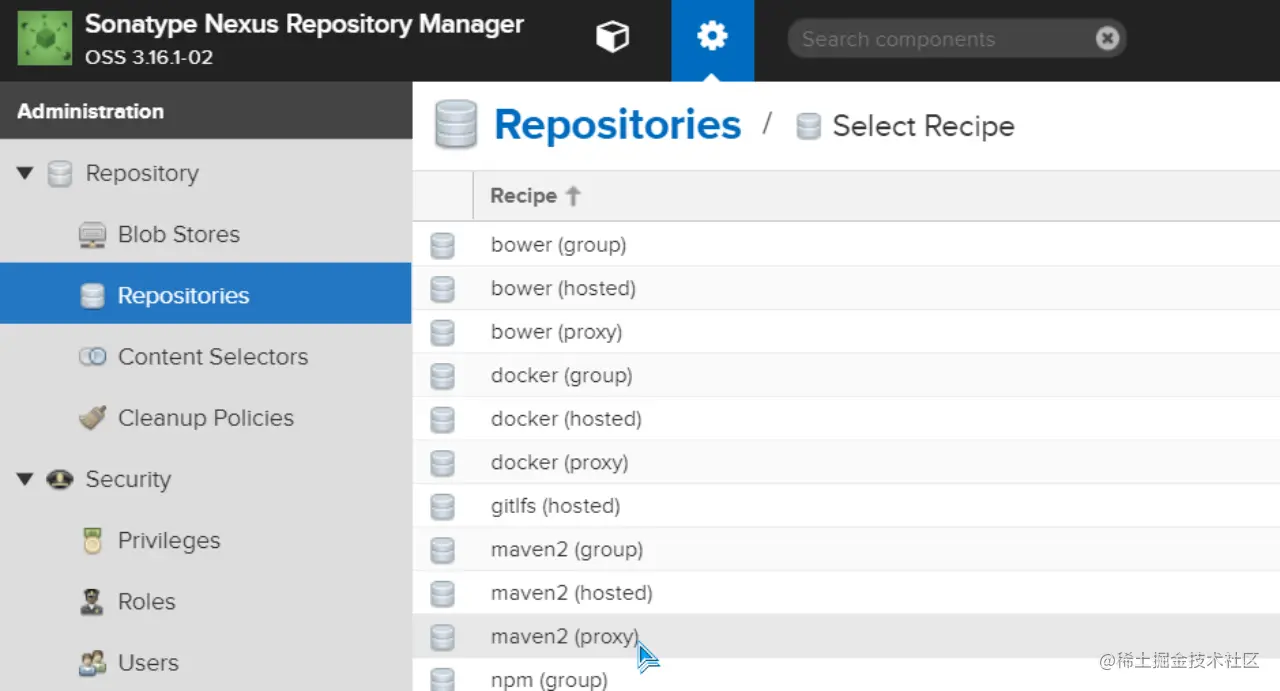

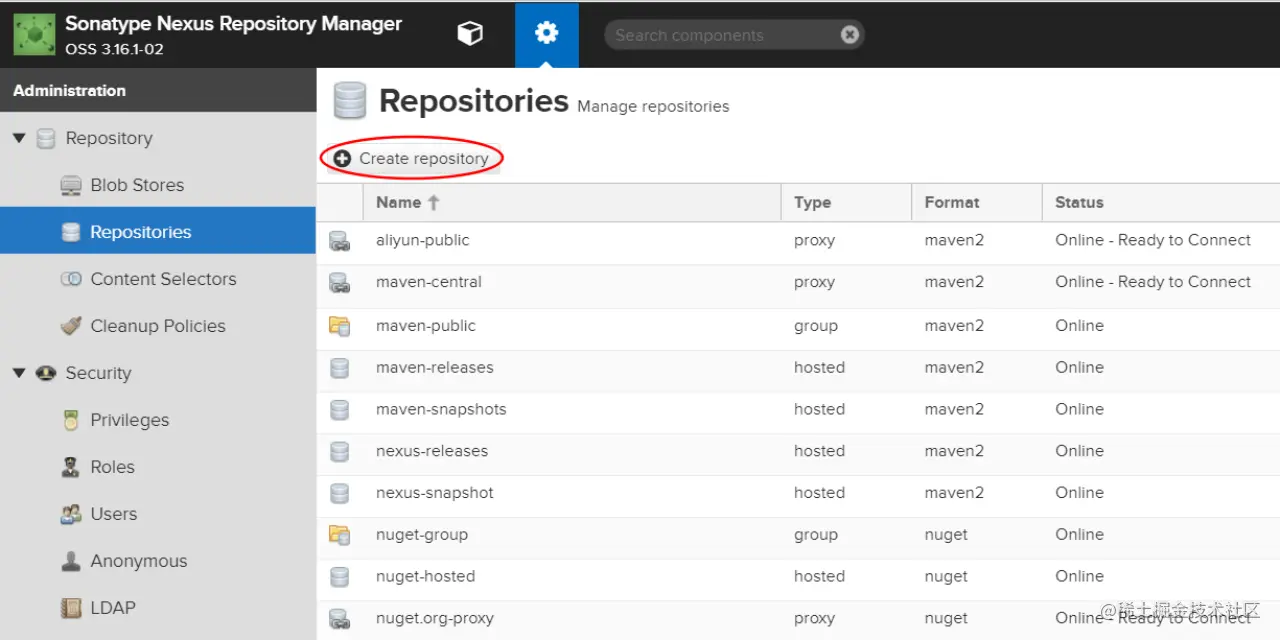

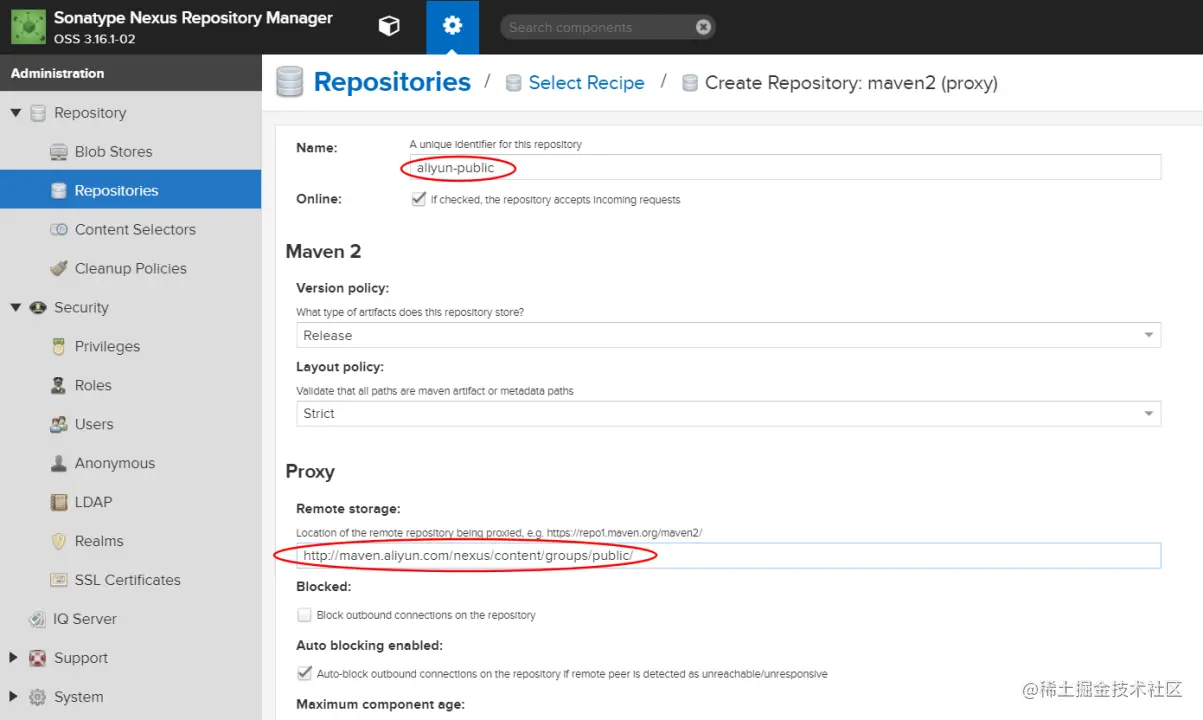

创建proxy repositories
优势:只要其中一个人从中央库下来了,以后大家都是从Nexus私服上进行下来,私服一般部署在内网,这样大大节约的宽带
Name:就是为代理起个名字
Remote Storage: 代理的地址

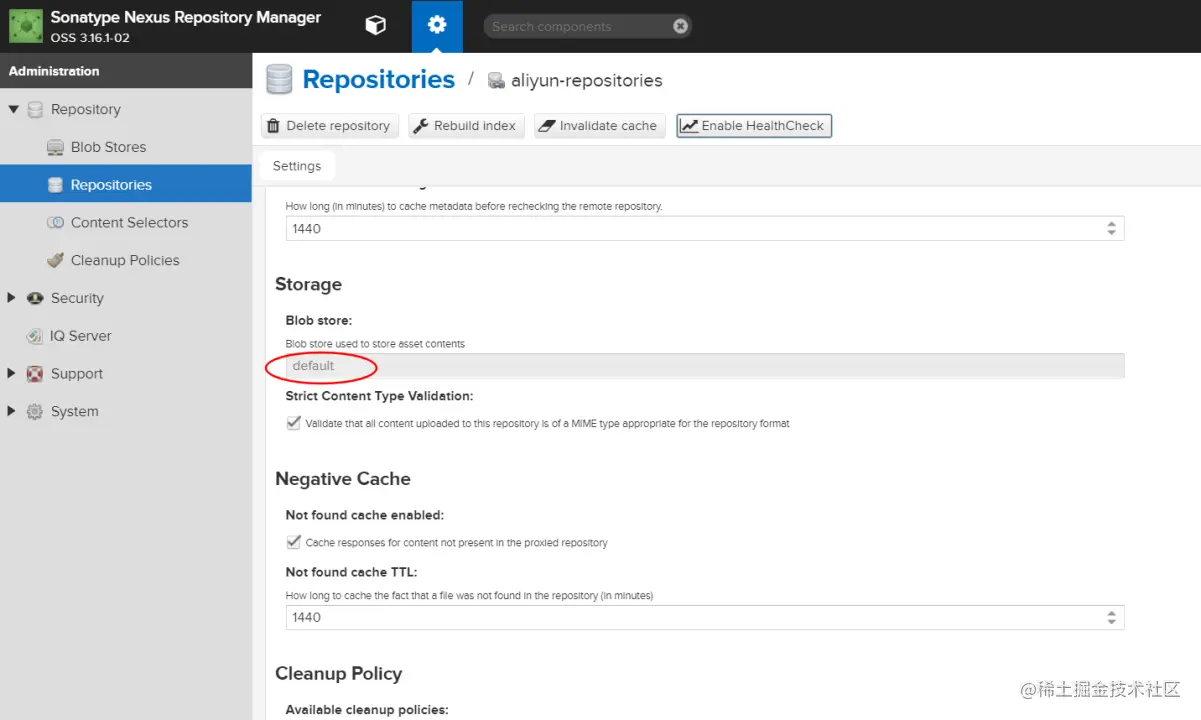

Blob Store: 选择代理下载包的存放路径
最后点击save保存:

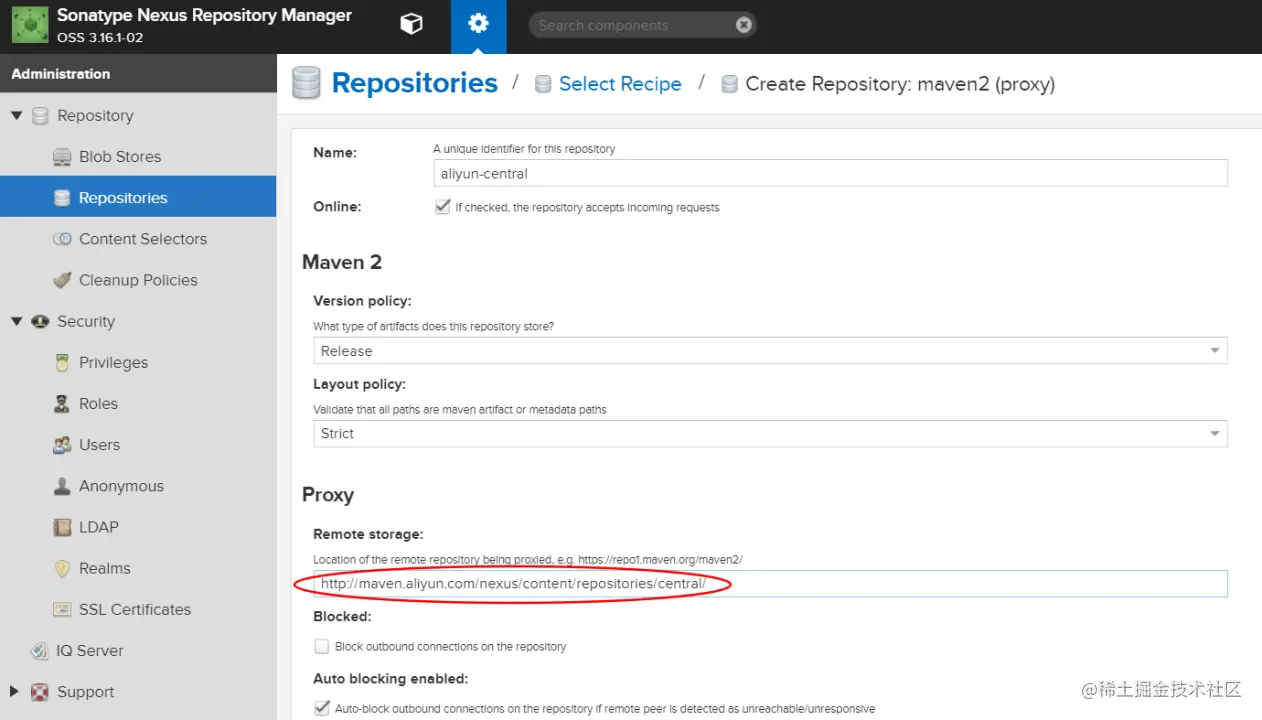

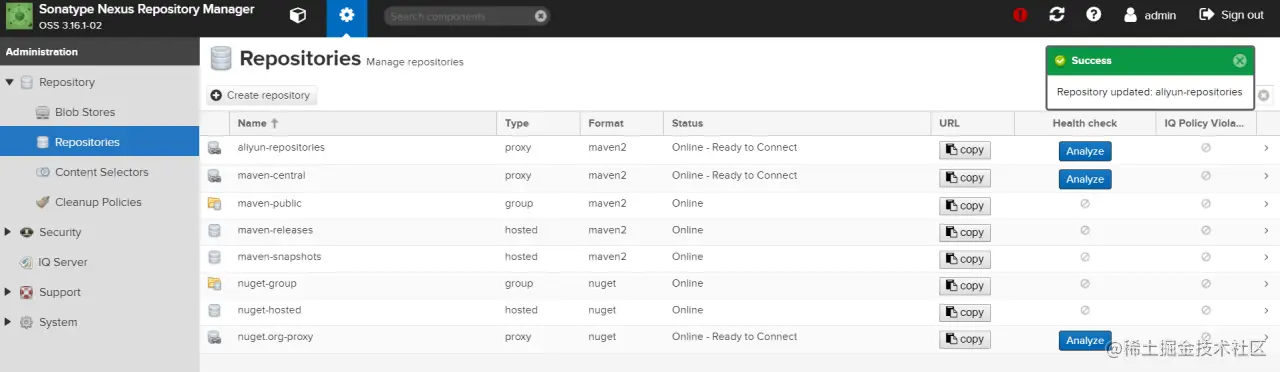

再添加一个aliyun-central:

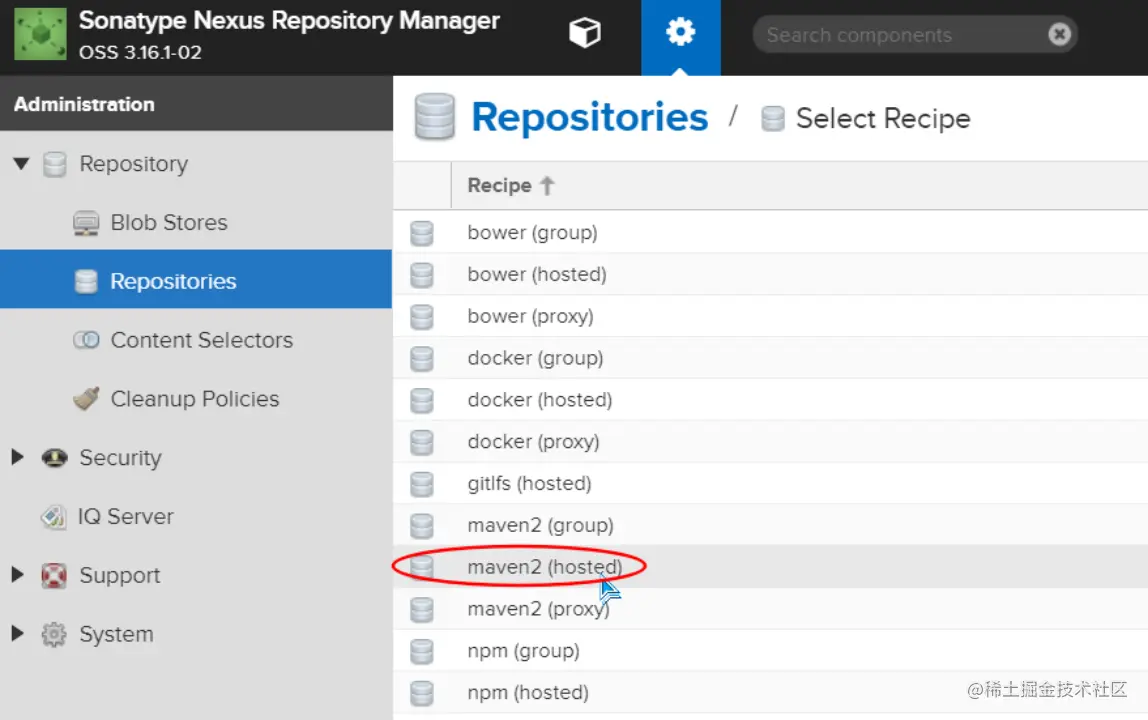

创建hosted repositories
Hosted是宿主机的意思,就是把第三方的Jar放到私服上。
Hosted有三种方式,Releases、SNAPSHOT、Mixed
Releases: 一般是已经发布的Jar包
Snapshot: 未发布的版本
Mixed:混合的

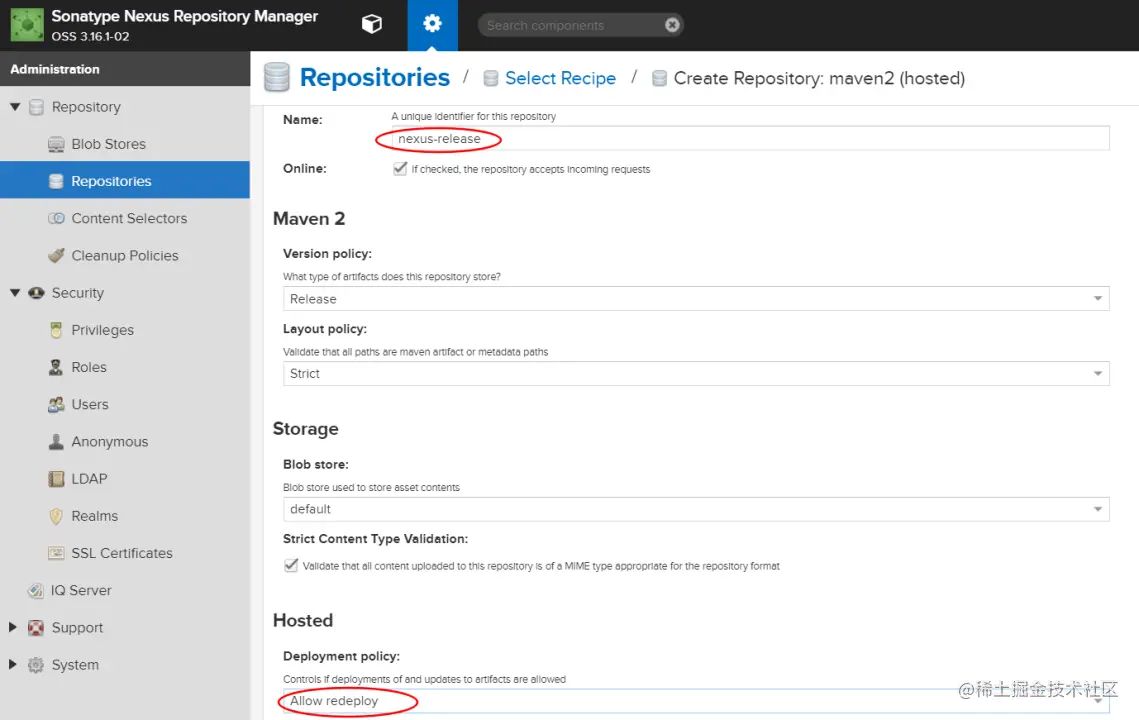

创建一个releases版本的hosted:
Deployment Pollcy: 需要把策略改成“Allow redeploy”

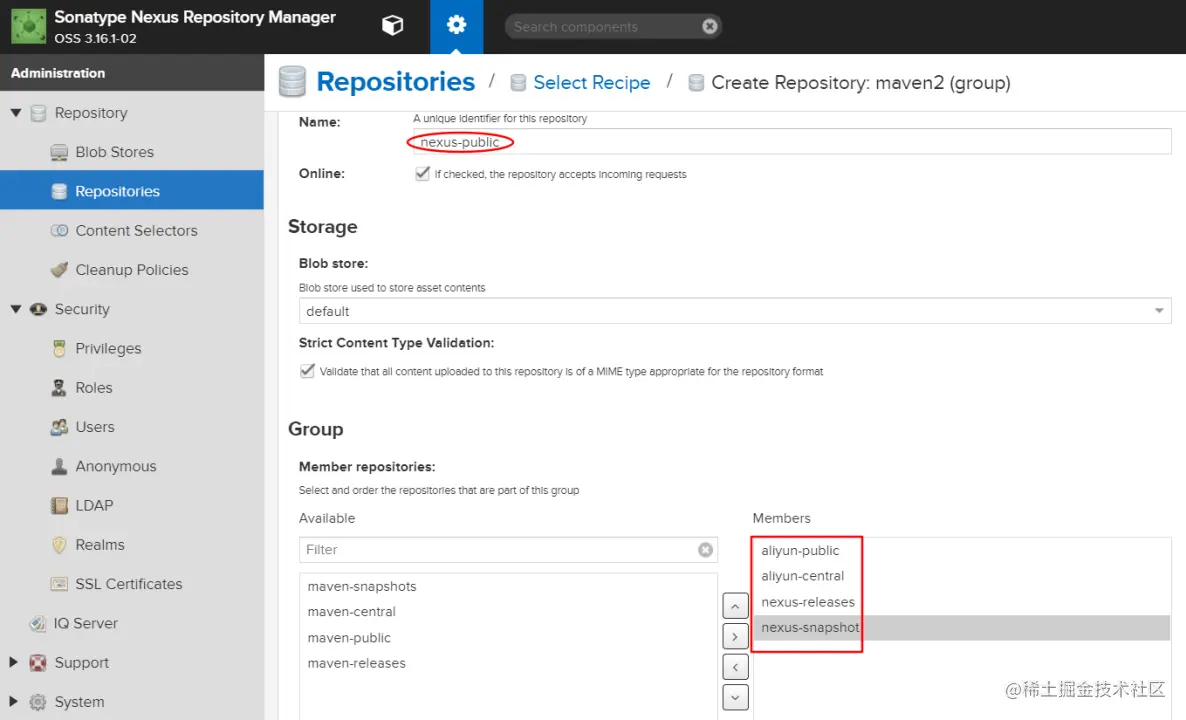

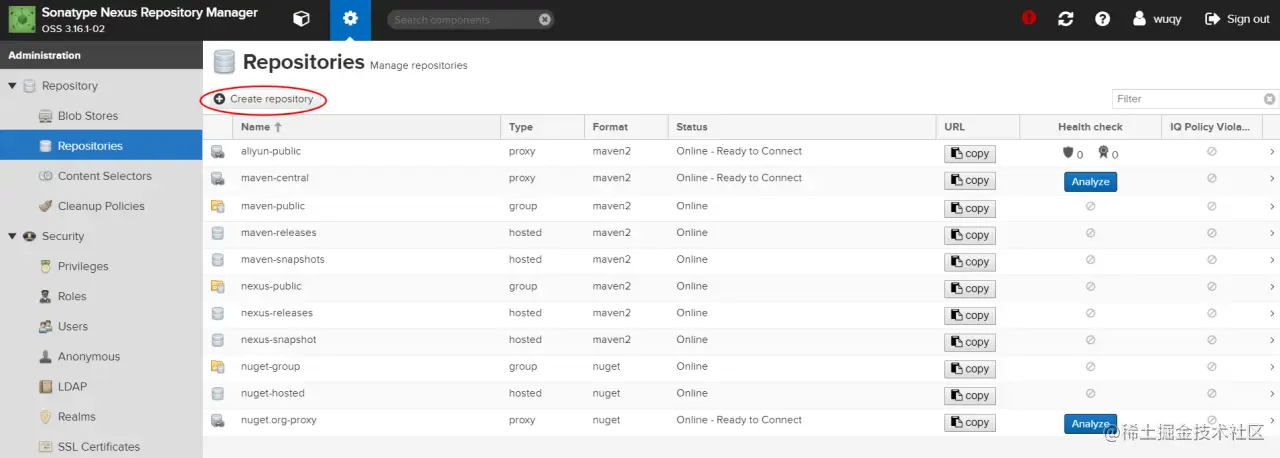

创建grouprepositories
把阿里云的两个proxy和两个hosted类型加入到组中:
和Maven做集成
集成的方式主要分以下种情况:代理中央仓库、Snapshot包的管理、Release包的管理、第三方Jar上传到Nexus上
这里我们配置所有的snapshot版本构件部署到Nexus的Snapshots仓库中, 所有的release构件部署到Nexus的Releases仓库中。由于部署需要登陆,因为我们在settings.xml中配置对应Repository id的用户名和密码。然后,在项目目录中执行mvn deploy ,你会看到maven将项目构件部署到Nexus中,浏览Nexus对应的仓库,就可以看到刚才部署的构件。当其他人构建其项目时,Maven就会从Nexus寻找依赖并下载。
1、在pom文件中配置私服的地址(比如http://192.168.60.115:8081), 日常开发生成的快照版本构件可以直接部署到Nexus中策略为Snapshot的宿主仓库中,项目正式发布的构件则应该部署到Nexus中策略为Release的宿主仓库中:
<repositories>
<repository>
<id>maven-central</id>
<name>maven-central</name>
<url>http://192.168.60.115:8081/repository/nexus-public/</url>
<snapshots>
<enabled>true</enabled>
</snapshots>
<releases>
<enabled>true</enabled>
</releases>
</repository>
</repositories>
<distributionManagement>
<snapshotRepository>
<id>nexus</id>
<name>Nexus Snapshot</name>
<url>http://192.168.60.115:8081/repository/nexus-snapshots/</url>
</snapshotRepository>
<repository>
<id>nexus</id>
<name>Nexus Release</name>
<url>http://192.168.60.115:8081/repository/nexus-releases/</url>
</repository>
</distributionManagement>
2、修改Maven的settings.xml文件,加入认证机制:
# vim /users/yozo/apache-maven-3.6.0/conf/settings.xml
<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
<localRepository>/tmp</localRepository> //设置本地仓库jar保存位置,默认存储位置为${user.home}/.m2/repository
<pluginGroups>
<pluginGroup>org.sonatype.plugins</pluginGroup>
</pluginGroups>
<proxies>
</proxies>
<servers>
<server>
<id>nexus</id> //注意和后面的id要匹配(pom中)
<username>admin</username>
<password>admin123</password>
</server>
</servers>
<mirrors>
<mirror> //公共仓库组配置mirrorOf的值为*,代表maven的所有访问请求都会指向到public仓库组。
<id>nexus</id>
<mirrorOf>*</mirrorOf>
<url>http://192.168.60.115:8081/repository/nexus-public/</url>
</mirror>
</mirrors>
<profiles>
<profile>
<id>nexus</id>
<repositories>
<repository>
<id>nexus</id>
<url>http://nexus.yozocloud.cn/repository/nexus-public/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
</repositories>
<pluginRepositories>
<pluginRepository>
<id>nexus</id>
<url>http://nexus.yozocloud.cn/repository/nexus-public/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</pluginRepository>
</pluginRepositories>
</profile>
</profiles>
<activeProfiles> //激活配置
<activeProfile>nexus</activeProfile>
</activeProfiles>
</settings>
配置完执行:
$ mvn clean source:jar package
$ mvn deploy -e
查看snapshots仓库就能看到上传的jar了
