React源码解析系列(六) -- Vdom到Rdom的解读

上一章讲解了 # React源码解析系列(五) -- reconcileChildren的解读，我们知道React在处理新的newChild和老的fiber的时候的处理机制，也学习了他的diff过程以及diff策略，那么这一章就要讲一讲处理后的fiber链表树变成真实的dom的过程，当然他会在commit阶段的commitMatutionEffects函数里面去进行实际的dom操作。那么我们一起来看看吧。 beginWork函数执行完毕之后，我们就回去执行completeUnitOfWork函数，那么我也给这一流程画了一个简略的图：

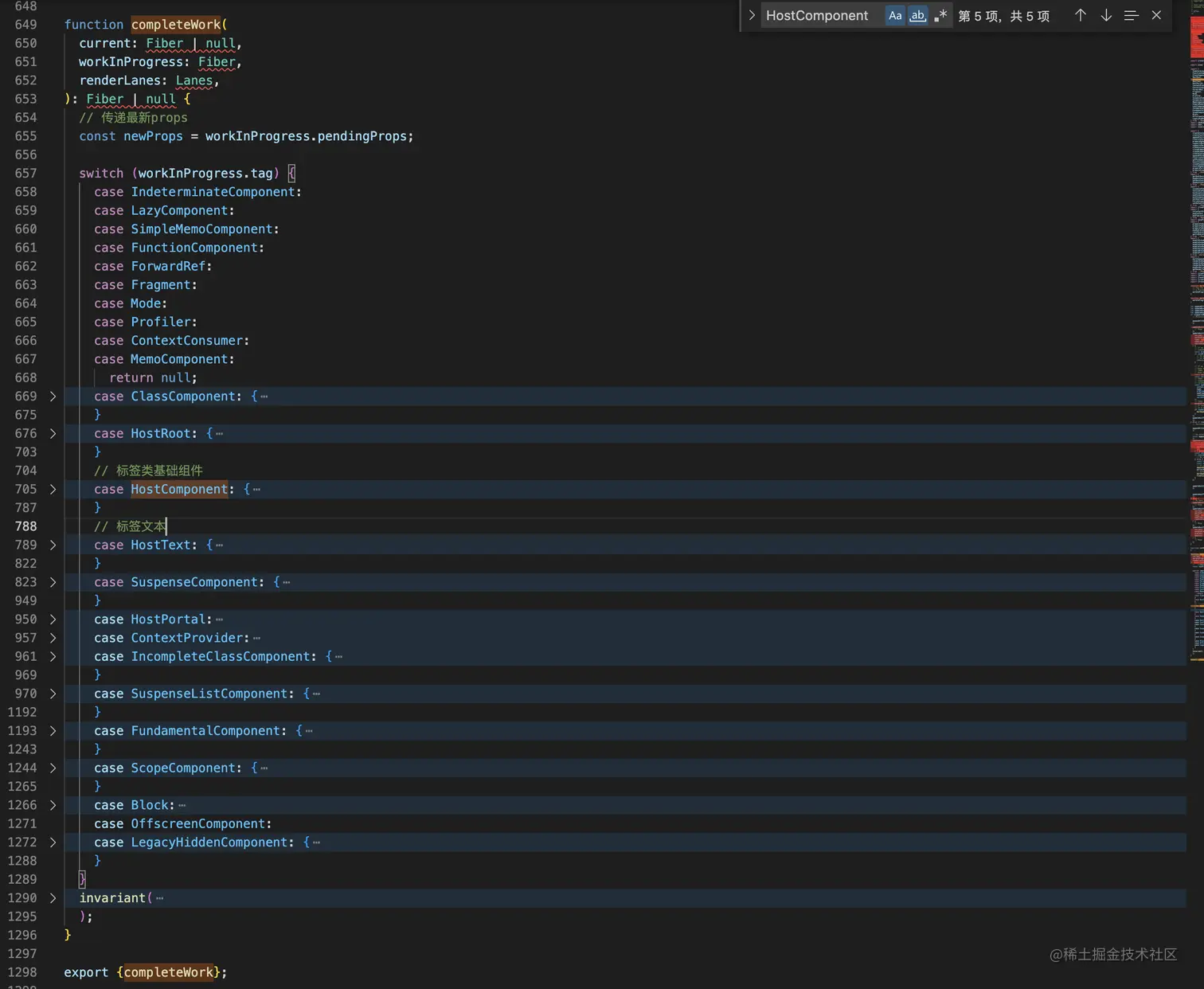

completeWork

completeWork函数太长，截取部分关键，这一部分是根据workInProgress.tag来进行区分组件进行处理的，但是关键在于HostComponent，这是处理标准基础组件的函数，我们依次往下看这个函数里面到底干了啥。

HostComponent

    case HostComponent: {
      popHostContext(workInProgress);
      const rootContainerInstance = getRootHostContainer();
      const type = workInProgress.type;

      // 非初始化，调updateHostComponent更新
      if (current !== null && workInProgress.stateNode != null) {
        updateHostComponent(
          current,
          workInProgress,
          type,
          newProps,
          rootContainerInstance,
        );

        // 处理ref
        if (current.ref !== workInProgress.ref) {
          markRef(workInProgress);
        }
      } else {
        if (!newProps) {
          invariant(
            workInProgress.stateNode !== null,
            'We must have new props for new mounts. This error is likely ' +
              'caused by a bug in React. Please file an issue.',
          );
          // This can happen when we abort work.
          return null;
        }

        const currentHostContext = getHostContext();
        // TODO: Move createInstance to beginWork and keep it on a context
        // "stack" as the parent. Then append children as we go in beginWork
        // or completeWork depending on whether we want to add them top->down or
        // bottom->up. Top->down is faster in IE11.
        const wasHydrated = popHydrationState(workInProgress);
        if (wasHydrated) {
          // TODO: Move this and createInstance step into the beginPhase
          // to consolidate.
          if (
            prepareToHydrateHostInstance(
              workInProgress,
              rootContainerInstance,
              currentHostContext,
            )
          ) {
            // If changes to the hydrated node need to be applied at the
            // commit-phase we mark this as such.
            markUpdate(workInProgress);
          }
        } else {
          // 创建虚拟dom实例
          const instance = createInstance(
            type,
            newProps,
            rootContainerInstance,
            currentHostContext,
            workInProgress,
          );
          // 把所有子元素绑定到父级上面去
          appendAllChildren(instance, workInProgress, false, false);

          workInProgress.stateNode = instance;

          // Certain renderers require commit-time effects for initial mount.
          // (eg DOM renderer supports auto-focus for certain elements).
          // Make sure such renderers get scheduled for later work.
          if (
            // 初始化实例子元素
            finalizeInitialChildren(
              instance,
              type,
              newProps,
              rootContainerInstance,
              currentHostContext,
            )
          ) {
            markUpdate(workInProgress);
          }
        }

        if (workInProgress.ref !== null) {
          // If there is a ref on a host node we need to schedule a callback
          markRef(workInProgress);
        }
      }
      return null;
    }

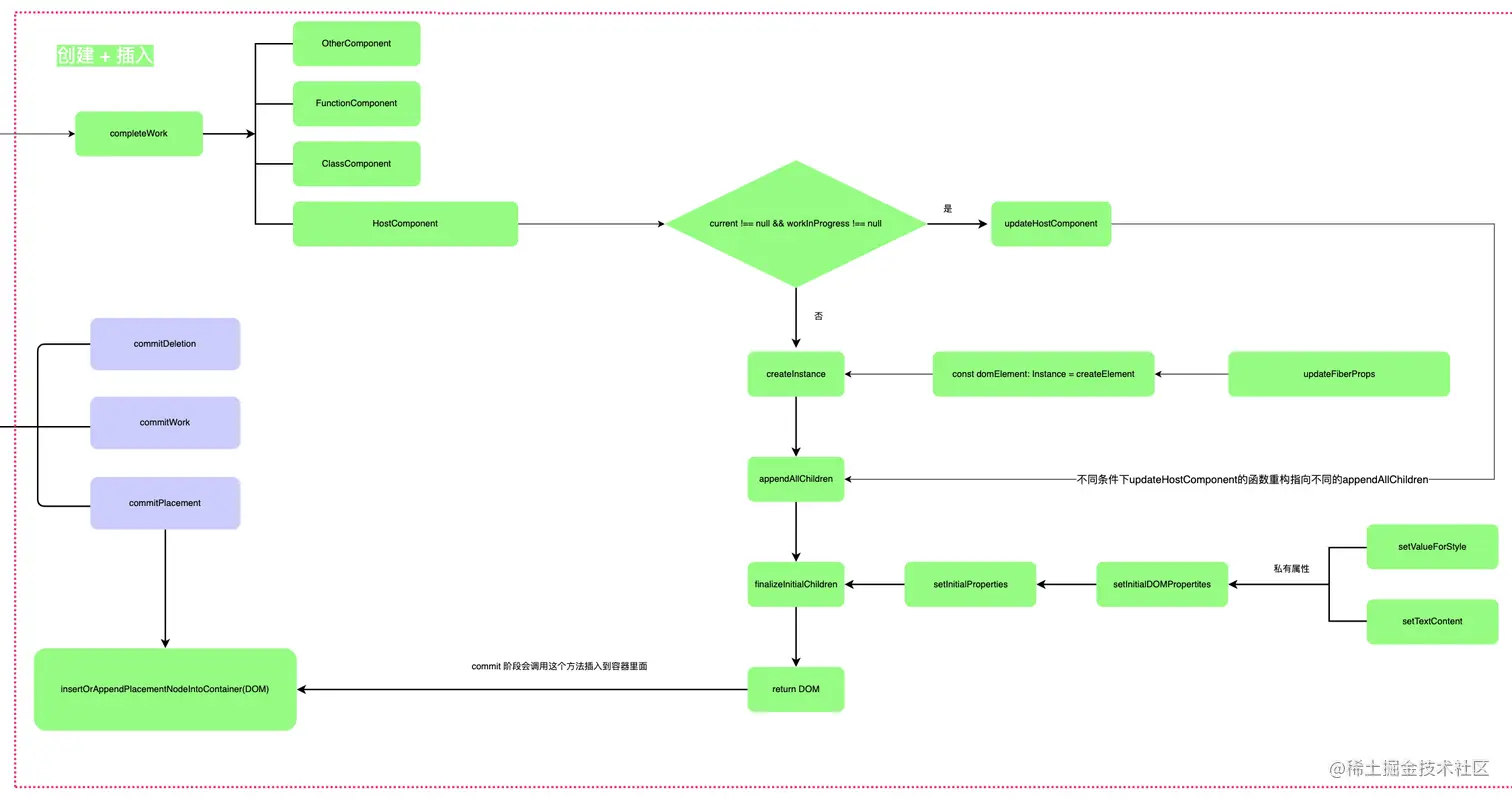

以上代码区分于初始化与更新阶段。

• 初始化阶段，根据createInstatnce函数去创建dom实例，绑定父级相关的所有子元素，最后处理子元素的内部情况。
• 更新的情况下，直接调用updateHostComponent去更新。

createInstance

export function createInstance(
  type: string,
  props: Props,
  rootContainerInstance: Container,
  hostContext: HostContext,
  internalInstanceHandle: Object,
): Instance {
  let parentNamespace: string;
  if (__DEV__) {
    // TODO: take namespace into account when validating.
    const hostContextDev = ((hostContext: any): HostContextDev);
    validateDOMNesting(type, null, hostContextDev.ancestorInfo);
    if (
      typeof props.children === 'string' ||
      typeof props.children === 'number'
    ) {
      const string = '' + props.children;
      const ownAncestorInfo = updatedAncestorInfo(
        hostContextDev.ancestorInfo,
        type,
      );
      validateDOMNesting(null, string, ownAncestorInfo);
    }
    parentNamespace = hostContextDev.namespace;
  } else {
    parentNamespace = ((hostContext: any): HostContextProd);
  }
  // 创建element节点
  const domElement: Instance = createElement(

    type,
    props,
    rootContainerInstance,

    parentNamespace,
  );

  precacheFiberNode(internalInstanceHandle, domElement);
  // 给元素加上属性
  updateFiberProps(domElement, props);
  return domElement;
}

这里我们看到了var domElement = ....，是不是很熟悉，这里就是针对每一个闭合的基础标签进行创建真实dom标签的处理的，我们继续看看createElement的具体实现。

createElement

export function createElement(
  type: string,
  props: Object,
  rootContainerElement: Element | Document,
  parentNamespace: string,
): Element {
  let isCustomComponentTag;

  // We create tags in the namespace of their parent container, except HTML
  // tags get no namespace.
  const ownerDocument: Document = getOwnerDocumentFromRootContainer(
    rootContainerElement,
  );
  let domElement: Element;
  let namespaceURI = parentNamespace;
  if (namespaceURI === HTML_NAMESPACE) {
    namespaceURI = getIntrinsicNamespace(type);
  }
  if (namespaceURI === HTML_NAMESPACE) {
    // 处理script
    if (type === 'script') {
      const div = ownerDocument.createElement('div');
      ...
      div.innerHTML = '<script><' + '/script>'; // eslint-disable-line
      const firstChild = ((div.firstChild: any): HTMLScriptElement);
      domElement = div.removeChild(firstChild);
    } else if (typeof props.is === 'string') {
      domElement = ownerDocument.createElement(type, {is: props.is});
    } else {
      domElement = ownerDocument.createElement(type);
      if (type === 'select') {
        const node = ((domElement: any): HTMLSelectElement);
        if (props.multiple) {
          node.multiple = true;
        } else if (props.size) {
          node.size = props.size;
        }
      }
    }
  } else {
    domElement = ownerDocument.createElementNS(namespaceURI, type);
  }
  ...
  return domElement;
}

在createElement方法中，react会根据不同的标签进行创建dom，比如你是一个script标签，那就创建一个div标签包裹起来。如果不是上述特殊标签，则直接通过ownerDocument.createElement(type)创建。

updateFiberProps

经过上面处理的标签，仅仅只是一个空标签，除此还有属性和子元素，那么updateFiberProps则是标签属性和子元素给当前标签添上的。

export function updateFiberProps(
  node: Instance | TextInstance | SuspenseInstance,
  props: Props,
): void {
  (node: any)[internalPropsKey] = props;
}

finalizeInitialChildren

最后通过finalizeInitialChildren处理加工子元素，那么子元素可能为单节点，可能为多节点，那么我们看看finalizeInitialChildren的具体实现。

export function finalizeInitialChildren(
  domElement: Instance,
  type: string,
  props: Props,
  rootContainerInstance: Container,
  hostContext: HostContext,
): boolean {
  // 处理属性
  setInitialProperties(domElement, type, props, rootContainerInstance);
  return shouldAutoFocusHostComponent(type, props);
}

上述代码本质就是调用setInitialProperties，我们继续看看他的源码实现。

// packages/react-dom/src/client/ReactDOMComponent.js
export function setInitialProperties(
  domElement: Element,
  tag: string,
  rawProps: Object,
  rootContainerElement: Element | Document,
): void {
  const isCustomComponentTag = isCustomComponent(tag, rawProps);
  if (__DEV__) {
    validatePropertiesInDevelopment(tag, rawProps);
  }

  // TODO: Make sure that we check isMounted before firing any of these events.
  let props: Object;
  switch (tag) {
    case 'dialog':
      listenToNonDelegatedEvent('cancel', domElement);
      listenToNonDelegatedEvent('close', domElement);
      props = rawProps;
      break;
    case 'iframe':
    case 'object':
    case 'embed':
      // We listen to this event in case to ensure emulated bubble
      // listeners still fire for the load event.
      listenToNonDelegatedEvent('load', domElement);
      props = rawProps;
      break;
    case 'video':
    case 'audio':
      // We listen to these events in case to ensure emulated bubble
      // listeners still fire for all the media events.
      for (let i = 0; i < mediaEventTypes.length; i++) {
        listenToNonDelegatedEvent(mediaEventTypes[i], domElement);
      }
      props = rawProps;
      break;
    case 'source':
      // We listen to this event in case to ensure emulated bubble
      // listeners still fire for the error event.
      listenToNonDelegatedEvent('error', domElement);
      props = rawProps;
      break;
    case 'img':
    case 'image':
    case 'link':
      // We listen to these events in case to ensure emulated bubble
      // listeners still fire for error and load events.
      listenToNonDelegatedEvent('error', domElement);
      listenToNonDelegatedEvent('load', domElement);
      props = rawProps;
      break;
    case 'details':
      // We listen to this event in case to ensure emulated bubble
      // listeners still fire for the toggle event.
      listenToNonDelegatedEvent('toggle', domElement);
      props = rawProps;
      break;
    case 'input':
      ReactDOMInputInitWrapperState(domElement, rawProps);
      props = ReactDOMInputGetHostProps(domElement, rawProps);
      // We listen to this event in case to ensure emulated bubble
      // listeners still fire for the invalid event.
      listenToNonDelegatedEvent('invalid', domElement);
      if (!enableEagerRootListeners) {
        // For controlled components we always need to ensure we're listening
        // to onChange. Even if there is no listener.
        // 进入事件监听注册流程
        ensureListeningTo(rootContainerElement, 'onChange', domElement);
      }
      break;
    case 'option':
      ReactDOMOptionValidateProps(domElement, rawProps);
      props = ReactDOMOptionGetHostProps(domElement, rawProps);
      break;
    case 'select':
      ReactDOMSelectInitWrapperState(domElement, rawProps);
      props = ReactDOMSelectGetHostProps(domElement, rawProps);
      // We listen to this event in case to ensure emulated bubble
      // listeners still fire for the invalid event.
      listenToNonDelegatedEvent('invalid', domElement);
      if (!enableEagerRootListeners) {
        // For controlled components we always need to ensure we're listening
        // to onChange. Even if there is no listener.
        // 进入事件监听注册流程
        ensureListeningTo(rootContainerElement, 'onChange', domElement);
      }
      break;
    case 'textarea':
      ReactDOMTextareaInitWrapperState(domElement, rawProps);
      props = ReactDOMTextareaGetHostProps(domElement, rawProps);
      // We listen to this event in case to ensure emulated bubble
      // listeners still fire for the invalid event.
      listenToNonDelegatedEvent('invalid', domElement);
      if (!enableEagerRootListeners) {
        // For controlled components we always need to ensure we're listening
        // to onChange. Even if there is no listener.
        // 进入事件监听注册流程
        ensureListeningTo(rootContainerElement, 'onChange', domElement);
      }
      break;
    default:
      props = rawProps;
  }

  // 验证props合法性
  assertValidProps(tag, props);

  //往节点上添加最终的属性
  setInitialDOMProperties(
    tag,
    domElement,
    rootContainerElement,
    props,
    isCustomComponentTag,
  );

  switch (tag) {
    case 'input':
      // TODO: Make sure we check if this is still unmounted or do any clean
      // up necessary since we never stop tracking anymore.
      track((domElement: any));
      ReactDOMInputPostMountWrapper(domElement, rawProps, false);
      break;
    case 'textarea':
      // TODO: Make sure we check if this is still unmounted or do any clean
      // up necessary since we never stop tracking anymore.
      track((domElement: any));
      ReactDOMTextareaPostMountWrapper(domElement, rawProps);
      break;
    case 'option':
      ReactDOMOptionPostMountWrapper(domElement, rawProps);
      break;
    case 'select':
      ReactDOMSelectPostMountWrapper(domElement, rawProps);
      break;
    default:
      if (typeof props.onClick === 'function') {
        // TODO: This cast may not be sound for SVG, MathML or custom elements.
        trapClickOnNonInteractiveElement(((domElement: any): HTMLElement));
      }
      break;
  }
}

这里的源码处理的事情也是简单，也就是根据当前的闭合标签类型去做对应的处理，最后验证props，并且添加最终确定的props。

setInitialDOMProperties

function setInitialDOMProperties(
  tag: string,
  domElement: Element,
  rootContainerElement: Element | Document,
  nextProps: Object,
  isCustomComponentTag: boolean,
): void {
  for (const propKey in nextProps) {
    // 只处理私有属性
    if (!nextProps.hasOwnProperty(propKey)) {
      continue;
    }
    const nextProp = nextProps[propKey];
    // 如果是通过style设置的样式，则用setValueForStyles给dom添加上
    if (propKey === STYLE) {
      if (__DEV__) {
        if (nextProp) {
          // Freeze the next style object so that we can assume it won't be
          // mutated. We have already warned for this in the past.
          Object.freeze(nextProp);
        }
      }
      // Relies on `updateStylesByID` not mutating `styleUpdates`.
      setValueForStyles(domElement, nextProp);
    } else if (propKey === DANGEROUSLY_SET_INNER_HTML) {
      const nextHtml = nextProp ? nextProp[HTML] : undefined;
      if (nextHtml != null) {
        setInnerHTML(domElement, nextHtml);
      }
    } else if (propKey === CHILDREN) {
      if (typeof nextProp === 'string') {
        // Avoid setting initial textContent when the text is empty. In IE11 setting
        // textContent on a <textarea> will cause the placeholder to not
        // show within the <textarea> until it has been focused and blurred again.
        // https://github.com/facebook/react/issues/6731#issuecomment-254874553
        const canSetTextContent = tag !== 'textarea' || nextProp !== '';
        // 设置文本属性。处理嵌套子元素为纯文本节点的
        if (canSetTextContent) {
          setTextContent(domElement, nextProp);
        }
      } else if (typeof nextProp === 'number') {
        setTextContent(domElement, '' + nextProp);
      }
    } else if (
      propKey === SUPPRESS_CONTENT_EDITABLE_WARNING ||
      propKey === SUPPRESS_HYDRATION_WARNING
    ) {
      // Noop
    } else if (propKey === AUTOFOCUS) {
      // We polyfill it separately on the client during commit.
      // We could have excluded it in the property list instead of
      // adding a special case here, but then it wouldn't be emitted
      // on server rendering (but we *do* want to emit it in SSR).
    } else if (registrationNameDependencies.hasOwnProperty(propKey)) {
      if (nextProp != null) {
        if (__DEV__ && typeof nextProp !== 'function') {
          warnForInvalidEventListener(propKey, nextProp);
        }
        if (!enableEagerRootListeners) {
          // 进入事件监听注册流程
          ensureListeningTo(rootContainerElement, propKey, domElement);
        } else if (propKey === 'onScroll') {
          listenToNonDelegatedEvent('scroll', domElement);
        }
      }
    } else if (nextProp != null) {
      setValueForProperty(domElement, propKey, nextProp, isCustomComponentTag);
    }
  }
}

setInitialDOMProperties代码中处理的事情，就是遍历当前props，根据key的不同去做不同的处理。

• 如果key为STYLE，则通过setValueForStyles去处理属性设置。
• 如果key为CHILDREN，则通过setTextContent去处理文本内容。

setValueForStyles

export function setValueForStyles(node, styles) {
  const style = node.style;
  for (let styleName in styles) {
    if (!styles.hasOwnProperty(styleName)) {
      continue;
    }
    const isCustomProperty = styleName.indexOf('--') === 0;
    if (__DEV__) {
      if (!isCustomProperty) {
        warnValidStyle(styleName, styles[styleName]);
      }
    }
    // 获取属性样式值
    const styleValue = dangerousStyleValue(
      styleName,
      styles[styleName],
      isCustomProperty,
    );
    if (styleName === 'float') {
      styleName = 'cssFloat';
    }
    // 覆盖原来的属性
    if (isCustomProperty) {
      style.setProperty(styleName, styleValue);
    } else {
      style[styleName] = styleValue;
    }
  }
}

setTextContent

const setTextContent = function(node: Element, text: string): void {
  if (text) {
    const firstChild = node.firstChild;

    if (
      firstChild &&
      firstChild === node.lastChild &&
      firstChild.nodeType === TEXT_NODE
    ) {
      firstChild.nodeValue = text;
      return;
    }
  }
  // 设置真实文本内容
  node.textContent = text;
};

所以走到这里基本上一个标签就创建完毕了，如若不明白，我简单的画一个图如下：

总结

那么这一章到这里就结束了，本文也就讲了初始化时候的经历过createInstance、createElement等一些列操作之后变成真实dom的经过，当然了，这里并没有讲updateHostComponent的实现，其实在源码里面，updateHostComponent是一个不断被重构的函数，但是最后都是执行finalizeInitialChildren，有兴趣的朋友可以去看看哈。那么下一章也就是讲解一下整个React的commit过程，直通车 >> React源码解析系列(七) -- commit阶段主要流程
