分布式事务seata使用遇到的一些踩坑问题

·  阅读 494

1. seata

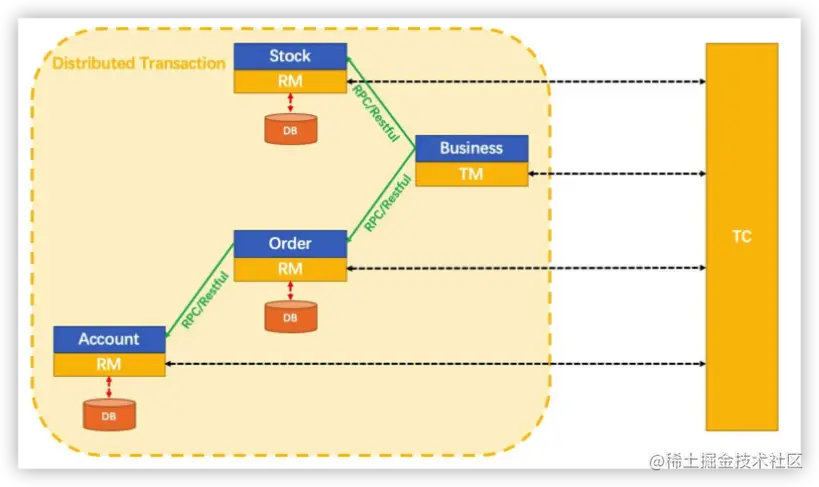

Seata 是一款开源的分布式事务解决方案,致力于提供高性能和简单易用的分布式事务服务。Seata 将为用户提供了 AT、TCC、SAGA 和 XA 事务模式,为用户打造一站式的分布式解决方案。

image-1658709641318

安装使用方法可看《seata官网》

2. 遇到的问题

使用的版本为seata 1.4.2

2.1 序列化异常

2.1.1 异常信息

堆栈信息

Type id handling not implemented for type java.lang.Object (by serializer of type com.fasterxml.jackson.databind.ser.impl.UnsupportedTypeSerializer) (through reference chain: io.seata.rm.datasource.undo.BranchUndoLog["sqlUndoLogs"]->java.util.ArrayList[0]->io.seata.rm.datasource.undo.SQLUndoLog["afterImage"]->io.seata.rm.datasource.sql.struct.TableRecords["rows"]->java.util.ArrayList[0]->io.seata.rm.datasource.sql.struct.Row["fields"]->java.util.ArrayList[16]->io.seata.rm.datasource.sql.struct.Field["value"])
复制代码

debug调试得知,在undoLog序列化为JSON的时候,LocalDateTime无法序列化,源码在JacksonUndoLogParser,以下是JacksonUndoLogParser源码

@LoadLevel(name = JacksonUndoLogParser.NAME)
public class JacksonUndoLogParser implements UndoLogParser, Initialize {

    public static final String NAME = "jackson";

    private static final Logger LOGGER = LoggerFactory.getLogger(JacksonUndoLogParser.class);

    private final ObjectMapper mapper = new ObjectMapper();

    private final SimpleModule module = new SimpleModule();

    /**
     * customize serializer for java.sql.Timestamp
     */
    private final JsonSerializer timestampSerializer = new TimestampSerializer();

    /**
     * customize deserializer for java.sql.Timestamp
     */
    private final JsonDeserializer timestampDeserializer = new TimestampDeserializer();

    /**
     * customize serializer of java.sql.Blob
     */
    private final JsonSerializer blobSerializer = new BlobSerializer();

    /**
     * customize deserializer of java.sql.Blob
     */
    private final JsonDeserializer blobDeserializer = new BlobDeserializer();

    /**
     * customize serializer of java.sql.Clob
     */
    private final JsonSerializer clobSerializer = new ClobSerializer();

    /**
     * customize deserializer of java.sql.Clob
     */
    private final JsonDeserializer clobDeserializer = new ClobDeserializer();

    @Override
    public void init() {
        try {
            List<JacksonSerializer> jacksonSerializers = EnhancedServiceLoader.loadAll(JacksonSerializer.class);
            if (CollectionUtils.isNotEmpty(jacksonSerializers)) {
                for (JacksonSerializer jacksonSerializer : jacksonSerializers) {
                    Class type = jacksonSerializer.type();
                    JsonSerializer ser = jacksonSerializer.ser();
                    JsonDeserializer deser = jacksonSerializer.deser();
                    if (type != null) {
                        if (ser != null) {
                            module.addSerializer(type, ser);
                        }
                        if (deser != null) {
                            module.addDeserializer(type, deser);
                        }
                        LOGGER.info("jackson undo log parser load [{}].", jacksonSerializer.getClass().getName());
                    }
                }
            }
        } catch (EnhancedServiceNotFoundException e) {
            LOGGER.warn("JacksonSerializer not found children class.", e);
        }

        module.addSerializer(Timestamp.class, timestampSerializer);
        module.addDeserializer(Timestamp.class, timestampDeserializer);
        module.addSerializer(SerialBlob.class, blobSerializer);
        module.addDeserializer(SerialBlob.class, blobDeserializer);
        module.addSerializer(SerialClob.class, clobSerializer);
        module.addDeserializer(SerialClob.class, clobDeserializer);
        mapper.registerModule(module);
        mapper.configure(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false);
        mapper.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL, JsonTypeInfo.As.PROPERTY);
        mapper.enable(MapperFeature.PROPAGATE_TRANSIENT_MARKER);
    }

    @Override
    public String getName() {
        return NAME;
    }

    @Override
    public byte[] getDefaultContent() {
        return "{}".getBytes(Constants.DEFAULT_CHARSET);
    }

    @Override
    public byte[] encode(BranchUndoLog branchUndoLog) {
        try {
            return mapper.writeValueAsBytes(branchUndoLog);
        } catch (JsonProcessingException e) {
            LOGGER.error("json encode exception, {}", e.getMessage(), e);
            throw new RuntimeException(e);
        }
    }

    @Override
    public BranchUndoLog decode(byte[] bytes) {
        try {
            BranchUndoLog branchUndoLog;
            if (Arrays.equals(bytes, getDefaultContent())) {
                branchUndoLog = new BranchUndoLog();
            } else {
                branchUndoLog = mapper.readValue(bytes, BranchUndoLog.class);
            }
            return branchUndoLog;
        } catch (IOException e) {
            LOGGER.error("json decode exception, {}", e.getMessage(), e);
            throw new RuntimeException(e);
        }
    }

    /**
     * if necessary
     * extend {@link ArraySerializerBase}
     */
    private static class TimestampSerializer extends JsonSerializer<Timestamp> {

        @Override
        public void serializeWithType(Timestamp timestamp, JsonGenerator gen, SerializerProvider serializers,
                                      TypeSerializer typeSerializer) throws IOException {
            WritableTypeId typeId = typeSerializer.writeTypePrefix(gen,
                typeSerializer.typeId(timestamp, JsonToken.START_ARRAY));
            serialize(timestamp, gen, serializers);
            gen.writeTypeSuffix(typeId);
        }

        @Override
        public void serialize(Timestamp timestamp, JsonGenerator gen, SerializerProvider serializers) {
            try {
                gen.writeNumber(timestamp.getTime());
                gen.writeNumber(timestamp.getNanos());
            } catch (IOException e) {
                LOGGER.error("serialize java.sql.Timestamp error : {}", e.getMessage(), e);
            }

        }
    }

    /**
     * if necessary
     * extend {@link JsonNodeDeserializer}
     */
    private static class TimestampDeserializer extends JsonDeserializer<Timestamp> {

        @Override
        public Timestamp deserialize(JsonParser p, DeserializationContext ctxt) {
            if (p.isExpectedStartArrayToken()) {
                ArrayNode arrayNode;
                try {
                    arrayNode = p.getCodec().readTree(p);
                    Timestamp timestamp = new Timestamp(arrayNode.get(0).asLong());
                    timestamp.setNanos(arrayNode.get(1).asInt());
                    return timestamp;
                } catch (IOException e) {
                    LOGGER.error("deserialize java.sql.Timestamp error : {}", e.getMessage(), e);
                }
            }
            LOGGER.error("deserialize java.sql.Timestamp type error.");
            return null;
        }
    }

    /**
     * the class of serialize blob type
     */
    private static class BlobSerializer extends JsonSerializer<SerialBlob> {

        @Override
        public void serializeWithType(SerialBlob blob, JsonGenerator gen, SerializerProvider serializers,
                                      TypeSerializer typeSer) throws IOException {
            WritableTypeId typeIdDef = typeSer.writeTypePrefix(gen,
                typeSer.typeId(blob, JsonToken.VALUE_EMBEDDED_OBJECT));
            serialize(blob, gen, serializers);
            typeSer.writeTypeSuffix(gen, typeIdDef);
        }

        @Override
        public void serialize(SerialBlob blob, JsonGenerator gen, SerializerProvider serializers) throws IOException {
            try {
                gen.writeBinary(blob.getBytes(1, (int)blob.length()));
            } catch (SerialException e) {
                LOGGER.error("serialize java.sql.Blob error : {}", e.getMessage(), e);
            }
        }
    }

    /**
     * the class of deserialize blob type
     */
    private static class BlobDeserializer extends JsonDeserializer<SerialBlob> {

        @Override
        public SerialBlob deserialize(JsonParser p, DeserializationContext ctxt) throws IOException {
            try {
                return new SerialBlob(p.getBinaryValue());
            } catch (SQLException e) {
                LOGGER.error("deserialize java.sql.Blob error : {}", e.getMessage(), e);
            }
            return null;
        }
    }

    /**
     * the class of serialize clob type
     */
    private static class ClobSerializer extends JsonSerializer<SerialClob> {

        @Override
        public void serializeWithType(SerialClob clob, JsonGenerator gen, SerializerProvider serializers,
                                      TypeSerializer typeSer) throws IOException {
            WritableTypeId typeIdDef = typeSer.writeTypePrefix(gen,
                typeSer.typeId(clob, JsonToken.VALUE_EMBEDDED_OBJECT));
            serialize(clob, gen, serializers);
            typeSer.writeTypeSuffix(gen, typeIdDef);
        }

        @Override
        public void serialize(SerialClob clob, JsonGenerator gen, SerializerProvider serializers) throws IOException {
            try {
                gen.writeString(clob.getCharacterStream(), (int)clob.length());
            } catch (SerialException e) {
                LOGGER.error("serialize java.sql.Blob error : {}", e.getMessage(), e);
            }
        }
    }

    private static class ClobDeserializer extends JsonDeserializer<SerialClob> {

        @Override
        public SerialClob deserialize(JsonParser p, DeserializationContext ctxt) throws IOException {
            try {
                return new SerialClob(p.getValueAsString().toCharArray());

            } catch (SQLException e) {
                LOGGER.error("deserialize java.sql.Clob error : {}", e.getMessage(), e);
            }
            return null;
        }
    }

}
复制代码

从上面可知,Jackson ObjectMapper对象,初始化的时候没有针对LocalDateTime进行序列化和反序列化。故而无法序列化为JSON,在1.5.1版本已经修复,

image-1658711729880

2.1.2 解决办法

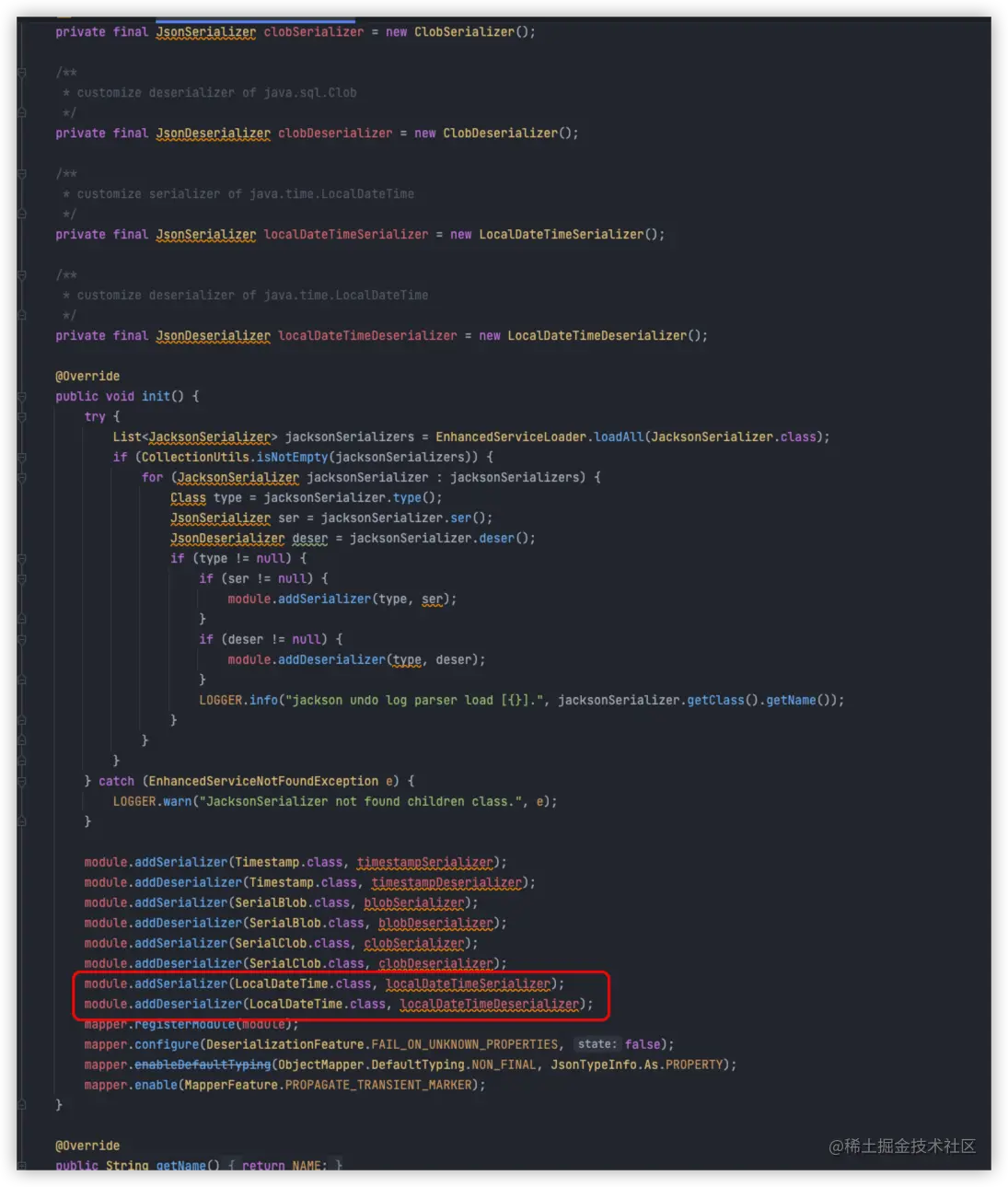

1.5.1 处理的源码如下 image-1658711804433

2.1.2.1 升级seata版本至1.5.1

<dependency>
  <groupId>io.seata</groupId>
  <artifactId>seata-spring-boot-starter</artifactId>
  <version>1.5.1</version>
</dependency>
复制代码

2.1.2.2 加上LocalDateTime序列化和反序列化spi

从上面1.4.2源码可知,seata提供了spi机制进行动态的添加序列化和反序列化机制的实现 image-1658712120858

由此,我们只需要实现JacksonSerializer接口,即可实现序列化和反序列化

  1. 新建LocalDateTimeJacksonSerializer类 代码如下:
package io.seata.rm.datasource.undo.parser.spi;

import com.fasterxml.jackson.databind.JsonDeserializer;
import com.fasterxml.jackson.databind.JsonSerializer;
import com.fasterxml.jackson.datatype.jsr310.deser.LocalDateTimeDeserializer;
import com.fasterxml.jackson.datatype.jsr310.ser.LocalDateTimeSerializer;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

/**
 * description: seata LocalDateTime 序列化扩展点
 *
 * @author zhouxinlei
 * @since 2022-07-2022/7/21 11:31:48}
 */
public class LocalDateTimeJacksonSerializer implements JacksonSerializer<LocalDateTime> {

    /**
     * 标准日期时间格式,精确到毫秒:yyyy-MM-dd HH:mm:ss.SSS
     */
    public static final String NORM_DATETIME_MS_PATTERN = "yyyy-MM-dd HH:mm:ss.SSS";

    @Override
    public Class<LocalDateTime> type() {
        return LocalDateTime.class;
    }

    @Override
    public JsonSerializer<LocalDateTime> ser() {
        return new LocalDateTimeSerializer(DateTimeFormatter.ofPattern(NORM_DATETIME_MS_PATTERN));
    }

    @Override
    public JsonDeserializer<? extends LocalDateTime> deser() {
        return new LocalDateTimeDeserializer(DateTimeFormatter.ofPattern(NORM_DATETIME_MS_PATTERN));
    }
}
复制代码
  1. SPI装配 同时,在resources META-INF/seata目录,新建io.seata.rm.datasource.undo.parser.spi.JacksonSerializer文件 ,加入我们刚刚实现的LocalDateTimeJacksonSerializer
io.seata.rm.datasource.undo.parser.spi.LocalDateTimeJacksonSerializer
复制代码

至此就支持 LocalDateTime 的序列化和反序列化了。

2.1.2.2 更换序列化方式

  • FastjsonUndoLogParser:Fastjson序列化工具
  • FstUndoLogParser:Fst序列化工具
  • JacksonUndoLogParser:Jackson序列化工具
  • KryoUndoLogParser:Kryo序列化工具
  • ProtostuffUndoLogParser:Protostuff序列化工具

使用KryoUndoLogParser序列化工具,实测,插入没问题,但是在反序列化的时候又会出现反序列化LocalDateTime失败,建议不使用。其他的还没有试过

2.2 undo_log needs to contain the primary key

2.2.1 堆栈信息

java.sql.SQLException: io.seata.common.exception.NotSupportYetException: undo_log needs to contain the primary key.
	at io.seata.rm.datasource.undo.mysql.MySQLUndoLogManager.insertUndoLog(MySQLUndoLogManager.java:93)
	at io.seata.rm.datasource.undo.mysql.MySQLUndoLogManager.insertUndoLogWithNormal(MySQLUndoLogManager.java:74)
	at io.seata.rm.datasource.undo.AbstractUndoLogManager.flushUndoLogs(AbstractUndoLogManager.java:242)
	at io.seata.rm.datasource.ConnectionProxy.processGlobalTransactionCommit(ConnectionProxy.java:255)
	at io.seata.rm.datasource.ConnectionProxy.doCommit(ConnectionProxy.java:230)
	at io.seata.rm.datasource.ConnectionProxy.lambda$commit$0(ConnectionProxy.java:188)
	at io.seata.rm.datasource.ConnectionProxy$LockRetryPolicy.execute(ConnectionProxy.java:333)
	at io.seata.rm.datasource.ConnectionProxy.commit(ConnectionProxy.java:187)
复制代码

官方提供的seata at 模式的脚本undo_log 是没有设置主键的,所以我们设要设置undo_log日志表的branch_id字段为主键或者定义一个自增id

CREATE TABLE `undo_log`
(
    `id`            INT(11)      NOT NULL AUTO_INCREMENT,
    `branch_id`     BIGINT(20)   NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(100) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   datetime(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  datetime(6)  NOT NULL COMMENT 'modify datetime',
    PRIMARY KEY (`id`),
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = INNODB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT = 'AT transaction mode undo table'
复制代码
