概览
Activity作为四大组件之首,重要性不言而喻。一个Activity从启动到显示,这其中的流程是怎么样的?生命周期何时回调?带着这些疑问,我们需要去一探究竟。
总体来说,Activity的启动流程,大致可分为三个阶段
:
App端准备阶段
System Server(AMS)启动阶段
App端最后处理阶段
一些概念
ActivityStackSuperVisor/ActivityStack/TaskRecord/ActivityRecord
从系统和应用两个角度来看:
- 应用端
- Activity: 这就是我们熟悉的Activity对象
- ActivityClientRecord: 包含了Activity的所有信息,如与AMS联系的mToken等。ActivityClientRecord是ActivityThread的内部类
- AMS端
- ActivityDisplay: 代表显示屏幕,编号0为默认的屏幕。理论上可以有多个。对应一个ActivityStackSuperVisor对象。
- ActivityStackSuperVisor:包含多个 ActivityStack,管理 ActivityStack 显示的层级。
- ActivityStack: 包含多个TaskRecord。展示管理TaskRecord显示层级。
- TaskRecord: 代表一个栈,是我们常说的activity栈。包含多个 ActivityRecord对象。
- ActivityRecord:代表一个activity对象
- ActivityInfo: 包含 Activity的所有信息,从PMS中解析而来。

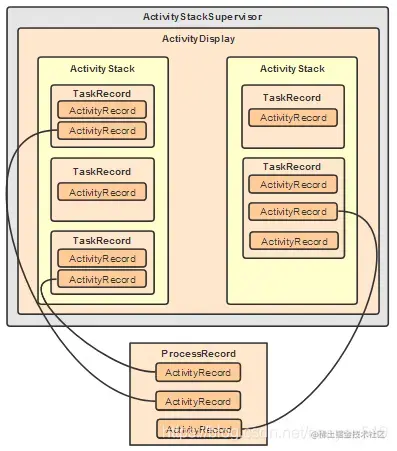

关系如下:
一、App端准备阶段
想启动一个activity很简单,调用startActivity()方法即可。 根据当前应用进程是否被拉起又可以分为启动根activity和普通activity,这两种在activity启动流程上没有本质区别。当应用未被拉起时候,会优先去拉起应用,然后才去执行启动逻辑。 如果应用已经在运行,那么直接执行启动逻辑。
因此,我们先直接看启动流程,启动的流程可以参考 Launcher启动
篇。
1.1 Activity.java
public void startActivity(Intent intent, @Nullable Bundle options) {
if (options != null) {
startActivityForResult(intent, -1, options);
} else {
// Note we want to go through this call for compatibility with
// applications that may have overridden the method.
startActivityForResult(intent, -1);
}
}
public void startActivityForResult(@RequiresPermission Intent intent, int requestCode) {
startActivityForResult(intent, requestCode, null);
}
public void startActivityForResult(@RequiresPermission Intent intent, int requestCode,
@Nullable Bundle options) {
// mParent一直为空 ,走该分支
if (mParent == null) {
options = transferSpringboardActivityOptions(options);
Instrumentation.ActivityResult ar =
mInstrumentation.execStartActivity(
// 1 传入参数
this, mMainThread.getApplicationThread(), mToken, this,
intent, requestCode, options);
if (ar != null) {
mMainThread.sendActivityResult(
mToken, mEmbeddedID, requestCode, ar.getResultCode(),
ar.getResultData());
}
if (requestCode >= 0) {
// If this start is requesting a result, we can avoid making
// the activity visible until the result is received. Setting
// this code during onCreate(Bundle savedInstanceState) or onResume() will keep the
// activity hidden during this time, to avoid flickering.
// This can only be done when a result is requested because
// that guarantees we will get information back when the
// activity is finished, no matter what happens to it.
mStartedActivity = true;
}
cancelInputsAndStartExitTransition(options);
// TODO Consider clearing/flushing other event sources and events for child windows.
} else {
...
}
}
- ActivityResult: 启动结果
- mMainThread: 是 ActivityThread 对象。
- mToken: IBinder对象。 是
ActivityRecord
的静态内部类。 持有ActivityRecord的弱引用
。保持跨进程的联系。 - getApplicationThread: 是 ActivityThread 静态内部类对象 ApplicationThread 。
1.1.1 mToken为何物?
是 ActivityRecord 的静态内部类。
static class Token extends IApplicationToken.Stub {
private final WeakReference<ActivityRecord> weakActivity;
private final String name;
Token(ActivityRecord activity, Intent intent) {
weakActivity = new WeakReference<>(activity);
name = intent.getComponent().flattenToShortString();
}
1.2 Instrumentation.execStartActivity()
public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options) {
//发起者的 IApplicationThread ,用来给AMS回调
IApplicationThread whoThread = (IApplicationThread) contextThread;
// 引荐者。表示谁发起的这个启动Acitivity请求
Uri referrer = target != null ? target.onProvideReferrer() : null;
if (referrer != null) {
intent.putExtra(Intent.EXTRA_REFERRER, referrer);
}
if (mActivityMonitors != null) {
synchronized (mSync) {
final int N = mActivityMonitors.size();
for (int i=0; i<N; i++) {
final ActivityMonitor am = mActivityMonitors.get(i);
ActivityResult result = null;
if (am.ignoreMatchingSpecificIntents()) {
result = am.onStartActivity(intent);
}
if (result != null) {
am.mHits++;
return result;
} else if (am.match(who, null, intent)) {
am.mHits++;
if (am.isBlocking()) {
return requestCode >= 0 ? am.getResult() : null;
}
break;
}
}
}
}
try {
intent.migrateExtraStreamToClipData();
intent.prepareToLeaveProcess(who);
// atm服务
int result = ActivityTaskManager.getService()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, options);
checkStartActivityResult(result, intent);
} catch (RemoteException e) {
throw new RuntimeException("Failure from system", e);
}
return null;
}
- Context who: 正在启动activity是从哪个context过来的
- IBinder contextThread : 启动activity的context所在的主线程
- IBinder token: Activity对象在系统中的唯一凭证,表示谁正在启动activity,可以为null。如:从service的context中启动activity。
- Activity target:(可以理解为接收结果的activity)。可能为null,如从service中启动。跟上一个的区别?? 前者是系统,后者是app侧。
- Intent intent: 实际要启动的intent。
- int requestCode: 请求码,用来定义启动结果的唯一凭证。如果不需要启动结果,那么设置为负数。
- Bundle options : 附加参数。
简简单单的一个binder请求。到atm侧: Android 10 已经把 activity相关的逻辑都转移到了atm中。
二、System Server(AMS)启动阶段
2.1 ActivityTaskManagerService.startActivity()
ActivityTaskManagerService.java
@Override
public final int startActivity(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle bOptions) {
// startFlags=0;profileinfo=null;
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
resultWho, requestCode, startFlags, profilerInfo, bOptions,
UserHandle.getCallingUserId()); // 添加了userid参数
}
- caller: 表示是哪个app侧调用的。
- applicationThread: 代表app端的binder服务,给AMS回调app用
- callingPackage: 启动的包名
- resultTo: IBinder 对象。 就是app传递过来的 token 表示启动者,同时也是结果接受者。
- resultWho: string 类型
- target.mEmbeddedID。 也代表启动者。
- profilerInfo : null
2.1.1 startActivityAsUser()
@Override
public int startActivityAsUser(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
resultWho, requestCode, startFlags, profilerInfo, bOptions, userId,
true /*validateIncomingUser*/); // 经过验证的用户:true。
}
userId: 当前用户id。Android支持多用户。
2.1.2 startActivityAsUser()
int startActivityAsUser(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId,
boolean validateIncomingUser) {
enforceNotIsolatedCaller("startActivityAsUser");
// 检测发起者用户是否合法?
userId = getActivityStartController().checkTargetUser(userId, validateIncomingUser,
Binder.getCallingPid(), Binder.getCallingUid(), "startActivityAsUser");
// TODO: Switch to user app stacks here.
// 在这里切换app的栈
return getActivityStartController().obtainStarter(intent, "startActivityAsUser")
.setCaller(caller)
.setCallingPackage(callingPackage)
.setResolvedType(resolvedType)
.setResultTo(resultTo)
.setResultWho(resultWho)
.setRequestCode(requestCode)
.setStartFlags(startFlags)
.setProfilerInfo(profilerInfo)
.setActivityOptions(bOptions)
//这个很关键
.setMayWait(userId)
.execute();
}
ActivityStartController.obtainStarter() 返回一个 ActivityStarter启动器。用来执行execute()方法,一旦执行完毕就不应该修改了。
ActivityStarter 启动器。 调用了一些列的set方法往 ActivityStarter 的成员变量 mRequest中设置参数。把app传递过来的参数,封装到了mRequest对象。
2.2 ActivityStarter.startActivity()
ActivityStarter.java
private int startActivity(IApplicationThread caller, Intent intent, Intent ephemeralIntent,
String resolvedType, ActivityInfo aInfo, ResolveInfo rInfo,
IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
IBinder resultTo, String resultWho, int requestCode, int callingPid, int callingUid,
String callingPackage, int realCallingPid, int realCallingUid, int startFlags,
SafeActivityOptions options,
boolean ignoreTargetSecurity, boolean componentSpecified, ActivityRecord[] outActivity,
TaskRecord inTask, boolean allowPendingRemoteAnimationRegistryLookup,
PendingIntentRecord originatingPendingIntent, boolean allowBackgroundActivityStart) {
// 1 获取调用者进程对象 ProcessRecord
WindowProcessController callerApp = null;
if (caller != null) {
callerApp = mService.getProcessController(caller);
if (callerApp != null) {
callingPid = callerApp.getPid();
callingUid = callerApp.mInfo.uid;
} else {
Slog.w(TAG, "Unable to find app for caller " + caller
+ " (pid=" + callingPid + ") when starting: "
+ intent.toString());
err = ActivityManager.START_PERMISSION_DENIED;
}
}
//2 处理intent,以及 FLAG_ACTIVITY_FORWARD_RESULT 标志逻辑
final int launchFlags = intent.getFlags();
if ((launchFlags & Intent.FLAG_ACTIVITY_FORWARD_RESULT) != 0 && sourceRecord != null) {
// Transfer the result target from the source activity to the new
// one being started, including any failures.
if (requestCode >= 0) {
SafeActivityOptions.abort(options);
return ActivityManager.START_FORWARD_AND_REQUEST_CONFLICT;
}
resultRecord = sourceRecord.resultTo;
if (resultRecord != null && !resultRecord.isInStackLocked()) {
resultRecord = null;
}
resultWho = sourceRecord.resultWho;
requestCode = sourceRecord.requestCode;
sourceRecord.resultTo = null;
if (resultRecord != null) {
resultRecord.removeResultsLocked(sourceRecord, resultWho, requestCode);
}
//...
}
// 3 启动权限检查
boolean abort = !mSupervisor.checkStartAnyActivityPermission(intent, aInfo, resultWho,
requestCode, callingPid, callingUid, callingPackage, ignoreTargetSecurity,
inTask != null, callerApp, resultRecord, resultStack);
abort |= !mService.mIntentFirewall.checkStartActivity(intent, callingUid,
callingPid, resolvedType, aInfo.applicationInfo);
abort |= !mService.getPermissionPolicyInternal().checkStartActivity(intent, callingUid,
callingPackage);
boolean restrictedBgActivity = false;
//...
// 4 创建启动activity在AMS内存中的对象 ActivityRecord
ActivityRecord r = new ActivityRecord(mService, callerApp, callingPid, callingUid,callingPackage, intent, resolvedType, aInfo, mService.getGlobalConfiguration(),resultRecord, resultWho, requestCode, componentSpecified, voiceSession != null,mSupervisor, checkedOptions, sourceRecord);
if (outActivity != null) {
// 把启动对象ar,赋值到 outActivity列表中第一个位置。
outActivity[0] = r;
}
// 5 继续调用另外一个 startActivity()
final int res = startActivity(r, sourceRecord, voiceSession, voiceInteractor, startFlags,
true /* doResume */, checkedOptions, inTask, outActivity, restrictedBgActivity);
}
创建要启动的ActivityRecord 对象,继续调用另一个 startActivity():
2.2.1 startActivity()
private int startActivity(final ActivityRecord r, ActivityRecord sourceRecord,
IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
int startFlags, boolean doResume, ActivityOptions options, TaskRecord inTask,
ActivityRecord[] outActivity, boolean restrictedBgActivity) {
int result = START_CANCELED;
final ActivityStack startedActivityStack;
try {
mService.mWindowManager.deferSurfaceLayout();
// 调用 startActivityUnchecked()
result = startActivityUnchecked(r, sourceRecord, voiceSession, voiceInteractor,
startFlags, doResume, options, inTask, outActivity, restrictedBgActivity);
} finally {
}
}
2.2.2 startActivityUnchecked()
ActivityStarter.java
private int startActivityUnchecked(final ActivityRecord r, ActivityRecord sourceRecord,
IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
int startFlags, boolean doResume, ActivityOptions options, TaskRecord inTask,
ActivityRecord[] outActivity, boolean restrictedBgActivity) {
final boolean dontStart = top != null && mStartActivity.resultTo == null
&& top.mActivityComponent.equals(mStartActivity.mActivityComponent)
&& top.mUserId == mStartActivity.mUserId
&& top.attachedToProcess()
&& ((mLaunchFlags & FLAG_ACTIVITY_SINGLE_TOP) != 0
|| isLaunchModeOneOf(LAUNCH_SINGLE_TOP, LAUNCH_SINGLE_TASK))
// This allows home activity to automatically launch on secondary display when
// display added, if home was the top activity on default display, instead of
// sending new intent to the home activity on default display.
&& (!top.isActivityTypeHome() || top.getDisplayId() == mPreferredDisplayId);
// 根据设置的启动模式来如果不启动新的activity,那么久回调它的 onNewIntent()方法
if (dontStart) {
// For paranoia, make sure we have correctly resumed the top activity.
topStack.mLastPausedActivity = null;
if (mDoResume) {
mRootActivityContainer.resumeFocusedStacksTopActivities();
}
ActivityOptions.abort(mOptions);
if ((mStartFlags & START_FLAG_ONLY_IF_NEEDED) != 0) {
// We don't need to start a new activity, and the client said not to do
// anything if that is the case, so this is it!
return START_RETURN_INTENT_TO_CALLER;
}
// 设置 Activity的 newIntent
deliverNewIntent(top);
// Don't use mStartActivity.task to show the toast. We're not starting a new activity
// but reusing 'top'. Fields in mStartActivity may not be fully initialized.
mSupervisor.handleNonResizableTaskIfNeeded(top.getTaskRecord(), preferredWindowingMode,
mPreferredDisplayId, topStack);
return START_DELIVERED_TO_TOP;
}
// ...
// 1 是否要新建一个taskRecord 栈?
boolean newTask = false;
final TaskRecord taskToAffiliate = (mLaunchTaskBehind && mSourceRecord != null)
? mSourceRecord.getTaskRecord() : null;
// Should this be considered a new task?
int result = START_SUCCESS;
if (mStartActivity.resultTo == null && mInTask == null && !mAddingToTask
&& (mLaunchFlags & FLAG_ACTIVITY_NEW_TASK) != 0) {
// 如果是是,则创建新的 TaskRecord
newTask = true;
result = setTaskFromReuseOrCreateNewTask(taskToAffiliate);
} else if (mSourceRecord != null) {
result = setTaskFromSourceRecord();
} else if (mInTask != null) {
result = setTaskFromInTask();
} else {
// This not being started from an existing activity, and not part of a new task...
// just put it in the top task, though these days this case should never happen.
result = setTaskToCurrentTopOrCreateNewTask();
}
if (result != START_SUCCESS) {
return result;
}
...
// 2 处理 ActivityRecord 入栈 TaskRecord 逻辑
mTargetStack.startActivityLocked(mStartActivity, topFocused, newTask, mKeepCurTransition,
mOptions);
// 3 resume顶部的activity
if (mDoResume) {
final ActivityRecord topTaskActivity =
mStartActivity.getTaskRecord().topRunningActivityLocked();
if (!mTargetStack.isFocusable()
|| (topTaskActivity != null && topTaskActivity.mTaskOverlay
&& mStartActivity != topTaskActivity)) {
mTargetStack.ensureActivitiesVisibleLocked(mStartActivity, 0, !PRESERVE_WINDOWS);
// Go ahead and tell window manager to execute app transition for this activity
// since the app transition will not be triggered through the resume channel.
mTargetStack.getDisplay().mDisplayContent.executeAppTransition();
} else {
// resume栈顶的activity
mRootActivityContainer.resumeFocusedStacksTopActivities(
mTargetStack, mStartActivity, mOptions);
}
} else if (mStartActivity != null) {
mSupervisor.mRecentTasks.add(mStartActivity.getTaskRecord());
}
}
- 根据设置的
启动模式
来如果不启动新的 Activity,那么就设置newIntent
,以便后续回调它的 onNewIntent()方法 - 确认使用的栈TaskRecord,如果有需 要则创建一个新的栈。
入栈之前创建的ActivityRecord
到得到的栈对象TaskRecord中。- 让栈中activity获取焦点。
2.3 RootActivityContainer.resumeFocusedStacksTopActivities()
/com/android/server/wm/RootActivityContainer.java
boolean resumeFocusedStacksTopActivities(
ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {
boolean result = false;
if (targetStack != null && (targetStack.isTopStackOnDisplay()
|| getTopDisplayFocusedStack() == targetStack)) {
// 开始启动
result = targetStack.resumeTopActivityUncheckedLocked(target, targetOptions);
}
for (int displayNdx = mActivityDisplays.size() - 1; displayNdx >= 0; --displayNdx) {
boolean resumedOnDisplay = false;
final ActivityDisplay display = mActivityDisplays.get(displayNdx);
for (int stackNdx = display.getChildCount() - 1; stackNdx >= 0; --stackNdx) {
final ActivityStack stack = display.getChildAt(stackNdx);
final ActivityRecord topRunningActivity = stack.topRunningActivityLocked();
if (!stack.isFocusableAndVisible() || topRunningActivity == null) {
continue;
}
if (stack == targetStack) {
// Simply update the result for targetStack because the targetStack had
// already resumed in above. We don't want to resume it again, especially in
// some cases, it would cause a second launch failure if app process was dead.
resumedOnDisplay |= result;
continue;
}
if (display.isTopStack(stack) && topRunningActivity.isState(RESUMED)) {
// Kick off any lingering app transitions form the MoveTaskToFront operation,
// but only consider the top task and stack on that display.
stack.executeAppTransition(targetOptions);
} else {
resumedOnDisplay |= topRunningActivity.makeActiveIfNeeded(target);
}
}
// 以防万一,如果没有resume,那么就再次resume
if (!resumedOnDisplay) {
// In cases when there are no valid activities (e.g. device just booted or launcher
// crashed) it's possible that nothing was resumed on a display. Requesting resume
// of top activity in focused stack explicitly will make sure that at least home
// activity is started and resumed, and no recursion occurs.
final ActivityStack focusedStack = display.getFocusedStack();
if (focusedStack != null) {
focusedStack.resumeTopActivityUncheckedLocked(target, targetOptions);
}
}
}
2.4 ActivityStack.resumeTopActivityUncheckedLocked()
ActivityStack.java
boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
if (mInResumeTopActivity) {
// Don't even start recursing.
return false;
}
boolean result = false;
boolean result = false;
try {
// Protect against recursion.
mInResumeTopActivity = true;
result = resumeTopActivityInnerLocked(prev, options);
...
}
}
2.4.1 resumeTopActivityInnerLocked()
ActivityStack.java
private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
//找到当前栈的顶部activityRecord,因为之前已经插入了,所以这个next理论上跟prev是同一个
ActivityRecord next = topRunningActivityLocked(true /* focusableOnly */);
// 当前的activity是否正在running??
final boolean hasRunningActivity = next != null;
// 一些安全的操作确认,如用户、pausing等
...
// 如有activity正在pauseing,那么啥都不能做,直到pausing完成。
if (!mRootActivityContainer.allPausedActivitiesComplete()) {
if (DEBUG_SWITCH || DEBUG_PAUSE || DEBUG_STATES) Slog.v(TAG_PAUSE,
"resumeTopActivityLocked: Skip resume: some activity pausing.");
return false;
}
...
if(next.attachedToProcess()){
...
try {
final ClientTransaction transaction =
ClientTransaction.obtain(next.app.getThread(), next.appToken);
// Deliver all pending results.
ArrayList<ResultInfo> a = next.results;
if (a != null) {
final int N = a.size();
if (!next.finishing && N > 0) {
if (DEBUG_RESULTS) Slog.v(TAG_RESULTS,
"Delivering results to " + next + ": " + a);
transaction.addCallback(ActivityResultItem.obtain(a));
}
}
if (next.newIntents != null) {
// 如果启动activity已经存在,那么回调onNewIntent()方法
transaction.addCallback(
NewIntentItem.obtain(next.newIntents, true /* resume */));
}
...
} else {
// Whoops, need to restart this activity!
if (!next.hasBeenLaunched) {
next.hasBeenLaunched = true;
} else {
if (SHOW_APP_STARTING_PREVIEW) {
next.showStartingWindow(null /* prev */, false /* newTask */,
false /* taskSwich */);
}
if (DEBUG_SWITCH) Slog.v(TAG_SWITCH, "Restarting: " + next);
}
if (DEBUG_STATES) Slog.d(TAG_STATES, "resumeTopActivityLocked: Restarting " + next);
//
mStackSupervisor.startSpecificActivityLocked(next, true, true);
}
}
ActivityStack会判断 要启动的Activity以何种方式启动。
- 如果已经存在,如设置了singleTop模式,那么就回调onNewIntent()方法;
- 另一种情况则是启动新的Activity;
2.5 startSpecificActivityLocked()
android-29/com/android/server/wm/ActivityStackSupervisor.java
void startSpecificActivityLocked(ActivityRecord r, boolean andResume, boolean checkConfig) {
// Is this activity's application already running?
// 当前进程是否已经拉起?
final WindowProcessController wpc =
mService.getProcessController(r.processName, r.info.applicationInfo.uid);
boolean knownToBeDead = false;
if (wpc != null && wpc.hasThread()) {
try {
// 如果进程已经拉起,则启动activity
realStartActivityLocked(r, wpc, andResume, checkConfig);
return;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting activity "
+ r.intent.getComponent().flattenToShortString(), e);
}
// If a dead object exception was thrown -- fall through to
// restart the application.
knownToBeDead = true;
}
...
// 如果没有起来,则发送消息给 ams,ams再通过zygote fork() 出 进程
// Post message to start process to avoid possible deadlock of calling into AMS with the
// ATMS lock held.
final Message msg = PooledLambda.obtainMessage(
ActivityManagerInternal::startProcess, mService.mAmInternal, r.processName,
r.info.applicationInfo, knownToBeDead, "activity", r.intent.getComponent());
mService.mH.sendMessage(msg);
}
进程的拉起逻辑,这里不在展开。 我们直接跟踪 realStartActivityLocked():
2.5.1 ActivityStackSupervisor.realStartActivityLocked()
android-29/com/android/server/wm/ActivityStackSupervisor.java
boolean realStartActivityLocked(ActivityRecord r, WindowProcessController proc,
boolean andResume, boolean checkConfig) throws RemoteException {
// ...
// Create activity launch transaction.
// 1, 创建launch transactionItem
final ClientTransaction clientTransaction = ClientTransaction.obtain(
proc.getThread(), r.appToken);
final DisplayContent dc = r.getDisplay().mDisplayContent;
// 添加callback动作
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
System.identityHashCode(r), r.info,
// TODO: Have this take the merged configuration instead of separate global
// and override configs.
mergedConfiguration.getGlobalConfiguration(),
mergedConfiguration.getOverrideConfiguration(), r.compat,
r.launchedFromPackage, task.voiceInteractor, proc.getReportedProcState(),
r.icicle, r.persistentState, results, newIntents,
dc.isNextTransitionForward(), proc.createProfilerInfoIfNeeded(),
r.assistToken));
// 2 设置最终生命周期状态 Set desired final state.
final ActivityLifecycleItem lifecycleItem;
if (andResume) {
// 设置resume
lifecycleItem = ResumeActivityItem.obtain(dc.isNextTransitionForward());
} else {
lifecycleItem = PauseActivityItem.obtain();
}
clientTransaction.setLifecycleStateRequest(lifecycleItem);
//3,开始启动任务 Schedule transaction.
mService.getLifecycleManager().scheduleTransaction(clientTransaction);
// ...
}
2.6 ClientTransaction机制浅析

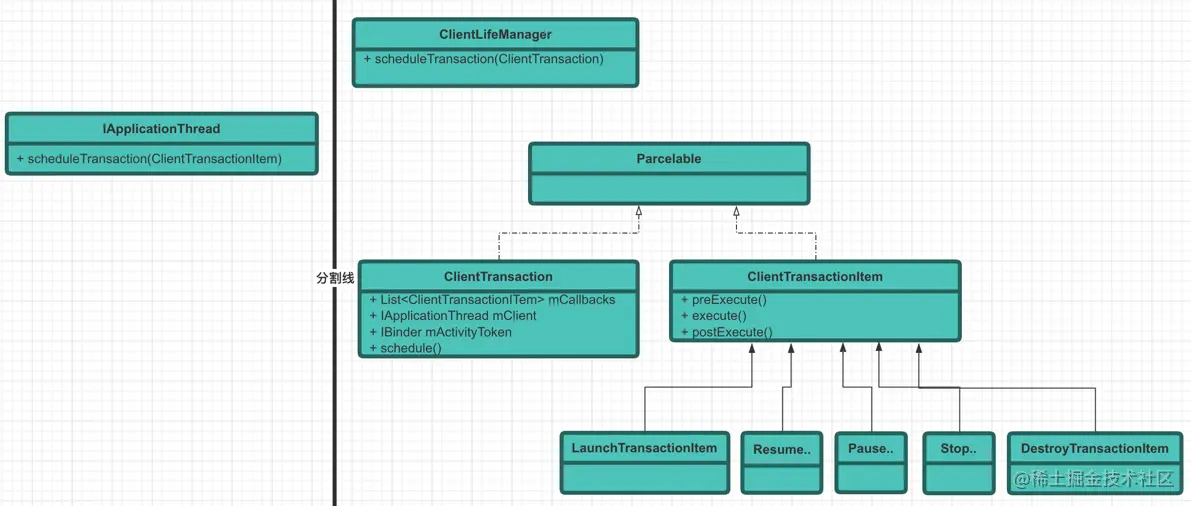

这里不得不说下 ClientTransaction 机制。 看关系图:
ClientLifeManager.scheduleTransaction(clientTransaction)方法,内部调用的是ClientTransaction的 schdule()
方法。内部的 mClient
对象是一个IBinder对象,其实就是App端的的 ApplicationThread
对象,继续调用 mClient的 scheduleTransaction()。至此,跨进程把数据传输到了App端。最终,调用ActivityThread的 HandleLaunchActivity()
。
具体详情,可以参考Launch篇,这里简单过一遍流程。
2.6.1 ClientLifeManager.scheduleTransaction()
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
//
transaction.schedule();
....
}
调用了ClientTransaction的 schedule():
2.6.2 ClientTransaction.schedule()
public void schedule() throws RemoteException {
mClient.scheduleTransaction(this);
}
mClient 对象是一个IBinder对象,其实就是App端的的ApplicationThread对象。因此,这里是一个跨进程的调用。 来到了App端。
三、App端最后处理阶段
3.1 ApplicationThread. scheduleTransaction()
@Override
public void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
ActivityThread.this.scheduleTransaction(transaction);
}
3.2 ActivityThread.scheduleTransaction()
ActivityThread没有这个方法,但是继承了 ClientTransactionHandler,父类有这个方法:
/** Prepare and schedule transaction for execution. */
void scheduleTransaction(ClientTransaction transaction) {
transaction.preExecute(this);
sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
}
- 首先执行preExecute(),此时还处于binder子线程
- 发送了一个消息 sendMessage 到主线程的 H,从binder线程切换到app端的主线程
3.2.1 ActivityThread.H.EXECUTE_TRANSACTION分支
case EXECUTE_TRANSACTION:
final ClientTransaction transaction = (ClientTransaction) msg.obj;
// 开始执行
mTransactionExecutor.execute(transaction);
...
break;
3.3 TransactionExecutor.execute()
android-29/android/app/servertransaction/TransactionExecutor.java
public void execute(ClientTransaction transaction) {
// 这个token很熟悉,可以简单理解为对应 AMS侧的ActivityRecord的凭证
final IBinder token = transaction.getActivityToken();
//...
//执行callback,
executeCallbacks(transaction);
// 执行生命周期
executeLifecycleState(transaction);
mPendingActions.clear();
}
执行两个方法:executeCallbacks()和 executeLifecycleState()。
3.3.1 executeCallbacks()
public void executeCallbacks(ClientTransaction transaction) {
final List<ClientTransactionItem> callbacks = transaction.getCallbacks();
if (callbacks == null || callbacks.isEmpty()) {
// No callbacks to execute, return early.
return;
}
final IBinder token = transaction.getActivityToken();
// r此时为空
ActivityClientRecord r = mTransactionHandler.getActivityClient(token);
final int size = callbacks.size();
for (int i = 0; i < size; ++i) {
// ...
item.execute(mTransactionHandler, token, mPendingActions);
item.postExecute(mTransactionHandler, token, mPendingActions);
if (r == null) {
// 对ActivityClientRecord进行 赋值
// Launch activity request will create an activity record.
r = mTransactionHandler.getActivityClient(token);
}
//...
}
}
内部调用ClientTransactionItem的两个抽象 execute() 和postExecute() 方法。 在2.5.1小节中我们加入过一个 LaunchAcitivityIitem。具体看看子类LaunchAcitivityIitem:
3.4 LaunchActivityItem.execute()
@Override
public void execute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
Trace.traceBegin(TRACE_TAG_A CTIVITY_MANAGER, "activityStart");
// 创建了一个 ActivityClientRecord 对象
ActivityClientRecord r = new ActivityClientRecord(token, mIntent, mIdent, mInfo,
mOverrideConfig, mCompatInfo, mReferrer, mVoiceInteractor, mState, mPersistentState,
mPendingResults, mPendingNewIntents, mIsForward,
mProfilerInfo, client, mAssistToken);
// 调用 ClientTransactionHandler 的 handleLaunchActivity 方法(),
client.handleLaunchActivity(r, pendingActions, null /* customIntent */);
Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
}
- 创建了一个
ActivityClientRecord
对象 - 调用 ClientTransactionHandler 的 handleLaunchActivity() 方法
ClientTransactionHandler中的 handleLaunchActivity() 是抽象的。所以看 ActivityThread 子类的:
3.5 ActivityThread.handleLaunchActivity()
public Activity handleLaunchActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions, Intent customIntent) {
// ...
final Activity a = performLaunchActivity(r, customIntent);
// ...
}
3.5.1 ActivityThread.performLaunchActivity()
ActivityThread.java
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// 设置 ActivityClientRecord 一些信息
ActivityInfo aInfo = r.activityInfo;
if (r.packageInfo == null) {
// 创建 LoadApk对象
r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
Context.CONTEXT_INCLUDE_CODE);
}
ComponentName component = r.intent.getComponent();
if (component == null) {
component = r.intent.resolveActivity(
mInitialApplication.getPackageManager());
r.intent.setComponent(component);
}
if (r.activityInfo.targetActivity != null) {
component = new ComponentName(r.activityInfo.packageName,
r.activityInfo.targetActivity);
}
// 2 创建activity的上下文,
ContextImpl appContext = createBaseContextForActivity(r);
// 3 通过反射,创建 Activity 对象
Activity activity = null;
try {
java.lang.ClassLoader cl = appContext.getClassLoader();
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
r.intent.prepareToEnterProcess();
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
// 实例化activity失败
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}
// 4, 创建application 对象 ,但是这里不会真正的去创建,因为在拉起进程的阶段已经做过了。直接返回之前的对象即可
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
...
// 5. attach 绑定上下文和window相关信息
appContext.setOuterContext(activity);
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config,
r.referrer, r.voiceInteractor, window, r.configCallback,
r.assistToken);
// 6, 设置主题
int theme = r.activityInfo.getThemeResource();
if (theme != 0) {
activity.setTheme(theme);
}
// 7, 回调onCreate() 方法
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
// 8 ,存入键值对中 ArrayMap<IBinder, ActivityClientRecord> mActivities
synchronized (mResourcesManager) {
mActivities.put(r.token, r);
}
// ...
}
上面注释写的很清楚了。我们看关键的几个点:
- 第二步中,创建activity的上下文。内部通过 new contextImpl() 对象。包含activity相关的资源信息、屏幕信息、包信息等。
- 第七步中,会回调 Activity中的
performCreate()
,最终调用 onCreate()方法。
3.5.2 ActivityThread.createBaseContextForActivity()
private ContextImpl createBaseContextForActivity(ActivityClientRecord r) {
//...
ContextImpl appContext = ContextImpl.createActivityContext(
this, r.packageInfo, r.activityInfo, r.token, displayId, r.overrideConfig);
//...
}
继续看 ContextImpl 中的 createActivityContext() 方法。r.packageInfo
是 LoadedApk 对象。
LoadedApk 包含了一个apk的所有信息(从app端角度)。
3.5.3 ContextImpl.createActivityContext()
static ContextImpl createActivityContext(ActivityThread mainThread,
LoadedApk packageInfo, ActivityInfo activityInfo, IBinder activityToken, int displayId,
Configuration overrideConfiguration) {
String[] splitDirs = packageInfo.getSplitResDirs();
ClassLoader classLoader = packageInfo.getClassLoader();
// ...
// new出 ContextImpl对象
ContextImpl context = new ContextImpl(null, mainThread, packageInfo, activityInfo.splitName,
activityToken, null, 0, classLoader, null);
// Clamp display ID to DEFAULT_DISPLAY if it is INVALID_DISPLAY.
displayId = (displayId != Display.INVALID_DISPLAY) ? displayId : Display.DEFAULT_DISPLAY;
final CompatibilityInfo compatInfo = (displayId == Display.DEFAULT_DISPLAY)
? packageInfo.getCompatibilityInfo()
: CompatibilityInfo.DEFAULT_COMPATIBILITY_INFO;
// 资源管理
final ResourcesManager resourcesManager = ResourcesManager.getInstance();
// Create the base resources for which all configuration contexts for this Activity
// will be rebased upon.
// 设置资源信息到context
context.setResources(resourcesManager.createBaseActivityResources(activityToken,
packageInfo.getResDir(),
splitDirs,
packageInfo.getOverlayDirs(),
packageInfo.getApplicationInfo().sharedLibraryFiles,
displayId,
overrideConfiguration,
compatInfo,
classLoader));
context.mDisplay = resourcesManager.getAdjustedDisplay(displayId,
context.getResources());
return context;
}
3.5.3 Activity.attach()
绑定Activity信息:
final void attach(Context context, ActivityThread aThread,
Instrumentation instr, IBinder token, int ident,
Application application, Intent intent, ActivityInfo info,
CharSequence title, Activity parent, String id,
NonConfigurationInstances lastNonConfigurationInstances,
Configuration config, String referrer, IVoiceInteractor voiceInteractor,
Window window, ActivityConfigCallback activityConfigCallback, IBinder assistToken) {
// 1 绑定context,因为activity是继承context的,所以mBase的赋值就在此处
attachBaseContext(context);
// 2 fragments attach
mFragments.attachHost(null /*parent*/);
// 3 绑定window
mWindow = new PhoneWindow(this, window, activityConfigCallback);
mWindow.setWindowControllerCallback(this);
mWindow.setCallback(this); // 设置callback
mWindow.setOnWindowDismissedCallback(this);
mWindow.getLayoutInflater().setPrivateFactory(this);
// 4 一堆赋值
mInstrumentation = instr;
mToken = token;
mAssistToken = assistToken;
mIdent = ident;
mApplication = application;
mIntent = intent;
mReferrer = referrer;
mComponent = intent.getComponent();
mActivityInfo = info;
mTitle = title;
mParent = parent;
mEmbeddedID = id;
// ....
}
3.5.4 Instrumentation.callActivityOnCreate()
android-29/android/app/Instrumentation.java
public void callActivityOnCreate(Activity activity, Bundle icicle) {
prePerformCreate(activity);
activity.performCreate(icicle);
postPerformCreate(activity);
}
3.5.5 Activity.performCreate()
final void performCreate(Bundle icicle) {
performCreate(icicle, null);
}
@UnsupportedAppUsage
final void performCreate(Bundle icicle, PersistableBundle persistentState) {
dispatchActivityPreCreated(icicle);
mCanEnterPictureInPicture = true;
restoreHasCurrentPermissionRequest(icicle);
if (persistentState != null) {
onCreate(icicle, persistentState);
} else {
// 调用 onCreate() 方法
onCreate(icicle);
}
writeEventLog(LOG_AM_ON_CREATE_CALLED, "performCreate");
mActivityTransitionState.readState(icicle);
mVisibleFromClient = !mWindow.getWindowStyle().getBoolean(
com.android.internal.R.styleable.Window_windowNoDisplay, false);
// 分发onCreate()到fragment
mFragments.dispatchActivityCreated();
mActivityTransitionState.setEnterActivityOptions(this, getActivityOptions());
dispatchActivityPostCreated(icicle);
}
至此,我们终于见到了熟悉的 onCreate()方法。 那其他生命周期方法呢?
四、Activity其他生命周期回调
4.1 executeLifecycleState()
还记得在 3.3节中 有调用这个方法。
该方法内部会调整生命周期的正确性,确保生命周期按照onCreate、onStart、onResume等顺序回调。
依次调用 handleStartActivity、handleResumeActivity、handlePauseActivity 、handleStopActivity、handleDestroyActivity
我们依次看看:
4.2 ActivityThread.handleStartActivity()
@Override
public void handleStartActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions) {
final Activity activity = r.activity;
...
// Start
activity.performStart("handleStartActivity");
r.setState(ON_START);
4.2.1 Activity.performStart():
final void performStart(String reason) {
dispatchActivityPreStarted();
mActivityTransitionState.setEnterActivityOptions(this, getActivityOptions());
mFragments.noteStateNotSaved();
mCalled = false;
// fragmentsg管理
mFragments.execPendingActions();
mInstrumentation.callActivityOnStart(this);
writeEventLog(LOG_AM_ON_START_CALLED, reason);
if (!mCalled) {
throw new SuperNotCalledException(
"Activity " + mComponent.toShortString() +
" did not call through to super.onStart()");
}
mFragments.dispatchStart();
mFragments.reportLoaderStart();
...
}
4.3 ActivityThread.handleResumeActivity()
@Override
public void handleResumeActivity(IBinder token, boolean finalStateRequest, boolean isForward,
String reason) {
// If we are getting ready to gc after going to the background, well
// we are back active so skip it.
unscheduleGcIdler();
mSomeActivitiesChanged = true;
// TODO Push resumeArgs into the activity for consideration
// 1 执行activity的 onResume() 方法
final ActivityClientRecord r = performResumeActivity(token, finalStateRequest, reason);
if (r == null) {
// 避免多次onResume() 执行
// We didn't actually resume the activity, so skipping any follow-up actions.
return;
}
// 如果该activity准备要destroy,那么久没必要去渲染UI了
if (mActivitiesToBeDestroyed.containsKey(token)) {
// Although the activity is resumed, it is going to be destroyed. So the following
// UI operations are unnecessary and also prevents exception because its token may
// be gone that window manager cannot recognize it. All necessary cleanup actions
// performed below will be done while handling destruction.
return;
}
final Activity a = r.activity;
if (localLOGV) {
Slog.v(TAG, "Resume " + r + " started activity: " + a.mStartedActivity
+ ", hideForNow: " + r.hideForNow + ", finished: " + a.mFinished);
}
//...
if (r.window == null && !a.mFinished && willBeVisible) {
r.window = r.activity.getWindow();
// 获取decorView
View decor = r.window.getDecorView();
// 设置decorView 可见
decor.setVisibility(View.INVISIBLE);
// 获取 windowmanager
ViewManager wm = a.getWindowManager();
// 获取window的布局参数
WindowManager.LayoutParams l = r.window.getAttributes();
a.mDecor = decor;
// window 类型
l.type = WindowManager.LayoutParams.TYPE_BASE_APPLICATION;
l.softInputMode |= forwardBit;
if (r.mPreserveWindow) {
a.mWindowAdded = true;
r.mPreserveWindow = false;
// Normally the ViewRoot sets up callbacks with the Activity
// in addView->ViewRootImpl#setView. If we are instead reusing
// the decor view we have to notify the view root that the
// callbacks may have changed.
ViewRootImpl impl = decor.getViewRootImpl();
if (impl != null) {
impl.notifyChildRebuilt();
}
}
if (a.mVisibleFromClient) {
if (!a.mWindowAdded) {
a.mWindowAdded = true;
// 把decorView添加到 window
wm.addView(decor, l);
} else {
// The activity will get a callback for this {@link LayoutParams} change
// earlier. However, at that time the decor will not be set (this is set
// in this method), so no action will be taken. This call ensures the
// callback occurs with the decor set.
a.onWindowAttributesChanged(l);
}
}
// If the window has already been added, but during resume
// we started another activity, then don't yet make the
// window visible.
} else if (!willBeVisible) {
if (localLOGV) Slog.v(TAG, "Launch " + r + " mStartedActivity set");
r.hideForNow = true;
}
// Get rid of anything left hanging around.
cleanUpPendingRemoveWindows(r, false /* force */);
// The window is now visible if it has been added, we are not
// simply finishing, and we are not starting another activity.
if (!r.activity.mFinished && willBeVisible && r.activity.mDecor != null && !r.hideForNow) {
if (r.newConfig != null) {
performConfigurationChangedForActivity(r, r.newConfig);
if (DEBUG_CONFIGURATION) {
Slog.v(TAG, "Resuming activity " + r.activityInfo.name + " with newConfig "
+ r.activity.mCurrentConfig);
}
r.newConfig = null;
}
if (localLOGV) Slog.v(TAG, "Resuming " + r + " with isForward=" + isForward);
WindowManager.LayoutParams l = r.window.getAttributes();
if ((l.softInputMode
& WindowManager.LayoutParams.SOFT_INPUT_IS_FORWARD_NAVIGATION)
!= forwardBit) {
l.softInputMode = (l.softInputMode
& (~WindowManager.LayoutParams.SOFT_INPUT_IS_FORWARD_NAVIGATION))
| forwardBit;
if (r.activity.mVisibleFromClient) {
ViewManager wm = a.getWindowManager();
View decor = r.window.getDecorView();
wm.updateViewLayout(decor, l);
}
}
r.activity.mVisibleFromServer = true;
mNumVisibleActivities++;
if (r.activity.mVisibleFromClient) {
r.activity.makeVisible();
}
}
r.nextIdle = mNewActivities;
mNewActivities = r;
if (localLOGV) Slog.v(TAG, "Scheduling idle handler for " + r);
Looper.myQueue().addIdleHandler(new Idler());
}
因此,可以知道先执行的onResume(),然后才开始渲染。
4.3.1 performResumeActivity():
public ActivityClientRecord performResumeActivity(IBinder token, boolean finalStateRequest,
String reason) {
final ActivityClientRecord r = mActivities.get(token);
if (r == null || r.activity.mFinished) {
return null;
}
if (r.getLifecycleState() == ON_RESUME) {
// ... 避免多次onResume
return null;
}
if (finalStateRequest) {
r.hideForNow = false;
r.activity.mStartedActivity = false;
}
try {
r.activity.onStateNotSaved();
r.activity.mFragments.noteStateNotSaved();
checkAndBlockForNetworkAccess();
if (r.pendingIntents != null) {
deliverNewIntents(r, r.pendingIntents);
r.pendingIntents = null;
}
if (r.pendingResults != null) {
deliverResults(r, r.pendingResults, reason);
r.pendingResults = null;
}
// 执行activity的 onResume方法
r.activity.performResume(r.startsNotResumed, reason);
r.state = null;
r.persistentState = null;
r.setState(ON_RESUME);
reportTopResumedActivityChanged(r, r.isTopResumedActivity, "topWhenResuming");
} ...
return r;
}
4.3.2 Activity.performResume():
final void performResume(boolean followedByPause, String reason) {
dispatchActivityPreResumed();
performRestart(true /* start */, reason);
mFragments.execPendingActions();
mLastNonConfigurationInstances = null;
if (mAutoFillResetNeeded) {
// When Activity is destroyed in paused state, and relaunch activity, there will be
// extra onResume and onPause event, ignore the first onResume and onPause.
// see ActivityThread.handleRelaunchActivity()
mAutoFillIgnoreFirstResumePause = followedByPause;
if (mAutoFillIgnoreFirstResumePause && DEBUG_LIFECYCLE) {
Slog.v(TAG, "autofill will ignore first pause when relaunching " + this);
}
}
mCalled = false;
// mResumed is set by the instrumentation
// 真正执行onResume方法
mInstrumentation.callActivityOnResume(this);
// invisible activities must be finished before onResume() completes
if (!mVisibleFromClient && !mFinished) {
Log.w(TAG, "An activity without a UI must call finish() before onResume() completes");
if (getApplicationInfo().targetSdkVersion
> android.os.Build.VERSION_CODES.LOLLIPOP_MR1) {
throw new IllegalStateException(
"Activity " + mComponent.toShortString() +
" did not call finish() prior to onResume() completing");
}
}
// Now really resume, and install the current status bar and menu.
mCalled = false;
// fragments分发
mFragments.dispatchResume();
mFragments.execPendingActions();
...
}
4.4 ActivityThread.handlePauseActivity()
@Override
public void handlePauseActivity(IBinder token, boolean finished, boolean userLeaving,
int configChanges, PendingTransactionActions pendingActions, String reason) {
ActivityClientRecord r = mActivities.get(token);
if (r != null) {
...
performPauseActivity(r, finished, reason, pendingActions);
// Make sure any pending writes are now committed.
if (r.isPreHoneycomb()) {
QueuedWork.waitToFinish();
}
mSomeActivitiesChanged = true;
}
}
4.4.1 performPauseActivity()
private Bundle performPauseActivity(ActivityClientRecord r, boolean finished, String reason,
PendingTransactionActions pendingActions) {
...
if (finished) {
r.activity.mFinished = true;
}
// Pre-Honeycomb apps always save their state before pausing
// 是否应该保存 state
final boolean shouldSaveState = !r.activity.mFinished && r.isPreHoneycomb();
if (shouldSaveState) {
callActivityOnSaveInstanceState(r);
}
performPauseActivityIfNeeded(r, reason);
// Notify any outstanding on paused listeners
// 通知注册了pause监听器
ArrayList<OnActivityPausedListener> listeners;
synchronized (mOnPauseListeners) {
listeners = mOnPauseListeners.remove(r.activity);
}
int size = (listeners != null ? listeners.size() : 0);
for (int i = 0; i < size; i++) {
listeners.get(i).onPaused(r.activity);
}
....
return shouldSaveState ? r.state : null;
}
从这里,当activity没有执行了finish,且小于Android 3.0,才会执行 OnSaveInstanceState() 方法,因此,这里不会执行。
4.4.2 performPauseActivityIfNeeded()
private void performPauseActivityIfNeeded(ActivityClientRecord r, String reason) {
if (r.paused) {
// You are already paused silly...
return;
}
// Always reporting top resumed position loss when pausing an activity. If necessary, it
// will be restored in performResumeActivity().
reportTopResumedActivityChanged(r, false /* onTop */, "pausing");
try {
r.activity.mCalled = false;
// 调用activity的 performPause()
mInstrumentation.callActivityOnPause(r.activity);
if (!r.activity.mCalled) {
throw new SuperNotCalledException("Activity " + safeToComponentShortString(r.intent)
+ " did not call through to super.onPause()");
}
}....
r.setState(ON_PAUSE);
}
4.4.3 Activity.performPause()
final void performPause() {
dispatchActivityPrePaused();
mDoReportFullyDrawn = false;
mFragments.dispatchPause();
mCalled = false;
onPause();
writeEventLog(LOG_AM_ON_PAUSE_CALLED, "performPause");
mResumed = false;
if (!mCalled && getApplicationInfo().targetSdkVersion
>= android.os.Build.VERSION_CODES.GINGERBREAD) {
throw new SuperNotCalledException(
"Activity " + mComponent.toShortString() +
" did not call through to super.onPause()");
}
dispatchActivityPostPaused();
}
4.5 ActivityThread.handleStopActivity()
@Override
public void handleStopActivity(IBinder token, boolean show, int configChanges,
PendingTransactionActions pendingActions, boolean finalStateRequest, String reason) {
final ActivityClientRecord r = mActivities.get(token);
r.activity.mConfigChangeFlags |= configChanges;
final StopInfo stopInfo = new StopInfo();
performStopActivityInner(r, stopInfo, show, true /* saveState */, finalStateRequest,
reason);
if (localLOGV) Slog.v(
TAG, "Finishing stop of " + r + ": show=" + show
+ " win=" + r.window);
updateVisibility(r, show);
// Make sure any pending writes are now committed.
if (!r.isPreHoneycomb()) {
QueuedWork.waitToFinish();
}
stopInfo.setActivity(r);
stopInfo.setState(r.state);
stopInfo.setPersistentState(r.persistentState);
pendingActions.setStopInfo(stopInfo);
mSomeActivitiesChanged = true;
}
4.5.1 performStopActivityInner()
ActivityThread.java
private void performStopActivityInner(ActivityClientRecord r, StopInfo info, boolean keepShown,
boolean saveState, boolean finalStateRequest, String reason) {
if (localLOGV) Slog.v(TAG, "Performing stop of " + r);
if (r != null) {
// One must first be paused before stopped...
// 确保先执行 pause方法
performPauseActivityIfNeeded(r, reason);
if (info != null) {
try {
// First create a thumbnail for the activity...
// For now, don't create the thumbnail here; we are
// doing that by doing a screen snapshot.
info.setDescription(r.activity.onCreateDescription());
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to save state of activity "
+ r.intent.getComponent().toShortString()
+ ": " + e.toString(), e);
}
}
}
if (!keepShown) {
callActivityOnStop(r, saveState, reason);
}
}
}
4.5.2 callActivityOnStop()
ActivityThread.java
private void callActivityOnStop(ActivityClientRecord r, boolean saveState, String reason) {
// Before P onSaveInstanceState was called before onStop, starting with P it's
// called after. Before Honeycomb state was always saved before onPause.
final boolean shouldSaveState = saveState && !r.activity.mFinished && r.state == null
&& !r.isPreHoneycomb();
final boolean isPreP = r.isPreP();
// P(android 28)之前
if (shouldSaveState && isPreP) {
// 执行 callActivityOnSaveInstanceState方法
callActivityOnSaveInstanceState(r);
}
try {
r.activity.performStop(r.mPreserveWindow, reason);
} ...
r.setState(ON_STOP);
//P(android 28)之后
if (shouldSaveState && !isPreP) {
callActivityOnSaveInstanceState(r);
}
}
onSaveInstanceState()
的调用时机, 这里的注释写的很清楚:
- 在Honeycomb(android 3.0)之前, 都是在
onPause() 之前
调用 - 从Honeycomb(android 3.0)之后,到P(android 28)之前, onSaveInstanceState()是在
onPause()之后
,onStop()之前
调用。 - 从P(android 28)之后,OnSaveInstanceState()是在
onStop()之后
调用
4.5.3 Activity.performStop()
final void performStop(boolean preserveWindow, String reason) {
mDoReportFullyDrawn = false;
mFragments.doLoaderStop(mChangingConfigurations /*retain*/);
// Disallow entering picture-in-picture after the activity has been stopped
mCanEnterPictureInPicture = false;
if (!mStopped) {
dispatchActivityPreStopped();
if (mWindow != null) {
mWindow.closeAllPanels();
}
// If we're preserving the window, don't setStoppedState to true, since we
// need the window started immediately again. Stopping the window will
// destroys hardware resources and causes flicker.
if (!preserveWindow && mToken != null && mParent == null) {
WindowManagerGlobal.getInstance().setStoppedState(mToken, true);
}
mFragments.dispatchStop();
mCalled = false;
mInstrumentation.callActivityOnStop(this);
writeEventLog(LOG_AM_ON_STOP_CALLED, reason);
if (!mCalled) {
throw new SuperNotCalledException(
"Activity " + mComponent.toShortString() +
" did not call through to super.onStop()");
}
synchronized (mManagedCursors) {
final int N = mManagedCursors.size();
for (int i=0; i<N; i++) {
ManagedCursor mc = mManagedCursors.get(i);
if (!mc.mReleased) {
mc.mCursor.deactivate();
mc.mReleased = true;
}
}
}
mStopped = true;
dispatchActivityPostStopped();
}
mResumed = false;
}
4.6 ActivityThread.handleDestroyActivity()
@Override
public void handleDestroyActivity(IBinder token, boolean finishing, int configChanges,
boolean getNonConfigInstance, String reason) {
// 执行 onDestroy方法
ActivityClientRecord r = performDestroyActivity(token, finishing,
configChanges, getNonConfigInstance, reason);
// 清理window绑定
if (r != null) {
cleanUpPendingRemoveWindows(r, finishing);
WindowManager wm = r.activity.getWindowManager();
View v = r.activity.mDecor;
if (v != null) {
if (r.activity.mVisibleFromServer) {
mNumVisibleActivities--;
}
IBinder wtoken = v.getWindowToken();
if (r.activity.mWindowAdded) {
if (r.mPreserveWindow) {
// Hold off on removing this until the new activity's
// window is being added.
r.mPendingRemoveWindow = r.window;
r.mPendingRemoveWindowManager = wm;
// We can only keep the part of the view hierarchy that we control,
// everything else must be removed, because it might not be able to
// behave properly when activity is relaunching.
r.window.clearContentView();
} else {
wm.removeViewImmediate(v);
}
}
if (wtoken != null && r.mPendingRemoveWindow == null) {
WindowManagerGlobal.getInstance().closeAll(wtoken,
r.activity.getClass().getName(), "Activity");
} else if (r.mPendingRemoveWindow != null) {
// We're preserving only one window, others should be closed so app views
// will be detached before the final tear down. It should be done now because
// some components (e.g. WebView) rely on detach callbacks to perform receiver
// unregister and other cleanup.
WindowManagerGlobal.getInstance().closeAllExceptView(token, v,
r.activity.getClass().getName(), "Activity");
}
r.activity.mDecor = null;
}
if (r.mPendingRemoveWindow == null) {
// If we are delaying the removal of the activity window, then
// we can't clean up all windows here. Note that we can't do
// so later either, which means any windows that aren't closed
// by the app will leak. Well we try to warning them a lot
// about leaking windows, because that is a bug, so if they are
// using this recreate facility then they get to live with leaks.
WindowManagerGlobal.getInstance().closeAll(token,
r.activity.getClass().getName(), "Activity");
}
// Mocked out contexts won't be participating in the normal
// process lifecycle, but if we're running with a proper
// ApplicationContext we need to have it tear down things
// cleanly.
Context c = r.activity.getBaseContext();
if (c instanceof ContextImpl) {
((ContextImpl) c).scheduleFinalCleanup(
r.activity.getClass().getName(), "Activity");
}
}
if (finishing) {
try {
ActivityTaskManager.getService().activityDestroyed(token);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
}
mSomeActivitiesChanged = true;
}
4.6.1 performDestroyActivity()
/** Core implementation of activity destroy call. */
ActivityClientRecord performDestroyActivity(IBinder token, boolean finishing,
int configChanges, boolean getNonConfigInstance, String reason) {
ActivityClientRecord r = mActivities.get(token);
Class<? extends Activity> activityClass = null;
if (localLOGV) Slog.v(TAG, "Performing finish of " + r);
if (r != null) {
activityClass = r.activity.getClass();
r.activity.mConfigChangeFlags |= configChanges;
if (finishing) {
r.activity.mFinished = true;
}
performPauseActivityIfNeeded(r, "destroy");
if (!r.stopped) {
callActivityOnStop(r, false /* saveState */, "destroy");
}
if (getNonConfigInstance) {
try {
r.lastNonConfigurationInstances
= r.activity.retainNonConfigurationInstances();
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to retain activity "
+ r.intent.getComponent().toShortString()
+ ": " + e.toString(), e);
}
}
}
try {
r.activity.mCalled = false;
//
mInstrumentation.callActivityOnDestroy(r.activity);
if (!r.activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + safeToComponentShortString(r.intent) +
" did not call through to super.onDestroy()");
}
if (r.window != null) {
r.window.closeAllPanels();
}
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to destroy activity " + safeToComponentShortString(r.intent)
+ ": " + e.toString(), e);
}
}
r.setState(ON_DESTROY);
}
schedulePurgeIdler();
// updatePendingActivityConfiguration() reads from mActivities to update
// ActivityClientRecord which runs in a different thread. Protect modifications to
// mActivities to avoid race.
synchronized (mResourcesManager) {
mActivities.remove(token);
}
StrictMode.decrementExpectedActivityCount(activityClass);
return r;
}
4.6.2 callActivityOnDestroy()
public void callActivityOnDestroy(Activity activity) {
// TODO: the following block causes intermittent hangs when using startActivity
// temporarily comment out until root cause is fixed (bug 2630683)
activity.performDestroy();
}
4.6.3 Activity.performDestroy()
final void performDestroy() {
dispatchActivityPreDestroyed();
mDestroyed = true;
mWindow.destroy();
// fragments先来
mFragments.dispatchDestroy();
onDestroy();
writeEventLog(LOG_AM_ON_DESTROY_CALLED, "performDestroy");
mFragments.doLoaderDestroy();
if (mVoiceInteractor != null) {
mVoiceInteractor.detachActivity();
}
dispatchActivityPostDestroyed();
}
至此,Activity启动流程和基本的生周期已经分析完成。如有错误之处,还望指正~
