随着移动互联网的飞速发展,硬件设备的不断升级,高清屏幕越来越普及。在开发时,对高清图的要求也越来越高。在制作 5 星评级效果时,也需要考虑高清屏的适配问题。
方案 1
方案图来源于大众点评
-
将所有的 评级设计图 都制作出来:
-
通过
background-position
、width
、height
来显示不同的评级。
该方案如何解决高清屏显示问题?
-
首先需要准备 不同的尺寸设计图,来适配不同的分辨率
-
通过 @media 或 image-set() 方法来适配对应的尺寸设计图。
-
豆瓣 基于
image-set()
实践效果图: -
Google play 基于
@media
实践效果图:
-
方案 2
-
将 5 星 与 0 星 合并在一起
-
通过
background-position
、width
、height
来显示不同的评级。另外,如果需要 半星 还需提供如下合成图:
实例
Amazon, 京东(评价), airbnb 等都使用了这种方案。
该方案如何解决高清屏显示问题?
与 方案 1 类似,不再赘述……
方案 3
上述 3 种方案只能由 0 星、0.5 星、1 星 组合而成。而对于 0.1 ~ 0.4 与 0.4 ~ 0.9 之间的无法精确表示。怎么破?接下来介绍的方案可以很好地解决该问题。
- 构建 5 个 0 星 作为底层
- 构建 5 个 1 星 作为显示层
- 将底层与显示层完全叠加,并且显示层置于底层之上。
- 控制显示层的宽来显示不同的评级。
原理图如下
<!-- 底层 -->
<div class="stars-back">
<!-- 显示层 -->
<div class="stars-display" style="width: 50%"></div>
</div>
.stars-back {
position: relative;
height: 20px;
width: 100px;
background: url(/images/zero.png) repeat-x 0 0;
overflow: hidden;
}
.stars-display {
height: 100%;
width: 100%;
background: url(/images/one.png) repeat-x 0 0;
}
如何制作显示层或底层?
- 通过图像软件制作输出。
- 使用单元图结合
background-repeat-x: repeat;
绘制输出。
实例
该方案如何解决高清屏显示问题?
与 方案 1 类似,不再赘述……
方案 4

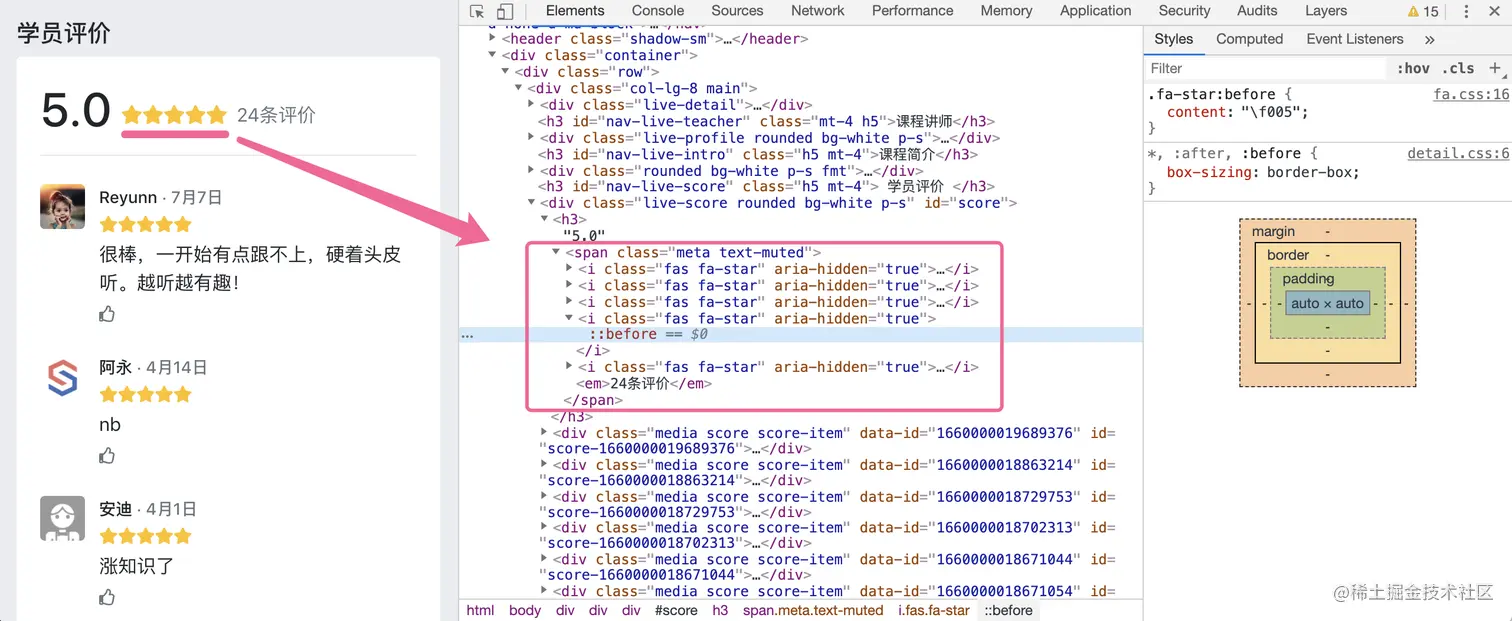

为了解决高清屏显示问题,也有使用 font icon 的解决方案
-
首先得将 star icon 制作成字体文件。
-
然后引入字体文件,根据评级情况使用不同的 star icon 字体
<!-- 3.5 星 --> <div class="stars"> <i class="iconfont icon-star-one"></i> <i class="iconfont icon-star-one"></i> <i class="iconfont icon-star-one"></i> <i class="iconfont icon-star-half"></i> <i class="iconfont icon-star-zero"></i> </div>
实例
segmentfault 就使用该技术方案
当然,也可以使用 SVG,原理与 icon font 类似。直接看 掘金 实例
方案 5
该方案是 方案 3 与 方案 4 结合。
- 使用 font icon 构建 底层 和 显示层。
- 通过控制显示层
width
来控制评级情况。
关键代码
<!-- 2.5 星 -->
<div class="stars">
<!-- 底层 -->
<div class="stars-back">
<i class="iconfont icon-star-zero"></i>
<i class="iconfont icon-star-zero"></i>
<i class="iconfont icon-star-zero"></i>
<i class="iconfont icon-star-zero"></i>
<i class="iconfont icon-star-zero"></i>
</div>
<!-- 显示层 -->
<div class="stars-display" style="width: 50%">
<i class="iconfont icon-star-one"></i>
<i class="iconfont icon-star-one"></i>
<i class="iconfont icon-star-one"></i>
<i class="iconfont icon-star-one"></i>
<i class="iconfont icon-star-one"></i>
</div>
</div>
实例
美团 就使用了这种技术方案。
方案 6(新方案)
5stars 一个基于 SVG 技术快速生成 5 星好评 的实用工具。更多详情请查看 ---> github。
对比
方案 | 间距 | 高清适配 | width |
---|---|---|---|
1 | ❌ | image-set() 或 @media | ❌ |
2 | ❌ | image-set() 或 @media | ❌ |
3 | ❌ | image-set() 或 @media | ✅ |
4 | ✅ | 字体,svg | ❌ |
5 | ✅ | 字体 | ✅ |
6 | ✅ | svg | ✅ |
singsong: 其他方案欢迎留言补充
