Image常用方法
.resizable()修改图像大小，根据frame进行调整.frame()设置宽或高.clipShape()裁剪到指定形状.border()设置边框 不会跟随圆角而变化.overlay()自定义添加的图层 可以是文字 图片等.aspectRatio()设置宽高比.clipped()超出区域进行裁剪.cornerRadius()设置圆角.blur()设置模糊样式 半径越大越模糊，opaque设置是否透明.shadow()设置阴影.brightness()设置图片亮度 负值 变黑 正值 变亮.colorInvert()颜色反转 设置图片亮度 负值 变黑 正值 变亮.colorMultiply()颜色偏向设置 结果色总是比较暗的颜色，变化的幅度较为均匀，任何颜色与黑色想成产生黑色，任何颜色与白色相乘保持不变.contrast()要应用的颜色对比度的强度。负值除了应用对比度外，还会反转颜色。.hueRotation()色调旋转效果很根据您指定的角度移动视图中的所有颜色，如果将色调旋转 360 度，则和原色一样.saturation()增加颜色饱和度，参数值大于 1 时，增加色彩的饱和度，参数值等于 1 时，饱和度和原色相同，参数值为 0 时，会清除图形里面的彩色信息，仅包含灰度信息.grayscale()灰度的强度从 0.0 到小于 1.0。接近 0.0 的值颜色更鲜艳，而接近 1.0 的值颜色较少

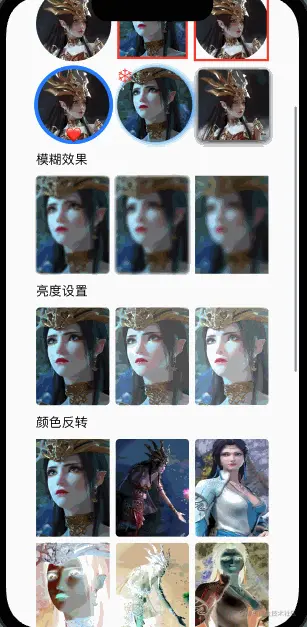

具体效果如下
贴上展示效果的代码，图片资源自己替换即可
import SwiftUI
//官方图标下载地址 https://developer.apple.com/sf-symbols/
/**
.resizable() to resize the image and adjust to the .frame() dimensions
.frame() to set its width/height
.clipShape() to set a clipping shape
.border() to set the color of the border
.overlay() to layer another view in front of it
.aspectRatio() to set the aspect ratio
.clipped() to cut off the image outside of the frame
*/
struct TestImageView: View {
var body: some View {
List{
createSystemImage()
createBasicImageEffect()
createImageBlur()
createImageBrightness()
createImageColor()
createImageColorMultiply()
createImageContrast()
createImageColorRotation()
createImageSaturation()
createImageGrayColor()
}
}
/// 系统图标 系统图标可以设置对应的字体
func createSystemImage() -> some View {
VStack(alignment: .leading, spacing: 5){
Text("系统图标").padding(.bottom)
HStack{
Image(systemName: "square.and.arrow.up").foregroundColor(.primary)
.font(.system(.largeTitle))
Image(systemName: "sun.min").foregroundColor(.red).font(.system(size: 30))
Image(systemName: "timelapse")
.foregroundColor(.green)
.font(.system(size: 30))
Image(systemName: "figure.stand.line.dotted.figure.stand")
.foregroundColor(.pink)
.font(.system(size: 30))
Image(systemName: "person.2.fill")
.foregroundColor(.blue)
.font(.system(size: 40))
Image(systemName: "person.crop.circle")
.foregroundColor(.primary)
.font(.system(size: 40))
}
}
}
func createBasicImageEffect() -> some View {
VStack(alignment:.leading){
Text("基本圆角 阴影设置")
HStack{
Image("user_header_1")
.resizable()
.frame(width: 100, height: 100, alignment: .center)
.cornerRadius(50)
Image("user_header_2")
.resizable()
.cornerRadius(5)
.border(.red,width: 3)
.aspectRatio(1, contentMode: .fit)
Image("user_header_1")
.resizable()
.frame(width: 100, height: 100, alignment: .center)
.cornerRadius(50)
.border(.red,width: 3)
//resizable 自动缩放
//frame必须在resizable之后调用 否则设置无效
//aspectRatio 可以设置宽高比和图片的填充模式
//clipShape 对图片进行裁剪 设置为圆形 矩形等
//overlay 添加其他layer 到图片上
}
HStack{
Image("user_header_1")
.resizable()
.frame(width: 100, height: 100, alignment: .center)
.clipShape(Circle())
.overlay(Circle().stroke(.blue,lineWidth: 5))
.overlay(Text("❤️"), alignment: .bottom)
Image("user_header_2")
.resizable()
.frame(width: 100, height: 100, alignment: .center)
.clipShape(Circle())
.shadow(color: .blue, radius: 5, x: 2, y: 0)
.overlay(Image(systemName: "snowflake").foregroundColor(.red).font(.system(size: 20)), alignment: .topLeading)
Image("user_header_1")
.resizable()
.cornerRadius(5)
.aspectRatio(1, contentMode: .fit)
.shadow(color: .primary, radius: 5, x: 0, y: 2)
}
}
}
/// 模糊处理
func createImageBlur() -> some View {
VStack(alignment: .leading){
/// blur 设置模糊 半径越大 模糊效果越明显 opaque是否透明
Text("模糊效果")
HStack{
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.blur(radius: 1)
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.blur(radius: 2)
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.blur(radius: 3,opaque: true)
}
}
}
/// 亮度处理
func createImageBrightness() -> some View {
/// 设置图片亮度 负值 变黑 正值 变亮
VStack(alignment: .leading){
Text("亮度设置")
HStack{
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.brightness(0.2)
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.brightness(0.3)
}
}
}
/// 颜色反转
func createImageColor() -> some View {
VStack(alignment: .leading){
Text("颜色反转")
HStack{
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
Image("user_yunyun_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
}
/// 设置图片亮度 负值 变黑 正值 变亮
HStack{
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.colorInvert()
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.colorInvert()
Image("user_yunyun_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.colorInvert()
}
}
}
/// 颜色偏向设置
func createImageColorMultiply() -> some View {
VStack(alignment: .leading){
Text("颜色偏向设置")
HStack{
Image("user_yunyun_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
}
/// 设置图片亮度 负值 变黑 正值 变亮
HStack{
Image("user_yunyun_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.colorMultiply(.red)
Image("user_meidusha_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.colorMultiply(.blue)
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.colorMultiply(.pink)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.cornerRadius(5)
.colorMultiply(.yellow)
}
}
}
/// 颜色乘差设置
func createImageContrast() -> some View {
VStack(alignment: .leading){
Text("颜色乘差设置")
HStack{
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.contrast(-1)
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.contrast(-0.5)
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.contrast(1)
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.contrast(1.5)
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.contrast(2)
}
}
}
/// 颜色旋转
/// 色调旋转效果很根据您指定的角度移动视图中的所有颜色，
/// 如果将色调旋转 360 度，则和原色一样
func createImageColorRotation() -> some View {
VStack(alignment: .leading){
Text("颜色旋转设置")
HStack{
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.hueRotation(Angle.degrees(45))
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.hueRotation(Angle.degrees(90))
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.hueRotation(Angle.degrees(120))
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.hueRotation(Angle.degrees(150))
Image("user_xuner_1")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.hueRotation(Angle.degrees(270))
}
}
}
/// 增加颜色饱和度
/// 参数值大于 1 时，增加色彩的饱和度，参数值等于 1 时，饱和度和原色相同，
/// 参数值为 0 时，会清除图形里面的彩色信息，仅包含灰度信息
func createImageSaturation() -> some View {
VStack(alignment: .leading){
Text("增加颜色饱和度")
HStack{
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.saturation(0)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.saturation(1)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.saturation(2)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.saturation(10)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.saturation(20)
}
}
}
/// 灰度值设置
/// 参数量：灰度的强度从 0.0 到小于 1.0。接近 0.0 的值颜色更鲜艳，而接近 1.0 的值颜色较少
func createImageGrayColor() -> some View {
VStack(alignment: .leading){
Text("灰度值设置")
HStack{
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.grayscale(0)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.grayscale(1)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.grayscale(2)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.grayscale(10)
Image("user_meidusha_2")
.resizable()
.aspectRatio(3/4.0, contentMode: .fit)
.grayscale(20)
}
}
}
}
