MyBatis整合Spring

木水Code
85 阅读3分钟

持续创作，加速成长！这是我参与「掘金日新计划 · 6 月更文挑战」的第18天，点击查看活动详情

1 新建项目

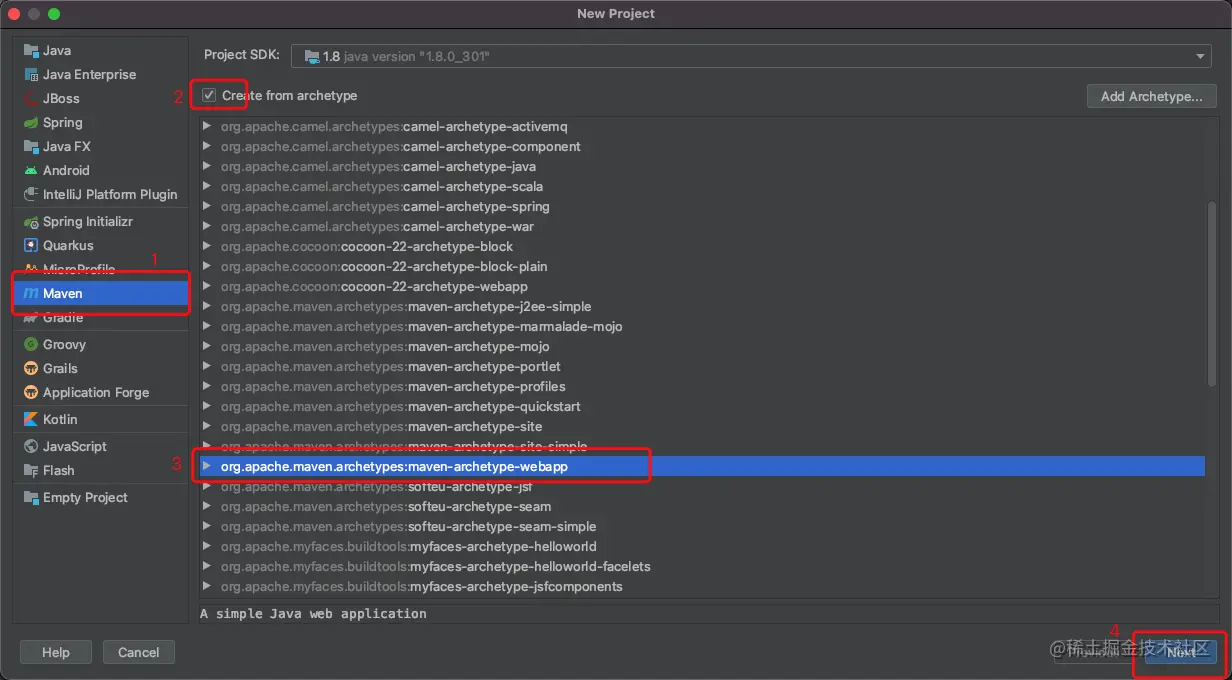

Idea点击File->New->Project，选择Maven并根据webapp模板创建项目。

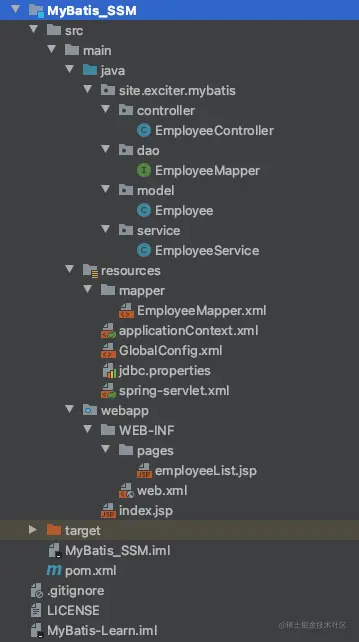

2 项目目录预览

如果新建项目main目录下没有java和resources文件夹，直接在main右击new->Directory创建java和resources即可。

3 创建数据库

可以直接用可视化数据库管理工具创建，如Navicat等。

#创建员工表
CREATE TABLE table_employee(
	id INT PRIMARY KEY AUTO_INCREMENT,
	last_name VARCHAR(255),
	gender CHAR(1),
	email VARCHAR(255)
);
#插入数据
INSERT INTO table_employee(last_name,gender,email)
VALUES('井川里予','女','123@qq.com'),
('一条小团团','女','456@qq.com'),
('Lili','女','789@qq.com');

4 引入依赖

主要包含Spring、MyBatis、数据库连接池等依赖包。

pom.xml

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>site.exciter</groupId>
    <artifactId>MyBatis_SSM</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <name>MyBatis_SSM Maven Webapp</name>

    <url>http://www.example.com</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>

        <srping.version>5.3.2</srping.version>
        <mybatis.version>3.5.7</mybatis.version>
        <slf4j.version>1.7.25</slf4j.version>
        <log4j.version>1.2.17</log4j.version>
    </properties>

    <dependencies>

        <!-- 单元测试 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <!-- 表示开发的时候引入，发布的时候不会加载此包 -->
            <scope>test</scope>
        </dependency>

        <!-- spring框架包 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-expression</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${srping.version}</version>
        </dependency>
        <!-- spring框架包 -->
        <!-- mybatis框架包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.3</version>
        </dependency>
        <!-- mybatis框架包 -->
        <!-- 数据库驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.26</version>
        </dependency>
        <!-- 导入dbcp的jar包，用来在applicationContext.xml中配置数据库 -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.4</version>
        </dependency>
        <!-- jstl标签类 -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <!-- log -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>${log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>

        <!--数据库连接池-->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.5</version>
        </dependency>
    </dependencies>

    <build>
        <finalName>MyBatis_SSM</finalName>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-war-plugin</artifactId>
                    <version>3.2.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>
</project>

5 创建所需的类

5.1 新建POJO

在Model下新建Employee.java，和数据库中字段对应

package site.exciter.mybatis.model;

import java.io.Serializable;

public class Employee implements Serializable {
    private Integer id;
    private String lastName;
    private String gender;
    private String email;

    public Employee() {
    }

    public Employee(Integer id, String lastName, String gender, String email) {
        this.id = id;
        this.lastName = lastName;
        this.gender = gender;
        this.email = email;
    }

    public int getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public String getGender() {
        return gender;
    }

    public void setGender(String gender) {
        this.gender = gender;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    @Override
    public String toString() {
        return "Employee{" +
                "id=" + id +
                ", lastName='" + lastName + ''' +
                ", gender='" + gender + ''' +
                ", email='" + email + ''' +
                '}';
    }
}

5.2 新建Mapper接口类

在dao下新建EmployeeMapper，注意需要使用@Component进行注解，不然在其他类中使用@Autowired注解获取的时候可能会报错。

package site.exciter.mybatis.dao;

import org.springframework.stereotype.Component;
import site.exciter.mybatis.model.Employee;

import java.util.List;

@Component
public interface EmployeeMapper {

    /**
     * 查询所有员工
     *
     * @return 数据
     */
    List<Employee> getEmployees();

}

5.3 新建Service

在service下新建EmployeeService.java

package site.exciter.mybatis.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import site.exciter.mybatis.dao.EmployeeMapper;
import site.exciter.mybatis.model.Employee;

import java.util.List;

@Service
public class EmployeeService {

    @Autowired
    EmployeeMapper employeeMapper;

    public List<Employee> getEmployees() {
        return employeeMapper.getEmployees();
    }
}

5.4 新建Controller

在controller下新建EmployeeController.java，实现接口的访问。

package site.exciter.mybatis.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.ModelMap;
import org.springframework.web.bind.annotation.RequestMapping;
import site.exciter.mybatis.model.Employee;
import site.exciter.mybatis.service.EmployeeService;

import java.util.List;

@Controller
@RequestMapping("/employee")
public class EmployeeController {

    @Autowired
    EmployeeService employeeService;

    @RequestMapping("/getEmployees")
    public String getEmployees(ModelMap map) {
        List<Employee> employees = employeeService.getEmployees();
        map.put("allEmployee", employees);
        //返回的employeeList为/WEB-INF/pages/下jsp文件的名字
        return "employeeList";
    }

}

6 Mapper映射文件

在resources下新建mapper文件夹，mapper接口类对应的映射文件放在此文件夹下。

EmployeeMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="site.exciter.mybatis.dao.EmployeeMapper">

    <select id="getEmployees" resultType="site.exciter.mybatis.model.Employee">
        select * from table_employee
    </select>

</mapper>

7 全局配置文件

GlobalConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        <!--是否自动开启驼峰命名规则-->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <!--开启log-->
        <setting name="logImpl" value="STDOUT_LOGGING"/>
        <!--开启懒加载(延迟加载)-->
        <setting name="lazyLoadingEnabled" value="true"/>
        <setting name="aggressiveLazyLoading" value="false"/>
        <!--开启全局二级缓存-->
        <setting name="cacheEnabled" value="true"/>
    </settings>

</configuration>

8 数据库配置文件

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/mybatis?allowMultiQueries=true
jdbc.username=root
jdbc.password=41822319

9 Spring配置文件

applicationContext.xml，包含了项目的关键配置。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring.xsd">

    <!--Spring希望管理所有的业务逻辑-->
    <context:component-scan base-package="site.exciter.mybatis">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!--引入properties配置文件-->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!--Spring用来控制业务逻辑。包括数据源、事务控制、AOP等-->
    <!--数据源-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>
    <!--事务管理器-->
    <bean id="dataSourceTransactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--开启基于注解的事务-->
    <tx:annotation-driven transaction-manager="dataSourceTransactionManager"/>

    <!--整合MyBatis-->
    <!--
	整合mybatis
		目的：1、spring管理所有组件。mapper的实现类。
				service==>Dao   @Autowired:自动注入mapper；
			2、spring用来管理事务，spring声明式事务
	-->
    <!--创建SqlSessionFactory对象-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--dataSource:指定数据源-->
        <property name="dataSource" ref="dataSource"/>
        <!--typeAliasesPackage:扫描POJO别名-->
        <property name="typeAliasesPackage" value="site.exciter.mybatis.model"/>
        <!--configLocation:指定全局配置文件的位置-->
        <property name="configLocation" value="classpath:GlobalConfig.xml"/>
        <!--mapperLocations:指定要扫描的mapper文件的位置-->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

    <!-- 扫描所有的mapper接口的实现，让这些mapper能够自动注入；base-package：指定mapper接口的包名-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <property name="basePackage" value="site.exciter.mybatis.dao"/>
    </bean>

</beans>

10 SpringMVC配置文件

spring-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!--SpringMvc只是控制视图逻辑-->
    <!--只扫描控制器-->
    <context:component-scan base-package="site.exciter.mybatis" use-default-filters="false">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!--视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <mvc:annotation-driven/>
    <mvc:default-servlet-handler/>

</beans>

11 web.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app
        version="2.5"
        xmlns="http://java.sun.com/xml/ns/javaee"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
    <display-name>Archetype Created Web Application</display-name>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!--Spring配置文件-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>

    <!--SpringMVC配置文件-->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
</web-app>

12 配置jsp

12.1 index.jsp

index.jsp是web项目启动访问的首页，在里边加一个之前service里添加的获取所有员工的接口。

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>查询员工</title>
</head>
<body>
<a href="/employee/getEmployees">查询员工</a>
</body>
</html>

12.2 结果页

调用查询所有员工接口之后，会跳转到employeeList.jsp页面，将所有数据以表格的形式显示出来。

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <title>员工列表</title>
</head>
<body>
<table>
    <tr>
        <td>id</td>
        <td>lastName</td>
        <td>gender</td>
        <td>email</td>
    </tr>
    <c:forEach items="${allEmployee }" var="employee">
        <tr>
            <td>${employee.id }</td>
            <td>${employee.lastName }</td>
            <td>${employee.gender }</td>
            <td>${employee.email }</td>
        </tr>
    </c:forEach>
</table>
</body>
</html>

关注木水小站 (zhangmushui.cn)和微信公众号【木水Code】，及时获取更多最新技术干货。

avatar
文章
阅读
粉丝
