js实现动态雨滴并实现雨滴爆裂的动画

3,342 阅读1分钟

持续创作,加速成长!这是我参与「掘金日新计划 · 6 月更文挑战」的第15天,点击查看活动详情


演示

技术栈

介绍一下画布吧:

HTML5 标签用于绘制图像(通过脚本,通常是 JavaScript)。

不过, 元素本身并没有绘制能力(它仅仅是图形的容器) - 您必须使用脚本来完成实际的绘图任务。

getContext() 方法可返回一个对象,该对象提供了用于在画布上绘图的方法和属性

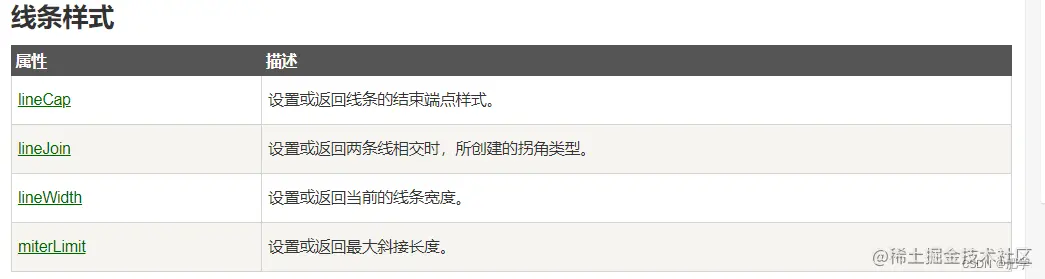

它的方法挺多的大家可以去搜一下我就说几个常用的: 在这里插入图片描述

在这里插入图片描述 在这里插入图片描述

源码

设置画布

 <canvas id="canvas" style="position: absolute; height: 100%; width:100%;"></canvas>

js部分

跟随鼠标移动

window.onmousemove=function (e)
 {
   mousePos[0]=e.clientX;
   mousePos[1]=e.clientY;
   maxspeedx=(e.clientX-canvasEl.clientWidth/2)/(canvasEl.clientWidth/2);
 }

创建雨线

function createLine(e)
  {
   var temp= 0.25*( 50+Math.random()*100);
    var myline={
      speed:5.5*(Math.random()*6+3),
      die:false,
      posx:e,
      posy:-200,
      h:temp,
      color:getRgb(Math.floor(temp*255/75),Math.floor(temp*255/75),Math.floor(temp*255/75))
    };
    linelist.push(myline);
  }

雨点的刷新

 function update() {
    if(dropList.length>0)
    {
       dropList.forEach(function (e) {
         e.vx=e.vx+(speedx)/2;
         e.posx=e.posx+e.vx;
         e.vy=e.vy+gravity;
         e.posy=e.posy+e.vy;
         if(e.posy>canvasEl.clientHeight)
         {
           e.die=true;
         }
       });
    }
    for(var i=dropList.length-1;i>=0;i--)
    {
      //delite die
      if(dropList[i].die){
        dropList.splice(i,1);
      }
    }

    speedx=speedx+(maxspeedx-speedx)/50;

    if(Math.random()>0)
    {
    createLine(Math.random()*2*canvasEl.width-(0.5*canvasEl.width));
    createLine(Math.random()*2*canvasEl.width-(0.5*canvasEl.width));
    createLine(Math.random()*2*canvasEl.width-(0.5*canvasEl.width));
    }
    var mydeadline=canvasEl.clientHeight- Math.random()*canvasEl.clientHeight/5;
     linelist.forEach(function (e) {
       var dis=Math.sqrt( ((e.posx+speedx*e.h)-mousePos[0])*((e.posx+speedx*e.h)-mousePos[0])+(e.posy+e.h-mousePos[1])*(e.posy+e.h-mousePos[1]));
       if(dis<35)
       {
         madedrops(e.posx+speedx*e.h,e.posy+e.h);
         e.die=true;
       }

       if((e.posy+e.h)>mydeadline)
       {
         if(Math.random()>0.85)
         {
           madedrops(e.posx+speedx*e.h,e.posy+e.h);
           e.die=true;
         }
       }
       if(e.posy>=canvasEl.clientHeight)
       {
         e.die=true;
       }else{
         e.posy=e.posy+e.speed;
         e.posx=e.posx+(e.speed*speedx);
       }
     });
       for(var i=linelist.length-1;i>=0;i--)
    {
      if(linelist[i].die){
        linelist.splice(i,1);
      }
    }
     render();
     window.requestAnimationFrame(update);
  }

雨点的渲染

function  render() {
    ctx.fillStyle = backgroundColor;
    ctx.fillRect(0, 0, canvasEl.width, canvasEl.height);

     linelist.forEach(
      function (line) {

        ctx.strokeStyle =line.color;
        ctx.lineWidth=4.5;
        ctx.beginPath();
        ctx.moveTo(line.posx,line.posy);
        ctx.lineTo(line.posx+speedx*line.h,line.posy+line.h);
        ctx.stroke();
      });
       ctx.lineWidth=1;
          ctx.strokeStyle = "#fff";
          dropList.forEach(function (e) {
           ctx.beginPath();
           ctx.arc(e.posx,e.posy,e.radius,Math.random()*Math.PI*2,1*Math.PI);
           ctx.stroke();
       });
}
