前言
最近背景期间疫情；大家最近也频繁核算检测。检测时使用身份证的OCR识别，可以通过自己的想法实现 OCR的识别。
开始
基本思路：通过调用百度OCR接口，实现OCR识别。
申请

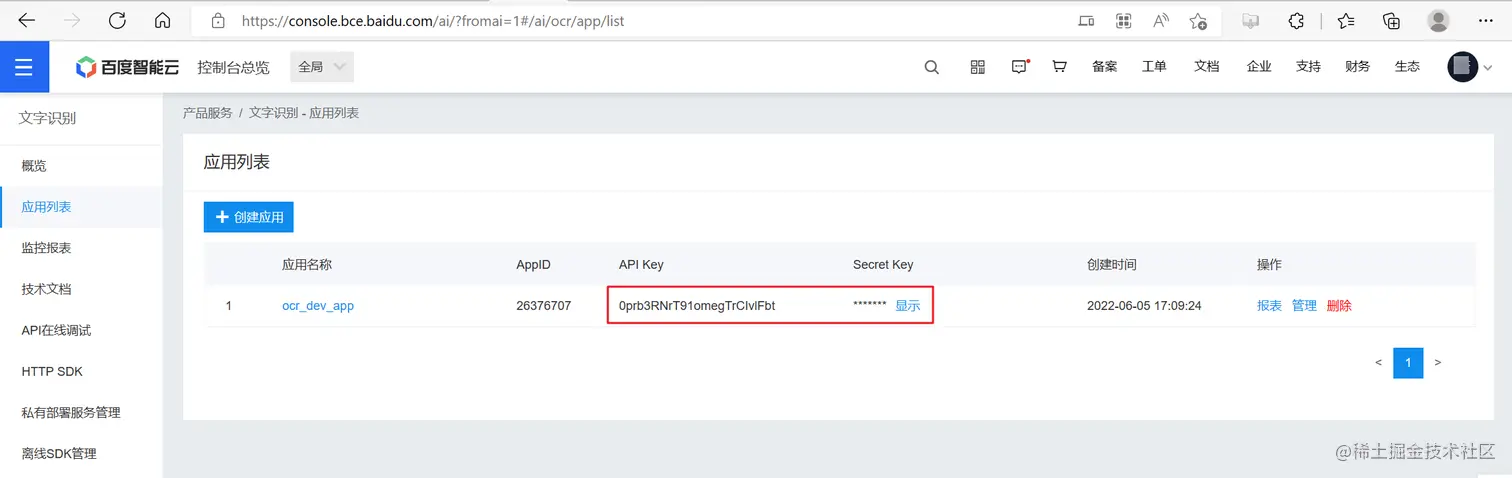

百度提供免费接口；刚好可以够我们测试使用；申请之后API Key、Secret Key需要记录一下，如下图
代码开发过程
使用基础的SpringBoot项目快速测试。
文档：cloud.baidu.com/doc/OCR/ind…
pom.xml
<!-- 百度SDK -->
<dependency>
<groupId>com.baidu.aip</groupId>
<artifactId>java-sdk</artifactId>
<version>4.16.8</version>
</dependency>
<dependency>
<groupId>org.apache.httpcomponents</groupId>
<artifactId>httpclient</artifactId>
<version>4.5.13</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.83</version>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>5.7.4</version>
</dependency>
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.11.0</version>
</dependency>
配置秘钥
package com.weir.demo.ocr_idcard_demo.config;
import com.weir.demo.ocr_idcard_demo.BaiduAIUtils;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author weir
*/
@Configuration
@ConfigurationProperties(prefix = "baidu")
public class BaiduConfig {
public String appId;
public String apiKey;
public String secretKey;
public String getAppId() {
return appId;
}
public void setAppId(String appId) {
this.appId = appId;
}
public String getApiKey() {
return apiKey;
}
public void setApiKey(String apiKey) {
this.apiKey = apiKey;
}
public String getSecretKey() {
return secretKey;
}
public void setSecretKey(String secretKey) {
this.secretKey = secretKey;
}
@Bean
public BaiduAIUtils baiAiHelper() {
return new BaiduAIUtils(apiKey,secretKey);
}
}
封装工具包
package com.weir.demo.ocr_idcard_demo;
import cn.hutool.http.HttpUtil;
import com.alibaba.fastjson.JSONObject;
import org.springframework.util.StringUtils;
import java.util.HashMap;
import java.util.Map;
public class BaiduAIUtils {
private String apiKey;
private String secretKey;
private static String ACCESS_TOKEN = null;
private static final String ACCESS_TOKEN_URL = "https://aip.baidubce.com/oauth/2.0/token?";
private static final String LICENSE_PLATE_URL = "https://aip.baidubce.com/rest/2.0/ocr/v1/license_plate";
private static final String ID_CARD_URL = "https://aip.baidubce.com/rest/2.0/ocr/v1/idcard";
private static final String ID_CARD_AUTHENTICATION_URL = "https://aip.baidubce.com/rest/2.0/face/v3/person/idmatch";
public BaiduAIUtils(String apiKey, String secretKey) {
this.apiKey = apiKey;
this.secretKey = secretKey;
}
/**
* 获取访问Token
*
* @return
*/
public String getAccessToken() {
// 获取token地址
String getAccessTokenUrl = ACCESS_TOKEN_URL
// 1. grant_type为固定参数
+ "grant_type=client_credentials"
// 2. 官网获取的 API Key
+ "&client_id=" + apiKey
// 3. 官网获取的 Secret Key
+ "&client_secret=" + secretKey;
String result = null;
try {
result = HttpUtil.get(getAccessTokenUrl);
} catch (Exception e) {
e.printStackTrace();
}
JSONObject jsonObject = (JSONObject) JSONObject.parse(result);
return jsonObject.getString("access_token");
}
/**
* 获取 带有Token的URL
*
* @param requestUrl
* @return
*/
private String getApiAccessTokenUrl(String requestUrl) {
if (StringUtils.isEmpty(ACCESS_TOKEN)) {
ACCESS_TOKEN = getAccessToken();
}
return requestUrl + "?access_token=" + ACCESS_TOKEN;
}
/**
* 获取身份证数据
*
* @return
*/
public String getIdCardData(String image) {
String reqUrl = getApiAccessTokenUrl(ID_CARD_URL);
Map<String, Object> param = new HashMap<>();
param.put("image", image);
param.put("id_card_side", "front");
String result = null;
try {
result = HttpUtil.post(reqUrl, param);
} catch (Exception e) {
e.printStackTrace();
}
return result;
}
}
application.yml
baidu:
app-id: "26376707"
api-key: "0prb3RNrT91omegTrCIvlFbt"
secret-key: "输入自己秘钥"
测试类
@Test
void test() throws IOException {
BufferedImage img = ImageIO.read(FileUtil.file("D:\Download\Edge_Down\身份证-测试包\01-常涛.png"));
String base64 = ImgUtil.toBase64(img, ImgUtil.IMAGE_TYPE_PNG);
String idCardData = baiduAIUtils.getIdCardData(base64);
System.out.println("idCardData = " + idCardData);
}
测试结果
idCardData = {"words_result":{"姓名":{"location":{"top":459,"left":704,"width":236,"height":127},"words":"常涛"},"民族":{"location":{"top":674,"left":1220,"width":88,"height":108},"words":"汉"},"住址":{"location":{"top":1088,"left":691,"width":1063,"height":237},"words":"河北省邯郸市肥乡县肥乡镇"},"公民身份号码":{"location":{"top":1597,"left":1126,"width":1386,"height":128},"words":"411526199706013217"},"出生":{"location":{"top":878,"left":707,"width":830,"height":101},"words":"19970601"},"性别":{"location":{"top":676,"left":691,"width":98,"height":108},"words":"男"}},"words_result_num":6,"image_status":"normal","idcard_number_type":1,"log_id":1534189165822718071}
总结
使用百度API分装实现基于OCR的识别，体会 一下API工具人魅力；对于百度其他的智能API有很多，这里简单依照疫情的身份证识别作为引导，建议大家尝试其他的场景；这是一个有趣的尝试。
