使用Nodejs + MongoDB 从零到生产,构建一个NodeJS Service (一、服务构建)

618 阅读11分钟

介绍

2024更正版: 代码地址 github

本文介绍了一个 从零到生产标准的NodeJs Service的构建思路。如果有错误的地方欢迎各位同学纠正。本文将微围绕:“使用nodejs http service 框架 express ,结合MongoDB ,结合mongoose lib 去构建一个 REST API ”, 我们主要的业务模型如下:

具体的说明:

  1. 我们需要建立“图书管理系统”系统 :首先我们的系统的主角是 books 它具备下面的属性

    书名、摘要、作者、种类、ISBN;
    作者需要下面的属性:名,姓,出生日期 死亡日期,名字,寿命,url wiki;
    我们还需要有分类的信息:名称,url(比如图片地址什么的);
    我们还需要 书架信息 :有哪些书 ,书的编号,书的状态(在库还是借走来) ,书的到期时间;

  2. 注意 "a...*b", 表示*b必须包含 0 个或者 多个 a*,在 关系型数据库中 我们使用 外建,在mongoDB中我们使用id 做联合查询.

     1..*   ===> 至少一个或者多个
     0..*   ===> 零个或者多个
     1      ==> 有且 一个

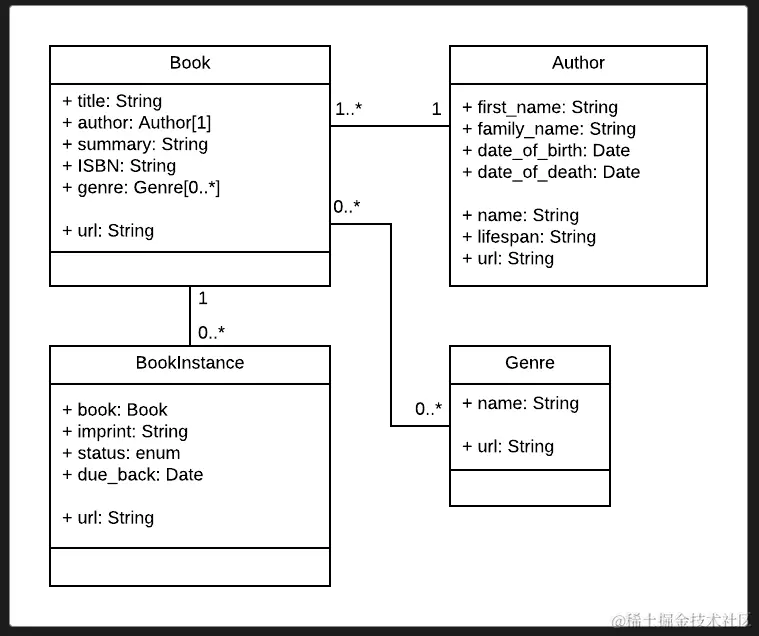

  1. 按照上面的图来说他们具体的关系如下:

    站在book角度,genre 包含 一个或者多个book ,book 属于 一个 bookInstance ,book 有一个或者多个author
    站在 genre 角度 它包含零个或者多个book
    站在 bookInstance 角度 它包含零个 或者多个book ,
    站在 author 角度 它包含一个/多个 book

这里的文档 是说明 Express + Mongoose 的技术文档,参考文档 官方6.3 英文文档 和 CSDN的这篇文章文章1 文章2

MongoDB基础知识

如果你需要玩 MongoDB ,有些概念你一定需要知道,就像你玩Mysql 你需要知道SQL 、tab、一对一、一对多 、外键、关系 等....

  • 首先我们建立一个认知 Schema生成Model,Model创造Document 以下是详细说明:

  • Schema(模式对象) ——Schema 对象定义约束了数据库中的文档结构,

  • Model ——Model 对象作为集合中的所有文档的表示,相当于MongoDB中的collection, 它的每一个实例就是一个document文档

  • Document ——Document表示集合中的具体文档,相当于collection中的一个具体文档

graph TD

Schema --> Model --> Document --> Collection

Schema

Schema 在官方 mongoose 文档中它是 一个对象 ,有挺多属性的,我们最常用的属性有下面几个:Schema.add() 方法 ,Schema.pre() , Schema.post() 这些方法

Schema 是一个构造函数 我们需要new 一个 schema实例 ,然后使用实例 去调用 add pre post 这些方法,

  1. Schema 的 构造参数

    官方文档有两个参数 这里我不展开来,我们只取用到的东西

// new Schema( definition ,[options])

const schemaInstant = new Schema(
  // 我们常用的
  {
    name: String,
    age: Number,
  } ,
//  更多的配置 我们现在用不上
  {})
  1. Schema 方法说明
/*
    add( object|Schema, prefix, cb )
    Schema 创建好之后 追加字段
*/

const ToySchema = new Schema();
ToySchema.add({ name: 'string', color: 'string', price: 'number' });
// 创建Modal 的时候 不传参数,后续自己追加

const TurboManSchema = new Schema();
TurboManSchema.add(ToySchema).add({ year: Number });
// 连续追加,会进自动行合并
  1. 为model定义 定义一个hook (你可以理解成:一个特定行为的cb)。
/*
    pre( String | RegExp, options, cb )
*/

const toySchema = new Schema({ name: String, created: Date });

toySchema.pre('save', function(next) {
  if (!this.created) this.created = new Date;
  next();
});

toySchema.pre('validate', function(next) {
  if (this.name !== 'Woody') this.name = 'Woody';
  next();
});

// Equivalent to calling `pre()` on `find`, `findOne`, `findOneAndUpdate`.
toySchema.pre(/^find/, function(next) {
  console.log(this.getFilter());
});

// Equivalent to calling `pre()` on `updateOne`, `findOneAndUpdate`.
toySchema.pre(['updateOne', 'findOneAndUpdate'], function(next) {
  console.log(this.getFilter());
});

toySchema.pre('deleteOne', function() {
  // Runs when you call `Toy.deleteOne()`
});

toySchema.pre('deleteOne', { document: true }, function() {
  // Runs when you call `doc.deleteOne()`
});

为document定义一个 新增的时候一个 hook

/*
    post( String | RegExp, options, cb )
*/
const schema = new Schema(..);
schema.post('save', function (doc) {
  console.log('this fired after a document was saved');
});

schema.post('find', function(docs) {
  console.log('this fired after you ran a find query');
});

schema.post(/Many$/, function(res) {
  console.log('this fired after you ran `updateMany()` or `deleteMany()`');
});

const Model = mongoose.model('Model', schema);

const m = new Model(..);
m.save(function(err) {
  console.log('this fires after the `post` hook');
});

m.find(function(err, docs) {
  console.log('this fires after the post find hook');
});

add 方法是 追加字段的

Model

Model 是依据Schema规则 生产出的 一个对象 ,Model负责从底层 MongoDB 数据库创建和读取文档。 它有非常多的方法 下面我们会一一的介绍,让我们先了解几个简单的 试试水.


const schema = new mongoose.Schema({ name: 'string', size: 'string' });
const Tank = mongoose.model('Tank', schema);

// 然后句可以开始操作了 比如新增 数据
const small = new Tank({ size: 'small' });

small.save(function (err) {
  if (err) return handleError(err);
  // saved!
});

// or
Tank.create({ size: 'small' }, function (err, small) {
  if (err) return handleError(err);
  // saved!
});

// 之后所有关于Tank 的CURD 全部通过这个实例来操作 这点需要注意

上面的东西远远不够,记得做一个合格的🧱 工具人,后续需要优化

目前MongoDB 所能够支持的类型 String ,Number, Date,Buffer,Boolean,Mixed,ObjectId,Array

Create操作

主要的方法如下:

  1. save Model.prototype.save([options], [options.safe], [options.validateBeforeSave], [fn])

  2. create Model.create(doc(s), [callback])

  3. InsertMany Model.insertMany(doc(s), [options], [callback])

具体的样子如下

someModal.save({name:"小明",grades:68})
someModal.create({name:"小明",grades:68})
someModal.insertMany({name:"小明",grades:68},{name:"小芳",grades:94})

Retrieve操作

主要方法如下

  1. find Model.find(conditions, [projection], [options], [callback])

  2. findById Model.findById(id, [projection], [options], [callback])

  3. findOne Model.findOne([conditions], [projection], [options], [callback])

  4. 复杂的操作符

$where        直接指定 js函数为查询起

$or     或关系
$nor    或关系取反
$gt     大于
$gte    大于等于
$lt     小于
$lte    小于等于
$ne     不等于
$in     在多个值范围内
$nin    不在多个值范围内
$all    匹配数组中多个值
$regex   正则,用于模糊查询
$size    匹配数组大小
$maxDistance  范围查询,距离(基于LBS)
$mod     取模运算
$near    邻域查询,查询附近的位置(基于LBS)
$exists   字段是否存在
$elemMatch  匹配内数组内的元素
$within    范围查询(基于LBS)
$box     范围查询,矩形范围(基于LBS)
$center    范围醒询,圆形范围(基于LBS)
$centerSphere 范围查询,球形范围(基于LBS)
$slice     查询字段集合中的元素(比如从第几个之后,第N到第M个元素

  1. 一些直接可用的查询参数
sort 排序
skip 跳过
limit 限制
select 显示字段
exect 执行
count 计数
distinct 去重
someModal.find()

someModal.find({
  grades:{$gte:60}  // grades > 60
}, {
  name:1, // 是否返回 name
  _id:0 // ) _id不返回
})

// 跳过前两条
someModal.find(
  null,null,{skip:2}
)

someModal.findById(id)
someModal.findOne(id)
someModal.findOne({
  $where:function () { // 注意不能用 => 函数 会导致this的丢失
    retrun this.grades == 1
  }
})

// 依据 test 字段的值 ,从小到大 生序
someModal.find().sort('test').exec((err,docs)=>{
  console.log(docs)
})
// 降序
someModal.find().sort('-test').exec((err,docs)=>{
  console.log(docs)
})

Update操作

方法如下

  1. update Model.update(conditions, doc, [options], [callback])

  2. updateOne Model.updateOne(conditions, doc, [options], [callback])

  3. updateMany Model.updateMany(conditions, doc, [options], [callback])

  4. findByIdAndUpdate

Model.findByIdAndUpdate([conditions], [update], [options], [callback])

一些细节

// 都是一样的用法 这里不详细的展开说明来
someModal.update({name:'小明'},{$set:{test:34}} ).exec() //set 把某值改成某值

someModal.findByIdAndUpdate(id,data)

Delete操作

方法如下, 我们讲一个就好啦,讲一个最常用的,

const res = await BookModel.findByIdAndRemove(id);

小结一下

上面我们只是非常的简单,说了一些 mongoose 的内容,定位的快速入门,如果你希望深入了解,可以去mongoDB 官方文档 和 mongoose 官方文档。通过上面的基础代码演示,相信你已经具备了初步的CRUD 能力,下面的内容我们将会从实战出发 把这个Nodejs的Service 构建出来。

实战来了!

文章的标题和介绍,我们已经 对我们 需要做一个什么样 的东西,有了一个大致的描述,解析来我们一步一步的实现它吧。

我们主要的业务模型如下:

需要连接上数据库

第一步!先连接上数据库再说!这里是参考的文章MDN-NodeJS实战

// 首先我 划分了 一个文件夹./db 里面存的了一个config 和index ,config 暂时没用到 你可以依据自己实际情来
// ./db/idex.js
const mongoose = require('mongoose');
const dbConfig = require('./config');

const initConnection = async () => {
  // 注意mongoDB 的数据库密码 只对当前的库有效!如果你是有密码的
  // 你需要这样写 指定密码 和 索引完成鉴权的库 authSource=admin

  // const connection = mongoose.connect("mongodb://admin:123456@192.168.101.10:27017/admin",
  //   { useUnifiedTopology: true, useNewUrlParser: true, useCreateIndex: true })
  return new Promise((resolve, reject) => {
    const connection = mongoose.connect('mongodb://root:12345@192.168.101.10:27017/test?authSource=admin', {
      useUnifiedTopology: true,
      useNewUrlParser: true,
    });

    mongoose.connection.on('connected', (err) => {
      resolve(connection);
    });

    mongoose.connection.on('error', (err) => {
      reject(err);
    });
  });
};

module.exports = initConnection

以上只是连接数据库,我还需要划分一些文件夹结构,以及分配了 一些 路由 和,设计了几张表

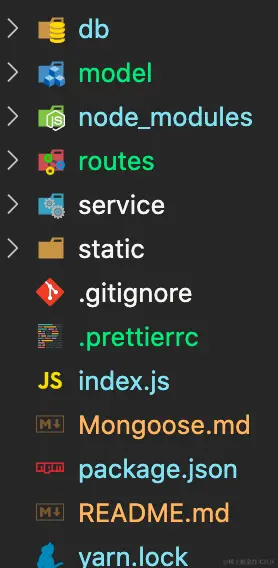

文件夹结构如下

我划分了一些路由,和初始化了一些代码

./router/book.js

const express = require('express');

const book = express.Router();

// CRUD
book.post('/', async (req, res) => {
  res.json({
    message: 'create',
  });
});

book.get('/', async (req, res) => {
  res.json({
    message: 'get',
  });
});

book.put('/', async (req, res) => {
  res.json({
    message: 'delete',
  });
});

book.delete('/:id', async (req, res) => {
  res.json({
    message: `delete==> ${req.params.id}`,
  });
});

module.exports = book;

./index.js

const express = require('express');
const bodyParser = require('body-parser');
const initConnection = require('./db');
const author = require('./routes/author');
const book = require('./routes/book');
const bookInstanceRouter = require('./routes/bookInstance');

const app = express();
app.use(bodyParser.json());

// 我们定义一个路由对User 和 Book 做路由的CRUD
app.use('/author', author);
app.use('/book', book);
app.use('/bookInstanceRouter', bookInstanceRouter);

initConnection().then(() => {
  app.listen(3000, () => {
    console.log('server start');
  });
});

上面的东西 在commit :"connection & init"可以看到

创建模型Modal

上述我们创建了 mongodb的连接 和基础代码,现在我们需要构建 模型,

构建模型前 ,我们需要讨论 它的一些参数和方法,首先mongo支持的类型如下


String  定义字符串
Number  定义数字
Date  定义日期
Buffer  定义二进制
Boolean  定义布尔值
Mixed  定义混合类型
ObjectId  定义对象ID
Array  定义数组

更多细节 show your code,这个只是一个demo示例不是项目代码!

const mongoose = require('mongoose');
// 使用Schema
const Schema = mongoose.Schema;

// 定义Schema 得到 Schema实例
const UserSchema = new Schema({
  name: String,
  title: String,
  unicode: {
    type: String,
    unique: true //只需要 unicode 为唯一值
  } ,
  family_name: String,
  first_name: {
    type: String,
    required: true,
    maxLength: 100,
    default:'goodName' // 默认值
  },
}, {
  // 自动给你加上 createdAt,updatedA 这两个字段,
  timestamps:true
})

// 通过Schema 实例 获得Modal ( 后续的操作都在这里进行 )
const  UserSchema = mongoose.model('User', UserSchema);

// 附加一些验证和 额外的管道操作
// 自动生成全名
UserSchema.virtual('name').get(function() {
  return this.family_name + ', ' + this.first_name;
});


// 如果你需要关联另一个Model
const LocationInfoSchema = new Schema({
    city: String
})
const LocationInfoModal = mongoose.model('LocationInfo', LocationInfoSchema);

UserSchema.add({
  locationInfo: {
      type: Schema.ObjectId,
       ref: 'LocationInfo',
      required: true
  }
})

// AuthModal.create({ name: "000" })
  1. 首先我们创建相对独立的 schema 比如author

./model/Author.js

const mongoose = require('mongoose');
const { DateTime } = require('luxon'); //for date handling

// 使用Schema
var Schema = mongoose.Schema;

// 得到AuthSchema
const AuthorSchema = new Schema({
  first_name: {
    type: String,
    required: true,
    maxLength: 100,
  },
  family_name: {
    type: String,
    required: true,
    maxLength: 100,
  },
  date_of_birth: {
    type: Date,
  },
  date_of_death: {
    type: Date,
  },
});

// 定义一些虚拟 key ,一般来说你用不到哈
AuthorSchema.virtual('lifespan').get(function () {
  var lifetime_string = '';
  if (this.date_of_birth) {
    lifetime_string = DateTime.fromJSDate(this.date_of_birth).toLocaleString(
      DateTime.DATE_MED,
    );
  }
  lifetime_string += ' - ';
  if (this.date_of_death) {
    lifetime_string += DateTime.fromJSDate(this.date_of_death).toLocaleString(
      DateTime.DATE_MED,
    );
  }
  return lifetime_string;
});

AuthorSchema.virtual('date_of_birth_yyyy_mm_dd').get(function () {
  return DateTime.fromJSDate(this.date_of_birth).toISODate(); //format 'YYYY-MM-DD'
});

AuthorSchema.virtual('date_of_death_yyyy_mm_dd').get(function () {
  return DateTime.fromJSDate(this.date_of_death).toISODate(); //format 'YYYY-MM-DD'
});

// 如果你后续需要新增 字段
// AuthorModel.add({ s:  String })

// 得到 modal
module.exports = mongoose.model('Author', AuthorSchema);

其他更多的模型操作是一样的 这里不详细介绍了,详见源代码git.

创建 - create

在上一讲中,我们创建了模型,现在我们需要调整一下我们的项目结构,我们需要新增一个 controllers 文件夹么,我们希望能够实施 controllers - service 类似的结构,这对大型项目是有好处的,然后还对 数据库..db/index.js 做了一下小修复

强调一下目前的 API 进入之后都会经过什么东西: req: http --> router -> controller -> service

router ./router/author.js

const express = require('express');
const AuthorController = require('../controllers/authorController');
const author = express.Router();
// CRUD
author.post('/', AuthorController.create);
++++
module.exports = author;

controller ./controllers/authorController

const { createAuthor } = require('../service/authorService');

const AuthorController = {
  create: async (req, res, next) => {
    const value = await createAuthor(req.body);
    res.json(value);
  },
};

module.exports = AuthorController;

service ./service/authorService

const AuthorModel = require('../model/Author');

const createAuthor = async (data) => {
  // Model.create(doc(s), [callback])
  const res = await AuthorModel.create(data); // AuthorModel.save(data); 也可以
  return res;
};

module.exports = {
  createAuthor: createAuthor,
};

看就是这样简单!除了create方法,mongoose 还有很多 inset的操作,请看官方文档哈, 本文不一一列举了

查询query

查询是非常简单, 我们把理论的东西运用下来就可以啦

router

++++ ( 此处省略重复内容 )
author.get('/', AuthorController.query);
++++

controller

++++ ( 此处省略重复内容 )
const query = async (req, res, next) => {
  const value = await authorService.queryAuthor(req.query);
  res.json(value);
};

service

const queryAuthor = async (query) => {
  // Model.find(conditions, [projection], [options], [callback])
  // const res = await AuthorModel.find(); // 查所有
  // const res = await AuthorModel.findById(query.id); // 查id
  // const res = await AuthorModel.find({ first_name: /a/ }); // 带其他条件查询 查询一条且name 含有a
  // const res = await AuthorModel.find().$where(function () {
  //   return this.first_name === 'Joney' || this.first_name === 'Aoda';
  // }); // 高级复杂查询 $where 使用js 函数
  // const res = await AuthorModel.findById(query.id, { first_name: 1, _id: 0 }); // 返回指定字段

  // 让我们使用 更加高高级的操作
  // sort 排序 skip跳过    limit 限制 select 显示字段 exect 执行 count 执行  distinct 去重
  const res = await AuthorModel.find().skip(1).exec();
  return res;
};

更新和删除update 和delete

我们看看 update 操作, 注意在 本次实战中,我们不去搞很多复杂操作, 复杂操作 自己去看mongose官方文档,比如 update updateOne UpdateMany findyByIdAndUpdate等...

router

author.put('/', AuthorController.update);
author.delete('/', AuthorController.deleteAuthor);

controller


const update = async (req, res, next) => {
  const value = await authorService.update(req.query.id, req.body);
  res.json(value);
};

const deleteAuthor = async (req, res, next) => {
  const value = await authorService.findAndDelete(req.query.id);
  res.json(value);
};

service


const update = async (id, data) => {
  const res = await AuthorModel.findByIdAndUpdate(id, data);
  return res;
};

const findAndDelete = async (id) => {
  const res = await AuthorModel.findByIdAndRemove(id);
  return res;
};

上述代码 commit -m:"CRUD"

好啦,上面就上差不多我们了,关于其他的模块CRUD ,我们只需要CV 🤣

深入聊聊Mongoose:前置钩子的运用

和上文一样,我们这里只介绍运用, 具体的文档在详细可以看 “理论知识+官方文档mongoose 的文档”

./model/Author.js

++++
// 前置钩子 在 scheme 实例上使用 pre 操作执行前, post 操作执行前后
// 下面的这些操作执行,都会被监听
/**
 init
​ validate
​ save
​ remove
​ count
​ find
​ findOne
​ findOneAndRemove
​ findOneAndUpdate
​ insertMany
​ update
 */
AuthorSchema.pre('find', function (next) {
  console.log('我是pre方法1--find');
  next();
});

深入聊聊Mongoose:字段验证 和验证器

我们作为测试程序,给AuthorSchema 添加一个 age 和属性来测试它的验证 首先我们修改来原来的Author Schema

// 如果你后续需要新增 字段
AuthorSchema.add({
  age: {
    type: Number,
    required: true,
    default: 18,
    min: 16,
    max: 75,
    // 初次之外还更多的操做 请查阅官方文档
  },
});

额外的一个问题:我们的代码还是有点危险的,所以我们添加来cath操作


const create = async (req, res, next) => {
  try {
    const value = await authorService.createAuthor(req.body);
    res.json(value);
  } catch (error) {
    res.json(error);
  }
};

深入聊聊Mongoose: 关于关联操作我想说的

按照前文描述的,的数据关系图设计,我们需要实现 Book 和 book 的分类 genre

我们先实现 各自的Modal

./model/Gene.js

const mongoose = require('mongoose');

const Schema = mongoose.Schema;
const GenreSchema = new Schema({
  name: {
    type: String,
    required: true,
    minLength: 3,
    maxLength: 100,
  },
  url: String,
});

// Export model.
module.exports = mongoose.model('Genre', GenreSchema);

./model/Book.js

const mongoose = require('mongoose');

const Schema = mongoose.Schema;

const BookSchema = new Schema({
  title: {
    type: String,
    required: true,
  },
  author: {
    type: Schema.ObjectId,
    ref: 'Author',
    required: true,
  },
  summary: {
    type: String,
    required: true,
  },
  isbn: {
    type: String,
    required: true,
  },
  genre: [
    {
      type: Schema.ObjectId,
      ref: 'Genre',
    },
  ],
  url: String,
});

// Export model.
module.exports = mongoose.model('Book', BookSchema);

Nice! 看起来这些东西你都准备好啦,现在让我们来实现这些对Genre的CRUD,首先我们先实现 genre ,它相对独立, 主要还是CV

我们添加 genre 的Service Controller 和 router

下面的内容是实现 一些空的代码结构, 我们换一个角度,在做业务中可能更加的合适 Service -> controller -> router -> 前端SPA/temple模板渲染

service

const GenreModel = require('../model/Genre');

const createGenre = async (data) => {
  const res = await GenreModel.create(data);
  return res;
};

const queryGenre = async (query) => {
  const res = await GenreModel.find();
  return res;
};

const update = async (id, data) => {
  const res = await GenreModel.findByIdAndUpdate(id, data);
  return res;
};

const findAndDelete = async (id) => {
  const res = await GenreModel.findByIdAndRemove(id);
  return res;
};

module.exports = {
  createGenre: createGenre,
  queryGenre: queryGenre,
  update: update,
  findAndDelete: findAndDelete,
};

controller

const genreService = require('../service/genreService');

const create = async (req, res, next) => {
  try {
    const value = await genreService.createGenre(req.body);
    res.json(value);
  } catch (error) {
    res.json(error);
  }
};

const query = async (req, res, next) => {
  const value = await genreService.queryGenre(req.query);
  res.json(value);
};

const update = async (req, res, next) => {
  const value = await genreService.update(req.query.id, req.body);
  res.json(value);
};

const deleteGenre = async (req, res, next) => {
  const value = await genreService.findAndDelete(req.query.id);
  res.json(value);
};

module.exports = {
  create: create,
  query: query,
  update: update,
  deleteGenre: deleteGenre,
};

router

const express = require('express');
const generaController = require('../controllers/genraController');
const generaRouter = express.Router();

// CRUD
generaRouter.post('/', generaController.create);
generaRouter.get('/', generaController.query);
generaRouter.put('/', generaController.update);
generaRouter.delete('/', generaController.deleteGenre);

module.exports = generaRouter;

经过上面的操作,我们已经能够 完成Genre的CRUD 了,最后我们来实现book ,这个时候我们需要把它和author + genre 关联起来

实际上,我们最常用到的场景 就是 关联查询 和关联修改 这是一个难点也是重点,大部分情况下,你对使用关联操作的时候,都是这两种解决方案

  • populate
  • 使用聚合查询,下文我们都来尝试一下

service

./service/bookService.js

// 一般来说,我们有两种方式去去处理关联数据,
// 1.是使用mongoose自带额关联查询(需要定义外健=比如ObjectID ref这种),而且外建必须要在主表中

const queryBook = async (query) => {
  BookModel.find().exec();
  // 子表关联主表查询,populate 里面为子表外键
  const res = await BookModel.find()
    .populate('author')
    .populate('genre')
    .exec();
  return res;
};

// 2. 使用聚合查询(聚合查询是一个骚操作,可操作性很高,会聚合知识后,什么问题都可以解决
// )
  // 推荐 用法 ( 假设我们没有关联 ,我们可以用lookup 进行左关联 ,类似连表查询)

const queryBook = async (query) => {
  BookModel.find().exec();
  // 推荐 用法 ( 假设我们没有关联 ,我们我们可以用lookup 进行左关联 ,类似连表查询)
  const res = await BookModel.aggregate([
    {
      $lookup: {
        // 左连接
        from: 'authors', // 关联到 author 表
        localField: 'author', // book 表关联的字段
        foreignField: '_id', // order 表关联的字段
        as: 'names',
      },
    },
  ]).exec();
  return res;
};

关于聚合查询 官方有完整的文章请去查阅,我借鉴来一个CSDN的文章 参考文章1 参考文章2

最后,本阶段最终代码在 -commiit -m "relation", 本次需要讲的东西还没有讲完,我们在 POAndTesting 详细讲啦 性能优化 和 单元测试

总结

上文我们通过学习,使用 Express + MonogDB 构建一个非常简单的REST API 服务,当然这并不算完哈,离真正的上线我们还有一端距离需要走,比如压力测试、性能优化、多集群部署、单元测试等.....下一篇文章我们都有一一解释

代码地址 github
