上篇 dyld我们了解了加载dyld的工作流程和与objc的调用，这篇我们探究一下 _dyld_objc_notify_register 方法中的 map_images、load_images
1、objc_init
从上篇中，我们知道了 dyld 为了给加载动态库提供GCD环境，会先通过 objc_init 初始化objc，那我们就先来看看 objc_init 中的内容
/***********************************************************************
* _objc_init
* Bootstrap initialization. Registers our image notifier with dyld.
* Called by libSystem BEFORE library initialization time
**********************************************************************/
void _objc_init(void)
{
static bool initialized = false;
if (initialized) return;
initialized = true;
// fixme defer initialization until an objc-using image is found?
//环境配置
environ_init();
//创建线程析构函数
tls_init();
//运行C++的静态构造函数
static_init();
//runtime准备，创建2张表
runtime_init();
//异常初始化
exception_init();
#if __OBJC2__
//缓存
cache_t::init();
#endif
//macos专有
_imp_implementationWithBlock_init();
_dyld_objc_notify_register(&map_images, load_images, unmap_image);
#if __OBJC2__
didCallDyldNotifyRegister = true;
#endif
}
1.1、environ_init()
- 环境配置，environ_init 可以读取

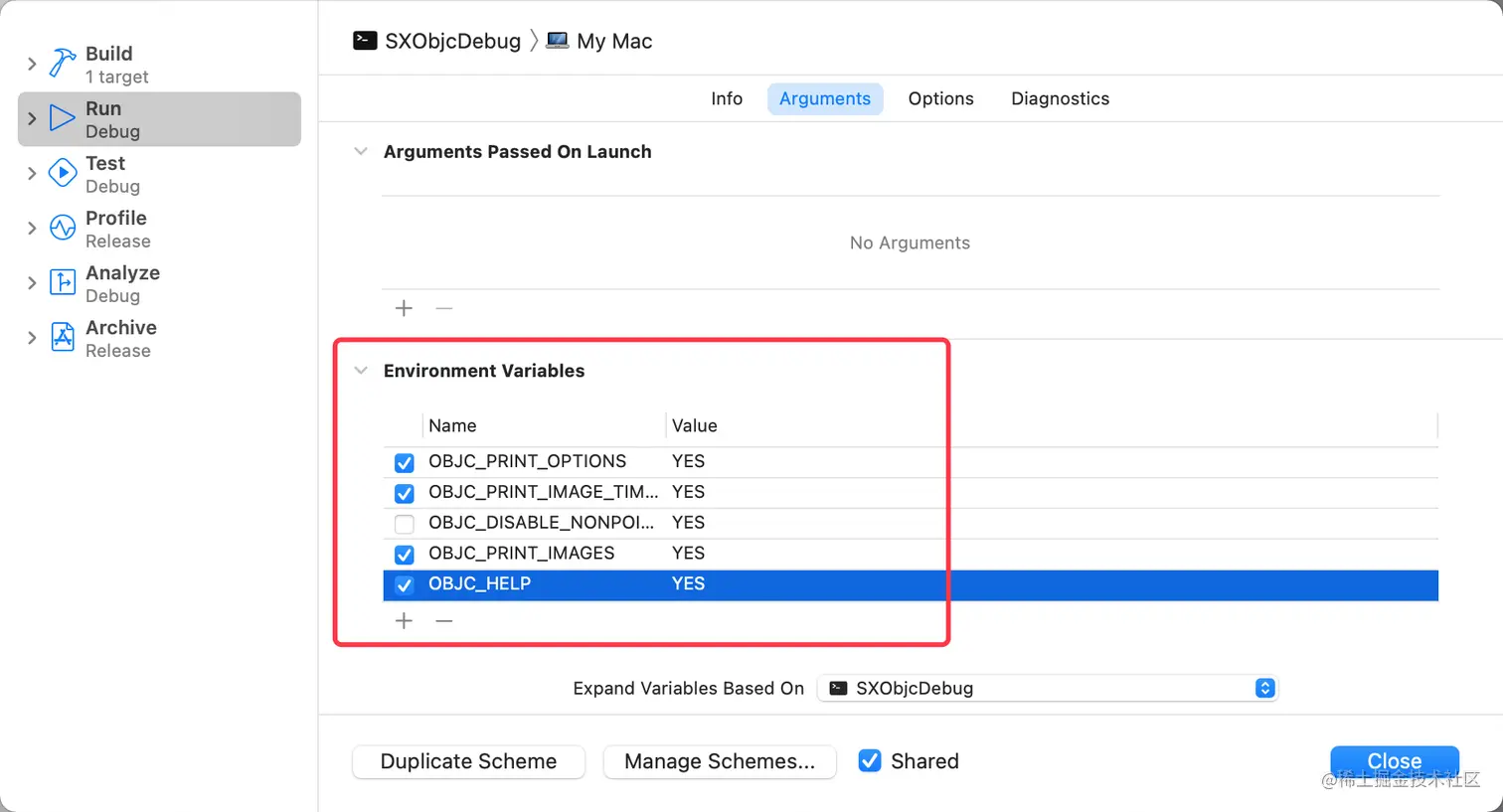

environment variables的一些配置信息，通过 Edit Scheme 配置后，可在控制台打印很多帮助信息

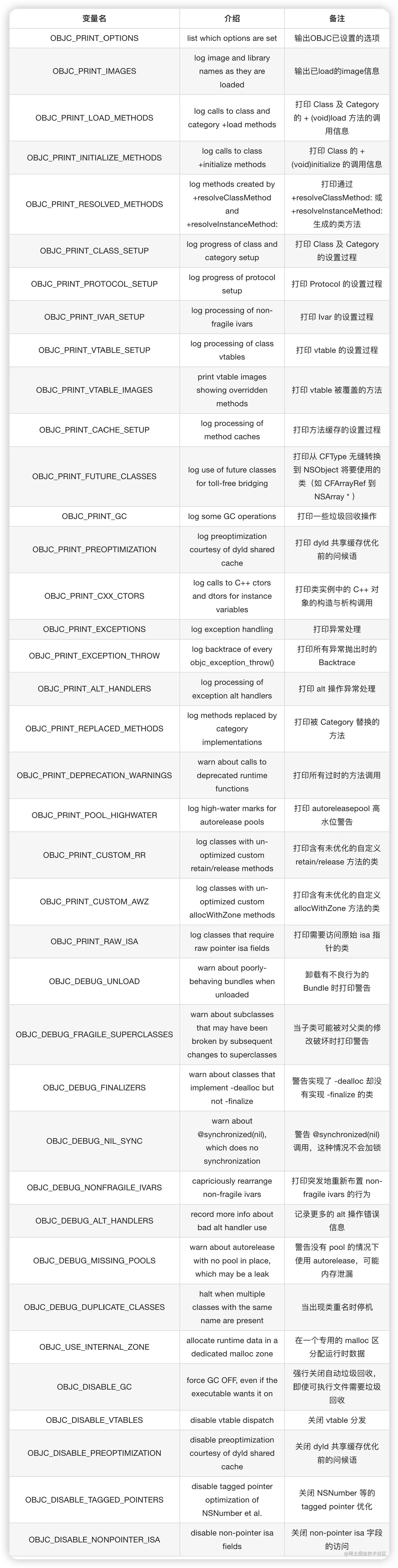

具体关键字与对应功能可参考下图：
1.2、tls_init
tls全称Thread Local Store，是线程的局部存储
void tls_init(void)
{
#if SUPPORT_DIRECT_THREAD_KEYS
pthread_key_init_np(TLS_DIRECT_KEY, &_objc_pthread_destroyspecific);
#else
_objc_pthread_key = tls_create(&_objc_pthread_destroyspecific);
#endif
}
1.3、static_init
运行C++的静态构造函数，objc库中的静态构造函数早于load方法，load方法早于我们自己的静态构造函数
/***********************************************************************
* static_init
* Run C++ static constructor functions.
* libc calls _objc_init() before dyld would call our static constructors,
* so we have to do it ourselves.
**********************************************************************/
__attribute__ ((constructor)) static void function() {
}
static void static_init()
{
size_t count;
auto inits = getLibobjcInitializers(&_mh_dylib_header, &count);
for (size_t i = 0; i < count; i++) {
inits[i]();
}
auto offsets = getLibobjcInitializerOffsets(&_mh_dylib_header, &count);
for (size_t i = 0; i < count; i++) {
UnsignedInitializer init(offsets[i]);
init();
}
}
1.4、runtime_init
void runtime_init(void)
{
//分类加载表
objc::unattachedCategories.init(32);
//类加载表
objc::allocatedClasses.init();
}
1.5、exception_init
异常处理，数组越界、找不到方法实现等
/***********************************************************************
* exception_init
* Initialize libobjc's exception handling system. //初始化libobjc的异常处理系统
* Called by map_images(). //由map_images()调用。
**********************************************************************/
void exception_init(void)
{
old_terminate = std::set_terminate(&_objc_terminate);
}
2、load_images
查找 所有类中的 +load 方法，然后执行这些方法，因为有加锁，所以线程安全（所以这也是为什么 +load 方法一定会被执行，并且在 main函数 之前执行的原因）
/***********************************************************************
* load_images
* Process +load in the given images which are being mapped in by dyld.
*
* Locking: write-locks runtimeLock and loadMethodLock
**********************************************************************/
extern bool hasLoadMethods(const headerType *mhdr);
extern void prepare_load_methods(const headerType *mhdr);
void
load_images(const char *path __unused, const struct mach_header *mh)
{
if (!didInitialAttachCategories && didCallDyldNotifyRegister) {
didInitialAttachCategories = true;
loadAllCategories();
}
// Return without taking locks if there are no +load methods here.
// 如果没有 +load 方法则不带锁返回
if (!hasLoadMethods((const headerType *)mh)) return;
recursive_mutex_locker_t lock(loadMethodLock);
// Discover load methods
// 找 +load 方法
{
mutex_locker_t lock2(runtimeLock);
//查找 +load 方法
prepare_load_methods((const headerType *)mh);
}
// Call +load methods (without runtimeLock - re-entrant)
// 调用 +load 方法
call_load_methods();
}
2.1、prepare_load_methods
- 查找 +load 方法，先找 class 中的，再找 category 中的
- 实现 +load 方法的肯定都是非懒加载类
void prepare_load_methods(const headerType *mhdr)
{
size_t count, i;
runtimeLock.assertLocked();
//Nonlazy:非懒加载
//找非懒加载类的 +load 方法
classref_t const *classlist =
_getObjc2NonlazyClassList(mhdr, &count);
for (i = 0; i < count; i++) {
//
schedule_class_load(remapClass(classlist[i]));
}
//找分类的 +load 方法
category_t * const *categorylist = _getObjc2NonlazyCategoryList(mhdr, &count);
for (i = 0; i < count; i++) {
category_t *cat = categorylist[i];
Class cls = remapClass(cat->cls);
if (!cls) continue; // category for ignored weak-linked class
if (cls->isSwiftStable()) {
_objc_fatal("Swift class extensions and categories on Swift "
"classes are not allowed to have +load methods");
}
realizeClassWithoutSwift(cls, nil);
ASSERT(cls->ISA()->isRealized());
add_category_to_loadable_list(cat);
}
}
2.2、schedule_class_load
递归向上查找父类的 +load 方法
/***********************************************************************
* prepare_load_methods
* Schedule +load for classes in this image, any un-+load-ed
* superclasses in other images, and any categories in this image.
**********************************************************************/
// Recursively schedule +load for cls and any un-+load-ed superclasses.
// cls must already be connected.
static void schedule_class_load(Class cls)
{
if (!cls) return;
ASSERT(cls->isRealized()); // _read_images should realize
if (cls->data()->flags & RW_LOADED) return;
// Ensure superclass-first ordering
// 递归调用找父类
schedule_class_load(cls->getSuperclass());
// 记录 +load 方法的类
add_class_to_loadable_list(cls);
cls->setInfo(RW_LOADED);
}
2.3、add_class_to_loadable_list
- 将 类名 与 IMP 保存到一个list
- 分类的保存方法与这里的相差不大
void add_class_to_loadable_list(Class cls)
{
IMP method;
loadMethodLock.assertLocked();
method = cls->getLoadMethod();
if (!method) return; // Don't bother if cls has no +load method
if (PrintLoading) {
_objc_inform("LOAD: class '%s' scheduled for +load",
cls->nameForLogging());
}
if (loadable_classes_used == loadable_classes_allocated) {
loadable_classes_allocated = loadable_classes_allocated*2 + 16;
loadable_classes = (struct loadable_class *)
realloc(loadable_classes,
loadable_classes_allocated *
sizeof(struct loadable_class));
}
//把哪个类、执行的方法存起来
loadable_classes[loadable_classes_used].cls = cls;
loadable_classes[loadable_classes_used].method = method;
loadable_classes_used++;
}
//loadable_classes 只是个 loadable_class 结构体
static struct loadable_class *loadable_classes = nil;
//loadable_class 结构体只有 类 和 IMP指针
struct loadable_class {
Class cls; // may be nil
IMP method;
};
2.4、call_load_methods
执行这群 +load 方法
void call_load_methods(void)
{
static bool loading = NO;
bool more_categories;
loadMethodLock.assertLocked();
// Re-entrant calls do nothing; the outermost call will finish the job.
if (loading) return;
loading = YES;
void *pool = objc_autoreleasePoolPush();
do {
// 1. Repeatedly call class +loads until there aren't any more
while (loadable_classes_used > 0) {
// 执行类中的 +load
call_class_loads();
}
// 2. Call category +loads ONCE
// 执行分类中的 +load
more_categories = call_category_loads();
// 3. Run more +loads if there are classes OR more untried categories
// 执行其他情况的 +load
} while (loadable_classes_used > 0 || more_categories);
objc_autoreleasePoolPop(pool);
loading = NO;
}
小结
- load_images 将项目中的 +load 方法进行汇总并执行
- 按照
父类 --> 本类 --> 分类的顺序加载，所以后加载的优先级高 - 如果是 同一个类有多个分类，那么按照
Build Phases --> Compile Sources中文件存放的编译顺序，靠后的先执行
3、map_images
加载类与分类
3.1、map_images_nolock
void
map_images_nolock(unsigned mhCount, const char * const mhPaths[],
const struct mach_header * const mhdrs[])
{
static bool firstTime = YES;
header_info *hList[mhCount];
uint32_t hCount;
size_t selrefCount = 0;
// Perform first-time initialization if necessary.
// This function is called before ordinary library initializers.
// fixme defer initialization until an objc-using image is found?
if (firstTime) {
//共享缓存的优化，比如动态库就是放在系统的共享缓存空间里的
preopt_init();
}
//环境变量,Scheme中配置了就会在控制台打印
if (PrintImages) {
_objc_inform("IMAGES: processing %u newly-mapped images...\n", mhCount);
}
// Find all images with Objective-C metadata.
hCount = 0;
//根据 Mach-O 中的Header配置文件找到所有的类,包括可执行文件与动态库中的
// Count classes. Size various table based on the total.
int totalClasses = 0;
int unoptimizedTotalClasses = 0; //optimized:优化
{
uint32_t i = mhCount;
while (i--) {
const headerType *mhdr = (const headerType *)mhdrs[i];
//头部配置文件Header(使用这个是因为Mach-O中都是二进制数据,所以需要Header对类型进行区分:代码、常量等)
auto hi = addHeader(mhdr, mhPaths[i], totalClasses, unoptimizedTotalClasses);
if (!hi) {
// no objc data in this entry
continue;
}
if (mhdr->filetype == MH_EXECUTE) {
// Size some data structures based on main executable's size
#if __OBJC2__
// If dyld3 optimized the main executable, then there shouldn't
// be any selrefs needed in the dynamic map so we can just init
// to a 0 sized map
if ( !hi->hasPreoptimizedSelectors() ) {
size_t count;
_getObjc2SelectorRefs(hi, &count);
selrefCount += count;
_getObjc2MessageRefs(hi, &count);
selrefCount += count;
}
#else
_getObjcSelectorRefs(hi, &selrefCount);
#endif
#if SUPPORT_GC_COMPAT
// Halt if this is a GC app.
if (shouldRejectGCApp(hi)) {
_objc_fatal_with_reason
(OBJC_EXIT_REASON_GC_NOT_SUPPORTED,
OS_REASON_FLAG_CONSISTENT_FAILURE,
"Objective-C garbage collection "
"is no longer supported.");
}
#endif
}
hList[hCount++] = hi;
if (PrintImages) {
_objc_inform("IMAGES: loading image for %s%s%s%s%s\n",
hi->fname(),
mhdr->filetype == MH_BUNDLE ? " (bundle)" : "",
hi->info()->isReplacement() ? " (replacement)" : "",
hi->info()->hasCategoryClassProperties() ? " (has class properties)" : "",
hi->info()->optimizedByDyld()?" (preoptimized)":"");
}
}
}
// Perform one-time runtime initialization that must be deferred until
// the executable itself is found. This needs to be done before
// further initialization.
// (The executable may not be present in this infoList if the
// executable does not contain Objective-C code but Objective-C
// is dynamically loaded later.
if (firstTime) {
//初始化C++的构造和析构函数
sel_init(selrefCount);
//自动释放池、散列表、关联对象的初始化
arr_init();
#if SUPPORT_GC_COMPAT
......
#if TARGET_OS_OSX
......
if (hCount > 0) {
//修复因ASLR而指向错误的资源指针,让它们指向正确的地址
_read_images(hList, hCount, totalClasses, unoptimizedTotalClasses);
}
firstTime = NO;
// Call image load funcs after everything is set up.
for (auto func : loadImageFuncs) {
for (uint32_t i = 0; i < mhCount; i++) {
func(mhdrs[i]);
}
}
}
3.2、_read_images
/***********************************************************************
* _read_images
* Perform initial processing of the headers in the linked
* list beginning with headerList.
*
* Called by: map_images_nolock
*
* Locking: runtimeLock acquired by map_images
**********************************************************************/
void _read_images(header_info **hList, uint32_t hCount, int totalClasses, int unoptimizedTotalClasses)
{
header_info *hi;
uint32_t hIndex;
size_t count;
size_t i;
Class *resolvedFutureClasses = nil;
size_t resolvedFutureClassCount = 0;
static bool doneOnce;
bool launchTime = NO;
TimeLogger ts(PrintImageTimes);
runtimeLock.assertLocked();
#define EACH_HEADER \
hIndex = 0; \
hIndex < hCount && (hi = hList[hIndex]); \
hIndex++
//只执行一次,对一些内存的优化(isa优化、小对象优化等)
if (!doneOnce) {
doneOnce = YES;
launchTime = YES;
#if SUPPORT_NONPOINTER_ISA
// Disable non-pointer isa under some conditions.
# if SUPPORT_INDEXED_ISA
// Disable nonpointer isa if any image contains old Swift code
//如果任何image包含旧的Swift3.0之前代码,就不进行isa优化
for (EACH_HEADER) {
if (hi->info()->containsSwift() &&
hi->info()->swiftUnstableVersion() < objc_image_info::SwiftVersion3)
{
DisableNonpointerIsa = true;
if (PrintRawIsa) {
_objc_inform("RAW ISA: disabling non-pointer isa because "
"the app or a framework contains Swift code "
"older than Swift 3.0");
}
break;
}
}
# endif
# if TARGET_OS_OSX
......
#endif
//如果环境变量设置了关闭小对象优化，比如NSNumber类型的
if (DisableTaggedPointers) {
disableTaggedPointers();
}
initializeTaggedPointerObfuscator();
if (PrintConnecting) {
_objc_inform("CLASS: found %d classes during launch", totalClasses);
}
// namedClasses
// Preoptimized classes don't go in this table.
// 4/3 is NXMapTable's load factor
int namedClassesSize =
(isPreoptimized() ? unoptimizedTotalClasses : totalClasses) * 4 / 3;
//创建一张名为 gdb_objc_realized_classes 的表,存放dyld的共享缓存数据
gdb_objc_realized_classes =
NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize);
ts.log("IMAGE TIMES: first time tasks");
}
// Fix up @selector references
// Note this has to be before anyone uses a method list, as relative method
// lists point to selRefs, and assume they are already fixed up (uniqued).
// 修复@selector
static size_t UnfixedSelectors;
{
mutex_locker_t lock(selLock);
for (EACH_HEADER) {
if (hi->hasPreoptimizedSelectors()) continue;
bool isBundle = hi->isBundle();
SEL *sels = _getObjc2SelectorRefs(hi, &count);
UnfixedSelectors += count;
for (i = 0; i < count; i++) {
const char *name = sel_cname(sels[i]);
SEL sel = sel_registerNameNoLock(name, isBundle);
//rebase : 将sels里的selector们指向正确的虚拟地址
if (sels[i] != sel) {
sels[i] = sel;
}
}
}
}
ts.log("IMAGE TIMES: fix up selector references");
// 错误混乱的类处理
// Discover classes. Fix up unresolved future classes. Mark bundle classes.
bool hasDyldRoots = dyld_shared_cache_some_image_overridden();
for (EACH_HEADER) {
if (! mustReadClasses(hi, hasDyldRoots)) {
// Image is sufficiently optimized that we need not call readClass()
continue;
}
classref_t const *classlist = _getObjc2ClassList(hi, &count);
bool headerIsBundle = hi->isBundle();
bool headerIsPreoptimized = hi->hasPreoptimizedClasses();
for (i = 0; i < count; i++) {
Class cls = (Class)classlist[i];
// class 将分配过内存的类与元类放到runtime_init创建的allocatedClasses表中
// 未执行`readClass`方法前，`cls只是一个地址`
Class newCls = readClass(cls, headerIsBundle, headerIsPreoptimized);
if (newCls != cls && newCls) {
// Class was moved but not deleted. Currently this occurs
// only when the new class resolved a future class.
// Non-lazily realize the class below.
resolvedFutureClasses = (Class *)
realloc(resolvedFutureClasses,
(resolvedFutureClassCount+1) * sizeof(Class));
resolvedFutureClasses[resolvedFutureClassCount++] = newCls;
}
}
}
ts.log("IMAGE TIMES: discover classes");
// Fix up remapped classes
// Class list and nonlazy class list remain unremapped.
// Class refs and super refs are remapped for message dispatching.
if (!noClassesRemapped()) {
for (EACH_HEADER) {
Class *classrefs = _getObjc2ClassRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
// fixme why doesn't test future1 catch the absence of this?
classrefs = _getObjc2SuperRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
}
}
ts.log("IMAGE TIMES: remap classes");
#if SUPPORT_FIXUP
// Fix up old objc_msgSend_fixup call sites
for (EACH_HEADER) {
message_ref_t *refs = _getObjc2MessageRefs(hi, &count);
if (count == 0) continue;
if (PrintVtables) {
_objc_inform("VTABLES: repairing %zu unsupported vtable dispatch "
"call sites in %s", count, hi->fname());
}
for (i = 0; i < count; i++) {
//很眼熟的东西,探索类的初始化翻阅objc源码时看到过
//包括alloc在内很多方法被替换为前边带有objc_前缀的方法,如objc_alloc
fixupMessageRef(refs+i);
}
}
ts.log("IMAGE TIMES: fix up objc_msgSend_fixup");
#endif
// Discover protocols. Fix up protocol refs.
for (EACH_HEADER) {
extern objc_class OBJC_CLASS_$_Protocol;
Class cls = (Class)&OBJC_CLASS_$_Protocol;
ASSERT(cls);
NXMapTable *protocol_map = protocols();
bool isPreoptimized = hi->hasPreoptimizedProtocols();
// Skip reading protocols if this is an image from the shared cache
// and we support roots
// Note, after launch we do need to walk the protocol as the protocol
// in the shared cache is marked with isCanonical() and that may not
// be true if some non-shared cache binary was chosen as the canonical
// definition
if (launchTime && isPreoptimized) {
if (PrintProtocols) {
_objc_inform("PROTOCOLS: Skipping reading protocols in image: %s",
hi->fname());
}
continue;
}
bool isBundle = hi->isBundle();
protocol_t * const *protolist = _getObjc2ProtocolList(hi, &count);
for (i = 0; i < count; i++) {
readProtocol(protolist[i], cls, protocol_map,
isPreoptimized, isBundle);
}
}
ts.log("IMAGE TIMES: discover protocols");
// Fix up @protocol references
// Preoptimized images may have the right
// answer already but we don't know for sure.
for (EACH_HEADER) {
// At launch time, we know preoptimized image refs are pointing at the
// shared cache definition of a protocol. We can skip the check on
// launch, but have to visit @protocol refs for shared cache images
// loaded later.
if (launchTime && hi->isPreoptimized())
continue;
// 获取所有的协议
protocol_t **protolist = _getObjc2ProtocolRefs(hi, &count);
for (i = 0; i < count; i++) {
//重映射
remapProtocolRef(&protolist[i]);
}
}
ts.log("IMAGE TIMES: fix up @protocol references");
// Discover categories. Only do this after the initial category
// attachment has been done. For categories present at startup,
// discovery is deferred until the first load_images call after
// the call to _dyld_objc_notify_register completes. rdar://problem/53119145
if (didInitialAttachCategories) {
for (EACH_HEADER) {
//加载分类
load_categories_nolock(hi);
}
}
ts.log("IMAGE TIMES: discover categories");
// Category discovery MUST BE Late to avoid potential races
// when other threads call the new category code before
// this thread finishes its fixups.
// +load handled by prepare_load_methods()
// Realize non-lazy classes (for +load methods and static instances)
// 初始化非懒加载类
for (EACH_HEADER) {
classref_t const *classlist = hi->nlclslist(&count);
for (i = 0; i < count; i++) {
Class cls = remapClass(classlist[i]);
if (!cls) continue;
//将初始化的类加到 1.4的runtime_init中创建的 allocatedClasses 表中
//前边readClass中实现的向 allocatedClasses 表中添加类功能也是因为调用了该方法
addClassTableEntry(cls);
if (cls->isSwiftStable()) {
if (cls->swiftMetadataInitializer()) {
_objc_fatal("Swift class %s with a metadata initializer "
"is not allowed to be non-lazy",
cls->nameForLogging());
}
// fixme also disallow relocatable classes
// We can't disallow all Swift classes because of
// classes like Swift.__EmptyArrayStorage
}
//进行类的初始化操作
realizeClassWithoutSwift(cls, nil);
}
}
ts.log("IMAGE TIMES: realize non-lazy classes");
// Realize newly-resolved future classes, in case CF manipulates them
if (resolvedFutureClasses) {
for (i = 0; i < resolvedFutureClassCount; i++) {
Class cls = resolvedFutureClasses[i];
if (cls->isSwiftStable()) {
_objc_fatal("Swift class is not allowed to be future");
}
realizeClassWithoutSwift(cls, nil);
cls->setInstancesRequireRawIsaRecursively(false/*inherited*/);
}
free(resolvedFutureClasses);
}
ts.log("IMAGE TIMES: realize future classes");
if (DebugNonFragileIvars) {
realizeAllClasses();
}
// Print preoptimization statistics
if (PrintPreopt) {
static unsigned int PreoptTotalMethodLists;
static unsigned int PreoptOptimizedMethodLists;
static unsigned int PreoptTotalClasses;
static unsigned int PreoptOptimizedClasses;
for (EACH_HEADER) {
if (hi->hasPreoptimizedSelectors()) {
_objc_inform("PREOPTIMIZATION: honoring preoptimized selectors "
"in %s", hi->fname());
}
else if (hi->info()->optimizedByDyld()) {
_objc_inform("PREOPTIMIZATION: IGNORING preoptimized selectors "
"in %s", hi->fname());
}
classref_t const *classlist = _getObjc2ClassList(hi, &count);
for (i = 0; i < count; i++) {
Class cls = remapClass(classlist[i]);
if (!cls) continue;
PreoptTotalClasses++;
if (hi->hasPreoptimizedClasses()) {
PreoptOptimizedClasses++;
}
const method_list_t *mlist;
if ((mlist = cls->bits.safe_ro()->baseMethods)) {
PreoptTotalMethodLists++;
if (mlist->isFixedUp()) {
PreoptOptimizedMethodLists++;
}
}
if ((mlist = cls->ISA()->bits.safe_ro()->baseMethods)) {
PreoptTotalMethodLists++;
if (mlist->isFixedUp()) {
PreoptOptimizedMethodLists++;
}
}
}
}
_objc_inform("PREOPTIMIZATION: %zu selector references not "
"pre-optimized", UnfixedSelectors);
_objc_inform("PREOPTIMIZATION: %u/%u (%.3g%%) method lists pre-sorted",
PreoptOptimizedMethodLists, PreoptTotalMethodLists,
PreoptTotalMethodLists
? 100.0*PreoptOptimizedMethodLists/PreoptTotalMethodLists
: 0.0);
_objc_inform("PREOPTIMIZATION: %u/%u (%.3g%%) classes pre-registered",
PreoptOptimizedClasses, PreoptTotalClasses,
PreoptTotalClasses
? 100.0*PreoptOptimizedClasses/PreoptTotalClasses
: 0.0);
_objc_inform("PREOPTIMIZATION: %zu protocol references not "
"pre-optimized", UnfixedProtocolReferences);
}
#undef EACH_HEADER
}
3.3、realizeClassWithoutSwift
非懒加载类的rw创建与赋值，对应了之前ro编译时生成、rw运行时生成的结论
/***********************************************************************
* realizeClassWithoutSwift
* Performs first-time initialization on class cls,
* including allocating its read-write data.
* Does not perform any Swift-side initialization.
* Returns the real class structure for the class.
* Locking: runtimeLock must be write-locked by the caller
**********************************************************************/
static Class realizeClassWithoutSwift(Class cls, Class previously)
{
runtimeLock.assertLocked();
class_rw_t *rw;
Class supercls;
Class metacls;
if (!cls) return nil;
if (cls->isRealized()) {
validateAlreadyRealizedClass(cls);
return cls;
}
ASSERT(cls == remapClass(cls));
// fixme verify class is not in an un-dlopened part of the shared cache?
auto ro = (const class_ro_t *)cls->data();
auto isMeta = ro->flags & RO_META;
if (ro->flags & RO_FUTURE) {
// This was a future class. rw data is already allocated.
rw = cls->data();
ro = cls->data()->ro();
ASSERT(!isMeta);
cls->changeInfo(RW_REALIZED|RW_REALIZING, RW_FUTURE);
} else {
// Normal class. Allocate writeable class data.
//rw开辟并赋值的地方,对应了之前ro编译时生成、rw运行时生成的结论
rw = objc::zalloc<class_rw_t>();
rw->set_ro(ro);
rw->flags = RW_REALIZED|RW_REALIZING|isMeta;
cls->setData(rw);
}
cls->cache.initializeToEmptyOrPreoptimizedInDisguise();
......
// Realize superclass and metaclass, if they aren't already.
// This needs to be done after RW_REALIZED is set above, for root classes.
// This needs to be done after class index is chosen, for root metaclasses.
// This assumes that none of those classes have Swift contents,
// or that Swift's initializers have already been called.
// fixme that assumption will be wrong if we add support
// for ObjC subclasses of Swift classes.
//递归调用处理父类与元类
supercls = realizeClassWithoutSwift(remapClass(cls->getSuperclass()), nil);
metacls = realizeClassWithoutSwift(remapClass(cls->ISA()), nil);
......
// Attach categories
// 处理分类
methodizeClass(cls, previously);
return cls;
}
小结
- preopt_init()：创建共享缓存
- addHeader()：在Mach-O中根据Header找到所有的类，存入 header_info
- sel_init(selrefCount)：初始化C++的构造和析构函数
- arr_init()：初始化自动释放池、散列表、关联对象
_read_images：修复因ASLR而指向错误的资源指针,让它们指向正确的地址-
NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize)：创建一张名为 gdb_objc_realized_classes 的表,存放dyld的共享缓存数据
-
sels[i] = sel（rebase）：将sels里的selector们指向正确的虚拟地址 -
readClass：注册类，将仅是地址的cls读取出类名字，并将 分配过内存的类与元类 放到 runtime_init 创建的 allocatedClasses 表中，读取到内存的仅仅只有地址+名称，类的data数据并没有加载出来，关键代码是addNamedClass和addClassTableEntry -
fixupMessageRef(refs+i)：将包括alloc在内很多方法被 重映射为前边带有objc_前缀的方法，如objc_alloc -
remapProtocolRef(&protolist[i])：将protocols添加到protocols_map（哈希表）中，并重映射
-
load_categories_nolock(hi)：加载分类
-
addClassTableEntry(cls)：将初始化的类加到 runtime_init 中创建的 allocatedClasses 表中，如果已经添加就不会载添加，需要确保整个结构都被添加（前边readClass中实现的向 allocatedClasses 表中添加类功能也是因为调用了该方法） -
realizeClassWithoutSwift(cls, nil)：进行类的初始化操作，对rw进行了初始化与赋值methodizeClass：分类添加到类中
-
补充：加载懒加载类
上边我们看到，非懒加载类 通过 realizeClassWithoutSwift 方法对rw进行了开辟和赋值，其实懒加载类也是使用这个方法操作的rw，因此只需要知道在什么情况下调用的 realizeClassWithoutSwift 即可，懒加载类在第一次接收到消息时被加载
- 调懒加载类时可以断点使用
bt命令查看堆栈信息看调用了哪些方法，其中会涉及 _objc_msgSend_uncached、lookUpImpOrForward 等方法 map_images->map_images_nolock->_read_images->类对象第一次接收到消息->cache里没有找到 _objc_msgSend_uncached->lookUpImpOrForward->realizeClassMaybeSwiftMaybeRelock->加载类 realizeClassWithoutSwift->分类添加到类 methodizeClass
