一、概述

我们前面在回顾 Category 的基本使用的时候,我们得出了 Category 相关的结论:

通过Category可以给在没有继承关系的情况下给原类增加功能(添加方法:实例方法、Class方法)
方法调用的优先级:
- Category 的实现 > 原来的类的实现
- 后编译的 Category 的实现 > 先编译的 Category 的实现
- 总结: 后编译的 Category > 先编译的 Category >原来的类
通过Category可以给原类增加属性
- 编译器只会默认给该属性添加 setter方法、getter方法的定义
- 通过Category 添加的属性的 setter方法、getter方法需要开发者实现

我们最终通过 runtimeAPI 进行关联对象操作,对 setter 、getter 方法完成了最简便、最可靠的实现

#import <objc/runtime.h>
void  objc_setAssociatedObject(id _Nonnull object, const void * _Nonnull key,id _Nullable value, objc_AssociationPolicy policy) ;
id _Nullable objc_getAssociatedObject(id _Nonnull object, const void * _Nonnull key);

本文将以KnowWhat的事实基础为前提,达到KnowHow。围绕前面得到的这些结论,探究其底层原理的实现:

1. Category如何给类添加 Instance对象方法、Class对象方法的？
1. Category与原来的Class内部的方法的调用优先级如何实现的？
1. 为什么通过Category可以给原类增加属性,但是只会添加 setter方法、getter方法的定义,而 setter方法、getter方法的实现需要开发者自己完成？
1. 通过RuntimeAPI进行 关联对象操作,其底层原理是什么？

二、Category的本质

我们首先还是先添加一个类(Car),并未其添加Category(Car+Test.h):

分类中添加了方法:
- instance对象方法:- (void)runFaster;
- Class 对象方法:+ (void)lightLongTime;
分类中实现了原来类中定义的方法:
- - (void)run
- + (void)light Car类的声明与实现:

//
//  Car.h
//  分类、扩展
//
//  Created by VanZhang on 2022/5/11.
//
#import <Foundation/Foundation.h>

NS_ASSUME_NONNULL_BEGIN

@interface Car : NSObject{
@public
    int _year;
}

-(void)run;
+(void)light;
@end

NS_ASSUME_NONNULL_END


//
//  Car.m
//  分类、扩展
//
//  Created by VanZhang on 2022/5/11.
//

#import "Car.h"

@implementation Car
- (void)run{
    NSLog(@"%s",__func__);
}
+ (void)light{
    NSLog(@"%s",__func__);
}
@end

分类(Car+Test)的声明与实现:

//
//  Car+Test.h
//  分类、扩展
//
//  Created by VanZhang on 2022/5/11.
//


#import "Car.h"

@interface Car (Test)
- (void)runFaster;
+ (void)lightLongTime;
@end


//
//  Car+Test.m
//  分类、扩展
//
//  Created by VanZhang on 2022/5/11.
//

#import "Car+Test.h"

@implementation Car (Test)
- (void)run{
    NSLog(@"%s",__func__);
}
- (void)runFaster{
    NSLog(@"%s",__func__);
}
+ (void)light{
    NSLog(@"%s",__func__);
}
+ (void)lightLongTime{
    NSLog(@"%s",__func__);
}

@end

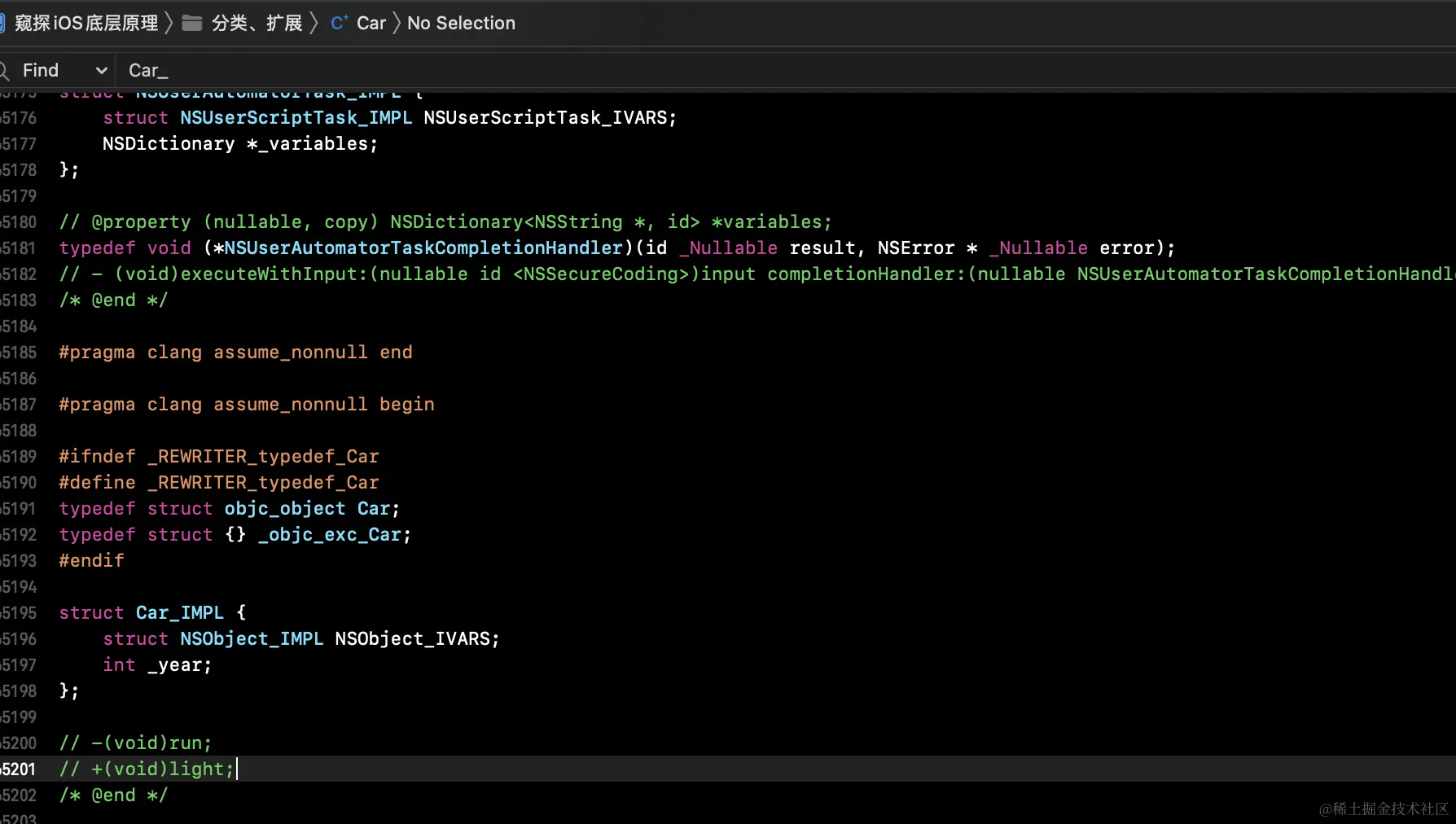

我们通过Clang指令对两个.m文件进行转换,得到其底层实现的 伪代码(可参考的底层实现逻辑、因为OC是一个具备动态运行时特性的语言,部分细节还得到动态运行时才知道其真正的实现)

clang -rewrite-objc 源码实现文件名.m

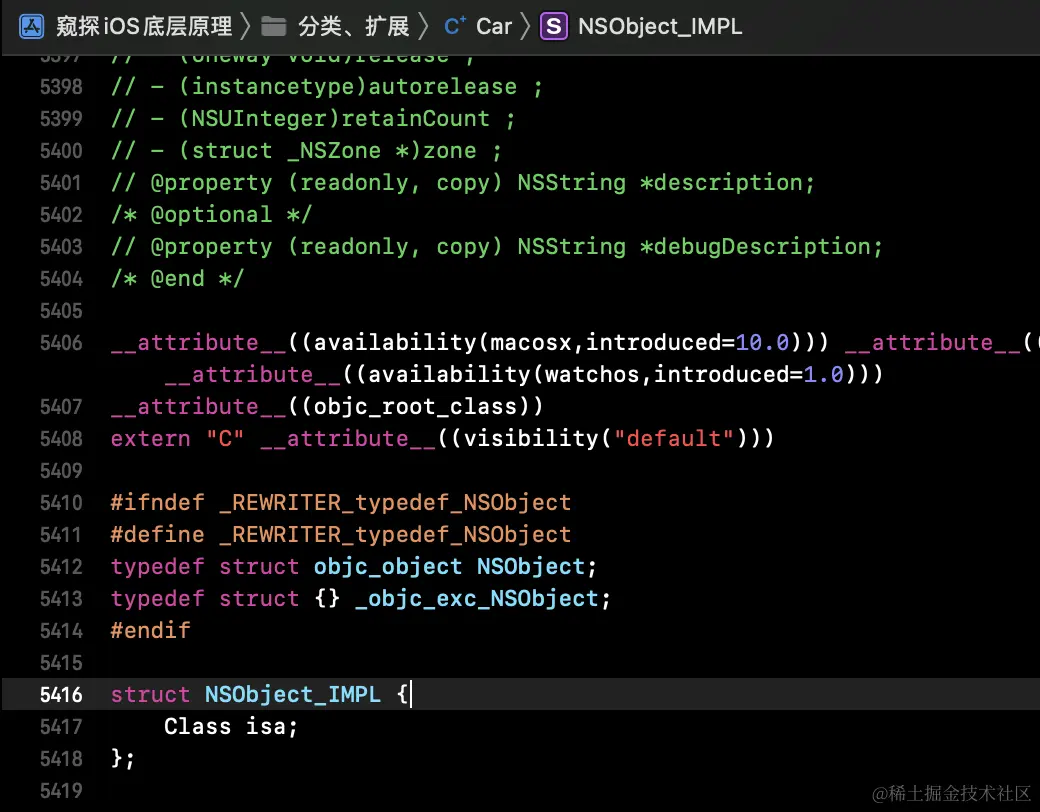

Car类的底层实现:

关于如 Car类等基类NSObject的子类的底层实现我们之前已经探索过了相关的话题,感兴趣,可以结合这几篇文章进行了解:

OC的本质

OC对象的本质【底层实现、内存布局、继承关系】

几种OC对象【实例对象、类对象、元类】、对象的isa指针、superclass、对象的方法调用、Class的底层本质

1.Category的底层实现

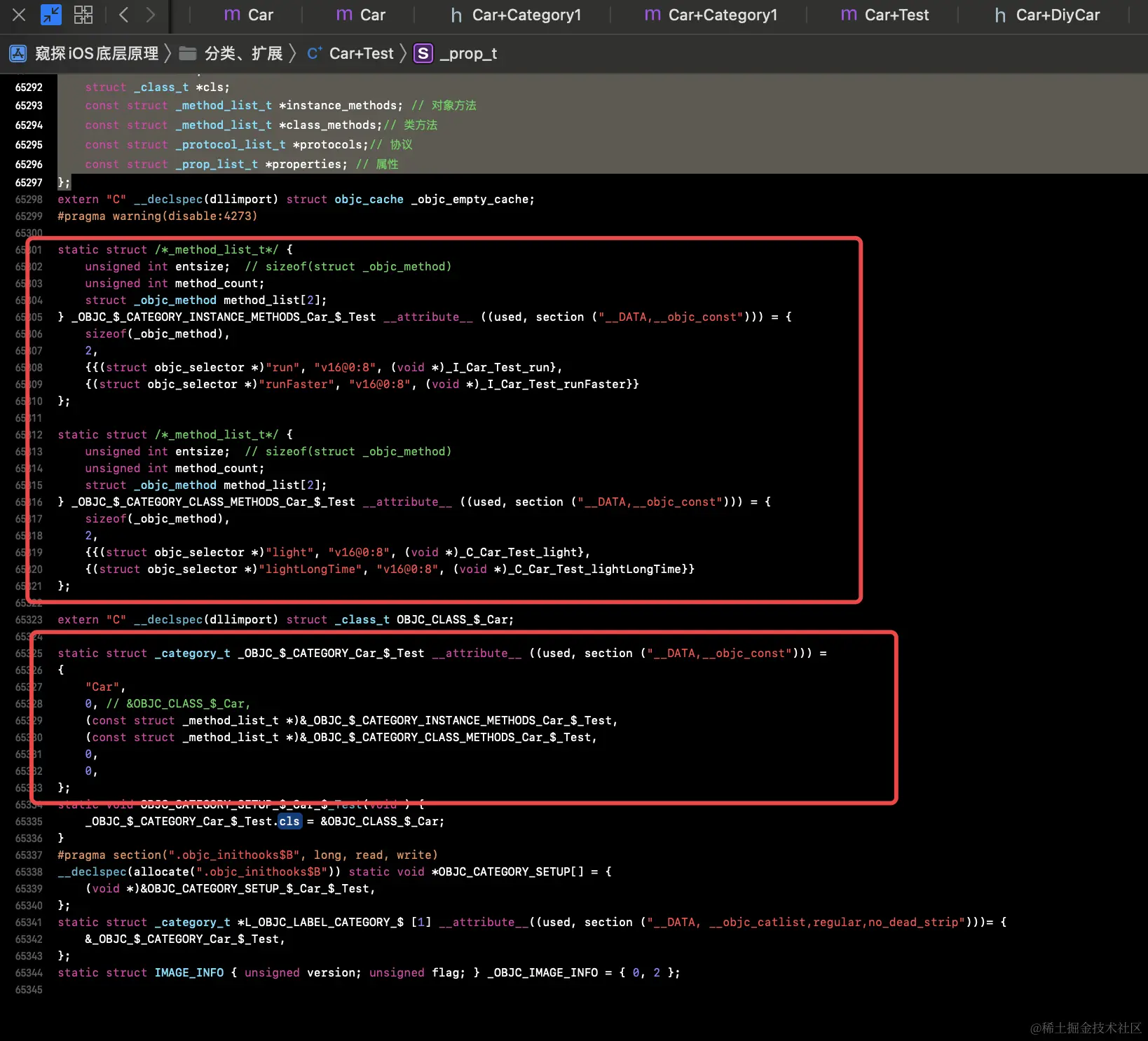

分类(Category)的底层实现(当前示例分类为Car+Test):

仔细查看代码:

static struct /*_method_list_t*/ {
    unsigned int entsize;  // sizeof(struct _objc_method)
    unsigned int method_count;
    struct _objc_method method_list[2];
} _OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Test __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_objc_method),
    2,
    {{(struct objc_selector *)"run", "v16@0:8", (void *)_I_Car_Test_run},
    {(struct objc_selector *)"runFaster", "v16@0:8", (void *)_I_Car_Test_runFaster}}
};

static struct /*_method_list_t*/ {
    unsigned int entsize;  // sizeof(struct _objc_method)
    unsigned int method_count;
    struct _objc_method method_list[2];
} _OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Test __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_objc_method),
    2,
    {{(struct objc_selector *)"light", "v16@0:8", (void *)_C_Car_Test_light},
    {(struct objc_selector *)"lightLongTime", "v16@0:8", (void *)_C_Car_Test_lightLongTime}}
};

 // 变量名对应着分类文件名
static struct _category_t _OBJC_$_CATEGORY_Car_$_Test __attribute__ ((used, section ("__DATA,__objc_const"))) =
{
    "Car",
    0, // &OBJC_CLASS_$_Car,
    (const struct _method_list_t *)&_OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Test,  // instance对象方法
    (const struct _method_list_t *)&_OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Test, //Class方法
    0,
    0,
};

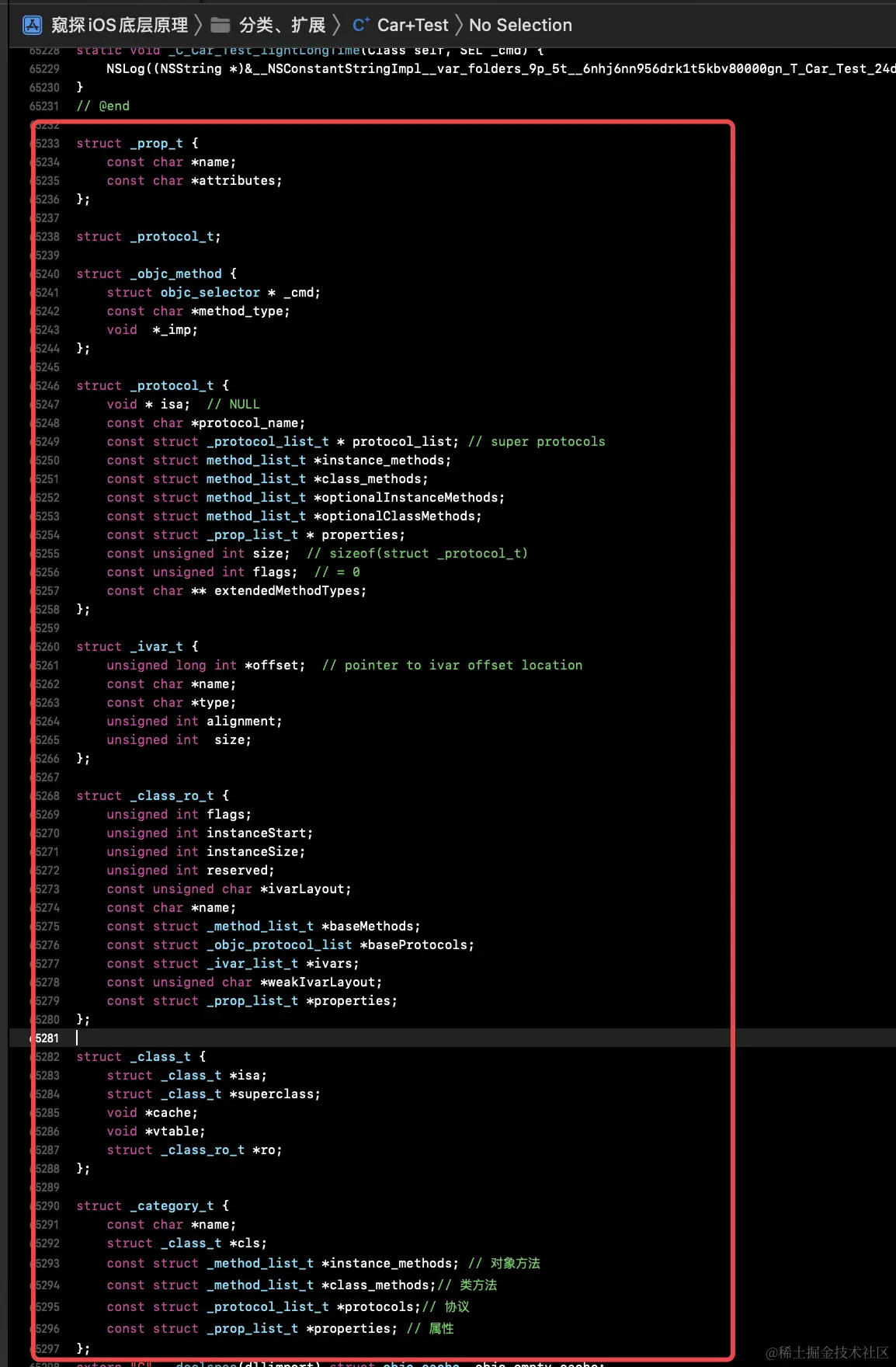

从底层代码中我们发现结构体:

_category_t _OBJC_$_CATEGORY_Car_$_Test
_OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Test
_OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Test
根据结构体的名称以及具体实现,我们可以清晰得知:
- _category_t _OBJC_$_CATEGORY_Car_$_Test 对应分类文件是Person+Test，并且里面记录着所有的分类信息:
- _OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Test 对应 struct _category_t中的 const struct _method_list_t *instance_methods; //Instance对象方法
- _OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Test 对应 struct _category_t 中的 const struct _method_list_t *class_methods; // 类方法

struct _category_t {
    const char *name;
    struct _class_t *cls;
    const struct _method_list_t *instance_methods; // Instance对象方法
    const struct _method_list_t *class_methods;// 类方法
    const struct _protocol_list_t *protocols;// 协议
    const struct _prop_list_t *properties; // 属性
};

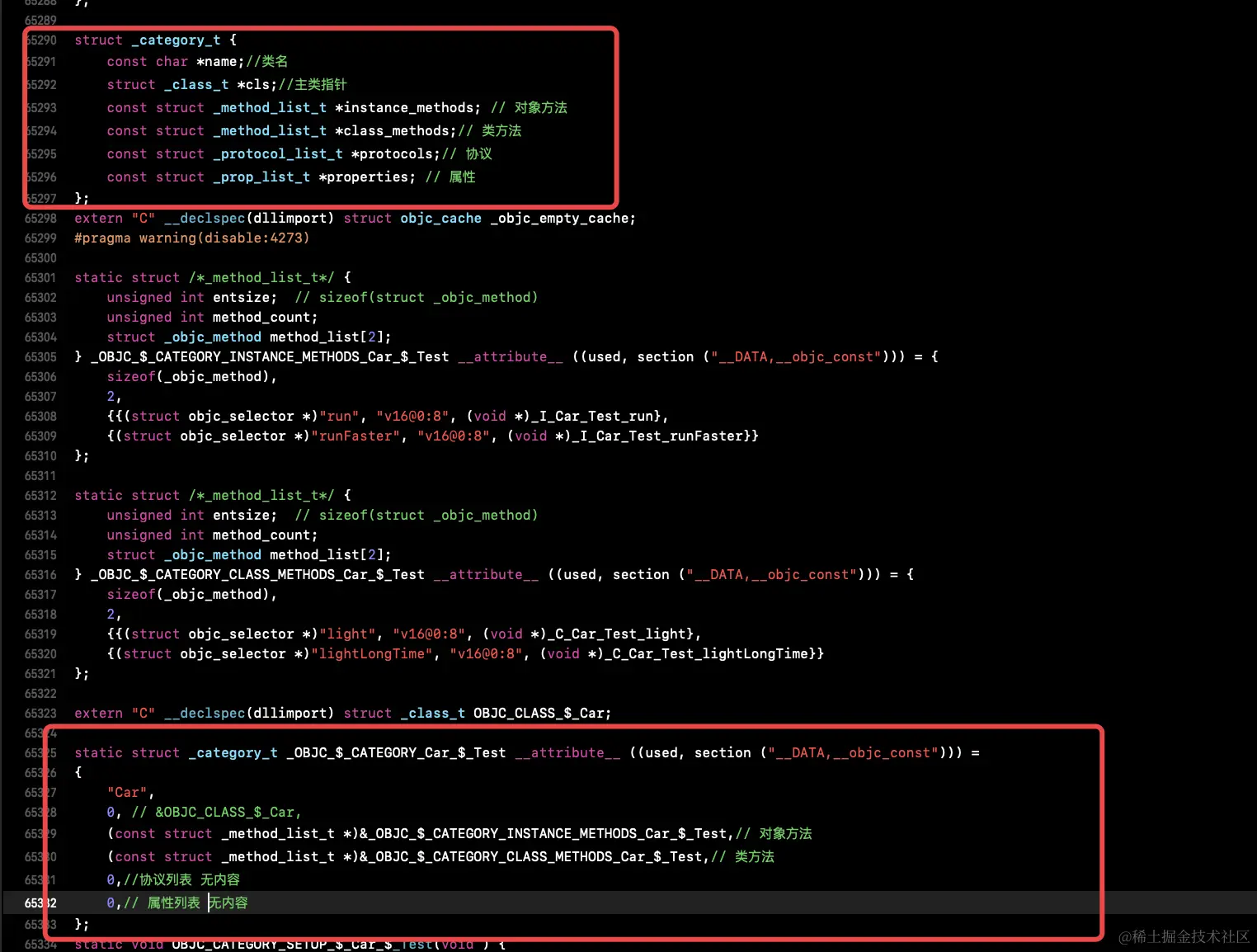

上下几张图一一对应，并且我们看到:

定义了_class_t类型的OBJC_CLASS_$_Car结构体
最后将_OBJC_$_CATEGORY_Car_$_Test的cls指针指向OBJC_CLASS_$_Car结构体地址
我们这里可以看出，cls指针指向的应该是分类的主类类对象的地址。

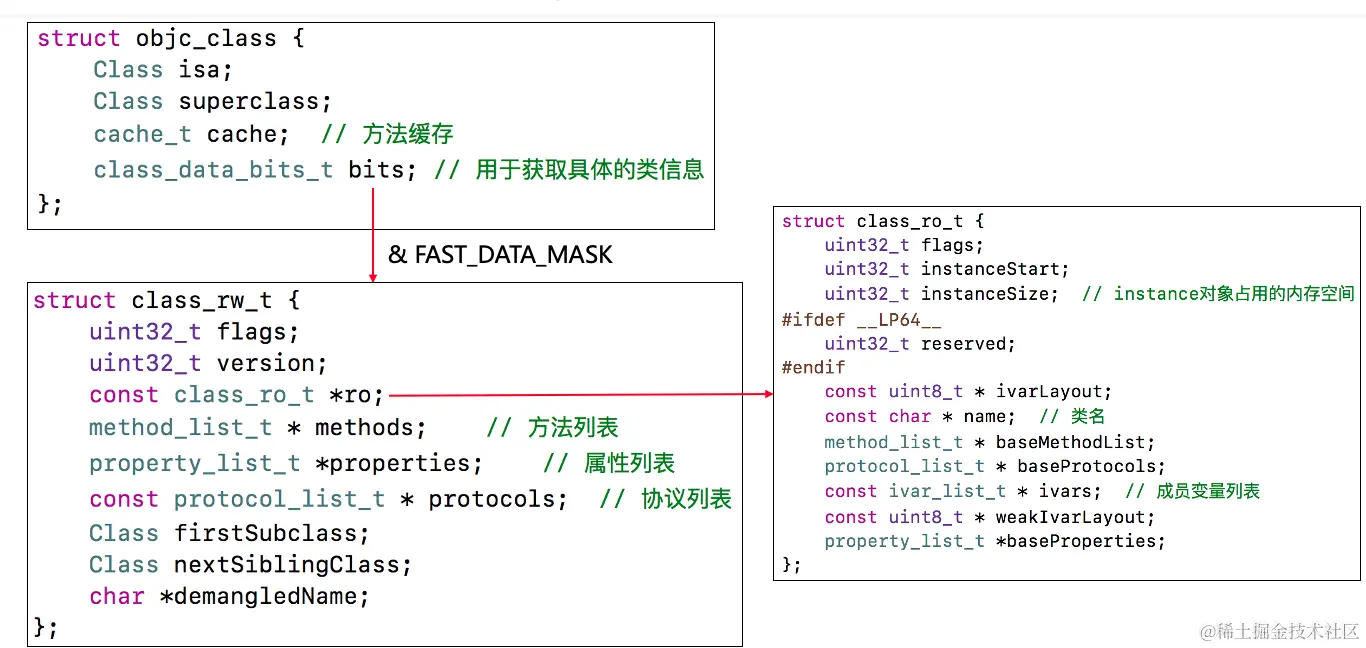

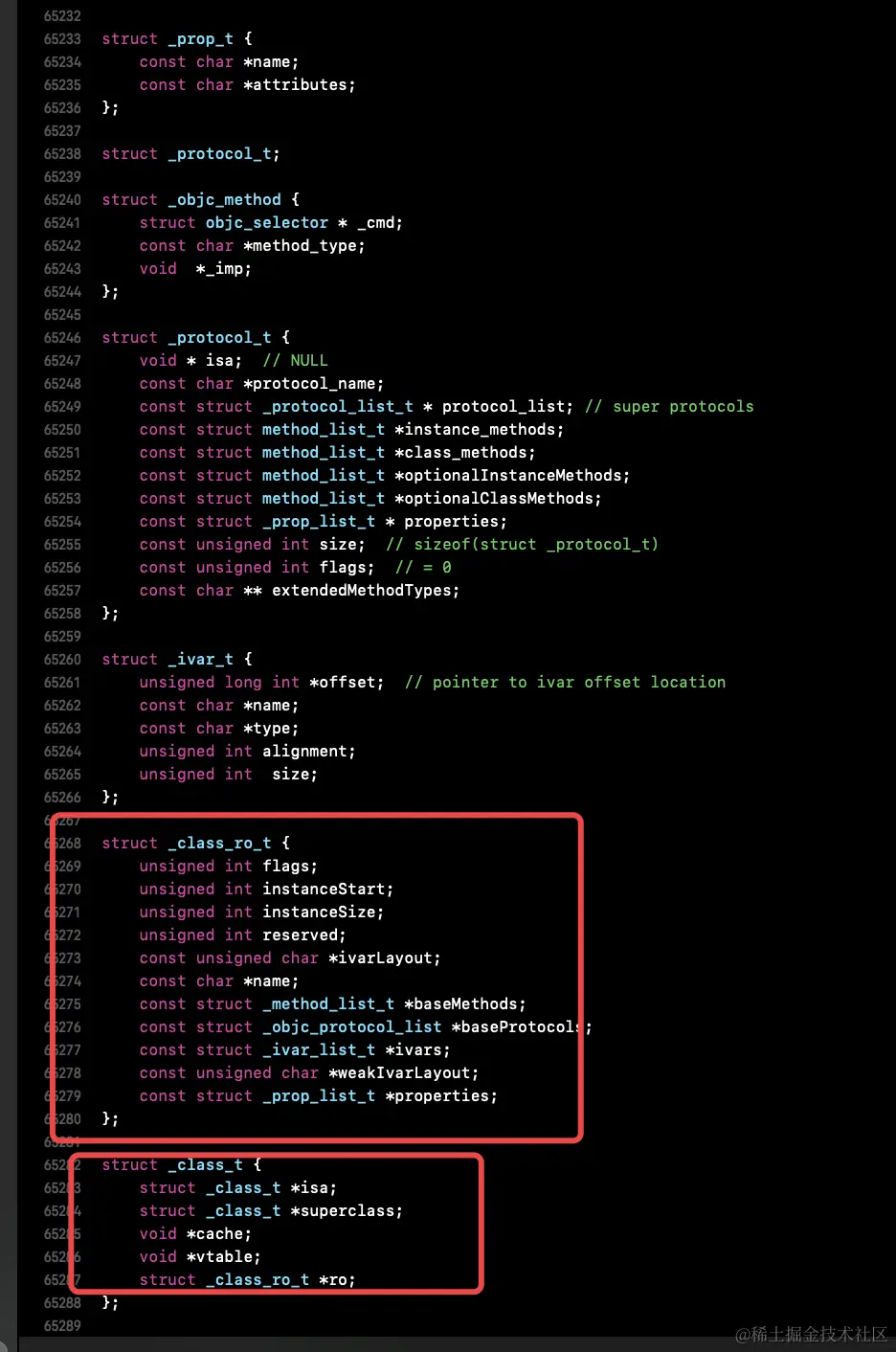

并且,在了解Class的底层本质的时候,我们得知,主类的核心信息是存放在结构体_class_ro_t中的

通过前面的分析我们发现:分类源码中确实是将我们定义的对象方法，类方法，属性等都存放在catagory_t结构体中
接下来我们在回到runtime源码查看 catagory_t 存储的方法，属性，协议等是如何存储在类对象中的。
我们在objc-rumtime-new.mm中找到的category_t的具体实现:

struct category_t {
    const char *name;
    classref_t cls;
    struct method_list_t *instanceMethods;
    struct method_list_t *classMethods;
    struct protocol_list_t *protocols;
    struct property_list_t *instanceProperties;
    // Fields below this point are not always present on disk.
    struct property_list_t *_classProperties;

    method_list_t *methodsForMeta(bool isMeta) {
        if (isMeta) return classMethods;
        else return instanceMethods;
    }

    property_list_t *propertiesForMeta(bool isMeta, struct header_info *hi);
};

与我们通过clang命令转出来的底层实现高度相似:

struct _category_t {
    const char *name;//类名
    struct _class_t *cls;//主类指针
    const struct _method_list_t *instance_methods; // 对象方法
    const struct _method_list_t *class_methods;// 类方法
    const struct _protocol_list_t *protocols;// 协议
    const struct _prop_list_t *properties; // 属性
};

2.Category的加载处理过程

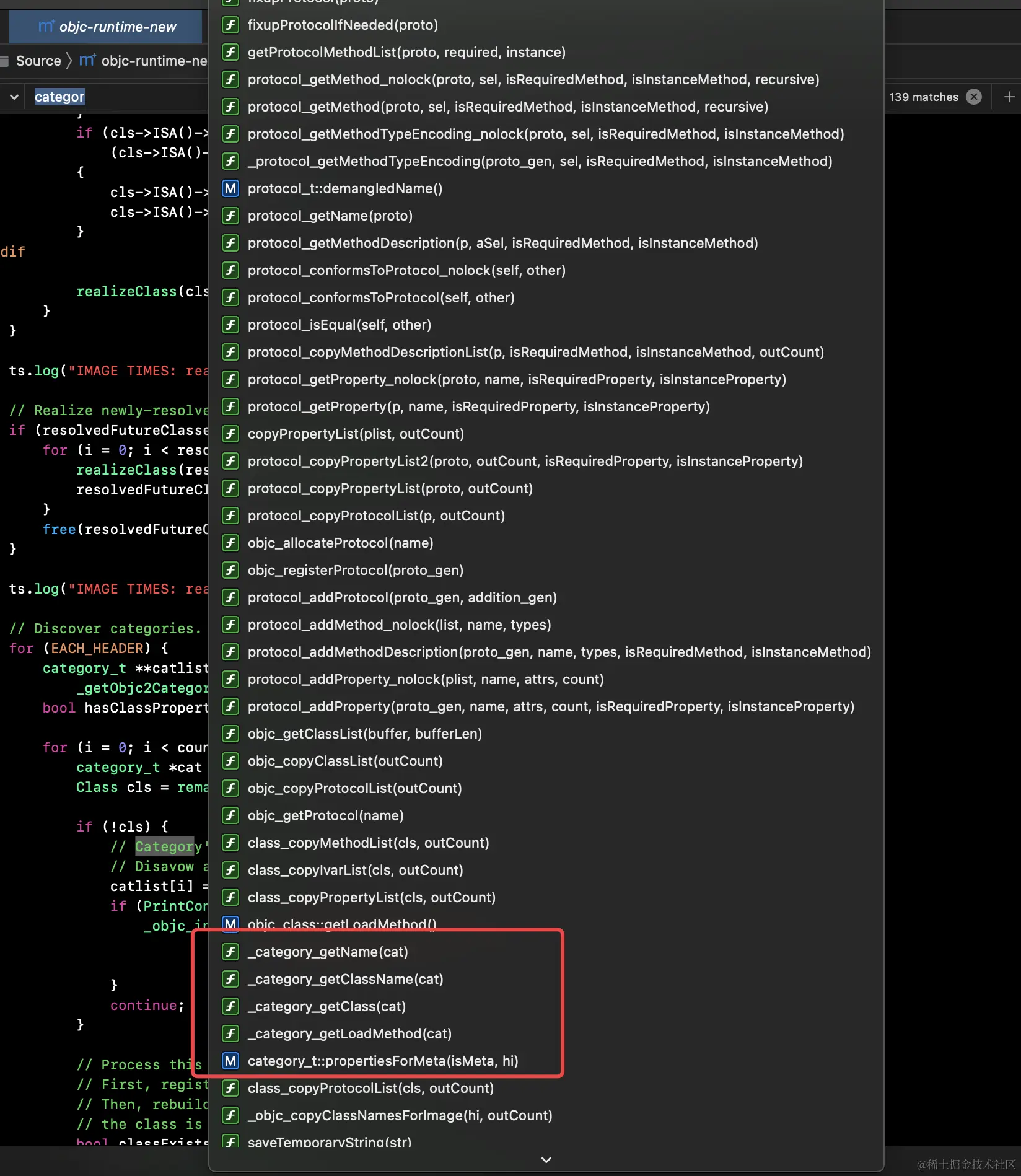

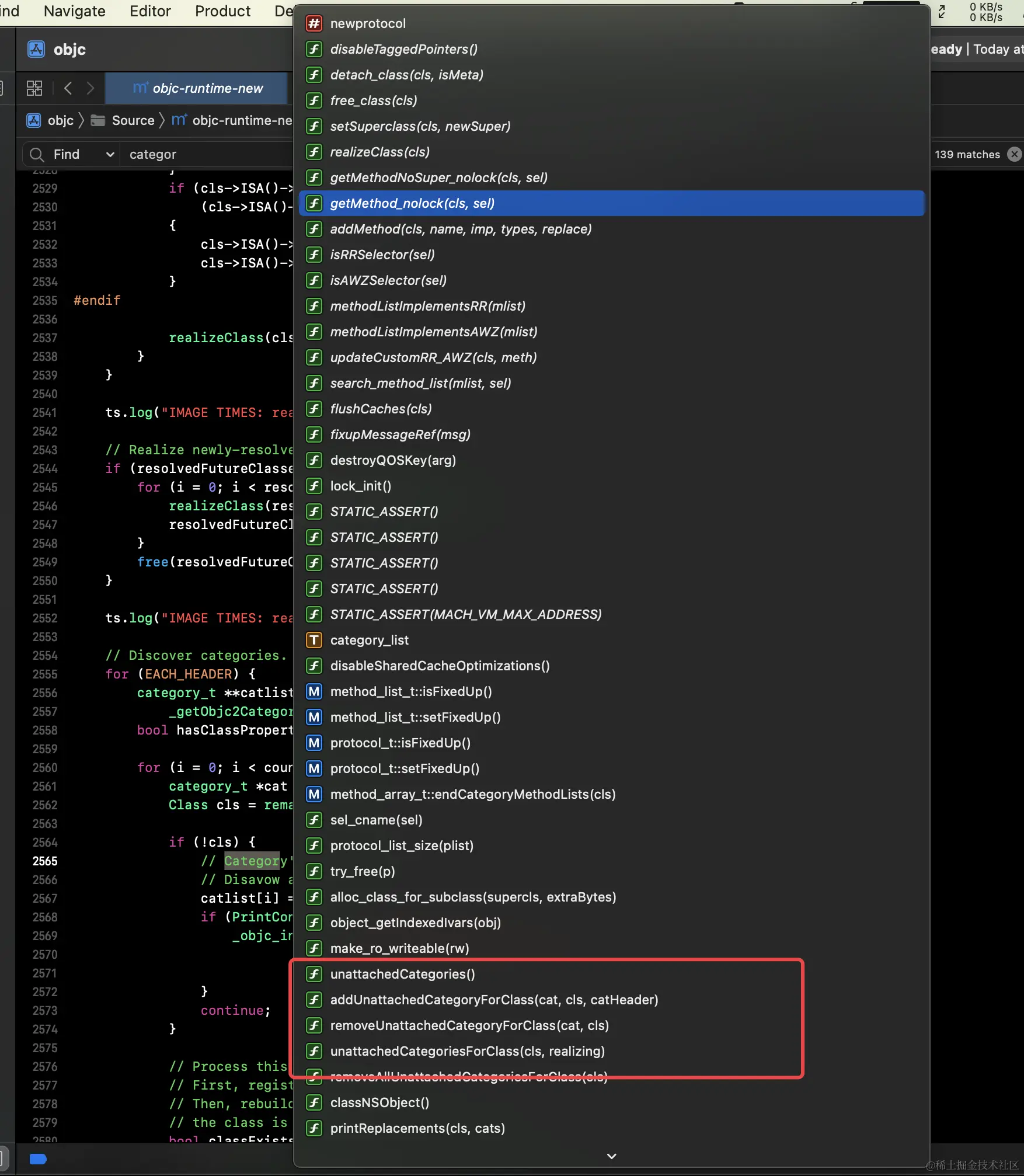

前面我们通过模糊搜索,在objc-rumtime-new.mm找到category_t的实现,紧接着我们继续在objc-rumtime-new.mm文件尝试查找与 category 相关的底层实现,我们找到了相关的几个函数:



/***********************************************************************
* unattachedCategories
* Returns the class => categories map of unattached categories.
* Locking: runtimeLock must be held by the caller.
**********************************************************************/
static NXMapTable *unattachedCategories(void)
{
    runtimeLock.assertWriting();

    static NXMapTable *category_map = nil;

    if (category_map) return category_map;

    // fixme initial map size
    category_map = NXCreateMapTable(NXPtrValueMapPrototype, 16);

    return category_map;
}


/***********************************************************************
* addUnattachedCategoryForClass
* Records an unattached category.
* Locking: runtimeLock must be held by the caller.
**********************************************************************/
static void addUnattachedCategoryForClass(category_t *cat, Class cls,
                                          header_info *catHeader)
{
    runtimeLock.assertWriting();

    // DO NOT use cat->cls! cls may be cat->cls->isa instead
    NXMapTable *cats = unattachedCategories();
    category_list *list;

    list = (category_list *)NXMapGet(cats, cls);
    if (!list) {
        list = (category_list *)
            calloc(sizeof(*list) + sizeof(list->list[0]), 1);
    } else {
        list = (category_list *)
            realloc(list, sizeof(*list) + sizeof(list->list[0]) * (list->count + 1));
    }
    list->list[list->count++] = (locstamped_category_t){cat, catHeader};
    NXMapInsert(cats, cls, list);
}


/***********************************************************************
* removeUnattachedCategoryForClass
* Removes an unattached category.
* Locking: runtimeLock must be held by the caller.
**********************************************************************/
static void removeUnattachedCategoryForClass(category_t *cat, Class cls)
{
    runtimeLock.assertWriting();

    // DO NOT use cat->cls! cls may be cat->cls->isa instead
    NXMapTable *cats = unattachedCategories();
    category_list *list;

    list = (category_list *)NXMapGet(cats, cls);
    if (!list) return;

    uint32_t i;
    for (i = 0; i < list->count; i++) {
        if (list->list[i].cat == cat) {
            // shift entries to preserve list order
            memmove(&list->list[i], &list->list[i+1],
                    (list->count-i-1) * sizeof(list->list[i]));
            list->count--;
            return;
        }
    }
}


/***********************************************************************
* unattachedCategoriesForClass
* Returns the list of unattached categories for a class, and
* deletes them from the list.
* The result must be freed by the caller.
* Locking: runtimeLock must be held by the caller.
**********************************************************************/
static category_list *
unattachedCategoriesForClass(Class cls, bool realizing)
{
    runtimeLock.assertWriting();
    return (category_list *)NXMapRemove(unattachedCategories(), cls);
}


/***********************************************************************
* removeAllUnattachedCategoriesForClass
* Deletes all unattached categories (loaded or not) for a class.
* Locking: runtimeLock must be held by the caller.
**********************************************************************/
static void removeAllUnattachedCategoriesForClass(Class cls)
{
    runtimeLock.assertWriting();

    void *list = NXMapRemove(unattachedCategories(), cls);
    if (list) free(list);
}

// Attach method lists and properties and protocols from categories to a class.
// Assumes the categories in cats are all loaded and sorted by load order,
// oldest categories first.
static void
attachCategories(Class cls, category_list *cats, bool flush_caches)
{
    if (!cats) return;
    if (PrintReplacedMethods) printReplacements(cls, cats);

    bool isMeta = cls->isMetaClass();

    // fixme rearrange to remove these intermediate allocations
    method_list_t **mlists = (method_list_t **)
        malloc(cats->count * sizeof(*mlists));
    property_list_t **proplists = (property_list_t **)
        malloc(cats->count * sizeof(*proplists));
    protocol_list_t **protolists = (protocol_list_t **)
        malloc(cats->count * sizeof(*protolists));

    // Count backwards through cats to get newest categories first
    int mcount = 0;
    int propcount = 0;
    int protocount = 0;
    int i = cats->count;
    bool fromBundle = NO;
    while (i--) {
        auto& entry = cats->list[i];

        method_list_t *mlist = entry.cat->methodsForMeta(isMeta);
        if (mlist) {
            mlists[mcount++] = mlist;
            fromBundle |= entry.hi->isBundle();
        }

        property_list_t *proplist =
            entry.cat->propertiesForMeta(isMeta, entry.hi);
        if (proplist) {
            proplists[propcount++] = proplist;
        }

        protocol_list_t *protolist = entry.cat->protocols;
        if (protolist) {
            protolists[protocount++] = protolist;
        }
    }

    auto rw = cls->data();

    prepareMethodLists(cls, mlists, mcount, NO, fromBundle);
    rw->methods.attachLists(mlists, mcount);
    free(mlists);
    if (flush_caches  &&  mcount > 0) flushCaches(cls);

    rw->properties.attachLists(proplists, propcount);
    free(proplists);

    rw->protocols.attachLists(protolists, protocount);
    free(protolists);
}

2.1 函数 `attachCategories`

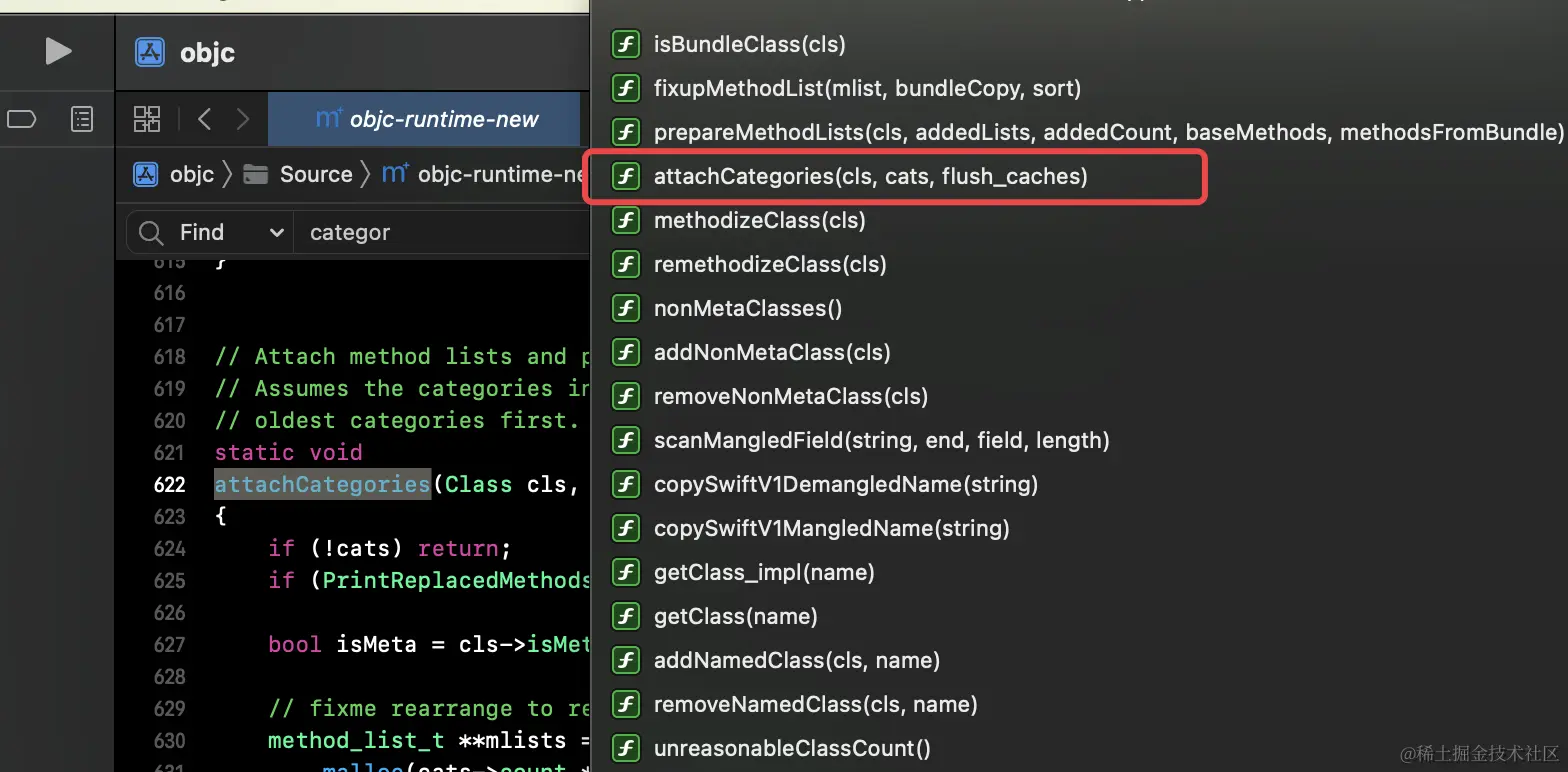

通过分析查找到objc-rumtime-new.mm文件里的attachCategories函数，将分类文件里的数据信息都附加到对应的类对象或者元类对象里,代码如下:

// 附加上分类的核心操作
// cls:类对象或者元类对象，cats_list：分类列表
static void attachCategories(Class cls, const locstamped_category_t *cats_list, uint32_t cats_count,
                 int flags)
{
    if (slowpath(PrintReplacedMethods)) {
        printReplacements(cls, cats_list, cats_count);
    }
    if (slowpath(PrintConnecting)) {
        _objc_inform("CLASS: attaching %d categories to%s class '%s'%s",
                     cats_count, (flags & ATTACH_EXISTING) ? " existing" : "",
                     cls->nameForLogging(), (flags & ATTACH_METACLASS) ? " (meta)" : "");
    }

    // 先分配固定内存空间来存放方法列表、属性列表和协议列表
    constexpr uint32_t ATTACH_BUFSIZ = 64;
    method_list_t   *mlists[ATTACH_BUFSIZ];
    property_list_t *proplists[ATTACH_BUFSIZ];
    protocol_list_t *protolists[ATTACH_BUFSIZ];

    uint32_t mcount = 0;
    uint32_t propcount = 0;
    uint32_t protocount = 0;
    bool fromBundle = NO;

    // 判断是否为元类
    bool isMeta = (flags & ATTACH_METACLASS);
    auto rwe = cls->data()->extAllocIfNeeded();

    for (uint32_t i = 0; i < cats_count; i++) {
        // 取出某个分类
        auto& entry = cats_list[i];

        // entry.cat就是category_t *cat
        // 根据isMeta属性取出每一个分类的类方法列表或者对象方法列表
        method_list_t *mlist = entry.cat->methodsForMeta(isMeta);

        // 如果有方法则添加mlist数组到mlists这个大的方法数组中
        // mlists是一个二维数组：[[method_t, method_t, ....], [method_t, method_t, ....]]
        if (mlist) {
            if (mcount == ATTACH_BUFSIZ) {
                prepareMethodLists(cls, mlists, mcount, NO, fromBundle, __func__);
                rwe->methods.attachLists(mlists, mcount);
                mcount = 0;
            }
            // 将分类列表里先取出来的分类方法列表放到大数组mlists的最后面（ATTACH_BUFSIZ - ++mcount），所以最后编译的分类方法列表会放在整个方法列表大数组的最前面
            mlists[ATTACH_BUFSIZ - ++mcount] = mlist;
            fromBundle |= entry.hi->isBundle();
        }

        // 同上面一样取出的是分类中的属性列表proplist加到大数组proplists中
        // proplists是一个二维数组：[[property_t, property_t, ....], [property_t, property_t, ....]]
        property_list_t *proplist =
            entry.cat->propertiesForMeta(isMeta, entry.hi);
        if (proplist) {
            if (propcount == ATTACH_BUFSIZ) {
                rwe->properties.attachLists(proplists, propcount);
                propcount = 0;
            }
            proplists[ATTACH_BUFSIZ - ++propcount] = proplist;
        }

        // 同上面一样取出的是分类中的协议列表protolist加到大数组protolists中
        // protolists是一个二维数组：[[protocol_ref_t, protocol_ref_t, ....], [protocol_ref_t, protocol_ref_t, ....]]
        protocol_list_t *protolist = entry.cat->protocolsForMeta(isMeta);
        if (protolist) {
            if (protocount == ATTACH_BUFSIZ) {
                rwe->protocols.attachLists(protolists, protocount);
                protocount = 0;
            }
            protolists[ATTACH_BUFSIZ - ++protocount] = protolist;
        }
    }

    if (mcount > 0) {
        prepareMethodLists(cls, mlists + ATTACH_BUFSIZ - mcount, mcount,
                           NO, fromBundle, __func__);

        // 将分类的所有对象方法或者类方法，都附加到类对象或者元类对象的方法列表中
        rwe->methods.attachLists(mlists + ATTACH_BUFSIZ - mcount, mcount);
        if (flags & ATTACH_EXISTING) {
            flushCaches(cls, __func__, [](Class c){
                return !c->cache.isConstantOptimizedCache();
            });
        }
    }

    // 将分类的所有属性附加到类对象的属性列表中
    rwe->properties.attachLists(proplists + ATTACH_BUFSIZ - propcount, propcount);
    // 将分类的所有协议附加到类对象的协议列表中
    rwe->protocols.attachLists(protolists + ATTACH_BUFSIZ - protocount, protocount);
}

2.2 上述的每步操作都会调用`attachLists`方法来进行元素分配，详细代码如下

void attachLists(List* const * addedLists, uint32_t addedCount) {
   if (addedCount == 0) return;

   if (hasArray()) {
       // 获取原本的个数
       uint32_t oldCount = array()->count;
       // 最新的个数 = 原本的个数 + 新添加的个数
       uint32_t newCount = oldCount + addedCount;

       // 重新分配内存
       array_t *newArray = (array_t *)malloc(array_t::byteSize(newCount));
       // 将新数组的个数改为最新的个数
       newArray->count = newCount;
       // 将旧数组的个数改为最新的个数
       array()->count = newCount;

       // 递减遍历，将旧数组里的元素从后往前的依次放到新数组里
       for (int i = oldCount - 1; i >= 0; i--)
           newArray->lists[i + addedCount] = array()->lists[i];

       // 将新增加的元素从前往后的依次放到新数组里
       for (unsigned i = 0; i < addedCount; i++)
           newArray->lists[i] = addedLists[i];

       // 释放旧数组数据
       free(array());

       // 赋值新数组数据
       setArray(newArray);
       validate();
   }
   else if (!list  &&  addedCount == 1) {
       // 0 lists -> 1 list
       list = addedLists[0];
       validate();
   }
   else { .... }
}

上述源代码中有两个重要的数组 array()->lists：类对象原来的方法列表，属性列表，协议列表。 addedLists：传入所有分类的方法列表，属性列表，协议列表。

attachLists函数中最重要的两个方法:

memmove内存移动
memcpy内存拷贝 我们先来分别看一下这两个函数:

// memmove ：内存移动。
/*  __dst : 移动内存的目的地
*   __src : 被移动的内存首地址
*   __len : 被移动的内存长度
*   将__src的内存移动__len块内存到__dst中
*/
void	*memmove(void *__dst, const void *__src, size_t __len);

// memcpy ：内存拷贝。
/*  __dst : 拷贝内存的拷贝目的地
*   __src : 被拷贝的内存首地址
*   __n : 被移动的内存长度
*   将__src的内存拷贝__n块内存到__dst中
*/
void	*memcpy(void *__dst, const void *__src, size_t __n);

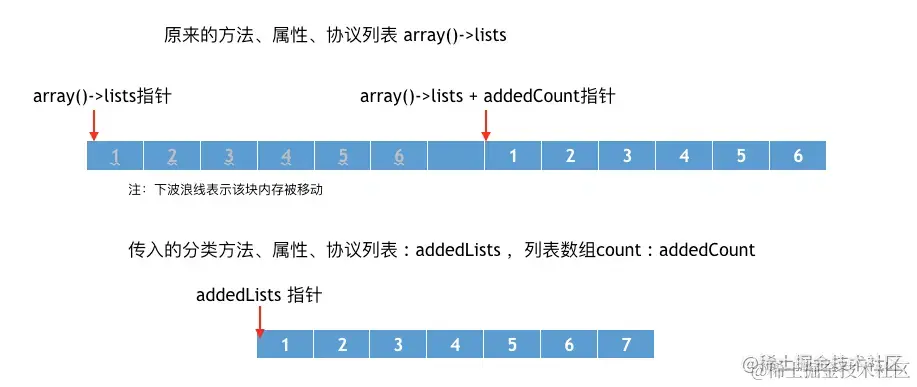

下面我们图示经过memmove和memcpy方法过后的内存变化。

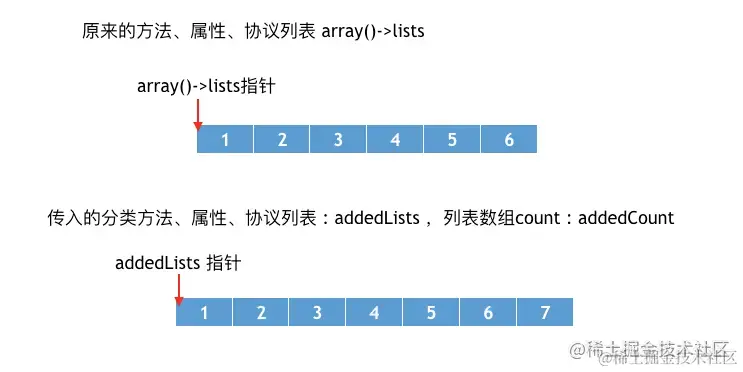

未经过内存移动和拷贝时

经过memmove方法之后，内存变化为

// array()->lists 原来方法、属性、协议列表数组
// addedCount 分类数组长度
// oldCount * sizeof(array()->lists[0]) 原来数组占据的空间
memmove(array()->lists + addedCount, array()->lists,
                  oldCount * sizeof(array()->lists[0]));

memmove方法之后内存变化

经过memmove方法之后，我们发现，虽然本类的方法，属性，协议列表会分别后移，但是本类的对应数组的指针依然指向原始位置。

memcpy方法之后，内存变化

// array()->lists 原来方法、属性、协议列表数组
// addedLists 分类方法、属性、协议列表数组
// addedCount * sizeof(array()->lists[0]) 原来数组占据的空间
memcpy(array()->lists, addedLists,
               addedCount * sizeof(array()->lists[0]));

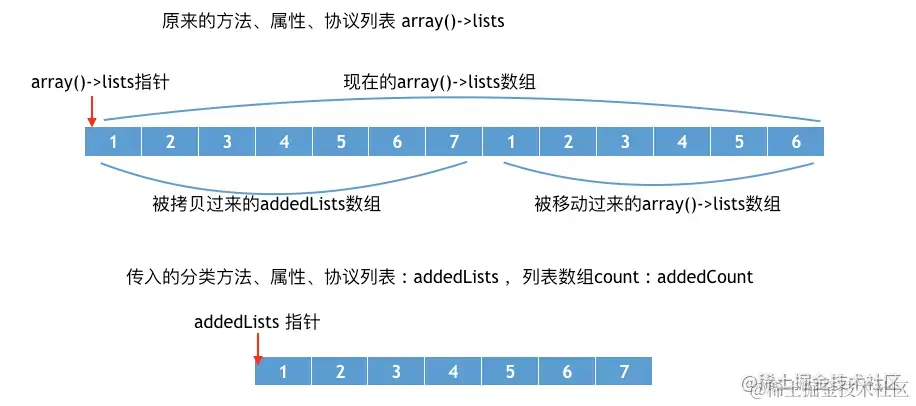

memmove方法之后，内存变化

我们发现:

原来指针并没有改变，至始至终指向开头的位置
并且经过memmove和memcpy方法之后，分类的方法，属性，协议列表被放在了类对象中原本存储的方法，属性，协议列表前面

那么为什么要将分类方法的列表追加到本来的对象方法前面呢?

这样做的目的是为了保证分类方法优先调用
我们知道当分类重写本类的方法时，会覆盖本类的方法。
其实经过上面的分析我们知道分类和主类有相同的方法的实现源码时,分类实现优先于主类的本质上并不是方法覆盖，而是在方法栈中的顺序不同，
- 分类的方法在占中的顺序较前,被优先调用
- 多个分类有相同方法的实现的时候,则按照源码编译的顺序（实则是分类被加入分类数组,在被遍历的时候的先后顺序决定了方法实现在方法栈中的顺序）

3.总结

编译时
- 每一个Category都会生成一个category_t结构体对象，记录着所有的属性、方法和协议信息
- 多个 category_t 会被放在 category_list中
运行时
- 通过Runtime加载某个类的所有Category数据
- 把所有Category的对象方法、类方法、属性、协议数据，分别合并到一个二维数组中，并且后面参与编译的Category数据，会在数组的前面
- 将合并后的Category数据（方法、属性、协议），插入到类原来数据的前面
求证方法的调用顺序的原理
- 后编译的 Category > 先编译的 Category >原来的类(本质原因是它们在方法栈中的顺序不同,优先级不同)

三、App启动装载的过程

我们前面只是了解到了 Category 底层实现和 Category 内部内容的如何装载到类、元类中的实现。对于 Class的装载过程,如何一步一步来到 Category的装载过程的了解有些欠缺！

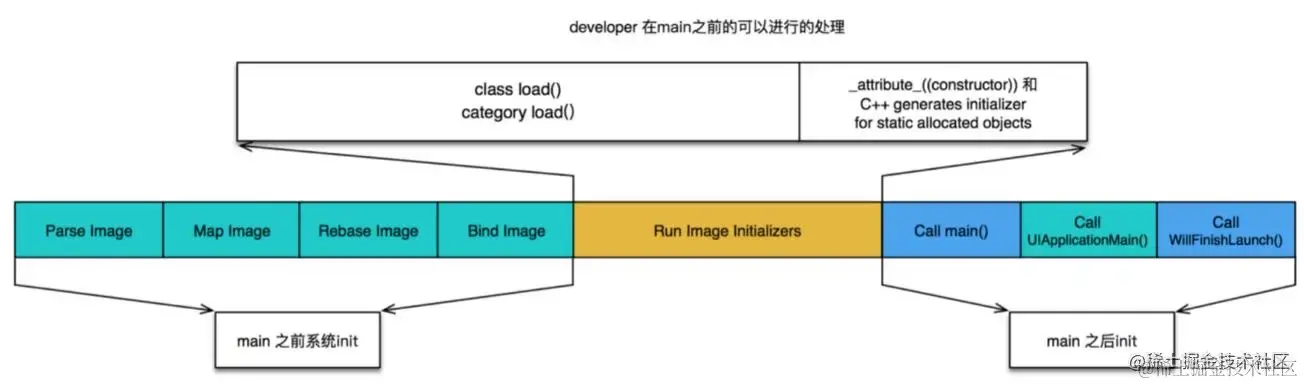

我们在了解App启动优化的时候,曾谈及App冷启动的过程:

APP的冷启动可以概括为3大阶段:

dyld动态库加载

Runtime初始化

进入main函数,开始整个应用的声明周期

1. `dyld动态库加载`

dyld（dynamic link editor），Apple的动态链接器，可以用来装载Mach-O文件（可执行文件、动态库等）

启动APP时，dyld所做的事情如下：

启动APP时，dyld会先装载APP的可执行文件，同时会递归加载所有依赖的动态库
当dyld把可执行文件、动态库都装载完毕后，会通知Runtime进行下一步的处理

2. `Runtime初始化`

启动APP时，Runtime所做的事情如下:

Runtime会调用map_images进行可执行文件内容的解析和处理
在load_images中调用call_load_methods，调用所有Class和Category的+load方法
进行各种objc结构的初始化（注册Objc类、初始化类对象等等）
调用C++静态初始化器和__attribute__((constructor))修饰的函数

到此为止，可执行文件和动态库中所有的符号(Class，Protocol，Selector，IMP，…)都已经按格式成功加载到内存中，被Runtime所管理

3. 进入main函数

总结一下,整个启动过程可以概述为：

APP的启动由dyld主导，将可执行文件加载到内存，顺便加载所有依赖的动态库
并由Runtime负责加载成objc定义的结构
然后所有初始化工作结束后，dyld就会调用main函数
接下来就是UIApplicationMain函数，AppDelegate的application:didFinishLaunchingWithOptions:方法

4.通过阅读源码关注`dyld动态库加载`、`Runtime初始化`


/***********************************************************************

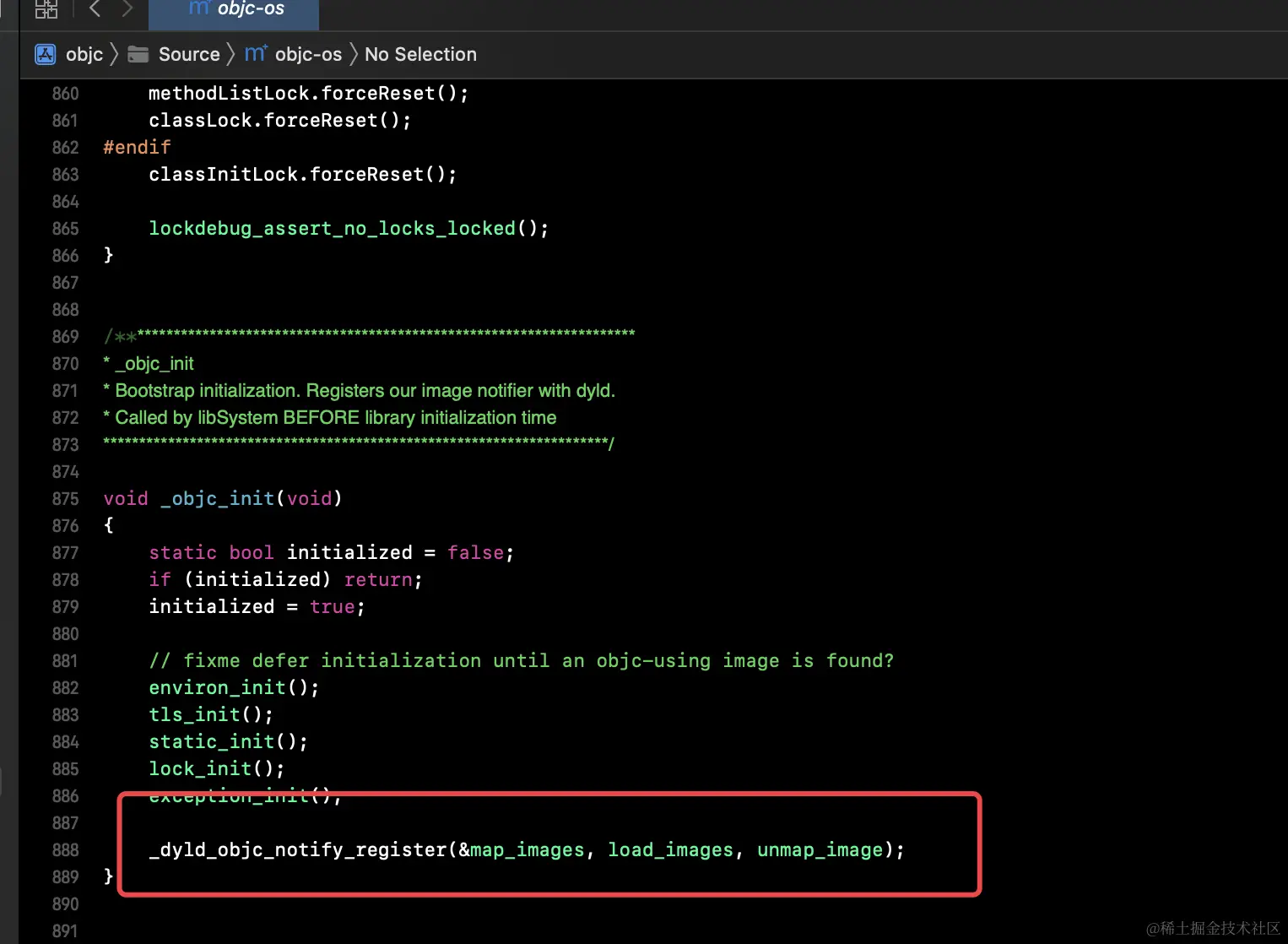

* _objc_init
* Bootstrap initialization. Registers our image notifier with dyld.
* Called by libSystem BEFORE library initialization time
**********************************************************************/

void _objc_init(void)
{
    static bool initialized = false;
    if (initialized) return;
    initialized = true;

    // fixme defer initialization until an objc-using image is found?
    environ_init();
    tls_init();
    static_init();
    lock_init();
    exception_init();

    _dyld_objc_notify_register(&map_images, load_images, unmap_image);
}

我们在_dyld_objc_notify_register(&map_images, load_images, unmap_image);这段代码中发现了装载的过程: -&map_images:读取模块(images这里代表模块）

load_images:装载模块
unmap_image:结束读取模块

4.1 map_images 读取模块过程

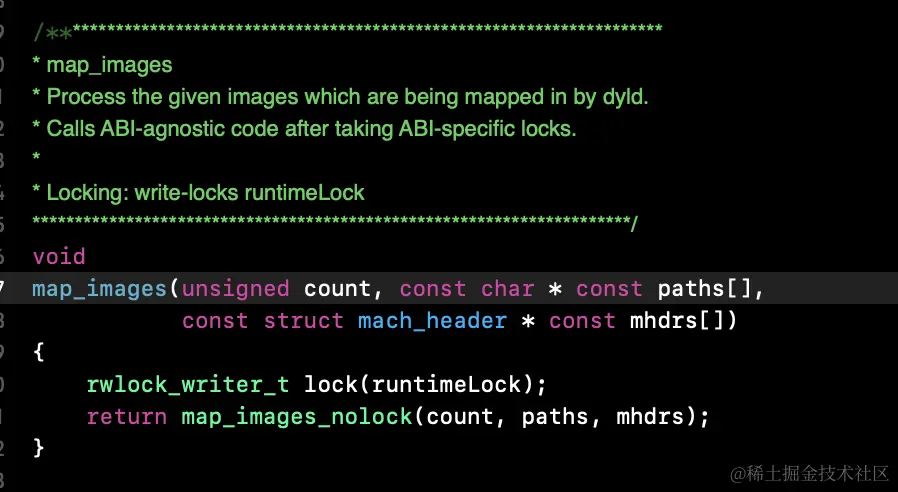

a.我们进入到 map_images函数:

4.1.1 `map_images_nolock`函数

b.我们继续进入map_images_nolock函数:

void
map_images_nolock(unsigned mhCount, const char * const mhPaths[],
                  const struct mach_header * const mhdrs[])
{
    static bool firstTime = YES;
    header_info *hList[mhCount];
    uint32_t hCount;
    size_t selrefCount = 0;

    // Perform first-time initialization if necessary.
    // This function is called before ordinary library initializers.
    // fixme defer initialization until an objc-using image is found?
    if (firstTime) {
        preopt_init();
    }

    if (PrintImages) {
        _objc_inform("IMAGES: processing %u newly-mapped images...\n", mhCount);
    }


    // Find all images with Objective-C metadata.
    hCount = 0;

    // Count classes. Size various table based on the total.
    int totalClasses = 0;
    int unoptimizedTotalClasses = 0;
    {
        uint32_t i = mhCount;
        while (i--) {
            const headerType *mhdr = (const headerType *)mhdrs[i];

            auto hi = addHeader(mhdr, mhPaths[i], totalClasses, unoptimizedTotalClasses);
            if (!hi) {
                // no objc data in this entry
                continue;
            }

            if (mhdr->filetype == MH_EXECUTE) {
                // Size some data structures based on main executable's size
#if __OBJC2__
                size_t count;
                _getObjc2SelectorRefs(hi, &count);
                selrefCount += count;
                _getObjc2MessageRefs(hi, &count);
                selrefCount += count;
#else
                _getObjcSelectorRefs(hi, &selrefCount);
#endif

#if SUPPORT_GC_COMPAT
                // Halt if this is a GC app.
                if (shouldRejectGCApp(hi)) {
                    _objc_fatal_with_reason
                        (OBJC_EXIT_REASON_GC_NOT_SUPPORTED,
                         OS_REASON_FLAG_CONSISTENT_FAILURE,
                         "Objective-C garbage collection "
                         "is no longer supported.");
                }
#endif
            }

            hList[hCount++] = hi;

            if (PrintImages) {
                _objc_inform("IMAGES: loading image for %s%s%s%s%s\n",
                             hi->fname(),
                             mhdr->filetype == MH_BUNDLE ? " (bundle)" : "",
                             hi->info()->isReplacement() ? " (replacement)" : "",
                             hi->info()->hasCategoryClassProperties() ? " (has class properties)" : "",
                             hi->info()->optimizedByDyld()?" (preoptimized)":"");
            }
        }
    }

    // Perform one-time runtime initialization that must be deferred until
    // the executable itself is found. This needs to be done before
    // further initialization.
    // (The executable may not be present in this infoList if the
    // executable does not contain Objective-C code but Objective-C
    // is dynamically loaded later.
    if (firstTime) {
        sel_init(selrefCount);
        arr_init();

#if SUPPORT_GC_COMPAT
        // Reject any GC images linked to the main executable.
        // We already rejected the app itself above.
        // Images loaded after launch will be rejected by dyld.

        for (uint32_t i = 0; i < hCount; i++) {
            auto hi = hList[i];
            auto mh = hi->mhdr();
            if (mh->filetype != MH_EXECUTE  &&  shouldRejectGCImage(mh)) {
                _objc_fatal_with_reason
                    (OBJC_EXIT_REASON_GC_NOT_SUPPORTED,
                     OS_REASON_FLAG_CONSISTENT_FAILURE,
                     "%s requires Objective-C garbage collection "
                     "which is no longer supported.", hi->fname());
            }
        }
#endif

#if TARGET_OS_OSX
        // Disable +initialize fork safety if the app is too old (< 10.13).
        // Disable +initialize fork safety if the app has a
        //   __DATA,__objc_fork_ok section.

        if (dyld_get_program_sdk_version() < DYLD_MACOSX_VERSION_10_13) {
            DisableInitializeForkSafety = true;
            if (PrintInitializing) {
                _objc_inform("INITIALIZE: disabling +initialize fork "
                             "safety enforcement because the app is "
                             "too old (SDK version " SDK_FORMAT ")",
                             FORMAT_SDK(dyld_get_program_sdk_version()));
            }
        }

        for (uint32_t i = 0; i < hCount; i++) {
            auto hi = hList[i];
            auto mh = hi->mhdr();
            if (mh->filetype != MH_EXECUTE) continue;
            unsigned long size;
            if (getsectiondata(hi->mhdr(), "__DATA", "__objc_fork_ok", &size)) {
                DisableInitializeForkSafety = true;
                if (PrintInitializing) {
                    _objc_inform("INITIALIZE: disabling +initialize fork "
                                 "safety enforcement because the app has "
                                 "a __DATA,__objc_fork_ok section");
                }
            }
            break;  // assume only one MH_EXECUTE image
        }
#endif

    }

    if (hCount > 0) {
        _read_images(hList, hCount, totalClasses, unoptimizedTotalClasses);
    }

    firstTime = NO;
}

4.1.2 `_read_images`函数

来到map_images_nolock函数中找到_read_images函数

    if (hCount > 0) {
        _read_images(hList, hCount, totalClasses, unoptimizedTotalClasses);
    }

从map_images_nolock函数 到_read_images函数 的过程,即完成动态库的装载准备,进入runtime的过程
在_read_images函数中我们找到分类相关代码:

/***********************************************************************
* _read_images
* Perform initial processing of the headers in the linked
* list beginning with headerList.
*
* Called by: map_images_nolock
*
* Locking: runtimeLock acquired by map_images
**********************************************************************/
void _read_images(header_info **hList, uint32_t hCount, int totalClasses, int unoptimizedTotalClasses)
{
    header_info *hi;
    uint32_t hIndex;
    size_t count;
    size_t i;
    Class *resolvedFutureClasses = nil;
    size_t resolvedFutureClassCount = 0;
    static bool doneOnce;
    TimeLogger ts(PrintImageTimes);

    runtimeLock.assertWriting();

#define EACH_HEADER \
    hIndex = 0;         \
    hIndex < hCount && (hi = hList[hIndex]); \
    hIndex++

    if (!doneOnce) {
        doneOnce = YES;

#if SUPPORT_NONPOINTER_ISA
        // Disable non-pointer isa under some conditions.

# if SUPPORT_INDEXED_ISA
        // Disable nonpointer isa if any image contains old Swift code
        for (EACH_HEADER) {
            if (hi->info()->containsSwift()  &&
                hi->info()->swiftVersion() < objc_image_info::SwiftVersion3)
            {
                DisableNonpointerIsa = true;
                if (PrintRawIsa) {
                    _objc_inform("RAW ISA: disabling non-pointer isa because "
                                 "the app or a framework contains Swift code "
                                 "older than Swift 3.0");
                }
                break;
            }
        }
# endif

# if TARGET_OS_OSX
        // Disable non-pointer isa if the app is too old
        // (linked before OS X 10.11)
        if (dyld_get_program_sdk_version() < DYLD_MACOSX_VERSION_10_11) {
            DisableNonpointerIsa = true;
            if (PrintRawIsa) {
                _objc_inform("RAW ISA: disabling non-pointer isa because "
                             "the app is too old (SDK version " SDK_FORMAT ")",
                             FORMAT_SDK(dyld_get_program_sdk_version()));
            }
        }

        // Disable non-pointer isa if the app has a __DATA,__objc_rawisa section
        // New apps that load old extensions may need this.
        for (EACH_HEADER) {
            if (hi->mhdr()->filetype != MH_EXECUTE) continue;
            unsigned long size;
            if (getsectiondata(hi->mhdr(), "__DATA", "__objc_rawisa", &size)) {
                DisableNonpointerIsa = true;
                if (PrintRawIsa) {
                    _objc_inform("RAW ISA: disabling non-pointer isa because "
                                 "the app has a __DATA,__objc_rawisa section");
                }
            }
            break;  // assume only one MH_EXECUTE image
        }
# endif

#endif

        if (DisableTaggedPointers) {
            disableTaggedPointers();
        }

        if (PrintConnecting) {
            _objc_inform("CLASS: found %d classes during launch", totalClasses);
        }

        // namedClasses
        // Preoptimized classes don't go in this table.
        // 4/3 is NXMapTable's load factor
        int namedClassesSize =
            (isPreoptimized() ? unoptimizedTotalClasses : totalClasses) * 4 / 3;
        gdb_objc_realized_classes =
            NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize);

        ts.log("IMAGE TIMES: first time tasks");
    }


    // Discover classes. Fix up unresolved future classes. Mark bundle classes.

    for (EACH_HEADER) {
        if (! mustReadClasses(hi)) {
            // Image is sufficiently optimized that we need not call readClass()
            continue;
        }

        bool headerIsBundle = hi->isBundle();
        bool headerIsPreoptimized = hi->isPreoptimized();

        classref_t *classlist = _getObjc2ClassList(hi, &count);
        for (i = 0; i < count; i++) {
            Class cls = (Class)classlist[i];
            Class newCls = readClass(cls, headerIsBundle, headerIsPreoptimized);

            if (newCls != cls  &&  newCls) {
                // Class was moved but not deleted. Currently this occurs
                // only when the new class resolved a future class.
                // Non-lazily realize the class below.
                resolvedFutureClasses = (Class *)
                    realloc(resolvedFutureClasses,
                            (resolvedFutureClassCount+1) * sizeof(Class));
                resolvedFutureClasses[resolvedFutureClassCount++] = newCls;
            }
        }
    }

    ts.log("IMAGE TIMES: discover classes");

    // Fix up remapped classes
    // Class list and nonlazy class list remain unremapped.
    // Class refs and super refs are remapped for message dispatching.

    if (!noClassesRemapped()) {
        for (EACH_HEADER) {
            Class *classrefs = _getObjc2ClassRefs(hi, &count);
            for (i = 0; i < count; i++) {
                remapClassRef(&classrefs[i]);
            }
            // fixme why doesn't test future1 catch the absence of this?
            classrefs = _getObjc2SuperRefs(hi, &count);
            for (i = 0; i < count; i++) {
                remapClassRef(&classrefs[i]);
            }
        }
    }

    ts.log("IMAGE TIMES: remap classes");

    // Fix up @selector references
    static size_t UnfixedSelectors;
    sel_lock();
    for (EACH_HEADER) {
        if (hi->isPreoptimized()) continue;

        bool isBundle = hi->isBundle();
        SEL *sels = _getObjc2SelectorRefs(hi, &count);
        UnfixedSelectors += count;
        for (i = 0; i < count; i++) {
            const char *name = sel_cname(sels[i]);
            sels[i] = sel_registerNameNoLock(name, isBundle);
        }
    }
    sel_unlock();

    ts.log("IMAGE TIMES: fix up selector references");

#if SUPPORT_FIXUP
    // Fix up old objc_msgSend_fixup call sites
    for (EACH_HEADER) {
        message_ref_t *refs = _getObjc2MessageRefs(hi, &count);
        if (count == 0) continue;

        if (PrintVtables) {
            _objc_inform("VTABLES: repairing %zu unsupported vtable dispatch "
                         "call sites in %s", count, hi->fname());
        }
        for (i = 0; i < count; i++) {
            fixupMessageRef(refs+i);
        }
    }

    ts.log("IMAGE TIMES: fix up objc_msgSend_fixup");
#endif

    // Discover protocols. Fix up protocol refs.
    for (EACH_HEADER) {
        extern objc_class OBJC_CLASS_$_Protocol;
        Class cls = (Class)&OBJC_CLASS_$_Protocol;
        assert(cls);
        NXMapTable *protocol_map = protocols();
        bool isPreoptimized = hi->isPreoptimized();
        bool isBundle = hi->isBundle();

        protocol_t **protolist = _getObjc2ProtocolList(hi, &count);
        for (i = 0; i < count; i++) {
            readProtocol(protolist[i], cls, protocol_map,
                         isPreoptimized, isBundle);
        }
    }

    ts.log("IMAGE TIMES: discover protocols");

    // Fix up @protocol references
    // Preoptimized images may have the right
    // answer already but we don't know for sure.
    for (EACH_HEADER) {
        protocol_t **protolist = _getObjc2ProtocolRefs(hi, &count);
        for (i = 0; i < count; i++) {
            remapProtocolRef(&protolist[i]);
        }
    }

    ts.log("IMAGE TIMES: fix up @protocol references");

    // Realize non-lazy classes (for +load methods and static instances)
    for (EACH_HEADER) {
        classref_t *classlist =
            _getObjc2NonlazyClassList(hi, &count);
        for (i = 0; i < count; i++) {
            Class cls = remapClass(classlist[i]);
            if (!cls) continue;

            // hack for class __ARCLite__, which didn't get this above
#if TARGET_OS_SIMULATOR
            if (cls->cache._buckets == (void*)&_objc_empty_cache  &&
                (cls->cache._mask  ||  cls->cache._occupied))
            {
                cls->cache._mask = 0;
                cls->cache._occupied = 0;
            }
            if (cls->ISA()->cache._buckets == (void*)&_objc_empty_cache  &&
                (cls->ISA()->cache._mask  ||  cls->ISA()->cache._occupied))
            {
                cls->ISA()->cache._mask = 0;
                cls->ISA()->cache._occupied = 0;
            }
#endif

            realizeClass(cls);
        }
    }

    ts.log("IMAGE TIMES: realize non-lazy classes");

    // Realize newly-resolved future classes, in case CF manipulates them
    if (resolvedFutureClasses) {
        for (i = 0; i < resolvedFutureClassCount; i++) {
            realizeClass(resolvedFutureClasses[i]);
            resolvedFutureClasses[i]->setInstancesRequireRawIsa(false/*inherited*/);
        }
        free(resolvedFutureClasses);
    }

    ts.log("IMAGE TIMES: realize future classes");

    // Discover categories.
    for (EACH_HEADER) {
        category_t **catlist =
            _getObjc2CategoryList(hi, &count);
        bool hasClassProperties = hi->info()->hasCategoryClassProperties();

        for (i = 0; i < count; i++) {
            category_t *cat = catlist[i];
            Class cls = remapClass(cat->cls);

            if (!cls) {
                // Category's target class is missing (probably weak-linked).
                // Disavow any knowledge of this category.
                catlist[i] = nil;
                if (PrintConnecting) {
                    _objc_inform("CLASS: IGNORING category \?\?\?(%s) %p with "
                                 "missing weak-linked target class",
                                 cat->name, cat);
                }
                continue;
            }

            // Process this category.
            // First, register the category with its target class.
            // Then, rebuild the class's method lists (etc) if
            // the class is realized.
            bool classExists = NO;
            if (cat->instanceMethods ||  cat->protocols
                ||  cat->instanceProperties)
            {
                addUnattachedCategoryForClass(cat, cls, hi);
                if (cls->isRealized()) {
                    remethodizeClass(cls);
                    classExists = YES;
                }
                if (PrintConnecting) {
                    _objc_inform("CLASS: found category -%s(%s) %s",
                                 cls->nameForLogging(), cat->name,
                                 classExists ? "on existing class" : "");
                }
            }

            if (cat->classMethods  ||  cat->protocols
                ||  (hasClassProperties && cat->_classProperties))
            {
                addUnattachedCategoryForClass(cat, cls->ISA(), hi);
                if (cls->ISA()->isRealized()) {
                    remethodizeClass(cls->ISA());
                }
                if (PrintConnecting) {
                    _objc_inform("CLASS: found category +%s(%s)",
                                 cls->nameForLogging(), cat->name);
                }
            }
        }
    }

    ts.log("IMAGE TIMES: discover categories");

    // Category discovery MUST BE LAST to avoid potential races
    // when other threads call the new category code before
    // this thread finishes its fixups.

    // +load handled by prepare_load_methods()

    if (DebugNonFragileIvars) {
        realizeAllClasses();
    }


    // Print preoptimization statistics
    if (PrintPreopt) {
        static unsigned int PreoptTotalMethodLists;
        static unsigned int PreoptOptimizedMethodLists;
        static unsigned int PreoptTotalClasses;
        static unsigned int PreoptOptimizedClasses;

        for (EACH_HEADER) {
            if (hi->isPreoptimized()) {
                _objc_inform("PREOPTIMIZATION: honoring preoptimized selectors "
                             "in %s", hi->fname());
            }
            else if (hi->info()->optimizedByDyld()) {
                _objc_inform("PREOPTIMIZATION: IGNORING preoptimized selectors "
                             "in %s", hi->fname());
            }

            classref_t *classlist = _getObjc2ClassList(hi, &count);
            for (i = 0; i < count; i++) {
                Class cls = remapClass(classlist[i]);
                if (!cls) continue;

                PreoptTotalClasses++;
                if (hi->isPreoptimized()) {
                    PreoptOptimizedClasses++;
                }

                const method_list_t *mlist;
                if ((mlist = ((class_ro_t *)cls->data())->baseMethods())) {
                    PreoptTotalMethodLists++;
                    if (mlist->isFixedUp()) {
                        PreoptOptimizedMethodLists++;
                    }
                }
                if ((mlist=((class_ro_t *)cls->ISA()->data())->baseMethods())) {
                    PreoptTotalMethodLists++;
                    if (mlist->isFixedUp()) {
                        PreoptOptimizedMethodLists++;
                    }
                }
            }
        }

        _objc_inform("PREOPTIMIZATION: %zu selector references not "
                     "pre-optimized", UnfixedSelectors);
        _objc_inform("PREOPTIMIZATION: %u/%u (%.3g%%) method lists pre-sorted",
                     PreoptOptimizedMethodLists, PreoptTotalMethodLists,
                     PreoptTotalMethodLists
                     ? 100.0*PreoptOptimizedMethodLists/PreoptTotalMethodLists
                     : 0.0);
        _objc_inform("PREOPTIMIZATION: %u/%u (%.3g%%) classes pre-registered",
                     PreoptOptimizedClasses, PreoptTotalClasses,
                     PreoptTotalClasses
                     ? 100.0*PreoptOptimizedClasses/PreoptTotalClasses
                     : 0.0);
        _objc_inform("PREOPTIMIZATION: %zu protocol references not "
                     "pre-optimized", UnfixedProtocolReferences);
    }

#undef EACH_HEADER
}

从上述代码中我们可以知道这段代码是用来查找有没有分类的。

通过_getObjc2CategoryList函数获取到分类列表之后，进行遍历，获取其中的方法，协议，属性等。

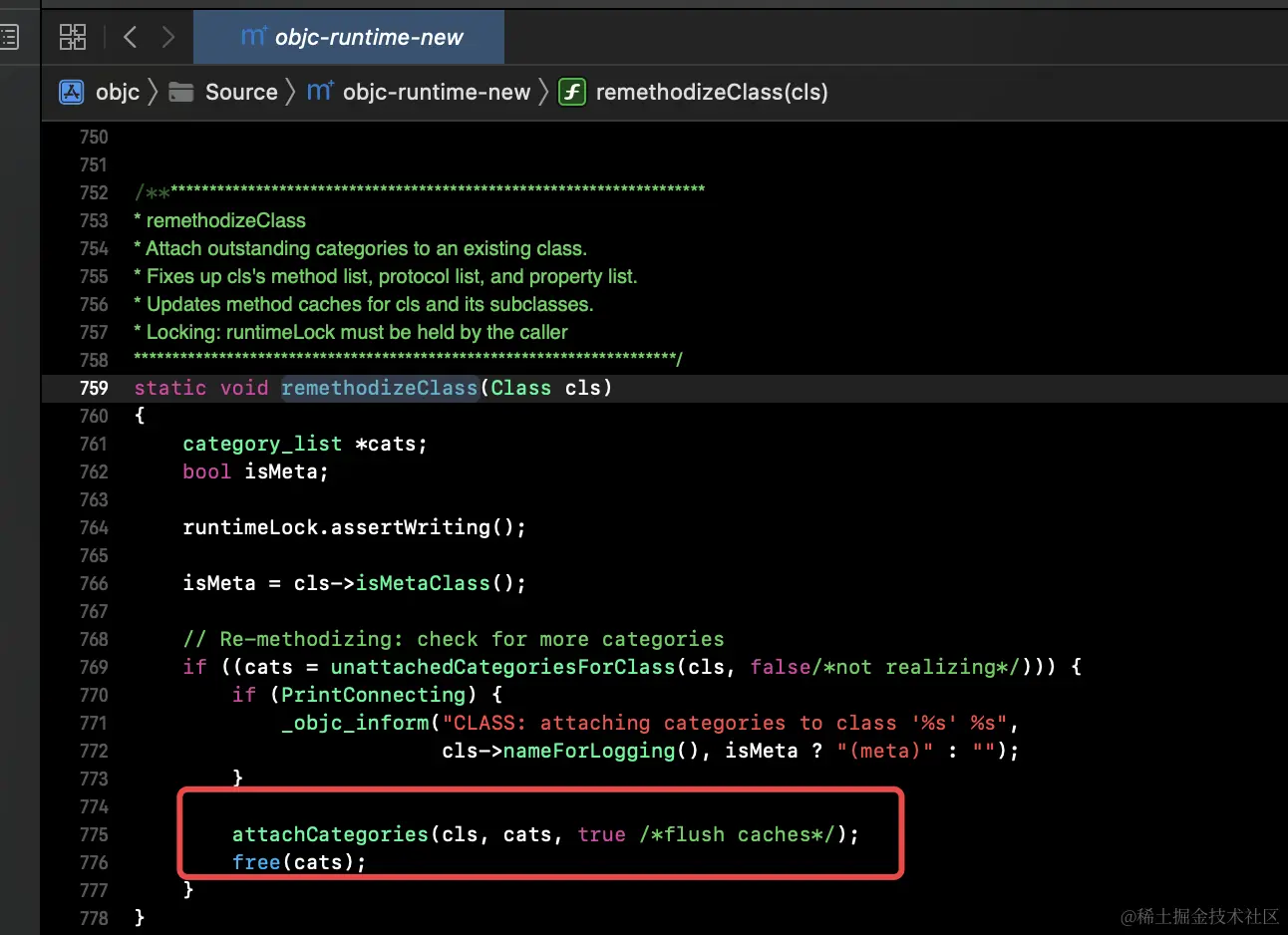

可以看到最终都调用了remethodizeClass(cls);函数。我们来到remethodizeClass(cls);函数内部查看: 通过上述代码我们发现
attachCategories函数接收了类对象cls和分类数组cats。一个类可以有多个分类
之前我们说到分类信息存储在category_t结构体中，那么多个分类则保存在category_list中。

紧接着 attachCategories函数的装载内容应该回到本文第二章节 Category的本质 的第二小节Category的加载处理过程中了解了

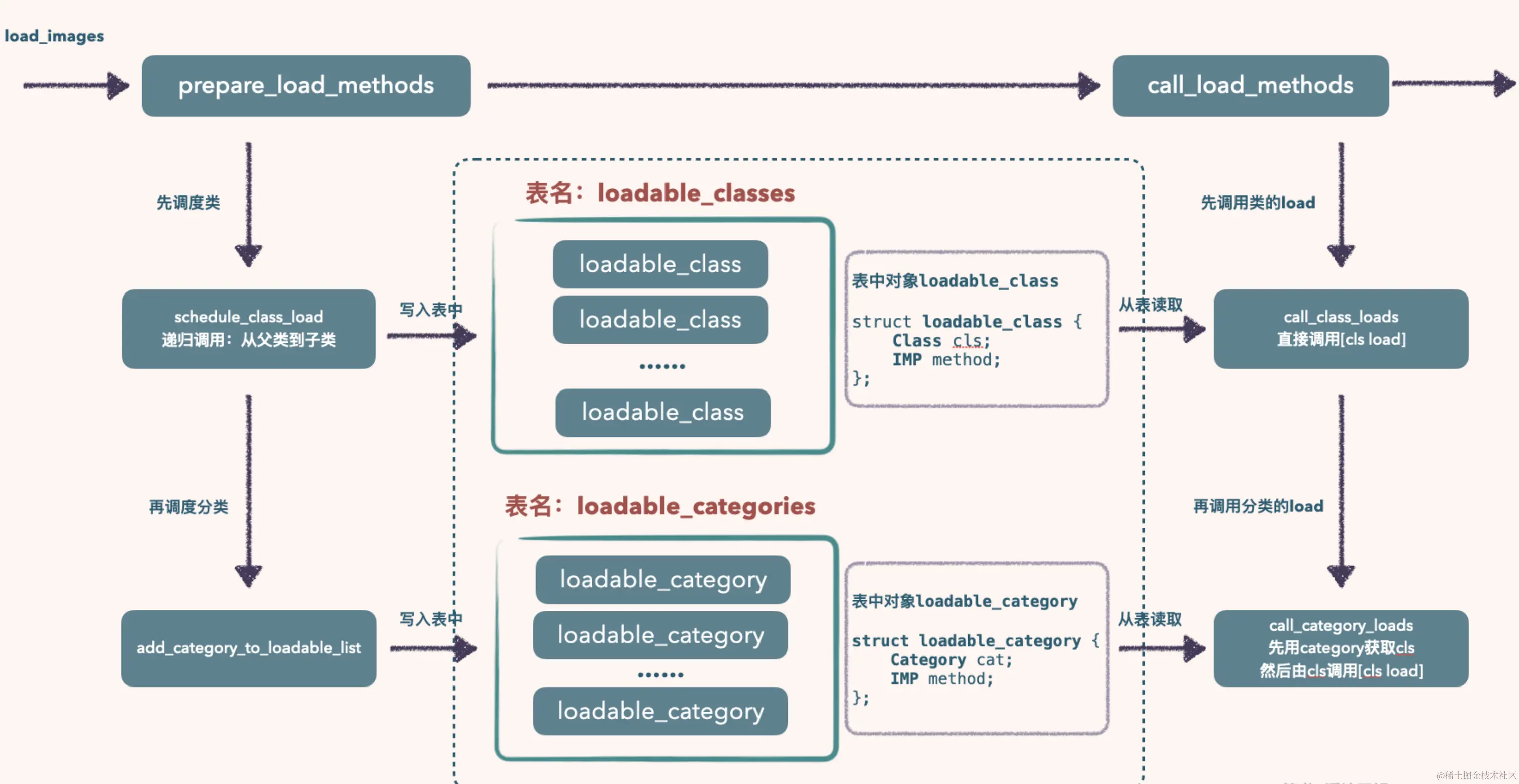

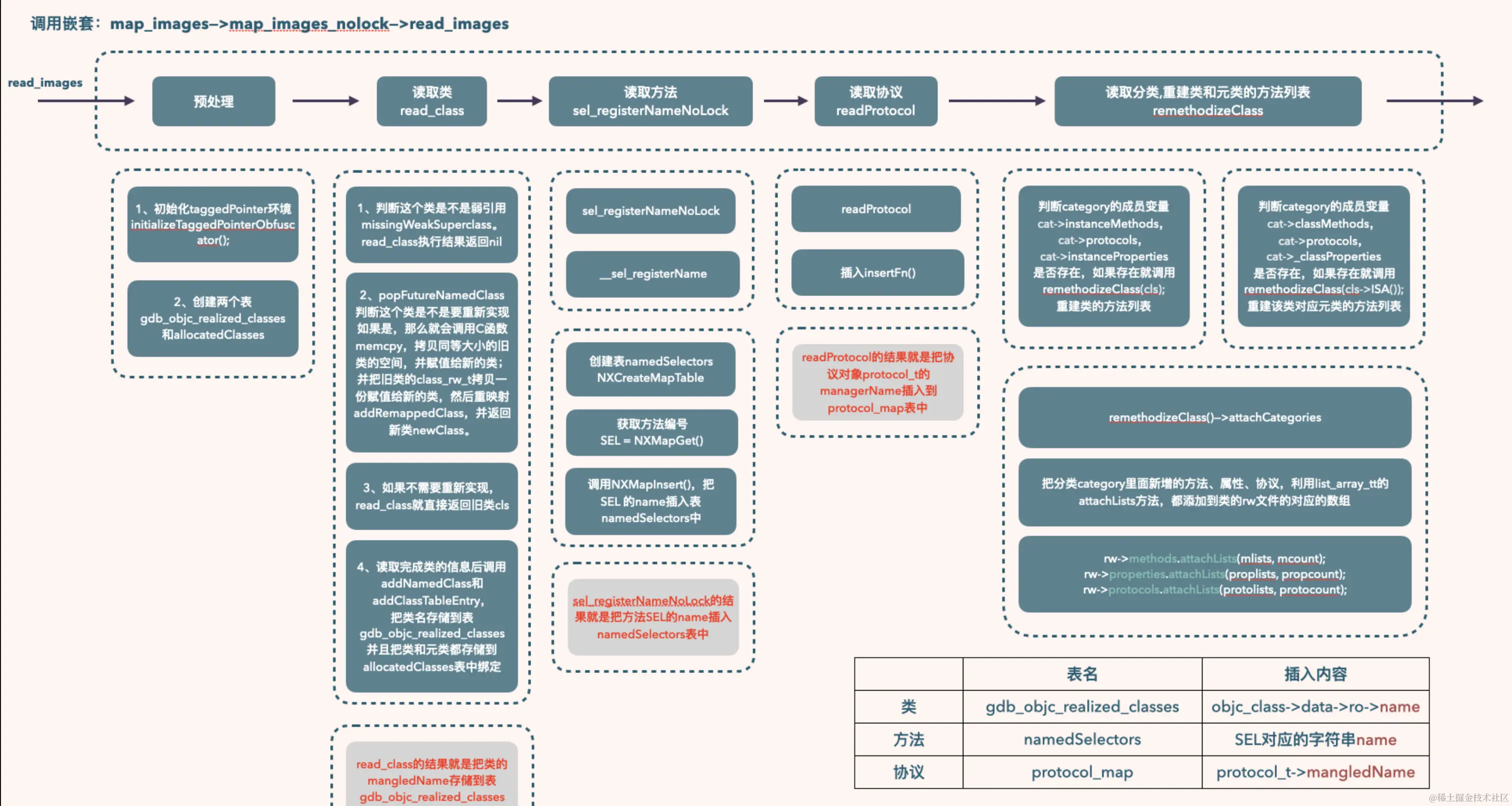

整体的过程如附图:

4.1.3 总结

App启动先加载动态库,为进入runtime准备,在苹果开源代码中的函数顺序为:
- objc-os.mm:
- - _objc_init
- - map_images
- - - map_images_nolock
进入runtime后,装载类和分类,在苹果开源代码中的函数顺序为:
- objc-runtime-new.mm
- - _read_images
- - remethodizeClass
- - attachCategories
- - attachLists
- - realloc、memmove、 memcpy

4.2 load_images 装载模块过程

接下来我们分析load_images底层的逻辑流程，点击load_images进入

void load_images(const char *path __unused, const struct mach_header *mh)
{
    // Return without taking locks if there are no +load methods here.
    if (!hasLoadMethods((const headerType *)mh)) return;

    recursive_mutex_locker_t lock(loadMethodLock);

    // Discover load methods
    {
        mutex_locker_t lock2(runtimeLock);
        // 准备load方法
        prepare_load_methods((const headerType *)mh);
    }

    // Call +load methods (without runtimeLock - re-entrant)
    // 调用load方法
    call_load_methods();
}

我们找到关键代码

1. prepare_load_methods 准备load方法
1. call_load_methods 调用load方法

4.2.1 prepare_load_methods底层实现

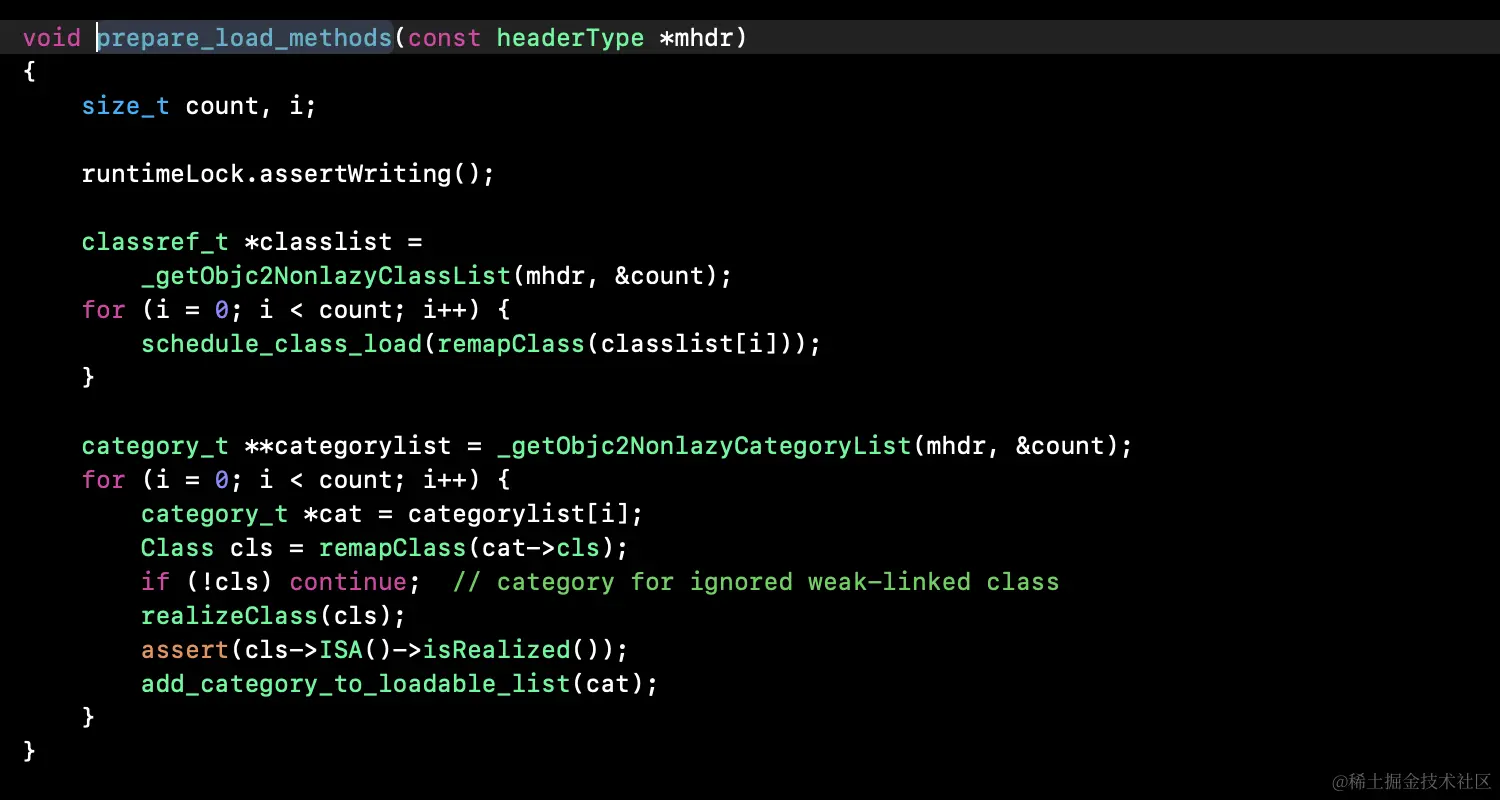

贴上prepare_load_methods源码

void prepare_load_methods(const headerType *mhdr)
{
    size_t count, i;

    runtimeLock.assertLocked();
    // 按编译顺序拿到所有的类的list
    //先递归调度 类和父类
    classref_t *classlist =
        _getObjc2NonlazyClassList(mhdr, &count);
    // 按添加进数组的顺序遍历处理类的列表
    for (i = 0; i < count; i++) {
        schedule_class_load(remapClass(classlist[i]));
    }
    // 按编译顺序拿到所有的分类列表
    //再调度分类
    category_t **categorylist = _getObjc2NonlazyCategoryList(mhdr, &count);
    for (i = 0; i < count; i++) {
        category_t *cat = categorylist[i];
        Class cls = remapClass(cat->cls);
        if (!cls) continue;  // category for ignored weak-linked class
        realizeClass(cls);
        assert(cls->ISA()->isRealized());
        // 按顺序直接添加
        add_category_to_loadable_list(cat);
    }
}

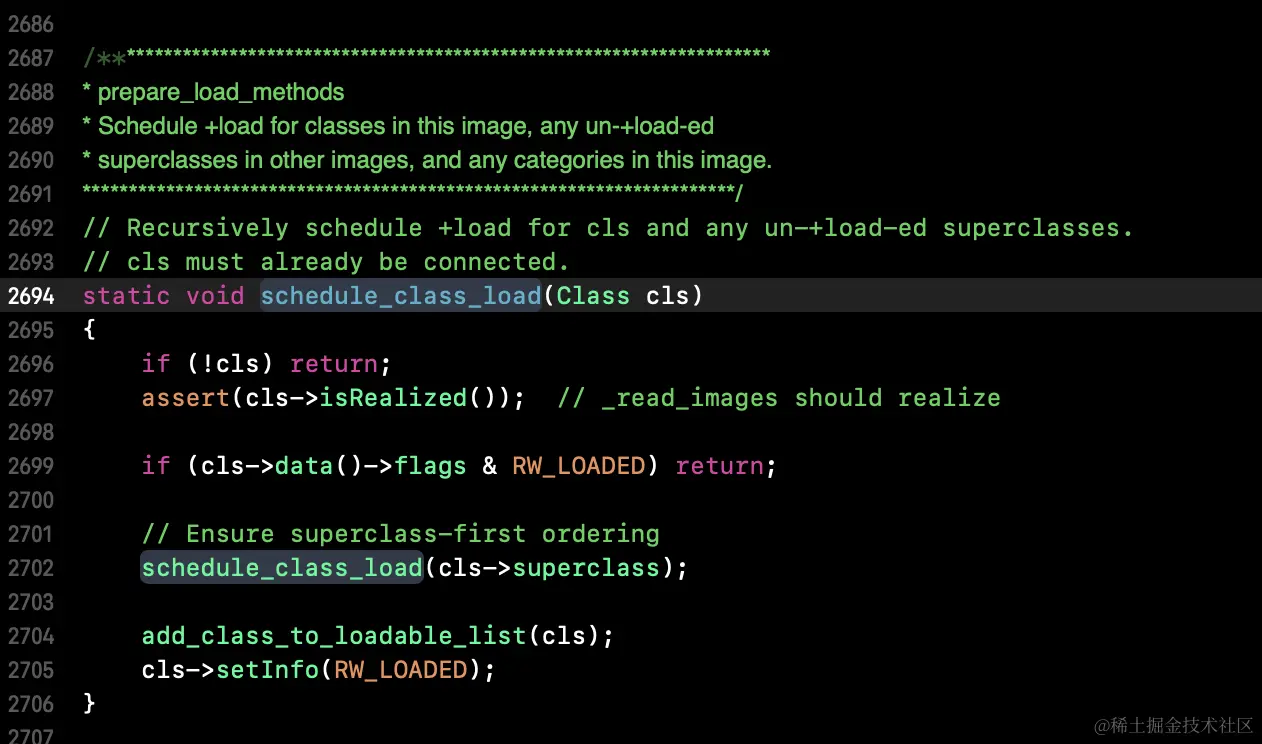

进入schedule_class_load，这个函数底层如下

/***********************************************************************
* prepare_load_methods
* Schedule +load for classes in this image, any un-+load-ed
* superclasses in other images, and any categories in this image.
**********************************************************************/
// Recursively schedule +load for cls and any un-+load-ed superclasses.
// cls must already be connected.
static void schedule_class_load(Class cls)
{
    if (!cls) return;
    assert(cls->isRealized());  // _read_images should realize

    if (cls->data()->flags & RW_LOADED) return;

    // 递归调用，找到传进来的类的父类添加到列表中
    // Ensure superclass-first ordering
    schedule_class_load(cls->superclass);

    // 然后再调用当前传进来的类添加到列表中，所以父类肯定是在前面
    add_class_to_loadable_list(cls);
    cls->setInfo(RW_LOADED);
}

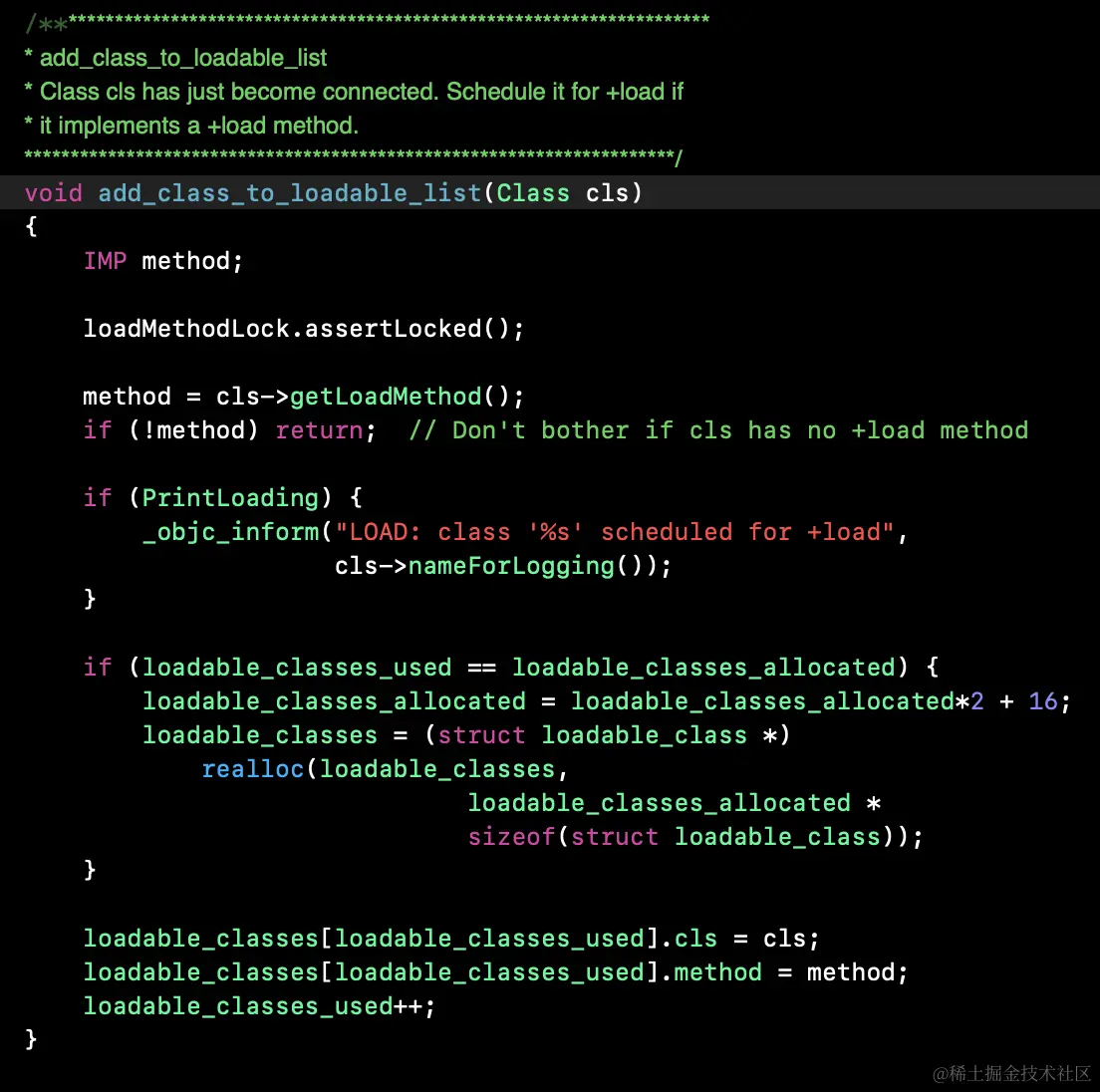

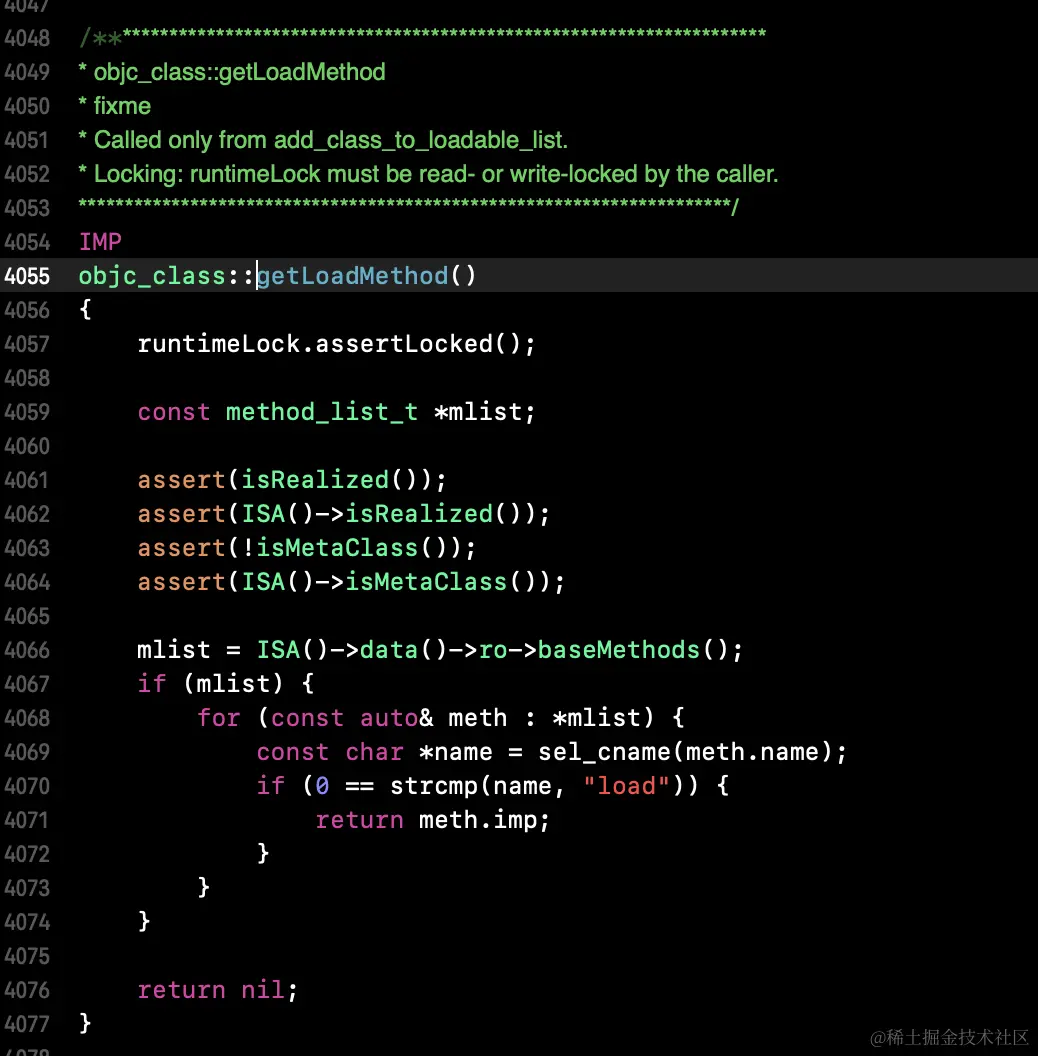

这里面添加的方法add_class_to_loadable_list的底层实现如下

/***********************************************************************
* add_class_to_loadable_list
* Class cls has just become connected. Schedule it for +load if
* it implements a +load method.
**********************************************************************/
void add_class_to_loadable_list(Class cls)
{
    IMP method;

    loadMethodLock.assertLocked();
    //取到load方法
    method = cls->getLoadMethod();
    if (!method) return;  // Don't bother if cls has no +load method

    if (PrintLoading) {
        _objc_inform("LOAD: class '%s' scheduled for +load",
                     cls->nameForLogging());
    }

    if (loadable_classes_used == loadable_classes_allocated) {
        loadable_classes_allocated = loadable_classes_allocated*2 + 16;
        loadable_classes = (struct loadable_class *)
            realloc(loadable_classes,
                              loadable_classes_allocated *
                              sizeof(struct loadable_class));
    }

    loadable_classes[loadable_classes_used].cls = cls;
    loadable_classes[loadable_classes_used].method = method;
    loadable_classes_used++;
}

我们发现这个添加过程实际上就是

把loadable_class类型的结构体，存储到表待调度load的这张表loadable_classes中
而存储的结构体loadable_class类型包含类名cls以及该类的load方法IMP。

struct loadable_class {
    Class cls;  // may be nil
    IMP method;
};

cls->getLoadMethod()方法得到的就是该类的Load方法


/***********************************************************************
* objc_class::getLoadMethod
* fixme
* Called only from add_class_to_loadable_list.
* Locking: runtimeLock must be read- or write-locked by the caller.
**********************************************************************/
IMP
objc_class::getLoadMethod()
{
    runtimeLock.assertLocked();

    const method_list_t *mlist;

    assert(isRealized());
    assert(ISA()->isRealized());
    assert(!isMetaClass());
    assert(ISA()->isMetaClass());

    mlist = ISA()->data()->ro->baseMethods();
    if (mlist) {
        for (const auto& meth : *mlist) {
            const char *name = sel_cname(meth.name);
            if (0 == strcmp(name, "load")) {
                return meth.imp;
            }
        }
    }

    return nil;
}

schedule_class_load底层实现原理是：获取父类，然后继续递归调用
schedule_class_load，然后把这些类按父类的父类->父类->子类这个顺序把类和类的load方法添加到loadable_classes表中。
这也是为什么类的+(load)方法执行顺序是从父类到子类的。

在调用schedule_class_load添加完成类之后，又继续处理分类

分类内部调用_category_getLoadMethod拿到分类中重写的load方法
然后也调用add_category_to_loadable_list把分类cat和分类的load方法添加到表loadable_categories中。

所以总结prepare_load_methods准备load方法的逻辑就是：

先处理类:
- 递归按照先父类再子类的顺序，把类和类的load方法整合成一个结构体对象loadable_class
- 然后把这个结构体对象存到表loadable_classes中。
处理完成类之后，再开始处理分类:
- 获取分类的load方法，把分类和分类的load方法整合成一个结构体对象loadable_category
- 然后存储到表loadable_categories中。

到这里，load方法准备工作完毕。

4.2.2 `call_load_methods`底层实现

接下来进入重点，load方法的调用部分


/***********************************************************************

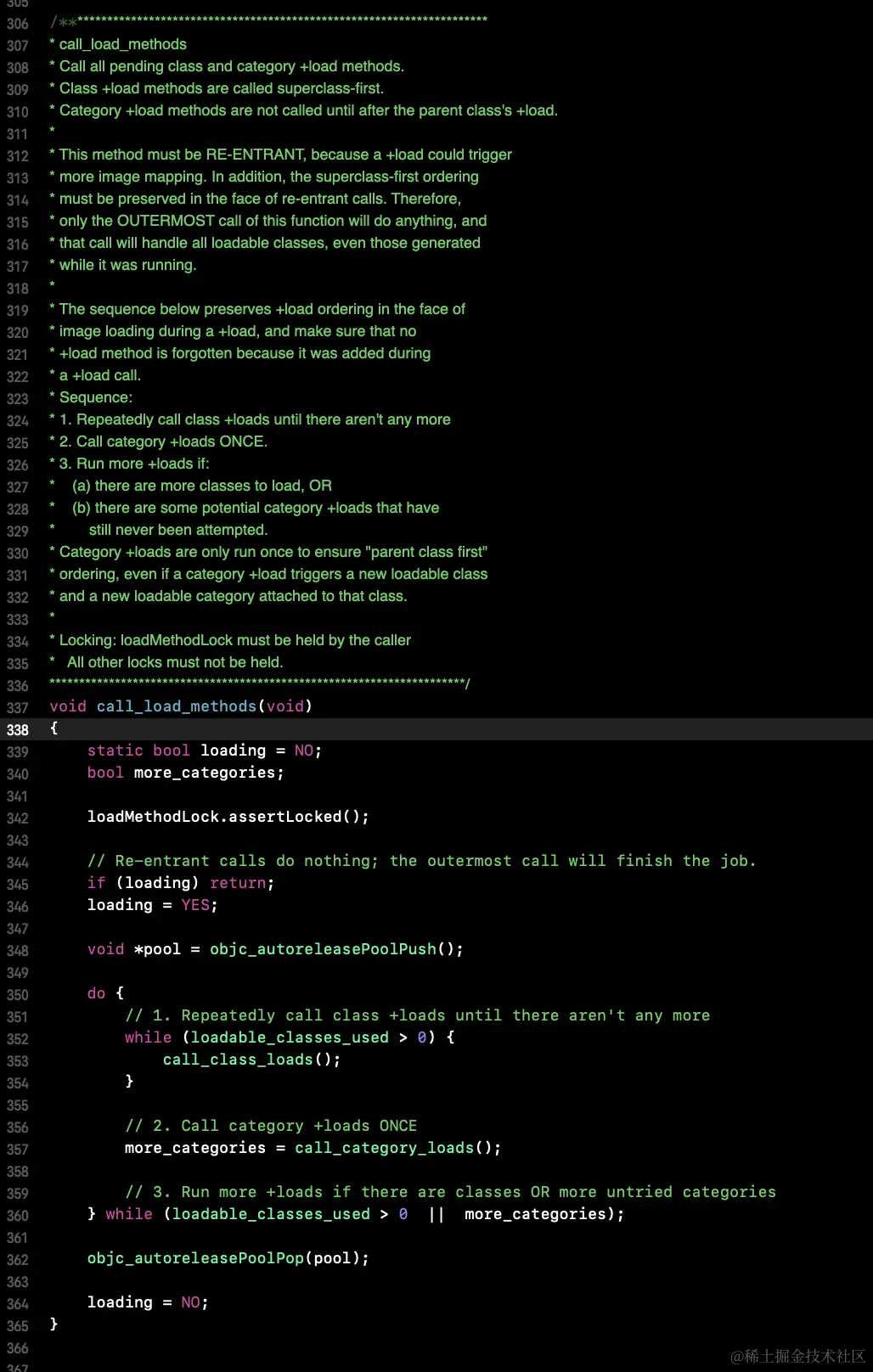

* call_load_methods
* Call all pending class and category +load methods.
* Class +load methods are called superclass-first.
* Category +load methods are not called until after the parent class's +load.
*
* This method must be RE-ENTRANT, because a +load could trigger
* more image mapping. In addition, the superclass-first ordering
* must be preserved in the face of re-entrant calls. Therefore,
* only the OUTERMOST call of this function will do anything, and
* that call will handle all loadable classes, even those generated
* while it was running.
*
* The sequence below preserves +load ordering in the face of
* image loading during a +load, and make sure that no
* +load method is forgotten because it was added during
* a +load call.
* Sequence:
* 1. Repeatedly call class +loads until there aren't any more
* 2. Call category +loads ONCE.
* 3. Run more +loads if:
*    (a) there are more classes to load, OR
*    (b) there are some potential category +loads that have
*        still never been attempted.
* Category +loads are only run once to ensure "parent class first"
* ordering, even if a category +load triggers a new loadable class
* and a new loadable category attached to that class.
*
* Locking: loadMethodLock must be held by the caller
*   All other locks must not be held.
**********************************************************************/
void call_load_methods(void)
{
    static bool loading = NO;
    bool more_categories;

    loadMethodLock.assertLocked();

    // Re-entrant calls do nothing; the outermost call will finish the job.
    if (loading) return;
    loading = YES;

    void *pool = objc_autoreleasePoolPush();

    do {
        // 1. Repeatedly call class +loads until there aren't any more
        while (loadable_classes_used > 0) {
            call_class_loads();
        }

        // 2. Call category +loads ONCE
        more_categories = call_category_loads();

        // 3. Run more +loads if there are classes OR more untried categories
    } while (loadable_classes_used > 0  ||  more_categories);

    objc_autoreleasePoolPop(pool);

    loading = NO;
}

先观察这个函数实现部分:

我们发现这个do—while循环被包含在objc_autoreleasePoolPush()和objc_autoreleasePoolPop中
苹果使用了autoreleasePool是为了节省内存开销

然后我们继续来看循环体部分：

do {
        //1、while循环调用call_class_loads()方法
        while (loadable_classes_used > 0) {
            call_class_loads();
        }

        //2、调用call_category_loads()并返回一个bool布尔值并赋值给more_categories
        more_categories = call_category_loads();

    } while (loadable_classes_used > 0  ||  more_categories);

接下来我们继续分析call_class_loads和call_category_loads底层实现。

4.2.3 `call_class_loads`底层实现

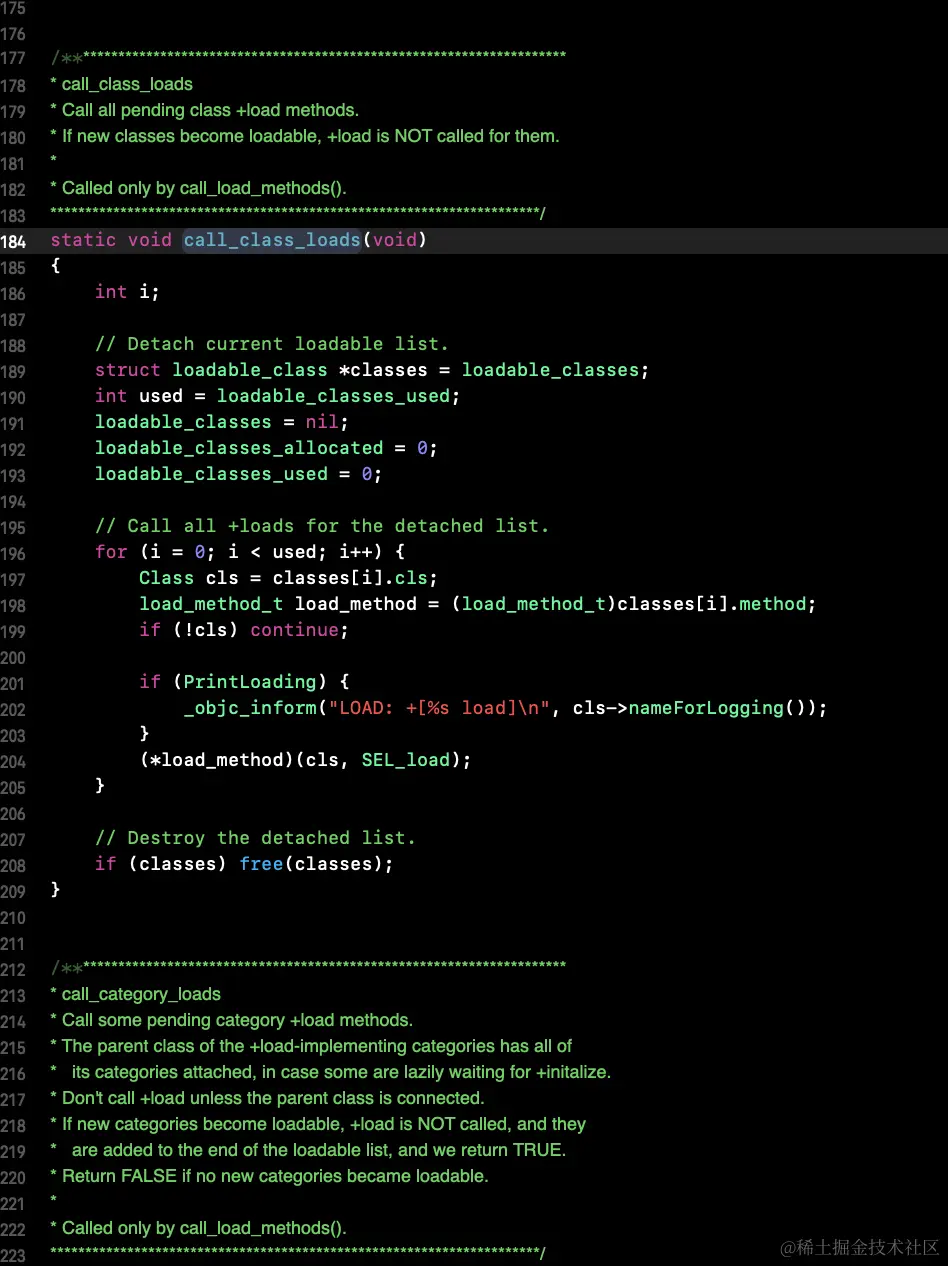

先来看看调用类的load函数call_class_loads：


/***********************************************************************
* call_class_loads
* Call all pending class +load methods.
* If new classes become loadable, +load is NOT called for them.
*
* Called only by call_load_methods().
**********************************************************************/
static void call_class_loads(void)
{
    int i;

    // Detach current loadable list.
    struct loadable_class *classes = loadable_classes;
    int used = loadable_classes_used;
    loadable_classes = nil;
    loadable_classes_allocated = 0;
    loadable_classes_used = 0;

    // Call all +loads for the detached list.
    for (i = 0; i < used; i++) {
        Class cls = classes[i].cls;
        load_method_t load_method = (load_method_t)classes[i].method;
        if (!cls) continue;

        if (PrintLoading) {
            _objc_inform("LOAD: +[%s load]\n", cls->nameForLogging());
        }
        (*load_method)(cls, SEL_load);
    }

    // Destroy the detached list.
    if (classes) free(classes);
}

简化源码如下:

static void call_class_loads(void)
{
    ......

    for (i = 0; i < loadable_classes_used; i++) {

        // 取出类里面的load方法
        // load_method_t：指向函数地址的指针
        // 这里的method对应的结构体为loadable_class
        Class cls = loadable_classes[i].cls;
        load_method_t load_method = (load_method_t) loadable_classes[i].method;

        ......

        // 直接调用load方法
        (*load_method)(cls, SEL_load);
    }
    ......
}

// 找到的method对应的结构体
struct loadable_class {
    Class cls;  // may be nil
    IMP method; // 这个就是load方法
};

这个过程其实就是从之前存储好的表loadable_classes中取出Class和对应load方法的load_method_t对象，直接调用。

4.2.4 `call_category_loads`底层实现

然后看看调用分类的load函数call_category_loads

/***********************************************************************
* call_category_loads
* Call some pending category +load methods.
* The parent class of the +load-implementing categories has all of
*   its categories attached, in case some are lazily waiting for +initalize.
* Don't call +load unless the parent class is connected.
* If new categories become loadable, +load is NOT called, and they
*   are added to the end of the loadable list, and we return TRUE.
* Return FALSE if no new categories became loadable.
*
* Called only by call_load_methods().
**********************************************************************/
static bool call_category_loads(void)
{
    int i, shift;
    bool new_categories_added = NO;

    // Detach current loadable list.
    struct loadable_category *cats = loadable_categories;
    int used = loadable_categories_used;
    int allocated = loadable_categories_allocated;
    loadable_categories = nil;
    loadable_categories_allocated = 0;
    loadable_categories_used = 0;

    // Call all +loads for the detached list.
    for (i = 0; i < used; i++) {
        Category cat = cats[i].cat;
        load_method_t load_method = (load_method_t)cats[i].method;
        Class cls;
        if (!cat) continue;

        cls = _category_getClass(cat);
        if (cls  &&  cls->isLoadable()) {
            if (PrintLoading) {
                _objc_inform("LOAD: +[%s(%s) load]\n",
                             cls->nameForLogging(),
                             _category_getName(cat));
            }
            (*load_method)(cls, SEL_load);
            cats[i].cat = nil;
        }
    }

    // Compact detached list (order-preserving)
    shift = 0;
    for (i = 0; i < used; i++) {
        if (cats[i].cat) {
            cats[i-shift] = cats[i];
        } else {
            shift++;
        }
    }
    used -= shift;

    // Copy any new +load candidates from the new list to the detached list.
    new_categories_added = (loadable_categories_used > 0);
    for (i = 0; i < loadable_categories_used; i++) {
        if (used == allocated) {
            allocated = allocated*2 + 16;
            cats = (struct loadable_category *)
                realloc(cats, allocated *
                                  sizeof(struct loadable_category));
        }
        cats[used++] = loadable_categories[i];
    }

    // Destroy the new list.
    if (loadable_categories) free(loadable_categories);

    // Reattach the (now augmented) detached list.
    // But if there's nothing left to load, destroy the list.
    if (used) {
        loadable_categories = cats;
        loadable_categories_used = used;
        loadable_categories_allocated = allocated;
    } else {
        if (cats) free(cats);
        loadable_categories = nil;
        loadable_categories_used = 0;
        loadable_categories_allocated = 0;
    }

    if (PrintLoading) {
        if (loadable_categories_used != 0) {
            _objc_inform("LOAD: %d categories still waiting for +load\n",
                         loadable_categories_used);
        }
    }

    return new_categories_added;
}

简化代码如下:

static bool call_category_loads(void)
{
    int i, shift;
    bool new_categories_added = NO;

    // Detach current loadable list.
    struct loadable_category *cats = loadable_categories;
    int used = loadable_categories_used;
    int allocated = loadable_categories_allocated;
    loadable_categories = nil;
    loadable_categories_allocated = 0;
    loadable_categories_used = 0;

    // Call all +loads for the detached list.
    for (i = 0; i < used; i++) {

        // 取出每一个分类里的load方法
        // 这里的method对应的结构体为loadable_category
        Category cat = cats[i].cat;
        load_method_t load_method = (load_method_t)cats[i].method;
        Class cls;
        if (!cat) continue;

        cls = _category_getClass(cat);
        if (cls  &&  cls->isLoadable()) {

            ......

            // 直接调用load方法
            (*load_method)(cls, SEL_load);
            cats[i].cat = nil;
        }
    }

    ......

    return new_categories_added;
}

// 找到的method对应的结构体
struct loadable_category {
    Category cat;  // may be nil
    IMP method; // 这个方法就是load方法
};

这个过程和类的逻辑基本一致，也是就是从之前存储好的表loadable_categories中取出分类Category和对应load方法的load_method_t对象，然后通过_category_getClass获取到分类对应的类，然后用类直接调用load方法。

到此为止，load_images主要流程也已经分析完毕。load_images主要做了下面这些步骤：

第一步.准备load方法:prepare_load_methods

将类的处理顺序存储到待调度的表中

以先处理类，后处理分类

先处理父类，后处理子类

类的处理逻辑：

把类对象Class和类对应的load方法的IMP整合成一个loadable_class类型的结构体对象存储在表loadable_classes中。

分类的处理逻辑：

把分类对象Category和对应的load方法IMP整合成一个loadable_category类型的结构体对象存储在表loadable_categories中。

第二步.调用load方法:call_load_methods

以先调用类Class的load，后处理分类Category

通过分类找到对应的类

然后由类调用load方法的顺序进行处理

这个调用处理的顺序是根据准备方法prepare_load_methods中准备好的两张表loadable_classes和loadable_categories的顺序而来的。

调用完就从表中移除，全部调用完结束循环。

下面是我对load_images方法实现逻辑的的流程图：

4.3 总结

App装载过程大概可以简化如图

四、 load 和 initialize

我们刚才在本文第三节第4.2小节阅读 load_images底层函数实现的时候,发现了call_load_methods函数,顺便探究一下 load 和 initialize的底层实现

4.1 load方法

我们前面在探索load_image函数的时候已经有了得到了load方法调度顺序的结论: 第一步.准备load方法:prepare_load_methods

将类的处理顺序存储到待调度的表中

以先处理类，后处理分类

先处理父类，后处理子类

类的处理逻辑：

把类对象Class和类对应的load方法的IMP整合成一个loadable_class类型的结构体对象存储在表loadable_classes中。

按照编译先后顺序调用（先编译，先调用）

调用子类的load之前会先调用父类的load

分类的处理逻辑：

把分类对象Category和对应的load方法IMP整合成一个loadable_category类型的结构体对象存储在表loadable_categories中。

第二步.调用load方法:call_load_methods

以先调用类Class的load，后处理分类Category

通过分类找到对应的类

然后由类调用load方法的顺序进行处理

这个调用处理的顺序是根据准备方法prepare_load_methods中准备好的两张表loadable_classes和loadable_categories的顺序而来的。

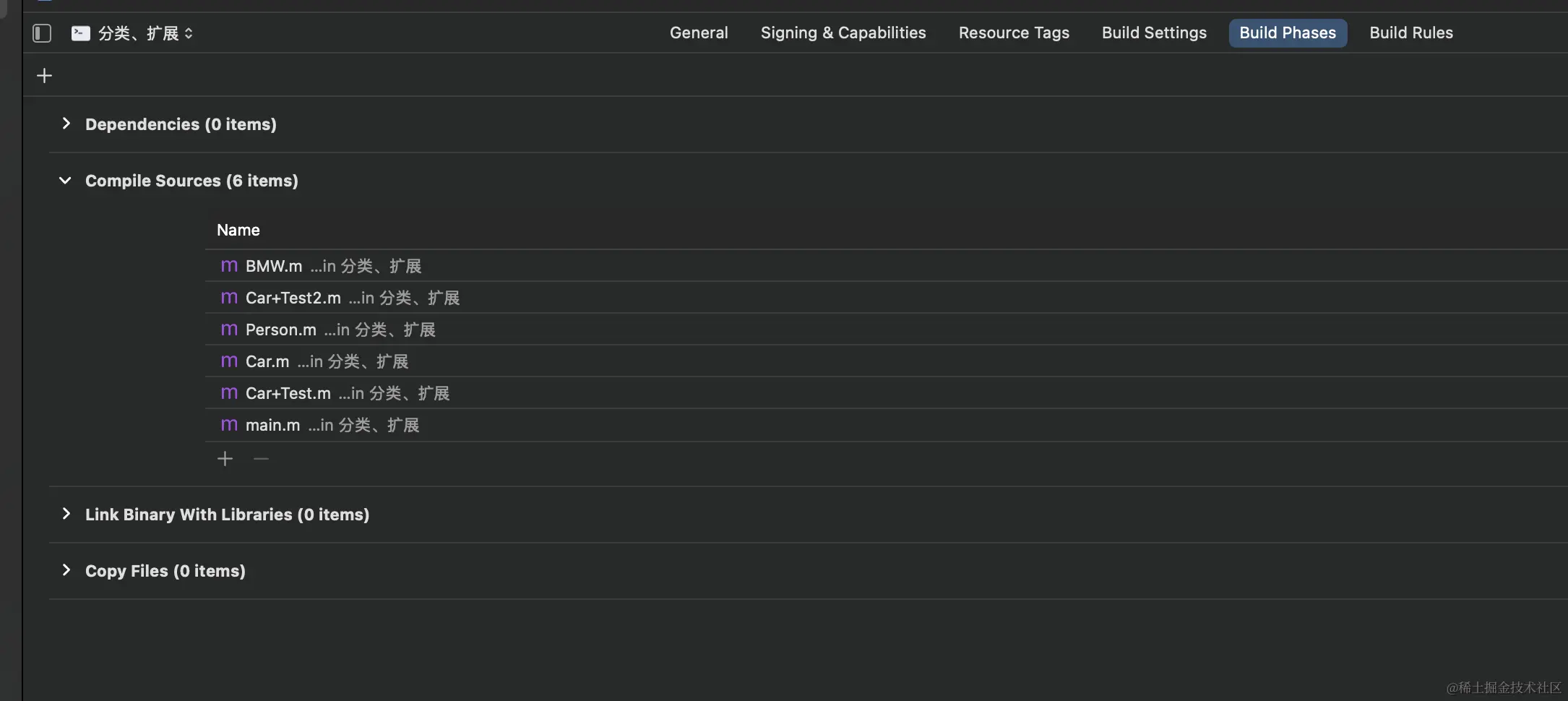

按照编译先后顺序调用（先编译，先调用）

调用完就从表中移除，全部调用完结束循环。

load方法会在Runtime加载类、分类时调用
每个类、分类的load，在程序运行过程中只调用一次

4.1.1 源码分析顺序如下:

在objc-runtime-new.mm中load_images方法可以发现准备处理load方法和调用load方法的函数
在prepare_load_methods中发现，调用load方法前的类的处理和分类的处理
递归调用schedule_class_load方法来优先添加父类放到列表中，然后再添加当前类，所以执行调用时肯定先执行父类的load方法
在objc-loadmethod.mm中call_load_methods方法可以发现，程序运行时会先调用类的load方法，然后调用分类的load方法，详细代码如下
找到每个类的load方法的内存地址，然后直接调用
找到每个分类的load方法的内存地址，然后直接调用

4.1.2 load方法系统调用和主动调用的区别

系统调用load方法调用是直接找到类和分类中的方法的内存地址直接调用
主动调用load方法是通过消息机制来发送消息的，会在对应的消息列表里按顺序遍历一层层查找，找到就调用

4.1.3 我们通过Demo验证一下

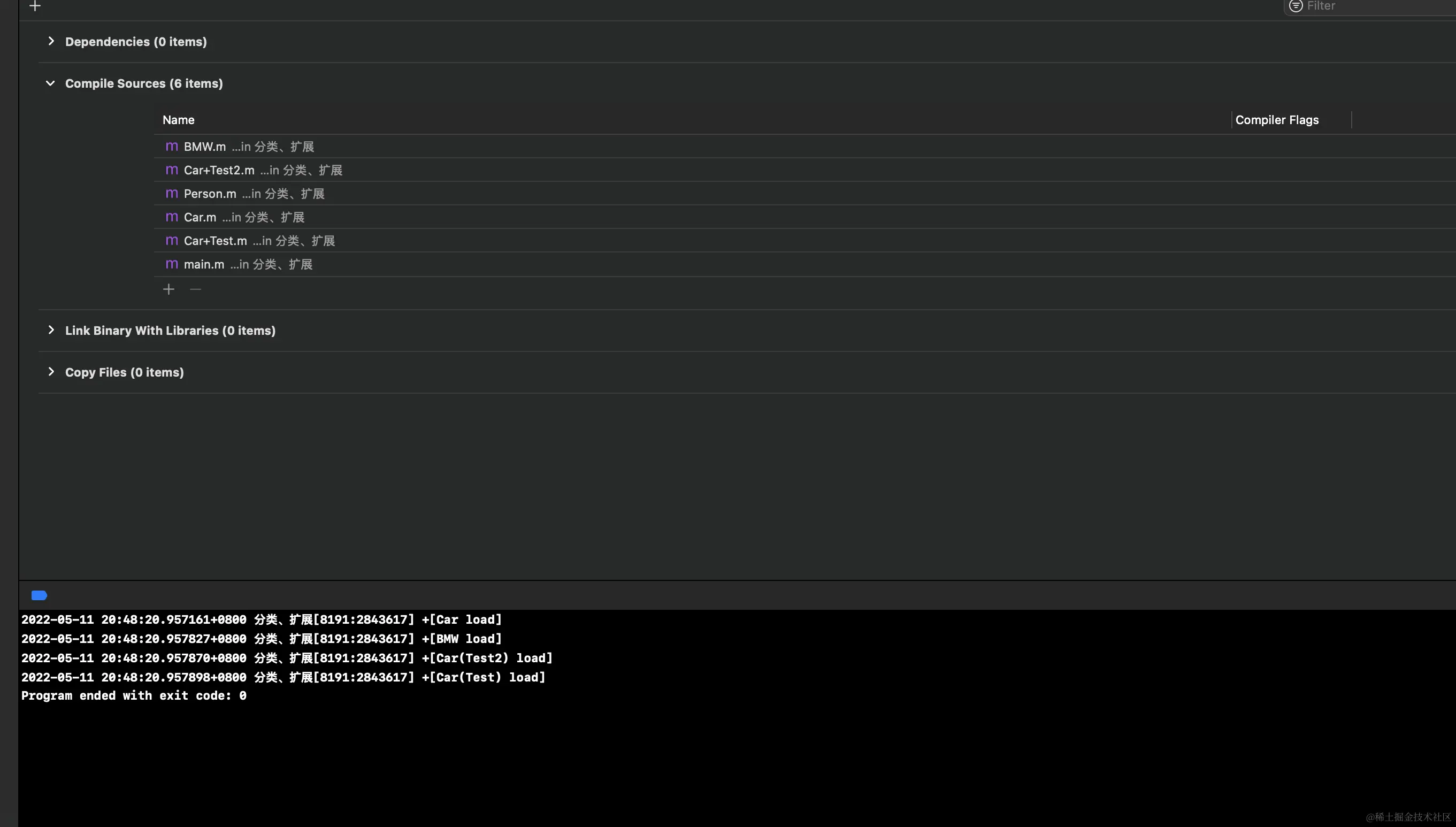

(BMW继承自Car类）符合前面的结论:

以先处理类，后处理分类

先处理父类，后处理子类

各个分类的调度顺序依赖源码文件的编译顺序:先编译先调用

4.1.4 总结

在objc4源码解读load过程：

objc-os.mm
- _objc_init
进入runtime后,加载load,在苹果开源代码中的函数顺序为:
- load_images
- prepare_load_methods
- - schedule_class_load
- - add_class_to_loadable_list
- - add_category_to_loadable_list
- call_load_methods
- - call_class_loads
- - call_category_loads
- - (*load_method)(cls, SEL_load)

+load方法是根据方法地址直接调用，并不是经过objc_msgSend函数调用

4.2 initialize方法

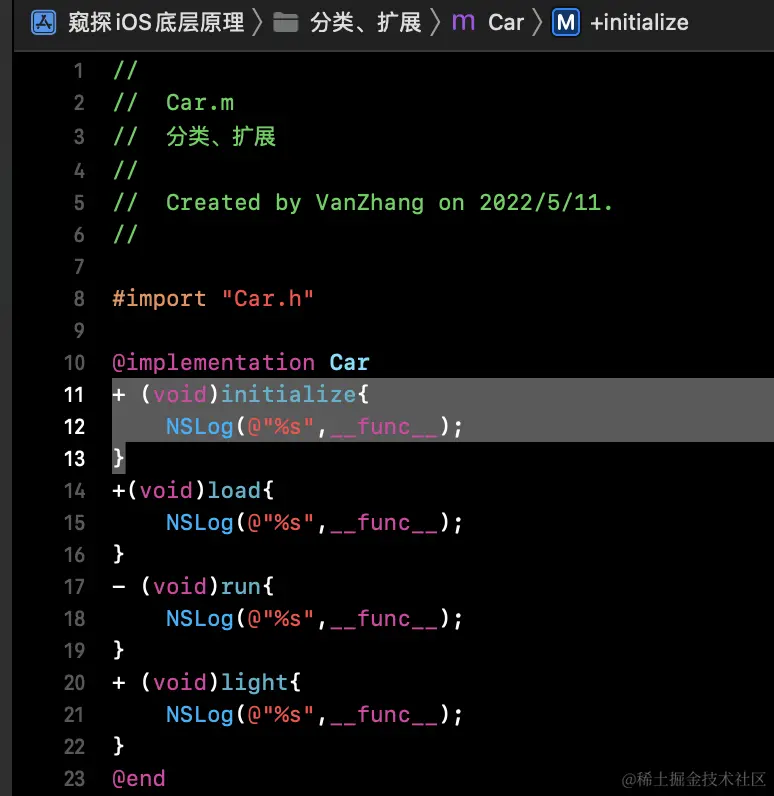

我们给Car类添加initialize方法:

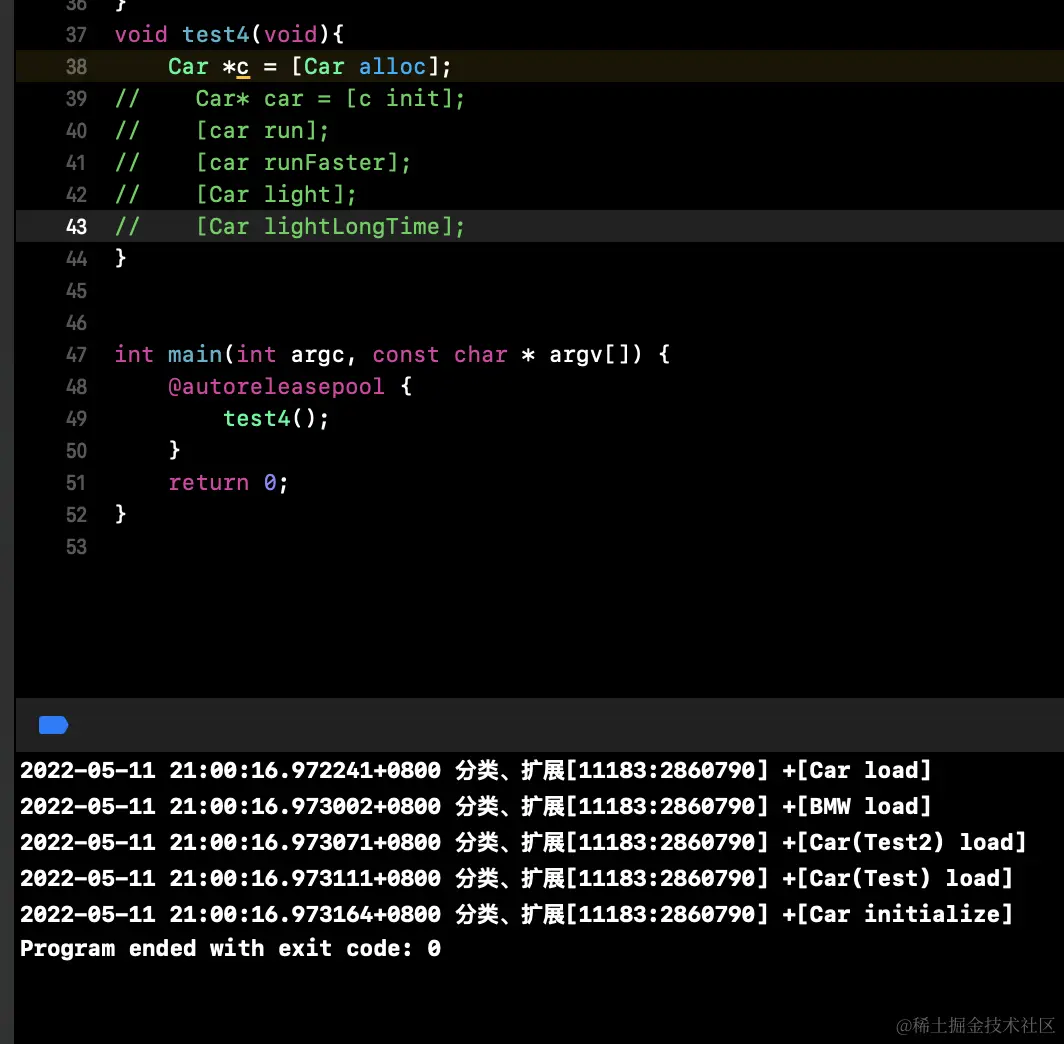

如上图所示,我们不难得知:initialize方法会在类第一次接收到消息时调用

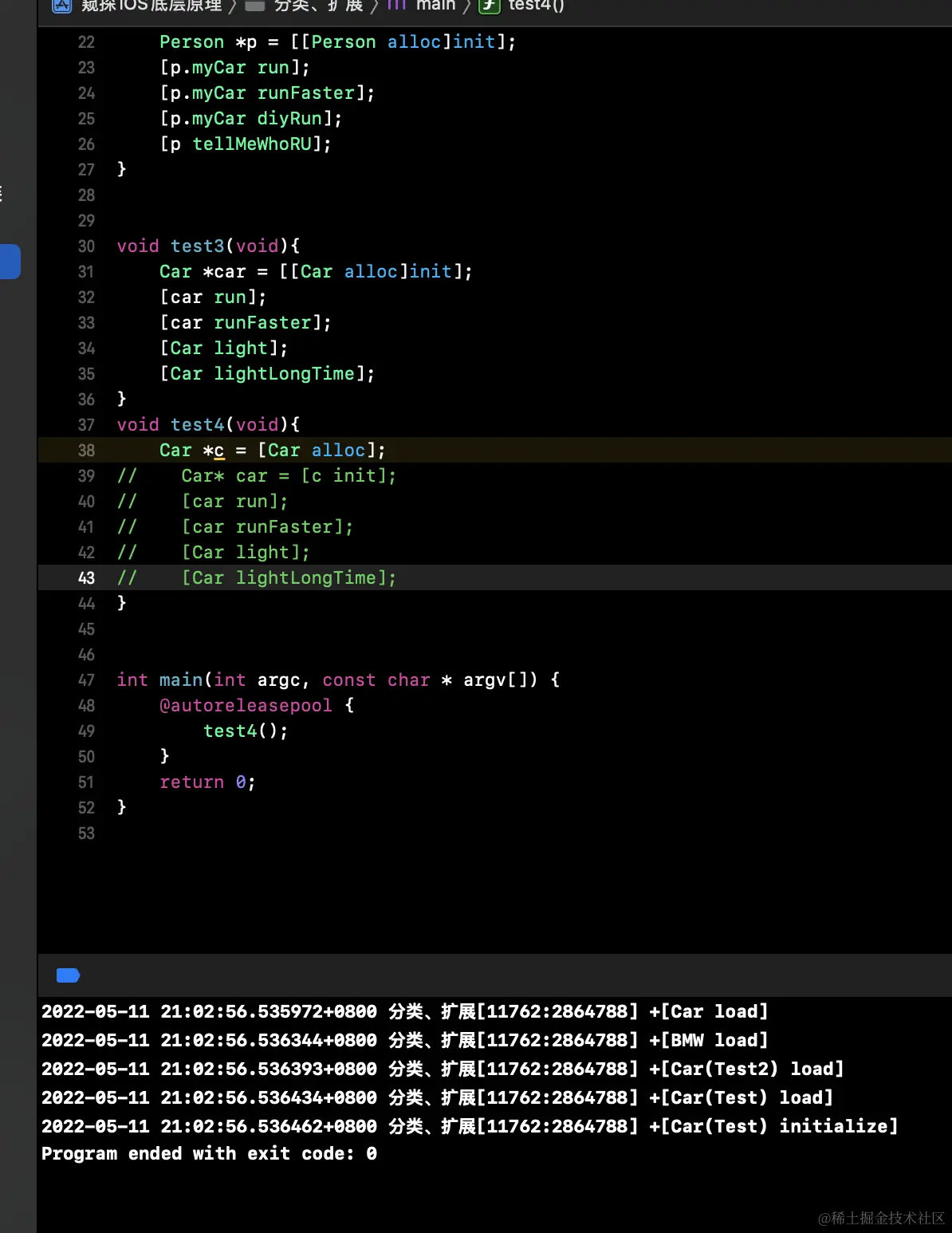

我们给Car的分类Car+Test添加initialize方法:

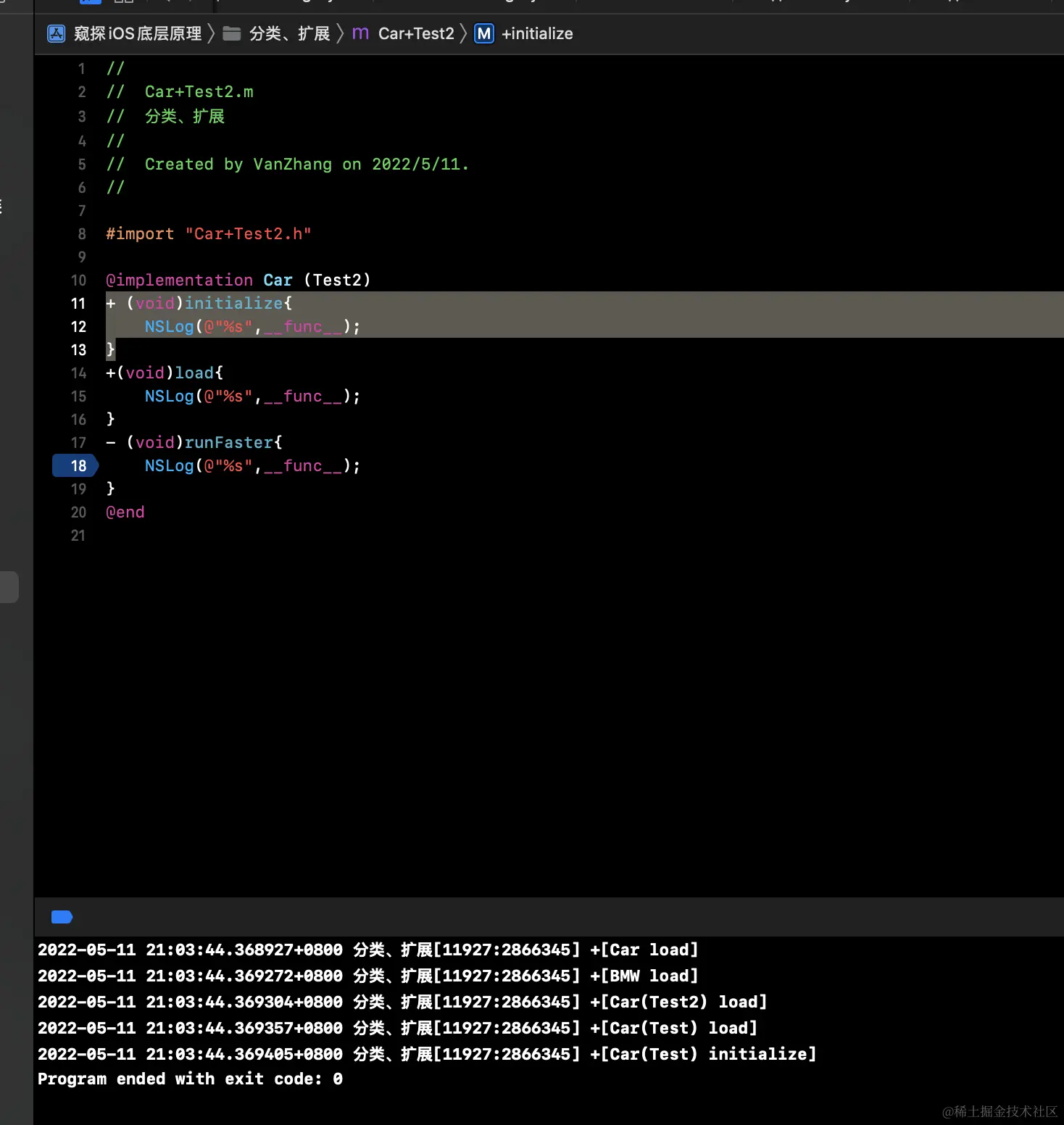

我们给Car的分类Car+Test2添加initialize方法:

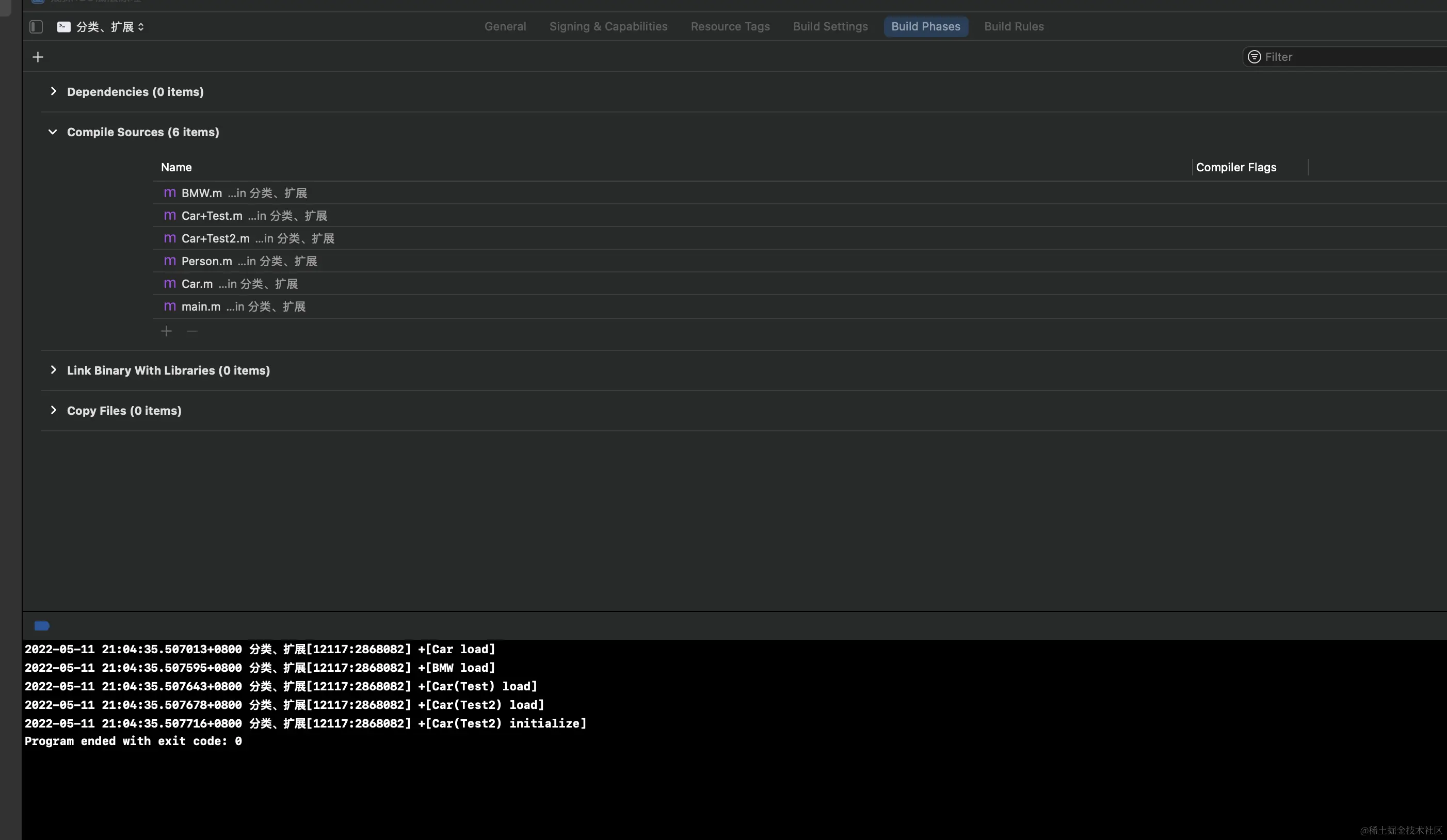

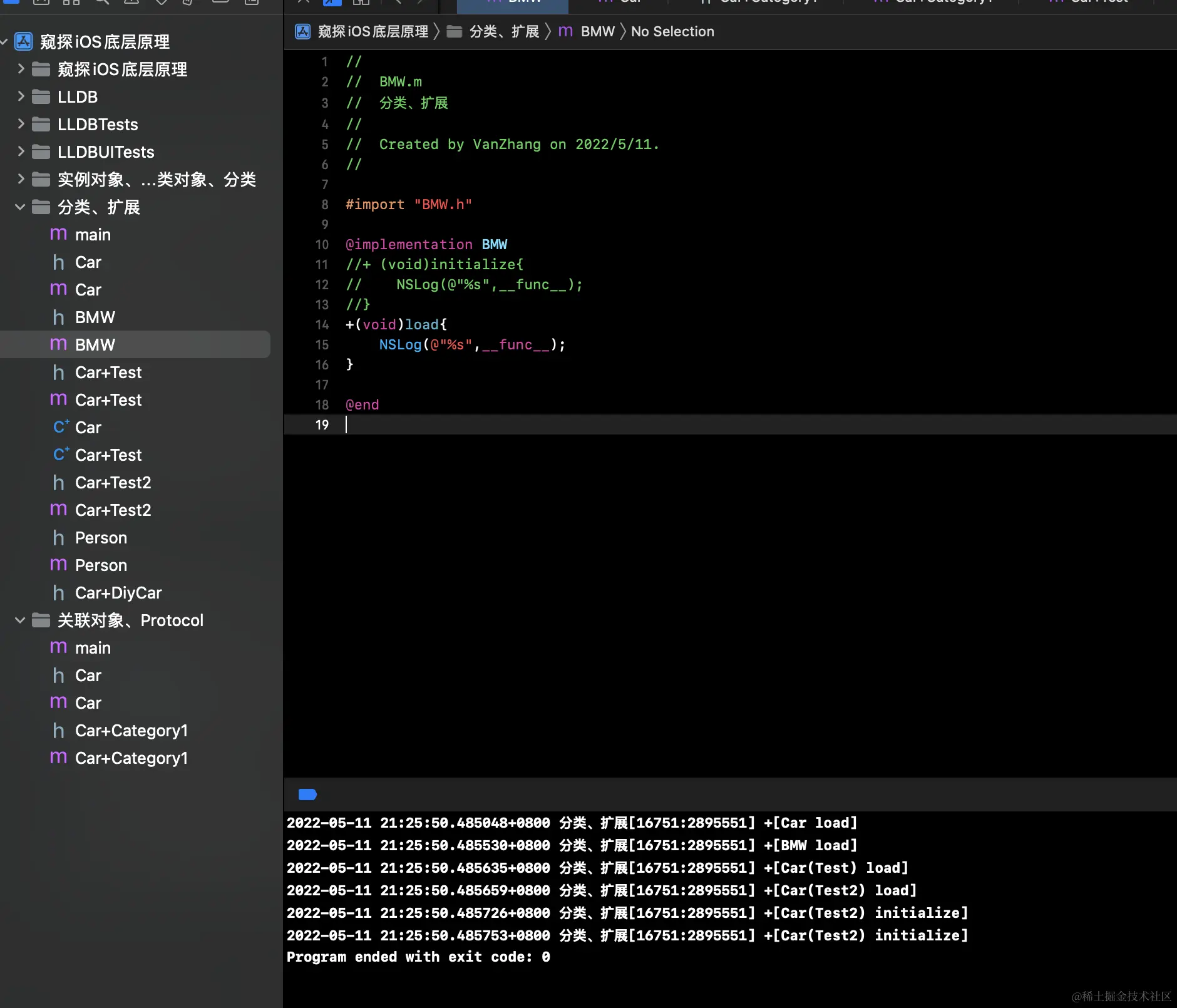

我们调换一下两个分类的编译顺序:

如上图所示,我们不难得知:

当分类实现了 initialize方法时,会在类第一次接收到消息时调用分类的initialize方法
当多个分类实现了 initialize方法时,调用后编译的那个分类的initialize方法

4.2.1 源码分析

1.由于在调用到这个类的时候才会执行initialize方法，那么说明是在发消息过程中来执行的，我们在objc-runtime-new.mm中调用class_getInstanceMethod或者class_getClassMethod方法，详细代码如下

4.2.1.1 class_getInstanceMethod

/***********************************************************************

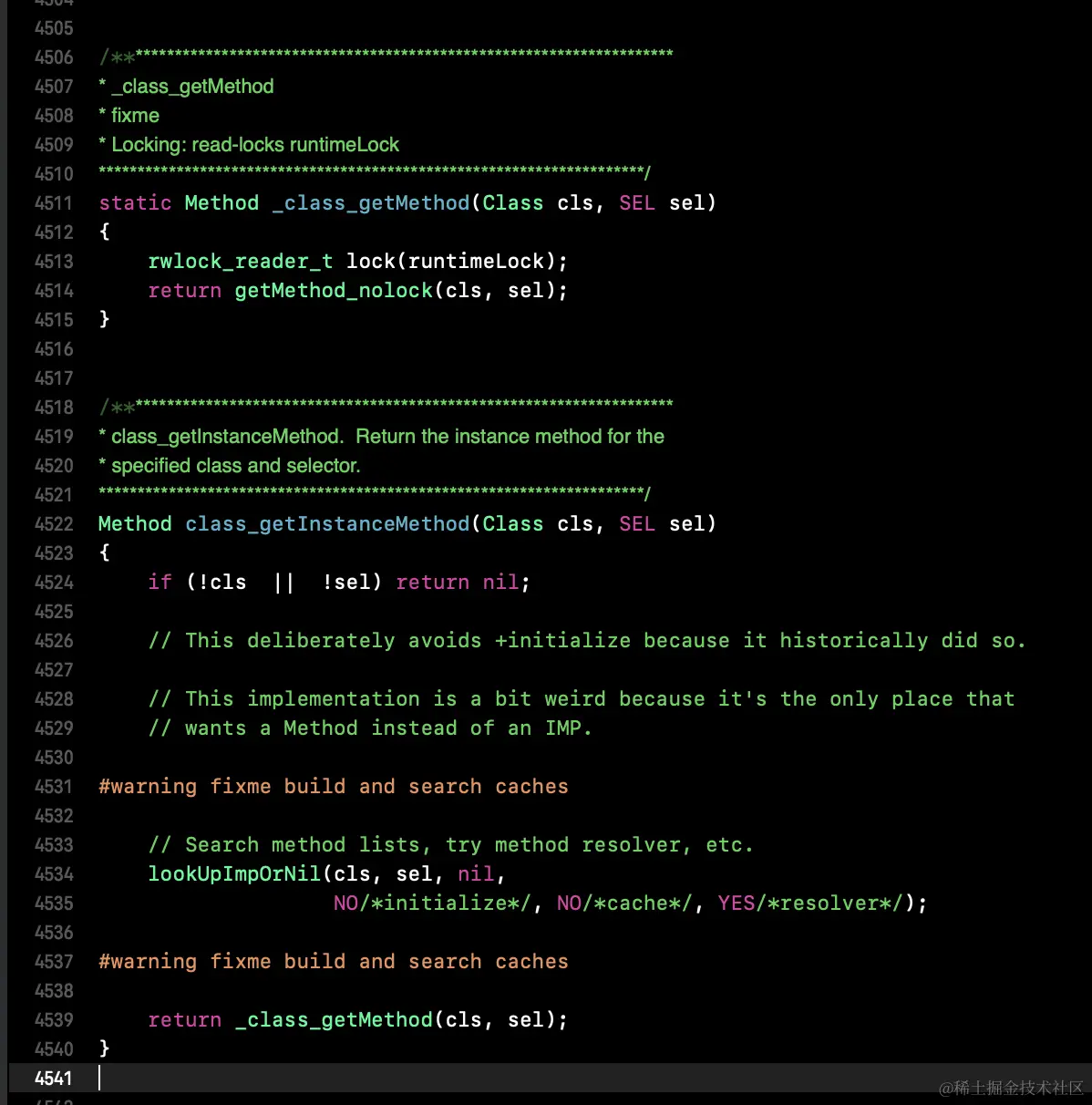

* _class_getMethod
* fixme
* Locking: read-locks runtimeLock
**********************************************************************/
static Method _class_getMethod(Class cls, SEL sel)
{
    rwlock_reader_t lock(runtimeLock);
    return getMethod_nolock(cls, sel);
}


/***********************************************************************
* class_getInstanceMethod.  Return the instance method for the
* specified class and selector.
**********************************************************************/
Method class_getInstanceMethod(Class cls, SEL sel)
{
    if (!cls  ||  !sel) return nil;

    // This deliberately avoids +initialize because it historically did so.

    // This implementation is a bit weird because it's the only place that
    // wants a Method instead of an IMP.

#warning fixme build and search caches

    // Search method lists, try method resolver, etc.
    lookUpImpOrNil(cls, sel, nil,
                   NO/*initialize*/, NO/*cache*/, YES/*resolver*/);

#warning fixme build and search caches

    return _class_getMethod(cls, sel);
}

4.2.1.2 lookUpImpOrNil

我们进入lookUpImpOrNil函数

/***********************************************************************

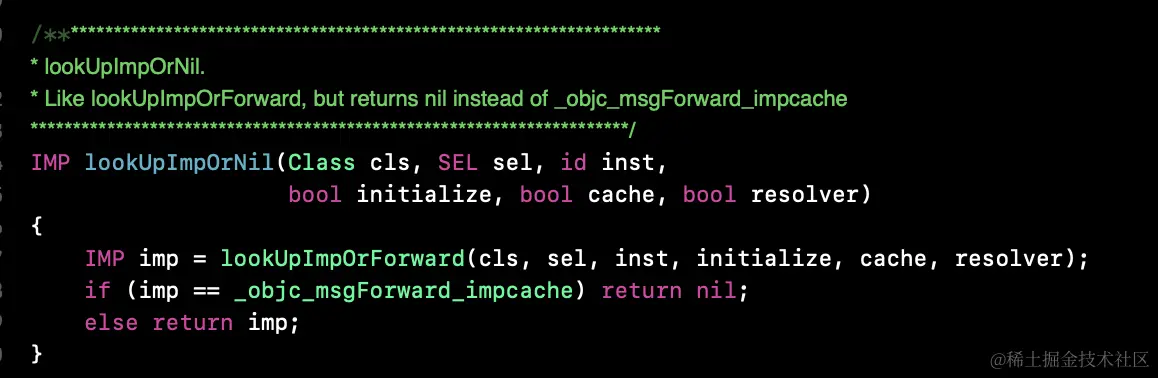

* lookUpImpOrNil.
* Like lookUpImpOrForward, but returns nil instead of _objc_msgForward_impcache
**********************************************************************/
IMP lookUpImpOrNil(Class cls, SEL sel, id inst,
                   bool initialize, bool cache, bool resolver)
{
    IMP imp = lookUpImpOrForward(cls, sel, inst, initialize, cache, resolver);
    if (imp == _objc_msgForward_impcache) return nil;
    else return imp;
}

4.2.1.3 lookUpImpOrForward

我们继续进入lookUpImpOrForward函数

/***********************************************************************
* lookUpImpOrForward.
* The standard IMP lookup.
* initialize==NO tries to avoid +initialize (but sometimes fails)
* cache==NO skips optimistic unlocked lookup (but uses cache elsewhere)
* Most callers should use initialize==YES and cache==YES.
* inst is an instance of cls or a subclass thereof, or nil if none is known.
*   If cls is an un-initialized metaclass then a non-nil inst is faster.
* May return _objc_msgForward_impcache. IMPs destined for external use
*   must be converted to _objc_msgForward or _objc_msgForward_stret.
*   If you don't want forwarding at all, use lookUpImpOrNil() instead.
**********************************************************************/
IMP lookUpImpOrForward(Class cls, SEL sel, id inst,
                       bool initialize, bool cache, bool resolver)
{
    IMP imp = nil;
    bool triedResolver = NO;

    runtimeLock.assertUnlocked();

    // Optimistic cache lookup
    if (cache) {
        imp = cache_getImp(cls, sel);
        if (imp) return imp;
    }

    // runtimeLock is held during isRealized and isInitialized checking
    // to prevent races against concurrent realization.

    // runtimeLock is held during method search to make
    // method-lookup + cache-fill atomic with respect to method addition.
    // Otherwise, a category could be added but ignored indefinitely because
    // the cache was re-filled with the old value after the cache flush on
    // behalf of the category.

    runtimeLock.read();

    if (!cls->isRealized()) {
        // Drop the read-lock and acquire the write-lock.
        // realizeClass() checks isRealized() again to prevent
        // a race while the lock is down.
        runtimeLock.unlockRead();
        runtimeLock.write();

        realizeClass(cls);

        runtimeLock.unlockWrite();
        runtimeLock.read();
    }

    if (initialize  &&  !cls->isInitialized()) {
        runtimeLock.unlockRead();
        _class_initialize (_class_getNonMetaClass(cls, inst));
        runtimeLock.read();
        // If sel == initialize, _class_initialize will send +initialize and
        // then the messenger will send +initialize again after this
        // procedure finishes. Of course, if this is not being called
        // from the messenger then it won't happen. 2778172
    }


 retry:
    runtimeLock.assertReading();

    // Try this class's cache.

    imp = cache_getImp(cls, sel);
    if (imp) goto done;

    // Try this class's method lists.
    {
        Method meth = getMethodNoSuper_nolock(cls, sel);
        if (meth) {
            log_and_fill_cache(cls, meth->imp, sel, inst, cls);
            imp = meth->imp;
            goto done;
        }
    }

    // Try superclass caches and method lists.
    {
        unsigned attempts = unreasonableClassCount();
        for (Class curClass = cls->superclass;
             curClass != nil;
             curClass = curClass->superclass)
        {
            // Halt if there is a cycle in the superclass chain.
            if (--attempts == 0) {
                _objc_fatal("Memory corruption in class list.");
            }

            // Superclass cache.
            imp = cache_getImp(curClass, sel);
            if (imp) {
                if (imp != (IMP)_objc_msgForward_impcache) {
                    // Found the method in a superclass. Cache it in this class.
                    log_and_fill_cache(cls, imp, sel, inst, curClass);
                    goto done;
                }
                else {
                    // Found a forward:: entry in a superclass.
                    // Stop searching, but don't cache yet; call method
                    // resolver for this class first.
                    break;
                }
            }

            // Superclass method list.
            Method meth = getMethodNoSuper_nolock(curClass, sel);
            if (meth) {
                log_and_fill_cache(cls, meth->imp, sel, inst, curClass);
                imp = meth->imp;
                goto done;
            }
        }
    }

    // No implementation found. Try method resolver once.

    if (resolver  &&  !triedResolver) {
        runtimeLock.unlockRead();
        _class_resolveMethod(cls, sel, inst);
        runtimeLock.read();
        // Don't cache the result; we don't hold the lock so it may have
        // changed already. Re-do the search from scratch instead.
        triedResolver = YES;
        goto retry;
    }

    // No implementation found, and method resolver didn't help.
    // Use forwarding.

    imp = (IMP)_objc_msgForward_impcache;
    cache_fill(cls, sel, imp, inst);

 done:
    runtimeLock.unlockRead();

    return imp;
}

4.2.1.4 _class_initialize

我们找到了_class_initialize


/***********************************************************************
* class_initialize.  Send the '+initialize' message on demand to any
* uninitialized class. Force initialization of superclasses first.
**********************************************************************/
void _class_initialize(Class cls)
{
    assert(!cls->isMetaClass());

    Class supercls;
    bool reallyInitialize = NO;

    // Make sure super is done initializing BEFORE beginning to initialize cls.
    // See note about deadlock above.
    supercls = cls->superclass;
    if (supercls  &&  !supercls->isInitialized()) {
        _class_initialize(supercls);
    }

    // Try to atomically set CLS_INITIALIZING.
    {
        monitor_locker_t lock(classInitLock);
        if (!cls->isInitialized() && !cls->isInitializing()) {
            cls->setInitializing();
            reallyInitialize = YES;
        }
    }

    if (reallyInitialize) {
        // We successfully set the CLS_INITIALIZING bit. Initialize the class.

        // Record that we're initializing this class so we can message it.
        _setThisThreadIsInitializingClass(cls);

        if (MultithreadedForkChild) {
            // LOL JK we don't really call +initialize methods after fork().
            performForkChildInitialize(cls, supercls);
            return;
        }

        // Send the +initialize message.
        // Note that +initialize is sent to the superclass (again) if
        // this class doesn't implement +initialize. 2157218
        if (PrintInitializing) {
            _objc_inform("INITIALIZE: thread %p: calling +[%s initialize]",
                         pthread_self(), cls->nameForLogging());
        }

        // Exceptions: A +initialize call that throws an exception
        // is deemed to be a complete and successful +initialize.
        //
        // Only __OBJC2__ adds these handlers. !__OBJC2__ has a
        // bootstrapping problem of this versus CF's call to
        // objc_exception_set_functions().
#if __OBJC2__
        @try
#endif
        {
            callInitialize(cls);

            if (PrintInitializing) {
                _objc_inform("INITIALIZE: thread %p: finished +[%s initialize]",
                             pthread_self(), cls->nameForLogging());
            }
        }
#if __OBJC2__
        @catch (...) {
            if (PrintInitializing) {
                _objc_inform("INITIALIZE: thread %p: +[%s initialize] "
                             "threw an exception",
                             pthread_self(), cls->nameForLogging());
            }
            @throw;
        }
        @finally
#endif
        {
            // Done initializing.
            lockAndFinishInitializing(cls, supercls);
        }
        return;
    }

    else if (cls->isInitializing()) {
        // We couldn't set INITIALIZING because INITIALIZING was already set.
        // If this thread set it earlier, continue normally.
        // If some other thread set it, block until initialize is done.
        // It's ok if INITIALIZING changes to INITIALIZED while we're here,
        //   because we safely check for INITIALIZED inside the lock
        //   before blocking.
        if (_thisThreadIsInitializingClass(cls)) {
            return;
        } else if (!MultithreadedForkChild) {
            waitForInitializeToComplete(cls);
            return;
        } else {
            // We're on the child side of fork(), facing a class that
            // was initializing by some other thread when fork() was called.
            _setThisThreadIsInitializingClass(cls);
            performForkChildInitialize(cls, supercls);
        }
    }

    else if (cls->isInitialized()) {
        // Set CLS_INITIALIZING failed because someone else already
        //   initialized the class. Continue normally.
        // NOTE this check must come AFTER the ISINITIALIZING case.
        // Otherwise: Another thread is initializing this class. ISINITIALIZED
        //   is false. Skip this clause. Then the other thread finishes
        //   initialization and sets INITIALIZING=no and INITIALIZED=yes.
        //   Skip the ISINITIALIZING clause. Die horribly.
        return;
    }

    else {
        // We shouldn't be here.
        _objc_fatal("thread-safe class init in objc runtime is buggy!");
    }
}

4.2.1.5 callInitialize

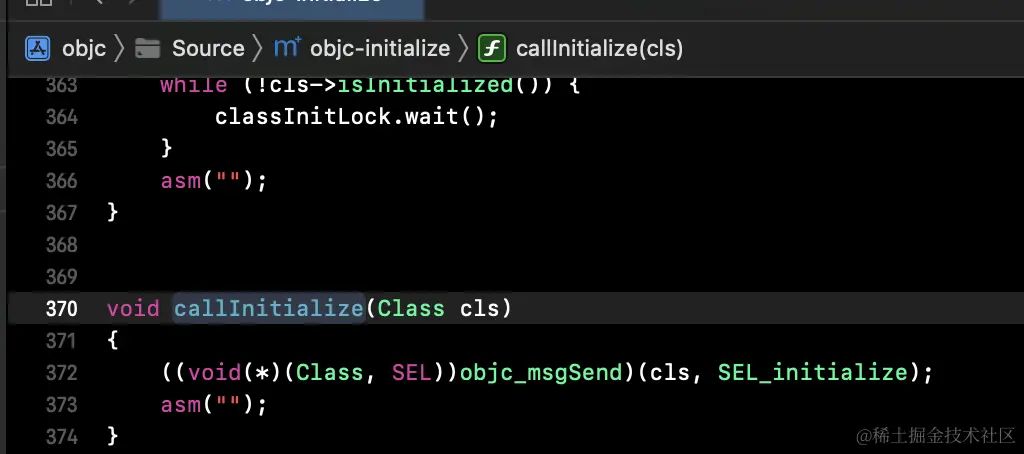

我们在_class_initialize中找到了callInitialize:

// 调用initialize的函数
void callInitialize(Class cls)
{
    // 通过runtime消息机制发送initialize消息
    ((void(*)(Class, SEL))objc_msgSend)(cls, SEL_initialize);
    asm("");
}

可以在callInitialize里发现本质都是通过Runtime的消息机制进行的发送

4.2.3调用顺序

先调用父类的initialize，再调用子类的initialize
(先初始化父类，再初始化子类，每个类只会初始化1次)
如果子类没有实现initialize，会调用父类的initialize

4.3 initialize和load的区别

initialize是通过objc_msgSend进行调用的，而load是找到函数地址直接调用的
如果子类没有实现initialize，会调用父类的initialize
- 所以父类的initialize可能会被调用多次，第一次是系统通过消息发送机制调用的父类initialize，后面多次的调用都是因为子类没有实现initialize，而通过superclass找到父类再次调用的
如果分类实现了initialize，就覆盖类本身的initialize调用

五、关联对象

我们在关联对象文章中,曾简单回顾通过 runtimeAPI 进行关联对象,实现分类添加属性时候的setter、getter方法的实现.
Demo如下:
我们先编写Car分类,给其添加属性

//
//  Car+Category1.h
//  关联对象、Protocol
//
//  Created by VanZhang on 2022/5/11.
//


#import "Car.h"

NS_ASSUME_NONNULL_BEGIN

@interface Car (Category1)

- (void)runFaster;
+ (void)lightLongTime;
//Desc:
@property (strong, nonatomic) NSString *nameplate;//车子的铭牌
@property (assign, nonatomic) int km;//车子的公里数
@end

NS_ASSUME_NONNULL_END


//
//  Car+Category1.m
//  关联对象、Protocol
//
//  Created by VanZhang on 2022/5/11.
//

#import "Car+Category1.h"
#import <objc/runtime.h>
@implementation Car (Category1)
- (void)runFaster{
    NSLog(@"%s",__func__);
}
+ (void)lightLongTime{
    NSLog(@"%s",__func__);
}
@end

5.1 关联对象API

导入

#import <objc/runtime.h>
- objc_setAssociatedObject
- objc_getAssociatedObject

5.2 通过Clang指令转换源码为底层格式

关键代码:

struct _prop_t {
    const char *name;
    const char *attributes;
};

struct _protocol_t;

struct _objc_method {
    struct objc_selector * _cmd;
    const char *method_type;
    void  *_imp;
};

struct _protocol_t {
    void * isa;  // NULL
    const char *protocol_name;
    const struct _protocol_list_t * protocol_list; // super protocols
    const struct method_list_t *instance_methods;
    const struct method_list_t *class_methods;
    const struct method_list_t *optionalInstanceMethods;
    const struct method_list_t *optionalClassMethods;
    const struct _prop_list_t * properties;
    const unsigned int size;  // sizeof(struct _protocol_t)
    const unsigned int flags;  // = 0
    const char ** extendedMethodTypes;
};

struct _ivar_t {
    unsigned long int *offset;  // pointer to ivar offset location
    const char *name;
    const char *type;
    unsigned int alignment;
    unsigned int  size;
};

struct _class_ro_t {
    unsigned int flags;
    unsigned int instanceStart;
    unsigned int instanceSize;
    unsigned int reserved;
    const unsigned char *ivarLayout;
    const char *name;
    const struct _method_list_t *baseMethods;
    const struct _objc_protocol_list *baseProtocols;
    const struct _ivar_list_t *ivars;
    const unsigned char *weakIvarLayout;
    const struct _prop_list_t *properties;
};

struct _class_t {
    struct _class_t *isa;
    struct _class_t *superclass;
    void *cache;
    void *vtable;
    struct _class_ro_t *ro;
};

struct _category_t {
    const char *name;
    struct _class_t *cls;
    const struct _method_list_t *instance_methods;
    const struct _method_list_t *class_methods;
    const struct _protocol_list_t *protocols;
    const struct _prop_list_t *properties;
};
extern "C" __declspec(dllimport) struct objc_cache _objc_empty_cache;
#pragma warning(disable:4273)

static struct /*_method_list_t*/ {
    unsigned int entsize;  // sizeof(struct _objc_method)
    unsigned int method_count;
    struct _objc_method method_list[1];
} _OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_objc_method),
    1,
    {{(struct objc_selector *)"runFaster", "v16@0:8", (void *)_I_Car_Category1_runFaster}}
};

static struct /*_method_list_t*/ {
    unsigned int entsize;  // sizeof(struct _objc_method)
    unsigned int method_count;
    struct _objc_method method_list[1];
} _OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_objc_method),
    1,
    {{(struct objc_selector *)"lightLongTime", "v16@0:8", (void *)_C_Car_Category1_lightLongTime}}
};

static struct /*_prop_list_t*/ {
    unsigned int entsize;  // sizeof(struct _prop_t)
    unsigned int count_of_properties;
    struct _prop_t prop_list[2];
} _OBJC_$_PROP_LIST_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_prop_t),
    2,
    {{"nameplate","T@\"NSString\",&,N"},
    {"km","Ti,N"}}
};

extern "C" __declspec(dllimport) struct _class_t OBJC_CLASS_$_Car;

static struct _category_t _OBJC_$_CATEGORY_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) =
{
    "Car",
    0, // &OBJC_CLASS_$_Car,
    (const struct _method_list_t *)&_OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Category1,
    (const struct _method_list_t *)&_OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Category1,
    0,
    (const struct _prop_list_t *)&_OBJC_$_PROP_LIST_Car_$_Category1,
};
static void OBJC_CATEGORY_SETUP_$_Car_$_Category1(void ) {
    _OBJC_$_CATEGORY_Car_$_Category1.cls = &OBJC_CLASS_$_Car;
}
#pragma section(".objc_inithooks$B", long, read, write)
__declspec(allocate(".objc_inithooks$B")) static void *OBJC_CATEGORY_SETUP[] = {
    (void *)&OBJC_CATEGORY_SETUP_$_Car_$_Category1,
};
static struct _category_t *L_OBJC_LABEL_CATEGORY_$ [1] __attribute__((used, section ("__DATA, __objc_catlist,regular,no_dead_strip")))= {
    &_OBJC_$_CATEGORY_Car_$_Category1,
};
static struct IMAGE_INFO { unsigned version; unsigned flag; } _OBJC_IMAGE_INFO = { 0, 2 };

我们可以在 _OBJC_$_PROP_LIST_Car_$_Category1中发现,两个新的属性:nameplate、km
从我们前面几篇文章对Class底层结构的实现我们可以轻易得知:

属性的信息存在 _prop_list_t结构体中

类的属性信息存在 _class_ro_t结构体中

struct _class_ro_t {
    unsigned int flags;
    unsigned int instanceStart;
    unsigned int instanceSize;
    unsigned int reserved;
    const unsigned char *ivarLayout;
    const char *name;
    const struct _method_list_t *baseMethods;
    const struct _objc_protocol_list *baseProtocols;
    const struct _ivar_list_t *ivars;
    const unsigned char *weakIvarLayout;
    const struct _prop_list_t *properties;
};

我们在前面的转成底层代码之后的实现中并没有找到属性的 setter、getter 方法(这也就是为什么,我们通过分类定义属性后,直接通过调用其Setter、getter方法会发生闪退的根本原因(底层不支持默认给其进行属性实现))
- 因为类在定义的时候,其内存布局就已经确认了(Class结构体的内存布局)
- 若是系统设计者允许在分类添加属性的时候,允许其改Class的内存布局,那是相当危险的事情(破解程序,干掉一些关键成员属性就会造成某些服务的权限被破解)
- 通过关联对象的方式,存储起来的通过分类创建的属性值，不是存储在类本身的实例对象内存中

我们通过关联对象的方式完成其 setter、getter方法的实现:

//
//  Car+Category1.m
//  关联对象、Protocol
//
//  Created by VanZhang on 2022/5/11.
//

#import "Car+Category1.h"
#import <objc/runtime.h>
@implementation Car (Category1)
- (void)runFaster{
    NSLog(@"%s",__func__);
}
+ (void)lightLongTime{
    NSLog(@"%s",__func__);
}
- (void)setNameplate:(NSString *)nameplate{
    /*

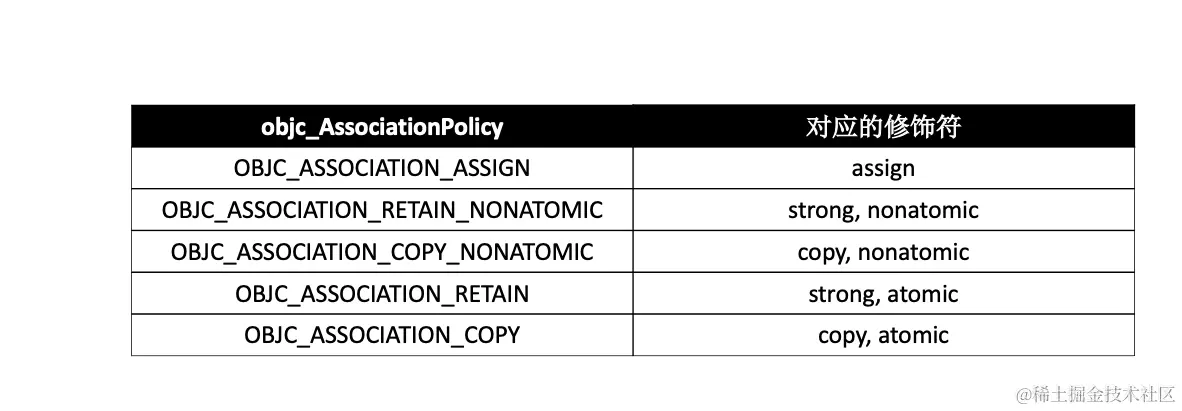

     * object：关联的对象
     * value：关联的值
     * objc_AssociationPolicy：关联策略
     */
    objc_setAssociatedObject(self, @selector(nameplate), nameplate, OBJC_ASSOCIATION_COPY_NONATOMIC);
}
- (NSString *)nameplate{

    // 隐式参数
    // _cmd == @selector(name)
    return objc_getAssociatedObject(self, _cmd);
}
- (void)setKm:(int)km{
    /*
     * object：关联的对象
     * value：关联的值
     * objc_AssociationPolicy：关联策略
     */
    objc_setAssociatedObject(self, @selector(km), @(km), OBJC_ASSOCIATION_RETAIN_NONATOMIC);
}
- (int)km{
    return [objc_getAssociatedObject(self, _cmd) intValue];
}
@end

转换成底层实现代码:

...
struct _prop_t {
    const char *name;
    const char *attributes;
};

struct _protocol_t;

struct _objc_method {
    struct objc_selector * _cmd;
    const char *method_type;
    void  *_imp;
};

struct _protocol_t {
    void * isa;  // NULL
    const char *protocol_name;
    const struct _protocol_list_t * protocol_list; // super protocols
    const struct method_list_t *instance_methods;
    const struct method_list_t *class_methods;
    const struct method_list_t *optionalInstanceMethods;
    const struct method_list_t *optionalClassMethods;
    const struct _prop_list_t * properties;
    const unsigned int size;  // sizeof(struct _protocol_t)
    const unsigned int flags;  // = 0
    const char ** extendedMethodTypes;
};

struct _ivar_t {
    unsigned long int *offset;  // pointer to ivar offset location
    const char *name;
    const char *type;
    unsigned int alignment;
    unsigned int  size;
};

struct _class_ro_t {
    unsigned int flags;
    unsigned int instanceStart;
    unsigned int instanceSize;
    unsigned int reserved;
    const unsigned char *ivarLayout;
    const char *name;
    const struct _method_list_t *baseMethods;
    const struct _objc_protocol_list *baseProtocols;
    const struct _ivar_list_t *ivars;
    const unsigned char *weakIvarLayout;
    const struct _prop_list_t *properties;
};

struct _class_t {
    struct _class_t *isa;
    struct _class_t *superclass;
    void *cache;
    void *vtable;
    struct _class_ro_t *ro;
};

struct _category_t {
    const char *name;
    struct _class_t *cls;
    const struct _method_list_t *instance_methods;
    const struct _method_list_t *class_methods;
    const struct _protocol_list_t *protocols;
    const struct _prop_list_t *properties;
};
extern "C" __declspec(dllimport) struct objc_cache _objc_empty_cache;
#pragma warning(disable:4273)

static struct /*_method_list_t*/ {
    unsigned int entsize;  // sizeof(struct _objc_method)
    unsigned int method_count;
    struct _objc_method method_list[5];
} _OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_objc_method),
    5,
    {{(struct objc_selector *)"runFaster", "v16@0:8", (void *)_I_Car_Category1_runFaster},
    {(struct objc_selector *)"setNameplate:", "v24@0:8@16", (void *)_I_Car_Category1_setNameplate_},
    {(struct objc_selector *)"nameplate", "@16@0:8", (void *)_I_Car_Category1_nameplate},
    {(struct objc_selector *)"setKm:", "v20@0:8i16", (void *)_I_Car_Category1_setKm_},
    {(struct objc_selector *)"km", "i16@0:8", (void *)_I_Car_Category1_km}}
};

static struct /*_method_list_t*/ {
    unsigned int entsize;  // sizeof(struct _objc_method)
    unsigned int method_count;
    struct _objc_method method_list[1];
} _OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_objc_method),
    1,
    {{(struct objc_selector *)"lightLongTime", "v16@0:8", (void *)_C_Car_Category1_lightLongTime}}
};

static struct /*_prop_list_t*/ {
    unsigned int entsize;  // sizeof(struct _prop_t)
    unsigned int count_of_properties;
    struct _prop_t prop_list[2];
} _OBJC_$_PROP_LIST_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) = {
    sizeof(_prop_t),
    2,
    {{"nameplate","T@\"NSString\",&,N"},
    {"km","Ti,N"}}
};

extern "C" __declspec(dllimport) struct _class_t OBJC_CLASS_$_Car;

static struct _category_t _OBJC_$_CATEGORY_Car_$_Category1 __attribute__ ((used, section ("__DATA,__objc_const"))) =
{
    "Car",
    0, // &OBJC_CLASS_$_Car,
    (const struct _method_list_t *)&_OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Category1,
    (const struct _method_list_t *)&_OBJC_$_CATEGORY_CLASS_METHODS_Car_$_Category1,
    0,
    (const struct _prop_list_t *)&_OBJC_$_PROP_LIST_Car_$_Category1,
};
static void OBJC_CATEGORY_SETUP_$_Car_$_Category1(void ) {
    _OBJC_$_CATEGORY_Car_$_Category1.cls = &OBJC_CLASS_$_Car;
}
#pragma section(".objc_inithooks$B", long, read, write)
__declspec(allocate(".objc_inithooks$B")) static void *OBJC_CATEGORY_SETUP[] = {
    (void *)&OBJC_CATEGORY_SETUP_$_Car_$_Category1,
};
static struct _category_t *L_OBJC_LABEL_CATEGORY_$ [1] __attribute__((used, section ("__DATA, __objc_catlist,regular,no_dead_strip")))= {
    &_OBJC_$_CATEGORY_Car_$_Category1,
};
static struct IMAGE_INFO { unsigned version; unsigned flag; } _OBJC_IMAGE_INFO = { 0, 2 };
...

我们可以在结构体_OBJC_$_CATEGORY_INSTANCE_METHODS_Car_$_Category1发现,添加属性的setter、getter方法、此时在外部调用 setter、getter方法就不会闪退了！！

5.3 实现源码分析

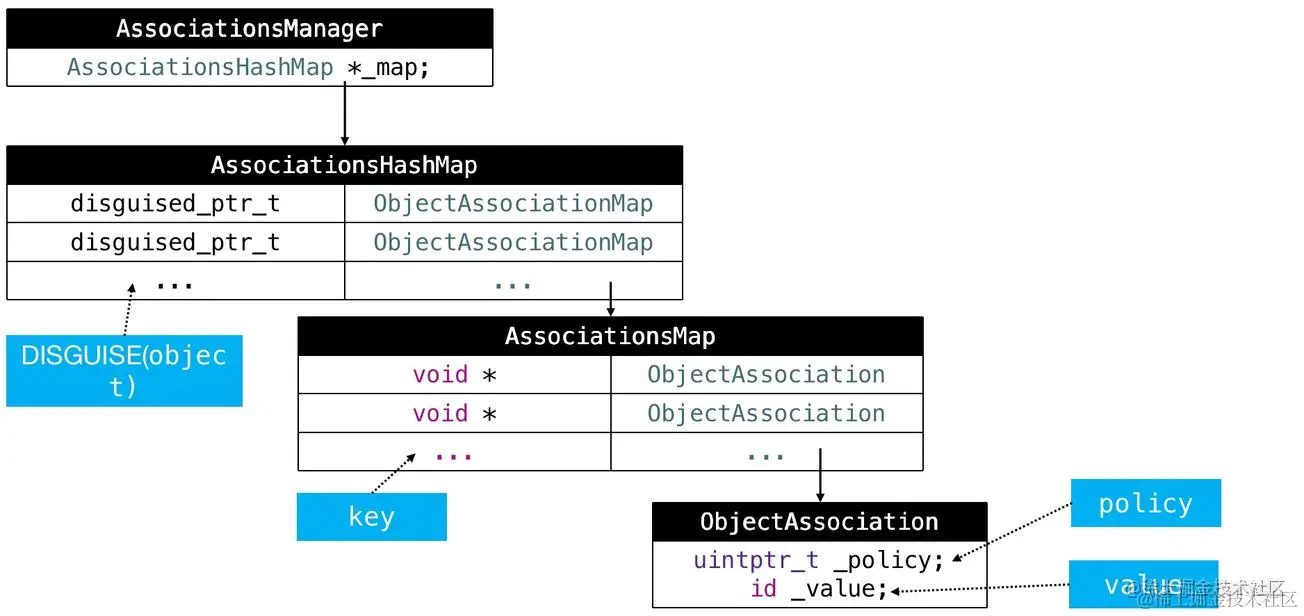

1.在objc-references.mm中我们可以看到objc_setAssociatedObject的实现代码如下

void _object_set_associative_reference(id object, const void *key, id value, uintptr_t policy) {
    if (!object && !value) return;

    if (object->getIsa()->forbidsAssociatedObjects())
        _objc_fatal("objc_setAssociatedObject called on instance (%p) of class %s which does not allow associated objects", object, object_getClassName(object));

    // 通过传进来的object生成一个key
    DisguisedPtr<objc_object> disguised{(objc_object *)object};
    ObjcAssociation association{policy, value};

    // retain the new value (if any) outside the lock.
    association.acquireValue();

    bool isFirstAssociation = false;
    {
        AssociationsManager manager;
        // 取出AssociationsManager里的AssociationsHashMap这个属性
        AssociationsHashMap &associations(manager.get());

        // 如果value有值
        if (value) {
            // 根据传进来的object key的值disguised取出ObjectAssociationMap
            auto refs_result = associations.try_emplace(disguised, ObjectAssociationMap{});
            if (refs_result.second) {
                /* it's the first association we make */
                isFirstAssociation = true;
            }

            // 根据refs_result的key存放进association
            // association就是ObjcAssociation
            // 总之就是对应的每一个key一层层的赋值
            auto &refs = refs_result.first->second;
            auto result = refs.try_emplace(key, std::move(association));
            if (!result.second) {
                association.swap(result.first->second);
            }
        } else { // 如果value为空
            auto refs_it = associations.find(disguised);
            if (refs_it != associations.end()) {
                auto &refs = refs_it->second;
                auto it = refs.find(key);
                if (it != refs.end()) {
                    association.swap(it->second);
                    refs.erase(it);
                    if (refs.size() == 0) {
                        // 也会找到associations进行擦除
                        associations.erase(refs_it);

                    }
                }
            }
        }
    }

	....
}

2.关联对象的取值函数objc_getAssociatedObject的实现代码如下

void _object_get_associative_reference(id object, const void *key) {
    ObjcAssociation association{};

    {
        AssociationsManager manager;

        // associations是manager里面所有的AssociationsHashMap的list
        AssociationsHashMap &associations(manager.get());
        // 根据object在list里找到对应的那个AssociationsHashMap类型的i
        AssociationsHashMap::iterator i = associations.find((objc_object *)object);
        if (i != associations.end()) {

            // 再取出所有的ObjectAssociationMap的list
            ObjectAssociationMap &refs = i->second;
            // 根据key在list里找到对应的ObjectAssociationMap类型的j
            ObjectAssociationMap::iterator j = refs.find(key);
            if (j != refs.end()) {
                // 取出ObjectAssociation类型的值association
                association = j->second;
                // 取出association里的value和策略
                association.retainReturnedValue();
            }
        }
    }

    return association.autoreleaseReturnedValue();
}

3.关联对象的几个类的实现关系可以用下图表示

5.4 总结：

关联对象并不是存储在被关联对象本身内存中
关联对象存储在全局的统一的一个AssociationsManager中
设置关联对象为nil，就相当于是移除关联对象
当object对象被释放，关联对象的值也会对应的从内存中移除（内存管理自动做了处理）其它: 关联对象提供了以下API

// 添加关联对象
 void objc_setAssociatedObject(id object, const void * key, id value, objc_AssociationPolicy policy)
// 获得关联对象

id objc_getAssociatedObject(id object, const void * key)
//移除所有的关联对象
void objc_removeAssociatedObjects(id object)

key的常见用法

static void *MyKey = &MyKey;
objc_setAssociatedObject(obj, MyKey, value, OBJC_ASSOCIATION_RETAIN_NONATOMIC)
objc_getAssociatedObject(obj, MyKey)

static char MyKey;
objc_setAssociatedObject(obj, &MyKey, value, OBJC_ASSOCIATION_RETAIN_NONATOMIC)
objc_getAssociatedObject(obj, &MyKey)

//使用属性名作为key
objc_setAssociatedObject(obj, @"property", value, OBJC_ASSOCIATION_RETAIN_NONATOMIC);
objc_getAssociatedObject(obj, @"property");

//使用get方法的@selecor作为key
objc_setAssociatedObject(obj, @selector(getter), value, OBJC_ASSOCIATION_RETAIN_NONATOMIC)
objc_getAssociatedObject(obj, @selector(getter))

objc_AssociationPolicy

总结

本文整个篇幅介绍了 OC面向对象语法中的 Category底层结构、Category中添加属性的策略关联对象的底层实现、类与分类中load 和 initialize 执行顺序和相关原理、App启动时Class与Category装载过程 且验证了阅读源码的理解推断。本文只对课题相关的底层代码进行阅读或验证,并没有铺展开来介绍。本文就此收尾,其它底层原理相关的要点,待下回分晓

专题系列文章

1.前知识

2. 基于OC语言探索iOS底层原理

3. 基于Swift语言探索iOS底层原理

关于函数、枚举、可选项、结构体、类、闭包、属性、方法、swift多态原理、String、Array、Dictionary、引用计数、MetaData等Swift基本语法和相关的底层原理文章有如下几篇:

08-探究iOS底层原理|Category底层结构、App启动时Class与Category装载过程、load 和 initialize 执行、关联对象

前言
