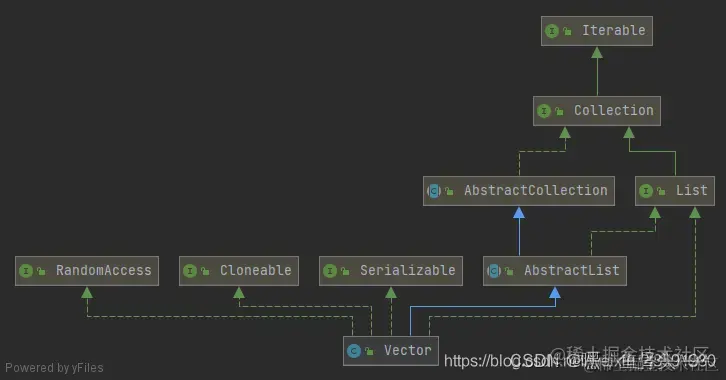

1.继承体系
- 实现了List接口,具备了集合的基本框架,比如集合添加、删除、修改
- 实现了RandomAccess接口,具备了随机访问的特点,其实Vector底层是数组,本来就具备随机访问的特点
- 实现了Cloneable接口,可以被克隆,不过这里的克隆是浅克隆
- 实现了Serializable接口,可以被序列化和反序列化
2. 成员变量
/*
Vector的成员变量是用protected修饰的,ArrayList的成员变量是用private修饰的,
用private修饰的变量只能在本类调用
用protected修饰的成员变量只能在同一个包下调用或是在不同包的子类调用
*/
//底层数组
protected Object[] elementData;
//数组实际存储的元素数量
protected int elementCount;
//增长系数,表示每次扩容增加多少的容量,如果为0每次扩容为原来的两倍,大于0则每次数组容量增加这个数
protected int capacityIncrement;
private static final long serialVersionUID = -2767605614048989439L;
复制代码
3. 构造方法
//无参构造方法,默认初始容量为10
public Vector() {
this(10);
}
//传入指定容量的构造方法,里面调用指定初始容量和增长系数的方法,增长系数默认为0
public Vector(int initialCapacity) {
this(initialCapacity, 0);
}
//传入指定容量和增长系数的构造方法
public Vector(int initialCapacity, int capacityIncrement) {
super();
//指定容量小于0,抛出异常
if (initialCapacity < 0)
throw new IllegalArgumentException("Illegal Capacity: "+
initialCapacity);
this.elementData = new Object[initialCapacity]; //初始容量
this.capacityIncrement = capacityIncrement; //增长系数
}
//传入集合的构造方法
public Vector(Collection<? extends E> c) {
//将集合转化为数组
elementData = c.toArray();
//实际存储元素的数量
elementCount = elementData.length;
// c.toArray might (incorrectly) not return Object[] (see 6260652)
//将集合的数据拷贝到底层数组中去
if (elementData.getClass() != Object[].class)
elementData = Arrays.copyOf(elementData, elementCount, Object[].class);
}
复制代码
4. 成员方法
get(int index)
获得指定下标处的数据
public synchronized E get(int index) {
if (index >= elementCount) //索引非法,抛出异常
throw new ArrayIndexOutOfBoundsException(index);
return elementData(index);
}
复制代码
set(int index, E element)
修改指定下标处的数据元素
public synchronized E set(int index, E element) {
if (index >= elementCount)
throw new ArrayIndexOutOfBoundsException(index);
E oldValue = elementData(index);
elementData[index] = element;
return oldValue;
}
复制代码
remove(Object o)
删除指定数据元素
public boolean remove(Object o) {
return removeElement(o);
}
public synchronized boolean removeElement(Object obj) {
modCount++; //集合底层修改次数
int i = indexOf(obj); //找到要删除数据元素的下标
if (i >= 0) {
removeElementAt(i); //根据下标删除元素
return true; //删除成功
}
return false;
}
public synchronized void removeElementAt(int index) {
modCount++; //集合底层修改次数
if (index >= elementCount) { //下标越界
throw new ArrayIndexOutOfBoundsException(index + " >= " +
elementCount);
}
else if (index < 0) { //索引非法
throw new ArrayIndexOutOfBoundsException(index);
}
//要删除元素的后面的元素个数
int j = elementCount - index - 1;
if (j > 0) {
System.arraycopy(elementData, index + 1, elementData, index, j); //拷贝
}
elementCount--; //集合中存储的元素数量减一
elementData[elementCount] = null; /* to let gc do its work */ //末尾置空
}
//删除指定索引处的元素
public synchronized E remove(int index) {
modCount++; //集合底层修改次数
if (index >= elementCount) //下标非法
throw new ArrayIndexOutOfBoundsException(index);
E oldValue = elementData(index);
int numMoved = elementCount - index - 1; //指定索引处后面的元素个数
if (numMoved > 0)
System.arraycopy(elementData, index+1, elementData, index,
numMoved); //copy
elementData[--elementCount] = null; // Let gc do its work //数组末尾值空
return oldValue; //返回删除指定索引前该索引处的元素
}
复制代码
add(E e)
在集合末尾添加一个元素
public synchronized boolean add(E e) {
modCount++; //集合底层修改次数加1
ensureCapacityHelper(elementCount + 1); //判断是否需要扩容
elementData[elementCount++] = e;
return true;
}
复制代码
5. 其他方法
//拷贝方法,将集合底层数组的全部元素copy到anArray数组中去
public synchronized void copyInto(Object[] anArray) {
System.arraycopy(elementData, 0, anArray, 0, elementCount);
}
//将底层数组的容量改为实际存储的元素个数
public synchronized void trimToSize() {
modCount++; //集合底层修改次数
int oldCapacity = elementData.length; //容量大小
if (elementCount < oldCapacity) { //说明实际存储的元素数量小于集合的容量
//将elementData数组的前elementCount个元素以数组的形式中并返回
elementData = Arrays.copyOf(elementData, elementCount);
}
}
//设置底层数组的容量大小
public synchronized void setSize(int newSize) {
modCount++; //底层数组修改次数
if (newSize > elementCount) { //新的容量大于数组中实际存储的元素数量
ensureCapacityHelper(newSize); //判断是否需要扩容
} else {
for (int i = newSize ; i < elementCount ; i++) { //新的容量小于数组实际存储的元素数量,一定不扩容,多出的元素置为null
elementData[i] = null;
}
}
elementCount = newSize; //底层数组实际存储的元素数量
}
//获取底层数组的容量
public synchronized int capacity() {
return elementData.length;
}
//获取底层数组实际存储的元素数量
public synchronized int size() {
return elementCount;
}
//判断集合中是否含有元素o
public boolean contains(Object o) {
return indexOf(o, 0) >= 0; //从下标0开始寻找第一次出现元素o的位置
}
//返回元素o第一次出现位置的下标
public int indexOf(Object o) {
return indexOf(o, 0);
}
//获取集合中从下标index开始第一次出现元素o的下标
public synchronized int indexOf(Object o, int index) {
if (o == null) {
for (int i = index ; i < elementCount ; i++)
if (elementData[i]==null)
return i;
} else {
for (int i = index ; i < elementCount ; i++)
if (o.equals(elementData[i]))
return i;
} //找到返回元素位置的下标
return -1; //未找到返回-1
}
复制代码
6. 扩容机制
//确保容量
//加有锁,保证是安全的
public synchronized void ensureCapacity(int minCapacity) {
if (minCapacity > 0) {
modCount++;
ensureCapacityHelper(minCapacity); //帮助方法
}
}
private void ensureCapacityHelper(int minCapacity) {
// overflow-conscious code
if (minCapacity - elementData.length > 0) //最小需要的容量大于集合的容量
grow(minCapacity);
}
private void grow(int minCapacity) {
// overflow-conscious code
int oldCapacity = elementData.length; //旧数组的容量
//增长系数为0,则容量扩大为原来的2倍;否则扩大增长系数个容量
int newCapacity = oldCapacity + ((capacityIncrement > 0) ?
capacityIncrement : oldCapacity);
if (newCapacity - minCapacity < 0) //扩充后的容量不够,则将容量指定为最小需要的容量
newCapacity = minCapacity;
if (newCapacity - MAX_ARRAY_SIZE > 0) //扩充后的容量大于最大数组长度
newCapacity = hugeCapacity(minCapacity);
elementData = Arrays.copyOf(elementData, newCapacity); //copy方法
}
private static int hugeCapacity(int minCapacity) {
if (minCapacity < 0) // overflow //最小容量小于0,抛出异常
throw new OutOfMemoryError();
return (minCapacity > MAX_ARRAY_SIZE) ? //最小容量大于数组最大长度,容量置为整型的最大值,否则容量置为最大数组长度
Integer.MAX_VALUE :
MAX_ARRAY_SIZE;
}
复制代码
7.总结
- Vector底层是一个数组,当我们使用无参方法构造时,默认容量是10
- Vector的扩容与增长系数有关,如果增长系数为0,则每次扩容数组容量都扩容为原来的两倍,否则数组容量增加的个数位增长系数的大小
- Vector的许多方法都加上了synchronized,表明是线程安全的
- Vector的许多方法都与ArrayList相同,因此这里只介绍了一些方法,详细可以参考ArrayList的源码分析
