esp32c3 运行 Rust(一)

上篇已经搭建好开发环境，现在开始点亮板载的 LED。

环境

• OS: Ubuntu 20.04.4 LTS

• Rust: rustc 1.62.0-nightly

• IDE: VsCode

• ESP32C3: ESP-C3-13-Kit 开发板



  LED	GPIO
  R	GPIO3
  G	GPIO4
  B	GPIO5

创建项目

使用如下命令创建 blink 项目，并修改项目配置

cargo generate --git https://github.com/esp-rs/esp-idf-template cargo

创建细节参见 esp32c3 运行 Rust(〇) 中 创建项目 HelloWorld。

点亮 LED

1. 安装相关依赖

   在 Cargo.toml 中添加相关依赖

   • embedded-hal 嵌入式系统的硬件抽象层
   • esp-idf-hal ESP32[-XX] + ESP-IDF 的 embedded-hal 实现

   # ...
   [dependencies]
   # ...
   esp-idf-sys = { version = "0.31.1", features = ["binstart"] }
   embedded-hal = "0.2.7" # 添加这行
   esp-idf-hal = "0.36.0" # 添加这行
   # ...


2. 引入相关依赖

   在 src/main.rs 中添加如下内容

   use embedded_hal::digital::v2::OutputPin;
   use esp_idf_hal::peripherals::Peripherals;


3. 控制 LED 小灯

   fn main() {
       use esp_idf_sys as _; // If using the `binstart` feature of `esp-idf-sys`, always keep
       let peripherals = Peripherals::take().unwrap();
       let mut led = peripherals.pins.gpio3.into_output().unwrap(); // 红色 LED 小灯接在 GIPO3 上
       led.set_high().unwrap();
       println!("LED on!");
   }

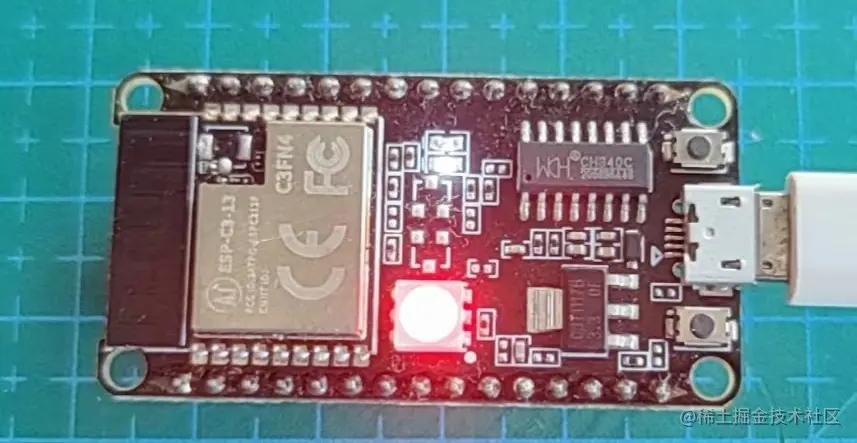

4. 编译并上传

   连接开发板，使用如下命令编译并上传

   cargo espflash --release --monitor /dev/ttyUSB0




让 LED 闪烁起来

引入标准库中修改模块

use std::{
    thread,
    time::Duration,
};

修改 main 方法

// ...
// 移除以下两行代码
led.set_high().unwrap();
println!("LED on!");

// 添加如下代码
loop {
    println!("LED on");
    led.set_high().unwrap();
    thread::sleep(Duration::from_millis(1000));
    led.set_low().unwrap();
    println!("LED off");
    thread::sleep(Duration::from_millis(1000));
}

重新编译上传，没有报错的情况下，将看到 LED 闪烁起来了。

完整代码如下

use esp_idf_sys as _; // If using the `binstart` feature of `esp-idf-sys`, always keep this module imported

use std::{
    thread,
    time::Duration,
};

use esp_idf_hal::peripherals::Peripherals;
use embedded_hal::digital::v2::OutputPin;

fn main() {
    // Temporary. Will disappear once ESP-IDF 4.4 is released, but for now it is necessary to call this function once,
    // or else some patches to the runtime implemented by esp-idf-sys might not link properly.
    esp_idf_sys::link_patches();

    let peripherals = Peripherals::take().unwrap();
    let mut led = peripherals.pins.gpio3.into_output().unwrap();

    loop {
        println!("LED on");
        led.set_high().unwrap();
        thread::sleep(Duration::from_millis(1000));
        led.set_low().unwrap();
        println!("LED off");
        thread::sleep(Duration::from_millis(1000));
    }
}

使用 esp_idf_hal 库中的 toggle 方法控制 LED 闪烁

use esp_idf_sys as _; // If using the `binstart` feature of `esp-idf-sys`, always keep this module imported
use std::{
    thread,
    time::Duration,
};
use embedded_hal::digital::v2::ToggleableOutputPin;
use esp_idf_hal::peripherals::Peripherals;

fn main() {
    // Temporary. Will disappear once ESP-IDF 4.4 is released, but for now it is necessary to call this function once,
    // or else some patches to the runtime implemented by esp-idf-sys might not link properly.
    esp_idf_sys::link_patches();

    let peripherals = Peripherals::take().unwrap();
    let mut led = peripherals.pins.gpio3.into_output().unwrap();

    loop {
        led.toggle().unwrap();
        thread::sleep(Duration::from_millis(1000));
    }
}

参考

1. Embedded Rust on Espressif
2. embedded-hal
3. esp-idf-hal
