AOP

AOP，面向切面，不修改源代码进行方法增强
通过AbstractAutoProxyCreator后置处理器实现，通过AnnotationAwareAspectJAutoProxyCreator调用
切面Bean只是负责在初始化增强器时，进行信息提取，正常的创建的时候一个普通的Bean对象
过程

注册AOP后置处理器，准备AOP必要的组件

获取所有的增强方法，并封装为增强器

准备流程

registerBeanPostProcessors(beanFactory);注册Bean后置处理器
invokeAwareMethods(beanName, bean);实现了BeanFactoryAware接口，调用setBeanFactory
调用initBeanFactory，初始化BeanFactory

ReflectiveAspectJAdvisorFactory创建增强器

BeanFactoryAspectJAdvisorsBuilderAdapter创建建造者，一个适配器器，连接工厂和增强器工厂

protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
   super.initBeanFactory(beanFactory);
   if (this.aspectJAdvisorFactory == null) {
      this.aspectJAdvisorFactory = new ReflectiveAspectJAdvisorFactory(beanFactory);
   }
   this.aspectJAdvisorsBuilder =
         new BeanFactoryAspectJAdvisorsBuilderAdapter(beanFactory, this.aspectJAdvisorFactory);
}

初始化流程

当后置处理器准备完成后，在创建之后所有Bean的时候，都会进行干预
在真正创建Bean前，Object bean = resolveBeforeInstantiation(beanName, mbdToUse);给后置处理器一个机会返回自定义的Bean中调用AnnotationAwareAspectJAutoProxyCreator.postProcessBeforeInstantiation
其中进行判断

if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
    //缓存基础类 / 包含 AspectJPointcutAdvisor 增强器的类
   this.advisedBeans.put(cacheKey, Boolean.FALSE);
   return null;
}

isInfrastructureClass

其中判断Bean是否为切面类

protected boolean isInfrastructureClass(Class<?> beanClass) {
    // 是否实现了`Advice/Pointcut/Advisor/AopInfrastructureBean`
   return (super.isInfrastructureClass(beanClass) ||
         (this.aspectJAdvisorFactory != null && this.aspectJAdvisorFactory.isAspect(beanClass))); //是否有`@Aspect`注解
}

shouldSkip

第一次进，会进行AnnotationAwareAspectJAutoProxyCreator的初始化环节，初始化切面/增强器
是否需要跳过shouldSkip(beanClass, beanName)，如果实现了Advisor接口，则为true，是被增强类

protected boolean shouldSkip(Class<?> beanClass, String beanName) {
   // 获取所有实现了`Advisor`接口的类
   List<Advisor> candidateAdvisors = findCandidateAdvisors();
   for (Advisor advisor : candidateAdvisors) {
       //是否包含 AspectJPointcutAdvisor 的增强器
      if (advisor instanceof AspectJPointcutAdvisor &&
            ((AspectJPointcutAdvisor) advisor).getAspectName().equals(beanName)) {
         return true;
      }
   }
   // 是否是 isOriginalInstance
   return super.shouldSkip(beanClass, beanName);
}

findCandidateAdvisors，找到所有候选增强器

protected List<Advisor> findCandidateAdvisors() {
   // Add all the Spring advisors found according to superclass rules.
   List<Advisor> advisors = super.findCandidateAdvisors();
   if (this.aspectJAdvisorsBuilder != null) {
       // 第一次进，不知道切面，创建一个切面建造者
      advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
   }
   return advisors;
}

this.aspectJAdvisorsBuilder.buildAspectJAdvisors()流程

获取容器中的所有具体类String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Object.class, true, false);

判断是否为切面this.advisorFactory.isAspect(beanType)，添加到aspectNames

获取其中的增强方法List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);

构建增强器

this.aspectJAdvisorsBuilder.buildAspectJAdvisors()中进行
找到所有切面String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors( this.beanFactory, Object.class, true, false);
获取增强器List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
获取所有方法getAdvisorMethods(aspectClass)，

private List<Method> getAdvisorMethods(Class<?> aspectClass) {
   List<Method> methods = new ArrayList<>();
   // 递归获取所有的方法，并进行过滤
   ReflectionUtils.doWithMethods(aspectClass, methods::add, adviceMethodFilter);
   if (methods.size() > 1) {
      methods.sort(adviceMethodComparator);
   }
   return methods;
}

adviceMethodFilter，过滤掉Pointcut切点

private static final MethodFilter adviceMethodFilter = ReflectionUtils.USER_DECLARED_METHODS
      .and(method -> (AnnotationUtils.getAnnotation(method, Pointcut.class) == null));

看候选的每一个方法是否为增强方法Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, 0, aspectName);

public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
      int declarationOrderInAspect, String aspectName) {
   validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
    //获取切入点表达式，解析注解内容
   AspectJExpressionPointcut expressionPointcut = getPointcut(
         candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
    //没有，则跳过
   if (expressionPointcut == null) {
      return null;
   }
    //进行封装 切点/增强器/切面
   return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
         this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}

切面是单例的放入缓存this.advisorsCache.put(beanName, classAdvisors);

多例，this.aspectFactoryCache.put(beanName, factory);

对Bean的影响

Object bean = resolveBeforeInstantiation(beanName, mbdToUse);给后置处理器一个机会返回自定义的Bean中调用AnnotationAwareAspectJAutoProxyCreator.postProcessBeforeInstantiation

其中返回为null，当配置了AnnotationAwareAspectJAutoProxyCreator中的customTargetSourceCreators，会提前返回处理好的Bean

某一个Bean创建完成后，调用wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);初始化后的后置处理器

public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
   if (bean != null) {
      Object cacheKey = getCacheKey(bean.getClass(), beanName);
      //配合循环引用的处理，没有被处理过，才进行处理
      if (this.earlyProxyReferences.remove(cacheKey) != bean) {
          //AOP增强
         return wrapIfNecessary(bean, beanName, cacheKey);
      }
   }
   return bean;
}

wrapIfNecessary

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
   if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
      return bean;
   }
   // 为false，不能进行代理处理
   if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
      return bean;
   }
   // 判断 是否为切面相关的基础类 / 是否包含增强器
   if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
      this.advisedBeans.put(cacheKey, Boolean.FALSE);
      return bean;
   }

   // 如果有切面的方法切入，就创建代理对象
   // 其中需要找合适的增强器 List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);

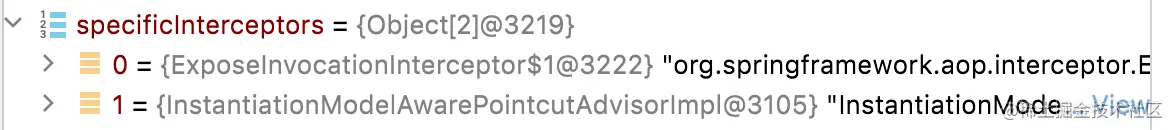

   Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
   //DO_NOT_PROXY - null
   if (specificInterceptors != DO_NOT_PROXY) {
       //缓存已经处理过的Bean
      this.advisedBeans.put(cacheKey, Boolean.TRUE);
      //创建代理
      Object proxy = createProxy(
            bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
      this.proxyTypes.put(cacheKey, proxy.getClass());
      return proxy;
   }
    // 不需要被AOP增强，进行缓存
   this.advisedBeans.put(cacheKey, Boolean.FALSE);
   return bean;
}

findEligibleAdvisors

发现可用的增强器

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
    //获取所有增强器
   List<Advisor> candidateAdvisors = findCandidateAdvisors();
   //能不能运用到这个对象
   List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
   // 创建增强器链 添加 ExposeInvocationInterceptor.ADVISOR 方法拦截器
   extendAdvisors(eligibleAdvisors);
   if (!eligibleAdvisors.isEmpty()) {
       //根据通知类型进行排序，决定执行顺序
      eligibleAdvisors = sortAdvisors(eligibleAdvisors);
   }
   return eligibleAdvisors;
}

findAdvisorsThatCanApply流程

遍历所有增强器，并进行类型判断

PointcutAdvisor的类型，获取切点表达式比较器

遍历目标类的所有方法，正则解析，是否匹配

返回结果

createProxy

创建代理

protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
      @Nullable Object[] specificInterceptors, TargetSource targetSource) {
   if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
      AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
   }
   ProxyFactory proxyFactory = new ProxyFactory();
   //复制信息 代理的目标类
   proxyFactory.copyFrom(this);
   if (proxyFactory.isProxyTargetClass()) {
      if (Proxy.isProxyClass(beanClass)) {
         for (Class<?> ifc : beanClass.getInterfaces()) {
            proxyFactory.addInterface(ifc);
         }
      }
   }
   else {
      if (shouldProxyTargetClass(beanClass, beanName)) {
         proxyFactory.setProxyTargetClass(true);
      }
      else {
          //计算代理对象的接口
         evaluateProxyInterfaces(beanClass, proxyFactory);
      }
   }
    //构建增强器，需要进行判断
    //advisors[i] = this.advisorAdapterRegistry.wrap(allInterceptors.get(i));
   Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
   proxyFactory.addAdvisors(advisors);
   proxyFactory.setTargetSource(targetSource);
   customizeProxyFactory(proxyFactory);

   proxyFactory.setFrozen(this.freezeProxy);
   if (advisorsPreFiltered()) {
      proxyFactory.setPreFiltered(true);
   }
   ClassLoader classLoader = getProxyClassLoader();
   if (classLoader instanceof SmartClassLoader && classLoader != beanClass.getClassLoader()) {
      classLoader = ((SmartClassLoader) classLoader).getOriginalClassLoader();
   }
   // 创建代理
   return proxyFactory.getProxy(classLoader);
}

调用createAopProxy，通过哪种方式创建代理

public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
   if (!NativeDetector.inNativeImage() &&
         (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config))) {
      Class<?> targetClass = config.getTargetClass();
      if (targetClass == null) {
         throw new AopConfigException("TargetSource cannot determine target class: " +
               "Either an interface or a target is required for proxy creation.");
      }
      //有接口，有接口，用JDK创建代理
      if (targetClass.isInterface() || Proxy.isProxyClass(targetClass) || AopProxyUtils.isLambda(targetClass)) {
         return new JdkDynamicAopProxy(config);
      }
      //cglib
      return new ObjenesisCglibAopProxy(config);
   }
   else {
       //jdk
      return new JdkDynamicAopProxy(config);
   }
}

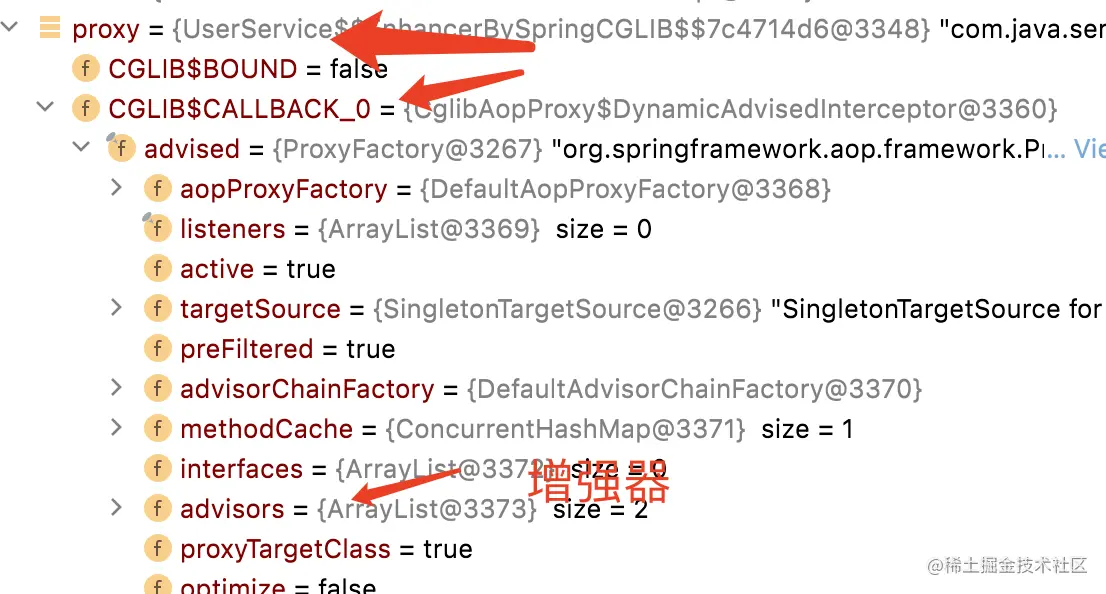

最终生成的代理对象，包含真正的执行器

调用方法

代理对象调用方法，会进入DynamicAdvisedInterceptor中的intercept回调方法
获取目标对象 TargetSource targetSource = this.advised.getTargetSource();
把增强器变为方法拦截器 List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);，拦截器真正执行目标方法，拦截器中有invoke，规范每一个增强器的调用方式

将增强器转换为拦截器interceptors.add(adapter.getInterceptor(advisor));

责任链模式，在执行目标方法前后，执行目标方法

cglib执行过程

chain为空，直接调用目标方法

retVal = methodProxy.invoke(target, argsToUse);

创建方法执行器MI，cglib中的实现，封装信息，进行执行

retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();

调用父类ReflectiveMethodInvocation的proceed，递归链式调用

ExposeInvocationInterceptor

AspectJAroundAdvice

MethodBeforeAdviceInterceptor

AspectJAfterAdvice

AfterReturningAdviceInterceptor

AspectJAfterThrowingAdvice

public Object proceed() throws Throwable {
   // 有没有到达最后一个
   if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
      return invokeJoinpoint();
   }
    //获取当前拦截器，实际AOP中的拦截器
   Object interceptorOrInterceptionAdvice =
         this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);

   if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
      // Evaluate dynamic method matcher here: static part will already have
      // been evaluated and found to match.
      InterceptorAndDynamicMethodMatcher dm =
            (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
      Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
      if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
         return dm.interceptor.invoke(this);
      }
      else {
         // Dynamic matching failed.
         // Skip this interceptor and invoke the next in the chain.
         // 跳过当前拦截器
         return proceed();
      }
   }
   else {
      // 调第一个`invoke`，传入方法执行器
      return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
   }
}

处理完所有拦截器，调用invokeJoinpoint，执行目标方法

protected Object invokeJoinpoint() throws Throwable {
   return AopUtils.invokeJoinpointUsingReflection(this.target, this.method, this.arguments);
}

ExposeInvocationInterceptor的invoke

在准备拦截器时添加的
将当前对象方法调用器放入ThreadLocal，方便线程共享，线程共享数据

public Object invoke(MethodInvocation mi) throws Throwable {
   MethodInvocation oldInvocation = invocation.get();
   invocation.set(mi);
   try {
       //调用下一个方法拦截器
      return mi.proceed();
   }
   finally {
      invocation.set(oldInvocation);
   }
}

AspectJAroundAdvice的invoke

用法

@Around("execution(public void com.java.service.UserService.test())")
public void myAround(ProceedingJoinPoint joinPoint) throws Throwable {
    //调用切点，继续执行链路方法
   joinPoint.proceed();
   System.out.println("myAround..");
}

环绕增强

public Object invoke(MethodInvocation mi) throws Throwable {
   if (!(mi instanceof ProxyMethodInvocation)) {
      throw new IllegalStateException("MethodInvocation is not a Spring ProxyMethodInvocation: " + mi);
   }
   //强转成 ProxyMethodInvocation
   ProxyMethodInvocation pmi = (ProxyMethodInvocation) mi;
   //包装成切点
   ProceedingJoinPoint pjp = lazyGetProceedingJoinPoint(pmi);
   JoinPointMatch jpm = getJoinPointMatch(pmi);
   // 执行方法，增强方法
   return invokeAdviceMethod(pjp, jpm, null, null);
}

MethodBeforeAdviceInterceptor的invoke

public Object invoke(MethodInvocation mi) throws Throwable {
    //先调用前置通知
   this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis());
   return mi.proceed();
}

AspectJAfterAdvice的invoke

后置通知，先继续调用，在返回前调用增强方法，有异常时，仍然执行

public Object invoke(MethodInvocation mi) throws Throwable {
   try {
      return mi.proceed();
   }
   finally {
      invokeAdviceMethod(getJoinPointMatch(), null, null);
   }
}

AfterReturningAdviceInterceptor的invoke

返回通知拦截器，发生异常时，会被跳过

public Object invoke(MethodInvocation mi) throws Throwable {
    //继续执行
   Object retVal = mi.proceed();
   //获得返回值
   this.advice.afterReturning(retVal, mi.getMethod(), mi.getArguments(), mi.getThis());
   return retVal;
}

AspectJAfterThrowingAdvice的invoke

异常通知拦截器

public Object invoke(MethodInvocation mi) throws Throwable {
   try {
      return mi.proceed();
   }
   catch (Throwable ex) {
       //处理异常
      if (shouldInvokeOnThrowing(ex)) {
         invokeAdviceMethod(getJoinPointMatch(), null, ex);
      }
      throw ex;
   }
}

JDK代理流程

JdkDynamicAopProxy的invoke
获取增强链路，并转化为方法拦截器List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
执行调用，一样递归链式处理的流程

MethodInvocation invocation =
      new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
retVal = invocation.proceed();

Java-第十五部分-源码解读-AOP梳理

源码解读全文

AOP

准备流程

初始化流程

isInfrastructureClass

shouldSkip

构建增强器

对Bean的影响

wrapIfNecessary

findEligibleAdvisors

createProxy

调用方法

cglib执行过程

ExposeInvocationInterceptor的invoke

AspectJAroundAdvice的invoke

MethodBeforeAdviceInterceptor的invoke

AspectJAfterAdvice的invoke

AfterReturningAdviceInterceptor的invoke

AspectJAfterThrowingAdvice的invoke

JDK代理流程
