前言介绍:

毫不夸张地说,没有开发者还没踢过“应用数据不互通”这块铁板——平台不同、技术不同、存储和部署方式不同的情况下,又缺少必要的接口,应用系统之间难以互通。而随着业务需求的不断扩展,应用也在不断向多元化、个性化发展,未来业务与陈旧技术栈间矛盾也日益凸显,需要的接口数量也越来越多。

如何简单快速地搞定接口开发,也就成了一个需要我们考虑的问题。最近,我挖到了一个很香的开源插件,仔细研究了技术文档之后,决定安利给大家:

开源插件 Tapdata PDK

GitHub 链接:github.com/tapdata/ida…

这个项目的发布者是国内一个专攻实时数据服务平台的创业团队 Tapdata,据官方透露,这次开源的这个小组件,也是其核心产品开源的投路石,背靠的是这个团队在数据实时同步方面相当成熟的实力。

PDK 是其数据接口技术抽象化而来的一个开源插件开发框架,通过 Source Plugin 接口或者 Target Plugin 接口,可以快速实现新数据库作为 Tapdata 的源或目标的适配兼容,从而通过 Tapdata Cloud产品和即将开源的 Tapdata,免费获得各种异构数据源到目标数据库或平台的实时数据对接能力。

按照 PDK 连接器的开发规范进行数据源和目标端的开发,可以简化数据链路的开发流程,通过详细的开发规划和内置的 TDD 测试,可简单、快速地完成新数据源和目标端的开发工作。

支持类型包括:

  • 接入数据库: MySQL、Oracle、PostgreSQL 等
  • 接入 SaaS 产品: Salesforce、vika 维格表、金数据表单、Zoho CRM 等
  • 接入自定义数据源: 可对接私有协议数据源

快速开始目标数据库接入

目前,PDK 团队已将技术文档公开,大家可以前往 GitHub(github.com/tapdata/ida… 具体了解。

准备环境

  • Java 8
  • Maven
  • Git
  • IntelliJ IDEA

下载源码并编译

git clone https://github.com/tapdata/idaas-pdk.git

cd idaas-pdk

mvn clean install
复制代码

创建目标数据库的Connector工程

例如 group 为 io.tapdata, 数据库 name 为 XDB, 版本 version 为 0.0.1, 通过以下命令创建 Connector 工程

  • 目标数据库无需建表时

./bin/tap template --type target --group io.tapdata --name XDB --version 0.0.1 --output ./connectors
复制代码

用 ItelliJ IDEA 打开 idaas-pdk, 在 idaas-pdk/connectors 下就能看见 xdb-connector 工程。

  • 在 spec.json 里填写 configOptions

configOptions 集成到 Tapdata 站点之后, 配置给用户在使用该Connector的时候的输入项, 例如数据库的连接地址, 用户名, 密码等等

{

   ...

   "configOptions":{

      "connection":{

         "type":"object",

         "properties":{

            "host":{

               "type": "string",

               "title": "Host",

               "x-decorator": "FormItem",

               "x-component": "Input"

            },

            "port":{

               "type": "number",

               "title": "Port",

               "x-decorator": "FormItem",

               "x-component": "Input"

            }



         }

      }

   }

}
复制代码
  • 编写接入目标数据库的代码
@TapConnectorClass("spec.json")

public class XDBConnector extends ConnectorBase implements TapConnector {

 @Override

    public void discoverSchema(TapConnectionContext connectionContext, Consumer<List<TapTable>> consumer) {

        //TODO Load tables from database, connection information in connectionContext#getConnectionConfig

        //Sample code shows how to define tables.

        consumer.accept(list(

                //Define first table

                table("empty-table1"),

                //Define second table

                table("empty-table2"))

        ));

    }


 @Override

    public void connectionTest(TapConnectionContext connectionContext, Consumer<TestItem> consumer) {

        //Assume below tests are successfully, below tests are recommended, but not required.

        //Connection test

        //TODO execute connection test here

        consumer.accept(testItem(TestItem.ITEM_CONNECTION, TestItem.RESULT_SUCCESSFULLY));

        //Login test

        //TODO execute login test here

        consumer.accept(testItem(TestItem.ITEM_LOGIN, TestItem.RESULT_SUCCESSFULLY));

        //Read test

        //TODO execute read test by checking role permission

        consumer.accept(testItem(TestItem.ITEM_READ, TestItem.RESULT_SUCCESSFULLY));

        //Write test

        //TODO execute write test by checking role permission

        consumer.accept(testItem(TestItem.ITEM_WRITE, TestItem.RESULT_SUCCESSFULLY));

    }


 private void writeRecord(TapConnectorContext connectorContext, List<TapRecordEvent> tapRecordEvents, Consumer<WriteListResult<TapRecordEvent>> writeListResultConsumer) {

        //TODO write records into database

        //Below is sample code to print received events which suppose to write to database.

        AtomicLong inserted = new AtomicLong(0); //insert count

        AtomicLong updated = new AtomicLong(0); //update count

        AtomicLong deleted = new AtomicLong(0); //delete count

        for(TapRecordEvent recordEvent : tapRecordEvents) {

            if(recordEvent instanceof TapInsertRecordEvent) {

                //TODO insert record

                inserted.incrementAndGet();

            } else if(recordEvent instanceof TapUpdateRecordEvent) {

                //TODO update record

                updated.incrementAndGet();

            } else if(recordEvent instanceof TapDeleteRecordEvent) {

                //TODO delete record

                deleted.incrementAndGet();

            }

        }

        //Need to tell incremental engine the write result

        writeListResultConsumer.accept(writeListResult()

                .insertedCount(inserted.get())

                .modifiedCount(updated.get())

                .removedCount(deleted.get()));

    }

 private void queryByFilter(TapConnectorContext connectorContext, List<TapFilter> filters, Consumer<List<FilterResult>> listConsumer){

        //Filter is exactly match.

        //If query by the filter, no value is in database, please still create a FitlerResult with null value in it. So that flow engine can understand the filter has no value.

    }

}
复制代码
  • 目标数据库须建表时

./bin/tap template --type targetNeedTable --group io.tapdata --name XDB --version 0.0.1 --output ./connectors
复制代码

用 ItelliJ IDEA 打开 idaas-pdk, 在 idaas-pdk/connectors 下就能看见 xdb-connector 工程。

  • 在 spec.json 里填写 configOptions

configOptions 集成到 Tapdata 站点之后, 配置给用户在使用该 Connector 的时候的输入项, 例如数据库的连接地址、用户名、密码等

{
   ...

   "configOptions":{

      "connection":{

         "type":"object",

         "properties":{

            "host":{

               "type": "string",

               "title": "Host",

               "x-decorator": "FormItem",

               "x-component": "Input"

            },

            "port":{

               "type": "number",

               "title": "Port",

               "x-decorator": "FormItem",

               "x-component": "Input"

            }
         }
      }
   }
}
复制代码
  • 在 spec.json 里填写 dataTypes(类型表达式)

dataTypes 用于描述该 Connector 接入数据库的所有字段的范围,以及转换到对应的 TapType。 源端数据库也会提供相同的 dataTypes 描述, 这样当源端数据流入到 Tapdata 里时, 会结合源端 dataTypes 的字段描述信息结合源端库表的字段信息, 通过 Tapdata 的中立数据结构进入到 Tapdata 的数据流中, 当数据要流入到目标数据库之前,Tapdata 会根据这些信息, 在目标库的 dataTypes 中找到最佳的存储字段, 通过 TapField 的 originType 告知给 PDK 开发者, 用以建表。

{

   ...

   "dataTypes":{

      "boolean":{"bit":8, "unsigned":"", "to":"TapNumber"},

      "tinyint":{"bit":8, "to":"TapNumber"},

      "smallint":{"bit":16, "to":"TapNumber"},

      "int":{"bit":32, "to":"TapNumber"},

      "bigint":{"bit":64, "to":"TapNumber"},

      "largeint":{"bit":128, "to":"TapNumber"},

      "float":{"bit":32, "to":"TapNumber"},

      "double":{"bit":64, "to":"TapNumber"},

      "decimal[($precision,$scale)]":{"bit": 128, "precision": [1, 27], "defaultPrecision": 10, "scale": [0, 9], "defaultScale": 0, "to": "TapNumber"},

      "date":{"byte":3, "range":["0000-01-01", "9999-12-31"], "to":"TapDate"},

      "datetime":{"byte":8, "range":["0000-01-01 00:00:00","9999-12-31 23:59:59"],"to":"TapDateTime"},

      "char[($byte)]":{"byte":255, "to": "TapString", "defaultByte": 1},

      "varchar[($byte)]":{"byte":"65535", "to":"TapString"},

      "string":{"byte":"2147483643", "to":"TapString"},

      "HLL":{"byte":"16385", "to":"TapNumber", "queryOnly":true}

   }

}
复制代码
  • 编写接入目标数据库的代码
 @TapConnectorClass("spec.json")

public class XDBConnector extends ConnectorBase implements TapConnector {
 @Override

 public void discoverSchema(TapConnectionContext connectionContext, Consumer<List<TapTable>> consumer) {
 //TODO Load schema from database, connection information in connectionContext#getConnectionConfig
 //Sample code shows how to define tables with specified fields
 consumer.accept(list(
 //Define first table
 table("empty-table1")
 //Define a field named "id", origin field type, whether is primary key and primary key position

 .add(field("id", "varchar").isPrimaryKey(true).partitionKeyPos(1))

 .add(field("description", "string"))

 .add(field("name", "varchar"))

 .add(field("age", "int")))

 ));

 }

 @Override

 public void connectionTest(TapConnectionContext connectionContext, Consumer<TestItem> consumer) {

 //Assume below tests are successfully, below tests are recommended, but not required.
 //Connection test
 //TODO execute connection test here
 consumer.accept(testItem(TestItem.ITEM_CONNECTION, TestItem.RESULT_SUCCESSFULLY));
 //Login test

 //TODO execute login test here

 consumer.accept(testItem(TestItem.ITEM_LOGIN, TestItem.RESULT_SUCCESSFULLY));

 //Read test

 //TODO execute read test by checking role permission
 consumer.accept(testItem(TestItem.ITEM_READ, TestItem.RESULT_SUCCESSFULLY));

 //Write test
 //TODO execute write test by checking role permission
 consumer.accept(testItem(TestItem.ITEM_WRITE, TestItem.RESULT_SUCCESSFULLY));

 }

 @Override

 public void registerCapabilities(ConnectorFunctions connectorFunctions, TapCodecRegistry codecRegistry) {

 connectorFunctions.supportWriteRecord(this::writeRecord);
 connectorFunctions.supportQueryByFilter(this::queryByFilter);

 //If database need insert record before table created, then please implement the below two methods.
 connectorFunctions.supportCreateTable(this::createTable);
 connectorFunctions.supportDropTable(this::dropTable);

 //If database need insert record before table created, please implement the custom codec for the TapValue that data types in spec.json didn't cover.

 //TapTimeValue, TapMapValue, TapDateValue, TapArrayValue, TapYearValue, TapNumberValue, TapBooleanValue, TapDateTimeValue, TapBinaryValue, TapRawValue, TapStringValue

 codecRegistry.registerFromTapValue(TapRawValue.class, "text", tapRawValue -> {

 if (tapRawValue != null && tapRawValue.getValue() != null)

 return toJson(tapRawValue.getValue());

 return "null";

 });

 }


 private void writeRecord(TapConnectorContext connectorContext, List<TapRecordEvent> tapRecordEvents, Consumer<WriteListResult<TapRecordEvent>> writeListResultConsumer) {

 //TODO write records into database

 //Below is sample code to print received events which suppose to write to database.

 AtomicLong inserted = new AtomicLong(0); //insert count

 AtomicLong updated = new AtomicLong(0); //update count

 AtomicLong deleted = new AtomicLong(0); //delete count

 for(TapRecordEvent recordEvent : tapRecordEvents) {

 if(recordEvent instanceof TapInsertRecordEvent) {

 //TODO insert record

 inserted.incrementAndGet();

 PDKLogger.info(TAG, "Record Write TapInsertRecordEvent {}", toJson(recordEvent));

 } else if(recordEvent instanceof TapUpdateRecordEvent) {

 //TODO update record

 updated.incrementAndGet();

 PDKLogger.info(TAG, "Record Write TapUpdateRecordEvent {}", toJson(recordEvent));

 } else if(recordEvent instanceof TapDeleteRecordEvent) {

 //TODO delete record

 deleted.incrementAndGet();

 PDKLogger.info(TAG, "Record Write TapDeleteRecordEvent {}", toJson(recordEvent));

 }

 }

 //Need to tell incremental engine the write result

 writeListResultConsumer.accept(writeListResult()

 .insertedCount(inserted.get())

 .modifiedCount(updated.get())

 .removedCount(deleted.get()));

 }

 private void queryByFilter(TapConnectorContext connectorContext, List<TapFilter> filters, Consumer<List<FilterResult>> listConsumer){

 //Filter is exactly match.

 //If query by the filter, no value is in database, please still create a FitlerResult with null value in it. So that flow engine can understand the filter has no value.

 }

 private void dropTable(TapConnectorContext connectorContext, TapDropTableEvent dropTableEvent) {

 TapTable table = connectorContext.getTable();

 //TODO implement drop table

 }

 private void createTable(TapConnectorContext connectorContext, TapCreateTableEvent createTableEvent) {

 //TODO implement create table.

 TapTable table = connectorContext.getTable();

 LinkedHashMap<String, TapField> nameFieldMap = table.getNameFieldMap();

 for(Map.Entry<String, TapField> entry : nameFieldMap.entrySet()) {

 TapField field = entry.getValue();

 String originType = field.getOriginType();

 //originType is the data types defined in spec.json

 //TODO use the generated originType to create table.

 }

 }

 }
复制代码

开发完成之后通过 TDD 进行测试验证

提供 configOptions 里需要用户填写的内容的 json 文件, 例如上述 configOptions 里要求用户填写的是数据库的 Host 和 Port, 那么 tdd 的 xdb_tdd.json 文件内容如下:

{
    "connection": {

      "host": "192.168.153.132",

      "port": 9030,

    }
}
复制代码

执行 TDD 测试命令:

./bin/tap tdd --testConfig xdb_tdd.json ./connectors/xdb-connector
复制代码

当 TDD 测试没有通过, 请根据错误提示修改对应错误,直至通过 TDD测试;

当 TDD 测试通过后, PDK Connector 就处于可以提交 Pull Request 的状态。

如何提交到 PDK 开源项目

① fork idaas-pdk, 基于远程的 main 分支建立本地分支

② 根据要接入数据库名称, 在 idaas-pdk/connectors 目录下新建模块, 命名规范为 {数据库小写名称}-connector, 例如接入数据库的名称为 XDB, 模块名称为 xdb-connector

③ 开发者根据官方 API 文档完成接入数据库的开发实现

④ 通过 TDD 测试后, 提交 PR 到 idaas-pdk

⑤ 官方团队 Review 提交的 PR 之后合并代码

彩蛋

感兴趣的同学先别急着开发,据了解,官方推出的免费版本,已陆续实现30个常见数据源/目标间的实时数据对接,如果其中已经包含了你想要接入的数据库,完全可以直接使用 Tapdata Cloud Tapdata Cloud | 免费的异构数据库实时同步云平台 - Tapdata Tapdata PDK 自助开发,快速接入

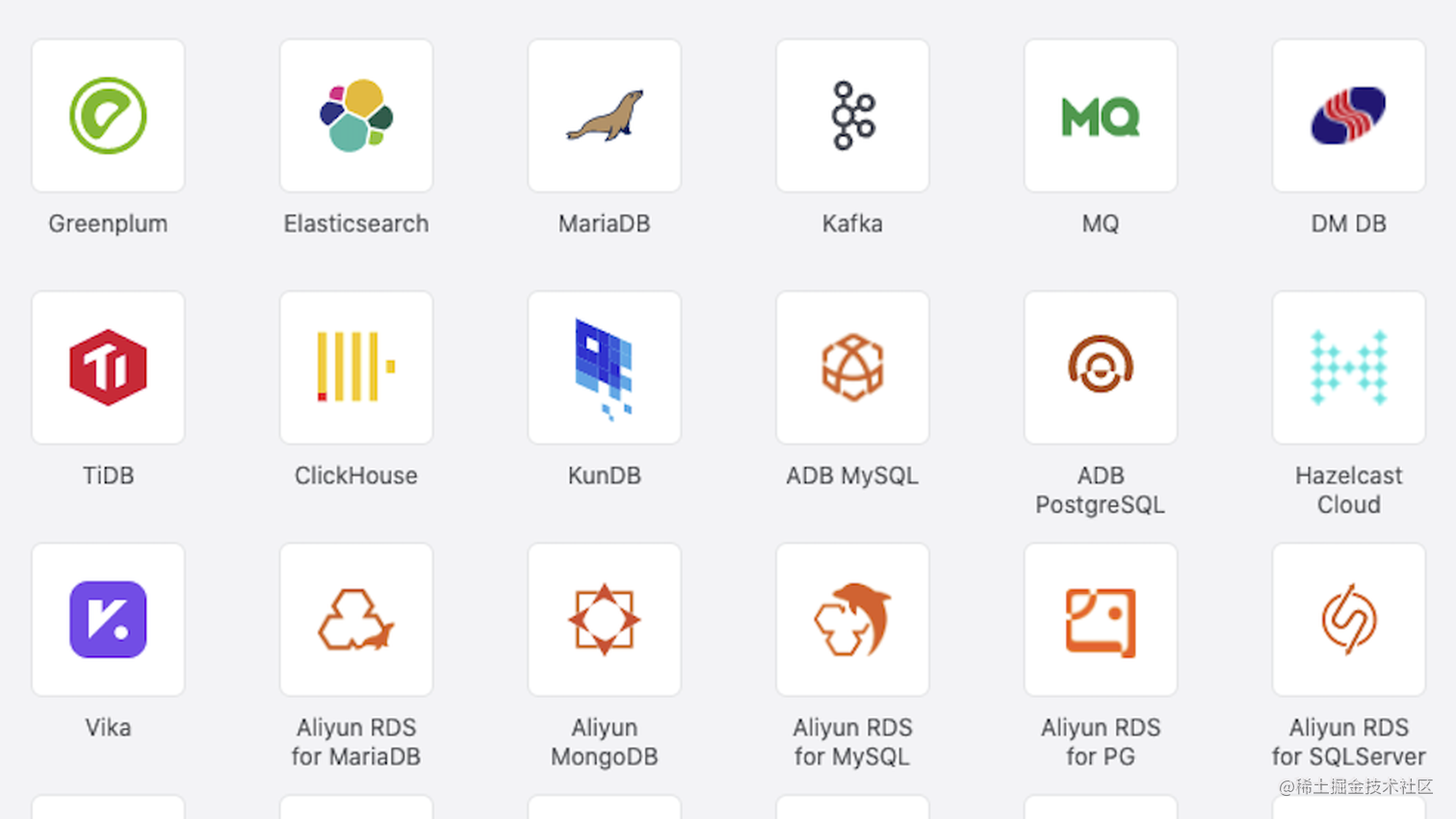

image.png Tapdata Cloud 现阶段支持的数据连接类型

目前,Tapdata 开放了面向开发者的插件生态共建群,开发过程中可以提供技术交流和支持,感兴趣的同学可以扫码关注,拉你入群:
