spring boot 启动过程

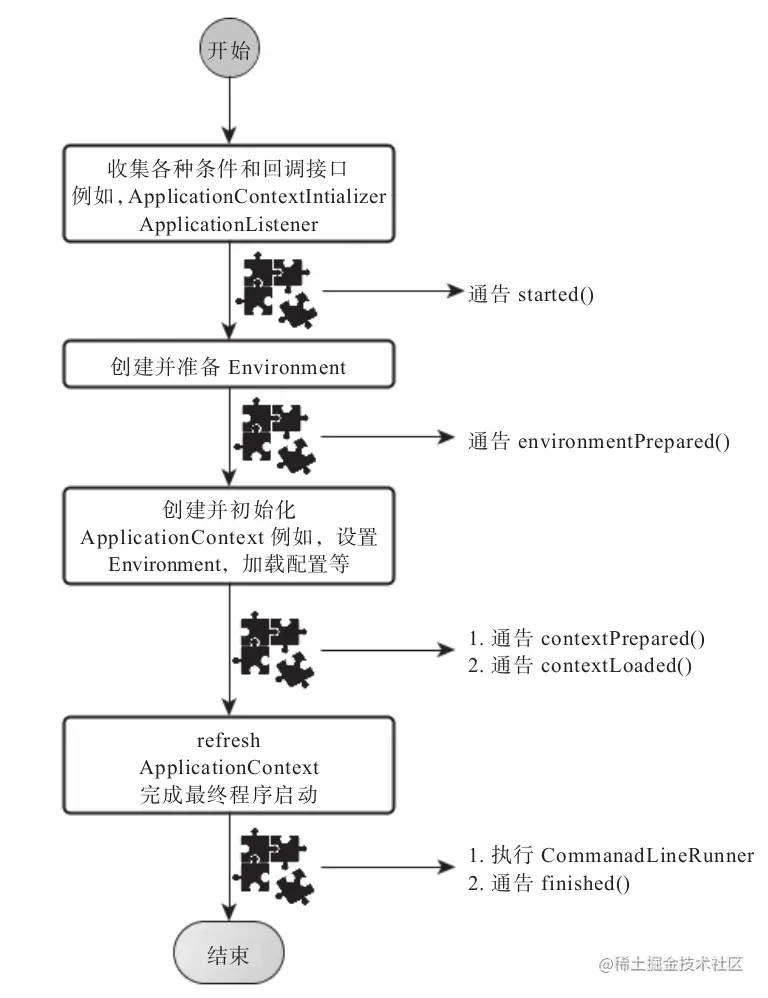

启动流程图

1. 启动程序入口

public static void main(String[] args) {
   SpringApplication.run(WebApplication02.class, args);
}

2. SpringApplication run 方法

...省略部分代码

public ConfigurableApplicationContext run(String... args) {
   StopWatch stopWatch = new StopWatch();
   stopWatch.start();
   ConfigurableApplicationContext context = null;
   Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
   configureHeadlessProperty();
   //反射的方式加载SpringApplicationRunListeners 实例
   SpringApplicationRunListeners listeners = getRunListeners(args);

   // 调用监听starting（）
   listeners.starting();

   try {
      ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
      //配置环境
      ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
      configureIgnoreBeanInfo(environment);

      //banner
      Banner printedBanner = printBanner(environment);

     //创建context,实例有
    //AnnotationConfigApplicationContext
    //AnnotationConfigReactiveWebServerApplicationContext
    //AnnotationConfigServletWebServerApplicationContext
      context = createApplicationContext();

      exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
            new Class[] { ConfigurableApplicationContext.class }, context);
       // 关联context environment listeners
      prepareContext(context, environment, listeners, applicationArguments, printedBanner);

      //启动spring context
      refreshContext(context);

      //context启动后续操作
      afterRefresh(context, applicationArguments);

      stopWatch.stop();
      if (this.logStartupInfo) {
         new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
      }
      listeners.started(context);
      callRunners(context, applicationArguments);
   }
   catch (Throwable ex) {
      handleRunFailure(context, ex, exceptionReporters, listeners);
      throw new IllegalStateException(ex);
   }

   try {
      listeners.running(context);
   }
   catch (Throwable ex) {
      handleRunFailure(context, ex, exceptionReporters, null);
      throw new IllegalStateException(ex);
   }
   return context;
}

...省略部分代码

启动入口

核心注解

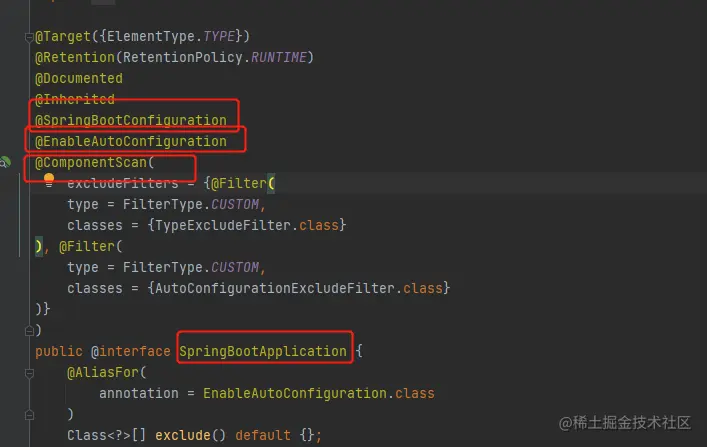

• @SpringBootApplication

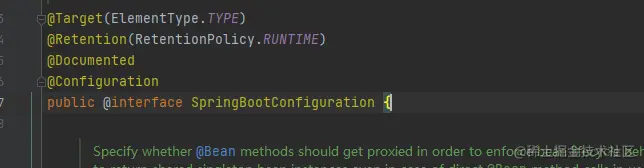

• @SpringBootConfiguration

等价@Configuration,@Configuration + @Bean = bean定义（可以理解为xml bean 声明）

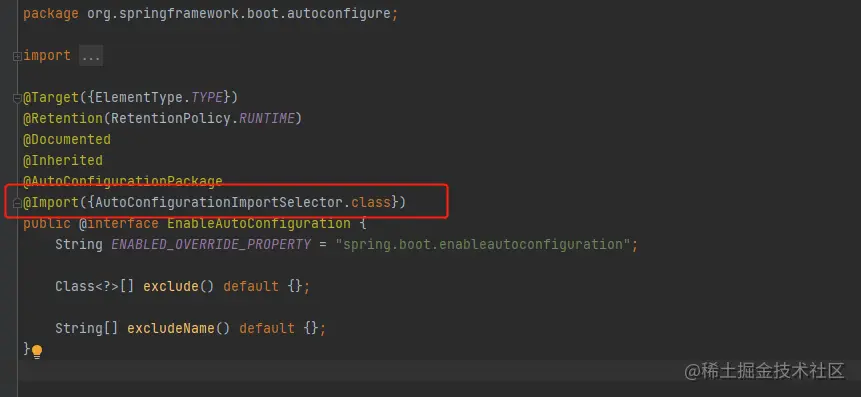

• @EnableAutoConfiguration

spring boot 自动装配，其中AutoConfigurationImportSelector.class为spring boot spi 装载的核心

• @ComponentScan

spring boot 包扫描 如果不指定默认从声明@ComponentScan 开始扫描

spring boot 自动装配配置类

spring boot 自动状态核心类

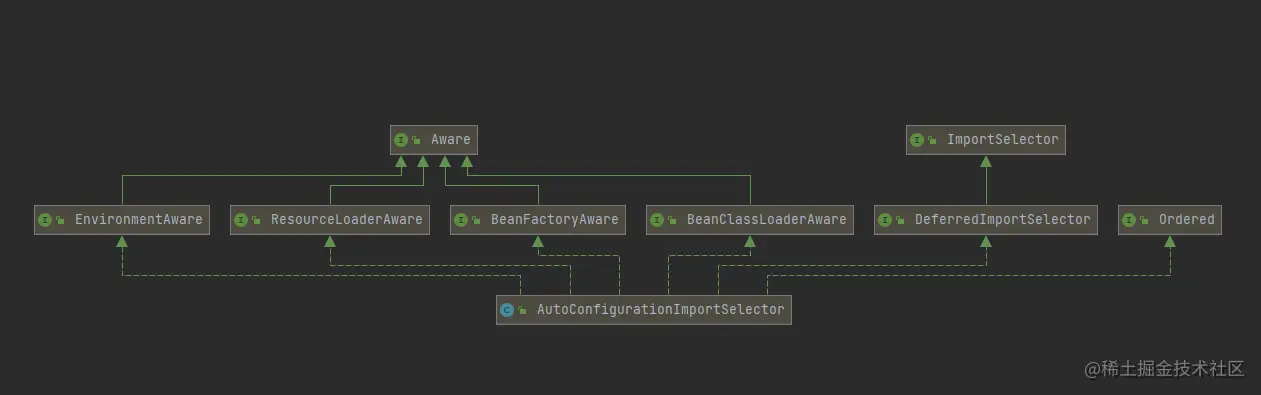

AutoConfigurationImportSelector.class

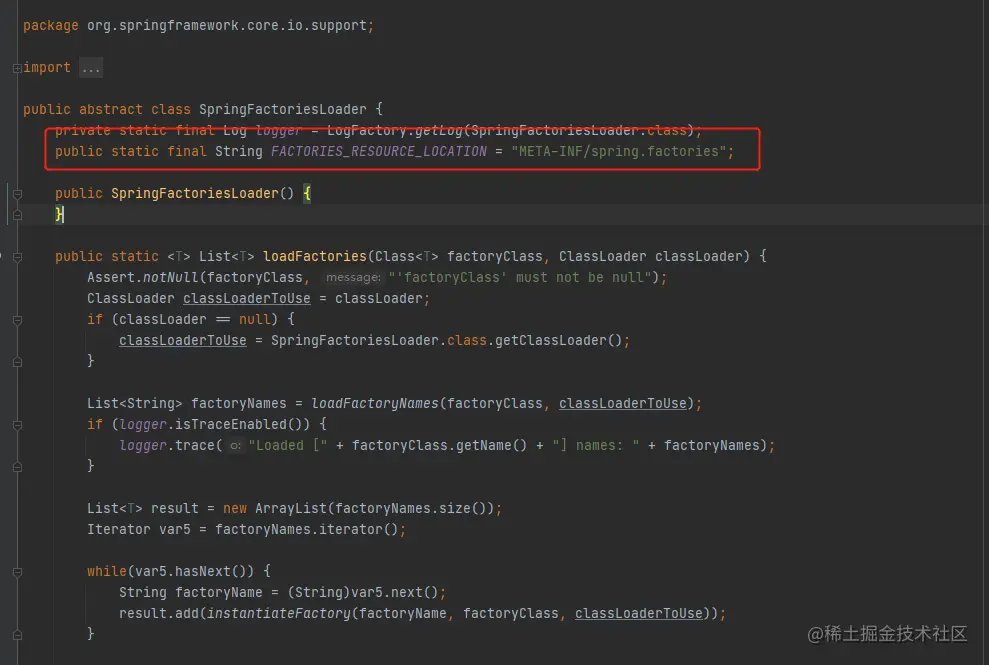

SpringFactoriesLoader.class 从spring.factories 文件中加载 Bean

//加载bean 配置
public String[] selectImports(AnnotationMetadata annotationMetadata) {
    if (!this.isEnabled(annotationMetadata)) {
        return NO_IMPORTS;
    } else {
        AutoConfigurationMetadata autoConfigurationMetadata = AutoConfigurationMetadataLoader.loadMetadata(this.beanClassLoader);
        AutoConfigurationImportSelector.AutoConfigurationEntry autoConfigurationEntry = this.getAutoConfigurationEntry(autoConfigurationMetadata, annotationMetadata);
        return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
    }
}


protected AutoConfigurationImportSelector.AutoConfigurationEntry getAutoConfigurationEntry(AutoConfigurationMetadata autoConfigurationMetadata, AnnotationMetadata annotationMetadata) {
    if (!this.isEnabled(annotationMetadata)) {
        return EMPTY_ENTRY;
    } else {
        AnnotationAttributes attributes = this.getAttributes(annotationMetadata);
        //加载配置
        List<String> configurations = this.getCandidateConfigurations(annotationMetadata, attributes);
        configurations = this.removeDuplicates(configurations);
        Set<String> exclusions = this.getExclusions(annotationMetadata, attributes);
        this.checkExcludedClasses(configurations, exclusions);
        configurations.removeAll(exclusions);
        configurations = this.filter(configurations, autoConfigurationMetadata);
        this.fireAutoConfigurationImportEvents(configurations, exclusions);
        return new AutoConfigurationImportSelector.AutoConfigurationEntry(configurations, exclusions);
    }
}


protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
//SpringFactoriesLoader 读spring.facotories 文件
    List<String> configurations = SpringFactoriesLoader.loadFactoryNames(this.getSpringFactoriesLoaderFactoryClass(), this.getBeanClassLoader());
    Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you are using a custom packaging, make sure that file is correct.");
    return configurations;
}

自动装配常用的几个注解

• @ConditionalOnClass({ SqlSessionFactory.class, SqlSessionFactoryBean.class})这个注解的意思是：当存在SqlSessionFactory.class, SqlSessionFactoryBean.class这两个类时才解析MybatisAutoConfiguration配置类，否则不解析这一个配置类，make sence，我们需要mybatis为我们返回会话对象，就必须有会话工厂相关类。

• @CondtionalOnBean(DataSource.class)：只有处理已经被声明为bean的dataSource。

• @ConditionalOnMissingBean(MapperFactoryBean.class)这个注解的意思是如果容器中不存在name指定的bean则创建bean注入，否则不执行（该类源码较长，篇幅限制不全粘贴）
