前言

        承接上一篇手把手搭建基于React的前端UI库(二)-- 主题配置。在主题配置之后,我们着手写一些基础组件以及其周边的配置工具。(本期用到的styleWrap的定义可查看上期)

        本文的代码展示的是主要的核心代码,全部代码见仓库:Gitee仓库

Icon

        图标的设计是个技术活,需要设计出自己专属的风格,就像上一期一开始讲的那样,Style风格设计是三要素之首。基础组件设计,比如按钮是扁平还是立体,输入框是方角还是圆角,加不加阴影等这些,受项目经理、产品和交互的影响会多一点,但是大体来说,应与公司同类产品保持一致,至于如何设计,那就是另外的课题了,不在本文的讨论之列。

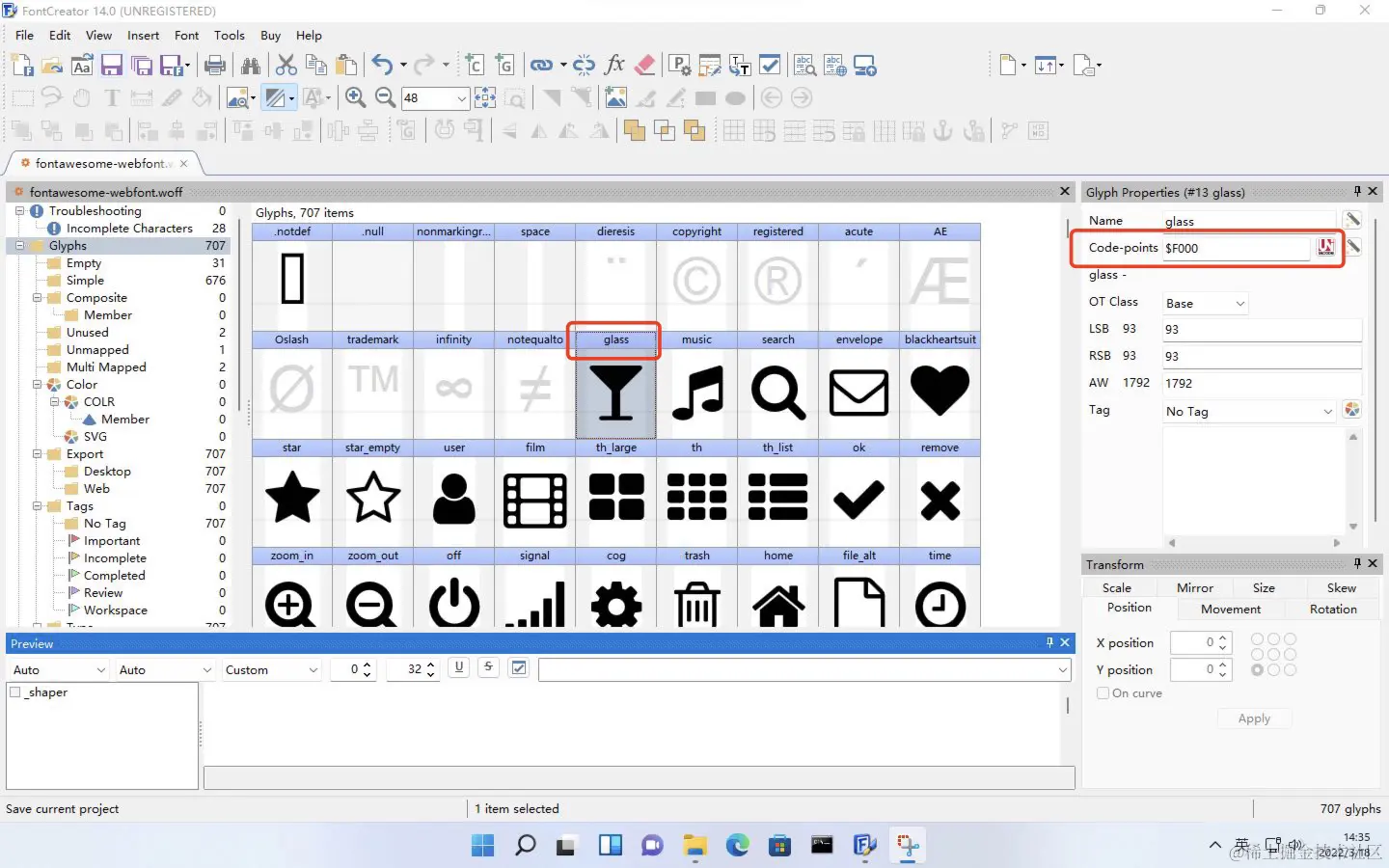

        本文中的Icon图标使用字体库来完成,通过CSS无侵入式的在一个元素上加入before或者after伪类来实现图标显示,这里不是浏览器的字体,也不是客户电脑里安装的字体,也不是图片或其他方式,而且是以文字的方式显示,这样做相对比较简洁,方便修改,更重要的是利于SEO优化。浏览器兼容性比较好的字体库有WOFFWOFF2等。字体库兼容性见官方解释。字体库有专门的自定义生成工具,例如fonteditor,可以试用30天;至于字体库,你也可以使用第三方开源的字体库,例如Font Awesome。这里作者就使用Font Awesome的woff字体库,我们打开图形创建工具fonteditor来查看这个文件:


        可以看到,每一个Icon都有对应的Code-points,这样我们就能通过CSS来配置字体图标了:

// 上图中玻璃杯
.glass:before {
    content: '\F000';
}

设计思路有了,接下来就开始动工!

Icon.tsx

        在src/components文件夹下,新建文件夹Icon,在该文件夹下新建Icon.tsx

...
// 定义接收参数
export interface IconProps {
    /** 图标类型 */
    type: string;
    /** 是否旋转 */
    spin?: boolean;
    /** 自定义 icon 类名前缀,使用自定义图标库时使用,默认为 icon\_\_ */
    prefix?: string;
}

// 图标控件
const Icon = ({
    type,
    spin,
    prefix,
    className,
    ...rest
} => {
    const configContext = useContext(ConfigContext);
    const finalPrefix = useMemo(() => prefix || configContext.iconDefaultPrefix || 'icon__', [
        configContext.iconDefaultPrefix,
        prefix
    ]);
    return (
        <IconWrap
            className={classnames(prefixCls, `${finalPrefix}${type}`, spin && `${prefixCls}-spin`, className)}
            spin={spin}
            {...rest}
        />
    );
};

export default React.memo(Icon);

        这里可以看到,我在全局configContext定义了默认的图标类名前缀,默认为icon__,你也可以自定义,只要和CSS样式对应即可。最后返回的是一个IconWrap组件,我们在Icon文件夹下新建style文件夹来放置样式包裹类,style下设置font文件夹来安置我们下载的WOFF文件,并在style同目录下新建icon.cssindex.ts

src/components/Icon/style/icon.css:

/* 自定义专属的字体类型 */
@font-face {
    font-family: duiicon;
    /* src: url(./fonts/duiicon.eot?v=1552285261926); */
    src: url(./fonts/fontawesome-webfont.woff) format('woff');
    font-weight: 400;
    font-style: normal;
}

...
/* 设置字体对应的类 */
[class*=' icon__']:before,
[class^='icon__']:before {
    display: inline-block;
}
.icon__glass:before {
    content: '\F000';
}
...

src/components/Icon/style/index.ts:

import styled from '@emotion/styled';
import { css } from '@emotion/core';

// spinMixin是公共的旋转样式,详见全部代码
const iconSpinMixin = css`
    ${spinMixin};
    line-height: normal;
`;

export const IconWrap = styleWrap<{ spin?: boolean }>({})(
    styled('i')(props => {
        const { spin } = props;

        return css`
            vertical-align: baseline;
            &&& {
                ${spin && iconSpinMixin};
            }
        `;
    })
);

        从代码中看到,虽然这里面没有用到主题样式的变量,但为了风格统一,这里用styleWrap包裹一下,不给输入参数即可,其返回的仍然是一个回调函数,接受一个函数式组件作为参数,这里传递一个i标签:styled('i'),参数props是组件IconWrap接受的参数,如果有spin旋转,那就加上旋转的样式。

        关于前缀的拼接,我这里说一下:

classnames(prefixCls, `${finalPrefix}${type}`, spin && `${prefixCls}-spin`, className)

第一段是公共样式,这里为dux-ui-icon,可以理解为来自组件库的标识,也方便用户在使用时批量添加样式;第二段就是我们代码中拼接的icon__glass等,用于实际图标显示;第三段是旋转标识;第四段提供了用户自定义class。

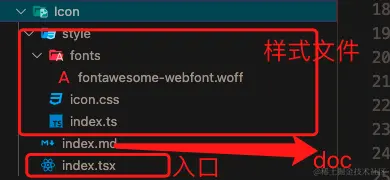

现在,代码目录结构如下:


当然别忘了在src/index导出:

export { default as Icon } from './components/Icon';

Icon demo

我们在同目录下的index.md中写上demo用例:

import React from 'react';
// dumi-dux-ui要与你package.json中的name一致
import { Icon } from 'dumi-dux-ui';
import Copy from 'copy-to-clipboard';

// demo start
const layout = {
    style: {
        marginRight: 10
    }
};

const Icons = [
    'glass',
];
const TypeDemo = () => (
    <div style={{ display: "flex" }}>
        {Icons.map(item => (
            <div key={item} style={{ width: '50px', height: '50px', cursor: 'pointer' }} onClick={() => Copy(item)}>
                <Icon type={item} {...layout} />
            </div>
        ))}
    </div>
);

修改.umirc.ts

...
menus: {
    // 需要自定义侧边菜单的路径,没有配置的路径还是会使用自动生成的配置
    '/components': [
      {
        title: '组件',
        path: '/components',
        children: [
          // 菜单子项(可选)
          'components/Icon/index.md',
        ],
      },
    ],
  },

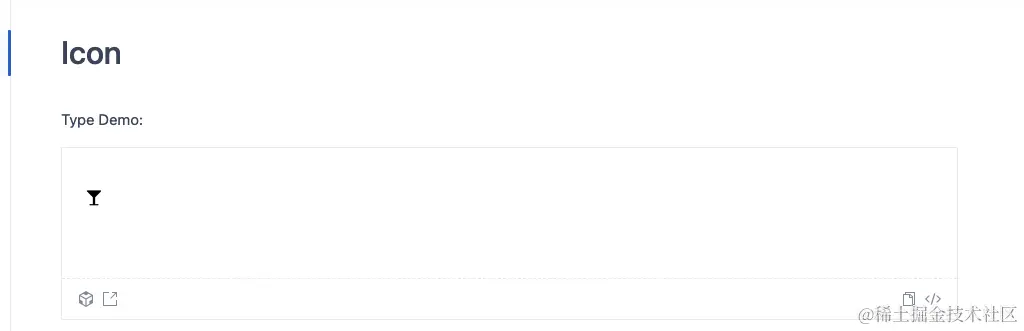

然后在根目录下执行:npm run docs,打开浏览器,进入localhost:8000/components/icon即可看到:

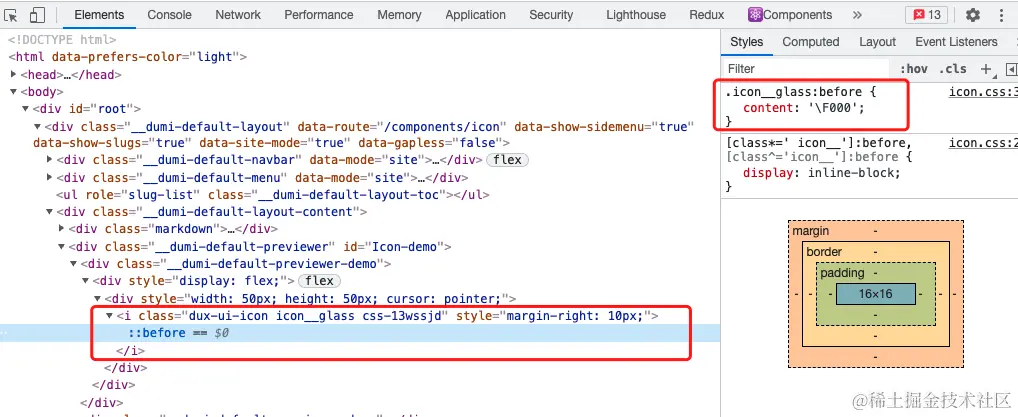

image.png 我们的玻璃杯图标加载出来了!F12查看元素,确实是我们想要的加载方式:


关于 @emotion中的styledcss方法,可以避免使用外挂css文件,同时组件传递参数更加方便,当然也可以完全不用styled,如下面代码所示,其效果是等价的。详细使用可以查看emotion官网

function Content(props: any) {
    // props的属性需要特殊处理,可传递className属性,通过外挂css实现相同的样式
    ...
    return <i {...props}></i>
}

export const IconWrap = styleWrap<{ spin?: boolean }>({})(Content);

Button

        按钮一般会分类别,不同的类别有不同的颜色,我们分为实心,边框空心和禁用三种模式。下面列一个表格说明所有的button样式:

类别名称种类名集合
StyleTypes 种类['primary', 'warning', 'success', 'error', 'border', 'border-gray']
Sizes 大小['sm', 'md', 'lg']
Shapes 形状['circle', 'square']
Shadowed 阴影['true', 'false']
Loading 加载['true', 'false']
Disabled 禁用['true', 'false']
Block 块级显示['true', 'false']

我们根据罗列的类型,开始搭建组件!

搭建基础

        我们在src/components文件夹下新建文件夹Button,在该目录下新建文件index.tsx

// 定义接受参数,为表格中罗列属性
export interface ButtonProps {
  /** 按钮类型 */
  styleType?: 'primary' | 'warning' | 'success' | 'error' | 'border' | 'border-gray';
  /** 按钮尺寸 */
  size?: 'sm' | 'md' | 'lg';
  /** 形状 */
  shape?: 'circle' | 'square';
  /** 阴影 */
  shadowed?: boolean;
  /** 主题 */
  // theme?: 'dark';
  /** 是否加载中 */
  loading?: boolean;
  /** 图标 */
  icon?: string | ReactNode;
  /** 设置原生的 button 上 type 属性 */
  type?: string;
  /** 展示设置为块元素 */
  block?: boolean;
}

同样的,我们使用一个样式类包裹一下原生的button(还是在这个文件):

...
render() {
    // eslint-disable-next-line @typescript-eslint/no-unused-vars
    const { loading, icon, children, ...rest } = this.props;

    return (
      <StyleButton loading={loading} {...rest}>
        // renderIcon为挂载按钮内图标的函数
        {this.renderIcon()}
        {children}
      </StyleButton>
    );
  }

        接下来去创建StyleButton,与Icon创建一样地,我们在src/components/Button文件夹下新建style文件夹,在该文件夹下新建index.tsx,核心代码在这里:

...
const Button = ({
  loading,
  styleType,
  disabled,
  onClick,
  block,
  shadowed,
  ...rest
}) => (
  <button
    disabled={disabled}
    onClick={!disabled ? onClick : undefined}
    {...rest}
  />
);

export const StyleButton = styleWrap<SButtonProps, HTMLButtonElement>({
  className: classNameMixin,
})(styled(Button)(buttonStyleMixin));

        定义一个叫Button的函数式组件,其返回的就是一个原生的button,所以rest参数里你可以传递原生的属性,最后用styleWrap包裹后导出。与Icon不同的是,Button的样式更多,而且还要适配主题。所以这里多了一个类名声明classNameMixin和一个样式函数buttonStyleMixin.

classNameMixin:

// classNameMixin负责添加各种类名,用于唯一识别和开发者进行定制
const classNameMixin = ({
  size,
  styleType,
  shape,
  loading,
  disabled,
  checked,
}) =>
  classnames(
    prefixCls,
    `${prefixCls}-size-${size}`,
    `${prefixCls}-styletype-${styleType}`,
    shape && `${prefixCls}-${shape}`,
    loading && `${prefixCls}-loading`,
    disabled && `${prefixCls}-disabled`,
    checked && `${prefixCls}-checked`,
  );

buttonStyleMixin是一个总开关,用于添加各种样式:

// buttonStyleMixin
const buttonStyleMixin = (props) => {
  const { theme, loading, shape, checked, block } = props;
  const { designTokens: DT } = theme;
  return css`
    margin: 0;
    box-sizing: border-box;
    border-radius: ${DT.T_CORNER_LG};
    text-align: center;
    text-decoration: none;
    cursor: pointer;
    outline: none;
    font-size: ${DT.T_TYPO_FONT_SIZE_1};
    white-space: nowrap;
    ${inlineBlockWithVerticalMixin};  // 块级

    ${sizeMixin(props)};  // 大小
    ${styleTypeMixin(props)};  // styleType
    ${shape && shapeMixin(props)}; // 形状
    ${loading && loadingMixin(props)};  // 加载中
    ${block &&
    css`
      width: 100%;
    `};
  `;
};

接下来分别记录上述各个样式变量:

sizeMixin:

// 通过getHeightBySize拿到主题配置文件中的各个大小
...
return css`
    height: ${getHeightBySize(DT, size)};
    line-height: ${getHeightBySize(DT, size)};
    padding: 0 ${getPaddingBySize(DT, size)};
`;
...

shapeMixin:

...
// 目前支持圆形和方形
switch (shape) {
    case 'circle':
      return css`
        border-radius: 50% !important;
        padding: 0;
        overflow: hidden;
        width: ${getHeightBySize(DT, size)};
      `;
    case 'square':
      return css`
        padding: 0;
        overflow: hidden;
        width: ${getHeightBySize(DT, size)};
      `;
    default:
      return css``;
}

loadingMixin的设置也一样,使得鼠标不可点击,暗灰色显示即可。

styleTypeMixin用来通过styleType的不同,对应的设置不同的主题配色, 以primary为例:

const {
  // 接受ThemeProvider传递的theme参数
  theme: { designTokens: DT },
  styleType,
  disabled,
  size,
  shadowed,
} = props;

...
primary: {
  background: DT.T_BUTTON_PRIMARY_COLOR_BG_DEFAULT,
  ':hover,:active': {
    background: DT.T_BUTTON_PRIMARY_COLOR_BG_HOVER,
    boxShadow: shadowed ? DT.T_SHADOW_BUTTON_PRIMARY_HOVER : 'none',
  },
  color: DT.T_BUTTON_PRIMARY_COLOR_TEXT_DEFAULT,
  fill: DT.T_BUTTON_PRIMARY_COLOR_TEXT_DEFAULT,
  border: 'none',
  boxShadow: shadowed ? DT.T_SHADOW_BUTTON_PRIMARY : 'none',
  transition: `${transitionProperty} ${transitionFlat}`,
  ':link,:visited': {
    color: DT.T_BUTTON_PRIMARY_COLOR_TEXT_DEFAULT,
  },
},
...

可以看到,当styleType='primary'时,设置了其背景色、文字颜色、填充色、渐变、过渡、激活时的样式以及被访问后的样式等。

如此,一个简单的Button组件封装装好了,我们只是对样式进行了改动,其本质还是返回了一个原生按钮,原来的事件不影响使用。

Button demo

我们写个demo测试一下。在src/components/Button下新建index.md

import React from 'react';

import { Button } from 'dumi-dux-ui';

// demo start
const { StyleTypes } = Button;

const ColorDemo = () => {
  return (
    <div>
      {StyleTypes.map((type) => (
        <Button styleType={type} key={type} onClick={() => console.log('clicked')}>
          Button
        </Button>
      ))}
    </div>
  );
};
// demo end

export default ColorDemo;

.umirc.ts中加入:

...
menus: {
    // 需要自定义侧边菜单的路径,没有配置的路径还是会使用自动生成的配置
    '/components': [
      {
        title: '组件',
        path: '/components',
        children: [
          // 菜单子项(可选)
          'components/Icon/index.md',
          'components/Button/index.md',
        ],
      },
    ],
  },

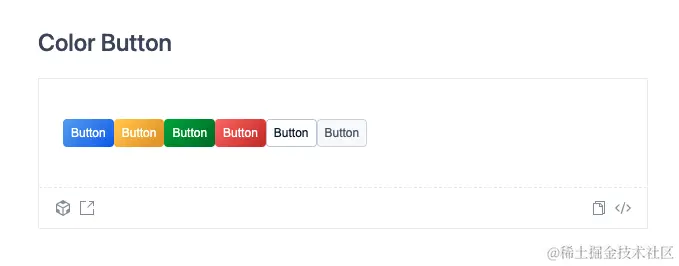

根目录下执行npm run docs, 不出意外的话,在localhost:8000/components/button下可以看到:


F12测试点击事件:


至此,基础组件Icon和Button的记录就到此结束了。下一期会记录布局组件的搭建,敬请期待~


参考:
antd样式设计
Material UI设计
