canvas案例——时钟和刮刮卡

966 阅读1分钟

继上次写关于canvas已经过去两天了,通过这两天对它的学习,怎么说呢,兄弟们记住api吧,通过学习,做了个时钟的案例,难受

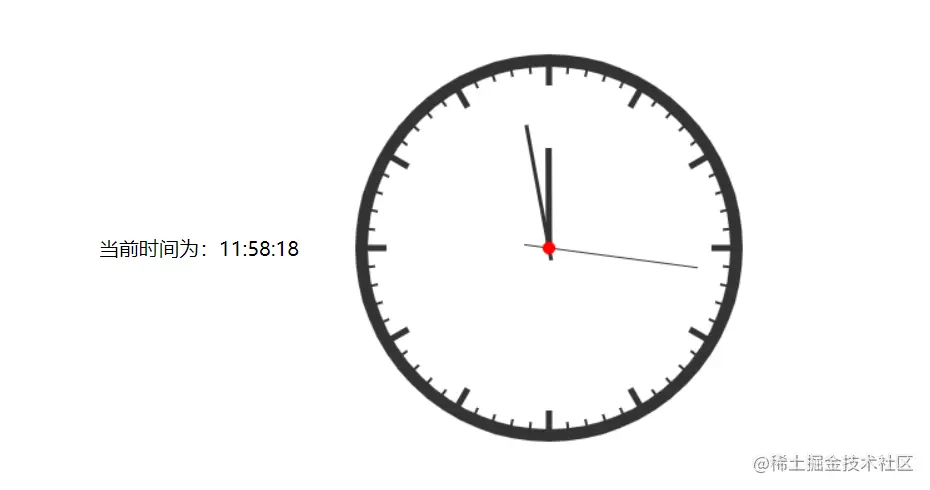

时钟

image.png 直接放代码了,对于的api可以在官网以及菜鸟教程里面能找到

   <!DOCTYPE html>
<html lang="en" style="width: 100%;">

<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>时钟</title>
</head>
<style>
    #main {
        width: 400px;
        height: 100px;
        position: relative;
    }

    #canvas,
    #ggk {
        position: absolute;
        top: 0;
        left: 0;
        font-size: 26px;
    }

    #ggk {
        position: absolute;
        top: 35px;
        left: 150px;
    }
</style>
<div id="main">
    <p id="date"></p>
    <canvas id="canvas" width="400" height="400" style="width: 400px;height: 400px;"></canvas>
</div>
<script>
    var dto = document.querySelector("#canvas")
    var ctx = dto.getContext("2d")

    function timer() {
        // 每秒就重新清楚下画布
        ctx.clearRect(0, 0, 400, 400)
        // 保存当前环境的状态。
        ctx.save()
        // 将画布的相对点xy移到画布的中心
        ctx.translate(200, 200)
        // 更改圆心对于的起点坐标,默认在圆心水平处即3点方位,先修改在12点方位,逆90°即可
        ctx.rotate(-Math.PI / 2)
        // 绘制表盘
        ctx.beginPath()
        ctx.arc(0, 0, 150, 0, 2 * Math.PI)
        ctx.strokeStyle = "#333"
        ctx.lineWidth = 10
        ctx.stroke()
        ctx.closePath()
        ctx.save()
        // 绘制时针刻度
        for (let i = 0; i < 12; i++) {
            ctx.rotate(2 * Math.PI / 12)
            ctx.beginPath()
            ctx.moveTo(130, 0)
            ctx.lineTo(150, 0)
            ctx.strokeStyle = "#333"
            ctx.lineWidth = 5
            ctx.stroke()
            ctx.closePath()
        }
        ctx.save()
        ctx.restore()

        //绘制分针刻度
        for (let i = 0; i < 60; i++) {
            ctx.rotate(2 * Math.PI / 60)
            ctx.beginPath()
            ctx.moveTo(140, 0)
            ctx.lineTo(150, 0)
            ctx.strokeStyle = "#333"
            ctx.lineWidth = 2
            ctx.stroke()
            ctx.closePath()
        }
        ctx.save()
        ctx.restore()


        // 获取当前的时分秒
        let date = new Date()
        let hour = date.getHours()
        let min = date.getMinutes()
        let sec = date.getSeconds()
        hour > 12 ? hour - 12 : hour
        sec < 10 ? sec = "0" + sec : sec
        let getDate = document.getElementById("date")
        getDate.innerHTML = "当前时间为:" + hour + ":" + min + ":" + sec

        //绘制时针
        ctx.beginPath()
        ctx.rotate(2 * Math.PI / 12 * hour + 2 * Math.PI / 60 / 12 * min + 2 * Math.PI / 60 / 12 / 12 * sec)
        ctx.moveTo(0, 0)
        ctx.lineTo(80, 0)
        ctx.strokeStyle = "#333"
        ctx.lineWidth = 5
        ctx.stroke()
        ctx.closePath()
        ctx.save()
        ctx.restore()

        //绘制分针
        ctx.beginPath()
        ctx.rotate(2 * Math.PI / 60 * min + 2 * Math.PI / 60 * (sec / 60) + Math.PI / 2)
        ctx.moveTo(-10, 0)
        ctx.lineTo(100, 0)
        ctx.strokeStyle = "#333"
        ctx.lineWidth = 3
        ctx.stroke()
        ctx.closePath()
        ctx.save()
        ctx.restore()

        //绘制秒针
        ctx.beginPath()
        ctx.rotate(2 * Math.PI / 60 * sec)
        ctx.moveTo(-20, 0)
        ctx.lineTo(120, 0)
        ctx.strokeStyle = "#333"
        ctx.lineWidth = 1
        ctx.stroke()
        ctx.closePath()
        // 绘制圆心
        ctx.save()
        ctx.restore()

        ctx.beginPath()
        ctx.arc(0, 0, 5, 0, 2 * Math.PI)
        ctx.fillStyle = "red";
        ctx.fill()
        ctx.closePath()
        // 返回之前保存过的路径状态和属性。
        ctx.restore()
        ctx.restore()
    }
    setInterval(timer, 1000)
</script>


</html>

对于restore和save的方法,我还有点迷,觉得就是存放当前的状态,

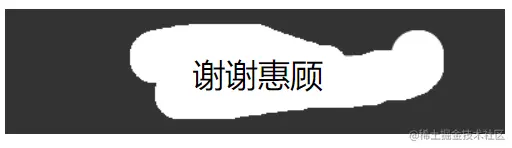

刮刮卡

代码

    #main {
        width: 400px;
        height: 100px;
        position: relative;
    }

    #canvas,
    #ggk {
        position: absolute;
        top: 0;
        left: 0;
        font-size: 26px;
    }

    #ggk {
        position: absolute;
        top: 35px;
        left: 150px;
    }
</style>

<body>
    <div id="main">
        <div id="ggk">谢谢惠顾</div>
        <canvas id="canvas" width="400" height="100"></canvas>
    </div>
    <script>
        var dto = document.querySelector("#canvas")
        var mainDom = document.getElementById("main")
        var ggk = document.getElementById("ggk")
        var ctx = dto.getContext("2d")
        ctx.fillStyle = "#333"
        ctx.fillRect(0, 0, 400, 100)
        ctx.fillStyle = "#FFF"
        ctx.font = "28px Arial";
        ctx.fillText("刮刮卡", 150, 50);
        isDraw = false
        dto.onmousedown = function () {
            console.log(isDraw)
            isDraw = true
        }
        // 鼠标移动的绘制圆
        dto.onmousemove = function (e) {
            console.log(isDraw)
            if (isDraw) {
                var x = e.pageX - mainDom.offsetLeft
                var y = e.pageY - mainDom.offsetTop
                ctx.globalCompositeOperation = "destination-out"
                ctx.arc(x, y, 20, 0, 2 * Math.PI)
                ctx.fill()
            }

        }
        dto.onmouseup = function () {
            isDraw = false
        }
