synchronized
synchronized是Java中的关键字，是一种同步锁。它修饰的对象有以下几种：
锁为实例化的类对象：
- 修饰一个代码块，被修饰的代码块称为同步语句块，其作用的范围是大括号{}括起来的代码，作用的对象是调用这个代码块的对象；
- 修饰一个方法，被修饰的方法称为同步方法，其作用的范围是整个方法，作用的对象是调用这个方法的对象；
锁为类（Class）
- 修饰一个静态的方法，其作用的范围是整个静态方法，作用的对象是这个类的所有对象；
- 修饰一个类，其作用的范围是synchronized后面括号括起来的部分，作用主的对象是这个类的所有对象。
1,可重入特性
synchronized跟ReentrantLock一样也是一个可重入锁。
public class WangYi {
public static void main(String[] args) {
new MyThread().start();
new MyThread().start();
}
}
class MyThread extends Thread{
@Override
public void run() {
synchronized (MyThread.class){
System.out.println(getName() + "进入了同步代码块1");
synchronized (MyThread.class){
System.out.println(getName() + "进入了同步代码块2");
}
}
}
}
控制台打印：
Thread-0进入了同步代码块1 Thread-0进入了同步代码块2 Thread-1进入了同步代码块1 Thread-1进入了同步代码块2
可重入原理
synchronized的锁对象中有一个计数器（recursions变量）会记录线程获得几次锁。
可重入好处
-
可以避免死锁
如果没有可重入的特性在一个线程执行第一个代码块后无法获取第二个代码块的锁（第二个代码块的锁还在自己手上）就会发生死锁。
-
可以让我们更好的来封装代码
总结
synchronized是可重入锁，内部锁对象中会有一个计数器记录线程获取几次锁，在执行完同步代码块时，计数器的数量会减一，直到计数器的数量为。
2,不可中断特性
一个线程获得锁后，另一个线程想要获得锁，必须处于阻塞或等待状态，如果第一个线程不释放锁，第二个线程会一直阻塞或等待。
演示
/**
目标：演示synchronized不可中断
1，定义一个Runnable
2，在Runnable定义同步代码块
3，先开启一个线程来执行同步代码块，保证不退出同步代码块
4，后开启一个线程来执行同步代码块（阻塞状态）
5，停止第二个线程
*/
public class WangYi {
private static Object obj = new Object();
public static void main(String[] args) {
Runnable run = () -> {
synchronized (obj){
System.out.println(Thread.currentThread().getName() + "进入同步代码块");
try {
Thread.sleep(888888888);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
};
// 创建第一个线程进入同步代码块
Thread t1 = new Thread(run,"yang1");
t1.start();
// 等待1秒 确保第一个线程进入同步代码块
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
e.printStackTrace();
}
// 创建第二个线程（阻塞状态）
Thread t2 = new Thread(run,"yang2");
t2.start();
// 停止第一个线程
System.out.println("停止线程前");
t2.interrupt();
System.out.println("停止线程后");
// 打印第一个线程状态 TIMED_WAITING
System.out.println(t1.getState());
// 打印第二个线程状态 BLOCKED 仍然是阻塞状态
System.out.println(t2.getState());
}
}
控制台打印：
yang1进入同步代码块 停止线程前 停止线程后 TIMED_WAITING BLOCKED
Lock的可中断演示
如果调用Lock的lock方法是不可中断的
如果调用Lock的tryLock方法是可中断的
/**
目标：演示synchronized不可中断
1，定义一个Runnable
2，在Runnable定义同步代码块
3，先开启一个线程来执行同步代码块，保证不退出同步代码块
4，后开启一个线程来执行同步代码块（阻塞状态）
5，停止第二个线程
*/
public class WangYi {
private static Lock lock = new ReentrantLock();
public static void main(String[] args) {
Runnable run = () -> {
boolean flag = false;
try {
// 尝试在指定时间获取线程，如果在指定时间无法获取线程返回false
// 参数1：时间长度 参数2：时间单位
flag = lock.tryLock(3,TimeUnit.SECONDS);
if (flag){
System.out.println("获得锁");
Thread.sleep(8888888);
}else {
System.out.println("没有获得锁，进行其他操作");
}
} catch (InterruptedException e) {
e.printStackTrace();
}finally {
if (flag){
lock.unlock();
System.out.println("释放锁");
}
}
};
// 创建第一个线程进入同步代码块
Thread t1 = new Thread(run,"yang1");
t1.start();
// 等待1秒 确保第一个线程进入同步代码块
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
e.printStackTrace();
}
// 创建第二个线程（阻塞状态）
Thread t2 = new Thread(run,"yang2");
t2.start();
// // 停止第一个线程
// System.out.println("停止线程前");
// t2.interrupt();
// System.out.println("停止线程后");
// // 打印第一个线程状态 TIMED_WAITING
// System.out.println(t1.getState());
// // 打印第二个线程状态 BLOCKED 仍然是阻塞状态
// System.out.println(t2.getState());
}
}
3,反汇编学习synchronized原理
java代码：
public class JavaPSync {
private static Object obj = new Object();
public static void main(String[] args) {
synchronized (obj){ // 对应编译后的语句 5: monitorenter
System.out.println("1");
} // 对应编译后的语句 15: monitorexit
}
// synchronized修饰方法
public synchronized void test(){
System.out.println("a");
}
}
反汇编编命令译后：
javap -p -v JavaPSync.class
# 截取编译后mian方法的重要代码(synchronized同步代码块方式)：
Code:
stack=2, locals=3, args_size=1
0: getstatic #2 // Field obj:Ljava/lang/Object;
3: dup
4: astore_1
# 真正的锁并不是obj对象，与obj对象绑定的moniter才是真正的锁
# 这个monitor不是我们主动创建的，是JVM的线程执行到这个同步代码块，发现锁对象没有monitor就会创建 monitor。
# 每一个对象都会和一个监视器monitor关联，监视器被占用时会被锁住，其他线程无法来获取该monitor
# monitor是一个c++对象，有两个重要属性：owner：拥有锁的线程 recursions：记录获取锁的次数
5: monitorenter // 同步代码块开始的地方，对应语句：synchronized (obj){
6: getstatic #3 // Field java/lang/System.out:Ljava/io/PrintStream;
9: ldc #4 // String 1
11: invokevirtual #5 // Method java/io/PrintStream.println:(Ljava/lang/String;)V
14: aload_1
# 能执行monitorexit指令的线程一定是拥有当前对象的monitor的所有权的线程。
# 执行monitorexit时会将monitor的进入数减1，当monitor的进入书减为零时，当前线程退出monitor，不再拥有monitor的所有权，此时其他被这个monitor阻塞的线程可以尝试去获取这个monitor的所有权
15: monitorexit // 同步代码块结束
16: goto 24
19: astore_2
20: aload_1
21: monitorexit
22: aload_2
23: athrow
24: return
Exception table:
from to target type
// 如果从6到16行出现异常就会执行第19行 这就是为什么会有两个monitorexit，第二个是当异常时使用的，这也说明当代码块发生异常时，会自动释放锁。
6 16 19 any
19 22 19 any
# synchronized修饰方法编译后的代码：
# 与代码块不同的是，并没有看到monitorenter和monitorexit指令
public synchronized void test();
descriptor: ()V
# 在反汇编后，会增加ACC_SYNCHRONIZED修饰，JMV规定ACC_SYNCHRONIZED修饰的方法会隐式调用monitorenter和monitorexit，在执行同步方法前会调用monitorenter，在执行完同步方法后会调用monitorexit
flags: ACC_PUBLIC, ACC_SYNCHRONIZED
Code:
stack=2, locals=1, args_size=1
0: getstatic #3 // Field java/lang/System.out:Ljava/io/PrintStream;
3: ldc #6 // String a
5: invokevirtual #5 // Method java/io/PrintStream.println:(Ljava/lang/String;)V
8: return
LineNumberTable:
line 15: 0
line 16: 8
LocalVariableTable:
Start Length Slot Name Signature
0 9 0 this Lcom/yangshi/main/JavaPSync;
4,JVM源码
源码获取不用下载文件，有在线源码，比如：hg.openjdk.java.net/jdk8u/jdk8u…
monitor监视器锁
在Java虚拟机(HotSpot)中，monitor是由ObjectMonitor实现的，其主要数据结构如下（位于HotSpot虚拟机源码ObjectMonitor.hpp文件，C++实现的）
ObjectMonitor() {
_header = NULL;
_count = 0; //记录个数
_waiters = 0,
_recursions = 0; // 线程的重入次数
_object = NULL; // 存储该monitor的对象
_owner = NULL; // 标识拥有该monitor的线程
_WaitSet = NULL; //处于wait状态的线程，会被加入到_WaitSet
_WaitSetLock = 0 ;
_Responsible = NULL ;
_succ = NULL ;
_cxq = NULL ; // 多线程竞争时的单向链表
FreeNext = NULL ;
_EntryList = NULL ; //处于等待锁block状态的线程，会被加入到该列表
_SpinFreq = 0 ;
_SpinClock = 0 ;
OwnerIsThread = 0 ;
}

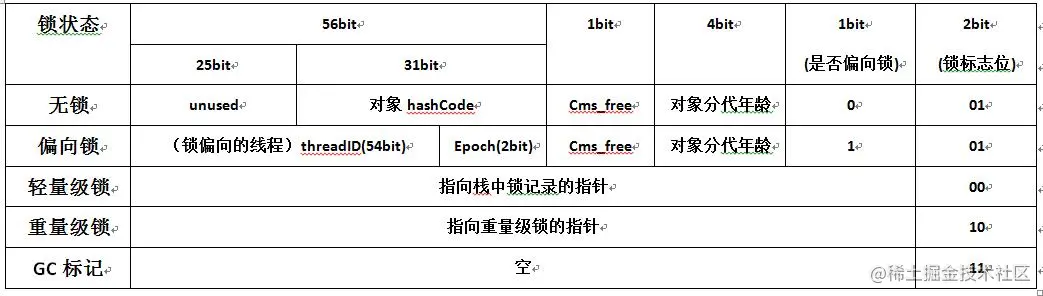

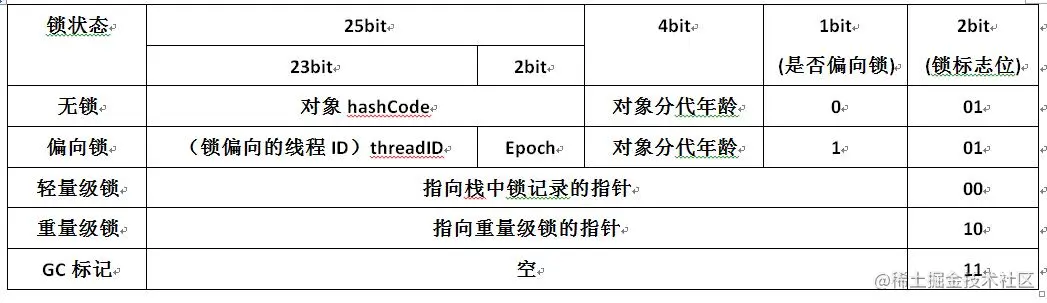

创建一个对象后，会在堆中有该对象，该对象包含对象头和实例数据两部分，与对象关联的monitor对象就存在于对象头中。
每个对象都存在着一个 monitor 与之关联，对象与其 monitor 之间的关系有存在多种实现方式，如monitor可以与对象一起创建销毁或当线程试图获取对象锁时自动生成；
monitor竞争
执行monitorenter时，会调用interpreterRuntime.cpp（位于：src/share/vm/interpreter/interpreterRuntime.cpp）的InterpreterRuntime::monitorenter函数，源码如下：
1，
//%note monitor_1
IRT_ENTRY_NO_ASYNC(void, InterpreterRuntime::monitorenter(JavaThread* thread, BasicObjectLock* elem))
#ifdef ASSERT
thread->last_frame().interpreter_frame_verify_monitor(elem);
#endif
if (PrintBiasedLockingStatistics) {
Atomic::inc(BiasedLocking::slow_path_entry_count_addr());
}
Handle h_obj(thread, elem->obj());
assert(Universe::heap()->is_in_reserved_or_null(h_obj()),
"must be NULL or an object");
// 判断是否使用偏向锁，为jvm设置的参数，此处就没有设置因此走else
if (UseBiasedLocking) {
// Retry fast entry if bias is revoked to avoid unnecessary inflation
ObjectSynchronizer::fast_enter(h_obj, elem->lock(), true, CHECK);
} else {
// 调用ObjectSynchronizer::slow_enter函数
ObjectSynchronizer::slow_enter(h_obj, elem->lock(), CHECK);
}
assert(Universe::heap()->is_in_reserved_or_null(elem->obj()),
"must be NULL or an object");
#ifdef ASSERT
thread->last_frame().interpreter_frame_verify_monitor(elem);
#endif
IRT_END
2， 对于重量级锁，monitorenter函数中会调用ObjectSynchronizer::slow_enter函数（该类位于：src/share/vm/runtime/synchronizer.cpp）
3，最终调用ObjectMonitor::enter(位于：src/share/vm/runtime/objectMonitor.cpp)，源码如下：
void ATTR ObjectMonitor::enter(TRAPS) {
// The following code is ordered to check the most common cases first
// and to reduce RTS->RTO cache line upgrades on SPARC and IA32 processors.
Thread * const Self = THREAD ;
void * cur ;
// 通过CAS操作尝试把monitor的_owner字段设置为当前线程
cur = Atomic::cmpxchg_ptr (Self, &_owner, NULL) ;
if (cur == NULL) {
// Either ASSERT _recursions == 0 or explicitly set _recursions = 0.
assert (_recursions == 0 , "invariant") ;
assert (_owner == Self, "invariant") ;
// CONSIDER: set or assert OwnerIsThread == 1
return ;
}
// 如果设置成功，并且之前_owner的线程就是当前线程，线程重入 _recursions++
if (cur == Self) {
// TODO-FIXME: check for integer overflow! BUGID 6557169.
_recursions ++ ;
return ;
}
// 如果当前线程不是之前占有锁的线程，_recursions = 1;_owner = Self
if (Self->is_lock_owned ((address)cur)) {
assert (_recursions == 0, "internal state error");
_recursions = 1 ;
// Commute owner from a thread-specific on-stack BasicLockObject address to
// a full-fledged "Thread *".
_owner = Self ;
OwnerIsThread = 1 ;
return ;
}
// 以下代码省略 不看
// We've encountered genuine contention.
assert (Self->_Stalled == 0, "invariant") ;
Self->_Stalled = intptr_t(this) ;
// Try one round of spinning *before* enqueueing Self
// and before going through the awkward and expensive state
// transitions. The following spin is strictly optional ...
// Note that if we acquire the monitor from an initial spin
// we forgo posting JVMTI events and firing DTRACE probes.
if (Knob_SpinEarly && TrySpin (Self) > 0) {
assert (_owner == Self , "invariant") ;
assert (_recursions == 0 , "invariant") ;
assert (((oop)(object()))->mark() == markOopDesc::encode(this), "invariant") ;
Self->_Stalled = 0 ;
return ;
}
assert (_owner != Self , "invariant") ;
assert (_succ != Self , "invariant") ;
assert (Self->is_Java_thread() , "invariant") ;
JavaThread * jt = (JavaThread *) Self ;
assert (!SafepointSynchronize::is_at_safepoint(), "invariant") ;
assert (jt->thread_state() != _thread_blocked , "invariant") ;
assert (this->object() != NULL , "invariant") ;
assert (_count >= 0, "invariant") ;
// Prevent deflation at STW-time. See deflate_idle_monitors() and is_busy().
// Ensure the object-monitor relationship remains stable while there's contention.
Atomic::inc_ptr(&_count);
EventJavaMonitorEnter event;
{ // Change java thread status to indicate blocked on monitor enter.
JavaThreadBlockedOnMonitorEnterState jtbmes(jt, this);
Self->set_current_pending_monitor(this);
DTRACE_MONITOR_PROBE(contended__enter, this, object(), jt);
if (JvmtiExport::should_post_monitor_contended_enter()) {
JvmtiExport::post_monitor_contended_enter(jt, this);
// The current thread does not yet own the monitor and does not
// yet appear on any queues that would get it made the successor.
// This means that the JVMTI_EVENT_MONITOR_CONTENDED_ENTER event
// handler cannot accidentally consume an unpark() meant for the
// ParkEvent associated with this ObjectMonitor.
}
OSThreadContendState osts(Self->osthread());
ThreadBlockInVM tbivm(jt);
// 以上代码省略 不看
// TODO-FIXME: change the following for(;;) loop to straight-line code.
for (;;) {
jt->set_suspend_equivalent();
// cleared by handle_special_suspend_equivalent_condition()
// or java_suspend_self()
// 如果获取锁失败，则等待锁的释放， 下一节对等待进行讲解
EnterI (THREAD) ;
if (!ExitSuspendEquivalent(jt)) break ;
//
// We have acquired the contended monitor, but while we were
// waiting another thread suspended us. We don't want to enter
// the monitor while suspended because that would surprise the
// thread that suspended us.
//
_recursions = 0 ;
_succ = NULL ;
exit (false, Self) ;
jt->java_suspend_self();
}
Self->set_current_pending_monitor(NULL);
// We cleared the pending monitor info since we've just gotten past
// the enter-check-for-suspend dance and we now own the monitor free
// and clear, i.e., it is no longer pending. The ThreadBlockInVM
// destructor can go to a safepoint at the end of this block. If we
// do a thread dump during that safepoint, then this thread will show
// as having "-locked" the monitor, but the OS and java.lang.Thread
// states will still report that the thread is blocked trying to
// acquire it.
}
monitor等待
EnterI函数源码：
void ATTR ObjectMonitor::EnterI (TRAPS) {
Thread * Self = THREAD ;
assert (Self->is_Java_thread(), "invariant") ;
assert (((JavaThread *) Self)->thread_state() == _thread_blocked , "invariant") ;
// Try the lock - TATAS
// 最后挣扎以下，看是否还能获取到锁
if (TryLock (Self) > 0) {
assert (_succ != Self , "invariant") ;
assert (_owner == Self , "invariant") ;
assert (_Responsible != Self , "invariant") ;
return ;
}
DeferredInitialize () ;
// We try one round of spinning *before* enqueueing Self.
//
// If the _owner is ready but OFFPROC we could use a YieldTo()
// operation to donate the remainder of this thread's quantum
// to the owner. This has subtle but beneficial affinity
// effects.
// 挣扎失败，进入自旋，再接着挣扎一下
if (TrySpin (Self) > 0) {
assert (_owner == Self , "invariant") ;
assert (_succ != Self , "invariant") ;
assert (_Responsible != Self , "invariant") ;
return ;
}
// The Spin failed -- Enqueue and park the thread ...
assert (_succ != Self , "invariant") ;
assert (_owner != Self , "invariant") ;
assert (_Responsible != Self , "invariant") ;
// Enqueue "Self" on ObjectMonitor's _cxq.
//
// Node acts as a proxy for Self.
// As an aside, if were to ever rewrite the synchronization code mostly
// in Java, WaitNodes, ObjectMonitors, and Events would become 1st-class
// Java objects. This would avoid awkward lifecycle and liveness issues,
// as well as eliminate a subset of ABA issues.
// TODO: eliminate ObjectWaiter and enqueue either Threads or Events.
//
// 将当前线程封装成ObjectWaiter对象node，状态设置为ObjectWaiter::TS_CXQ
ObjectWaiter node(Self) ;
Self->_ParkEvent->reset() ;
node._prev = (ObjectWaiter *) 0xBAD ;
node.TState = ObjectWaiter::TS_CXQ ;
// Push "Self" onto the front of the _cxq.
// Once on cxq/EntryList, Self stays on-queue until it acquires the lock.
// Note that spinning tends to reduce the rate at which threads
// enqueue and dequeue on EntryList|cxq.
ObjectWaiter * nxt ;
// 如果有多个线程同时向_cxq中push对象，则CAS可能会失败，因此需要一直循环，直到push成功
for (;;) {
node._next = nxt = _cxq ;
// 通过CAS把node节点push到moniter的_cxq属性中
if (Atomic::cmpxchg_ptr (&node, &_cxq, nxt) == nxt) break ;
// Interference - the CAS failed because _cxq changed. Just retry.
// As an optional optimization we retry the lock.
// 如果CAS失败，还会顺便再次尝试获取一下锁，挣扎一下
if (TryLock (Self) > 0) {
assert (_succ != Self , "invariant") ;
assert (_owner == Self , "invariant") ;
assert (_Responsible != Self , "invariant") ;
return ;
}
}
// Check for cxq|EntryList edge transition to non-null. This indicates
// the onset of contention. While contention persists exiting threads
// will use a ST:MEMBAR:LD 1-1 exit protocol. When contention abates exit
// operations revert to the faster 1-0 mode. This enter operation may interleave
// (race) a concurrent 1-0 exit operation, resulting in stranding, so we
// arrange for one of the contending thread to use a timed park() operations
// to detect and recover from the race. (Stranding is form of progress failure
// where the monitor is unlocked but all the contending threads remain parked).
// That is, at least one of the contended threads will periodically poll _owner.
// One of the contending threads will become the designated "Responsible" thread.
// The Responsible thread uses a timed park instead of a normal indefinite park
// operation -- it periodically wakes and checks for and recovers from potential
// strandings admitted by 1-0 exit operations. We need at most one Responsible
// thread per-monitor at any given moment. Only threads on cxq|EntryList may
// be responsible for a monitor.
//
// Currently, one of the contended threads takes on the added role of "Responsible".
// A viable alternative would be to use a dedicated "stranding checker" thread
// that periodically iterated over all the threads (or active monitors) and unparked
// successors where there was risk of stranding. This would help eliminate the
// timer scalability issues we see on some platforms as we'd only have one thread
// -- the checker -- parked on a timer.
if ((SyncFlags & 16) == 0 && nxt == NULL && _EntryList == NULL) {
// Try to assume the role of responsible thread for the monitor.
// CONSIDER: ST vs CAS vs { if (Responsible==null) Responsible=Self }
Atomic::cmpxchg_ptr (Self, &_Responsible, NULL) ;
}
// The lock have been released while this thread was occupied queueing
// itself onto _cxq. To close the race and avoid "stranding" and
// progress-liveness failure we must resample-retry _owner before parking.
// Note the Dekker/Lamport duality: ST cxq; MEMBAR; LD Owner.
// In this case the ST-MEMBAR is accomplished with CAS().
//
// TODO: Defer all thread state transitions until park-time.
// Since state transitions are heavy and inefficient we'd like
// to defer the state transitions until absolutely necessary,
// and in doing so avoid some transitions ...
TEVENT (Inflated enter - Contention) ;
int nWakeups = 0 ;
int RecheckInterval = 1 ;
for (;;) {
if (TryLock (Self) > 0) break ;
assert (_owner != Self, "invariant") ;
if ((SyncFlags & 2) && _Responsible == NULL) {
Atomic::cmpxchg_ptr (Self, &_Responsible, NULL) ;
}
// park self
if (_Responsible == Self || (SyncFlags & 1)) {
TEVENT (Inflated enter - park TIMED) ;
Self->_ParkEvent->park ((jlong) RecheckInterval) ;
// Increase the RecheckInterval, but clamp the value.
RecheckInterval *= 8 ;
if (RecheckInterval > 1000) RecheckInterval = 1000 ;
} else {
TEVENT (Inflated enter - park UNTIMED) ;
// 通过park将当前线程挂起，等待唤醒
Self->_ParkEvent->park() ;
}
if (TryLock(Self) > 0) break ;
// The lock is still contested.
// Keep a tally of the # of futile wakeups.
// Note that the counter is not protected by a lock or updated by atomics.
// That is by design - we trade "lossy" counters which are exposed to
// races during updates for a lower probe effect.
TEVENT (Inflated enter - Futile wakeup) ;
if (ObjectMonitor::_sync_FutileWakeups != NULL) {
ObjectMonitor::_sync_FutileWakeups->inc() ;
}
++ nWakeups ;
// Assuming this is not a spurious wakeup we'll normally find _succ == Self.
// We can defer clearing _succ until after the spin completes
// TrySpin() must tolerate being called with _succ == Self.
// Try yet another round of adaptive spinning.
if ((Knob_SpinAfterFutile & 1) && TrySpin (Self) > 0) break ;
// We can find that we were unpark()ed and redesignated _succ while
// we were spinning. That's harmless. If we iterate and call park(),
// park() will consume the event and return immediately and we'll
// just spin again. This pattern can repeat, leaving _succ to simply
// spin on a CPU. Enable Knob_ResetEvent to clear pending unparks().
// Alternately, we can sample fired() here, and if set, forgo spinning
// in the next iteration.
if ((Knob_ResetEvent & 1) && Self->_ParkEvent->fired()) {
Self->_ParkEvent->reset() ;
OrderAccess::fence() ;
}
if (_succ == Self) _succ = NULL ;
// Invariant: after clearing _succ a thread *must* retry _owner before parking.
OrderAccess::fence() ;
}
// Egress :
// Self has acquired the lock -- Unlink Self from the cxq or EntryList.
// Normally we'll find Self on the EntryList .
// From the perspective of the lock owner (this thread), the
// EntryList is stable and cxq is prepend-only.
// The head of cxq is volatile but the interior is stable.
// In addition, Self.TState is stable.
assert (_owner == Self , "invariant") ;
assert (object() != NULL , "invariant") ;
// I'd like to write:
// guarantee (((oop)(object()))->mark() == markOopDesc::encode(this), "invariant") ;
// but as we're at a safepoint that's not safe.
UnlinkAfterAcquire (Self, &node) ;
if (_succ == Self) _succ = NULL ;
assert (_succ != Self, "invariant") ;
if (_Responsible == Self) {
_Responsible = NULL ;
OrderAccess::fence(); // Dekker pivot-point
// We may leave threads on cxq|EntryList without a designated
// "Responsible" thread. This is benign. When this thread subsequently
// exits the monitor it can "see" such preexisting "old" threads --
// threads that arrived on the cxq|EntryList before the fence, above --
// by LDing cxq|EntryList. Newly arrived threads -- that is, threads
// that arrive on cxq after the ST:MEMBAR, above -- will set Responsible
// non-null and elect a new "Responsible" timer thread.
//
// This thread executes:
// ST Responsible=null; MEMBAR (in enter epilog - here)
// LD cxq|EntryList (in subsequent exit)
//
// Entering threads in the slow/contended path execute:
// ST cxq=nonnull; MEMBAR; LD Responsible (in enter prolog)
// The (ST cxq; MEMBAR) is accomplished with CAS().
//
// The MEMBAR, above, prevents the LD of cxq|EntryList in the subsequent
// exit operation from floating above the ST Responsible=null.
}
// We've acquired ownership with CAS().
// CAS is serializing -- it has MEMBAR/FENCE-equivalent semantics.
// But since the CAS() this thread may have also stored into _succ,
// EntryList, cxq or Responsible. These meta-data updates must be
// visible __before this thread subsequently drops the lock.
// Consider what could occur if we didn't enforce this constraint --
// STs to monitor meta-data and user-data could reorder with (become
// visible after) the ST in exit that drops ownership of the lock.
// Some other thread could then acquire the lock, but observe inconsistent
// or old monitor meta-data and heap data. That violates the JMM.
// To that end, the 1-0 exit() operation must have at least STST|LDST
// "release" barrier semantics. Specifically, there must be at least a
// STST|LDST barrier in exit() before the ST of null into _owner that drops
// the lock. The barrier ensures that changes to monitor meta-data and data
// protected by the lock will be visible before we release the lock, and
// therefore before some other thread (CPU) has a chance to acquire the lock.
// See also: http://gee.cs.oswego.edu/dl/jmm/cookbook.html.
//
// Critically, any prior STs to _succ or EntryList must be visible before
// the ST of null into _owner in the *subsequent* (following) corresponding
// monitorexit. Recall too, that in 1-0 mode monitorexit does not necessarily
// execute a serializing instruction.
if (SyncFlags & 8) {
OrderAccess::fence() ;
}
return ;
}
问题： 根据源码可知，jvm将等待线程放入了_cxq属性而不是 _EntryList属性。但为什么说处于等待锁block状态的线程，会被加入到 _EntryList属性列表
monitor释放
当某个持有锁的线程执行完同步代码块时，会进行锁的释放，给其他线程机会执行同步代码块，再HotSpot中，通过退出monitor的方式实现锁的释放，并通知被阻塞的线程，具体实现位于objectMonitor的exit方法中。（位于：src/share/vm/runtime/objectMonitor.cpp），源码如下所示：
void ATTR ObjectMonitor::exit(bool not_suspended, TRAPS) {
Thread * Self = THREAD ;
if (THREAD != _owner) {
if (THREAD->is_lock_owned((address) _owner)) {
// Transmute _owner from a BasicLock pointer to a Thread address.
// We don't need to hold _mutex for this transition.
// Non-null to Non-null is safe as long as all readers can
// tolerate either flavor.
assert (_recursions == 0, "invariant") ;
_owner = THREAD ;
_recursions = 0 ;
OwnerIsThread = 1 ;
} else {
// NOTE: we need to handle unbalanced monitor enter/exit
// in native code by throwing an exception.
// TODO: Throw an IllegalMonitorStateException ?
TEVENT (Exit - Throw IMSX) ;
assert(false, "Non-balanced monitor enter/exit!");
if (false) {
THROW(vmSymbols::java_lang_IllegalMonitorStateException());
}
return;
}
}
// 如果_recursions不等于0，将_recursions的值自减1
if (_recursions != 0) {
_recursions--; // this is simple recursive enter
TEVENT (Inflated exit - recursive) ;
return ;
}
// Invariant: after setting Responsible=null an thread must execute
// a MEMBAR or other serializing instruction before fetching EntryList|cxq.
if ((SyncFlags & 4) == 0) {
_Responsible = NULL ;
}
#if INCLUDE_TRACE
// get the owner's thread id for the MonitorEnter event
// if it is enabled and the thread isn't suspended
if (not_suspended && Tracing::is_event_enabled(TraceJavaMonitorEnterEvent)) {
_previous_owner_tid = SharedRuntime::get_java_tid(Self);
}
#endif
for (;;) {
assert (THREAD == _owner, "invariant") ;
if (Knob_ExitPolicy == 0) {
// release semantics: prior loads and stores from within the critical section
// must not float (reorder) past the following store that drops the lock.
// On SPARC that requires MEMBAR #loadstore|#storestore.
// But of course in TSO #loadstore|#storestore is not required.
// I'd like to write one of the following:
// A. OrderAccess::release() ; _owner = NULL
// B. OrderAccess::loadstore(); OrderAccess::storestore(); _owner = NULL;
// Unfortunately OrderAccess::release() and OrderAccess::loadstore() both
// store into a _dummy variable. That store is not needed, but can result
// in massive wasteful coherency traffic on classic SMP systems.
// Instead, I use release_store(), which is implemented as just a simple
// ST on x64, x86 and SPARC.
OrderAccess::release_store_ptr (&_owner, NULL) ; // drop the lock
OrderAccess::storeload() ; // See if we need to wake a successor
if ((intptr_t(_EntryList)|intptr_t(_cxq)) == 0 || _succ != NULL) {
TEVENT (Inflated exit - simple egress) ;
return ;
}
TEVENT (Inflated exit - complex egress) ;
// Normally the exiting thread is responsible for ensuring succession,
// but if other successors are ready or other entering threads are spinning
// then this thread can simply store NULL into _owner and exit without
// waking a successor. The existence of spinners or ready successors
// guarantees proper succession (liveness). Responsibility passes to the
// ready or running successors. The exiting thread delegates the duty.
// More precisely, if a successor already exists this thread is absolved
// of the responsibility of waking (unparking) one.
//
// The _succ variable is critical to reducing futile wakeup frequency.
// _succ identifies the "heir presumptive" thread that has been made
// ready (unparked) but that has not yet run. We need only one such
// successor thread to guarantee progress.
// See http://www.usenix.org/events/jvm01/full_papers/dice/dice.pdf
// section 3.3 "Futile Wakeup Throttling" for details.
//
// Note that spinners in Enter() also set _succ non-null.
// In the current implementation spinners opportunistically set
// _succ so that exiting threads might avoid waking a successor.
// Another less appealing alternative would be for the exiting thread
// to drop the lock and then spin briefly to see if a spinner managed
// to acquire the lock. If so, the exiting thread could exit
// immediately without waking a successor, otherwise the exiting
// thread would need to dequeue and wake a successor.
// (Note that we'd need to make the post-drop spin short, but no
// shorter than the worst-case round-trip cache-line migration time.
// The dropped lock needs to become visible to the spinner, and then
// the acquisition of the lock by the spinner must become visible to
// the exiting thread).
//
// It appears that an heir-presumptive (successor) must be made ready.
// Only the current lock owner can manipulate the EntryList or
// drain _cxq, so we need to reacquire the lock. If we fail
// to reacquire the lock the responsibility for ensuring succession
// falls to the new owner.
//
if (Atomic::cmpxchg_ptr (THREAD, &_owner, NULL) != NULL) {
return ;
}
TEVENT (Exit - Reacquired) ;
} else {
if ((intptr_t(_EntryList)|intptr_t(_cxq)) == 0 || _succ != NULL) {
OrderAccess::release_store_ptr (&_owner, NULL) ; // drop the lock
OrderAccess::storeload() ;
// Ratify the previously observed values.
if (_cxq == NULL || _succ != NULL) {
TEVENT (Inflated exit - simple egress) ;
return ;
}
// inopportune interleaving -- the exiting thread (this thread)
// in the fast-exit path raced an entering thread in the slow-enter
// path.
// We have two choices:
// A. Try to reacquire the lock.
// If the CAS() fails return immediately, otherwise
// we either restart/rerun the exit operation, or simply
// fall-through into the code below which wakes a successor.
// B. If the elements forming the EntryList|cxq are TSM
// we could simply unpark() the lead thread and return
// without having set _succ.
if (Atomic::cmpxchg_ptr (THREAD, &_owner, NULL) != NULL) {
TEVENT (Inflated exit - reacquired succeeded) ;
return ;
}
TEVENT (Inflated exit - reacquired failed) ;
} else {
TEVENT (Inflated exit - complex egress) ;
}
}
guarantee (_owner == THREAD, "invariant") ;
// 唤醒等待队列线程
ObjectWaiter * w = NULL ;
int QMode = Knob_QMode ;
// QMode = 2 直接绕过_EntryList队列，从_cxq队列中获取线程用于竞争锁
if (QMode == 2 && _cxq != NULL) {
// QMode == 2 : cxq has precedence over EntryList.
// Try to directly wake a successor from the cxq.
// If successful, the successor will need to unlink itself from cxq.
// 将_cxq的首结点地址赋给 w
w = _cxq ;
assert (w != NULL, "invariant") ;
assert (w->TState == ObjectWaiter::TS_CXQ, "Invariant") ;
// 唤醒队列重要方法 主要就是调用w(要唤醒线程)的unpark方法。
ExitEpilog (Self, w) ;
return ;
}
// QMode = 3 _cxq队列插入_EntryList尾部
if (QMode == 3 && _cxq != NULL) {
// Aggressively drain cxq into EntryList at the first opportunity.
// This policy ensure that recently-run threads live at the head of EntryList.
// Drain _cxq into EntryList - bulk transfer.
// First, detach _cxq.
// The following loop is tantamount to: w = swap (&cxq, NULL)
w = _cxq ;
for (;;) {
assert (w != NULL, "Invariant") ;
ObjectWaiter * u = (ObjectWaiter *) Atomic::cmpxchg_ptr (NULL, &_cxq, w) ;
if (u == w) break ;
w = u ;
}
assert (w != NULL , "invariant") ;
ObjectWaiter * q = NULL ;
ObjectWaiter * p ;
for (p = w ; p != NULL ; p = p->_next) {
guarantee (p->TState == ObjectWaiter::TS_CXQ, "Invariant") ;
p->TState = ObjectWaiter::TS_ENTER ;
p->_prev = q ;
q = p ;
}
// Append the RATs to the EntryList
// TODO: organize EntryList as a CDLL so we can locate the tail in constant-time.
ObjectWaiter * Tail ;
for (Tail = _EntryList ; Tail != NULL && Tail->_next != NULL ; Tail = Tail->_next) ;
if (Tail == NULL) {
_EntryList = w ;
} else {
Tail->_next = w ;
w->_prev = Tail ;
}
// Fall thru into code that tries to wake a successor from EntryList
}
// QMode = 4 _cxq队列插入_EntryList头部
if (QMode == 4 && _cxq != NULL) {
// Aggressively drain cxq into EntryList at the first opportunity.
// This policy ensure that recently-run threads live at the head of EntryList.
// Drain _cxq into EntryList - bulk transfer.
// First, detach _cxq.
// The following loop is tantamount to: w = swap (&cxq, NULL)
w = _cxq ;
for (;;) {
assert (w != NULL, "Invariant") ;
ObjectWaiter * u = (ObjectWaiter *) Atomic::cmpxchg_ptr (NULL, &_cxq, w) ;
if (u == w) break ;
w = u ;
}
assert (w != NULL , "invariant") ;
ObjectWaiter * q = NULL ;
ObjectWaiter * p ;
for (p = w ; p != NULL ; p = p->_next) {
guarantee (p->TState == ObjectWaiter::TS_CXQ, "Invariant") ;
p->TState = ObjectWaiter::TS_ENTER ;
p->_prev = q ;
q = p ;
}
// Prepend the RATs to the EntryList
if (_EntryList != NULL) {
q->_next = _EntryList ;
_EntryList->_prev = q ;
}
_EntryList = w ;
// Fall thru into code that tries to wake a successor from EntryList
}
w = _EntryList ;
if (w != NULL) {
// I'd like to write: guarantee (w->_thread != Self).
// But in practice an exiting thread may find itself on the EntryList.
// Lets say thread T1 calls O.wait(). Wait() enqueues T1 on O's waitset and
// then calls exit(). Exit release the lock by setting O._owner to NULL.
// Lets say T1 then stalls. T2 acquires O and calls O.notify(). The
// notify() operation moves T1 from O's waitset to O's EntryList. T2 then
// release the lock "O". T2 resumes immediately after the ST of null into
// _owner, above. T2 notices that the EntryList is populated, so it
// reacquires the lock and then finds itself on the EntryList.
// Given all that, we have to tolerate the circumstance where "w" is
// associated with Self.
assert (w->TState == ObjectWaiter::TS_ENTER, "invariant") ;
ExitEpilog (Self, w) ;
return ;
}
// If we find that both _cxq and EntryList are null then just
// re-run the exit protocol from the top.
w = _cxq ;
if (w == NULL) continue ;
// Drain _cxq into EntryList - bulk transfer.
// First, detach _cxq.
// The following loop is tantamount to: w = swap (&cxq, NULL)
for (;;) {
assert (w != NULL, "Invariant") ;
ObjectWaiter * u = (ObjectWaiter *) Atomic::cmpxchg_ptr (NULL, &_cxq, w) ;
if (u == w) break ;
w = u ;
}
TEVENT (Inflated exit - drain cxq into EntryList) ;
assert (w != NULL , "invariant") ;
assert (_EntryList == NULL , "invariant") ;
// Convert the LIFO SLL anchored by _cxq into a DLL.
// The list reorganization step operates in O(LENGTH(w)) time.
// It's critical that this step operate quickly as
// "Self" still holds the outer-lock, restricting parallelism
// and effectively lengthening the critical section.
// Invariant: s chases t chases u.
// TODO-FIXME: consider changing EntryList from a DLL to a CDLL so
// we have faster access to the tail.
if (QMode == 1) {
// QMode == 1 : drain cxq to EntryList, reversing order
// We also reverse the order of the list.
ObjectWaiter * s = NULL ;
ObjectWaiter * t = w ;
ObjectWaiter * u = NULL ;
while (t != NULL) {
guarantee (t->TState == ObjectWaiter::TS_CXQ, "invariant") ;
t->TState = ObjectWaiter::TS_ENTER ;
u = t->_next ;
t->_prev = u ;
t->_next = s ;
s = t;
t = u ;
}
_EntryList = s ;
assert (s != NULL, "invariant") ;
} else {
// QMode == 0 or QMode == 2
_EntryList = w ;
ObjectWaiter * q = NULL ;
ObjectWaiter * p ;
for (p = w ; p != NULL ; p = p->_next) {
guarantee (p->TState == ObjectWaiter::TS_CXQ, "Invariant") ;
p->TState = ObjectWaiter::TS_ENTER ;
p->_prev = q ;
q = p ;
}
}
// In 1-0 mode we need: ST EntryList; MEMBAR #storestore; ST _owner = NULL
// The MEMBAR is satisfied by the release_store() operation in ExitEpilog().
// See if we can abdicate to a spinner instead of waking a thread.
// A primary goal of the implementation is to reduce the
// context-switch rate.
if (_succ != NULL) continue;
w = _EntryList ;
if (w != NULL) {
guarantee (w->TState == ObjectWaiter::TS_ENTER, "invariant") ;
ExitEpilog (Self, w) ;
return ;
}
}
}
monitor是重量级锁
可以看到ObjectMonitor的函数调用中会涉及到那我想，Atomic::cmpxchg_ptr,Atomic::inc_ptr等内核函数。执行同步代码块，没有竞争到锁的对象。会park()被挂起。竞争到锁的线程会unpark()唤醒。这个时候就会存在操作系统，用户态和内核态的转换。这种切换会消耗大量的系统资源，所以，Synchronized在Java语言中。是一个重量级的操作。
5,synchronized优化
高效并发是从JDK1.5到JDK1.6的一个重要改进。

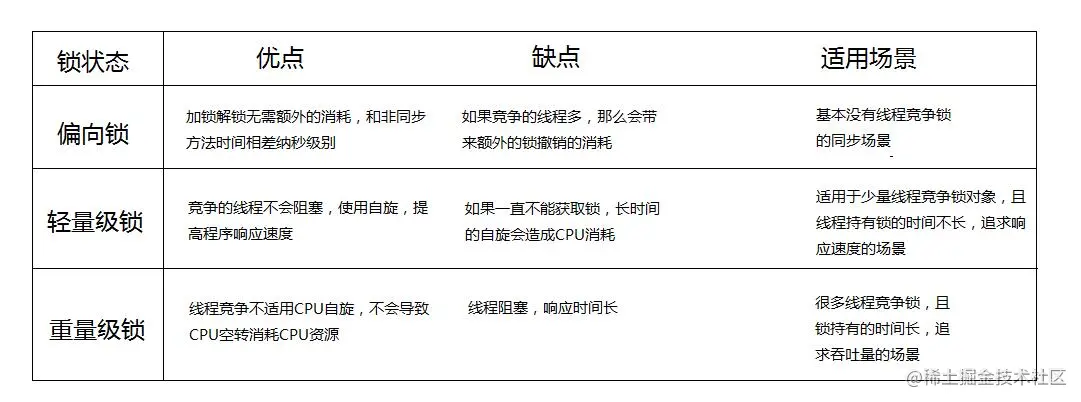

无锁-->偏向锁-->轻量级锁-->重量级锁
5.1 java对象布局
java对象由三部分组成，对象头，实例数据，对齐数据
对象头分为两部分：Mark Word+Klass pointer（Mark Word (64 bits)，Klass pointer(64 bits)）
5.1.1 Mark Word
这部分主要用来存储对象自身的运行时数据，如hashcode、gc分代年龄等。
mark word的位长度为JVM的一个Word大小，也就是说32位JVM的Mark word为32位，64位JVM为64位。 为了让一个字大小存储更多的信息，JVM将字的最低两个位设置为标记位，不同标记位下的Mark Word示意如下：
在32位的虚拟机中：
在64位的虚拟机中：
| 偏向锁标识位 | 锁标识位 | 锁状态 | 存储内容 |
|---|---|---|---|
| 0 | 01 | 未锁定 | hash code(31),年龄(4) |
| 1 | 01 | 偏向锁 | 线程ID(54),时间戳(2),年龄(4) |
| 无 | 00 | 轻量级锁 | 栈中锁记录的指针(64) |
| 无 | 10 | 重量级锁 | monitor的指针(64) |
| 无 | 11 | GC标记 | 空，不需要记录信息 |
hash code：31位的对象标识Hash码，采用延迟加载技术。调用方法System.identityHashCode()计算，并会将结果写到该对象头中。当对象被锁定时，该值会移动到管程Monitor中
年龄：4位的Java对象年龄。在GC中，如果对象在Survivor区复制一次，年龄增加1。当对象达到设定的阈值时，将会晋升到老年代。默认情况下，并行GC的年龄阈值为15，并发GC的年龄阈值为6。由于age只有4位，所以最大值为15，这就是-XX:MaxTenuringThreshold选项最大值为15的原因
5.1.2 class pointer
这一部分用于存储对象的类型指针，该指针指向它的类元数据，JVM通过这个指针确定对象是哪个类的实例。该指针的位长度为JVM的一个字大小，即32位的JVM为32位，64位的JVM为64位。
如果应用的对象过多，使用64位的指针将浪费大量内存，统计而言，64位的JVM将会比32位的JVM多耗费50%的内存。为了节约内存可以使用选项+UseCompressedOops开启指针压缩（默认开启，关闭改为-即可），其中，oop即ordinary object pointer普通对象指针。开启该选项后，下列指针将压缩至32位：
- 每个Class的属性指针（即静态变量）
- 每个对象的属性指针（即对象变量）
- 普通对象数组的每个元素指针
当然，也不是所有的指针都会压缩，一些特殊类型的指针JVM不会优化，比如指向PermGen的Class对象指针(JDK8中指向元空间的Class对象指针)、本地变量、堆栈元素、入参、返回值和NULL指针等。
锁优化
锁升级
锁的4中状态：无锁状态、偏向锁状态、轻量级锁状态、重量级锁状态（级别从低到高）
偏向锁
为什么要引入偏向锁？
因为经过HotSpot的作者大量的研究发现，大多数时候是不存在锁竞争的，常常是一个线程多次获得同一个锁，因此如果每次都要竞争锁会增大很多没有必要付出的代价，为了降低获取锁的代价，才引入的偏向锁。 偏向锁的升级
偏向锁的升级
当线程1访问代码块并获得锁对象时，会在java对象头和栈帧中记录偏向锁的threadId。因为偏向锁不会主动释放锁，因此以后线程1再次获取锁的时候，需要比较当前线程的threadId和java对象头中的threadId是否一致，如果一致（还是线程1获取锁对象），则无需使用CAS来加锁、解锁；如果不一致。那么暂停当前线程1，撤销偏向锁，升级为轻量级锁；
另一种升级轻量级锁情况的说法：（其他线程，如线程2要竞争锁对象，而偏向锁不会主动释放因此还是存储的线程1的threadId），那么需要查看java对象头中记录的线程1是否存活，如果没有存活，那么锁对象被重置为无锁状态，其他线程（线程2）可以竞争将其设置为偏向锁；如果存活，那么立刻查找该线程（线程1的栈帧），如果还是继续持有这个锁对象，那么暂停当前线程1，撤销偏向锁，升级为轻量级锁；如果线程1不再使用该锁对象，那么将锁对象状态设为无锁状态，重新偏向新的线程。
我比较倾向于第一种。
轻量级锁
为什么要引入轻量级锁？
轻量级锁考虑的是竞争锁对象的线程不多，而且线程持有锁的时间也不长的情景。因为阻塞线程需要CPU从用户态转到内核态，代价较大，如果刚刚阻塞不久这个锁就被释放了，那这个代价就有点得不偿失了，因此这个时候就干脆不阻塞这个线程，让它自旋这等待锁释放。
轻量级锁什么时候升级为重量级锁？
线程1获取轻量级锁时，会先把对象的对象头MarkWord复制一份到线程1的帧栈中创建的用于存储锁记录的空间（称为DisplacedMarkWord），然后使用CAS把对象头中的内容替换为线程1存储的锁记录（DisplacedMarkWord）的地址；
如果在线程1复制对象头的同时在（在线程1CAS之前），线程2也准备获取锁，复制了对象头到线程2的锁记录空间中，但是在线程2CAS的时候，发现线程1已经把对象头换了，线程2的CAS失败，那么线程2就尝试使用自旋锁来等待线程1释放锁。
但是如果自旋的时间太长也不行，因为自旋是要消耗CPU的，因此自旋的次数是有限制的。有现成超过10次自旋，-xx:PreBlockSpin指定次数，或者自旋线程数超过CPU核数一半；1.6后加入自适应自旋 Adapative Self Spinning JVM自己控制。那么这个时候轻量级锁就会膨胀为重量级锁，重量级锁把除了拥有锁的线程都阻塞，防止CPU空转。
*注意： 为了避免无用的自旋，轻量级锁一旦膨胀为重量级锁就不会再降级为轻量级锁了；偏向锁升级为轻量级锁也不能再降级为偏向锁。一句话就是锁可以升级不可以降级，但是偏向锁状态可以被重置为无锁状态。
为什么有自旋锁还需要重量级锁？
自旋是消耗cpu资源的，如果锁的时间长，或者自旋线程多，cpu会被大量消耗。 重量级锁有等待队列，所有拿不到锁的进入等待队列，不需要消耗CPU资源。
偏向锁是否一定比自旋锁效率高？
不一定，在明确知道会有多线程竞争的情况下，偏向锁肯定会涉及锁撤销，这时候直接使用自旋锁 JVM启动过程，会有很多线程竞争,所以默认情况启动时不打开偏向锁，过一段时间再打开
这几种锁的优缺点（偏向锁、轻量级锁、重量级锁）
锁粗化
按理来说，同步块的作用范围应该尽可能小，仅在共享数据的实际作用域中才进行同步，这样做的目的是为了使需要同步的操作数量尽可能缩小，缩短阻塞时间，如果存在锁竞争，那么等待锁的线程也能尽快拿到锁。 但是加锁解锁也需要消耗资源，如果存在一系列的连续加锁解锁操作，可能会导致不必要的性能损耗。 锁粗化就是将多个连续的加锁、解锁操作连接在一起，扩展成一个范围更大的锁，避免频繁的加锁解锁操作。
锁消除
Java虚拟机在JIT编译时(可以简单理解为当某段代码即将第一次被执行时进行编译，又称即时编译)，通过对运行上下文的扫描，经过逃逸分析，去除不可能存在共享资源竞争的锁，通过这种方式消除没有必要的锁，可以节省毫无意义的请求锁时间
