Unity中实现新手引导的镂空效果

一：实现思路

——UGUI中的OnPopulateMesh函数：liuhaowen.blog.csdn.net/article/det…

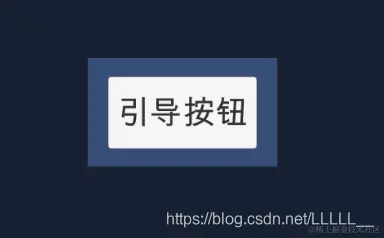

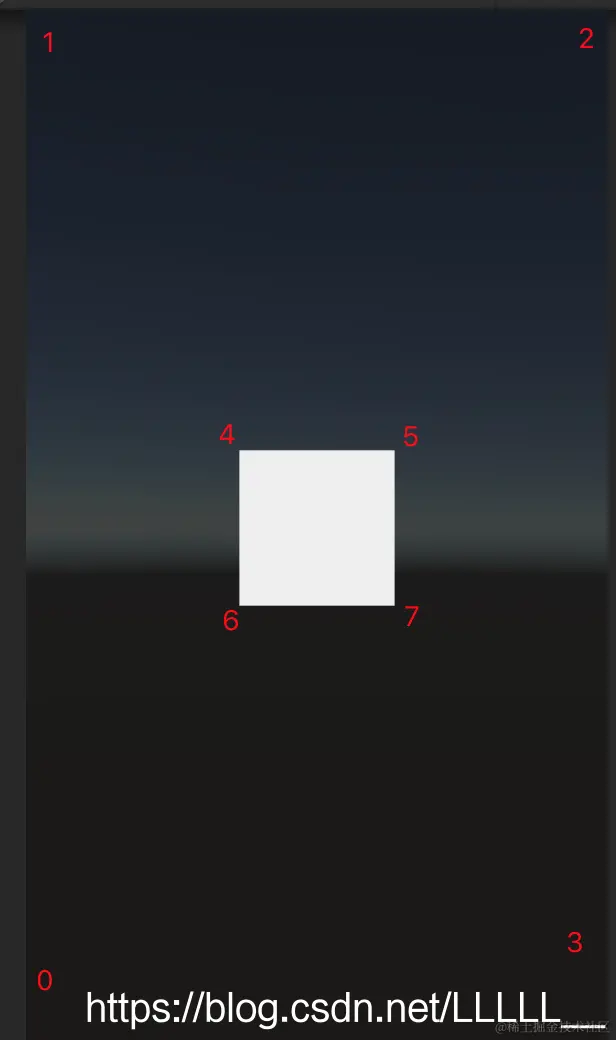

获取外层的４个顶点，也就是镂空组件自身RectTransform的四个顶点，获取内层的４个顶点，也就是镂空区域的四个顶点。生成内外层之间的Mesh，一共八个三角形，则产生了镂空效果
确定内层的顶点的时候需要注意，需要使用CalculateRelativeRectTransformBounds计算出镂空区域在空间下的坐标

——UGUI提供了ICanvasRaycastFilter接口，实现IsRaycastLocationValid方法，就可以很方便的控制射线是否穿透

二：代码实现

using UnityEngine;
using UnityEngine.UI;

/// <summary>
/// 镂空遮罩
/// </summary>
public class HollowOutMask : Graphic, ICanvasRaycastFilter
{
    [Header("镂空区域")]
    [Space(25)]
    public RectTransform inner_trans;
    private RectTransform outer_trans;//背景区域

    private Vector2 inner_rt;//镂空区域的右上角坐标
    private Vector2 inner_lb;//镂空区域的左下角坐标
    private Vector2 outer_rt;//背景区域的右上角坐标
    private Vector2 outer_lb;//背景区域的左下角坐标

    [Header("是否实时刷新")]
    [Space(25)]
    public bool realtimeRefresh;

    protected override void Awake()
    {
        base.Awake();

        outer_trans = GetComponent<RectTransform>();

        //计算边界
        CalcBounds();
    }

    protected override void OnPopulateMesh(VertexHelper vh)
    {
        if (inner_trans == null)
        {
            base.OnPopulateMesh(vh);
            return;
        }

        vh.Clear();

        UIVertex vertex = UIVertex.simpleVert;
        vertex.color = color;

        //0 outer左下角
        vertex.position = new Vector3(outer_lb.x, outer_lb.y);
        vh.AddVert(vertex);
        //1 outer左上角
        vertex.position = new Vector3(outer_lb.x, outer_rt.y);
        vh.AddVert(vertex);
        //2 outer右上角
        vertex.position = new Vector3(outer_rt.x, outer_rt.y);
        vh.AddVert(vertex);
        //3 outer右下角
        vertex.position = new Vector3(outer_rt.x, outer_lb.y);
        vh.AddVert(vertex);
        //4 inner左下角
        vertex.position = new Vector3(inner_lb.x, inner_lb.y);
        vh.AddVert(vertex);
        //5 inner左上角
        vertex.position = new Vector3(inner_lb.x, inner_rt.y);
        vh.AddVert(vertex);
        //6 inner右上角
        vertex.position = new Vector3(inner_rt.x, inner_rt.y);
        vh.AddVert(vertex);
        //7 inner右下角
        vertex.position = new Vector3(inner_rt.x, inner_lb.y);
        vh.AddVert(vertex);

        //绘制三角形
        vh.AddTriangle(0, 1, 4);
        vh.AddTriangle(1, 4, 5);
        vh.AddTriangle(1, 5, 2);
        vh.AddTriangle(2, 5, 6);
        vh.AddTriangle(2, 6, 3);
        vh.AddTriangle(6, 3, 7);
        vh.AddTriangle(4, 7, 3);
        vh.AddTriangle(0, 4, 3);
    }

    /// <summary>
    /// 过滤掉射线检测
    /// </summary>
    bool ICanvasRaycastFilter.IsRaycastLocationValid(Vector2 screenPos, Camera eventCamera)
    {
        if (inner_trans == null)
        {
            return true;
        }

        return !RectTransformUtility.RectangleContainsScreenPoint(inner_trans, screenPos, eventCamera);
    }

    /// <summary>
    /// 计算边界
    /// </summary>
    private void CalcBounds()
    {
        if (inner_trans == null)
        {
            return;
        }

        Bounds bounds = RectTransformUtility.CalculateRelativeRectTransformBounds(outer_trans, inner_trans);
        inner_rt = bounds.max;
        inner_lb = bounds.min;
        outer_rt = outer_trans.rect.max;
        outer_lb = outer_trans.rect.min;
    }

    private void Update()
    {
        if (realtimeRefresh == false)
        {
            return;
        }

        //计算边界
        CalcBounds();
        //刷新
        SetAllDirty();
    }
}
