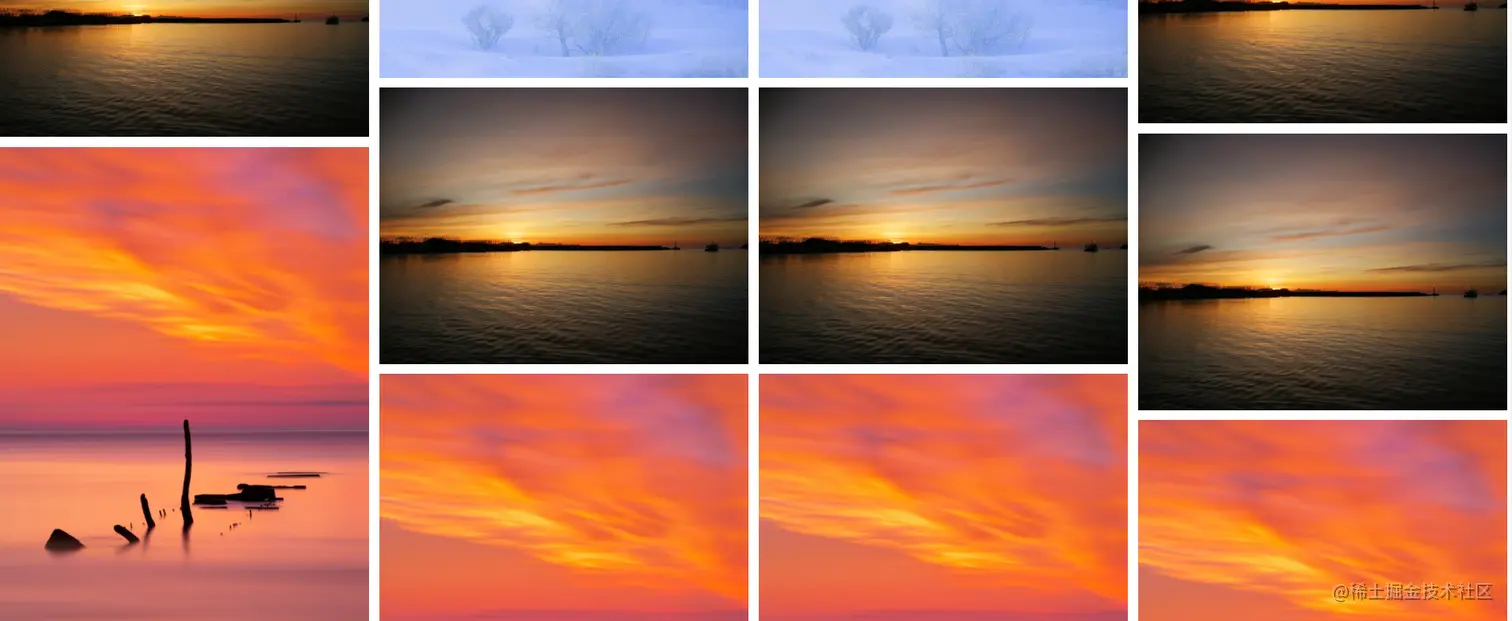

方法一:column实现
- column-count: 定义屏幕分为多少列
- column-gap: 定义列与列之间的距离
body{
margin: 0;
list-style: none;
}
#box{
margin: 40px;
column-count: 5;
column-gap: 20px;
}
#box > li > img{
width: 100%;
height: 100%;
}
优点:
- 实现简单
- 图片自动填充不用考虑图片加载状态
缺点:
- 兼容性差
- 排列规律永远都是先上下在左右,无法控制

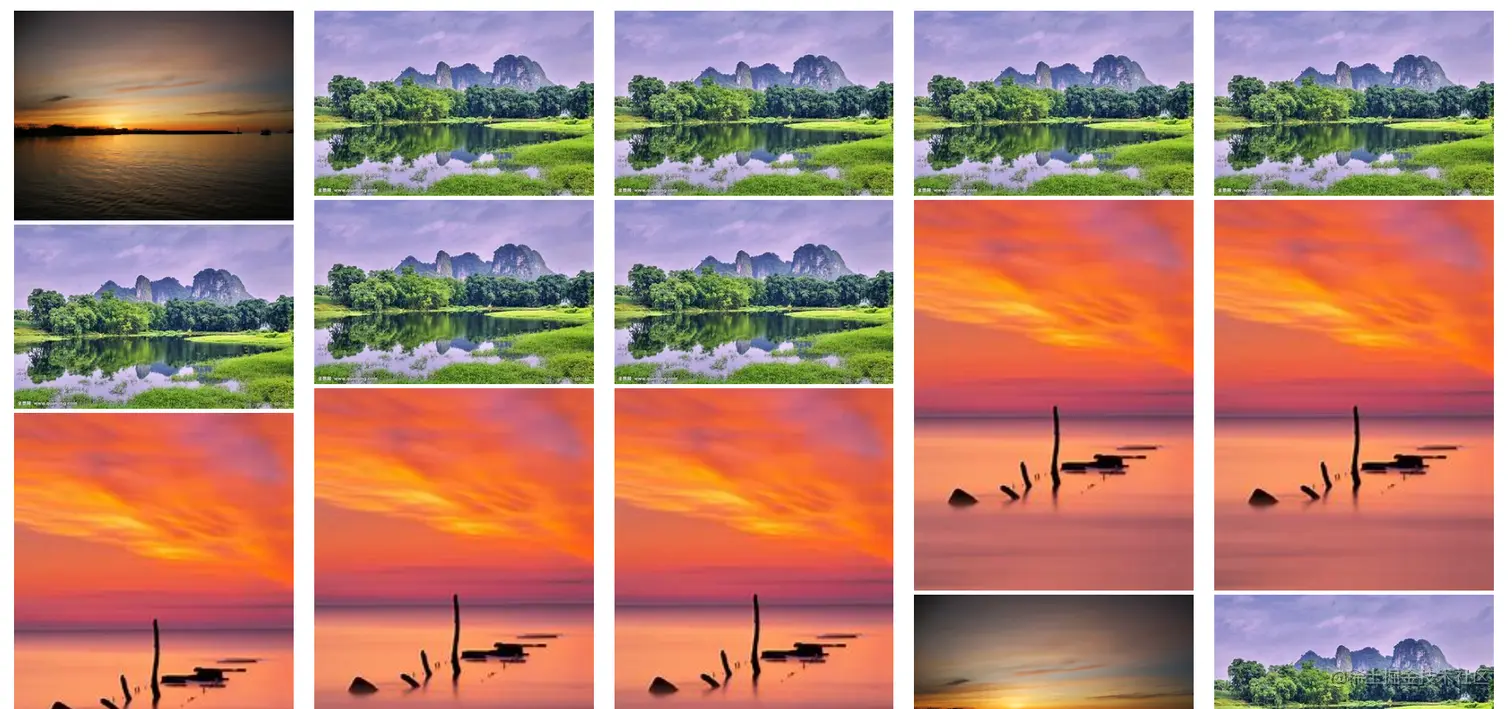

方法二:flex布局实现
body{
margin: 0;
list-style: none;
}
#box{
display: flex;
flex-flow: column wrap;
height: 2000px;
}
#box > li{
margin: 10px;
width: calc(100% / 4 - 20px);
}
#box > li > img{
width: 100%;
height: 100%;
}
优点:
- 实现相对简单
- 图片自动填充不用考虑图片加载状态
- 顺序在一定程度上可以改变
缺点:
- 高度是固定的
在小型项目中可以使用上述的方法,但是实际开发还是以JS方式实现

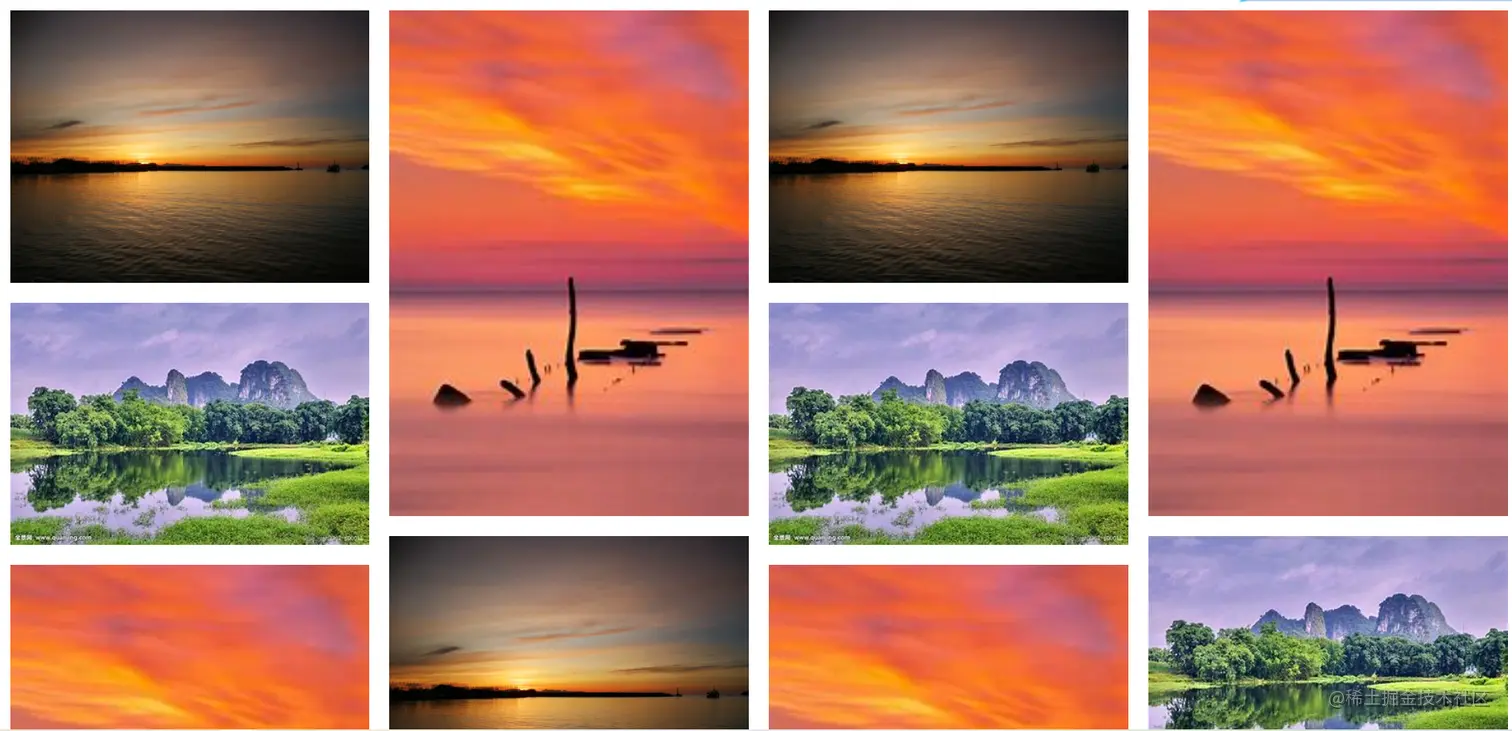

方法三:JS实现
export default class Waterfall {
/*
* $el:父容器
* width:每张图片宽度
* items:所有子元素
* H:存储每一列的高度
* flag:虚拟DOM节点集合
* */
constructor(options) {
this.$el = null
this.count = 4
this.gap = 10
Object.assign(this, options)
this.width = 0
this.items = []
this.H = []
this.flag = null
this.init()
console.log('ok')
}
init() {
this.items = Array.from(this.$el.children)
this.reset()
this.render()
}
reset() {
this.flag = document.createDocumentFragment() //创建一个空白文档
this.width = this.$el.clientWidth / this.count
this.H = new Array(this.count).fill(0)
this.$el.innerHTML = ""
}
render() {
const {width, items, flag, H, gap} = this
items.forEach(item => {
item.style.width = width + 'px'
item.style.position = 'absolute'
let img = item.querySelector('img')
/* 图片是否加载完成 */
if (img.complete) {
/* 获取每一列的最小高度 */
let tag = H.indexOf(Math.min(...H));
item.style.left = tag * (width + gap) + 'px'
item.style.top = H[tag] + 'px'
img.style.width = '100%'
img.style.height = '100%'
H[tag] += img.height * width / img.width + gap
flag.appendChild(item)
} else {
img.addEventListener('load', () => {
let tag = H.indexOf(Math.min(...H))
item.style.left = tag * (width + gap) + 'px'
item.style.top = H[tag] + 'px'
img.style.width = '100%'
img.style.height = '100%'
H[tag] += img.height * width / img.width + gap
flag.appendChild(item)
this.$el.append(flag)
})
}
})
this.$el.append(flag)
}
};
实现原理:
- 初始化,计算出列宽来,将H作为列高存储器。然后计算子元素,清除父容器内容。
- 遍历子元素,设置其都为绝对定位,设置其列宽,然后监听其下的图片是否加载完毕。
- 如果加载完毕,那么计算应该所在的位置,瀑布流的核心就是哪一列高度最小就在那一列上设置新的图片。当然他的相对高度和间距也要计算出来,同时在当前的H上把高度存起来。
- 每次图片加载完就更新虚拟节点到父容器中。
优点:
- 控制灵活,随意扩展
- 也可以无限加载,不用过多考虑兼容性问题
- 同时可以添加诸多动画来增强用户体验
缺点:
- 实现相对复杂
- 图片填充需要考虑图片加载状态
- 性能相对纯css实现较差
