引言

应用场景：

因银行代发通道收费每笔1元，为减少代理商提现成本，支持各分佣的合并提现。
多张证明材料图片上传

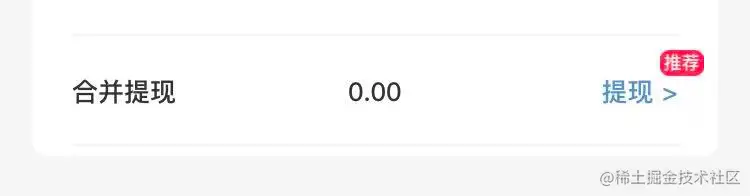

I 控件右上角添加文字（Frame布局）

因银行代发通道收费每笔1元，为减少代理商提现成本，支持各分佣的合并提现。

在这里插入图片描述

        UIButton *titBtn = [ControlManager getButtonWithFrame:CGRectMake(scrollView.width - KWratio(70), lefterTitleLab.y, KWratio(50), KWratio(55)) fontSize:displayFontSize(13.0f) title:@"提现 >" titleColor:HWColor(87, 146, 204) image:[UIImage new] backgroundColor:[UIColor clearColor] cornerRadius:0];

        if(dto.is_merge_drawal){//99
            UILabel*   _badgeLab = [ControlManager text:@"推荐" font:displayFontSize(9.0f) color:[UIColor whiteColor] alingment:1 fontWithName:@"PingFang-SC-Medium"];
            _badgeLab.textAlignment = NSTextAlignmentCenter;

                   _badgeLab.backgroundColor = BASE_RED_COLOR;

                   _badgeLab.layer.masksToBounds = YES;

                   [titBtn addSubview:_badgeLab];



            CGSize titleSizes = [_badgeLab.text sizeWithFont:[UIFont systemFontOfSize:displayFontSize(9.0f)] constrainedToSize:CGSizeMake(kWidth, 13)];//200



            _badgeLab.frame = CGRectMake(titBtn.width - titleSizes.width / 2, 7, titleSizes.width + KWratio(4) , KWratio(13));
            _badgeLab.layer.cornerRadius = KWratio(5);




        }

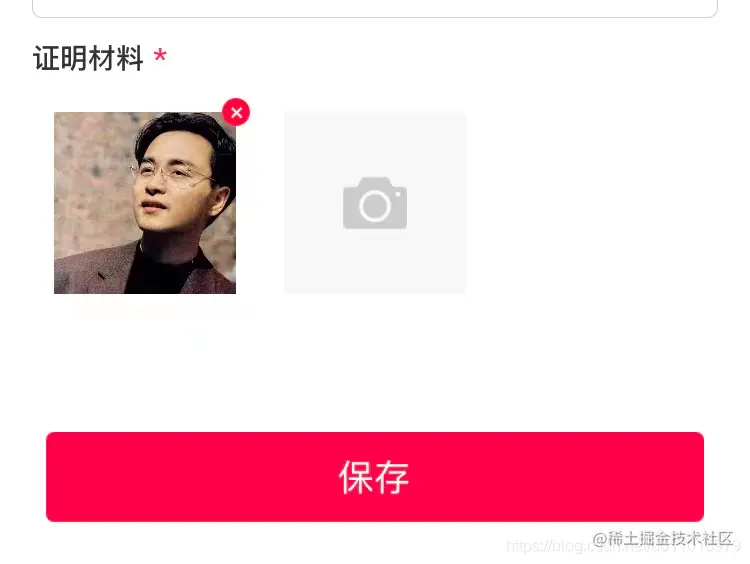

II 控件右上角添加icon(Masonry布局)

在这里插入图片描述


#define KNDeleteH 7 //删除按钮的高度的一半

@property (nonatomic,weak) UIImageView *imageView;

@property (nonatomic,weak) UIButton *deleteBtn;


- (UIImageView *)imageView{
    if (nil == _imageView) {
        UIImageView *tmpView = [[UIImageView alloc]init];
        _imageView = tmpView;
        tmpView.contentMode = UIViewContentModeScaleAspectFill;
        tmpView.clipsToBounds = YES;
        [self addSubview:_imageView];

        __weak __typeof__(self) weakSelf = self;

        [tmpView mas_makeConstraints:^(MASConstraintMaker *make) {

            make.top.offset(kAdjustRatio(KNDeleteH));
            make.left.offset(kAdjustRatio(KNDeleteH));
            make.right.offset(kAdjustRatio(-KNDeleteH));


            make.bottom.offset(kAdjustRatio(-KNDeleteH));



        }];

        tmpView.userInteractionEnabled = YES;

        UITapGestureRecognizer *cutTap = [[UITapGestureRecognizer alloc] init];
//        __weak __typeof__(self) weakSelf = self;

        [[cutTap rac_gestureSignal] subscribeNext:^(id x) {




            if(weakSelf.model.type != QCTCollectionModelType4UploadPicturesAddIcon
               ){

                return ;



            }

            NSLog(@" 上传图片 ");


            if (weakSelf.model.block) {

                weakSelf.model.block(weakSelf.model);


            }

        }];
        [tmpView addGestureRecognizer:cutTap];

    }
    return _imageView;
}

- (UIButton *)deleteBtn{
    if (nil == _deleteBtn) {
        UIButton *tmpView = [[UIButton alloc]init];
        _deleteBtn = tmpView;
        [tmpView addTarget:self action:@selector(clickDeleteBtn) forControlEvents:UIControlEventTouchUpInside];
        [self addSubview:_deleteBtn];
//
        __weak __typeof__(self) weakSelf = self;

        [tmpView mas_makeConstraints:^(MASConstraintMaker *make) {

            make.centerY.equalTo(weakSelf.imageView.mas_top);
            make.centerX.equalTo(weakSelf.imageView.mas_right);



            make.width.height.mas_equalTo(kAdjustRatio(2*KNDeleteH));




        }];
    }
    return _deleteBtn;
}
