通过这篇文章，我们来梳理一下 BroadcastReceiver 的工作原理以及其中我们应该注意的细节

BroadcastReceiver 注册整体流程

BroadcastReceiver 的注册分为静态注册和动态注册

由于 Goolge 规定在 Android 7.0 以上的系统中不能静态注册 BroadcastReciver了 (即使你静态注册了 BroadcastReciver，该 BroadcastReciver 也不会运行)

对于我们开发者而言，可以直接忽略 BroadcastReceiver 的静态注册了

因此本篇博客只分析 BroadcastReceiver 动态注册流程

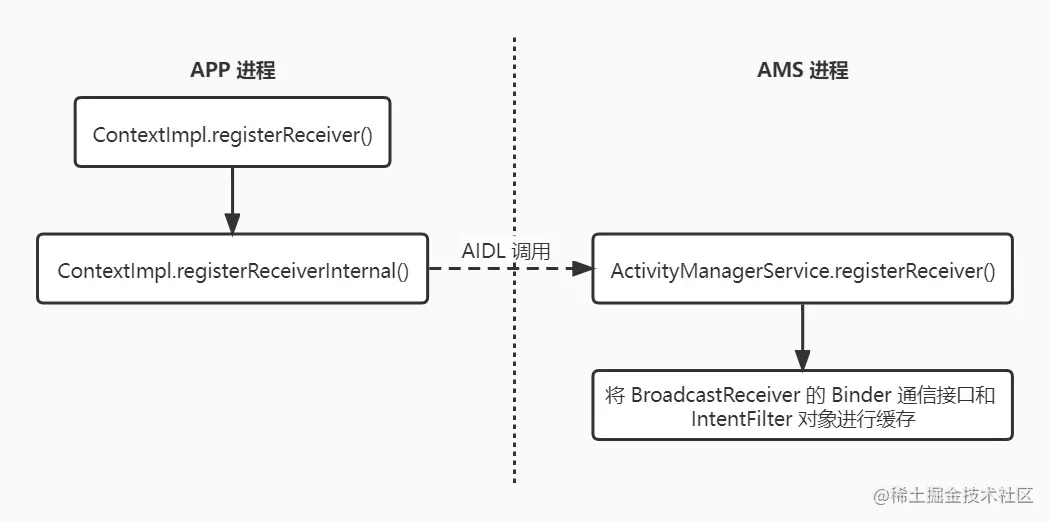

总体流程如下图：

流程其实很简单，就是将 BroadcastReciver 的相关信息保存到 AMS 中就完成动态注册了

Broadcast 发送整体流程

Broadcast 有几种类型：无序广播、有序广播和粘性广播，三者相比各自具有不同的特性，但它们的发送流程是类似的

为了方便理清整体流程，因此本篇博客只分析最简单的无序广播的发送流程

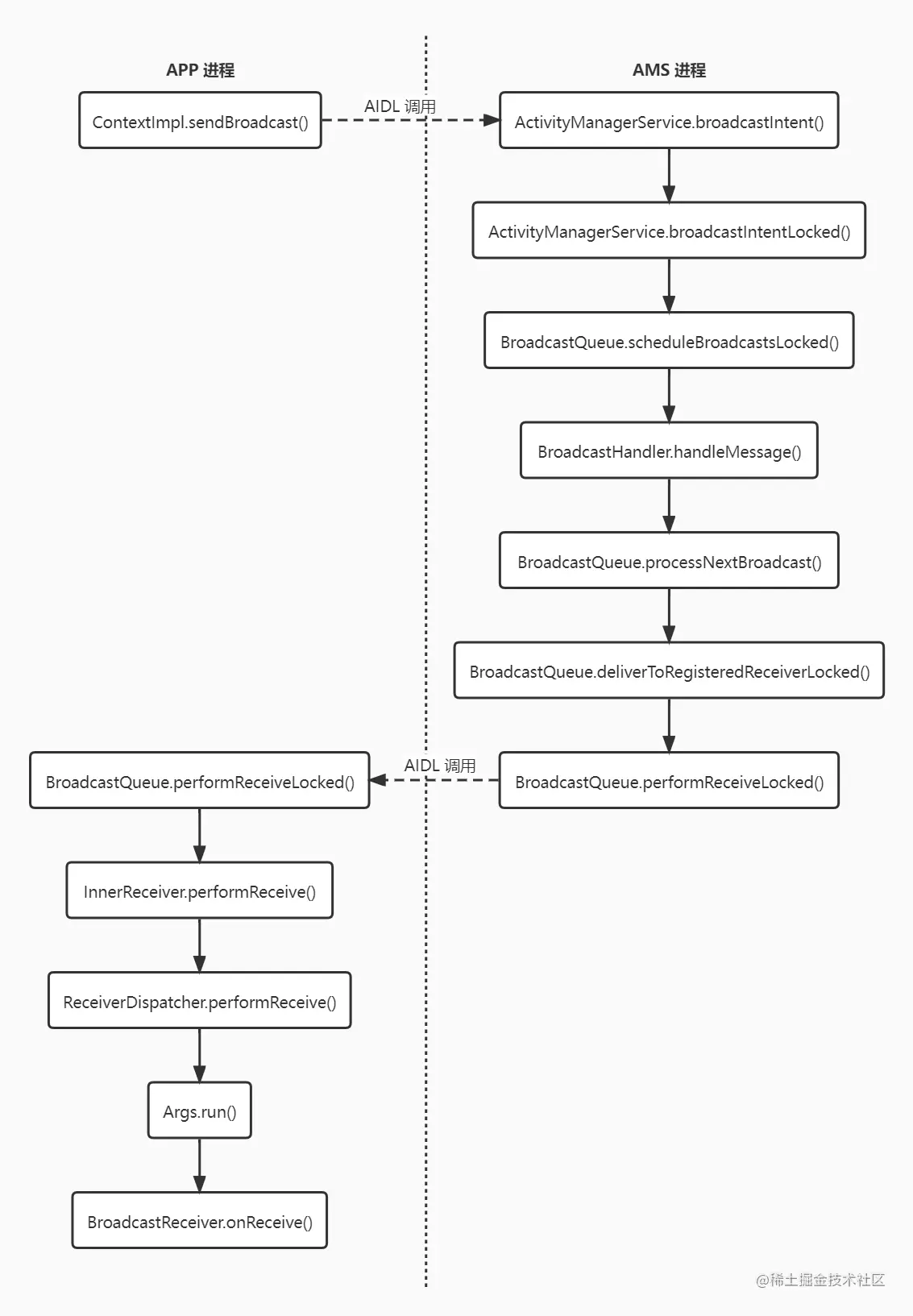

总体流程如下图：

这里我默认 BroadcastReciver 是通过动态注册的，因此 BroadcastReciver 运行在 UI 主线程中 (动态注册的 BroadcastReciver 都是运行在 UI 主线程中)

Broadcast 的发送主要由 AMS 管理，AMS 会将所要发送的 Broadcast 信息与所有已注册的 BroadcastReciver 信息 (权限 + IntentFilter) 进行比对，将广播发送给满足条件的 BroadcastReciver

由于 BroadcastReciver 运行在其他进程中，AMS 需要 AIDL 调用 BroadcastReciver 运行所在进程，传递 intent 等信息，并最终调用 BroadcastReceiver 的 onReceive() 函数

源码

BroadcastReceiver 注册流程

ContextImpl.registerReceiver()

// frameworks/base/core/java/android/app/ContextImpl.java
public Intent registerReceiver(BroadcastReceiver receiver, IntentFilter filter)
{
    return registerReceiver(receiver, filter, null, null);
}

public Intent registerReceiver(BroadcastReceiver receiver, IntentFilter filter,
            String broadcastPermission, Handler scheduler
){
    return registerReceiverInternal(receiver, getUserId(),
            filter, broadcastPermission, scheduler, getOuterContext());
}

private Intent registerReceiverInternal(BroadcastReceiver receiver, int userId,
            IntentFilter filter, String broadcastPermission,
            Handler scheduler, // scheduler = null
            Context context
){
    IIntentReceiver rd = null;
    // if 命中
    if (receiver != null)
    {
        // APK 包信息不为空 且 上下文也不为空，if 命中
        if (mPackageInfo != null && context != null)
        {
            if (scheduler == null)
            {
                scheduler = mMainThread.getHandler();
            }
            // 调用 LoadedApk 的 getReceiverDispatcher 函数，
            // 从 mReceivers 缓存中获取 BroadcastReceiver 的 Binder 通信接口
            rd = mPackageInfo.getReceiverDispatcher(
                    receiver, context, scheduler,
                    mMainThread.getInstrumentation(), true);
        }
        else
        {
            ......
        }
    }

    // AIDL 调用 ActivityManagerService 的 registerReceiver 函数
    return ActivityManagerNative.getDefault().registerReceiver(
                mMainThread.getApplicationThread(), mBasePackageName,
                rd, filter, broadcastPermission, userId);
}

所有可用 (已注册的) 的 BroadcastReceiver 信息都保存在 mReceivers 缓存中

mReceivers 是一个 ArrayMap，以 Context 为 key，以 ReceiverDispatcher 为 value

可以把 ReceiverDispatcher 理解为是一个对于 BroadcastReceiver 及其 Binder 通信接口的封装类

ActivityManagerService.registerReceiver()

// frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
public Intent registerReceiver(IApplicationThread caller, String callerPackage,
            IIntentReceiver receiver, IntentFilter filter,
			String permission, int userId
){
    ......

    synchronized (this)
    {
        ......

        // 判断该 BroadcastReceiver 是否已经注册
        ReceiverList rl = mRegisteredReceivers.get(receiver.asBinder());
        // rl = null，表示该 BroadcastReceiver 还没有注册
        if (rl == null)
        {
            rl = new ReceiverList(this, callerApp, callingPid, callingUid,
                        userId, receiver);

            ......

            // 将该 BroadcastReceiver 的 Binder 通信接口缓存
            mRegisteredReceivers.put(receiver.asBinder(), rl);
        }

        ......

        // 创建该 BroadcastReceiver 的 IntentFilter 对象
        BroadcastFilter bf = new BroadcastFilter(filter, rl, callerPackage,
                    permission, callingUid, userId);
        rl.add(bf);

        // 将该 IntentFilter 对象缓存
        mReceiverResolver.addFilter(bf);

        ......
    }
}

Broadcast 发送流程

ContextImpl.sendBroadcast()

// frameworks/base/core/java/android/app/ContextImpl.java
public void sendBroadcast(Intent intent)
{
    ......

    // AIDL 调用 ActivityManagerService 的 broadcastIntent 函数
    ActivityManagerNative.getDefault().broadcastIntent(
                mMainThread.getApplicationThread(), intent, resolvedType, null,
                Activity.RESULT_OK, null, null, null, AppOpsManager.OP_NONE, null,
        	false, false, getUserId());

    ......
}

ActivityManagerService.broadcastIntent()

// frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
public final int broadcastIntent(IApplicationThread caller,
            Intent intent, String resolvedType, IIntentReceiver resultTo,
            int resultCode, String resultData, Bundle resultExtras,
            String[] requiredPermissions, int appOp, Bundle options,
            boolean serialized, boolean sticky, int userId
){
    synchronized(this)
    {
        // 验证 intent 是否合法
        intent = verifyBroadcastLocked(intent);

        ......

        int res = broadcastIntentLocked(callerApp,
                    callerApp != null ? callerApp.info.packageName : null,
                    intent, resolvedType, resultTo, resultCode, resultData, resultExtras,
                    requiredPermissions, appOp, null, serialized, sticky,
                    callingPid, callingUid, userId);

        ......

        return res;
    }
}

ActivityManagerService.verifyBroadcastLocked()

// frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
final Intent verifyBroadcastLocked(Intent intent)
{
    // 如果 intent 含有文件描述符，则抛出异常，防止出现泄漏
    if (intent != null && intent.hasFileDescriptors() == true)
    {
        throw new IllegalArgumentException("File descriptors passed in Intent");
    }

    int flags = intent.getFlags();

    // 如果 APP 进程正在启动中
    if (!mProcessesReady)
    {
        // 如果 flag 设置了 FLAG_RECEIVER_REGISTERED_ONLY_BEFORE_BOOT
        // (APP 启动检查时只接受动态注册的 BroadcastReceiver)
        if ((flags&Intent.FLAG_RECEIVER_REGISTERED_ONLY_BEFORE_BOOT) != 0)
        {

        }
        // 如果 flag 没有设置 FLAG_RECEIVER_REGISTERED_ONLY，则抛出异常
        // (只接受动态注册的 BroadcastReceiver)
        else if ((flags&Intent.FLAG_RECEIVER_REGISTERED_ONLY) == 0)
        {
            throw new IllegalStateException("Cannot broadcast before boot completed");
        }
    }

    if ((flags&Intent.FLAG_RECEIVER_BOOT_UPGRADE) != 0)
    {
        throw new IllegalArgumentException("Can't use FLAG_RECEIVER_BOOT_UPGRADE here");
    }

    return intent;
}

ActivityManagerService.broadcastIntentLocked()

// frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
private final int broadcastIntentLocked(ProcessRecord callerApp,
            String callerPackage, Intent intent, String resolvedType,
            IIntentReceiver resultTo, int resultCode, String resultData,
            Bundle resultExtras, String[] requiredPermissions, int appOp,
            Bundle options, boolean ordered, boolean sticky, int callingPid,
            int callingUid, int userId
){
    intent = new Intent(intent);

    // 添加 FLAG_EXCLUDE_STOPPED_PACKAGES 标志 (广播不会发送给已经停止的 APP 应用)
    intent.addFlags(Intent.FLAG_EXCLUDE_STOPPED_PACKAGES);

    // 将动态注册的 BroadcastReceiver 和静态注册的 BroadcastReceiver
    // 按照优先级高低缓存在不同的集合中，再将这两个集合合并到 receivers 集合中
    // 其中的代码细节与主流程无关，有兴趣可以自行了解
    ......

    // receivers 集合包含所有已注册的 BroadcastReceiver，if 命中
    if ((receivers != null && receivers.size() > 0) || resultTo != null)
    {
        // 获取 BroadcastQueue
        BroadcastQueue queue = broadcastQueueForIntent(intent);
        // 创建 BroadcastRecord 并传入 receivers 进行记录
        BroadcastRecord r = new BroadcastRecord(queue, intent, callerApp,
                    callerPackage, callingPid, callingUid, resolvedType,
                    requiredPermissions, appOp, brOptions, receivers, resultTo, resultCode,
                    resultData, resultExtras, ordered, sticky, false, userId);

        ......

        queue.scheduleBroadcastsLocked();
    }

    return ActivityManager.BROADCAST_SUCCESS;
}

BroadcastQueue.scheduleBroadcastsLocked()

// frameworks/base/services/core/java/com/android/server/am/BroadcastQueue.java
public void scheduleBroadcastsLocked()
{
    ......

    // 发送消息 (BROADCAST_INTENT_MSG) 给 BroadcastQueue 中的内部类 BroadcastHandler (Handler)
    // 从 Binder 线程切换到主线程执行
    mHandler.sendMessage(mHandler.obtainMessage(BROADCAST_INTENT_MSG, this));
    mBroadcastsScheduled = true;

    ......
}

BroadcastHandler.handleMessage()

// frameworks/base/services/core/java/com/android/server/am/BroadcastQueue$BroadcastHandler.java
public void handleMessage(Message msg)
{
    switch (msg.what)
    {
        case BROADCAST_INTENT_MSG: {
            ......
            processNextBroadcast(true);
        } break;

        ......
    }
}

BroadcastQueue.processNextBroadcast()

// frameworks/base/services/core/java/com/android/server/am/BroadcastQueue.java
final void processNextBroadcast(boolean fromMsg)
{
    synchronized(mService)
    {
        BroadcastRecord r;

        ......

        // fromMsg = true，if 命中
        if (fromMsg)
        {
            // 由于 BroadcastHandler 使用的是主线程传递消息，消息可能会延迟
            // mBroadcastsScheduled 用于表示 BROADCAST_INTENT_MSG 已被处理
            mBroadcastsScheduled = false;
        }

        // mParallelBroadcasts 集合用于存储无序广播，遍历 mParallelBroadcasts
        while (mParallelBroadcasts.size() > 0)
        {
            // 取出 mParallelBroadcasts 集合中的首部
            r = mParallelBroadcasts.remove(0);
            r.dispatchTime = SystemClock.uptimeMillis();
            r.dispatchClockTime = System.currentTimeMillis();

            // 遍历所有已注册的 BroadcastReceiver
            final int N = r.receivers.size();
            for (int i=0; i<N; i++)
            {
                // 获取 BroadcastReceiver
                Object target = r.receivers.get(i);
                // 将无序广播发送给 BroadcastReceiver
                deliverToRegisteredReceiverLocked(r, (BroadcastFilter)target, false);
            }

            ......
        }

        // 将有序广播发送给对应的 BroadcastReceiver
    	// 其中的代码细节与本次流程无关，有兴趣可以自行了解
        ......
    }
}

BroadcastQueue.deliverToRegisteredReceiverLocked()

// frameworks/base/services/core/java/com/android/server/am/BroadcastQueue.java
private void deliverToRegisteredReceiverLocked(BroadcastRecord r,
            BroadcastFilter filter, boolean ordered
){
    boolean skip = false;

    // 检查该 BroadcastReceiver 是否拥有权限
    // 其中的代码细节与主流程无关，有兴趣可以自行了解
    ......

    // 如果该 BroadcastReceiver 拥有权限，则 skip = false
    if (!skip)
    {
        ......

        performReceiveLocked(filter.receiverList.app, filter.receiverList.receiver,
                    new Intent(r.intent), r.resultCode, r.resultData,
                    r.resultExtras, r.ordered, r.initialSticky, r.userId);

        ......
    }
}

BroadcastQueue.performReceiveLocked()

// frameworks/base/services/core/java/com/android/server/am/BroadcastQueue.java
private static void performReceiveLocked(ProcessRecord app, IIntentReceiver receiver,
            Intent intent, int resultCode, String data, Bundle extras,
            boolean ordered, boolean sticky, int sendingUser
){
    // 如果 app 不为空，表示该 BroadcastReceiver 运行所在进程存在
    if (app != null)
    {
        // 如果 app.thread 不为空，表示该 BroadcastReceiver 运行所在进程正在运行中
        if (app.thread != null)
        {
            // AIDL 调用该 BroadcastReceiver 运行所在进程
            // ApplicationThread 的 scheduleRegisteredReceiver 函数
            app.thread.scheduleRegisteredReceiver(receiver, intent, resultCode,
                        data, extras, ordered, sticky, sendingUser, app.repProcState);
        }
        else // 如果该 BroadcastReceiver 运行所在进程未启动 / 该 BroadcastReceiver 不存在，
             // 则抛出异常
        {
            throw new RemoteException("app.thread must not be null");
        }
    }
    else
    {
        ......
    }
}

ApplicationThread.scheduleRegisteredReceiver()

// frameworks/base/core/java/android/app/ActivityThread.java
public void scheduleRegisteredReceiver(IIntentReceiver receiver, Intent intent,
		int resultCode, String dataStr, Bundle extras, boolean ordered,
		boolean sticky, int sendingUser, int processState
){
    updateProcessState(processState, false);
    // 调用该 BroadcastReceiver 的 Binder 通信接口的 performReceive 函数
    receiver.performReceive(intent, resultCode, dataStr, extras, ordered,
                sticky, sendingUser);
}

InnerReceiver.performReceive()

// frameworks/base/core/java/android/app/LoadedApk$ReceiverDispatcher$InnerReceiver.java
public void performReceive(Intent intent, int resultCode, String data,
		Bundle extras, boolean ordered, boolean sticky, int sendingUser
){
    // 获取 ReceiverDispatcher (弱引用，防止内存泄漏)
    LoadedApk.ReceiverDispatcher rd = mDispatcher.get();

    ......

    if (rd != null)
    {
        rd.performReceive(intent, resultCode, data, extras,
                    ordered, sticky, sendingUser);
    }

    ......
}

ReceiverDispatcher.performReceive()

// frameworks/base/core/java/android/app/LoadedApk$ReceiverDispatcher.java
public void performReceive(Intent intent, int resultCode, String data,
		Bundle extras, boolean ordered, boolean sticky, int sendingUser
){
    ......

    // 将广播的 intent 等相关信息封装为 Args (本质上是 Runnable)
    Args args = new Args(intent, resultCode, data, extras, ordered,
                sticky, sendingUser);
    // 发送消息给 ActivityThread 中的内部类 H (Handler)
    if (!mActivityThread.post(args))
    {
        ......
    }
}

Args.run()

// frameworks/base/core/java/android/app/LoadedApk$ReceiverDispatcher$Args.java
public void run()
{
    ......

    // 通过反射创建该 BroadcastReceiver
    ClassLoader cl =  mReceiver.getClass().getClassLoader();
    intent.setExtrasClassLoader(cl);
    setExtrasClassLoader(cl);
    receiver.setPendingResult(this);
    // 回调该 BroadcastReceiver 的 onReceive 函数，传入 intent
    receiver.onReceive(mContext, intent);

    ......
}

总结

本篇文章分析了 BroadcastReceiver 的注册流程和 Broadcast 的发送流程，将其中对于我们开发者而言比较有意义的部分代码进行了分析

由于 BroadcastReceiver 分为静态注册和动态注册，Broadcast 又分为无序广播、有序广播和粘性广播等多种类型，需要多情况讨论，一篇博客显然是无法将其全部分析完的

希望读者能够参照本篇文章尝试自己去阅读源码，加深理解
