前言
- 在项目开发过程中，总会有和外部三方接口进行交互的场景。一般而言，这类接口通常都是用http请求访问。
- 调用http请求一般可以使用HttpClient和OkHttp发送请求。
- 本篇文章描述一下HttpClient使用过程中的一些需要注意的情况。
HttpClient请求示例
- 首先通过idea创建一个简易的springboot项目，并引入httpclient的maven配置
<dependency>
<groupId>org.apache.httpcomponents</groupId>
<artifactId>httpclient</artifactId>
<version>4.5.6</version>
</dependency>
- 构建一个简易的HttpClient使用工具类，配置超时时间都是3000毫秒，连接池最大200个，里面有一个发送get请求的方法。
/**
* http请求工具类
*
* @author zrh
*/
@Slf4j
public final class HttpClientUtil {
private HttpClientUtil () {
}
/**
* 超时时间配置，单位(毫秒)
*/
private static final int SOCKET_TIMEOUT = 3000;
private static RequestConfig requestConfig;
private static CloseableHttpClient httpClient;
static {
PoolingHttpClientConnectionManager cm = new PoolingHttpClientConnectionManager();
cm.setMaxTotal(200);
cm.setDefaultMaxPerRoute(100);
requestConfig = RequestConfig.custom()
.setConnectionRequestTimeout(SOCKET_TIMEOUT)
.setConnectTimeout(SOCKET_TIMEOUT)
.setSocketTimeout(SOCKET_TIMEOUT)
.build();
httpClient = HttpClients.custom()
.setConnectionManager(cm)
.setConnectionManagerShared(true)
.build();
}
public static String httpGetRequest (String url) {
long start = System.currentTimeMillis();
HttpGet httpGet = new HttpGet(url);
try {
// 设置超时配置
httpGet.setConfig(requestConfig);
// 执行请求
CloseableHttpResponse response = httpClient.execute(httpGet);
log.info("HttpRequest请求 耗时：{}", (System.currentTimeMillis() - start));
// 获取请求结果
HttpEntity entity = response.getEntity();
if (entity != null) {
String result = EntityUtils.toString(entity);
response.close();
return result;
}
} catch (IOException e) {
log.info("HttpRequest请求耗时：{}，异常：{}", (System.currentTimeMillis() - start), e.getMessage());
e.printStackTrace();
}
return null;
}
}
- 项目配置文件里端口设置8801，然后开一个对外接口，并写个main方法进行http访问接口。
/**
* @Author: ZRH
* @Date: 2022/1/24 15:00
*/
@Slf4j
@RestController
public class HttpClientController {
@GetMapping("/httpClient/test")
public String test () throws InterruptedException {
log.info("接口请求进来成功");
return "ok";
}
public static void main (String[] args) {
String url = "http://localhost:8801/httpClient/test";
String result = HttpClientUtil.httpGetRequest(url);
System.out.println("请求结果：" + result);
}
}

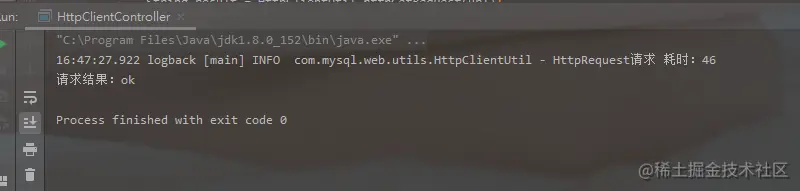

- springboot项目启动后，执行当前main方法，结果如下图:
请求发生异常不走重试
- HttpClient是默认开启重试配置的，配置的源码在HttpClientBuilder.build()方法里：
public CloseableHttpClient build() {
// Create main request executor
// We copy the instance fields to avoid changing them, and rename to avoid accidental use of the wrong version
......
// Add request retry executor, if not disabled
if (!automaticRetriesDisabled) {
HttpRequestRetryHandler retryHandlerCopy = this.retryHandler;
if (retryHandlerCopy == null) {
retryHandlerCopy = DefaultHttpRequestRetryHandler.INSTANCE;
}
execChain = new RetryExec(execChain, retryHandlerCopy);
}
......
}
- 通过DefaultHttpRequestRetryHandler.INSTANCE默认配置可以进入DefaultHttpRequestRetryHandler类。
- DefaultHttpRequestRetryHandler实现了HttpRequestRetryHandler接口，里面有一个retryRequest(IOException exception, int executionCount, HttpContext context)方法。retryRequest方法主要执行重试逻辑，三个参数分表是发生的异常，重试的次数，当前请求链路的上下文。
- 这里既然默认开启重试机制，那把服务端接口进行阻塞睡眠几秒，看客户端是否会进行重试呢。。。
@GetMapping("/httpClient/test")
public String test () throws InterruptedException {
log.info("接口请求进来成功");
Thread.sleep(4000);
return "ok";
}
------------运行main方法，执行结果如下：
17:07:59.229 logback [main] INFO com.mysql.web.utils.HttpClientUtil - HttpRequest请求耗时：3040，异常：Read timed out
请求结果：null
java.net.SocketTimeoutException: Read timed out
at java.net.SocketInputStream.socketRead0(Native Method)
at java.net.SocketInputStream.socketRead(SocketInputStream.java:116)
at java.net.SocketInputStream.read(SocketInputStream.java:171)
at java.net.SocketInputStream.read(SocketInputStream.java:141)
at org.apache.http.impl.io.SessionInputBufferImpl.streamRead(SessionInputBufferImpl.java:137)
at org.apache.http.impl.io.SessionInputBufferImpl.fillBuffer(SessionInputBufferImpl.java:153)
at org.apache.http.impl.io.SessionInputBufferImpl.readLine(SessionInputBufferImpl.java:280)
at org.apache.http.impl.conn.DefaultHttpResponseParser.parseHead(DefaultHttpResponseParser.java:138)
at org.apache.http.impl.conn.DefaultHttpResponseParser.parseHead(DefaultHttpResponseParser.java:56)
at org.apache.http.impl.io.AbstractMessageParser.parse(AbstractMessageParser.java:259)
at org.apache.http.impl.DefaultBHttpClientConnection.receiveResponseHeader(DefaultBHttpClientConnection.java:163)
at org.apache.http.impl.conn.CPoolProxy.receiveResponseHeader(CPoolProxy.java:165)
at org.apache.http.protocol.HttpRequestExecutor.doReceiveResponse(HttpRequestExecutor.java:273)
at org.apache.http.protocol.HttpRequestExecutor.execute(HttpRequestExecutor.java:125)
at org.apache.http.impl.execchain.MainClientExec.execute(MainClientExec.java:272)
at org.apache.http.impl.execchain.ProtocolExec.execute(ProtocolExec.java:185)
at org.apache.http.impl.execchain.RetryExec.execute(RetryExec.java:89)
at org.apache.http.impl.execchain.RedirectExec.execute(RedirectExec.java:110)
at org.apache.http.impl.client.InternalHttpClient.doExecute(InternalHttpClient.java:185)
at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83)
at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:108)
at com.mysql.web.utils.HttpClientUtil.httpGetRequest(HttpClientUtil.java:75)
at com.mysql.web.controller.HttpClientController.main(HttpClientController.java:41)
- 可以看到这里直接抛出了一个读取链接超时异常：java.net.SocketTimeoutException: Read timed out。并没有走重试流程。
- 源码之下没有秘密，既然这和我们想象中的结果不一样，那就深入源码看看其执行流程是如何的。。。
- 首先是判断重试次数有没有超过3次，如果有就不再重试，否则继续往下走，
- 再判断本次发生的异常是否在this.nonRetriableClasses对象里面，this.nonRetriableClasses是一个set集合，通过名称可知道这是一个不可重试类集合，
- 再判断异常是否具有集合this.nonRetriableClasses里的子类实例，
- 再后面流程就和节点无关，按下不表。
/**
* Used {@code retryCount} and {@code requestSentRetryEnabled} to determine
* if the given method should be retried.
*/
@Override
public boolean retryRequest(
final IOException exception,
final int executionCount,
final HttpContext context) {
Args.notNull(exception, "Exception parameter");
Args.notNull(context, "HTTP context");
if (executionCount > this.retryCount) {
// Do not retry if over max retry count
return false;
}
if (this.nonRetriableClasses.contains(exception.getClass())) {
return false;
} else {
for (final Class<? extends IOException> rejectException : this.nonRetriableClasses) {
if (rejectException.isInstance(exception)) {
return false;
}
}
}
final HttpClientContext clientContext = HttpClientContext.adapt(context);
final HttpRequest request = clientContext.getRequest();
if(requestIsAborted(request)){
return false;
}
if (handleAsIdempotent(request)) {
// Retry if the request is considered idempotent
return true;
}
if (!clientContext.isRequestSent() || this.requestSentRetryEnabled) {
// Retry if the request has not been sent fully or
// if it's OK to retry methods that have been sent
return true;
}
// otherwise do not retry
return false;
}
- 了解上述重试流程后，通过debug可知走到rejectException.isInstance(exception)判断里最后返回了false，最后就没有走重试
- this.nonRetriableClasses集合有4个不同的异常类，通过DefaultHttpRequestRetryHandler构造函数可知。
- 所以当http请求抛出异常属于下列四种异常时，就不会走重试，而之前测试示例中异常SocketTimeoutException属于InterruptedIOException异常，所以最后没有走重试机制。
- 注：当前构造函数里的参数retryCount为默认重试次数3次
/**
* Create the request retry handler using the following list of
* non-retriable IOException classes: <br>
* <ul>
* <li>InterruptedIOException</li>
* <li>UnknownHostException</li>
* <li>ConnectException</li>
* <li>SSLException</li>
* </ul>
* @param retryCount how many times to retry; 0 means no retries
* @param requestSentRetryEnabled true if it's OK to retry non-idempotent requests that have been sent
*/
@SuppressWarnings("unchecked")
public DefaultHttpRequestRetryHandler(final int retryCount, final boolean requestSentRetryEnabled) {
this(retryCount, requestSentRetryEnabled, Arrays.asList(
InterruptedIOException.class,
UnknownHostException.class,
ConnectException.class,
SSLException.class));
}
- 如果想要走重试机制，那可以自定义实现HttpRequestRetryHandler接口，重写其中retryRequest方法的逻辑。只需在httpclient工具类中新增以下配置即可：
httpClient = HttpClients.custom()
.setConnectionManager(cm)
.setConnectionManagerShared(true)
.setRetryHandler(new HttpRequestRetryHandler() {
@Override
public boolean retryRequest (IOException exception, int executionCount, HttpContext context) {
if (executionCount > 3) {
// Do not retry if over max retry count
return false;
}
// 允许进行重试的异常
if (exception instanceof SocketTimeoutException) {
return true;
}
// otherwise do not retry
return false;
}
})
.build();
- 最后再次只需main方法，其运行结果如下：
-----------------------客户端打印：
17:31:39.097 logback [main] INFO o.a.http.impl.execchain.RetryExec - I/O exception (java.net.SocketTimeoutException) caught when processing request to {}->http://localhost:8801: Read timed out
17:31:39.100 logback [main] INFO o.a.http.impl.execchain.RetryExec - Retrying request to {}->http://localhost:8801
17:31:42.103 logback [main] INFO o.a.http.impl.execchain.RetryExec - I/O exception (java.net.SocketTimeoutException) caught when processing request to {}->http://localhost:8801: Read timed out
17:31:42.103 logback [main] INFO o.a.http.impl.execchain.RetryExec - Retrying request to {}->http://localhost:8801
17:31:45.106 logback [main] INFO o.a.http.impl.execchain.RetryExec - I/O exception (java.net.SocketTimeoutException) caught when processing request to {}->http://localhost:8801: Read timed out
17:31:45.106 logback [main] INFO o.a.http.impl.execchain.RetryExec - Retrying request to {}->http://localhost:8801
17:31:48.108 logback [main] INFO com.mysql.web.utils.HttpClientUtil - HttpRequest请求耗时：12063，异常：Read timed out
请求结果：null
java.net.SocketTimeoutException: Read timed out
......
----------------------服务端打印：
17:31:36.143 logback [XNIO-1 task-1] INFO c.m.w.c.HttpClientController - 接口请求进来成功
17:31:39.102 logback [XNIO-1 task-2] INFO c.m.w.c.HttpClientController - 接口请求进来成功
17:31:42.107 logback [XNIO-1 task-1] INFO c.m.w.c.HttpClientController - 接口请求进来成功
17:31:45.107 logback [XNIO-1 task-2] INFO c.m.w.c.HttpClientController - 接口请求进来成功
- 所以最后执行了重试机制，而且通过结果可以知道一共重试了3次http请求，然后在加上最初的请求，所以最后其实一共发送了4次http请求。
socketTimeout作用域
- 上述示例中对httpClient工具类中增加了一下链接超时配置：
- connectionRequestTimeout：从本地连接池中获取连接超时配置。
- connectTimeout：连接服务器socket超时配置。
- socketTimeout：读取服务器socket数据包超时配置。
- 其中socketTimeout配置表示当前客户端已经连接到服务端socket连接，但是读取数据超时，比如服务端发生超时阻塞等等。
- 但是这里socketTimeout仅代表数据包传输读取时间，如果一个http请求响应分为多个数据包回传，然后每个数据包都没有达到socketTimeout超时配置，但总的数据包传输时间超过socketTimeout配置，那也不会报超时异常。
- 举个例子，httpclient还是之前3000毫秒配置，然后新增下列方法，方法中每隔2秒往HttpServletResponse对象里写入一个数据，最后打印耗时时间：
@GetMapping("/httpClient/test/string")
public void string (HttpServletResponse response) throws InterruptedException, IOException {
final long start = System.currentTimeMillis();
log.info("接口请求进来成功");
String[] arr = new String[]{"a", "b", "c", "d"};
for (int i = 0; i < 4; i++) {
response.setStatus(HttpServletResponse.SC_OK);
response.getWriter().println(arr[i]);
response.flushBuffer();
Thread.sleep(2000);
}
log.info("接口总耗时：{}", (System.currentTimeMillis() - start));
}
public static void main (String[] args) {
final long start = System.currentTimeMillis();
String regUrl = "http://localhost:8801/httpClient/test/string";
String respStr = HttpClientUtil.httpGetRequest(regUrl);
System.out.println("请求耗时：" + (System.currentTimeMillis() - start));
System.out.println(respStr);
}
---------------------运行main方法，服务端打印：
17:49:24.928 logback [XNIO-1 task-2] INFO c.m.w.c.HttpClientController - 接口总耗时：8007
---------------------客户端打印：
17:57:24.022 logback [main] INFO com.mysql.web.utils.HttpClientUtil - HttpRequest请求 耗时：48
请求耗时：8436
a
b
c
d
- 服务端总耗时执行了8秒左右，但客户端也没有报异常：java.net.SocketTimeoutException: Read timed out
最后
- 上述的问题很明显其实不是HttpClient的bug，其设计理念和思路是符合大部分场景。
- 只有当使用者不清楚其实现机制原理，在项目中使用不当时就有可能会写出bug代码。
- 虚心学习，共同进步 -_-
