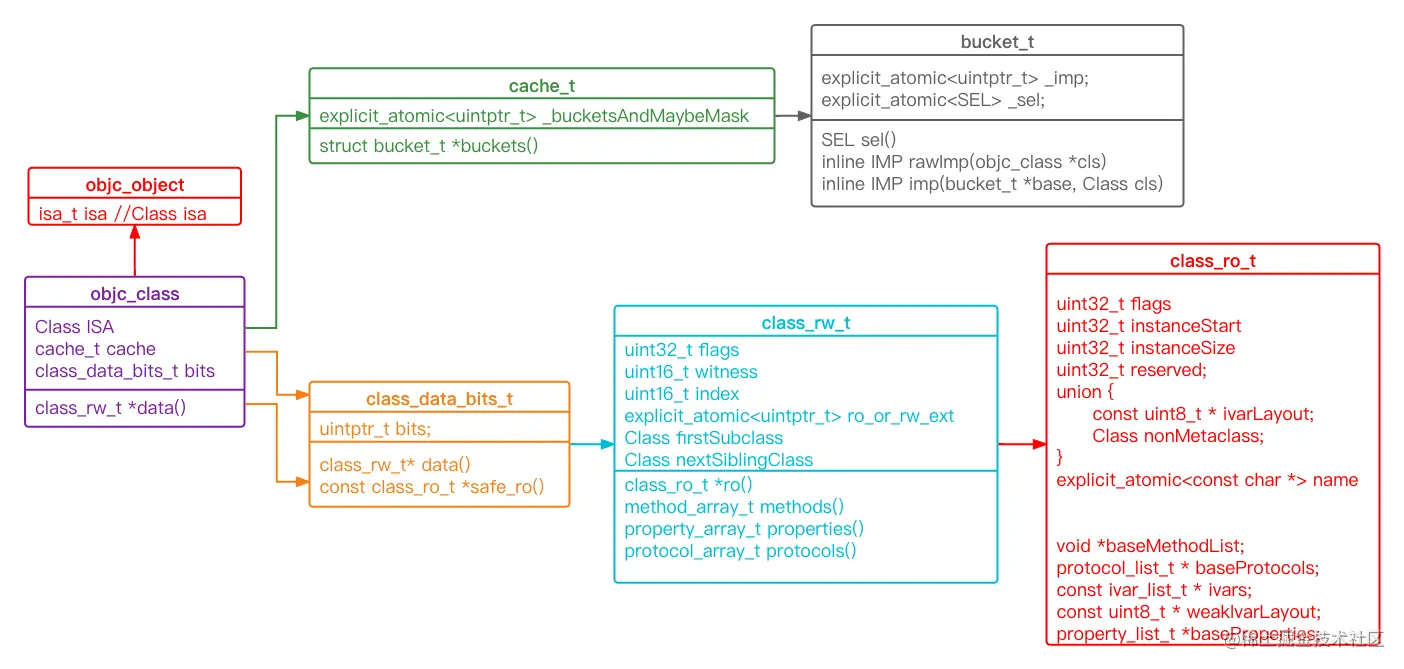

1. 整体结构
2. 知识点
1）. 成员变量存放在哪
- 成员变量（1. 在 { } 中定义的变量，不论是 .h 还是 .m中；2. 属性生成的），可以通过
class -> bits -> data() -> ro() -> ivars获取
2）. 属性存放在哪
- 属性（使用
@property定义的），可以通过class -> bits -> data() -> properties() -> list获取属性列表，只包含属性，不包含成员变量
3）. 类的实例方法存放在哪
- 类的实例方法可以通过
class -> bits -> data() -> methods() -> list获取方法列表，除了实例方法和属性的get和set方法之外，还有一个c++ 的.cxx_destruct方法
4）. 类的类方法存放在哪
- 类的类方法，需要通过
isa找到metaClass，然后通过metaClass -> bits -> data() -> methods()获取
5）. 类的协议存放在哪
- 类的协议可以通过
class -> bits -> data() -> protocols() -> list获取协议列表
3. 结构分析
1）. Class - objc_object - id
objc.h定义，从#if !OBJC_TYPES_DEFINED可以看出，使用的不是这个
#if !OBJC_TYPES_DEFINED
/// An opaque type that represents an Objective-C class.
typedef struct objc_class *Class;
/// Represents an instance of a class.
struct objc_object {
Class _Nonnull isa OBJC_ISA_AVAILABILITY;
};
/// A pointer to an instance of a class.
typedef struct objc_object *id;
#endif
objc-private.h定义，实际上使用的是这个
struct objc_object {
private:
isa_t isa;
public:
// ISA() assumes this is NOT a tagged pointer object
Class ISA(bool authenticated = false);
// rawISA() assumes this is NOT a tagged pointer object or a non pointer ISA
Class rawISA();
// getIsa() allows this to be a tagged pointer object
Class getIsa();
uintptr_t isaBits() const;
// initIsa() should be used to init the isa of new objects only.
// If this object already has an isa, use changeIsa() for correctness.
// initInstanceIsa(): objects with no custom RR/AWZ
// initClassIsa(): class objects
// initProtocolIsa(): protocol objects
// initIsa(): other objects
void initIsa(Class cls /*nonpointer=false*/);
void initClassIsa(Class cls /*nonpointer=maybe*/);
void initProtocolIsa(Class cls /*nonpointer=maybe*/);
void initInstanceIsa(Class cls, bool hasCxxDtor);
}
2）. NSObject
@interface NSObject <NSObject> {
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wobjc-interface-ivars"
Class isa OBJC_ISA_AVAILABILITY;
#pragma clang diagnostic pop
}
3）. isa_t
union每次只使用其中一个成员，所以可以将isa_t转成Class类型，bits & ISA_MASK
#define ISA_MASK 0x0000000ffffffff8ULL
union isa_t {
isa_t() { }
isa_t(uintptr_t value) : bits(value) { }
uintptr_t bits;
private:
// Accessing the class requires custom ptrauth operations, so
// force clients to go through setClass/getClass by making this
// private.
Class cls;
public:
#if defined(ISA_BITFIELD)
struct {
ISA_BITFIELD; // defined in isa.h
};
从定义可以看出
NSObject与objc_object结构是一致的，编译器会把NSObject转化成objc_object- 同理，继承字NSObject的
类也会转化成objc_class id本身就是指针，所以id不需要带*- 同理，
Class也不需要
4）. objc_class
struct objc_class : objc_object {
// Class ISA; //继承了一个ISA
Class superclass;
cache_t cache;//缓存 // formerly cache pointer and vtable
class_data_bits_t bits;// 存放数据 // class_rw_t * plus custom rr/alloc flags
class_rw_t *data() const { //获取数据的方法
return bits.data();
}
}
5）. cache_t
struct cache_t {
private:
//显示原子性，保证增删改查线程安全
explicit_atomic<uintptr_t> _bucketsAndMaybeMask; //8
union {
struct {
explicit_atomic<mask_t> _maybeMask; //4
#if __LP64__
uint16_t _flags; //2
#endif
uint16_t _occupied; //2
};
explicit_atomic<preopt_cache_t *> _originalPreoptCache;
};
}
6）. class_data_bits_t
// data pointer
#define FAST_DATA_MASK 0x00007ffffffffff8UL
struct class_data_bits_t {
friend objc_class;
// Values are the FAST_ flags above.
uintptr_t bits;
public:
class_rw_t* data() const {
return (class_rw_t *)(bits & FAST_DATA_MASK);
}
// Get the class's ro data, even in the presence of concurrent realization.
// fixme this isn't really safe without a compiler barrier at least
// and probably a memory barrier when realizeClass changes the data field
const class_ro_t *safe_ro() const {
class_rw_t *maybe_rw = data();
if (maybe_rw->flags & RW_REALIZED) {
// maybe_rw is rw
return maybe_rw->ro();
} else {
// maybe_rw is actually ro
return (class_ro_t *)maybe_rw;
}
}
}
7）. class_rw_t
struct class_rw_t {
// Be warned that Symbolication knows the layout of this structure.
uint32_t flags;
uint16_t witness;
#if SUPPORT_INDEXED_ISA
uint16_t index;
#endif
explicit_atomic<uintptr_t> ro_or_rw_ext;
Class firstSubclass;
Class nextSiblingClass;
public:
class_rw_ext_t *ext() const {
return get_ro_or_rwe().dyn_cast<class_rw_ext_t *>(&ro_or_rw_ext);
}
class_rw_ext_t *extAllocIfNeeded() {
auto v = get_ro_or_rwe();
if (fastpath(v.is<class_rw_ext_t *>())) {
return v.get<class_rw_ext_t *>(&ro_or_rw_ext);
} else {
return extAlloc(v.get<const class_ro_t *>(&ro_or_rw_ext));
}
}
const class_ro_t *ro() const {
auto v = get_ro_or_rwe();
if (slowpath(v.is<class_rw_ext_t *>())) {
return v.get<class_rw_ext_t *>(&ro_or_rw_ext)->ro;
}
return v.get<const class_ro_t *>(&ro_or_rw_ext);
}
void set_ro(const class_ro_t *ro) {
auto v = get_ro_or_rwe();
if (v.is<class_rw_ext_t *>()) {
v.get<class_rw_ext_t *>(&ro_or_rw_ext)->ro = ro;
} else {
set_ro_or_rwe(ro);
}
}
const method_array_t methods() const {
auto v = get_ro_or_rwe();
if (v.is<class_rw_ext_t *>()) {
return v.get<class_rw_ext_t *>(&ro_or_rw_ext)->methods;
} else {
return method_array_t{v.get<const class_ro_t *>(&ro_or_rw_ext)->baseMethods()};
}
}
const property_array_t properties() const {
auto v = get_ro_or_rwe();
if (v.is<class_rw_ext_t *>()) {
return v.get<class_rw_ext_t *>(&ro_or_rw_ext)->properties;
} else {
return property_array_t{v.get<const class_ro_t *>(&ro_or_rw_ext)->baseProperties};
}
}
const protocol_array_t protocols() const {
auto v = get_ro_or_rwe();
if (v.is<class_rw_ext_t *>()) {
return v.get<class_rw_ext_t *>(&ro_or_rw_ext)->protocols;
} else {
return protocol_array_t{v.get<const class_ro_t *>(&ro_or_rw_ext)->baseProtocols};
}
}
}
8）. class_ro_t
struct class_ro_t {
uint32_t flags;
uint32_t instanceStart;
uint32_t instanceSize;
#ifdef __LP64__
uint32_t reserved;
#endif
union {
const uint8_t * ivarLayout;
Class nonMetaclass;
};
explicit_atomic<const char *> name;
// With ptrauth, this is signed if it points to a small list, but
// may be unsigned if it points to a big list.
void *baseMethodList;
protocol_list_t * baseProtocols;
const ivar_list_t * ivars;
const uint8_t * weakIvarLayout;
property_list_t *baseProperties;
}
