iOS 单张图片与 gif图合并展示实现

891 阅读2分钟

废话开篇:通过 openCV 的像素点修改实现单张图片与 gif 图组合在一起展示效果。

一、效果展示

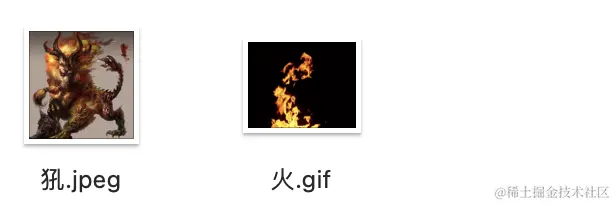

将一张 上古神兽 的与 动图进行合并展示。


合并后的效果

屏幕录制2022-01-13 上午9.12.48.gif

这里并没有进行保存处理,只是在不断绘制操作,这里是一个可以优化的地方。

二、实现思路

1、进行 图片的平铺。

2、拆分 动图的图组,计算出每张图的展示时间。

3、定时器循环进行图片填充。

三、代码实现

首先创建一个 WSLLetMeSmile (笑一笑)类,内部实现全部的逻辑。

1、外部调用
    //图片展示
    NSString * bundleImage = [[NSBundle mainBundle] pathForResource:@"犼" ofType:@"jpeg"];
    UIImage * image = [UIImage imageWithContentsOfFile:bundleImage];
    UIImageView * imageView = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, self.view.frame.size.width, self.view.frame.size.width  * image.size.height / image.size.width)];
    imageView.center = self.view.center;
    [self.view addSubview:imageView];
    //gif图
    NSURL *url = [[NSBundle mainBundle] URLForResource:@"火" withExtension:@"gif"];
    // 转换为图片源
    CGImageSourceRef gifImageSourceRef = CGImageSourceCreateWithURL((CFURLRef)url, nil);
    //主线程反复渲染
    self.letMeSmile = [WSLLetMeSmile letMeSmileWithImage:image gifSource:gifImageSourceRef resImage:^(UIImage * _Nonnull resImage) {
        dispatch_async(dispatch_get_main_queue(), ^{
            imageView.image = resImage;
        });
    }];
2、WSLLetMeSmile 类实现

WSLLetMeSmile.h

只包含一个类方法,参数就是一张底图、gif图组、渲染回调闭包

#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>

NS_ASSUME_NONNULL_BEGIN

@interface WSLLetMeSmile : NSObject
+ (WSLLetMeSmile *)letMeSmileWithImage:(UIImage *)image gifSource:(CGImageSourceRef)gifSource resImage:(void(^)(UIImage *))resCallBack;

@end

NS_ASSUME_NONNULL_END

WSLLetMeSmile.m

需要进行 gif 图信息获取、渲染合并及相关图片像素点阀值判断(去掉动图中一些不协调的因素)

#ifdef __cplusplus
#import <opencv2/opencv.hpp>
#import <opencv2/imgcodecs/ios.h> // Mat 和 UIImage互转
#endif

#import "WSLLetMeSmile.h"

//命名空间
using namespace cv;

//渲染回调闭包
typedef void(^ResCallBack)(UIImage *);

@interface WSLLetMeSmile()
//定时器
@property (nonatomic,strong) dispatch_source_t timer;
//回调闭包
@property (nonatomic,copy) ResCallBack resCallBack;
//gif 图时间集合
@property (nonatomic,strong) NSMutableArray * gifTimeArr;

@end

@implementation WSLLetMeSmile

- (instancetype)init
{
    self = [super init];
    if (self) {
        self.gifTimeArr = [[NSMutableArray alloc] init];
    }
    return self;
}

/初始化
+ (WSLLetMeSmile *)letMeSmileWithImage:(UIImage *)image gifSource:(CGImageSourceRef)gifSource resImage:(void(^)(UIImage *))resCallBack
{
    WSLLetMeSmile * letMeSmile = [[WSLLetMeSmile alloc] init];
    letMeSmile.resCallBack = resCallBack;
    [letMeSmile addAnimationWithImage:image gifSource:gifSource];
    return letMeSmile;
}

//添加动图
- (void)addAnimationWithImage:(UIImage *)image gifSource:(CGImageSourceRef)gifSource
{
    __weak typeof(self) weakSelf = self;
    [self getGifDurationWithGifSource:gifSource callBack:^(NSTimeInterval totalDuration, NSArray *frames) {

        //播放gif图组索引
        __block int index = 0;
        //循环时间
        __block float time = 0;
        //gif下一张图片展示时间
        __block float nextTime = 0;
        //定时器初始化
        dispatch_queue_t queue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0);
        weakSelf.timer = dispatch_source_create(DISPATCH_SOURCE_TYPE_TIMER, 0, 0, queue);
        dispatch_source_set_timer(weakSelf.timer, dispatch_walltime(NULL, 0), 0.01*NSEC_PER_SEC,  0);
        dispatch_source_set_event_handler(weakSelf.timer, ^{

            __strong typeof(weakSelf) strongSelf = weakSelf;
            //循环一个周期,重新开始
            if (time > totalDuration) {
                time = 0;
                index = 0;
                //犼图转换
                Mat _other;
                UIImageToMat(image, _other);
                //gif图转换
                Mat _fire;
                UIImageToMat(frames.firstObject, _fire);
                Mat result = [strongSelf drawOnFace:_other fire:_fire];
                UIImage * smileImage = MatToUIImage(result);
                weakSelf.resCallBack(smileImage);
                nextTime = [strongSelf.gifTimeArr[index + 1] floatValue];
            }

            //时间到下一张节点后渲染下一张图片
            if (time >= nextTime) {
                index += 1;
                if (index < frames.count) {
                    //犼图转换
                    Mat _other;
                    UIImageToMat(image, _other);
                    //gif图转换
                    Mat _fire;
                    UIImageToMat(frames[index], _fire);
                    Mat result = [strongSelf drawOnFace:_other fire:_fire];
                    UIImage * smileImage = MatToUIImage(result);
                    strongSelf.resCallBack(smileImage);
                }
                if (index + 1 < strongSelf.gifTimeArr.count) {
                    nextTime = [strongSelf.gifTimeArr[index + 1] floatValue];
                }
            }
            time += 0.01;
        });
        dispatch_resume(weakSelf.timer);
    }];
}

//合并渲染
- (Mat)drawOnFace:(Mat &)img fire:(Mat)fire
{
    //底图尺寸
    int otherWidth = img.cols;
    int otherHeight = img.rows;
    //gif单张图尺寸
    int fireWidth = fire.cols;
    int fireHeight = fire.rows;

    //这里需要转换,否则定位不准
    Mat showImg(cvRound(img.rows), cvRound(img.cols), CV_8UC1 );
    cvtColor(img, showImg, COLOR_BGR2RGB);

    Mat showFireImg(cvRound(img.rows), cvRound(img.cols), CV_8UC1 );
    cvtColor(fire, showFireImg, COLOR_BGR2RGB);

    //x轴剧中绘制
    int addX = (otherWidth - fireWidth) / 2;
    //y轴底部对齐
    int addY = otherHeight - fireHeight;
    for (int x = 0; x < fireWidth; x ++) {
        for (int y = 0; y < fireHeight; y++) {

            int b = showFireImg.at<Vec3b>(y,x)[0];
            int g = showFireImg.at<Vec3b>(y,x)[1];
            int r = showFireImg.at<Vec3b>(y,x)[2];
            //设置阀值,去掉偏黑色的影响因素
            int threshold = 5;
            if (r < threshold || g < threshold || b < threshold) {
                continue;
            }

            //底图进行绘制动图的像素值
            showImg.at<Vec3b>(y + addY,x + addX)[0] = b;
            showImg.at<Vec3b>(y + addY,x + addX)[1] = g;
            showImg.at<Vec3b>(y + addY,x + addX)[2] = r;
        }

    }
    Mat mat_image_face;
    cvtColor(showImg, mat_image_face, cv::COLOR_BGR2RGB, 3);
    return mat_image_face;
}

//gif动图时间处理
- (void)getGifDurationWithGifSource:(CGImageSourceRef)gifSource callBack:(void(^)(NSTimeInterval totalDuration,NSArray * frames))callBack
{
    [self.gifTimeArr removeAllObjects];
    size_t frameCount = CGImageSourceGetCount(gifSource);
    NSMutableArray * saveFrames = [[NSMutableArray alloc] init];
    NSTimeInterval totalDuration = 0;
    //记录开始时间
    [self.gifTimeArr addObject:[NSNumber numberWithDouble:totalDuration]];

    for (size_t i = 0; i < frameCount; i++)
        CGImageRef imageRef = CGImageSourceCreateImageAtIndex(gifSource, i, NULL);
        UIImage * image = [UIImage imageWithCGImage:imageRef];
        [saveFrames addObject:image];
        //获取每帧时间
        NSTimeInterval duration = [self getGifPerFrameTime:gifSource index:i];
        totalDuration += duration;
        [self.gifTimeArr addObject:[NSNumber numberWithDouble:totalDuration]];
        CGImageRelease(imageRef);
    }

    CFRelease(gifSource);
    callBack(totalDuration,saveFrames);

}

//获取每帧时间
- (NSTimeInterval)getGifPerFrameTime:(CGImageSourceRef)gifSource index:(NSInteger)index
{
    NSTimeInterval duration = 0;
    CFDictionaryRef frameProperties = CGImageSourceCopyPropertiesAtIndex(gifSource, index, NULL);

    if (frameProperties) {
        CFDictionaryRef gifProperties;
        BOOL result = CFDictionaryGetValueIfPresent(frameProperties, kCGImagePropertyGIFDictionary, (const void **)&gifProperties);
        if (result) {
            const void *durationValue;
            if (CFDictionaryGetValueIfPresent(gifProperties,kCGImagePropertyGIFUnclampedDelayTime,&durationValue)) {

                duration = [( __bridge NSNumber *)durationValue doubleValue];
                if (duration < 0) {
                    if (CFDictionaryGetValueIfPresent(gifProperties, kCGImagePropertyGIFDelayTime, &durationValue)) {

                                            duration = [( __bridge NSNumber *)durationValue doubleValue];
                     }
                }
            }
        }
    }
    return duration;
}

-(void)dealloc
{
    NSLog(@"我销毁了");
    //销毁定时器
    dispatch_source_cancel(self.timer);
}

@end

四、总结与思考

简单的合并展示功能就完成了。

需要注意的是:

1、进行转换之前需要对图片进行 cvtColor处理,否则像素定位不准。

2、修改坐标像素值的时候,at< Vec3b >里面的第一个参数是 y 值 ,第二个参数是 x 值。如果选择用 cv::Point 作为参数,可避免参数混淆。

没什么高级的内容,大神勿笑,共同进步。[抱拳][抱拳][抱拳]
