BFC 实战应用:边距折叠、高度塌陷

2,779 阅读1分钟

1. 边距折叠

根据 BFC 布局规则,“box 在垂直方向上的间距由 margin 属性决定,但是同一个 BFC 的两个相邻 box 的 margin 会出现边距折叠现象”。

(1) 现象:.div1 的 margin-top 出现在 .root 外层;.div1 的 margin-bottom 与 .div2 的 margin-top 产生边距折叠。

<body>
    <div class="root" style="width: 300px; height: 300px; position: relative; background-color: greenyellow;">
        <div class="div1" style="width: 100px; height: 100px; margin: 20px; background-color: cornflowerblue;"></div>
        <div class="div2" style="width: 100px; height: 100px; margin: 20px; background-color: coral"></div>
    </div>
</body>


(2)解决措施:使 .root 形成 BFC;给 .div2 包装一层新的 div ,并触发该 div 元素形成一个 BFC,这样两个标签 .div1 ,.div2 就不再属于同一个 BFC 了。

<body>
    <div class="root" style="width: 300px; height: 300px; position: relative; background-color: greenyellow; overflow: hidden;">
        <div class="div1" style="width: 100px; height: 100px; margin: 20px; background-color: cornflowerblue;"></div>
        <div style="overflow: hidden;">
            <div class="div2" style="width: 100px; height: 100px; margin: 20px; background-color: coral"></div>
        </div>
    </div>
</body>


(3)来看另一种情况,如果 .div2 外层的 div 自身设置了 margin 属性(虽然这并不常见,只是测试一下),并不会对内产生影响,但会和同级的 .div1 产生边距折叠。

<body>
    <div class="root" style="width: 300px; height: 300px; position: relative; background-color: greenyellow; overflow: hidden;">
        <div class="div1" style="width: 100px; height: 100px; margin: 20px; background-color: cornflowerblue;"></div>
        <div style="overflow: hidden; margin: 30px;">
            <div class="div2" style="width: 100px; height: 100px; margin: 20px; background-color: coral"></div>
        </div>
    </div>
</body>


如果不一定要固定使用 margin 实现,就可以改用 padding 且不会产生折叠问题;如果是在原基础上解决,可以参考上面的再在其外层包装一层 div 并使之形成 BFC。

<body>
    <div class="root" style="width: 300px; height: 300px; position: relative; background-color: greenyellow; overflow: hidden;">
        <div class="div1" style="width: 100px; height: 100px; margin: 20px; background-color: cornflowerblue;"></div>
        <div style="overflow: hidden;">
            <div style="overflow: hidden; margin: 30px;">
                <div class="div2" style="width: 100px; height: 100px; margin: 20px; background-color: coral"></div>
            </div>
        </div>
    </div>
</body>


2. “高度塌陷” 现象

(1)看如下代码,.root 的 height 跟随 .div2 的 height 为 80px。这是因为浮动元素 .div1 的 height 不参与父元素的高度计算,但其自身具有 height 值。

<body>
    <div class="root" style="width: 400px; position: relative; background-color: crimson">
        <div class="div1" style="width: 80px; height: 150px; float: left; background-color: cornflowerblue;"></div>
        <div class="div2" style="height: 80px; background-color: coral"></div>
    </div>
</body>


(2)如果 .div1 和 .div2 都为浮动元素,则会造成 “高度塌陷” 现象,.root 的高度为0px,如图所示。(注意:设置 .div2 为向右浮动时,要添加设置宽度。)

<body>
    <div class="root" style="width: 400px; position: relative; background-color: crimson">
        <div class="div1" style="width: 80px; height: 150px; float: left; background-color: cornflowerblue;"></div>
        <div class="div2" style="width: 320px; height: 80px; float: right; background-color: coral"></div>
    </div>
</body>

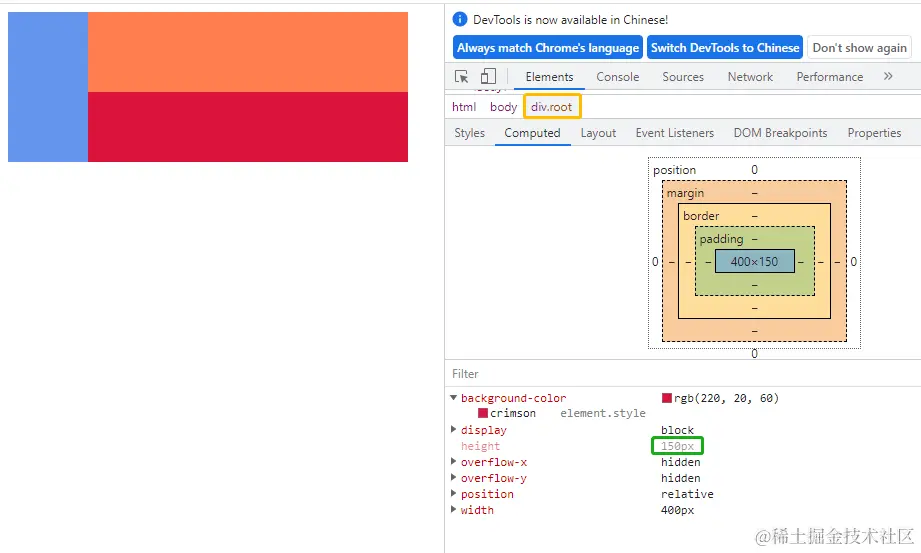

(3)通过使 .root 形成 BFC,可以解决该问题。这是根据 BFC 规则,“浮动元素的高度也参与 BFC 的高度计算”,此时 .root 的高度取其最大值为 150px。

<body>
    <div class="root" style="width: 400px; position: relative; background-color: crimson; overflow: hidden;">
        <div class="div1" style="width: 80px; height: 150px; float: left; background-color: cornflowerblue;"></div>
        <div class="div2" style="width: 320px; height: 80px; float: right; background-color: coral"></div>
    </div>
</body>
