1 简介
AbstractQueuedSynchronizer抽象的队列式同步器(抽象类)。提供了一个FIFO队列,可以看成是一个用来实现同步锁以及其他涉及到同步功能的核心组件,常见的有:ReentrantLock、CountDownLatch等。
其中比较重要的概念有:
- state共享资源
- FIFO
- CAS
- park unpark
2 AQS线程队列

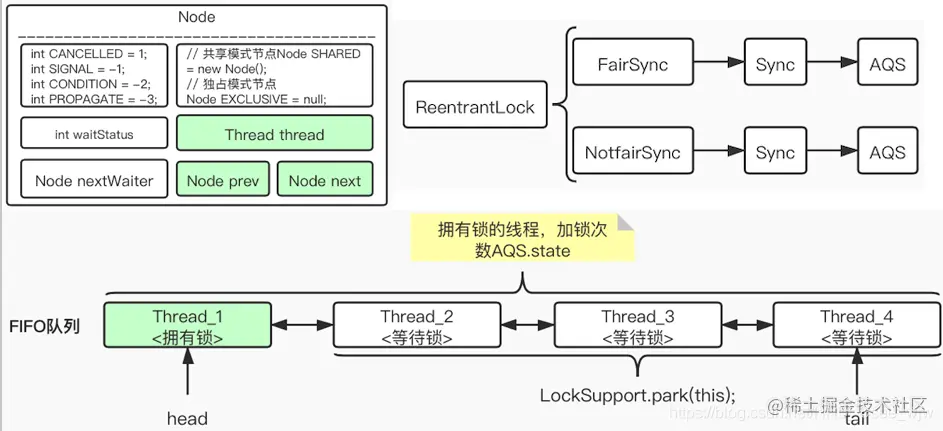

Node是整个队列中最核心的部分,包含CANCELLED、SIGNAL、CONDITION、PROPAGATE四种状态、指向前后节点的指针、thread是节点存储的值。
ReentrantLock中的公平锁与非公平锁都继承了这个抽象类。
ReentrantLock包含公平锁和非公平锁,每种锁里面还包含了抽象的锁Sync,抽象锁执行AQS。
如果当前是线程1拥有锁的话,线程2,3,4会调用park操作来被挂起加入队列中。
当拥有锁的Thread1执行完毕后会调用unpark方法,head指向下一个节点。由于ReentrantLock是一个可重入锁,重入次数被AQS.state记录,每重入一次值 + 1,退出一次 - 1。
3 ReentrantLock实例构建
ReentrantLock默认构造函数创建的是非公平锁,如果想要公平锁的话需要在构造方法中传入true。
4 多线程抢锁图示(非公平锁)
线程抢到锁的过程使用CAS实现。
初始时等待队列只有一个Head节点,其中存储的Thread是null,用来占位,线程B,C在队列中使用双向链表的方式与Head相连,调用park挂起。
上图的分步过程见下文。
4.1 A线程加锁
A线程抢锁时通过CAS操作将state改为1,并将AQS的exclusiveOwnerThread属性设为A,表示当前锁的拥有者。
4.2 B线程加锁
此时B线程要进行抢锁,发现state已经是1了,所以CAS操作失败,进入到队列中,waitStatus设置为0
第一次new Node的时候,即创建head,thread设置为了null,waitStatus设置为SIGNAL
4.3 C线程加锁
接着C线程抢锁时,操作同B,会将B的waitStatus设置为SIGNAL,自己的是初始化是的值0
新插入的节点waitStatus值都设为0原因是用来标记队列中最后一个节点,此时不必再进行对后续节点的unpark操作,等待队列中没有节点时会有一个null的节点用作占位,这两个操作都是防止等待队列中没有等待的线程时而变为空。
4.4 A线程解锁
A线程进行解锁操作之后,B线程可以抢到锁,流程如下:
A线程解锁操作:
- state设为0
- exclusiveOwnerThread设为null表示锁被释放
- head节点向后移动一位进行unpark操作唤醒线程B
- 之前的head节点要被释放
4.5 B线程解锁
4.6 C线程解锁
5 源码分析(以非公平锁为例)
5.1 线程A先抢占锁
构造方法:
public ReentrantLock() {
sync = new NonfairSync();
}
lock():
public void lock() {
sync.lock();
}
假设现在有两个线程A和B,如下:
static final class NonfairSync extends Sync {
private static final long serialVersionUID = 7316153563782823691L;
// 线程A进来
// 线程B进来
final void lock() {
// 线程A执行成功,将AQS.state置为1,表示已抢占该锁
// 线程B,由于线程A已将AQS.state置为1,所以线程B执行CAS操作为false
if (compareAndSetState(0, 1))
// 线程A,将AbstractOwnableSynchronizer.exclusiveOwnerThread设置为当前线程
setExclusiveOwnerThread(Thread.currentThread());
else
// 线程B执行该部分,尝试获取一个锁
acquire(1);
}
protected final boolean tryAcquire(int acquires) {
return nonfairTryAcquire(acquires);
}
}
其中acquire(1)方法的源码如下:
// 线程B调用:arg = 1
public final void acquire(int arg) {
// 线程B
// 尝试获得非公平锁,由于已被线程A抢到,所以tryAcquire(arg) = false
// addWaiter方法,构建承载线程B的Node,然后添加到队列末尾,返回该node
// acquireQueued方法
if (!tryAcquire(arg) &&
acquireQueued(addWaiter(AbstractQueuedSynchronizer.Node.EXCLUSIVE), arg)) {
// 设置当前线程的中断标识
selfInterrupt();
}
}
尝试抢锁的方法 tryAcquire(arg) 最终调用的:
/**
* 尝试抢锁
*
* 处理内容:
* 1 如果抢到锁,返回true
* 1.1 如果当前线程第一次抢到锁:
* AQS.status由0变为1
* AQS.exclusiveOwnerThread = Thread.currentThread()
* 返回true
* 1.2 如果当前线程再次抢到锁(重入)
* AQS.status++
* 返回true
* 2 没抢到锁,返回false
*
*/
// 线程B acquires = 1
final boolean nonfairTryAcquire(int acquires) {
final Thread current = Thread.currentThread();
// 由于线程A已将state设为1,所以c=1
int c = getState();
if (c == 0) { // 线程B,不满足不执行
if (compareAndSetState(0, acquires)) {
setExclusiveOwnerThread(current);
return true;
}
}
else if (current == getExclusiveOwnerThread()) { // 线程B,不满足不执行
/**
* 获得当前独享线程,如果就是当前线程,那么执行重入操作
* 执行tryLock()时:
* 如果第二次进入,则nextc = 0 + 1 = 1
* 如果第三次进入,则nextc = 1 + 1 = 2
* 如果第四次进入,则nextc = 2 + 1 = 3
*/
int nextc = c + acquires;
if (nextc < 0) // overflow
throw new Error("Maximum lock count exceeded");
setState(nextc);
return true;
}
// 线程B,返回false
return false;
}
回到 acquire 代码中 addWaiter 方法:
// 线程B:mode = Node.EXCLUSIVE = null
private Node addWaiter(Node mode) {
Node node = new Node(Thread.currentThread(), mode);
Node pred = tail;
// 线程B:由于线程A并没有进入链表,所以tail = null不会进入if方法
if (pred != null) {
node.prev = pred; // (老的尾部node) <--- 新node.prev
if (compareAndSetTail(pred, node)) {
pred.next = node; // (老的尾部node) next ---> (新node)
return node;
}
}
// 线程B:node = 承载线程B的node
enq(node);
return node;
}
addWaiter 方法使用到了 Node 的构造方法:
// 线程B:thread = Thread.currentThread() mode = null
Node(Thread thread, Node mode) {
this.nextWaiter = mode;
this.thread = thread;
}
对照下面的图来看,nextWaiter 是null,Node的构造方法里没有对 waitStatus 赋值,所以默认为0
回到addWaiter方法,其中还用到了enq方法:
/**
* 将node节点插入队列末尾
* 1 如果是空队列,则初始化一个空内容node作为第一个节点,然后将入参node加到队列末尾
* 2 如果不是空队列,则直接入参node加到队列末尾
*
* @param node
* @return
*/
// 线程B:node = 承载线程B的node
private Node enq(final Node node) {
for (;;) {
// 线程B:第一次循环 tail = null
// 线程B:第二次循环 tail = head = 空内容node
Node t = tail;
/**
* 第一次进入由于队列为null,所以t = null
* 第二次进入,由于队列已经被初始化1个节点,故 t != null
*/
if (t == null) { // 线程B:第一次循环 满足t == null,进入该模块内
if (compareAndSetHead(new Node())) // 初始化一个空内容节点,作为AQS.head节点
tail = head;
} else { // 线程B:第二次循环 满足 t != null进入该模块内,即空内容node <-> 新节点
node.prev = t; // 老的尾部node <--- 入参node.prev
if (compareAndSetTail(t, node)) { // 将AQS.tailOffset内容更新为入参node
t.next = node; // 老的尾部node ---> 入参node
return t;
}
}
}
}
此时addWaiter执行完毕,又回到acquire方法,addWaiter返回了承载B的node,现在要执行acquireQueued方法:
// 线程B:node = 承载B的节点,arg = 1
final boolean acquireQueued(final Node node, int arg) {
boolean failed = true;
try {
boolean interrupted = false;
// 线程B:会一直循环,直到拿到锁
for (;;) {
// 线程B:p=空内容node(head)
final Node p = node.predecessor();
// 线程B:p == head等于true;但是由于线程A先抢到锁,所以tryAcquire(arg)=false,所以不会进入下面的if
if (p == head && tryAcquire(arg)) { // tryAcquire(arg):抢锁操作
setHead(node); // 更新头结点为入参node
p.next = null; // help GC
failed = false;
return interrupted;
}
// 线程B:shouldParkAfterFailedAcquire方法,设置p节点的waitStatus = Node.SIGNAL(原先是0),如果自旋两次没抢到锁的话会返回true挂起线程
// 线程B:parkAndCheckInterrupt方法,挂起线程B
if (shouldParkAfterFailedAcquire(p, node) &&
parkAndCheckInterrupt())
interrupted = true;
}
} finally {
if (failed)
cancelAcquire(node);
}
}
5.2 线程A释放锁
如果A调用unlock操作:
public void unlock() {
sync.release(1);
}
释放锁的方法如下:
// 线程A:arg = 1
public final boolean release(int arg) {
if (tryRelease(arg)) { // 线程A:AQS.state = 0,AQS.exclusiveOwnerThread = null
Node h = head;
// 线程A:满足条件 h.waitStatus == SIGNAL(值为-1)
if (h != null && h.waitStatus != 0)
unparkSuccessor(h);
return true;
}
return false;
}
其中调用了tryRelease方法:
// 线程A:release = 1
protected final boolean tryRelease(int releases) {
// 线程A:c = 1 - 1 = 0
int c = getState() - releases;
// 如果当前线程不是之前抢占的线程,则抛异常
if (Thread.currentThread() != getExclusiveOwnerThread())
throw new IllegalMonitorStateException();
boolean free = false;
// 线程A:c == 0 为 true
if (c == 0) {
free = true;
setExclusiveOwnerThread(null);
}
setState(c);
return free;
}
对应:
tryRelease执行完毕之后又回到了release方法中,运行unparkSuccessor方法:
private void unparkSuccessor(Node node) {
// 线程A:node.waitStatus == SIGNAL(-1)
int ws = node.waitStatus;
if (ws < 0) {
// 线程A:设置 waitStatus == 0
compareAndSetWaitStatus(node, ws, 0);
}
Node s = node.next;
// 线程A:s == 线程B,s.waitStatus == SIGNAL(-1),所以不满足
if (s == null || s.waitStatus > 0) { // node是tail 或者 node的tail节点waitStatus > 0
s = null; // 断开node与node.next的连接
for (Node t = tail; t != null && t != node; t = t.prev)
if (t.waitStatus <= 0)
s = t;
}
// 线程A:s == 线程B,激活线程B
if (s != null)
LockSupport.unpark(s.thread);
}
释放完毕之后,在线程B的lock方法的一些列调用中有 parkAndCheckInterrupt() 方法,即线程B被挂起了,A释放之后又回到被挂起那个位置继续执行,所以线程B的 acquireQueued() 方法可以抢到锁
对应:
