Flex布局的出现?
在阮一峰老师的文章中(Flex 布局教程:语法篇 - 阮一峰的网络日志)提到了,Flex布局是在什么背景下出现的:布局的传统解决方案,基于盒状模型,依赖 [display]属性 + [position]属性 + [float]属性。它对于那些特殊布局非常不方便,比如,[垂直居中]就不容易实现。
2009年,W3C 提出了一种新的方案----Flex 布局,可以简便、完整、响应式地实现各种页面布局。目前,它已经得到了所有浏览器的支持,这意味着,现在就能很安全地使用这项功能。
Flex布局是什么?
Flex是Flexible Box的缩写,顾名思义为“弹性布局”,用来为盒装模型提供最大的灵活性。在日常开发中,我还是比较喜欢使用Flex布局的。
任何一个容器都可以指定为Flex 布局。
.box{
display: flex;
}
复制代码
行内元素也可以使用Flex布局。
.box{
display:inline-flex;
}
复制代码
webkit内核的浏览器,必需加上-webkit前缀
.box{
display:-webkit-flex;
display:flex;
}
复制代码
注:设为flex布局以后,子元素的float、clear和vertical-align属性将失效。
Flex布局相关属性
<div style="display: flex; justify-content: flex-start; width: 500px; height: 100px; border: 1px solid green;">
<div style="width: 80px; height: 50px; background: blue;"></div>
<div style="width: 80px; height: 50px; background: red;"></div>
<div style="width: 80px; height: 50px; background: blue;"></div>
<div style="width: 80px; height: 50px; background: red;"></div>
<div style="width: 80px; height: 50px; background: blue;"></div>
<div style="width: 80px; height: 50px; background: red;"></div>
</div>
复制代码

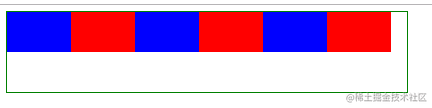

1.父容器设置justify-content: flex-start;
2.父容器设置justify-content: flex-end;
3.父容器设置justify-content: center;
4.父容器设置justify-content: space-around;表示子容器沿主轴均匀分布,位于首尾两端的子容器到父容器的距离是子容器间距的一半;
5.父容器设置justify-content: space-between:子容器沿主轴均匀分布,位于首尾两端的子容器与父容器相切
6.子容器的设置
(1)属性值flex
子容器是有弹性的(flex 即弹性),它们会自动填充剩余空间,子容器的伸缩比例由flex属性确定。
flex的值可以是无单位数字(如:1, 2, 3),也可以是有单位数字(如:15px,30px,60px),还可以是none关键字。子容器会按照flex定义的尺寸比例自动伸缩,如果取值为none则不伸缩。
(2)主要是由我今天遇到的一个问题讲flex
<div style="display: flex; width: 200px; height: 500px; border: 1px solid green;">
<div style="flex: 3 0 50px; background: blue;"></div>
<div style="flex: 2 0 100px; background: red;"></div>
</div>
复制代码
如图所示,蓝色宽为80px;红色宽为120px;
1.flex属性值的构成:flex: flex-grow flex-shink flex-basis; 2.flex-basis表示在不伸缩的情况下子容器的原始尺寸。主轴为横向时代表宽度,主轴为纵向时代表高度。 flex-grow表示子容器弹性伸展的比例。 flex-shink表示子容器弹性收缩的比例。 3.上述代码中,首先左侧div占50px,右侧100px;剩余空间200-100-50 = 50 在剩余空间中,左侧按比例伸展3部分,最后宽度占80 右侧按比例伸展2部分,最后宽占120
若将上述代码修改:左侧盒子150px,如图所示,因为没有剩余空间,不会进行伸展;
<div style="display: flex; width: 200px; height: 500px; border: 1px solid green;">
<div style="flex: 3 0 150px; background: blue;"></div>
<div style="flex: 2 0 100px; background: red;"></div>
</div>
复制代码
若将上述代码修改:左侧盒子150px,左侧盒子缩放2倍,如图所示,
<div style="display: flex; width: 200px; height: 500px; border: 1px solid green;">
<div style="flex: 3 2 150px; background: blue;"></div>
<div style="flex: 2 0 100px; background: red;"></div>
</div>
复制代码
<div style="display: flex; width: 200px; height: 100px; border: 1px solid green;">
<div style="flex: 3 0; background: blue;"></div>
<div style="flex: 2 0; background: red;"></div>
</div>
复制代码
注:
(1)如果flex-basis的属性未设置,即flex-basis: 0,那么弹性盒子计算多余空间或者溢出空间的宽度是依据其width的值,如果width未设置,那么是其内容的宽度;
(2)如果同时设置了flex-basis的属性值和width的值,那么将会忽略width的值;
(3)flex-basis可设为百分比,是相对于祖先申明为display:flex的元素而言。
flex: 1 1 auto;flex: 0 0 auto是什么意思?
在上述的属性中,提到了,flex是flex-grow,flex-shrink,flex-basis的缩写,那标题中的数字也就清楚了。
其中flex-grow的默认值为0,表示即便存在剩余空间,也不会放大。
flex-grow的默认值为1,表示如果空间不足,会等比例缩小。
Flex布局的计算规则
(1)当子盒子小于父容器
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>test</title>
<style>
.container {
display: flex;
width: 400px;
}
.container > div {
height: 40px;
}
.first {
flex: 1 0 0;
background-color: red;
}
.second {
flex: 2 0 0;
background-color: blue;
margin: 0 50px;
}
.third {
flex: 3 0 0;
background-color: yellow;
}
</style>
</head>
<body>
<div class='container'>
<div class='first'></div>
<div class='second'></div>
<div class='third'></div>
</div>
</body>
</html>
复制代码
上面代码中,我们定义了外层容器width为400px,但是第二个margin为100px。现在flex-basis 属性值为0, 剩下空间为300px。则根据每个盒子flex-grow 属性值及其权重来分配剩余空间
.first宽度 300 *(1/6) = 50px
.second宽度 300 * (2/6) = 100px
.third 宽度 300 *(3/6) = 150
(2)当子盒子超过父容器
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>test</title>
<style>
.container {
display: flex;
width: 200px;
height: 400px;
border: 1px solid #c3c3c3;
}
.first {
flex-basis: 40px;
flex-shrink: 1;
background-color: red;
}
.second {
flex-shrink: 3;
background-color: blue;
width: 200px;
}
.third {
flex-basis: 40px;
flex-shrink: 2;
background-color: yellow;
}
</style>
</head>
<body>
<div class='container'>
<div class='first'></div>
<div class='second'></div>
<div class='third'></div>
</div>
</body>
</html>
复制代码
上面代码, 父容器定义宽度200px,因为flex-basis可替代width属性的。
所以,子项目宽度为 (200+40+40)= 280px,溢出了80px。
首先计算加上权重的值:1*40 + 3 * 200 + 2 * 40 = 720 px
.first 需要缩小的值:(40 * 1/720) * 80 = 4.44px
.second 需要缩小的值:(200 * 3/720) * 80 = 66.67px
.first 需要缩小的值:(40 * 2/720) * 80 = 8.89px
复制代码
那么我们就可以分别得到盒子宽度
35.56px 133.33px 31.11px
复制代码
Happy Ending.
