SpringCloud08——Hystrix断路器

296 阅读18分钟

一、Hystrix的概述

Hystrix官网:github.com/Netflix/Hys…

github网址:github.com/Netflix/Hys…

Hystrix已经停止更新,但它的理念极其强大,学会它才能更好的进行后面的学习。

1、分布式系统面临的问题

复杂分布式体系结构中的应用程序有数十个依赖关系,每个依赖关系在某些时候将不可避免地失败。

服务雪崩

多个微服务之间调用的时候,假设微服务A调用微服务B和微服务C,微服务B和微服务C又调用其它的微服务,这就是所谓的“扇出”。如果扇出的链路上某个微服务的调用响应时间过长或者不可用,对微服务A的调用就会占用越来越多的系统资源,进而引起系统崩溃,所谓的“雪崩效应”. 对于高流量的应用来说,单一的后避依赖可能会导致所有服务器上的所有资源都在几秒钟内饱和。比失败更糟糕的是,这些应用程序还可能导致服务之间的延迟增加,备份队列,线程和其他系统资源紧张,导致整个系统发生更多的级联故障。这些都表示需要对故障和延迟进行隔离和管理,以便单个依赖关系的失败,不能取消整个应用程序或系统。

所以,通常当你发现一个模块下的某个实例失败后,这时候这个模块依然还会接收流量,然后这个有问题的模块还调用了其他的模块,这样就会发生级联故障,或者叫雪崩。

Hystrix是什么

Hystrix是一个用于处理分布式系统的延迟和容错的开源库,在分布式系统里,许多依赖不可避免的会调用失败,比如超时、异常等,Hystrix能够保证在一个依赖出问题的情况下,不会导致整体服务失败,避免级联故障,以提高分布式系统的弹性

"断路器”本身是一种开关装置,当某个服务单元发生故障之后,通过断路器的故障监控(类似熔断保险丝),向调用方返回一个符合预期的、可处理的备选响应(FallBack),而不是长时间的等待或者抛出调用方无法处理的异常,这样就保证了服务调用方的线程不会被长时间、不必要地占用,从而避免了故障在分布式系统中的蔓延,乃至雪崩。

作用

  • 服务降级
  • 服务熔断
  • 接近实对的监控

二、Hystrix的重要概念

1、服务降级(fallback)

服务器忙,请稍后再试,不让客户端等待并立刻返回一个友好提示,fallback

哪些情况会触发降级

  • 程序运行导常
  • 超时
  • 服务熔断触发服务降级
  • 线程池/信号量打满也会导致服务降级
  • ......

2、服务熔断(break)

类比保险丝,达到最大服务访问后,直接拒绝访问,拉闸限电,然后调用服务降级的方法并返回友好提示。

服务的降级 --> 进而熔断 --> 恢复调用链路。

3、服务限流(flowlimit)

秒杀高并发等操作,严禁一窝蜂的过来拥挤,大家排队,一秒钟N个,有序进行。

三、Hystrix案例

1、创建正常的cloud-provider-hystrix-payment8001环境

首先先处理一下7001端口,给它改成单机,修改yaml,注掉以前的defaultZone:

#hystrix测试,不启动集群
defaultZone: http://eureka7001.com:7001/eureka/

新建模块,引入pom。

application.yml文件:

server:
  port: 8001

spring:
  application:
    name: cloud-provider-hystrix-payment

eureka:
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      #defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka
      defaultZone: http://eureka7001.com:7001/eureka

主配置类:

@SpringBootApplication
@EnableEurekaClient
public class PaymentHystrixMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentHystrixMain8001.class,args);
    }
}

service层代码:

@Service
public class PaymentService {
    public String paymentInfo_Ok(Integer id) {
        return "线程池:" + Thread.currentThread().getName() +
                "paymentInfo_OK,id" + id;
    }

    public String paymentInfo_TimeOut(Integer id) {
        int timeNum = 3;
        try {
            TimeUnit.MILLISECONDS.sleep(3000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        return "线程池:  " + Thread.currentThread().getName() + "paymentInfo_TimeOut,id:  "
                + id + "\t" + "  耗时(秒): " + timeNum + "s";
    }
}

controller层代码:

@RestController
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;

    @Value("${server.port}")
    private String serverPort;

    @GetMapping("/payment/hystrix/ok/{id}")
    public String paymentInfo_OK(@PathVariable("id") Integer id){
        String result = paymentService.paymentInfo_Ok(id);
        log.info("*****result: "+result);
        return result;
    }

    @GetMapping("/payment/hystrix/timeout/{id}")
    public String paymentInfo_TimeOut(@PathVariable("id") Integer id) {
        String result = paymentService.paymentInfo_TimeOut(id);
        log.info("*****result: "+result);
        return result;
    }
}

启动测试:

运行成功,一个瞬间查到,一个要等3s。

2、高并发测试

JMeter官网:jmeter.apache.org/

下载解压,然后配置环境变量。

JMETER_HOME:以自己实际路径为主

CLASSPATH:%JMETER_HOME\lib\ext\ApacheJMeter_core.jar;%JMETER_HOME%\lib\jorphan.jar;%JMETER_HOME%\lib\logkit-2.0.jar;

PATH:%JMETER_HOME%\bin

启动:bin目录下的jmeter.bat,双击

添加线程组:

image-20211117154031929

设置中文,上部Option -->set language。

image-20211117155746276

然后发现访问变慢了...

3、新建cloud-consumer-feign-hystrix-order80

新建模块,导入pom。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2021</artifactId>
        <groupId>com.atguigu</groupId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.atguigu.springcloud</groupId>
    <artifactId>cloud-consumer-feign-hystrix-order80</artifactId>

    <dependencies>
        <!--openfeign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!--hystrix-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
        </dependency>
        <!--eureka client-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <!-- 引入自己定义的api通用包,可以使用Payment支付Entity -->
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!--web-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--一般基础通用配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

yaml:

server:
  port: 80

eureka:
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka/

启动类:

@SpringBootApplication
@EnableFeignClients
public class OrderHystrixMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderHystrixMain80.class,args);
    }
}

Hystrix接口:

@Component
@FeignClient(value = "CLOUD-PROVIDER-HYSTRIX-PAYMENT" /*,fallback = PaymentFallbackService.class*/)
public interface PaymentHystrixService {
    @GetMapping("/payment/hystrix/ok/{id}")
    public String paymentInfo_OK(@PathVariable("id") Integer id);

    @GetMapping("/payment/hystrix/timeout/{id}")
    public String paymentInfo_TimeOut(@PathVariable("id") Integer id);
}

controller:

@RestController
@Slf4j
public class OrderHystirxController {
    @Resource
    private PaymentHystrixService paymentHystrixService;

    @GetMapping("/consumer/payment/hystrix/ok/{id}")
    public String paymentInfo_OK(@PathVariable("id") Integer id)
    {
        String result = paymentHystrixService.paymentInfo_OK(id);
        return result;
    }

    @GetMapping("/consumer/payment/hystrix/timeout/{id}")
    public String paymentInfo_TimeOut(@PathVariable("id") Integer id) {
        String result = paymentHystrixService.paymentInfo_TimeOut(id);
        return result;
    }
}

自测:

80端口测:

开启线程再测:

4、解决问题

解决方式:

  • 对方服务(8001)超时了,调用者(80)不能一直卡死等待,必须有服务降级。
  • 对方服务(8001)down机了,调用者(80)不能一直卡死等待,必须有服务降级。
  • 对方服务(8001)OK,调用者(80)自己出故障或有自我要求(自己的等待时间小于服务提供者),自己处理降级。

5、服务降级

Hystrix之服务降级支付侧fallback

降级需要使用到@HystrixCommand

8001先从自身找问题

设置自身调用超时时间的峰值,峰值内可以正常运行,超过了需要有兜底的方法处埋,作服务降级fallback。

8001fallback

业务类启用@HystrixCommand

—旦调用服务方法失败并抛出了错误信息后,会自动调用@HystrixCommand标注好的fallbackMethod调用类中的指定方法。

@HystrixCommand(fallbackMethod = "paymentInfo_TimeOutHandler",commandProperties = {
    @HystrixProperty(name = "execution.isolation.thread.timeoutInMilliseconds",value = "3000")
})
public String paymentInfo_TimeOut(Integer id) {
    int timeNum = 5;
    try {
        TimeUnit.MILLISECONDS.sleep(3000);
    } catch (InterruptedException e) {
        e.printStackTrace();
    }
    return "线程池:  " + Thread.currentThread().getName() + "paymentInfo_TimeOut,id:  "
        + id + "\t" + "  耗时(秒): " + timeNum + "s";
}

//兜底的方法
public String paymentInfo_TimeOutHandler(Integer id) {
    return "线程池:  " + Thread.currentThread().getName() + "paymentInfo_TimeOutHandler,id:  "
        + id + "\t" + "出事儿,报错完毕~~";
}

主程序类加注解@EnableCircuitBreaker:

@SpringBootApplication
@EnableEurekaClient
@EnableCircuitBreaker
public class PaymentHystrixMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentHystrixMain8001.class,args);
    }
}

测试:localhost:8001/payment/hystrix/timeout/1,进入了兜底方法。

image-20211122114957136

如果上面不让它是超时异常,而是运行异常int xxx = 10/0;也是会走兜底方法的。

Hystrix之服务降级订单侧fallback

先在80模块的yaml文件中添加:

feign:
  hystrix:
    enabled: true

主启动类加注解:

@SpringBootApplication
@EnableFeignClients
@EnableHystrix
public class OrderHystrixMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderHystrixMain80.class,args);
    }
}

业务类修改,添加超时和兜底的方法:

@RestController
@Slf4j
public class OrderHystirxController {
    @Resource
    private PaymentHystrixService paymentHystrixService;

    @GetMapping("/consumer/payment/hystrix/ok/{id}")
    public String paymentInfo_OK(@PathVariable("id") Integer id)
    {
        String result = paymentHystrixService.paymentInfo_OK(id);
        return result;
    }
    @GetMapping("/consumer/payment/hystrix/timeout/{id}")
    @HystrixCommand(fallbackMethod = "paymentTimeOutFallbackMethod",commandProperties = {
            @HystrixProperty(name="execution.isolation.thread.timeoutInMilliseconds",value="1500")
    })
    public String paymentInfo_TimeOut(@PathVariable("id") Integer id) {
        //int age = 10/0;
        String result = paymentHystrixService.paymentInfo_TimeOut(id);
        return result;
    }

    //善后方法
    public String paymentTimeOutFallbackMethod(@PathVariable("id") Integer id){
        return "我是消费者80,对方支付系统繁忙请10秒钟后再试或者自己运行出错请检查自己,o(╥﹏╥)o";
    }
}

启动测试:http://localhost/consumer/payment/hystrix/timeout/31

报错了。

image-20211122121746530

如果在controller中加上Int xxx = 10/0;则不会走消费侧,因为消费侧只说明了超过1.5秒会报错,所以还是走支付侧的兜底方法。

Hystrix之全局服务降级DefaultProperties

方法和兜底方法混在一起,耦合度高,而且每个方法都得有个兜底方法,代码过多。

所以最好设置一个全局的服务降级方法。

首先在OrderHystirxController类中添加一个方法,作为全局服务降级的方法:

public String payment_Global_FallbackMethod(){
    return "Global异常处理信息,请稍后再试,/(ㄒoㄒ)/~~";
}

然后在类顶部添加注解,这样整个类的方法就都走这个兜底方法了:

@RestController
@Slf4j
@DefaultProperties(defaultFallback = "payment_Global_FallbackMethod")
public class OrderHystirxController {
}

注掉以前使用的注解方法,然后再在这个方法上添加注解@HystrixCommand:

//    @HystrixCommand(fallbackMethod = "paymentTimeOutFallbackMethod",commandProperties = {
//            @HystrixProperty(name="execution.isolation.thread.timeoutInMilliseconds",value="1500")
//    })

启动测试:

image-20211122123211455

这样处理了虽然解决了代码膨胀的问题,但是没有解决兜底方法在业务逻辑当中的问题。

以前写的feign的service接口中写了很多逻辑,我们可以在这里添加服务降级的逻辑。

未来可能要面对的异常包括:

  • 运行时异常(RuntimeException)
  • 超时(Timeout)
  • 宕机

在service层创建一个类,让它实现PaymentHystrixService接口。

public class PaymentFallbackService implements PaymentHystrixService{
    @Override
    public String paymentInfo_OK(Integer id) {
        return "----PaymentFallbackService fall back paymentInfo_OK, /(ㄒoㄒ)/~~";
    }

    @Override
    public String paymentInfo_TimeOut(Integer id) {
        return "----PaymentFallbackService fall back paymentInfo_TimeOut, /(ㄒoㄒ)/~~";
    }
}

在接口中把这个类配置进去。

@Component
@FeignClient(value = "CLOUD-PROVIDER-HYSTRIX-PAYMENT" ,fallback = PaymentFallbackService.class)
public interface PaymentHystrixService {
	...
}

启动测试:localhost,关闭8001端口,模拟超时。

6、服务熔断

熔断机制概述

熔断机制是应对雪崩效应的一种微服务链路保护机制。当扇出链路的某个微服务出错不可用或者响应时间太长时,会进行服务的降级,进而熔断该节点微服务的调用,快速返回错误的响应信息。当检测到该节点微服务调用响应正常后,恢复调用链路。

在Spring Cloud框架里,熔断机制通过Hystrix实现。Hystrix会监控微服务间调用的状况,当失败的调用到一定阈值,缺省是5秒内20次调用失败,就会启动熔断机制。熔断机制的注解是@HystrixCommand。

Martin Fowler的相关论文

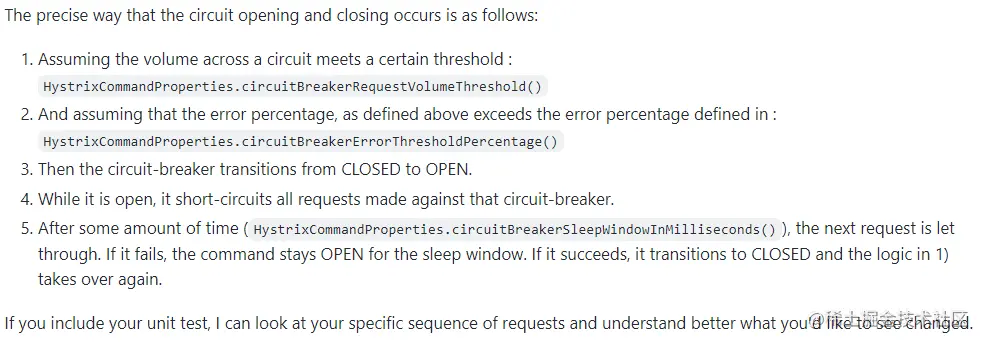

最开始断路器是关闭状态,突然服务器出问题了,把断路器打开,然后一点一点的放一部分程序跑(半开状态),等到真的可以执行时,再把断路器放过去。

服务熔断案例

修改cloud-provider-hystrix-payment8001

主要看//==============服务熔断下面的代码,这是增加的代码。

@Service
public class PaymentService {
    public String paymentInfo_Ok(Integer id) {
        return "线程池:" + Thread.currentThread().getName() +
                "paymentInfo_OK,id" + id;
    }

    @HystrixCommand(fallbackMethod = "paymentInfo_TimeOutHandler",commandProperties = {
            @HystrixProperty(name = "execution.isolation.thread.timeoutInMilliseconds",value = "3000")
    })

    public String paymentInfo_TimeOut(Integer id) {
        //int age = 10/0;
        int timeNum = 5;
        try {
            TimeUnit.MILLISECONDS.sleep(3000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        return "线程池:  " + Thread.currentThread().getName() + "paymentInfo_TimeOut,id:  "
                + id + "\t" + "  耗时(秒): " + timeNum + "s";
    }

    //兜底的方法
    public String paymentInfo_TimeOutHandler(Integer id) {
        return "线程池:  " + Thread.currentThread().getName() + "paymentInfo_TimeOutHandler,id:  "
                + id + "\t" + "出事儿,报错完毕~~";
    }

    //==============服务熔断
    @HystrixCommand(fallbackMethod = "paymentCircuitBreaker_fallback",commandProperties = {
            @HystrixProperty(name = "circuitBreaker.enabled",value = "true"),// 是否开启断路器
            @HystrixProperty(name = "circuitBreaker.requestVolumeThreshold",value = "10"),// 请求次数
            @HystrixProperty(name = "circuitBreaker.sleepWindowInMilliseconds",value = "10000"), // 时间窗口期
            @HystrixProperty(name = "circuitBreaker.errorThresholdPercentage",value = "60"),// 失败率达到多少后跳闸
    })
    public String paymentCircuitBreaker(@PathVariable("id") Integer id) {
        if(id < 0) {
            throw new RuntimeException("******id 不能负数");
        }
        //等价于UUID.random().toString();
        String serialNumber = IdUtil.simpleUUID();

        return Thread.currentThread().getName()+"\t"+"调用成功,流水号: " + serialNumber;
    }

    //兜底的方法
    public String paymentCircuitBreaker_fallback(@PathVariable("id") Integer id) {
        return "id 不能负数,请稍后再试,/(ㄒoㄒ)/~~   id: " +id;
    }
}

上面这些参数是从这里来的,可以看到默认值是多少。

image-20211122145843814

Circuit Breaker will never be closed again if HystrixBadRequestException thrown! · Issue #674 · Netflix/Hystrix · GitHub这里说明了到底配的是什么

image-20211122150113355

paymentController也要添加,代码也在//====服务熔断 下面:

@RestController
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;

    @Value("${server.port}")
    private String serverPort;

    @GetMapping("/payment/hystrix/ok/{id}")
    public String paymentInfo_OK(@PathVariable("id") Integer id){
        String result = paymentService.paymentInfo_Ok(id);
        log.info("*****result: "+result);
        return result;
    }

    @GetMapping("/payment/hystrix/timeout/{id}")
    public String paymentInfo_TimeOut(@PathVariable("id") Integer id) {
        String result = paymentService.paymentInfo_TimeOut(id);
        log.info("*****result: "+result);
        return result;
    }

    //====服务熔断
    @GetMapping("/payment/circuit/{id}")
    public String paymentCircuitBreaker(@PathVariable("id") Integer id)
    {
        String result = paymentService.paymentCircuitBreaker(id);
        log.info("======result: "+result);
        return result;
    }
}

启动测试:http://localhost:8001/payment/circuit/31,调用成功

image-20211122150618841

用负数测试:

image-20211122150656897

因为之前设置了失败率达到6成会熔断,那么就快速多次点击-31这个请求,然后再用正数测试,发现居然也测试不成功了

image-20211122151043633

说明熔断了,再等一下,发现又好了。这就是熔断机制。

这样就能很好体现:服务降级--->熔断--->恢复链路的过程。

总结

三个参数

  • 快照时间窗:断路器确定是否打开需要统计一些请求和错误数据,而统计的时间范围就是快照时间窗,默认为最近的10秒。
  • 请求总数阀值:在快照时间窗内,必须满足请求总数阀值才有资格熔断。默认为20,意味着在10秒内,如果该hystrix命令的调用次数不足20次7,即使所有的请求都超时或其他原因失败,断路器都不会打开。
  • 错误百分比阀值:当请求总数在快照时间窗内超过了阀值,比如发生了30次调用,如果在这30次调用中,有15次发生了超时异常,也就是超过50%的错误百分比,在默认设定50%阀值情况下,这时候就会将断路器打开。

熔断类型

  • 熔断打开:请求不再进行调用当前服务,内部设置时钟一般为MTTR(平均故障处理时间),当打开时长达到所设时钟则进入半熔断状态。
  • 熔断关闭:熔断关闭不会对服务进行熔断。
  • 熔断半开:部分请求根据规则调用当前服务,如果请求成功且符合规则则认为当前服务恢复正常,关闭熔断。

断路器开启或者关闭的条件

到达以下阀值,断路器将会开启:

  • 当满足一定的阀值的时候(默认10秒内超过20个请求次数)
  • 当失败率达到一定的时候(默认10秒内超过50%的请求失败)
  • 到达以上阈值,断路器会开启
  • 当开启的时候,所有请求都不会进行转发
  • 一段时间之后(默认是5秒),这个时候断路器是半开状态,会让其中一个请求进行转发。如果成功,断路器会关闭,若失败,继续开启。

断路器打开之后

1:再有请求调用的时候,将不会调用主逻辑,而是直接调用降级fallback。通过断路器,实现了自动地发现错误并将降级逻辑切换为主逻辑,减少响应延迟的效果。

2:原来的主逻辑要如何恢复呢?

对于这一问题,hystrix也为我们实现了自动恢复功能。

当断路器打开,对主逻辑进行熔断之后,hystrix会启动一个休眠时间窗,在这个时间窗内,降级逻辑是临时的成为主逻辑,当休眠时间窗到期,断路器将进入半开状态,释放一次请求到原来的主逻辑上,如果此次请求正常返回,那么断路器将继续闭合,主逻辑恢复,如果这次请求依然有问题,断路器继续进入打开状态,休眠时间窗重新计时。

@HystrixCommand(fallbackMethod = "fallbackMethod",
                groupKey = "strGroupCommand",
                commandKey = "strCommand",
                threadPoolKey = "strThreadPool",

                commandProperties = {
                    // 设置隔离策略,THREAD 表示线程池 SEMAPHORE:信号池隔离
                    @HystrixProperty(name = "execution.isolation.strategy", value = "THREAD"),
                    // 当隔离策略选择信号池隔离的时候,用来设置信号池的大小(最大并发数)
                    @HystrixProperty(name = "execution.isolation.semaphore.maxConcurrentRequests", value = "10"),
                    // 配置命令执行的超时时间
                    @HystrixProperty(name = "execution.isolation.thread.timeoutinMilliseconds", value = "10"),
                    // 是否启用超时时间
                    @HystrixProperty(name = "execution.timeout.enabled", value = "true"),
                    // 执行超时的时候是否中断
                    @HystrixProperty(name = "execution.isolation.thread.interruptOnTimeout", value = "true"),

                    // 执行被取消的时候是否中断
                    @HystrixProperty(name = "execution.isolation.thread.interruptOnCancel", value = "true"),
                    // 允许回调方法执行的最大并发数
                    @HystrixProperty(name = "fallback.isolation.semaphore.maxConcurrentRequests", value = "10"),
                    // 服务降级是否启用,是否执行回调函数
                    @HystrixProperty(name = "fallback.enabled", value = "true"),
                    // 是否启用断路器
                    @HystrixProperty(name = "circuitBreaker.enabled", value = "true"),
                    // 该属性用来设置在滚动时间窗中,断路器熔断的最小请求数。例如,默认该值为 20 的时候,如果滚动时间窗(默认10秒)内仅收到了19个请求, 即使这19个请求都失败了,断路器也不会打开。
                    @HystrixProperty(name = "circuitBreaker.requestVolumeThreshold", value = "20"),

                    // 该属性用来设置在滚动时间窗中,表示在滚动时间窗中,在请求数量超过 circuitBreaker.requestVolumeThreshold 的情况下,如果错误请求数的百分比超过50, 就把断路器设置为 "打开" 状态,否则就设置为 "关闭" 状态。
                    @HystrixProperty(name = "circuitBreaker.errorThresholdPercentage", value = "50"),
                    // 该属性用来设置当断路器打开之后的休眠时间窗。 休眠时间窗结束之后,会将断路器置为 "半开" 状态,尝试熔断的请求命令,如果依然失败就将断路器继续设置为 "打开" 状态,如果成功就设置为 "关闭" 状态。
                    @HystrixProperty(name = "circuitBreaker.sleepWindowinMilliseconds", value = "5000"),
                    // 断路器强制打开
                    @HystrixProperty(name = "circuitBreaker.forceOpen", value = "false"),
                    // 断路器强制关闭
                    @HystrixProperty(name = "circuitBreaker.forceClosed", value = "false"),
                    // 滚动时间窗设置,该时间用于断路器判断健康度时需要收集信息的持续时间
                    @HystrixProperty(name = "metrics.rollingStats.timeinMilliseconds", value = "10000"),

                    // 该属性用来设置滚动时间窗统计指标信息时划分"桶"的数量,断路器在收集指标信息的时候会根据设置的时间窗长度拆分成多个 "桶" 来累计各度量值,每个"桶"记录了一段时间内的采集指标。
                    // 比如 10 秒内拆分成 10 个"桶"收集这样,所以 timeinMilliseconds 必须能被 numBuckets 整除。否则会抛异常
                    @HystrixProperty(name = "metrics.rollingStats.numBuckets", value = "10"),
                    // 该属性用来设置对命令执行的延迟是否使用百分位数来跟踪和计算。如果设置为 false, 那么所有的概要统计都将返回 -1。
                    @HystrixProperty(name = "metrics.rollingPercentile.enabled", value = "false"),
                    // 该属性用来设置百分位统计的滚动窗口的持续时间,单位为毫秒。
                    @HystrixProperty(name = "metrics.rollingPercentile.timeInMilliseconds", value = "60000"),
                    // 该属性用来设置百分位统计滚动窗口中使用 “ 桶 ”的数量。
                    @HystrixProperty(name = "metrics.rollingPercentile.numBuckets", value = "60000"),
                    // 该属性用来设置在执行过程中每个 “桶” 中保留的最大执行次数。如果在滚动时间窗内发生超过该设定值的执行次数,
                    // 就从最初的位置开始重写。例如,将该值设置为100, 滚动窗口为10秒,若在10秒内一个 “桶 ”中发生了500次执行,
                    // 那么该 “桶” 中只保留 最后的100次执行的统计。另外,增加该值的大小将会增加内存量的消耗,并增加排序百分位数所需的计算时间。
                    @HystrixProperty(name = "metrics.rollingPercentile.bucketSize", value = "100"),

                    // 该属性用来设置采集影响断路器状态的健康快照(请求的成功、 错误百分比)的间隔等待时间。
                    @HystrixProperty(name = "metrics.healthSnapshot.intervalinMilliseconds", value = "500"),
                    // 是否开启请求缓存
                    @HystrixProperty(name = "requestCache.enabled", value = "true"),
                    // HystrixCommand的执行和事件是否打印日志到 HystrixRequestLog 中
                    @HystrixProperty(name = "requestLog.enabled", value = "true"),

                },
                threadPoolProperties = {
                    // 该参数用来设置执行命令线程池的核心线程数,该值也就是命令执行的最大并发量
                    @HystrixProperty(name = "coreSize", value = "10"),
                    // 该参数用来设置线程池的最大队列大小。当设置为 -1 时,线程池将使用 SynchronousQueue 实现的队列,否则将使用 LinkedBlockingQueue 实现的队列。
                    @HystrixProperty(name = "maxQueueSize", value = "-1"),
                    // 该参数用来为队列设置拒绝阈值。 通过该参数, 即使队列没有达到最大值也能拒绝请求。
                    // 该参数主要是对 LinkedBlockingQueue 队列的补充,因为 LinkedBlockingQueue 队列不能动态修改它的对象大小,而通过该属性就可以调整拒绝请求的队列大小了。
                    @HystrixProperty(name = "queueSizeRejectionThreshold", value = "5"),
                }
               )
public String doSomething() {
	...
}

四、Hystrix的工作流程

文档:github.com/Netflix/Hys…

工作流程图:看不清可以再上面文档里点击Flow Chart显示。

image-20211122152338322

步骤:

  • 创建HystrixCommand或者HystrixObservableCommand对象
  • 执行 Command
  • 检查请求结果是否被缓存
  • 检查是否开启了断路器
  • 检查 线程池/队列/semaphore 是否已经满
  • 执行 HystrixObservableCommand.construct() or HystrixCommand.run()
  • 计算短路健康状况
  • 调用fallback降级机制
  • 返回依赖请求的真正结果

五、HystrixDashboard服务监控

1、概述

除了隔离依赖服务的调用以外,Hystrix还提供了准实时的调用监控(Hystrix Dashboard),Hystrix会持续地记录所有通过Hystrix发起的请求的执行信息,并以统计报表和图形的形式展示给用户,包括每秒执行多少请求多少成功,多少失败等。

Netflix通过hystrix-metrics-event-stream项目实现了对以上指标的监控。Spring Cloud也提供了Hystrix Dashboard的整合,对监控内容转化成可视化界面。

2、仪表盘9001

创建cloud-consumer-hystrix-dashboard9001模块

pom依赖引入:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2021</artifactId>
        <groupId>com.atguigu</groupId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.atguigu.springcloud</groupId>
    <artifactId>cloud-consumer-hystrix-dashboard9001</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

yaml文件:

server:
  port: 9001

主启动类加注解:

@EnableHystrixDashboard
@SpringBootApplication
public class HystrixDashboardMain9001 {
    public static void main(String[] args) {
        SpringApplication.run(HystrixDashboardMain9001.class,args);
    }
}

所有Provider微服务提供类(8001/8002/8003)都需要监控依赖配置,也就是以前引入过的actuator依赖。

启动9001,访问http://localhost:9001/hystrix,要保证能看到这个界面:

image-20211122154706555

3、断路器演示

修改8001模块,需要在8001的主启动类上加上一段代码:

@SpringBootApplication
@EnableEurekaClient
@EnableCircuitBreaker
public class PaymentHystrixMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentHystrixMain8001.class, args);
    }

    /**
     * 此配置是为了服务监控而配置,与服务容错本身无关,springcloud升级后的坑
     * ServletRegistrationBean因为springboot的默认路径不是"/hystrix.stream",
     * 只要在自己的项目里配置上下面的servlet就可以了
     * 否则,Unable to connect to Command Metric Stream 404
     */
    @Bean
    public ServletRegistrationBean getServlet() {
        HystrixMetricsStreamServlet streamServlet = new HystrixMetricsStreamServlet();
        ServletRegistrationBean registrationBean = new ServletRegistrationBean(streamServlet);
        registrationBean.setLoadOnStartup(1);
        registrationBean.addUrlMappings("/hystrix.stream");
        registrationBean.setName("HystrixMetricsStreamServlet");
        return registrationBean;
    }
}

要让9001端口监控8001端口,需要这样写:

image-20211122155355670

访问:

image-20211122155615407

多次访问,波峰上的小圆圈会越来越大,circuit是closed说明断路器没关闭,而当多次访问负数时,会变为open状态。

image-20211122155738288

介绍

  • 7色:

image-20211122155923801

  • 一圈:

实心圆:共有两种含义。它通过颜色的变化代表了实例的健康程度,它的健康度从绿色<黄色<橙色<红色递减。

该实心圆除了颜色的变化之外,它的大小也会根据实例的请求流量发生变化,流量越大该实心圆就越大。所以通过该实心圆的展示,就可以在大量的实例中快速的发现故障实例和高压力实例。

  • 一线:曲线:用来记录2分钟内流量的相对变化,可以通过它来观察到流量的上升和下降趋势。
