vue可视化大屏使用css3的缩放transform: scale(X)属性适配

这是我参与11月更文挑战的第N天,活动详情查看:2021最后一次更文挑战

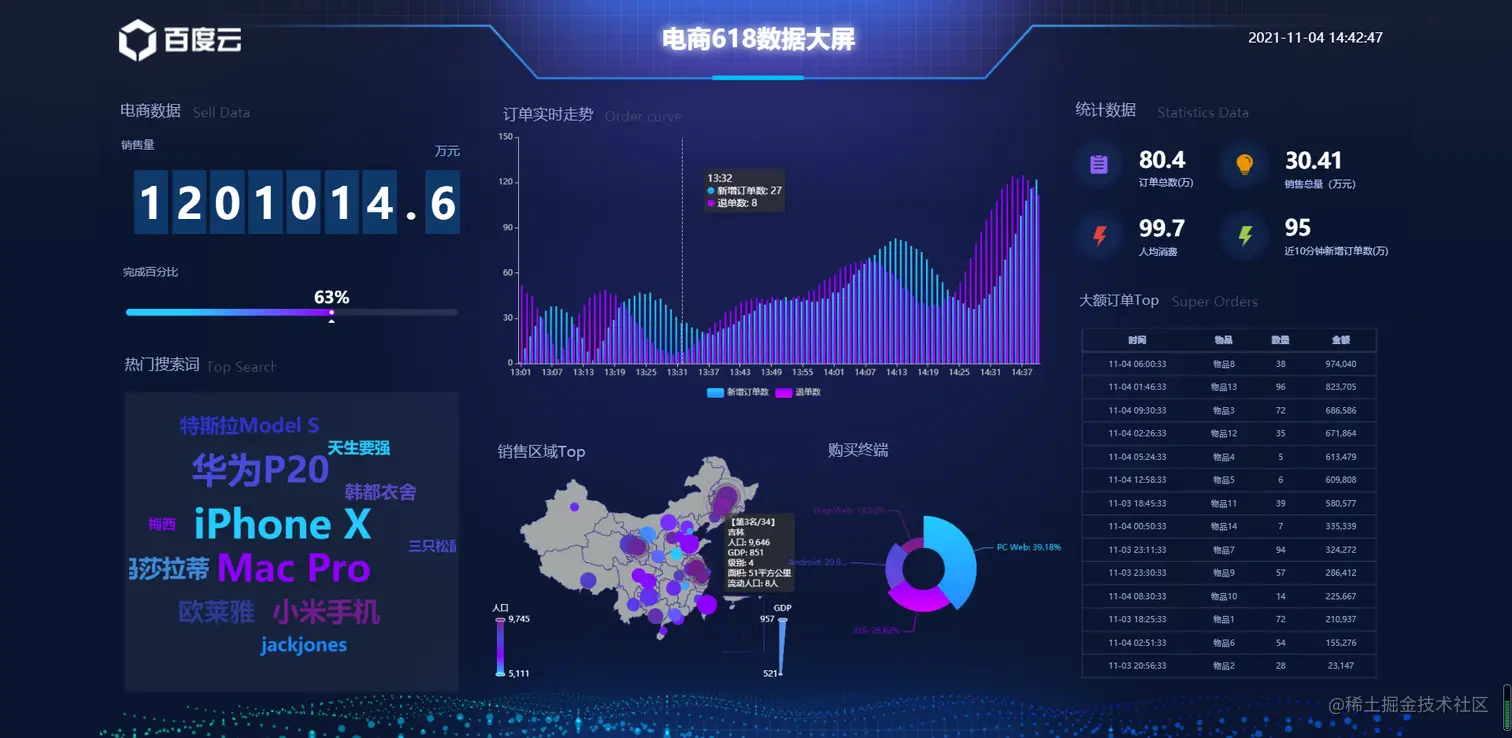

想必近几年前端的数据可视化越来越重要了,很多甲方爸爸都喜欢那种炫酷的大屏幕设计,类似如下这种:


遇到的这样的项目,大多是同学想到的是用echarts或chart.js,再搭配各种mvvm框架(vue),找二次封装过的组件,然后开始埋头开始写了,写着写着你会发现,如何适配不同屏幕呢?css媒体查询吧,用vw吧,哪个好点呢。其实写到最后,我觉得都不好对于这种拿不定主意的情况呢,最好还是参考大厂的做法,于是去找了网易有数,百度suger等,仔细观察他们都采用了css3的缩放transform: scale(X)属性,看到这是不是有种豁然开朗的感觉
于是我们只要监听浏览器的窗口大小,然后控制变化的比例就好了,他们是如何写这样的页面的:

在components目录下创建ScaleBox.vue文件

<template>
  <div
    class="ScaleBox"
    ref="ScaleBox"
    :style="{
      width: width + 'px',
      height: height + 'px',
    }"
  >
    <slot></slot>
  </div>
</template>
<script>
export default {
  name: "ScaleBox",
  props: {

  },
  data() {
    return {
      scale: "",
      width:1920,
      height:937
    };
  },
  mounted() {
    this.setScale();
    window.addEventListener("resize", this.debounce(this.setScale, 100));
  },
  methods: {
    getScale() {
      let { width, height } = this;
      let wh = window.innerHeight / height;
      let ww = window.innerWidth / width;
      console.log(ww < wh ? ww : wh);
      return ww < wh ? ww : wh;
    },
    setScale() {
      if(window.innerHeight ==1080){
        this.height = 1080
      }else{
        this.height = 937

      }
      this.scale = this.getScale();
      if (this.$refs.ScaleBox) {
        this.$refs.ScaleBox.style.setProperty("--scale", this.scale);
      }
    },
    debounce(fn, delay) {
      let delays = delay || 500;
      let timer;
      return function () {
        let th = this;
        let args = arguments;
        if (timer) {
          clearTimeout(timer);
        }
        timer = setTimeout(function () {
          timer = null;
          fn.apply(th, args);
        }, delays);
      };
    },
  },
};
</script>

<style lang="scss">
#ScaleBox {
  --scale: 1;
}
.ScaleBox {
  position: absolute;
  transform: scale(var(--scale)) translate(-50%, -50%);
  display: flex;
  flex-direction: column;
  transform-origin: 0 0;
  left: 50%;
  top: 50%;
  transition: 0.3s;
  z-index: 999;
}
</style>

页面引用,把大屏首页布局放入ScaleBox组件内,就可以愉快的运用px或%布局了

import ScaleBox from '@/components/ScaleBox.vue'
<ScaleBox >内容</ScaleBox >

只要把页面放在这个组件中,就能实现跟大厂们类似的效果。这种方式下不管屏幕有多大,分辨率有多高,只要屏幕的比例跟你定的比例一致,都能呈现出完美效果。而且开发过程中,样式的单位也可以直接用px,省去了转换的烦恼~~~
