基于canvas绘制边框环绕进度条
案例

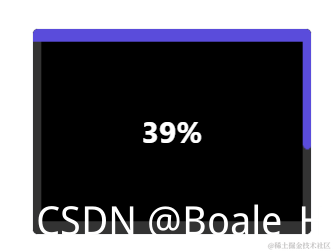

如下图所示，我们想通过canvas来绘制一个环形的进度条，且封装成组件，让进度条能自适应宽高包裹元素，进度条的进度依据百分比进行渲染
思路
- 父盒子设置相对定位
- canvas画布基于父盒子绝对定位，设置其宽高百分比为父盒子100%
- canvas画布首先绘制一个矩形边框，让其渲染出进度条底色
- 设置定时器，依据时间流速，先后绘制上边框进度条、右边框进度条、下边框进度条、左边框进度条，每个进度条所耗时间占总时间的1/4
- 进度条走完之后，清除定时器
- 进度条封装成组件，以插槽形式包裹需要包裹的元素
完整代码
进度条组件BorderProgress
import React, { Component, createRef } from 'react';
import './BorderProgress.less';
type StateType = {
// borderProgressDomWidth: number;
// borderProgressDomHeight: number;
percent: string;
[propName: string]: any;
};
type PropType = {
time: number;
pauseProgress?: boolean;
isShowEndProgress?: boolean;
canvasId: string;
[propName: string]: any;
};
interface BorderProgress {
state: StateType;
props: PropType;
borderProgressDom: any;
progressInterval: any;
}
class BorderProgress extends Component {
constructor(props: any) {
super(props);
this.state = {
// borderProgressDomWidth: 0,
// borderProgressDomHeight: 0,
percent: '0%',
};
this.borderProgressDom = createRef();
this.progressInterval = null;
}
componentDidMount() {
// this.setState({
// borderProgressDomWidth: this.borderProgressDom.current.offsetWidth,
// borderProgressDomHeight: this.borderProgressDom.current.offsetHeight,
// })
if (!this.props.isShowEndProgress) {
this.initBorderProgress();
}
}
componentWillUnmount() {
clearInterval(this.progressInterval);
}
componentDidUpdate() {
if (this.props.pauseProgress === true) {
clearInterval(this.progressInterval);
}
}
private initBorderProgress = (): void => {
let myCanvas: any = document.getElementById(this.props.canvasId);
let ctx = myCanvas.getContext("2d");
const myCanvasWidth = myCanvas.width; // canvas画布中能准确设置像素的宽度（依据dom真实宽度设置画布像素并不准确，不能有效占满画布）
const myCanvasHeight = myCanvas.height; // canvas画布中能准确设置像素的高度（依据dom真实宽度设置画布像素并不准确，不能有效占满画布）
console.log(myCanvasWidth, myCanvasHeight);
const borderWidth = 10;
// 先绘制画布原始边框矩形
ctx.lineWidth=borderWidth; // 设置边框的线条宽度为8个像素
ctx.strokeStyle="#333"; // 设置线条颜色
ctx.rect(5, 5, myCanvasWidth-borderWidth, myCanvasHeight-borderWidth); // 设置边框所在坐标，是因为线条宽度也占据了像素，所以坐标x,y设置为线条宽度的一半，且矩形宽高需要减去线条宽度，这样才能让矩形沿着画布边缘，铺满画布
ctx.stroke();
this.startProgress(ctx, myCanvasWidth-borderWidth, myCanvasHeight-borderWidth, borderWidth);
}
private startProgress = (ctx: any, canSetWidth: number, canSetHeight: number, borderWidth: number): void => {
clearInterval(this.progressInterval);
let time = this.props.time;
let timeCount = 0;
let percent = `0%`;
let topProgressBorderLength = 0;
let rightProgressBorderLength = 0;
let bottomProgressBorderLength = 0;
let leftProgressBorderLength = 0;
this.progressInterval = setInterval(() => {
if (topProgressBorderLength < canSetWidth) { // 如果上边框小于当前canvas画布可设置宽度
// 绘制矩形进度条top边框
ctx.beginPath(); // 起始一条路径
ctx.lineWidth = borderWidth; // 设置边框的线条宽度为8个像素
ctx.strokeStyle = "#5A4CDB"; // 设置线条颜色
ctx.lineCap = "round"; // 向线条的每个末端添加圆形线帽
topProgressBorderLength += canSetWidth / (time * 1000 / 4 / 15);
if (topProgressBorderLength >= canSetWidth) {
topProgressBorderLength = canSetWidth;
}
ctx.moveTo(0, borderWidth/2);
ctx.lineTo(topProgressBorderLength, borderWidth/2);
ctx.stroke();
}
if (!(topProgressBorderLength < canSetWidth) && (rightProgressBorderLength < canSetHeight)) { // 如果上边框已经绘制完成，右边框小于当前canvas画布可设置高度
// 绘制矩形进度条right边框
ctx.beginPath(); // 起始一条路径
ctx.lineWidth = borderWidth; // 设置边框的线条宽度为8个像素
ctx.strokeStyle = "#5A4CDB"; // 设置线条颜色
ctx.lineCap = "round"; // 向线条的每个末端添加圆形线帽
rightProgressBorderLength += canSetHeight / (time * 1000 / 4 / 15);
if (rightProgressBorderLength >= canSetHeight) {
rightProgressBorderLength = canSetHeight;
}
ctx.moveTo(canSetWidth+(borderWidth/2), (borderWidth/2));
ctx.lineTo(canSetWidth+(borderWidth/2), rightProgressBorderLength);
ctx.stroke();
}
if (!(rightProgressBorderLength < canSetHeight) && (bottomProgressBorderLength < canSetWidth)) { // 如果右边框已经绘制完成，下边框小于当前canvas画布可设置宽度
// 绘制矩形进度条bottom边框
ctx.beginPath(); // 起始一条路径
ctx.lineWidth = borderWidth; // 设置边框的线条宽度为8个像素
ctx.strokeStyle = "#5A4CDB"; // 设置线条颜色
ctx.lineCap = "round"; // 向线条的每个末端添加圆形线帽
bottomProgressBorderLength += canSetWidth / (time * 1000 / 4 / 15);
if (bottomProgressBorderLength >= canSetWidth) {
bottomProgressBorderLength = canSetWidth;
}
ctx.moveTo(canSetWidth+(borderWidth/2), canSetHeight+(borderWidth/2));
ctx.lineTo(canSetWidth+(borderWidth/2)-bottomProgressBorderLength, canSetHeight+(borderWidth/2));
ctx.stroke();
}
if (!(bottomProgressBorderLength < canSetWidth) && (leftProgressBorderLength < canSetHeight)) { // 如果上边框已经绘制完成，右边框小于当前canvas画布可设置高度
// 绘制矩形进度条right边框
ctx.beginPath(); // 起始一条路径
ctx.lineWidth = borderWidth; // 设置边框的线条宽度为8个像素
ctx.strokeStyle = "#5A4CDB"; // 设置线条颜色
ctx.lineCap = "round"; // 向线条的每个末端添加圆形线帽
leftProgressBorderLength += canSetHeight / (time * 1000 / 4 / 15);
if (leftProgressBorderLength >= canSetHeight) {
leftProgressBorderLength = canSetHeight;
}
ctx.moveTo((borderWidth/2), canSetHeight+(borderWidth/2));
ctx.lineTo((borderWidth/2), canSetHeight-leftProgressBorderLength);
ctx.stroke();
}
// 绘制百分比进度文字数值
timeCount += 15;
percent = `${Math.floor(timeCount/(time * 1000) * 100)}%`;
if (Math.floor(timeCount/(time * 1000) * 100) > 99) {
percent = `99%`;
}
this.setState({
percent,
});
// ctx.font="30px Arial";
// ctx.textAlign="center";
// ctx.fillText(`${percent}`,150,120);
if (leftProgressBorderLength === canSetHeight) {
clearInterval(this.progressInterval);
}
}, 15);
}
render() {
const { percent } = this.state;
const { canvasId } = this.props;
return (
<div className="border-progress" ref={this.borderProgressDom}>
{this.props.children}
<canvas id={canvasId} className="my-canvas"></canvas>
<div className="border-progress-percent">{percent}</div>
</div>
)
}
}
export default BorderProgress;
进度条组件BorderProgress样式：
.border-progress {
display: inline-block;
position: relative;
.my-canvas {
width: 100%;
height: 100%;
position: absolute;
opacity: 1;
top: 0;
left: 0;
}
.border-progress-percent {
width: 100%;
height: 100%;
position: absolute;
display: flex;
justify-content: center;
align-items: center;
font-size: 30px;
font-weight: 700;
color: #fff;
top: 0;
left: 0;
}
}
使用进度条组件BorderProgress：
<div className="draft-list-item draft-list-item-nodata" key={index}>
<BorderProgress time={60} key={index} canvasId={ele.videoInfoNo}>
<div className="border-progress-content"></div>
</BorderProgress>
</div>
