【收藏篇】Zookeeper单机部署、必备命令、场景实战

这是我参与11月更文挑战的第2天，活动详情查看：2021最后一次更文挑战

前言

昨天花哥在第一篇文章中介绍了Zookeeper是什么，大家对它应该也有了一个初步的概念，今天呢，我们就实际操作一波，看它是如何部署到我们的机器上，在代码中又是如何应用的。

单机版安装（windows）

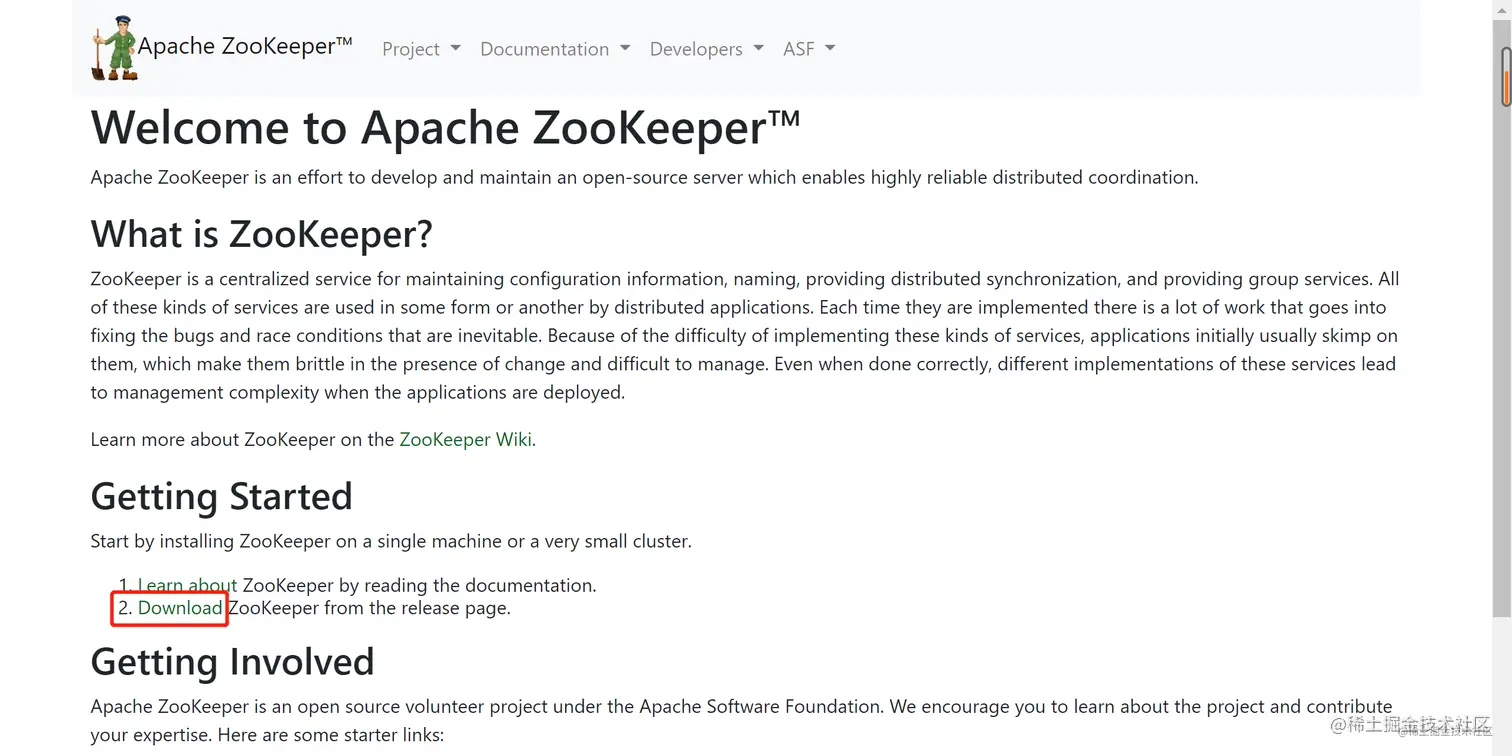

1. 打开Zookeeper官网 首页，点击Download，就可以跳转到下载页，根据需要选择对应的版本。

2. 如果官网访问失败，花哥也将【3.6.3】、【3.7.0】两个版本上传到百度网盘，有需要的小伙伴可以直接下载

链接：pan.baidu.com/s/19wHXUKTf… 提取码：chwm

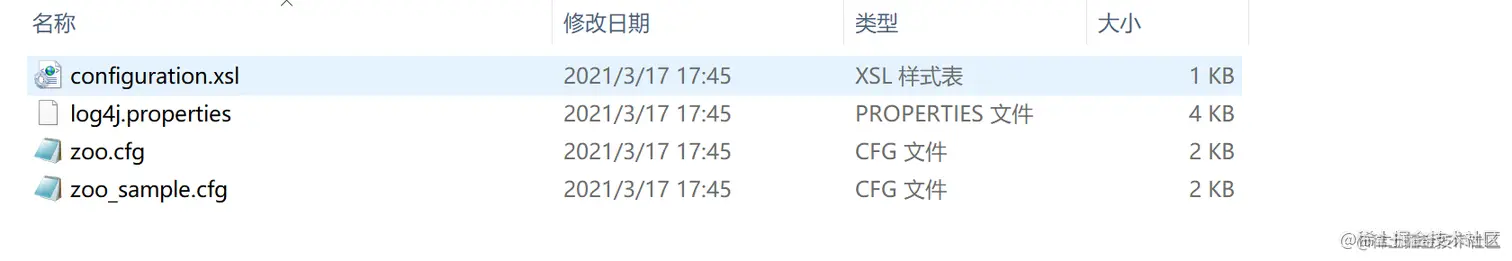

3. 将压缩包解压，打开conf目录，将zoo_sample.cfg拷贝一份并命名为zoo.cfg

4. 上述配置完毕后，打开bin目录，双击zkServer.cmd启动服务端
5. 服务启动完成，双击zkCli.cmd即可以进行测试

注意：zookeeper依赖java环境，因此在安装前，保证操作系统中java环境正常。

单机版安装（linux）

1. 下载解压

# cd /usr/local
# wget https://dlcdn.apache.org/zookeeper/zookeeper-3.7.0/apache-zookeeper-3.7.0-bin.tar.gz
# tar -zxvf apache-zookeeper-3.7.0-bin.tar.gz
# cd apache-zookeeper-3.7.0-bin

2. 修改配置

# cp conf/zoo_sample.cfg conf/zoo.cfg

3. 启动服务

# bin/zkServer.sh start

4. 启动客户端

# bin/zkCli.sh

注意：如果wget无法使用，可以使用yum -y install wget先将其安装，或者直接将zookeeper包下载到本地，然后上传至服务器。

配置文件说明

在单机版中，我们只需要配置以下三个参数就可以正常启动

#心跳时间,单位毫秒
tickTime = 2000
#数据存放目录
dataDir = /usr/local/zookeeper
#客户端连接端口
clientPort = 2181

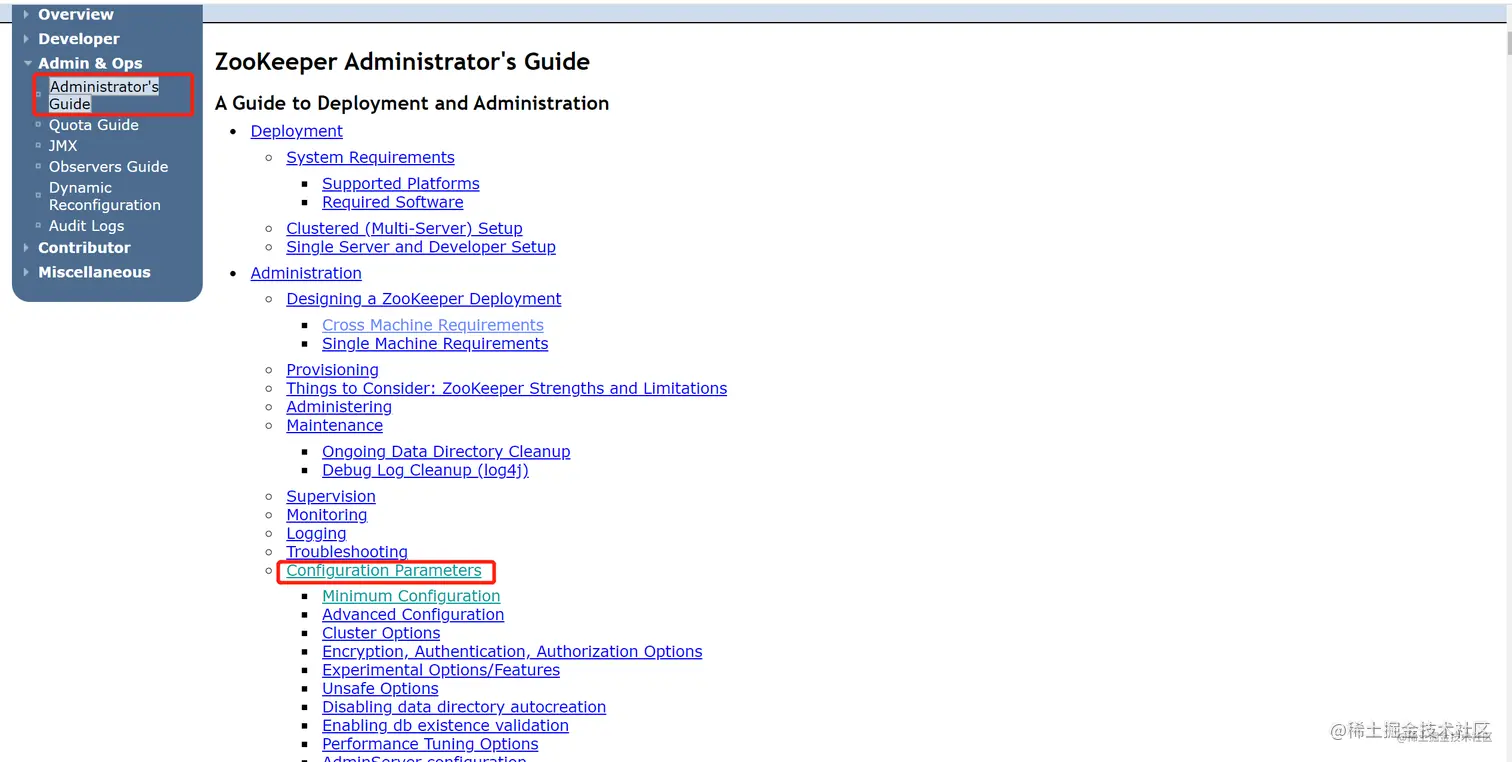

当然，在实际应用中，上面三个参数可能是不够的，这时我们可以在官网指南中查看每一个配置项的作用，根据实际需求选择。 \

命令使用说明

• 使用ls可以查看zookeeper当前包含的节点

• 使用create创建一个新的子节点

• 使用ls再来看下根目录下包含的子节点，testData已经被创建

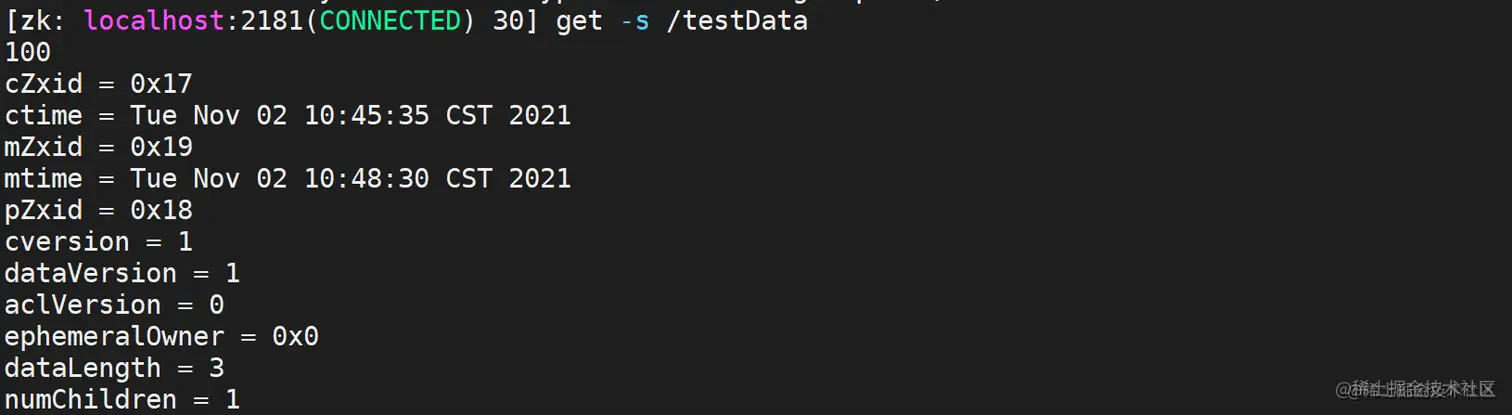

• 使用get查看节点内容

• 使用set设置节点内容

• 使用delete删除节点

常用命令介绍

• 客户端命令

命令	说明	示例
ls	获取节点	ls /
create	创建子节点	create /testData 100
delete	删除节点	delete /testData
get	从指定节点读取数据	get -s /testData
set	设置数据到指定节点	set /testData 200help
help	查看帮助
quit	退出客户端

• 服务命令

命令	说明
sh bin/zkServer.sh start	启动zk服务
sh bin/zkServer.sh stop	停止zk服务
sh bin/zkServer.sh restart	重启zk服务
sh bin/zkServer.sh status	查看服务状态

代码测试

package com.basic.business.demo;
​
import java.util.concurrent.CountDownLatch;
import org.apache.zookeeper.WatchedEvent;
import org.apache.zookeeper.Watcher;
import org.apache.zookeeper.Watcher.Event.EventType;
import org.apache.zookeeper.Watcher.Event.KeeperState;
import org.apache.zookeeper.ZooKeeper;
import org.apache.zookeeper.data.Stat;
​
/**
 * zk测试demo
 *
 */
public class ZookeeperDemo implements Watcher {
​
    private static ZooKeeper zk = null;
    private static Stat stat = new Stat();
​
    public static void main(String[] args) throws Exception {
        //被监听的节点
        String path = "/testData";
        //连接zookeeper并注册监听器
        zk = new ZooKeeper("127.0.0.1:2181", 5000, new ZookeeperDemo());
        //注册监听器,监听节点/testData值的变化
        zk.getData(path,true,stat);
        Thread.sleep(Integer.MAX_VALUE);
    }
​
    public void process(WatchedEvent event) {
        //zk连接成功事件
        if (KeeperState.SyncConnected == event.getState()) {
            //zk节点数据变化时通知事件
            if (event.getType() == EventType.NodeDataChanged) {
                try {
                    System.out.println("修改后的值：" + new String(zk.getData(event.getPath(), true, stat)));
                } catch (Exception e) {
                }
            }
        }
    }
}

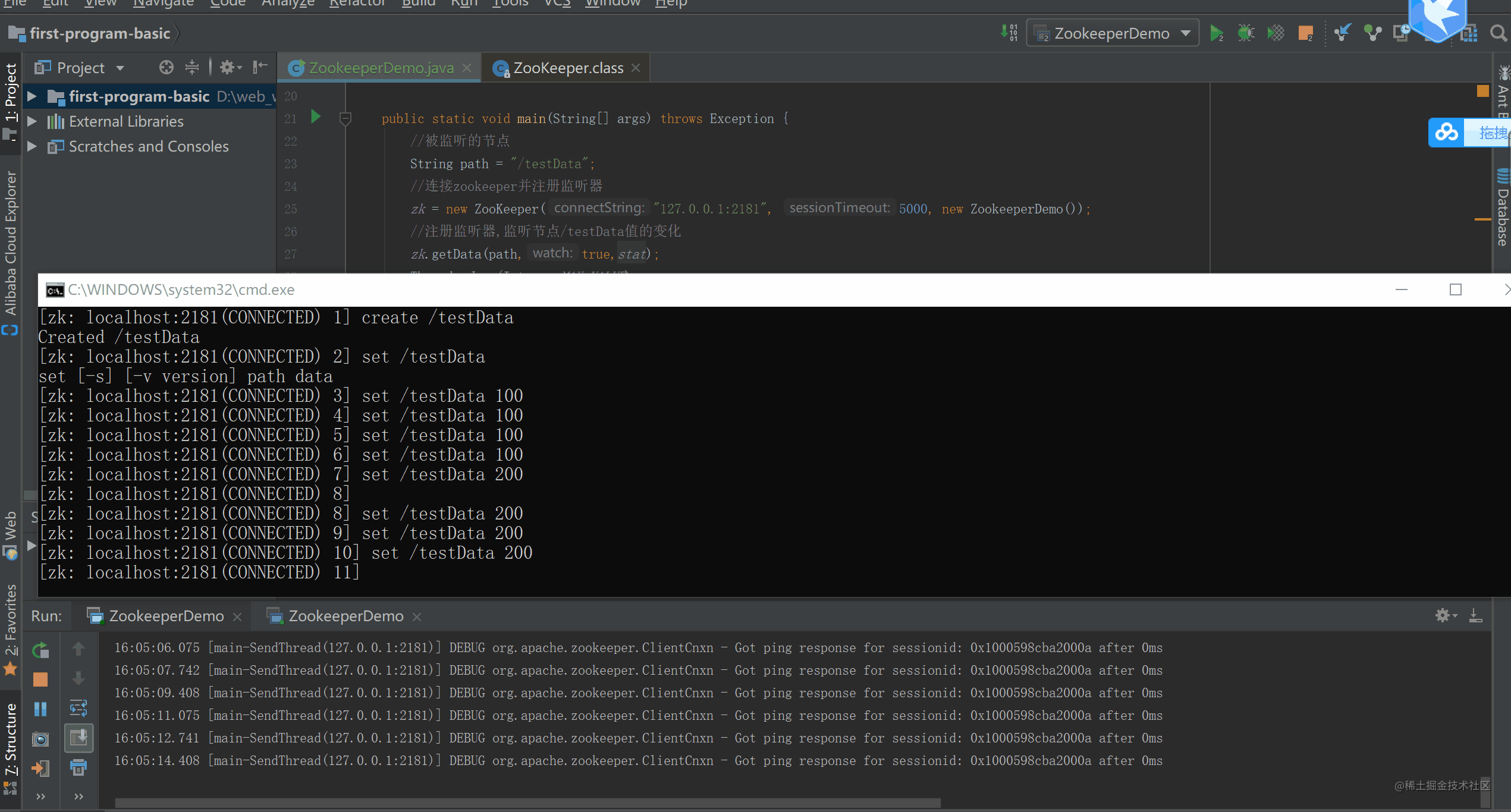

然后连接zk客户端，修改子节点/testData的内容，就能观察到idea控制台能够打印出修改后的内容。

官网实例

有兴趣的小伙伴，可以跟着官网的示例走一下，共计有两个类，代码贴出来，花哥就不再演示了。地址：zookeeper.apache.org/doc/current…

//Executor.java

/**
 * A simple example program to use DataMonitor to start and
 * stop executables based on a znode. The program watches the
 * specified znode and saves the data that corresponds to the
 * znode in the filesystem. It also starts the specified program
 * with the specified arguments when the znode exists and kills
 * the program if the znode goes away.
 */
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;

import org.apache.zookeeper.KeeperException;
import org.apache.zookeeper.WatchedEvent;
import org.apache.zookeeper.Watcher;
import org.apache.zookeeper.ZooKeeper;

public class Executor
    implements Watcher, Runnable, DataMonitor.DataMonitorListener
{
    String znode;
    DataMonitor dm;
    ZooKeeper zk;
    String filename;
    String exec[];
    Process child;

    public Executor(String hostPort, String znode, String filename,
            String exec[]) throws KeeperException, IOException {
        this.filename = filename;
        this.exec = exec;
        zk = new ZooKeeper(hostPort, 3000, this);
        dm = new DataMonitor(zk, znode, null, this);
    }

    /**
     * @param args
     */
    public static void main(String[] args) {
        if (args.length < 4) {
            System.err
                    .println("USAGE: Executor hostPort znode filename program [args ...]");
            System.exit(2);
        }
        String hostPort = args[0];
        String znode = args[1];
        String filename = args[2];
        String exec[] = new String[args.length - 3];
        System.arraycopy(args, 3, exec, 0, exec.length);
        try {
            new Executor(hostPort, znode, filename, exec).run();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /***************************************************************************
     * We do process any events ourselves, we just need to forward them on.
     *
     * @see org.apache.zookeeper.Watcher#process(org.apache.zookeeper.proto.WatcherEvent)
     */
    public void process(WatchedEvent event) {
        dm.process(event);
    }

    public void run() {
        try {
            synchronized (this) {
                while (!dm.dead) {
                    wait();
                }
            }
        } catch (InterruptedException e) {
        }
    }

    public void closing(int rc) {
        synchronized (this) {
            notifyAll();
        }
    }

    static class StreamWriter extends Thread {
        OutputStream os;

        InputStream is;

        StreamWriter(InputStream is, OutputStream os) {
            this.is = is;
            this.os = os;
            start();
        }

        public void run() {
            byte b[] = new byte[80];
            int rc;
            try {
                while ((rc = is.read(b)) > 0) {
                    os.write(b, 0, rc);
                }
            } catch (IOException e) {
            }

        }
    }

    public void exists(byte[] data) {
        if (data == null) {
            if (child != null) {
                System.out.println("Killing process");
                child.destroy();
                try {
                    child.waitFor();
                } catch (InterruptedException e) {
                }
            }
            child = null;
        } else {
            if (child != null) {
                System.out.println("Stopping child");
                child.destroy();
                try {
                    child.waitFor();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
            try {
                FileOutputStream fos = new FileOutputStream(filename);
                fos.write(data);
                fos.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
            try {
                System.out.println("Starting child");
                child = Runtime.getRuntime().exec(exec);
                new StreamWriter(child.getInputStream(), System.out);
                new StreamWriter(child.getErrorStream(), System.err);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

//DataMonitor.java

/**
 * A simple class that monitors the data and existence of a ZooKeeper
 * node. It uses asynchronous ZooKeeper APIs.
 */
import java.util.Arrays;

import org.apache.zookeeper.KeeperException;
import org.apache.zookeeper.WatchedEvent;
import org.apache.zookeeper.Watcher;
import org.apache.zookeeper.ZooKeeper;
import org.apache.zookeeper.AsyncCallback.StatCallback;
import org.apache.zookeeper.KeeperException.Code;
import org.apache.zookeeper.data.Stat;

public class DataMonitor implements Watcher, StatCallback {

    ZooKeeper zk;
    String znode;
    Watcher chainedWatcher;
    boolean dead;
    DataMonitorListener listener;
    byte prevData[];

    public DataMonitor(ZooKeeper zk, String znode, Watcher chainedWatcher,
            DataMonitorListener listener) {
        this.zk = zk;
        this.znode = znode;
        this.chainedWatcher = chainedWatcher;
        this.listener = listener;
        // Get things started by checking if the node exists. We are going
        // to be completely event driven
        zk.exists(znode, true, this, null);
    }

    /**
     * Other classes use the DataMonitor by implementing this method
     */
    public interface DataMonitorListener {
        /**
         * The existence status of the node has changed.
         */
        void exists(byte data[]);

        /**
         * The ZooKeeper session is no longer valid.
         *
         * @param rc
         *                the ZooKeeper reason code
         */
        void closing(int rc);
    }

    public void process(WatchedEvent event) {
        String path = event.getPath();
        if (event.getType() == Event.EventType.None) {
            // We are are being told that the state of the
            // connection has changed
            switch (event.getState()) {
            case SyncConnected:
                // In this particular example we don't need to do anything
                // here - watches are automatically re-registered with
                // server and any watches triggered while the client was
                // disconnected will be delivered (in order of course)
                break;
            case Expired:
                // It's all over
                dead = true;
                listener.closing(KeeperException.Code.SessionExpired);
                break;
            }
        } else {
            if (path != null && path.equals(znode)) {
                // Something has changed on the node, let's find out
                zk.exists(znode, true, this, null);
            }
        }
        if (chainedWatcher != null) {
            chainedWatcher.process(event);
        }
    }

    public void processResult(int rc, String path, Object ctx, Stat stat) {
        boolean exists;
        switch (rc) {
        case Code.Ok:
            exists = true;
            break;
        case Code.NoNode:
            exists = false;
            break;
        case Code.SessionExpired:
        case Code.NoAuth:
            dead = true;
            listener.closing(rc);
            return;
        default:
            // Retry errors
            zk.exists(znode, true, this, null);
            return;
        }

        byte b[] = null;
        if (exists) {
            try {
                b = zk.getData(znode, false, null);
            } catch (KeeperException e) {
                // We don't need to worry about recovering now. The watch
                // callbacks will kick off any exception handling
                e.printStackTrace();
            } catch (InterruptedException e) {
                return;
            }
        }
        if ((b == null && b != prevData)
                || (b != null && !Arrays.equals(prevData, b))) {
            listener.exists(b);
            prevData = b;
        }
    }
}

写在最后

今天介绍了zookeeper的单机部署和一些常用命令，已经在java中如何使用，下一章花哥对Zookeeper的核心内容进行讲解，如果觉得文章有一些不妥，小伙伴们可以大胆提出来，一起进步，共同学习。
