可视化大屏常见图表

366 阅读4分钟

一直想写这一篇来着,用于记录工作中遇到的一些比较有意思的图表, 会不定时更新这篇文章

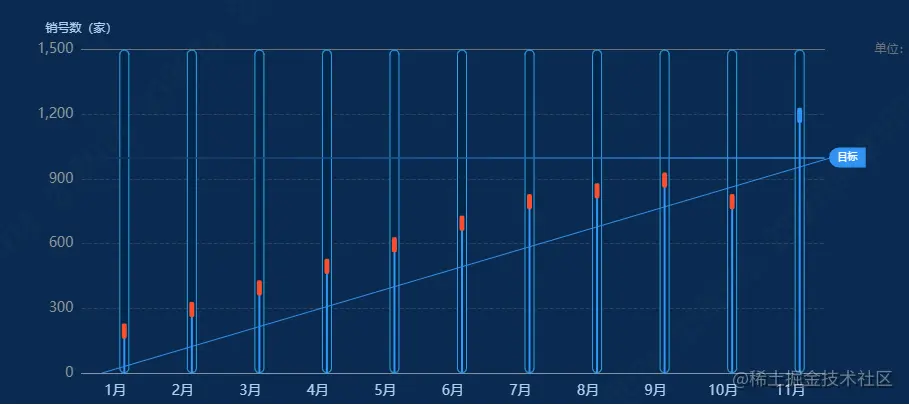

温度计


主要代码就是两个x轴, 温度计外壳bar, 温度计温度值, 小红点, mark 等

option = {
    xAxis: [
        {
            ...
            data: ["1月", "2月", "3月", "4月", "5月", "6月", "7月", "8月", "9月", "10月", "11月"],
        },
        {
            name: '单位',
            data: []
        }
    ],
    series: [
        {
            name: '销号目标',
            type: 'bar',
            data: [0, 0, 0, 0, 0, 0],
            barWidth: 0,
            markLine: {
                symbol: 'none',
                silent: true,
                lineStyle: {},
                label: { position: 'start' },
                data: [
                    {
                        yAxis: 1000, //70,
                        lineStyle: {
                            width: 1.656,
                            color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
                                {
                                    offset: 0,
                                    color: '#0e2c57'
                                },
                                {
                                    offset: 1,
                                    color: '#3092f4'
                                }
                            ])
                        },
                        label: { show: false }
                    },
                    [
                        { name: '', x: '12%', y: '93%' }, //标线1起点
                        { name: '', x: '93%', y: '43%' } //标线1终点
                    ]
                ]
            },
            markPoint: {
                silent: true,
                label: { fontSize: 10 },
                data: [
                    {
                        yAxis: 1000, //70,
                        x: '95%',
                        symbolSize: 0.1,
                        label: {
                            textStyle: { color: '#fff' },
                            padding: [5, 8.28],
                            fontSize: 10,
                            borderRadius: [13.248, 0, 0, 13.248],
                            backgroundColor: '#3092f4',
                            position: 'left',
                            formatter: '目标'
                        }
                    }
                ]
            }
        },
        {
            name: '外框',
            type: 'bar',
            xAxisIndex: 0,
            barGap: '-100%',
            tooltip: none,
            data: [1500, 1500, 1500, 1500, 1500, 1500, 1500, 1500, 1500, 1500, 1500],
            barWidth: 10,
            itemStyle: {
                borderColor: '#33a0e5',
                borderWidth: 1,
                color: '#01274b',
                barBorderRadius: 45,
                backgroundColor: '#01274b'
            },
            z: 0
        },
        {
            //细柱
            name: '年度销号完成量',
            type: 'bar',
            xAxisIndex: 0,
            barGap: '-60%',
            data: [200, 300, 400, 500, 600, 700, 800, 850, 900, 800, 1200],
            barWidth: 2,
            itemStyle: {
                color: function(params) {
                     return '#3196fa'
                }
            },
            z: 2
        },
        {
            name: '年度销号完成量',
            type: 'scatter',
            hoverAnimation: false,
            symbol: 'roundRect',
            data: [200, 300, 400, 500, 600, 700, 800, 850, 900, 800, 1200],
            symbolSize: [5, 15],
            symbolOffset: [9, 1],
            itemStyle: {
                color: function(params) {
                    if (params.data > 1000) {
                        return '#3196fa'
                    } else {
                        return '#fa4e2e'
                    }
                },
                opacity: 1
            },
            z: 2
        }
    ]
}

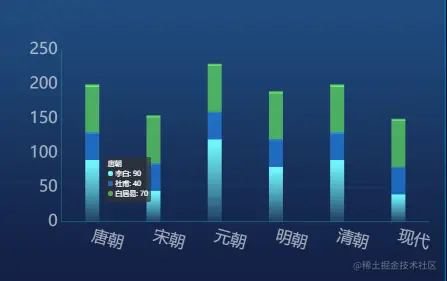

堆叠柱状图


这种图表主要精髓就在series的 stack

series = [
    //第一节
    {
        name: '李白',
        type: 'bar',
        //渐变色
        color: {
           type: 'linear',
           x: 0,
           y: 0,
           x2: 0,
           y2: 1,
           colorStops: [
              {
                 offset: 0,
                 color: 'rgba(112, 247, 254, 1)' // 0% 处的颜色
              },
              {
                 offset: 0.5,
                 color: 'rgba(112, 247, 254, 0.6)' // 50% 处的颜色
              },
              {
                 offset: 1,
                 color: 'rgba(112, 247, 254, 0.1)' // 100% 处的颜色
              }
           ]
        },
        barWidth: 28,
        data: [90, 45, 120, 80, 90, 40]
    },

    {
        name: '杜甫',
        type: 'bar',
        //渐变色
        color: {
           type: 'linear',
           x: 0,
           y: 0,
           x2: 0,
           y2: 1,
           colorStops: [
                {
                   offset: 0,
                   color: 'rgba(35, 144, 255, 0.6)' // 0% 处的颜色
                },
                {
                   offset: 0.5,
                   color: 'rgba(35, 144, 255, 0.6)' // 50% 处的颜色
                },
                {
                   offset: 1,
                   color: 'rgba(35, 144, 255, 0.6)' // 100% 处的颜色
                }
           ]
        },
        barWidth: 28,
        data: [40, 40, 40, 40, 40, 40],
    },

     {
        name: '白居易',
        type: 'bar',
        //渐变色
        color: {
           type: 'linear',
           x: 0,
           y: 0,
           x2: 0,
           y2: 1,
           colorStops: [
                {
                   offset: 0,
                   color: 'rgba(108, 252, 94,0.6)' // 0% 处的颜色
                },
                {
                   offset: 0.5,
                   color: 'rgba(108, 252, 94,0.6)' // 50% 处的颜色
                },
                {
                   offset: 1,
                   color: 'rgba(108, 252, 94,0.6)' // 100% 处的颜色
                }
           ]
        },
        barWidth: 28,
        barCategoryGap: '40%',  //柱间距, 最后一个bar 设置才生效
        data: [70, 70, 70, 70, 70, 70],
    }
]

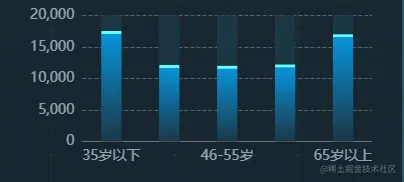

小帽子


    series = [
    {
        type: 'bar',
        barWidth: '35%',
        showBackground: true,
        backgroundStyle: {
            color: '#xxx'  //柱子背景色
        },
        itemStyle: {
             color:  '#xxx' //柱子中间进度颜色
        },
        data: dt
    },
    {
        type: 'pictorialBar',  // 象形柱图
        symbol: 'rect',
        symbolSize: ['50%', 3],
        symbolOffset: [0, -3],
        symbolPosition: 'end',
        itemStyle: {
            color: '#xxx'  //上方帽子颜色
        },
        data: dt  //与上面那个值相同
    }
]

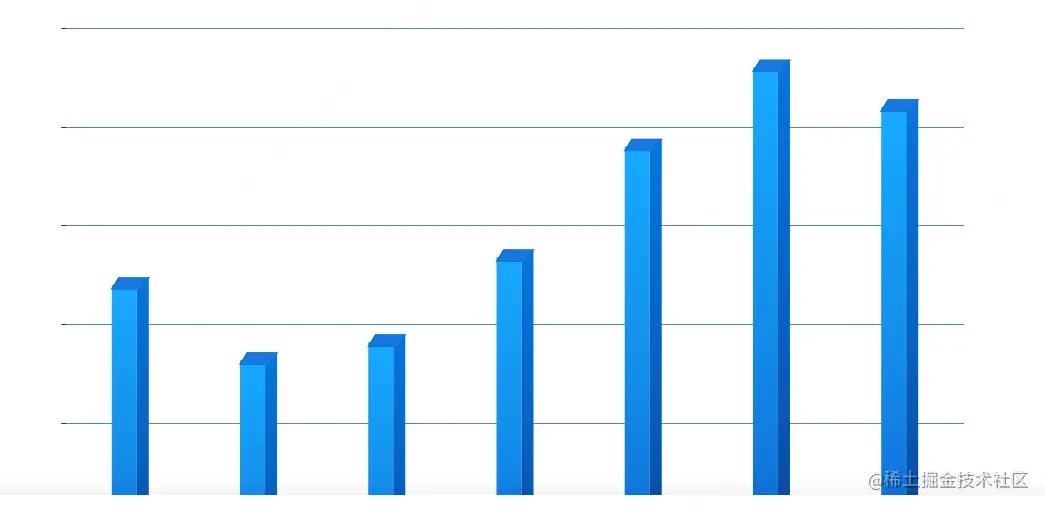

伪3D柱状效果


原理跟上面帽子类似, 需要改变帽子形状, 并且新增一列侧边数据

series = [
    {
        type: 'bar',
        barWidth: 25,
        itemStyle: {},
        data: [...],
        barGap: 0, //不同系列柱子距离
    },
    // 帽子
     {
        type: 'pictorialBar',
        itemStyle: {},
        symbol: 'path://M 0,0 l 120,0 l -30,60 l -120,0 z',
        symbolSize: ['37', '12'],
        symbolOffset: ['-1', '-8'],
        symbolPosition: 'end',
        data: data,
        z: 3
     },
     //侧边列
     {
        type: 'bar',
        barWidth: 12,
        itemStyle: {},
        barGap: 0,
        data: data.mao( item => item+=3)
     }
]

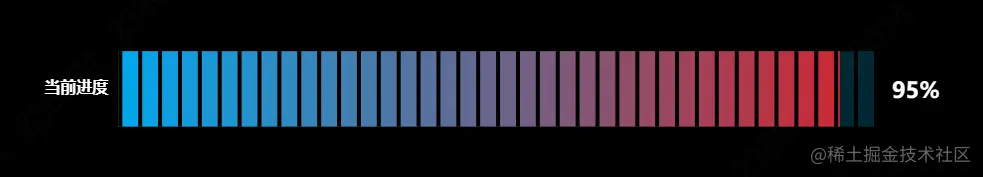

电池效果


series = [
    //里面的小长方形-进度值
    {
        type: 'pictorialBar',
        symbol: 'fixed',
        symbolSize: [7, 10], //小长方形长宽
        symbolMargin: 2,
        symbolRepeat: 'repeat',
        barWidth: 6,
        z: 2,
        itemStyle: {
            color: {...},
        },
        data: [...]
    },

    //底层背景半透明的小长方形
    {
        barWidth: 6,
        type: 'pictorialBar',
        symbol: 'fixed',
        symbolSize: [7, 10],
        symbolMargin: 2,
        symbolRepeat: 'repeat',
        barGap: '-100%',
        itemStyle: {
            color: '#eaeaea',
        },
        data: [total, total, total, total, total],
        z: 1,
    }
]

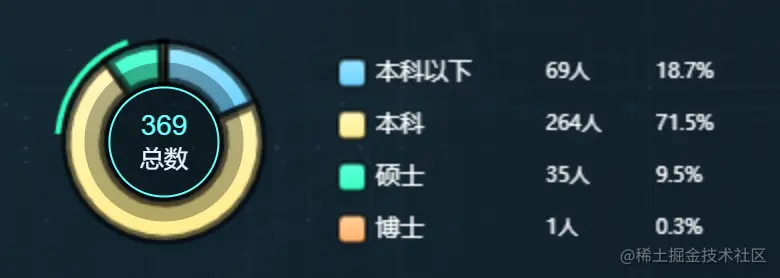

特殊圆环


其中阴影内圈,可以通过变量定位上去

    series = [
        //主环
        {
            type: 'pie',
            hoverAnimation: false,
            color: [...],
            center: ['25%', '50%'],
            radius: ['43%', '70%'],
            avoidLabelOverlap: false,
            label: null,
            emphasis: null,
            labelLine: null,
            itemStyle: {
                borderWidth: 5, // 间距的宽度
                borderColor: 'rgba(0, 0, 0, 0.6)' //背景色
            },
            data: this.series
        },

        //外围狐线
        {
            type: 'pie',
            silent: true,
            z: 1,
            startAngle: 110,
            label: null,
            clockWise: false, //顺时加载
            hoverAnimation: false, //鼠标移入变大
            radius: ['74%', '78%'], //决定狐线宽度
            center: ['25%', '50%'],  //与上面圆环中心要同一个点
            data: [
                {
                    value: 20,
                    itemStyle: {
                        color: '#33ffbb'
                    }
                },
                {
                    value: 90, //决定弧线长度
                    itemStyle: {
                        color: 'rgba(0,0,0, 0)'  //除了这个狐线, 剩下的圆弧全部设成透明
                    }
                }
            ]
        }
    ]

雷达


<div ref="radar"></div>

<script>
    import * as echarts from 'echarts'

    export default {
        computed: {
            indicatorData() {
                return this.list.map(v => {
                    return {
                        name: v.name,
                        min: this.min,
                        max: this.max,
                        //color: ''
                    }
                })
            },
            interval() {
                return (this.max - this.min) / this.splitNumber  //每个指标间隔数
            }
        },
        data() {
            return {
                myChart: null,
                unit: '战力',
                min: 0, //指标线最小值
                max: 100, //指标线最大值
                splitNumber: 4, //指标线刻度
                color: ['#3c90ff', '#fff225', '#24ffdf', '#ff9c3c', '#7536ff'],
                list: [
                    {name: '破坏神', value: 80},
                    {name: '布欧', value: 60},
                    {name: '孙悟空', value: 85},
                    {name: '贝吉塔', value: 80},
                    {name: '大神官', value: 90},
                ],
            }
        },
        methods: {
            //雷达图-外侧虚线
            setgauge(i) {
                return {
                    type: 'gauge',
                    detail: false,
                    splitNumber: 10, //刻度数量
                    radius: '90%', //图表尺寸
                    center: ['50%', '50%'],
                    startAngle: 90 + 72 * i + 18, //开始刻度的角度
                    endAngle: 90 + 72 * (i + 1) - 18, //结束刻度的角度
                    axisLine: null,
                    axisTick: {
                        show: true,
                        lineStyle: {
                            color: '#66ccff',
                            width: 1
                        },
                        length: 6,
                        splitNumber: 1
                    },
                    splitLine: null,
                    axisLabel: null
                }
            },
            // 雷达图中个性化散点设置
            setSpot() {
                var scatterData = []
                this.list.forEach((o, i) => {
                    scatterData.push({
                        value: o.value,
                        itemStyle: {
                            color: this.color[i],
                            borderColor: '#fff',
                            borderWidth: 1,
                            shadowColor: this.color[i],
                            shadowBlur: 8
                        }
                    })
                })
                return scatterData
            },

            init() {
                let option = {
                    polar: {
                        center: ['50%', '50%'],
                        radius: '60%'
                    },
                    tooltip: {
                        trigger: 'item',
                        textStyle: {
                            align: 'left',
                            color: '#fff'
                        },
                        backgroundColor: 'rgba(16, 32, 40, 0.88)',
                        borderRadius: 4,
                        borderColor: '#20749e',
                        formatter: params => {
                            return params.marker + this.list[params.dataIndex].name + '&nbsp; &nbsp; &nbsp;' + params.value + this.unit
                        }
                    },
                    radar: {
                        shape: 'circle',
                        center: ['50%', '50%'],
                        radius: '60%',
                        indicator: this.indicatorData,
                        axisName: {
                            color: '#b7e9fd',
                            fontSize: 12,
                            padding: -12
                        },
                        nameGap: 20,
                        splitNumber: this.splitNumber,
                        splitArea: {
                            // 坐标轴在 grid 区域中的分隔区域,默认不显示。
                            show: true,
                            areaStyle: {
                                // 分隔区域的样式设置。
                                color: ['rgba(27, 50, 66, 0.4)']
                            }
                        },
                        axisLine: {
                            //指向外圈文本的分隔线样式
                            lineStyle: {
                                color: '#5aa3d0'
                            }
                        },
                        splitLine: {
                            lineStyle: {
                                color: 'rgba(99,192,251,0.2)', // 分隔线颜色
                                width: 2 // 分隔线线宽
                            }
                        }
                    },
                    angleAxis: {
                        type: 'category',
                        data: name,
                        minInterval: 1,
                        boundaryGap: false,
                        clockwise: false,
                        axisTick: null,
                        axisLabel: null,
                        axisLine: null,
                        splitLine: null
                    },
                    radiusAxis: {
                        min: this.min,
                        max: this.max,
                        interval: this.interval,
                        splitLine: null,
                        axisTick: null,
                        axisLine: {
                            //指向外圈文本的分隔线样式
                            lineStyle: {
                                color: '#5aa3d0'
                            }
                        },
                        axisLabel: {
                            fontSize: 10,
                            color: '#5aa3d0',
                            align: 'left',
                            margin: -5
                        }
                    },
                    series: [
                        ...this.list.map((item, index) => {
                            return this.setgauge(index)
                        }),
                        {
                            type: 'scatter',
                            coordinateSystem: 'polar', //用极坐标系
                            symbolSize: 8,
                            data: this.setSpot()
                        }
                    ]
                }

                this.$nextTick(() => {
                    this.myChart = echarts.init(this.$refs['radar'])
                    this.myChart.setOption(option)
                })
            }
        }
    }
</script>
