Flink 一 环境搭建，输出wordCount

1. Flink环境搭建

1.1 Flink版本列表：

archive.apache.org/dist/flink/

1.2 选择最新的1.12.2版本进行安装

wget https://archive.apache.org/dist/flink/flink-1.12.2/flink-1.12.2-bin-scala_2.12.tgz

1.3 解压安装

tar -xzf flink-1.12.2-bin-scala_2.12.tgz
./bin/start-cluster.sh

检查是否安装成功：jps -l|grep flink

web UI页面地址：http://192.168.9.226:8081/#/overview

2. wordCount例子

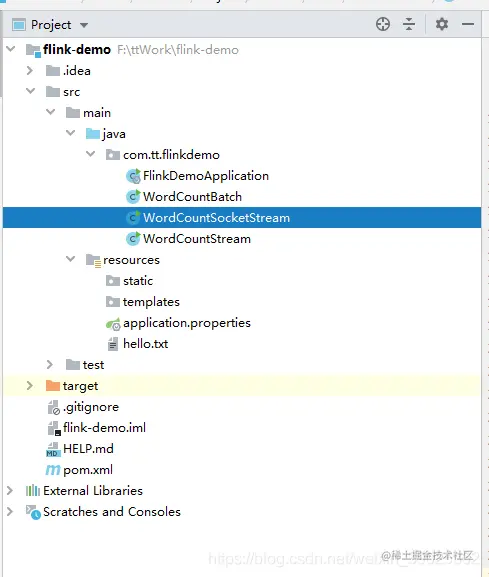

2.1 springboot项目目录结构：

2.2 添加maven依赖：

<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.apache.flink</groupId>
			<artifactId>flink-java</artifactId>
			<version>1.10.0</version>
		</dependency>
		<dependency>
			<groupId>org.apache.flink</groupId>
			<artifactId>flink-streaming-java_2.11</artifactId>
			<version>1.10.0</version>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>

			<plugin>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.6.0</version>
				<configuration>
					<source>1.8</source>
					<target>1.8</target>
				</configuration>
			</plugin>

			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-surefire-plugin</artifactId>
				<version>2.19</version>
				<configuration>
					<skip>true</skip>
				</configuration>
			</plugin>

		</plugins>
	</build>

2.3 示例1：批处理wordCount

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.DataSet;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.util.Collector;

//批处理wordCount
public class WordCountBatch {
    public static void main(String[] args) throws Exception{
        //创建执行环境
        ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();

        //从文件中读取数据
        String filePath = "F:\\ttWork\\flink-demo\\src\\main\\resources\\hello.txt";
        DataSet<String> inputDateSet = env.readTextFile(filePath);

        //分词统计
        DataSet<Tuple2<String, Integer>> sum = inputDateSet.flatMap(new MyFlatMap())
                .groupBy(0)  //第一个位置分组
                .sum(1);//第二个位置汇总
        sum.print();
    }

    //实现flatMap操作
    public static class MyFlatMap implements FlatMapFunction<String, Tuple2<String, Integer>>{

        @Override
        public void flatMap(String s, Collector<Tuple2<String, Integer>> collector) throws Exception {
            //按空格分词
            String[] words = s.split(" ");
            //遍历输出二元组
            for (String word : words){
                collector.collect(new Tuple2<>(word, 1));
            }
        }
    }
}

2.4 示例2：流处理wordCount

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

//流处理wordCount
public class WordCountStream {
    public static void main(String[] args) throws Exception {
        //创建执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //设置并行度
        env.setParallelism(4);

        //从文件中读取数据
        String filePath = "F:\\ttWork\\flink-demo\\src\\main\\resources\\hello.txt";
        DataStream<String> inputDataStream = env.readTextFile(filePath);

        //数据流转换操作
        SingleOutputStreamOperator<Tuple2<String, Integer>> sum = inputDataStream.flatMap(new MyFlatMap())
                .keyBy(0)
                .sum(1);
        sum.print();

        //启动任务
        env.execute();
    }

    //实现flatMap操作
    public static class MyFlatMap implements FlatMapFunction<String, Tuple2<String, Integer>> {

        @Override
        public void flatMap(String s, Collector<Tuple2<String, Integer>> collector) throws Exception {
            //按空格分词
            String[] words = s.split(" ");
            //遍历输出二元组
            for (String word : words){
                collector.collect(new Tuple2<>(word, 1));
            }
        }
    }
}

2.5 示例3：socket流处理wordCount

socket端口输入测试数据

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.utils.ParameterTool;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

//socket流处理wordCount
public class WordCountSocketStream {
    public static void main(String[] args) throws Exception {
        //创建执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //设置并行度
//        env.setParallelism(4);

        ParameterTool parameterTool = ParameterTool.fromArgs(args);
        String host = parameterTool.get("host");
        int port = parameterTool.getInt("port");

        //从socket文本流读取数据
        DataStream<String> inputDataStream = env.socketTextStream(host, port);

        //数据流转换操作
        SingleOutputStreamOperator<Tuple2<String, Integer>> sum = inputDataStream.flatMap(new MyFlatMap())
                .keyBy(0)
                .sum(1);
        sum.print();

        //启动任务
        env.execute();
    }

    //实现flatMap操作
    public static class MyFlatMap implements FlatMapFunction<String, Tuple2<String, Integer>> {

        @Override
        public void flatMap(String s, Collector<Tuple2<String, Integer>> collector) throws Exception {
            //按空格分词
            String[] words = s.split(" ");
            //遍历输出二元组
            for (String word : words){
                collector.collect(new Tuple2<>(word, 1));
            }
        }
    }
}

2.6 将示例三使用flink web ui发送到flink服务器上

输入要运行的类，socket的地址以及端口：

在running jobs页上查看flink程序的执行情况，如各个算子的并行度，接受数据的条数大小等

在task managers页上查看flink的日志输出：
