前言
我们使用 Stack
组件的时候,通常会使用 Positioned
组件来做子组件相对 Stack
的定位,Positioned
通过 top
,bottom
,height
三选二确定垂直方向的位置和尺寸,使用 left
,right
和 width
三选二确定水平方向的位置和尺寸。对应的,我们可以使用 AnimatedPositioned
组件来实现子组件在 Stack
中的移动、尺寸变化等其他效果。实际上,我们在🚀🚀🚀庆祝神舟十三号发射成功,来一个火箭发射动画已经介绍过 AnimatedPositioned
组件了,本篇我们用这个组件构建两个球追逐的动画效果,以便全面了解这个组件的使用。
效果解析
从动图可以看到,蓝色球和橙色球会一先一后沿着白色大圆的左、下、右、上顶点移动,同时在启动切换的时候会有弹入效果。具体实现的逻辑如下:
- 沿着大圆4个点移动效果,我们可以控制球的起始位置就可以搞定了。
- 弹入效果则可以使用
bounceIn
曲线实现。 - 对一先一后的追逐效果,可以设置一个有序的位置数组,一个球的位置是另一个球的下一个位置,可以通过使用不同的下标从位置数组取取位置实现。
- 重复动效的实现:重复动效使用
AnimatedPositioned
的onEnd
触发,每次结束时调用setState
将控制位置的下标加1,就可以实现动画循环的效果了。
代码实现
代码实现如下:
class _AnimatedPositionedDemoState extends State<AnimatedPositionedDemo> {
final roundSize = 200.0;
var ballSize = 50.0;
late List<Offset> animatedOffsets;
int index = 0;
@override
void initState() {
animatedOffsets = [
Offset(0.0, (roundSize - ballSize) / 2),
Offset((roundSize - ballSize) / 2, roundSize - ballSize),
Offset(roundSize - ballSize, (roundSize - ballSize) / 2),
Offset((roundSize - ballSize) / 2, 0.0),
];
super.initState();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('AnimatedPositioned'),
brightness: Brightness.dark,
backgroundColor: Colors.black,
),
backgroundColor: Colors.black,
body: Center(
child: Stack(children: [
ClipOval(
child: Container(
width: roundSize,
height: roundSize,
color: Colors.white,
),
),
AnimatedPositioned(
top: animatedOffsets[index].dy,
height: ballSize,
left: animatedOffsets[index].dx,
width: ballSize,
child: ClipOval(
child: Container(
color: Colors.blue,
),
),
duration: Duration(seconds: 2),
curve: Curves.bounceIn,
onEnd: () {
setState(() {
index = (index + 1) % animatedOffsets.length;
});
},
),
AnimatedPositioned(
top: animatedOffsets[(index + 1) % animatedOffsets.length].dy,
height: ballSize,
left: animatedOffsets[(index + 1) % animatedOffsets.length].dx,
width: ballSize,
child: ClipOval(
child: Container(
color: Colors.orange,
),
),
duration: Duration(seconds: 2),
curve: Curves.bounceIn,
),
]),
),
floatingActionButton: FloatingActionButton(
child: Text(
'走你',
style: TextStyle(
color: Colors.white,
),
textAlign: TextAlign.center,
),
onPressed: () {
setState(() {
index = (index + 1) % 4;
});
},
),
);
}
}
其中关键部分是:
AnimatedPositioned(
top: animatedOffsets[index].dy,
height: ballSize,
left: animatedOffsets[index].dx,
width: ballSize,
child: ClipOval(
child: Container(
color: Colors.blue,
),
),
duration: Duration(seconds: 2),
curve: Curves.bounceIn,
onEnd: () {
setState(() {
index = (index + 1) % animatedOffsets.length;
});
},
),
我们通过 left
和 top
控制了球的起始位置,然后在 onEnd
的时候调用了 setState
更新位置下标来切换球的位置到相邻的下一个顶点。
变化的玩法

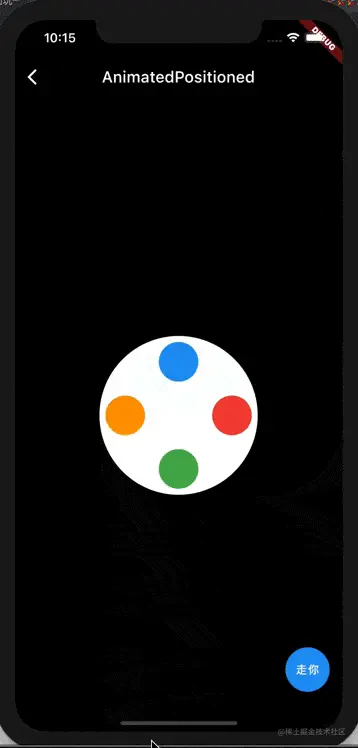

实际上我们可以增加球,调整球移动点位的跨度或位置,实现一些其他有趣的动画。比如下面是4个球,每次2个顶点的跨度(下标每次+2),就会有4个球分别穿到对面的感觉。这个动画的源码已经上传至:动画相关源码。
。
总结
本篇介绍了利用 AnimatedPositioned
实现追逐球动画的效果,通过改变位置、尺寸或颜色都可以做一些有趣的动画来。有兴趣的 Flutter
爱好者也可以做一些其他尝试,搞一些有趣的动画玩玩,这样在 loading
的时候,如果加载是时间长,至少不会让等待的过程那么无聊。
