Flink单元测试

flink的算子分为三种：

• 无状态算子
• 有状态算子
• 定时处理算子（ProcessFunction）

对于不同的算子，单元测试的编写也不一样。下面我们编写一个单词统计Sample，来进行Flink单元测试支持的演示。

**该Flink示例功能就是实现单词计数。**首先自定义一个source不断地发出文本，然后编写代码进行处理解析，最后用滚动窗口每5秒进行一次计算，并放到有状态的存储中。

1. 引入依赖

<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-java</artifactId>
    <version>${flink-version}</version>
</dependency>
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-streaming-java_${scala-version}</artifactId>
    <version>${flink-version}</version>
</dependency>
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-clients_${scala-version}</artifactId>
    <version>${flink-version}</version>
</dependency>
<dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-lang3</artifactId>
    <version>3.1</version>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-api</artifactId>
    <version>1.7.5</version>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-log4j12</artifactId>
    <version>1.7.5</version>
</dependency>

我使用的版本

• flink-version: 1.12.0
• scala-version：2.12

Flink单元测试需要用到其自带的test工具类，工具类分别在org.apache.flink:flink-runtime_2.11:tests:1.10.0 和 org.apache.flink:flink-streaming-java_2.11:tests:1.10.0里面，需要添加classifer：tests。

2.构建持续发送句子的source

public class SentenceSource extends RichSourceFunction<String> {
    private volatile Boolean isCanceled;
    private Random random;
    private static final String[] SENTENCE = {
            "The cat stretched"
            , "Jacob stood on his tiptoes"
            , "The car turned the corner"
            , "Kelly twirled in circles"
            , "She opened the door"
            , "Aaron made a picture"
            , "I am sorry"
            , "I danced"
    };

    @Override
    public void open(Configuration parameters) throws Exception {
        this.isCanceled = false;
        this.random = new Random();
    }

    @Override
    public void run(SourceContext<String> ctx) throws Exception {
        while (!isCanceled) {
            // 随机发送其中一条句子
            int randomIndex = random.nextInt(SENTENCE.length);
            ctx.collect(SENTENCE[randomIndex]);
            TimeUnit.MILLISECONDS.sleep(500);
        }
    }

    @Override
    public void cancel() {
        this.isCanceled = true;
    }
}

3. 实现将句子转换成单词的转换算子（transfer）

public class SentenceToWordFunc extends RichFlatMapFunction<String, String> {
    private static final Logger logger = LoggerFactory.getLogger(SentenceToWordFunc.class);

    @Override
    public void flatMap(String sentence, Collector<String> out) throws Exception {
        if (StringUtils.isEmpty(sentence)) {
            logger.warn("Sentence is empty");
        } else {
            String[] words = sentence.split(" ");
            if (words != null && words.length > 0) {
                for (String word : words) {
                    if (StringUtils.isEmpty(word)) {
                        logger.warn("Word is empty");
                    } else {
                        out.collect(word);
                    }
                }
            } else {
                logger.warn("Sentence is invalid. Sentence is {}.", sentence);
            }
        }
    }
}

4. 实现将单词转换为二元组的转换算子（用于统计单词数）

public class WordToWordCountFunc extends RichMapFunction<String, Tuple2<String, Integer>> {

    @Override
    public Tuple2<String, Integer> map(String word) throws Exception {
        Tuple2<String, Integer> wordCount = Tuple2.of(word, 1);
        return wordCount;
    }
}

5. 实现单词的聚合计算算子（用于窗口计算）

public class WordCountReduceFunc implements ReduceFunction<Tuple2<String, Integer>> {
    @Override
    public Tuple2<String, Integer> reduce(Tuple2<String, Integer> value1, Tuple2<String, Integer> value2) throws Exception {
        return Tuple2.of(value1.f0, value1.f1 + value2.f1);
    }
}

6. 实现使用ReducingState的ProcessWindowFunction算子，用于窗口单词数统计计算

/**
 * TODO
 * 窗口处理：对单词进行聚合计算，并将计算结果保存到 State 中
 */
public class ReduceWordStateWindowFunc
        extends ProcessWindowFunction<Tuple2<String, Integer>, Tuple2<String, Integer>, String, TimeWindow> {
    private static final Logger logger = LoggerFactory.getLogger(ReduceWordStateWindowFunc.class);
    private SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
    // 用于保存单词计算结果状态
    private ReducingState<Tuple2<String, Integer>> reducingState;

    @Override
    public void open(Configuration parameters) throws Exception {
        // 创建一个State的description
        ReducingStateDescriptor<Tuple2<String, Integer>> reducingStateDes = new ReducingStateDescriptor(
                "wordCount",
                new WordCountReduceFunc(), // 聚合计算
                TypeInformation.of(new TypeHint<Tuple2<String, Integer>>() {}));
        reducingState = getRuntimeContext().getReducingState(reducingStateDes);
    }

    @Override
    public void process(
            String s,
            Context context,
            Iterable<Tuple2<String, Integer>> elements,
            Collector<Tuple2<String, Integer>> out)
            throws Exception {
        // 打印窗口window计算时间
        TimeWindow window = context.window();
        logger.info("window触发计算时间：{}", sdf.format(window.getEnd()));
        elements.forEach(item -> {
            try {
                if (reducingState != null) {
                    // 将单词直接放入到状态中即可
                    reducingState.add(item);
                    // 将结果继续输出到下游
                    out.collect(reducingState.get());
                }
            } catch (Exception e) {
                logger.error("add wordCount tuple to reducing state error!", e);
            }
        });
    }
}

7. 主函数, 组装pipeline

public class WordCountTask {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        // 加载自定义数据源
        DataStreamSource<String> source = env.addSource(new SentenceSource());

        // 添加水位线
        SingleOutputStreamOperator<String> watermarksStream = source.assignTimestampsAndWatermarks(
                WatermarkStrategy.<String>forBoundedOutOfOrderness(Duration.ofSeconds(2))
                        .withTimestampAssigner((word, timeStamp) -> System.currentTimeMillis()));

        SingleOutputStreamOperator<String> wordDataStream = watermarksStream.flatMap(new SentenceToWordFunc());

        SingleOutputStreamOperator<Tuple2<String, Integer>> wordsDataSteam =
                wordDataStream.map(new WordToWordCountFunc());

        KeyedStream<Tuple2<String, Integer>, String> keyedStream = wordsDataSteam.keyBy(value -> value.f0);

        // 5秒滚动时间窗口
        WindowedStream<Tuple2<String, Integer>, String, TimeWindow> tumblingWindowedStream =
                keyedStream.window(TumblingEventTimeWindows.of(Time.seconds(5)));
        // 用状态进行聚合计算
        SingleOutputStreamOperator<Tuple2<String, Integer>> resultDataStream =
                tumblingWindowedStream.process(new ReduceWordStateWindowFunc());

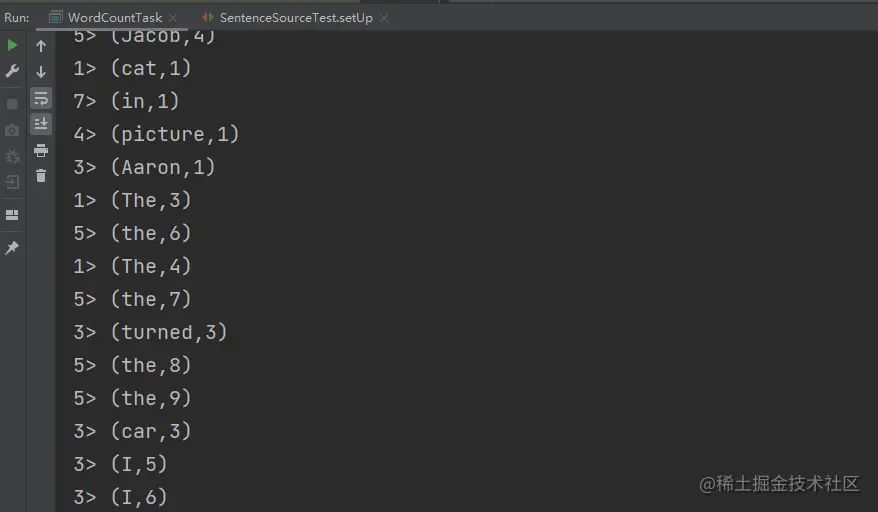

        resultDataStream.print();

        env.execute("wordCount for unit test");
    }
}

一切就绪，回到正题，开始测试

1、对于无状态的算子，可以直接进行测试

SentenceToWordFunc测试

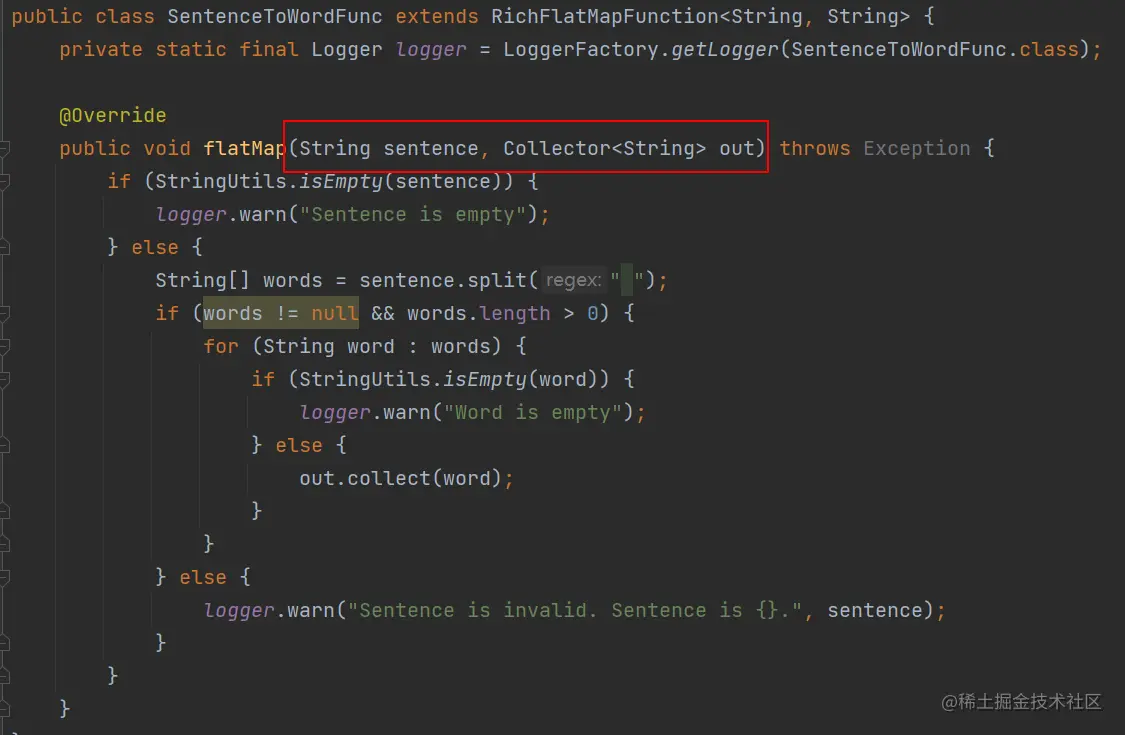

该函数有一个Runtime依赖，即Collector，最容易想到的解决办法是，对它进行mock

private SentenceToWordFunc func;

@Before
public void setUp() throws Exception {
    func = new SentenceToWordFunc();
}

@Test
public void testByMock() throws Exception {
    String sentence = "The cat stretched";
    Collector collector = spy(Collector.class);
    func.flatMap(sentence, collector);

    Mockito.verify(collector, Mockito.times(1)).collect("The");
    Mockito.verify(collector, Mockito.times(1)).collect("cat");
    Mockito.verify(collector, Mockito.times(1)).collect("stretched");
}

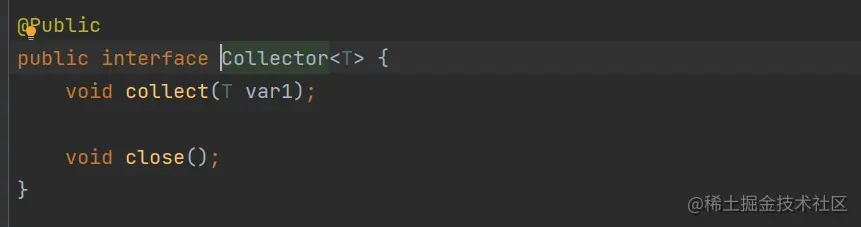

此外，还可以crl+右键，观测一下Collecter的实现

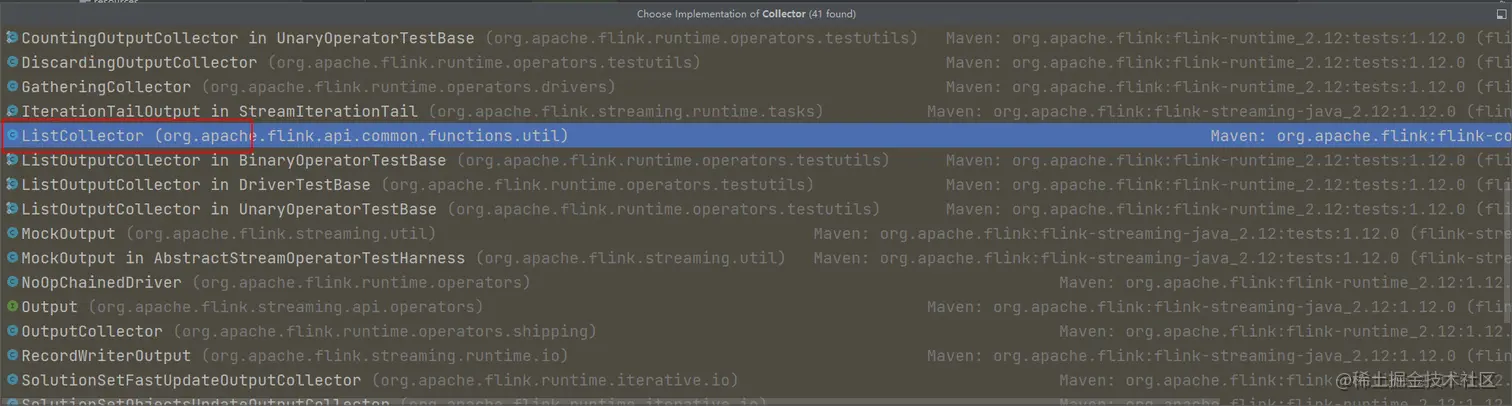

是接口类，那再crl+alt+B观测一下实现类

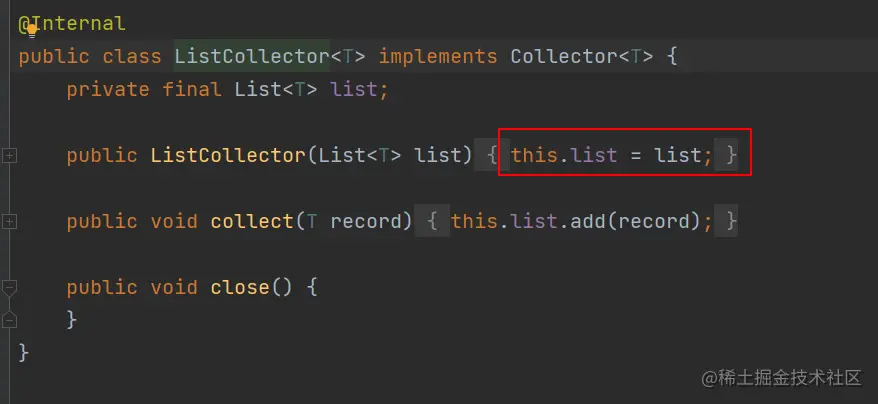

存在一个ListCollector实现类，比较符合我们预期输出形式，点击进去

可以看到，该类的具体实现对象需要传一个List参数，那测试就出来了

private SentenceToWordFunc func;

@Before
public void setUp() throws Exception {
    func = new SentenceToWordFunc();
}

@Test
public void testFlatMap() throws Exception {
    String sentence = "The cat stretched";
    List<String> out = new ArrayList<>();
    ListCollector<String> collector = new ListCollector<>(out);
    func.flatMap(sentence, collector);
    Assert.assertEquals("The", out.get(0));
}

2、source算子的测试

source算子是进行数据的输出，并没有任何回调结果，进行测试的时候需要解决两个问题

1. 使用一个容器或其他类型对数据进行承载（需要实现一sink算子进行写入）
2. 过于庞大的数据或无界流数据，要主动进行截断（运行两个子进程，一进程运行，二进程暂停）

public class SentenceSourceTest extends ReduceWordStateWindowFunc {
    private StreamExecutionEnvironment env;

    @Test
    public void setUp() throws Exception {
        env = StreamExecutionEnvironment.getExecutionEnvironment();
        SentenceSource source = new SentenceSource();
        DataStream<String> dataStream = env.addSource(source);
        dataStream.print();
        env.execute();
    }

    @Test
    public void run() throws Exception {
        env = StreamExecutionEnvironment.getExecutionEnvironment();
        SentenceSource source = new SentenceSource();
        DataStream<String> dataStream = env.addSource(source);
        dataStream.addSink(new CollectSink());
        dataStream.print();
        // 创建执行子线程
        new Thread(
                () -> {
                    try {
                        env.execute();
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                })
                .start();
        TimeUnit.SECONDS.sleep(10);
        // 创建停止执行子线程
        new Thread(
                () -> {
                    source.cancel();
                })
                .start();
        Assert.assertNotNull(CollectSink.VALUES);
    }

    private static class CollectSink implements SinkFunction<String> {
        // must be static
        public static final List<String> VALUES = Collections.synchronizedList(new ArrayList<>());

        @Override
        public void invoke(String value, Context context) throws Exception {
            VALUES.add(value);
        }
    }
}

3. 有状态算子

由于有状态算子设计watermark、window、state ，如果直接使用Mock进行测试的话，具备一定的难度。官方提供了专门的test依赖来进行Flink有状态算子的测试。

<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-test-utils_2.12</artifactId>
    <version>1.12.0</version>
    <scope>test</scope>
</dependency>
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-runtime_2.12</artifactId>
    <version>1.12.0</version>
    <scope>test</scope>
    <classifier>tests</classifier>
</dependency>
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-streaming-java_2.12</artifactId>
    <version>1.12.0</version>
    <scope>test</scope>
    <classifier>tests</classifier>
</dependency>

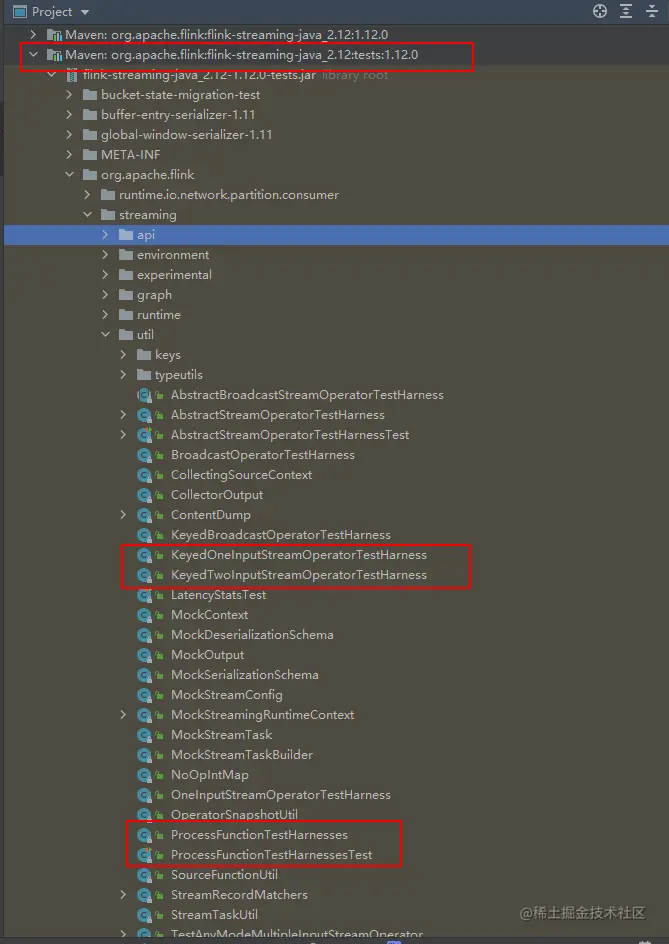

官方提供四个流处理类：

• OneInputStreamOperatorTestHarness（用于给DataStream测试）
• KeyedOneInputStreamOperatorTestHarness（用于给KeyedStreams 测试）
• TwoInputStreamOperatorTestHarness（用于给两个连接的DataStream测试）
• KeyedTwoInputStreamOperatorTestHarness（用于给两个连接的KeyedStream测试）

官方文档里面虽然对该部分列举了一个例子，但该例子并不能很好的兼容我们需要测试的算子，翻阅了各种博客，列举的例子也是参差不全，基本都是以官方文档的例子为中心，并不能给与帮助。这时候我们需要转换查找解决办法思路，查看源码。源码在开发过程，往往也会带有官方自己的测试类。

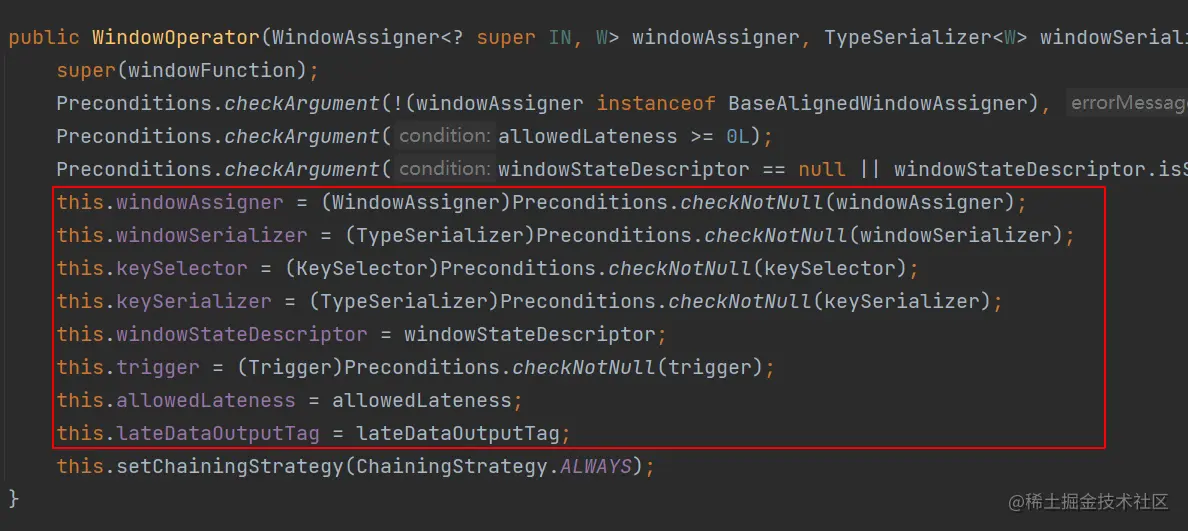

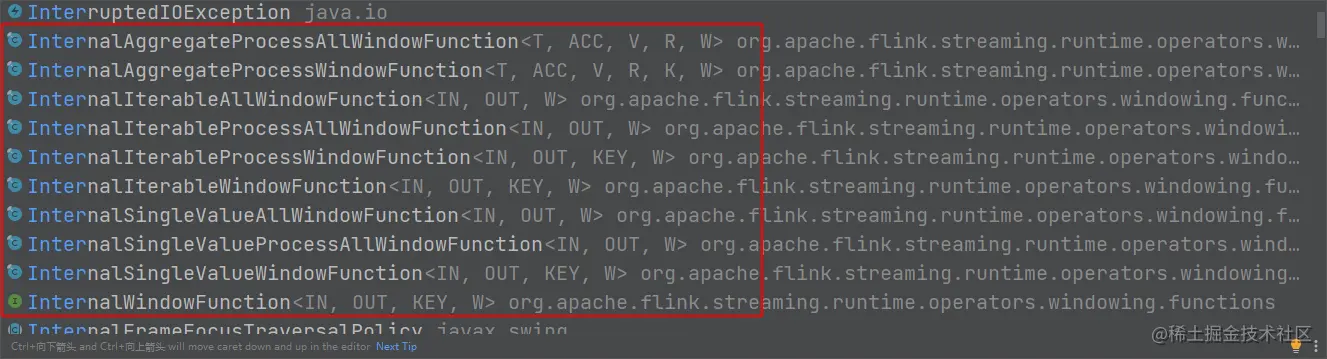

还有stateDecscription，windowOperator等的使用

经过一番折腾后

public class ReduceWordStateWindowFuncTest extends ReduceWordStateWindowFunc {
    private KeyedOneInputStreamOperatorTestHarness<String, Tuple2<String, Integer>, Tuple2<String, Integer>>
            testHarness;

    @Before
    public void setUp() throws Exception {
        ReduceWordStateWindowFunc func = new ReduceWordStateWindowFunc();
        // 创建一个windowState Description
        ReducingStateDescriptor<Tuple2<String, Integer>> stateDescriptor =
                new ReducingStateDescriptor(
                        "windowCount",
                        new WordCountReduceFunc(),
                        TypeInformation.of(new TypeHint<Tuple2<String, Integer>>() {})
                                .createSerializer(new ExecutionConfig()));
        // 构造Operator模拟窗口行为

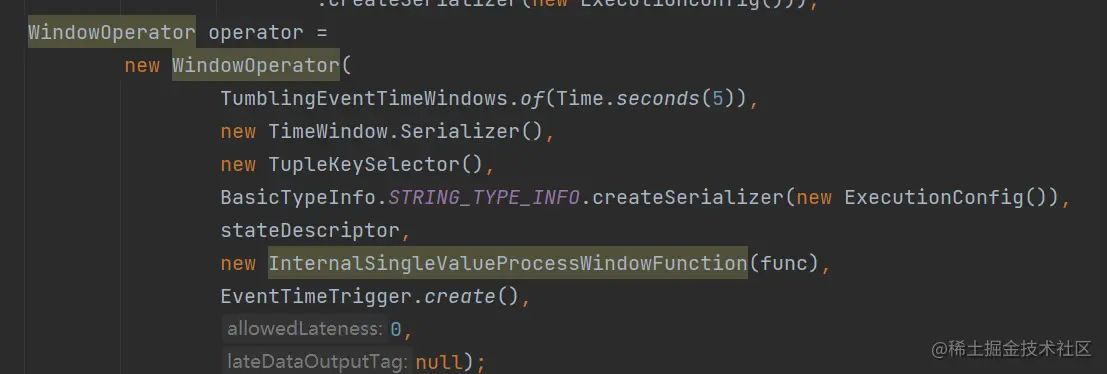

        WindowOperator operator =
                new WindowOperator(
                        TumblingEventTimeWindows.of(Time.seconds(5)),
                        new TimeWindow.Serializer(),
                        new TupleKeySelector(),
                        BasicTypeInfo.STRING_TYPE_INFO.createSerializer(new ExecutionConfig()),
                        stateDescriptor,
                        new InternalSingleValueProcessWindowFunction(func),
                        EventTimeTrigger.create(),
                        0,
                        null);
        testHarness =
                new KeyedOneInputStreamOperatorTestHarness<String, Tuple2<String, Integer>, Tuple2<String, Integer>>(
                        operator, new TupleKeySelector(), BasicTypeInfo.STRING_TYPE_INFO);
        testHarness.open();
    }

    @Test
    public void process() throws Exception {
        testHarness.processElement(Tuple2.of("wordOne", 1), 1000);
        testHarness.processElement(Tuple2.of("wordTwo", 1), 1500);
        testHarness.processElement(Tuple2.of("wordOne", 1), 2000);
        testHarness.processElement(Tuple2.of("wordOne", 1), 4999);
        // 添加水位线，不添加的话，window会继续把数据发送到下游
        testHarness.processWatermark(new Watermark(4999));
        // 存储期望输出
        ConcurrentLinkedQueue<Object> expectedOutput = new ConcurrentLinkedQueue<>();
        expectedOutput.add(new StreamRecord<>(Tuple2.of("wordOne", 3), 4999));
        expectedOutput.add(new StreamRecord<>(Tuple2.of("wordTwo", 1), 4999));
        expectedOutput.add(new Watermark(4999));
        // 校验结果
        TestHarnessUtil.assertOutputEqualsSorted(
                "window计算错误", expectedOutput, testHarness.getOutput(), new Tuple2ResultSortComparator());
    }

   //数据聚合是有Key的，需要一KeySelector
    private static class TupleKeySelector implements KeySelector<Tuple2<String, Integer>, String> {
        private static final long serialVersionUID = 1L;

        @Override
        public String getKey(Tuple2<String, Integer> value) throws Exception {
            return value.f0;
        }
    }

	// 用于断言判断
    private static class Tuple2ResultSortComparator implements Comparator<Object>, Serializable {
        @Override
        public int compare(Object o1, Object o2) {
            if (o1 instanceof Watermark || o2 instanceof Watermark) {
                return 0;
            } else {
                StreamRecord<Tuple2<String, Integer>> sr0 = (StreamRecord<Tuple2<String, Integer>>) o1;
                StreamRecord<Tuple2<String, Integer>> sr1 = (StreamRecord<Tuple2<String, Integer>>) o2;
                if (sr0.getTimestamp() != sr1.getTimestamp()) {
                    return (int) (sr0.getTimestamp() - sr1.getTimestamp());
                }
                int comparison = sr0.getValue().f0.compareTo(sr1.getValue().f0);
                if (comparison != 0) {
                    return comparison;
                } else {
                    return sr0.getValue().f1 - sr1.getValue().f1;
                }
            }
        }
    }
}

因为这里要模拟window的behavior，所以，得模拟一个WindowOpertor来模拟窗口。

WindowOperator的构造参数有9个这么多，在不查看源码测试类的情况下，摸索的时间估计会更长（官方文档并没有该部分的介绍及Demo）

WindowOperator的泛型有4个参数。K – key，表示KeyedStream中进行分流的key类型，我们这里是String。IN – 表示输入的类型，我们将单词转换为元组，所以此处是Tuple2<String, Integer>。文档漏了一个ACC - accumulator，累加，指中间变量的类型，我们这儿还是Tuple2。再下来是OUT – 表示输出的类型，仍然是Tuple2。最后一个W – Window的缩写，我们这里是滚动时间窗口，所以是TimeWindow。

接下来看下构造参数

所需参数：

1. 窗口分配器，我们这里使用的是滚动窗口TumblingEventTimeWindows.of(Time.seconds(5))

2. 窗口序列化器，窗口是一个对象，里面保存了开始时间、结束时间。我们直接用时间窗口的序列化器即可new TimeWindow.Serializer()。

3. KeyedSelector，这个就是从输入中选择key的逻辑。

4. Key类型的序列化器，我们这里使用的是String类型，所以直接使用使用Flink提供的String类型序列化器即可。BasicTypeInfo.STRING_TYPE_INFO.createSerializer(new ExecutionConfig())

5. StateDescriptor，把我们之前构建的对象传进来。

6. InternalWindowFunction，这是一个接口 ，选择符合情况的实现类

7. trigger，我们直接使用Eventtime的trigger即可，即EventTimeTrigger.create()。

8. 是否允许延迟事件，我们此处设置为0，不延迟。

9. sideoutput（侧路输出流）的tag，我们这儿并没有对延迟的数据流进行额外处理，设置为null即可。

ci.apache.org/projects/fl…
